mp-9144/LiAsF6/anharm

Space group: R-3 (148)
Link: Materials Project
Download: mp-9144.tar.gz

Harmonic properties

../../_images/fig_bandos_pr1374.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo1374.png — (b) Thermodynamic properties

Grüneisen parameters

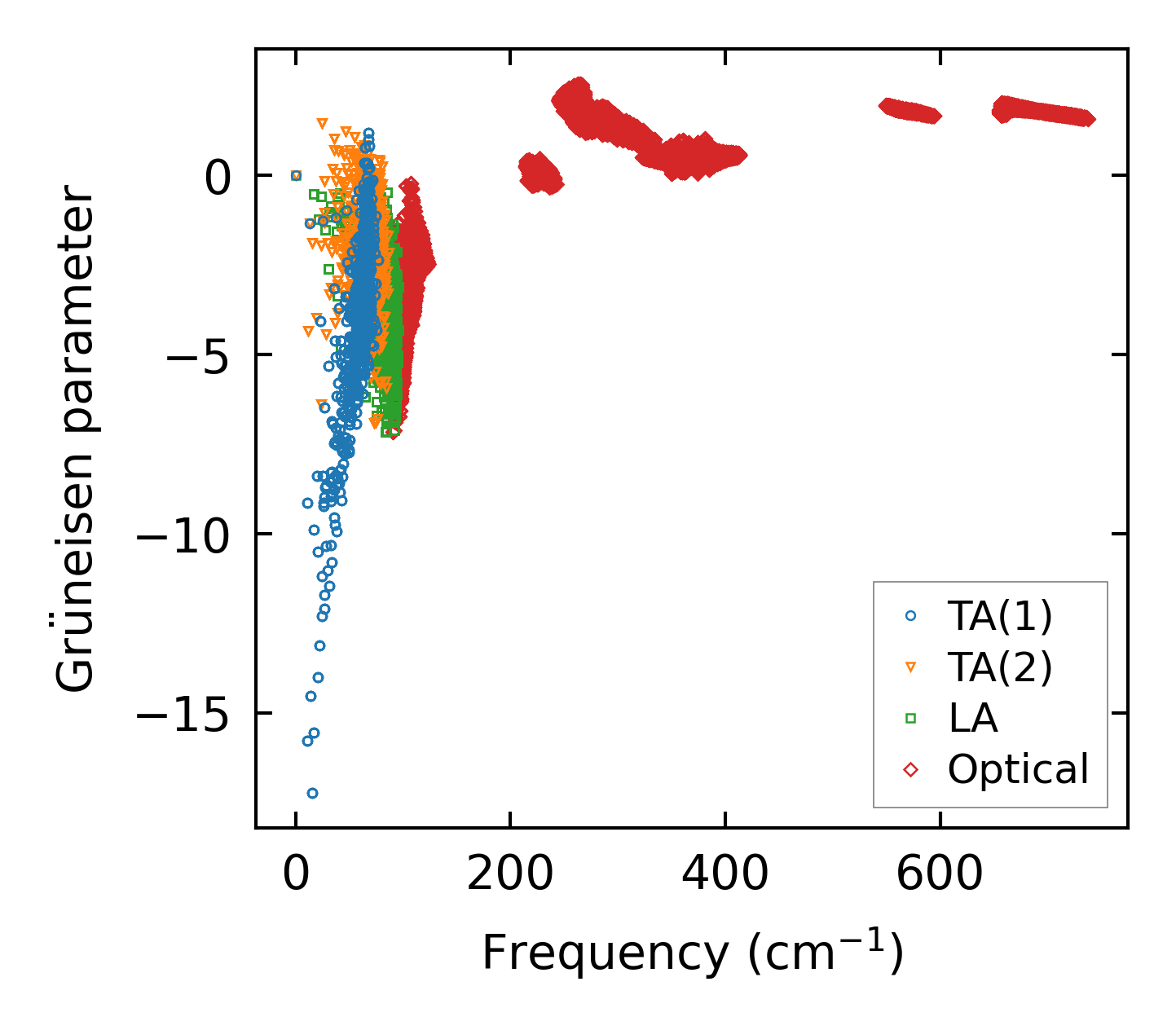

../../_images/fig_gru_all850.png — (a) Grüneisen parameters

../../_images/fig_gruneisen850.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 15x15x15, supercell: 2x2x1

../../_images/fig_kappa1651.png — (a) Temperature-dependent lattice thermal conductivity

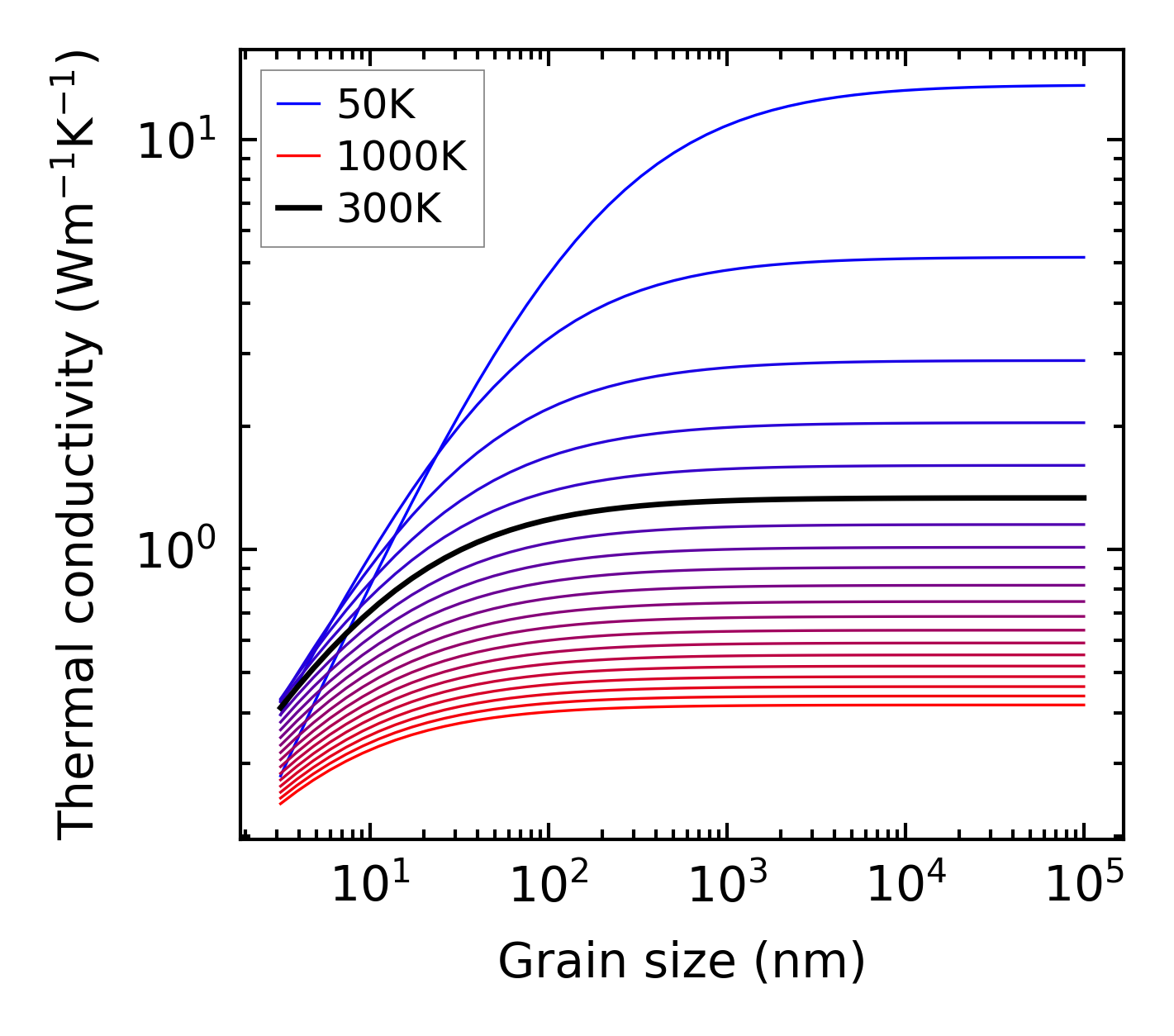

../../_images/fig_kappa_vs_grain_size860.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

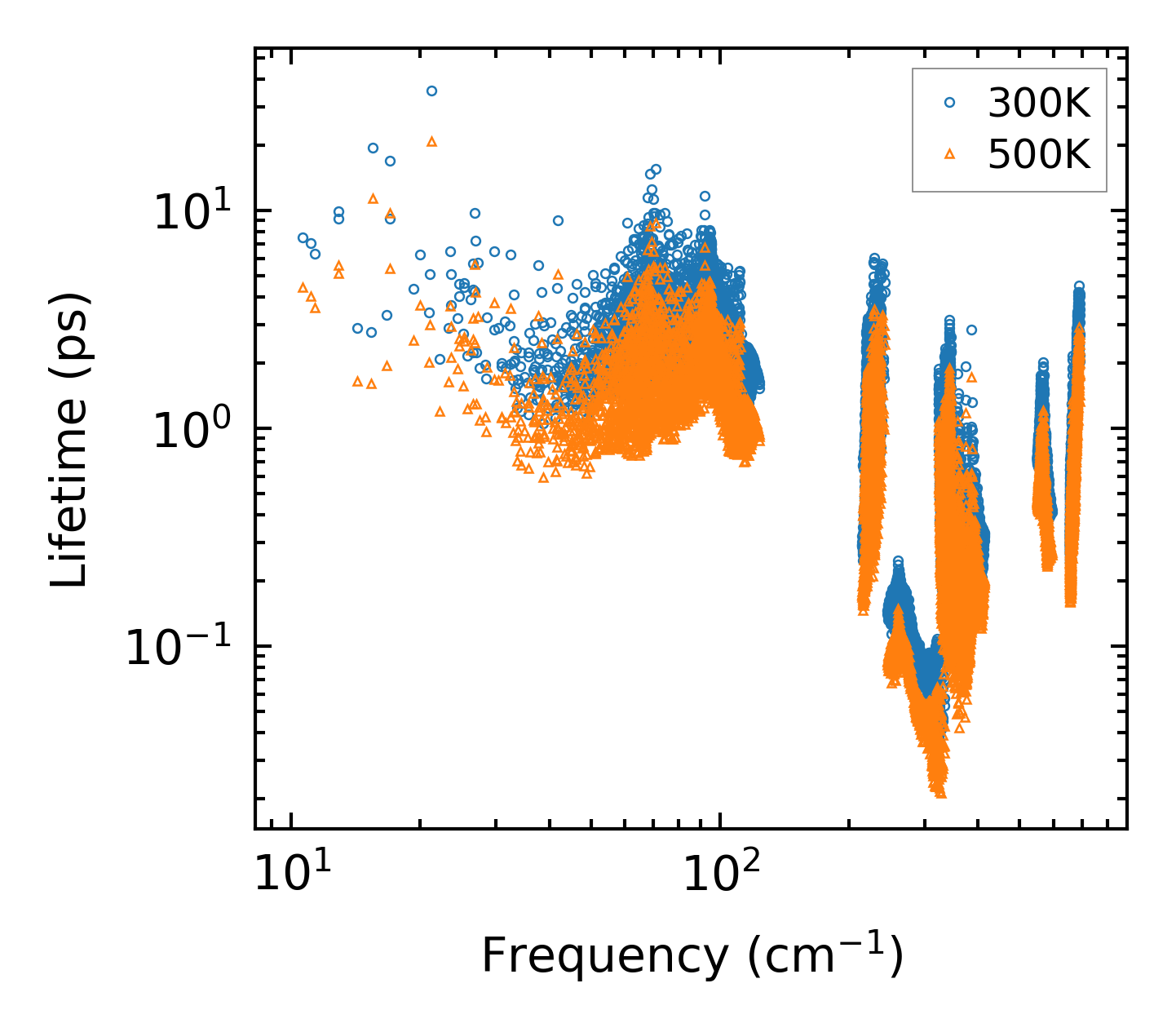

../../_images/fig_lifetime844.png — (a) Phonon lifetime due to phonon-phonon scattering

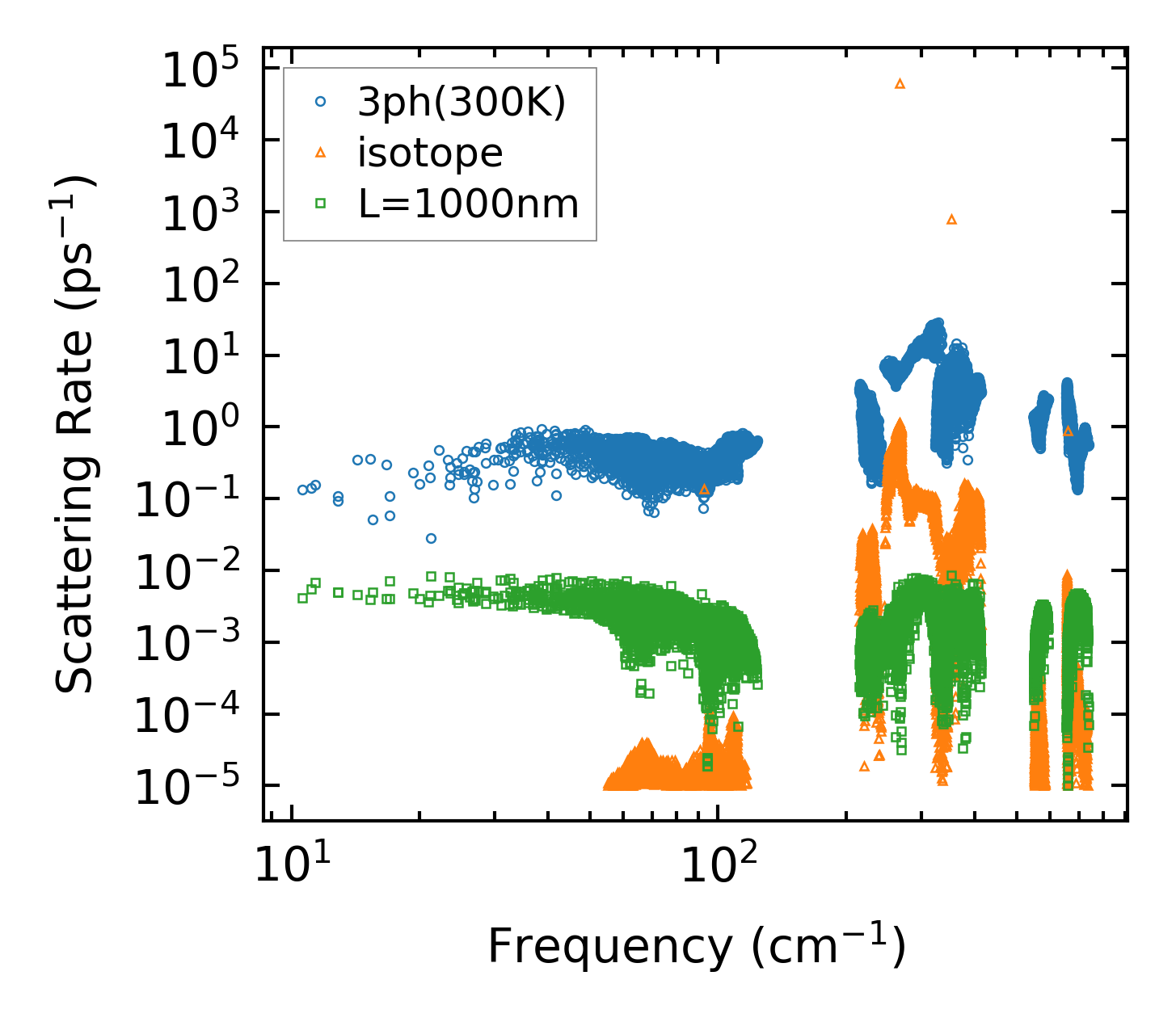

../../_images/fig_scat_rates843.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

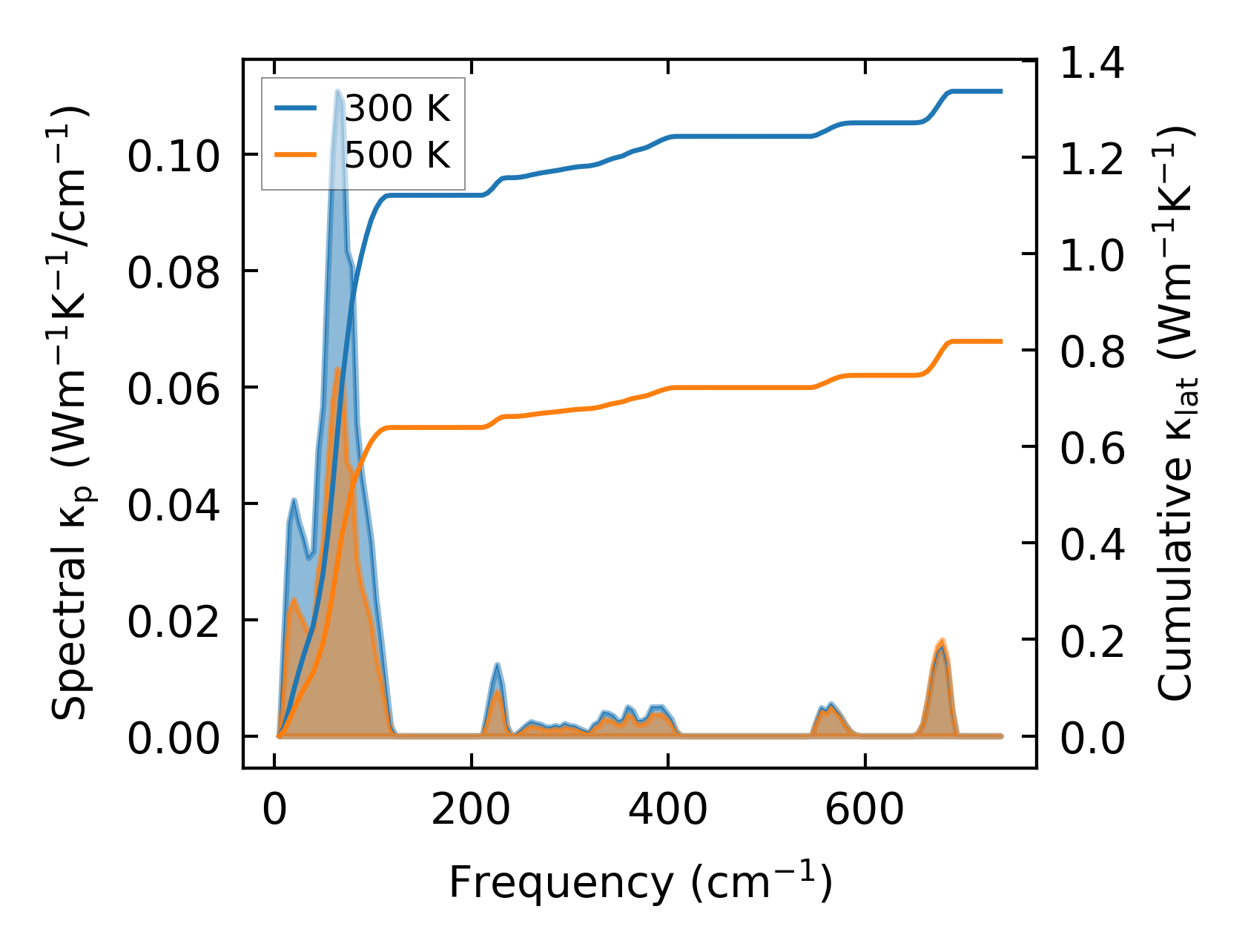

../../_images/fig_cumu_frequency844.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp844.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

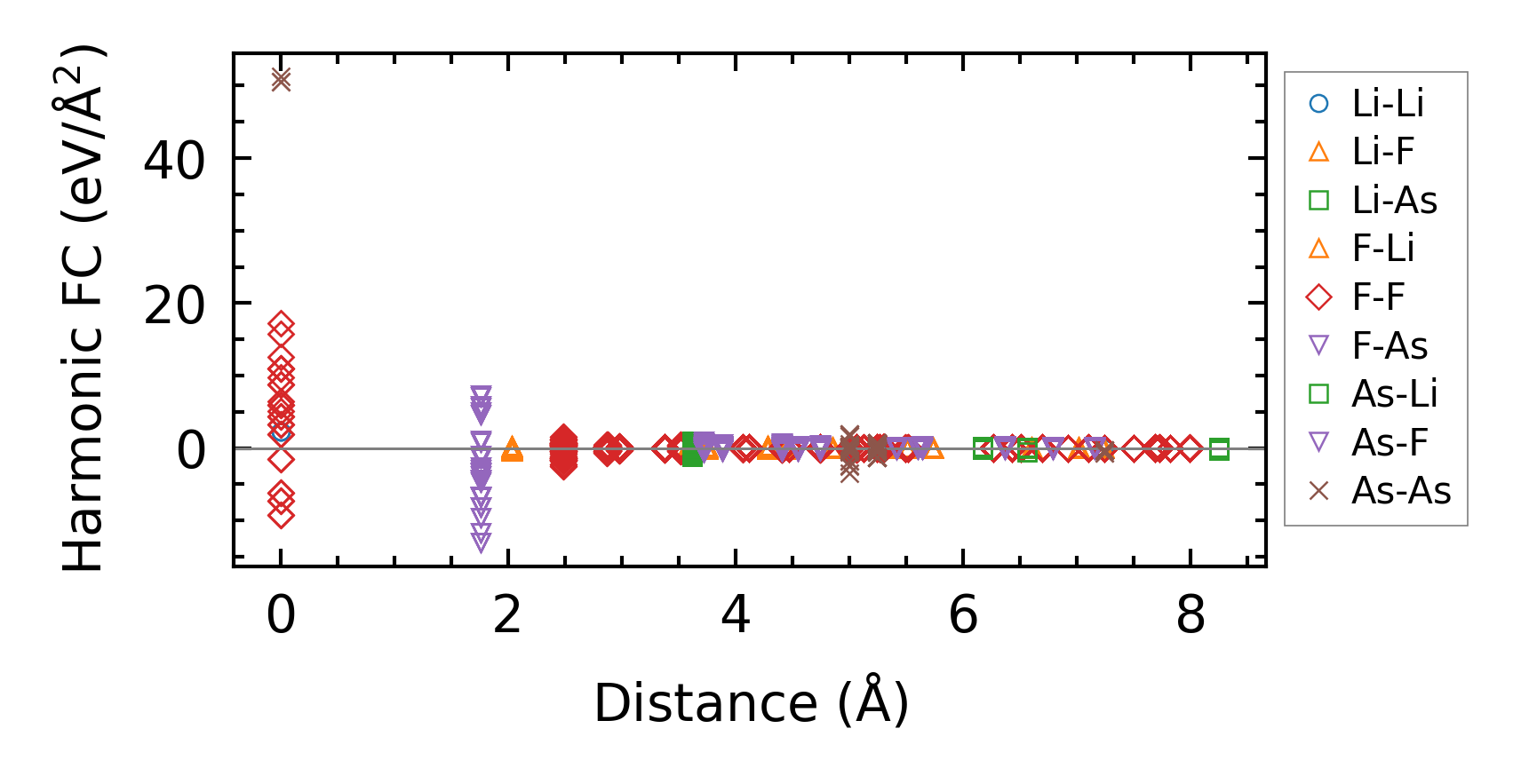

../../_images/fig_fc21228.png — (a) Force constants w.r.t atomic distance

Summary

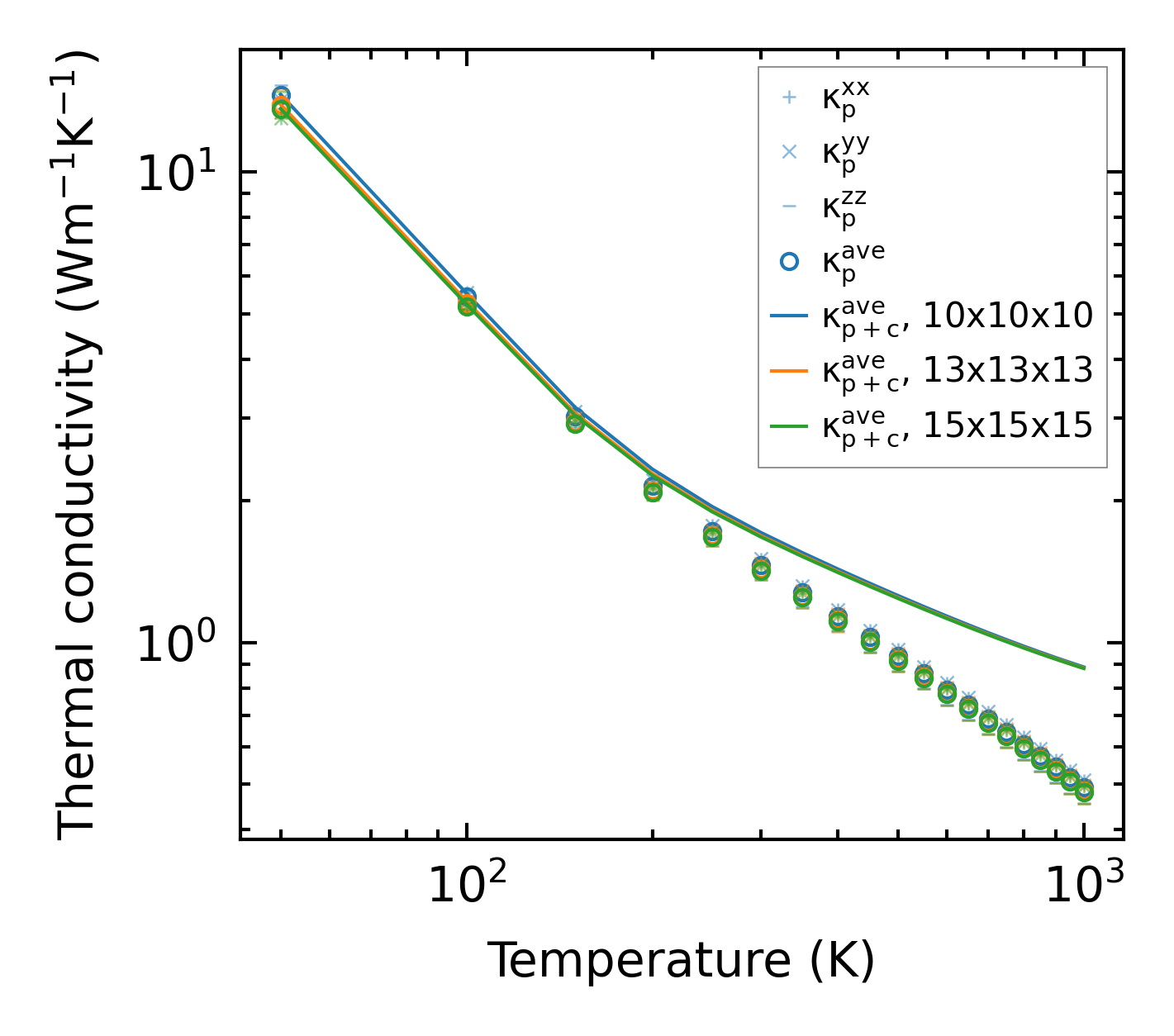

../../_images/fig_kappa1652.png — (a) Temperature-dependent lattice thermal conductivity

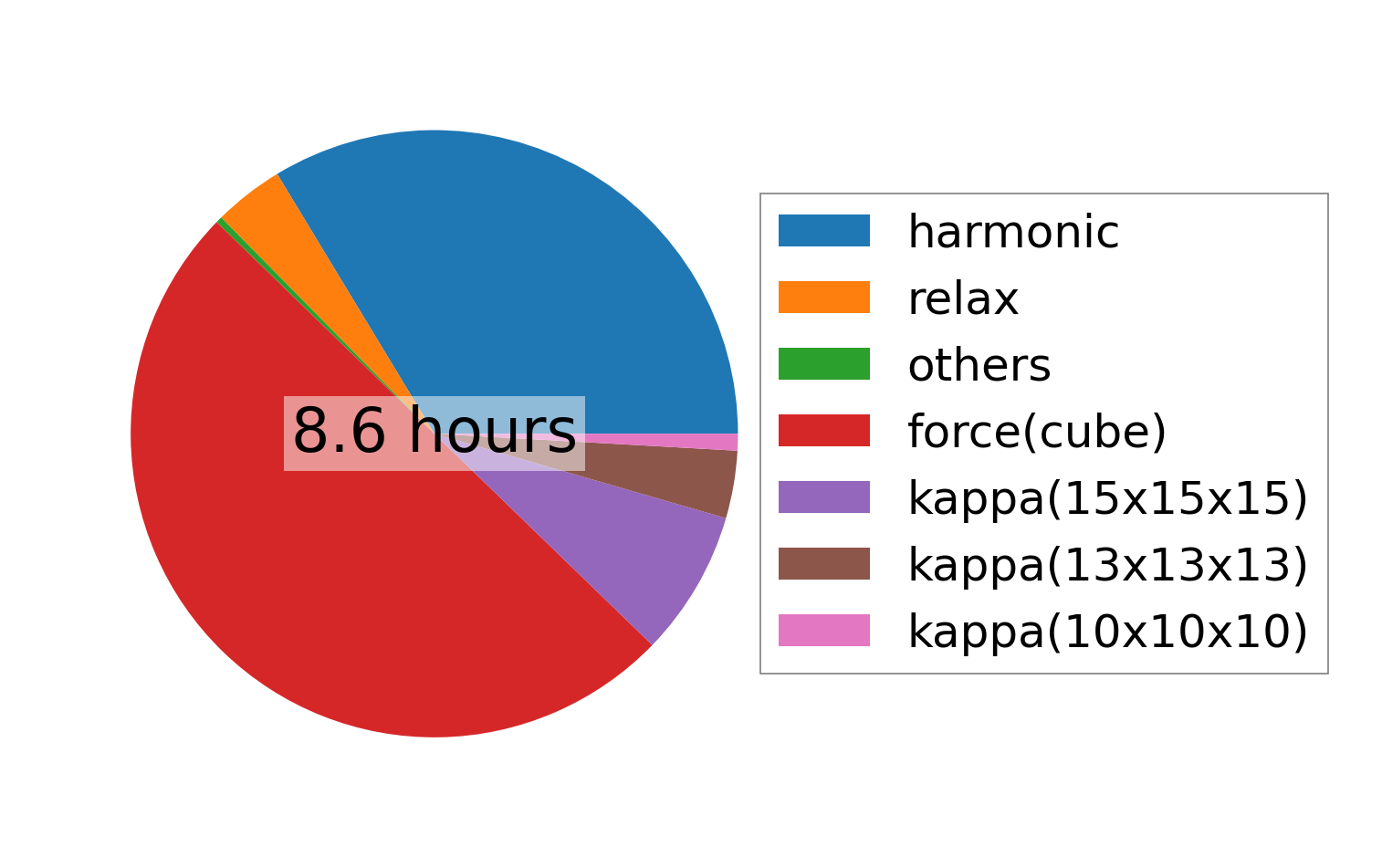

../../_images/fig_times2065.png — (b) Computation time
