mp-9076-2/NaTmS2/anharm

Space group: R-3m (166)
Link: Materials Project
Download: mp-9076-2.tar.gz

Equation of state

../../_images/fig_bm474.png — (a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr1357.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo1357.png — (b) Thermodynamic properties

Grüneisen parameters

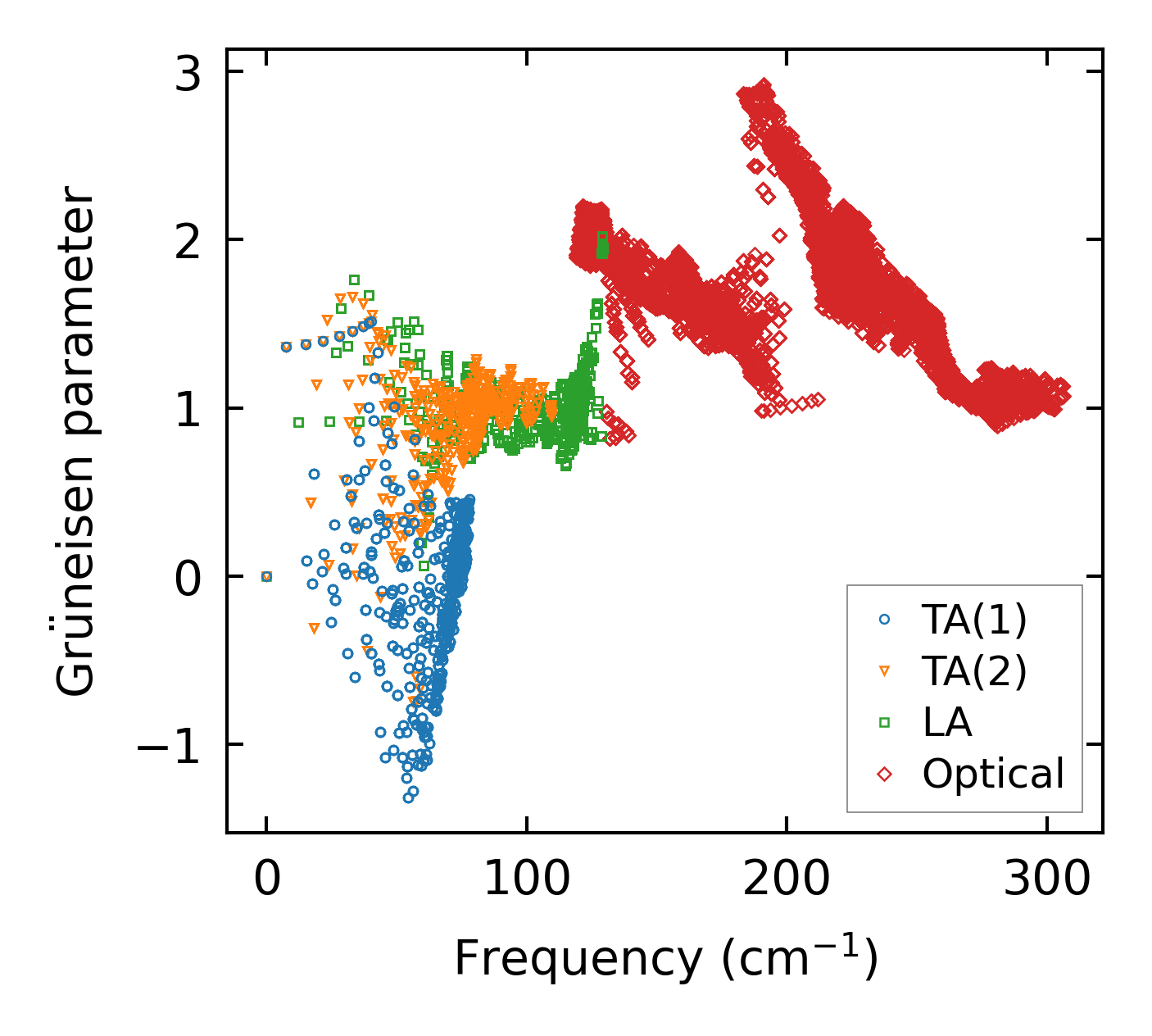

../../_images/fig_gru_all837.png — (a) Grüneisen parameters

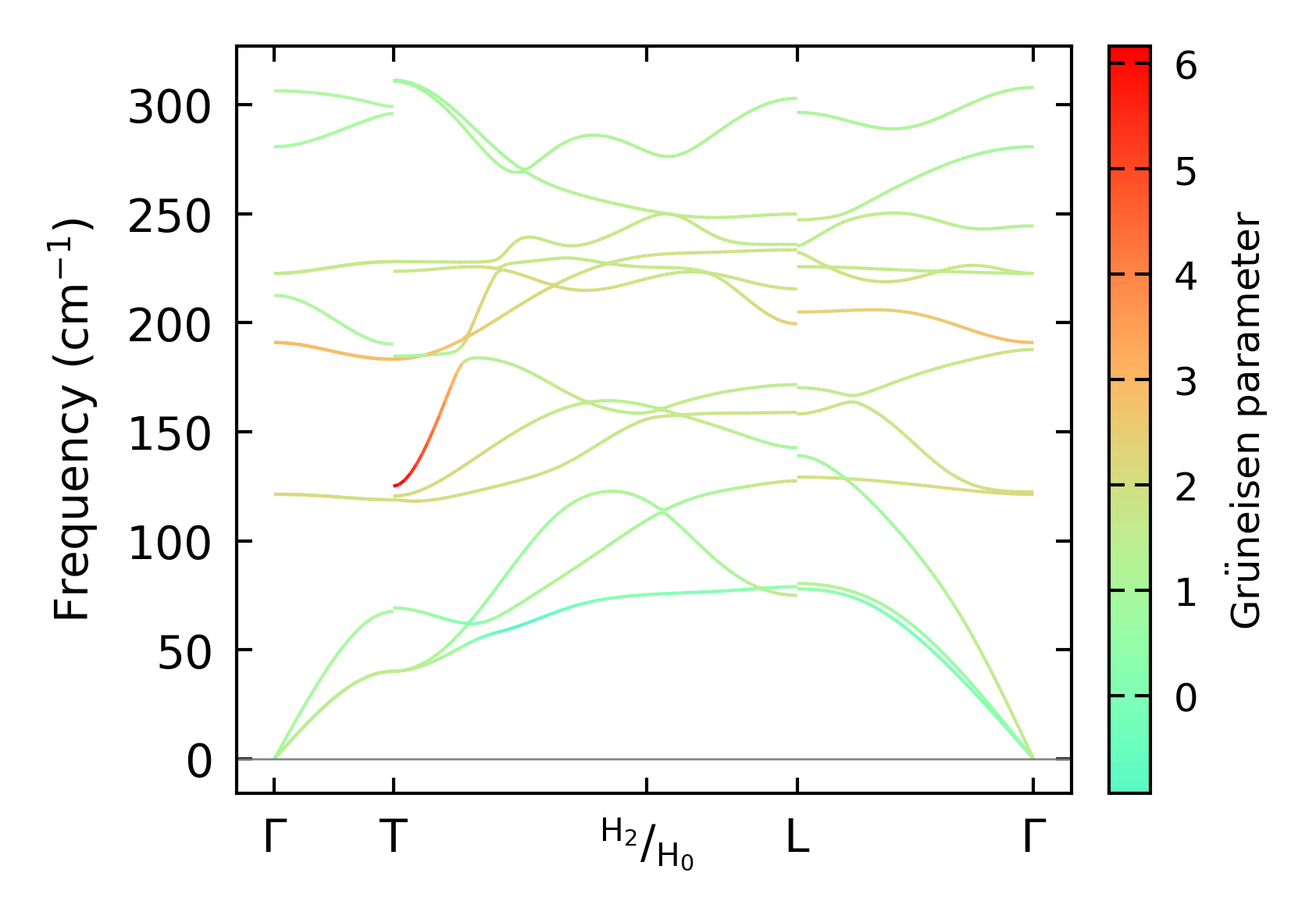

../../_images/fig_gruneisen837.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 16x16x16, supercell: 3x3x1

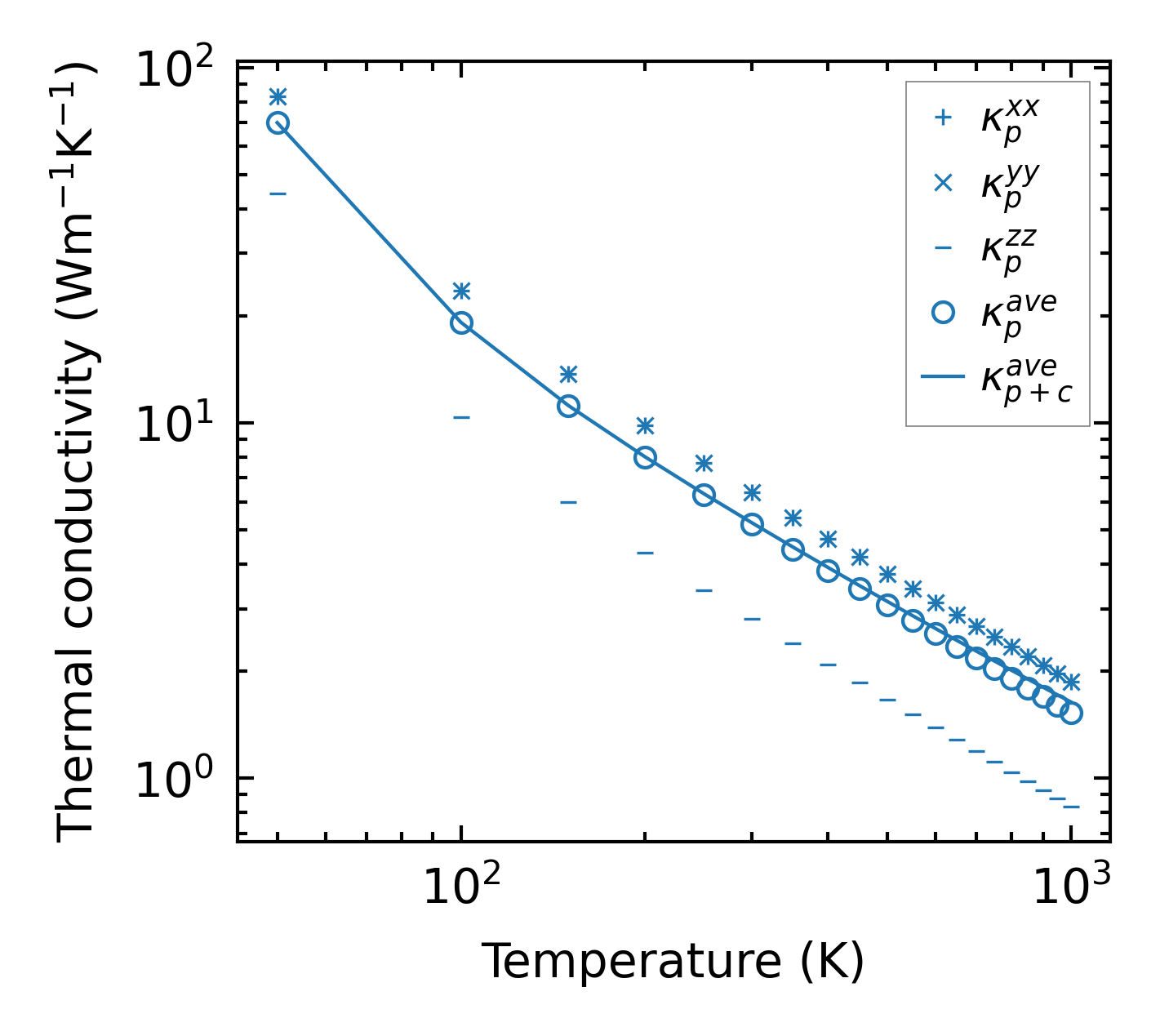

../../_images/fig_kappa1626.png — (a) Temperature-dependent lattice thermal conductivity

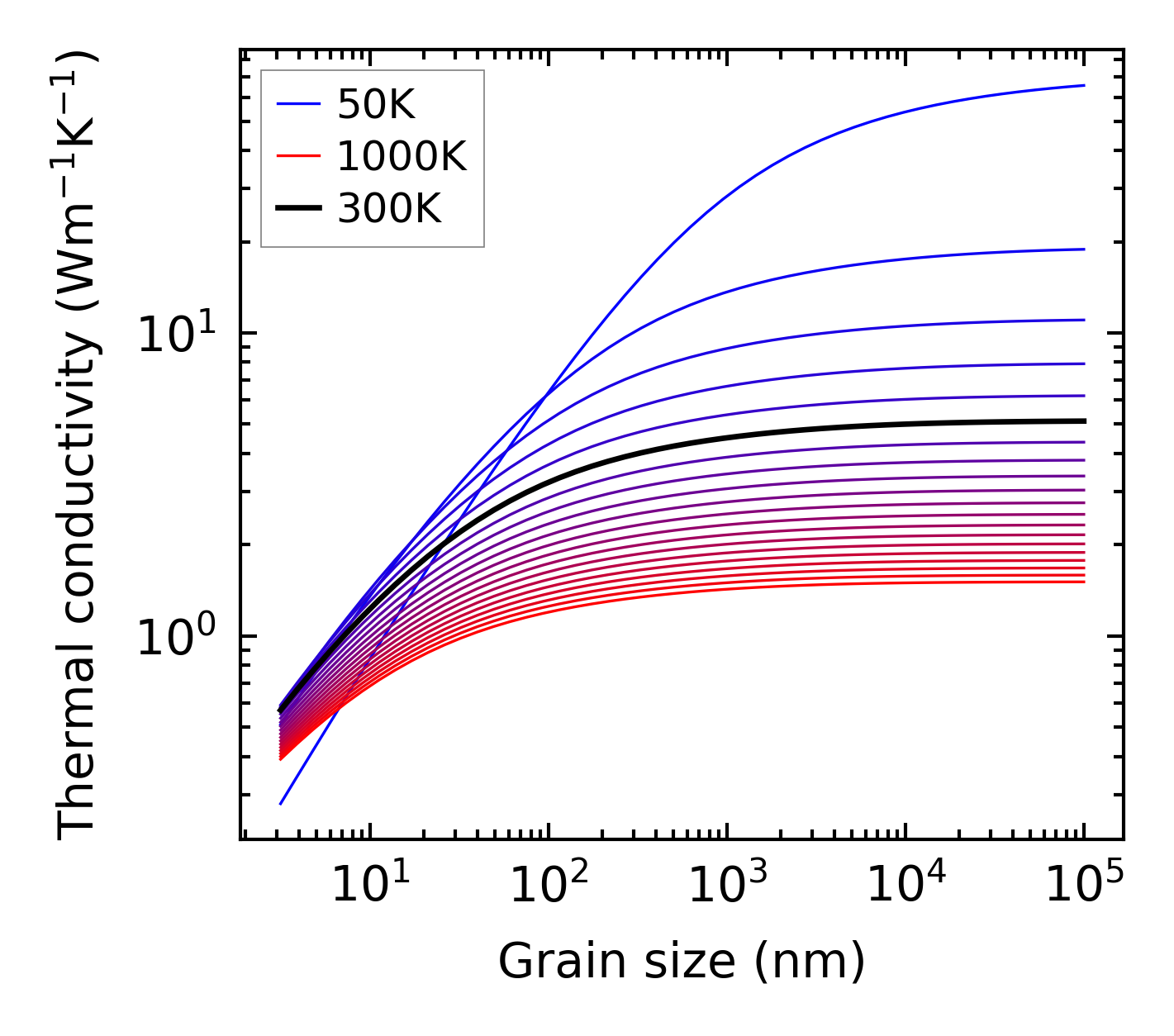

../../_images/fig_kappa_vs_grain_size847.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime831.png — (a) Phonon lifetime due to phonon-phonon scattering

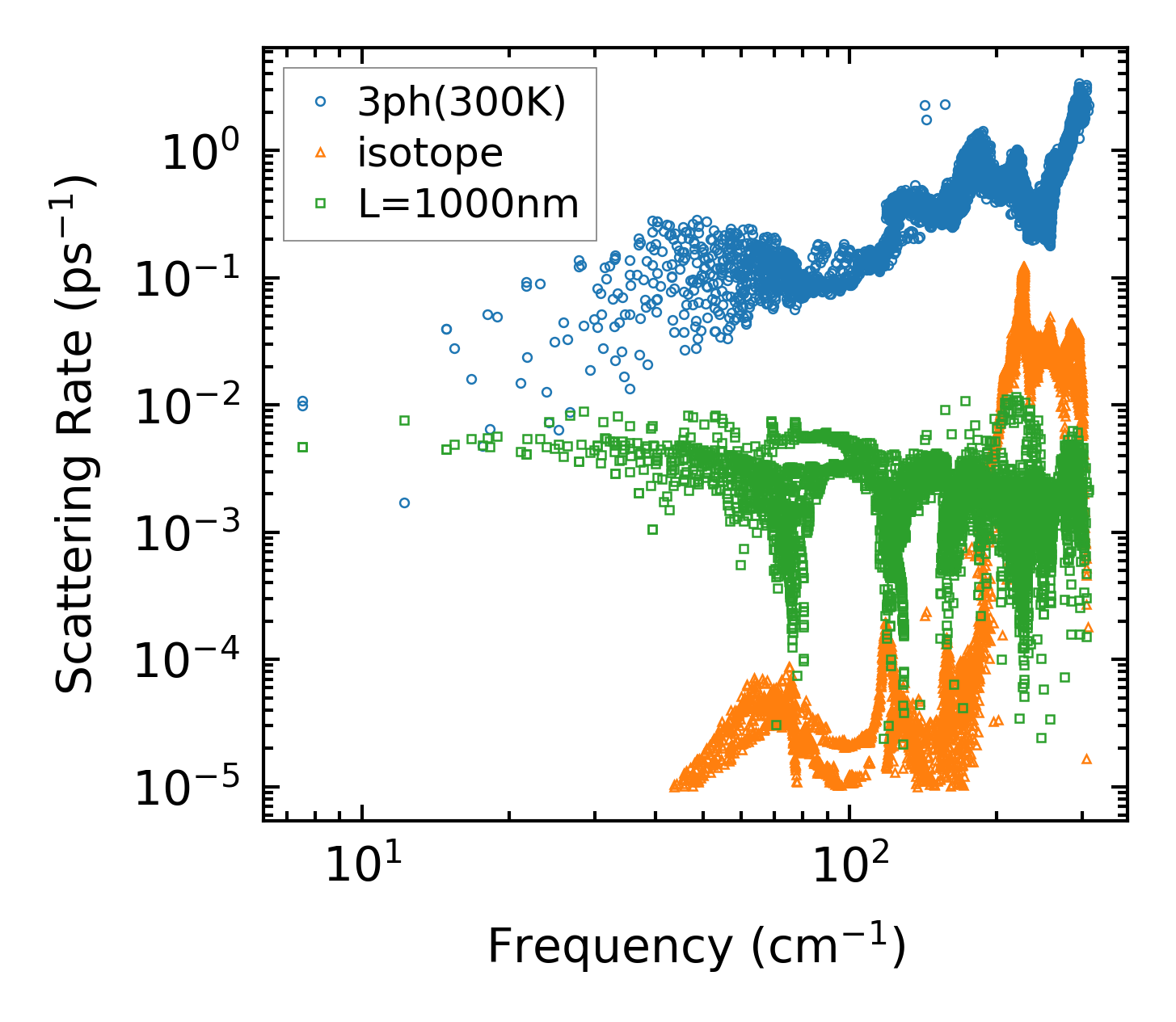

../../_images/fig_scat_rates830.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

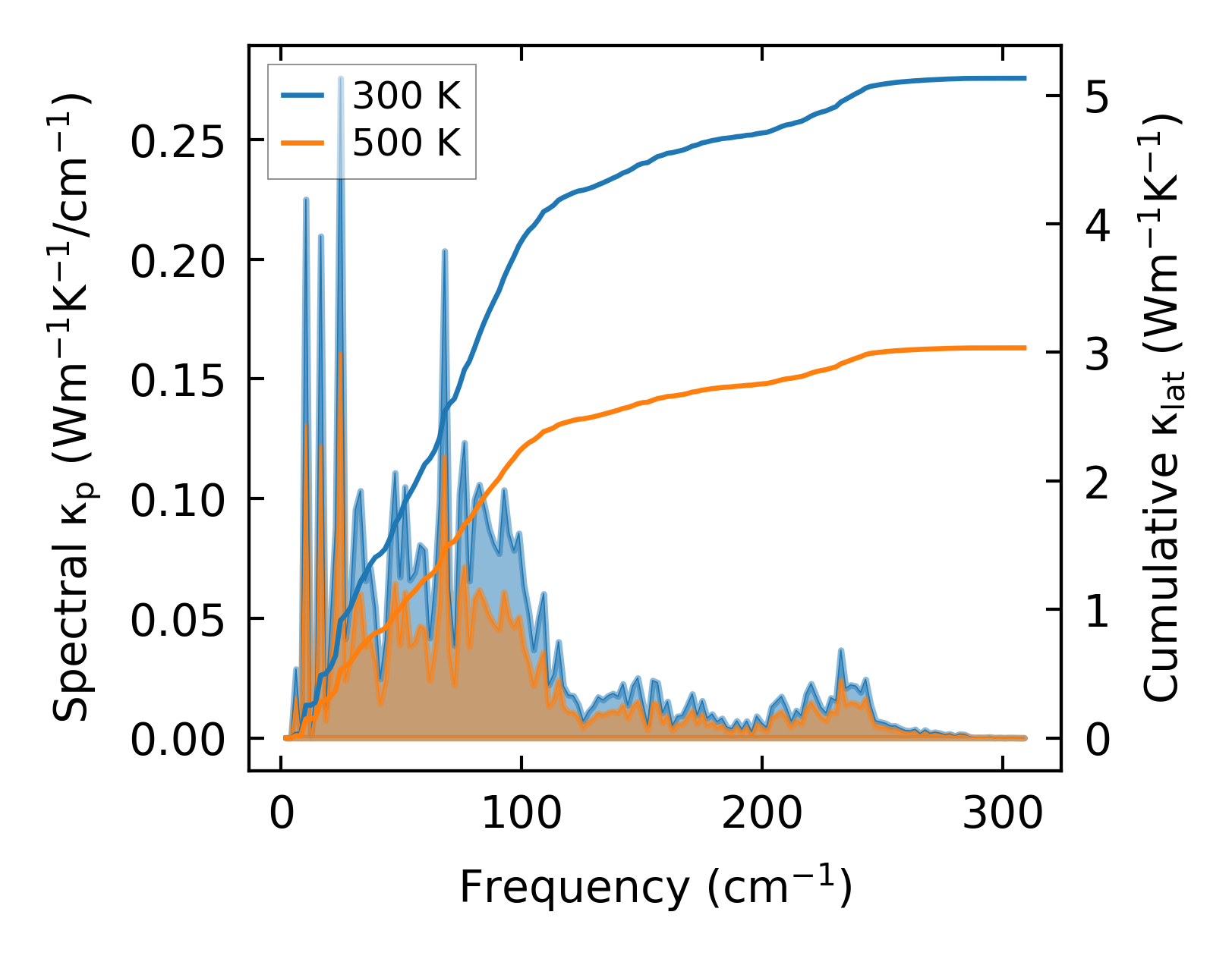

../../_images/fig_cumu_frequency831.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

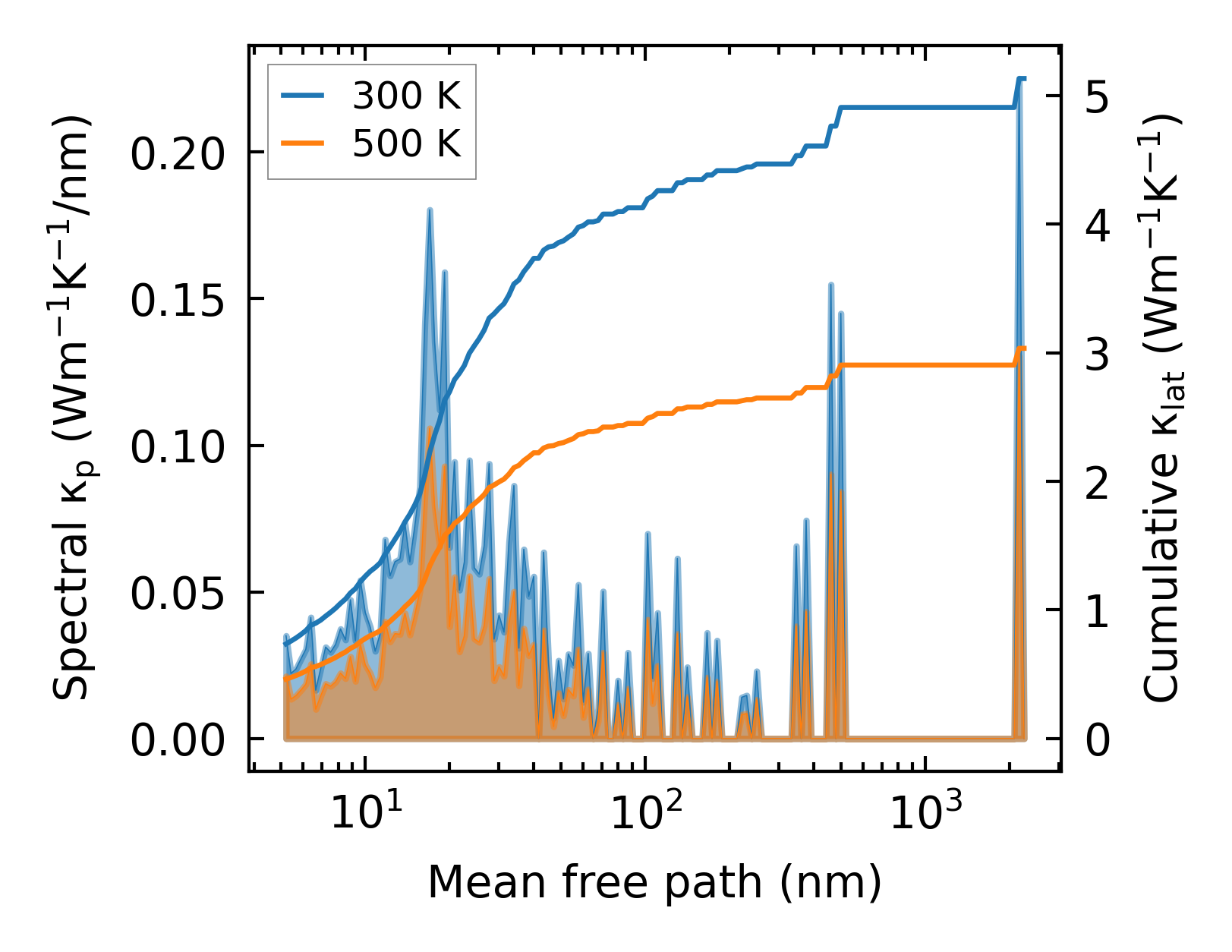

../../_images/fig_cumu_mfp831.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc21212.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa1627.png — (a) Temperature-dependent lattice thermal conductivity

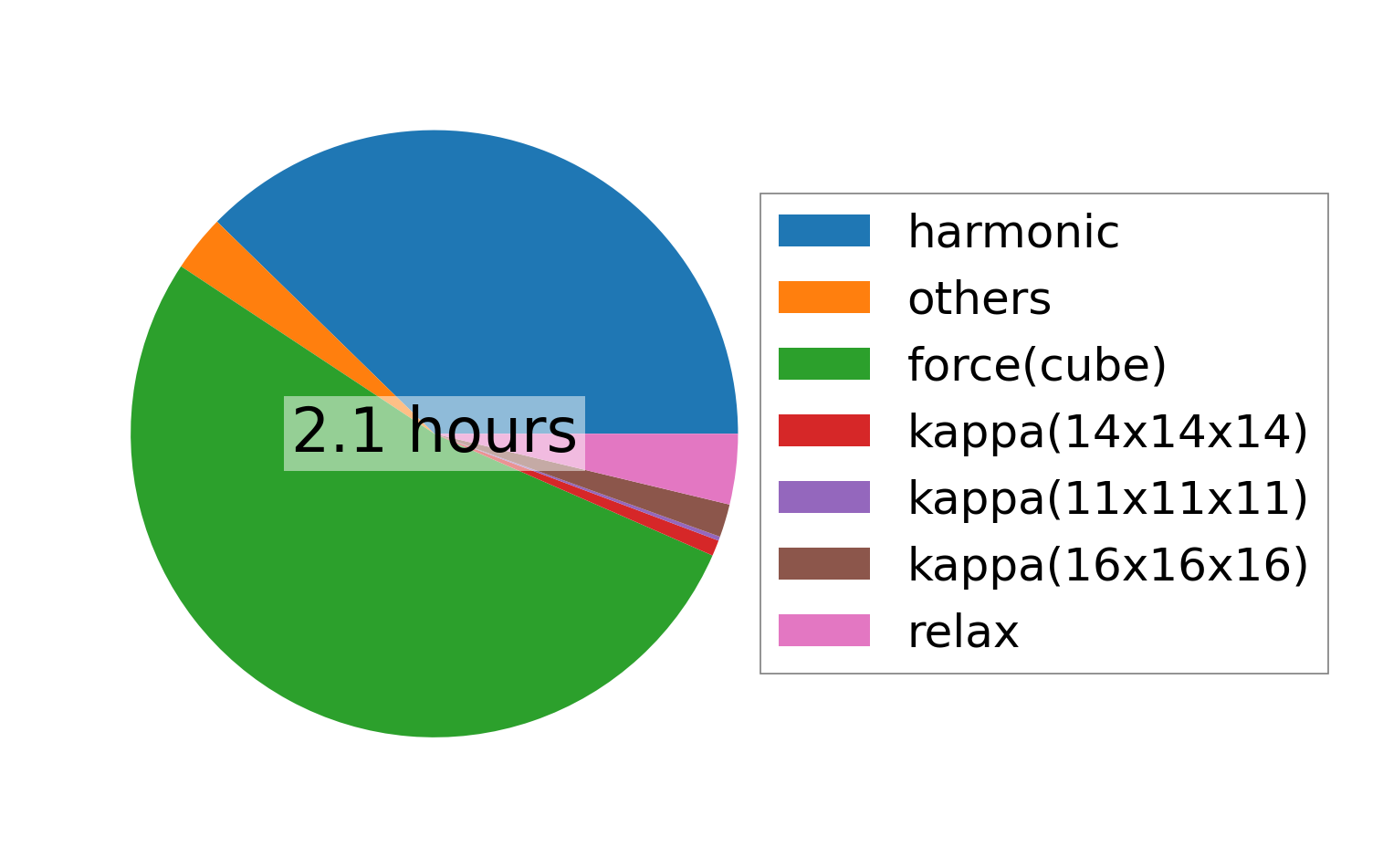

../../_images/fig_times2042.png — (b) Computation time
