mp-9322-2/Rb2Sn2Se5/anharm

Space group: C2/c (15)
Link: Materials Project
Download: mp-9322-2.tar.gz

Equation of state

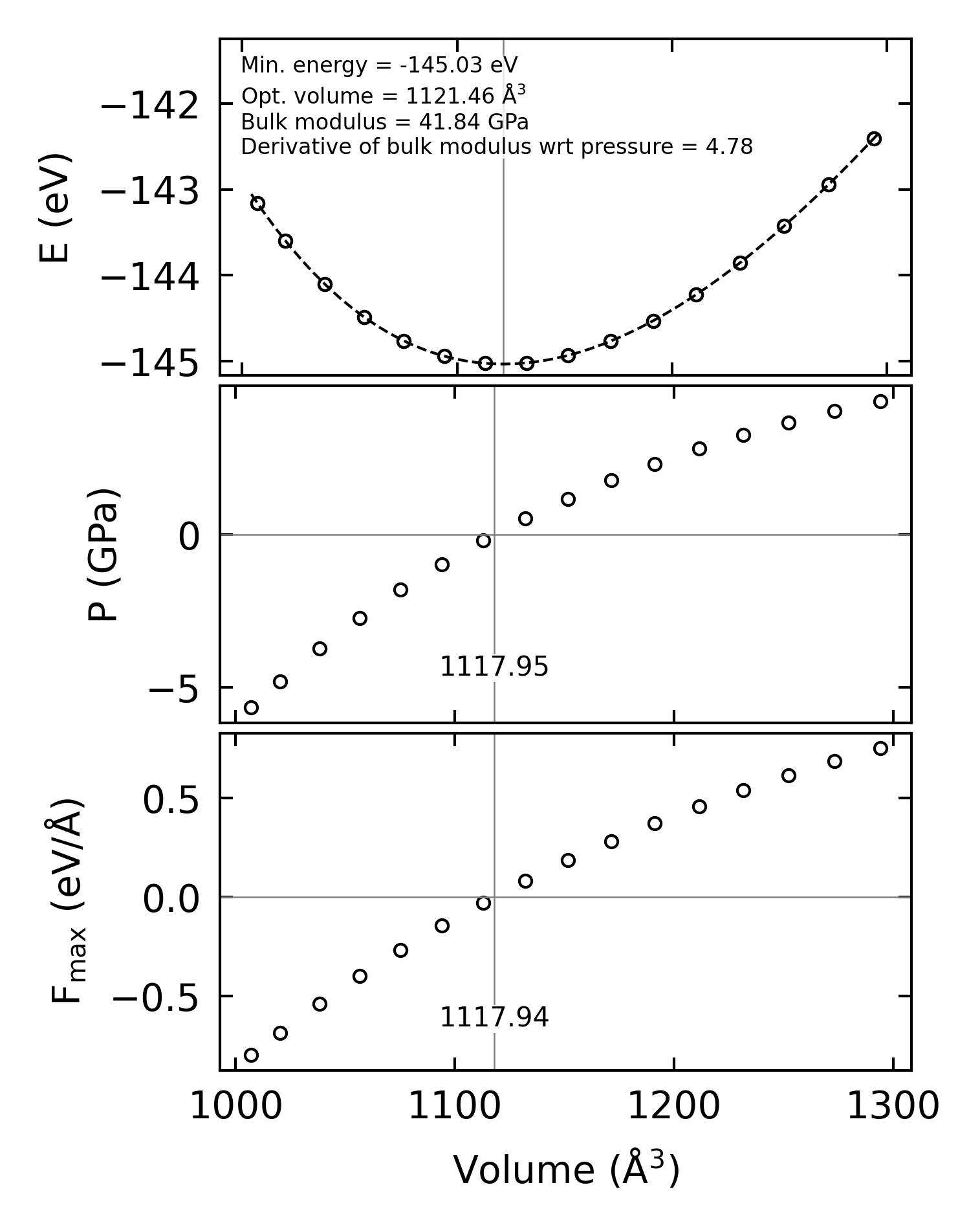

../../_images/fig_bm514.png — (a) Equation of state

Harmonic properties

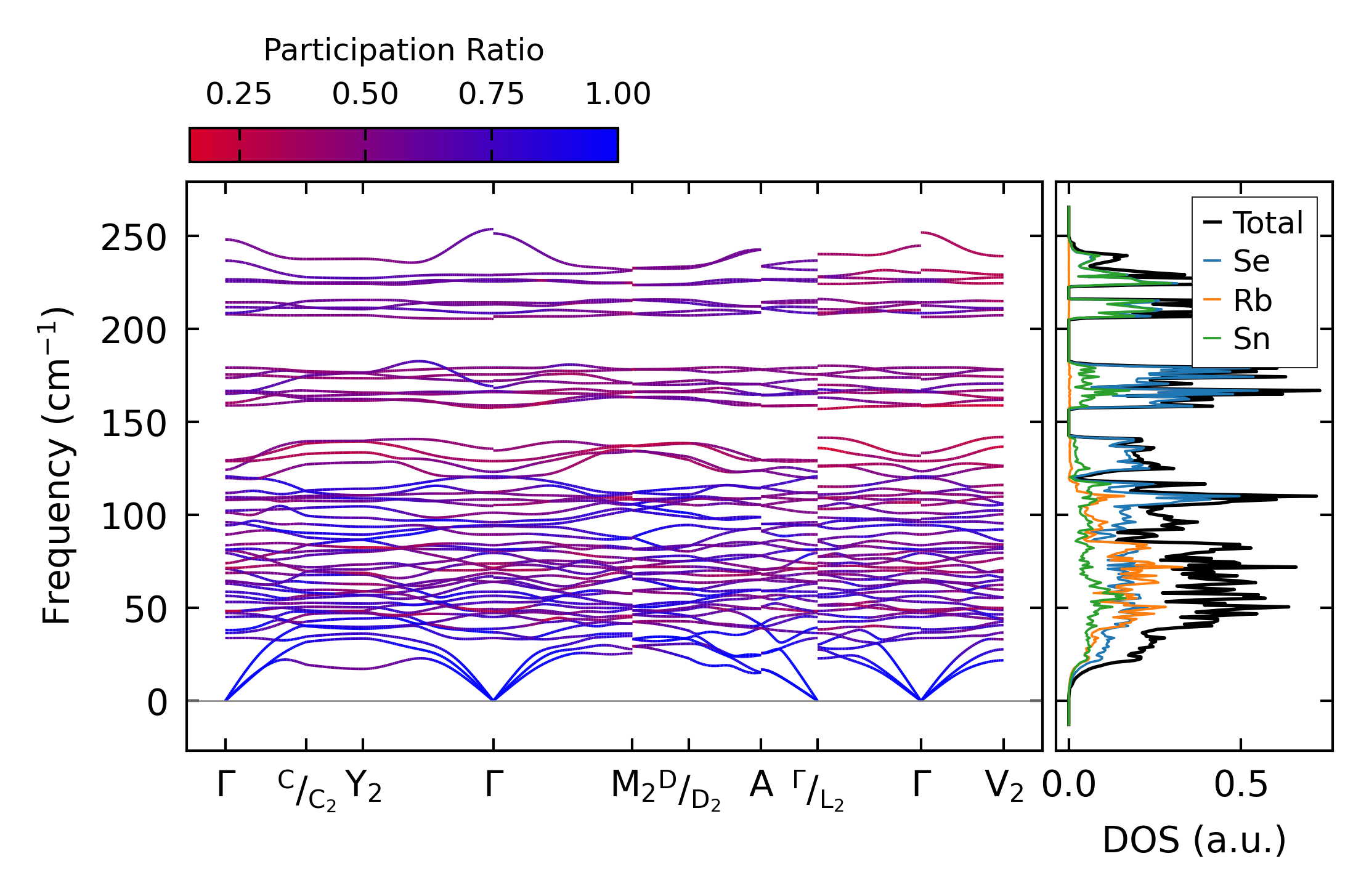

../../_images/fig_bandos_pr1439.png — (a) Phonon dispersion with participation ratio and DOS

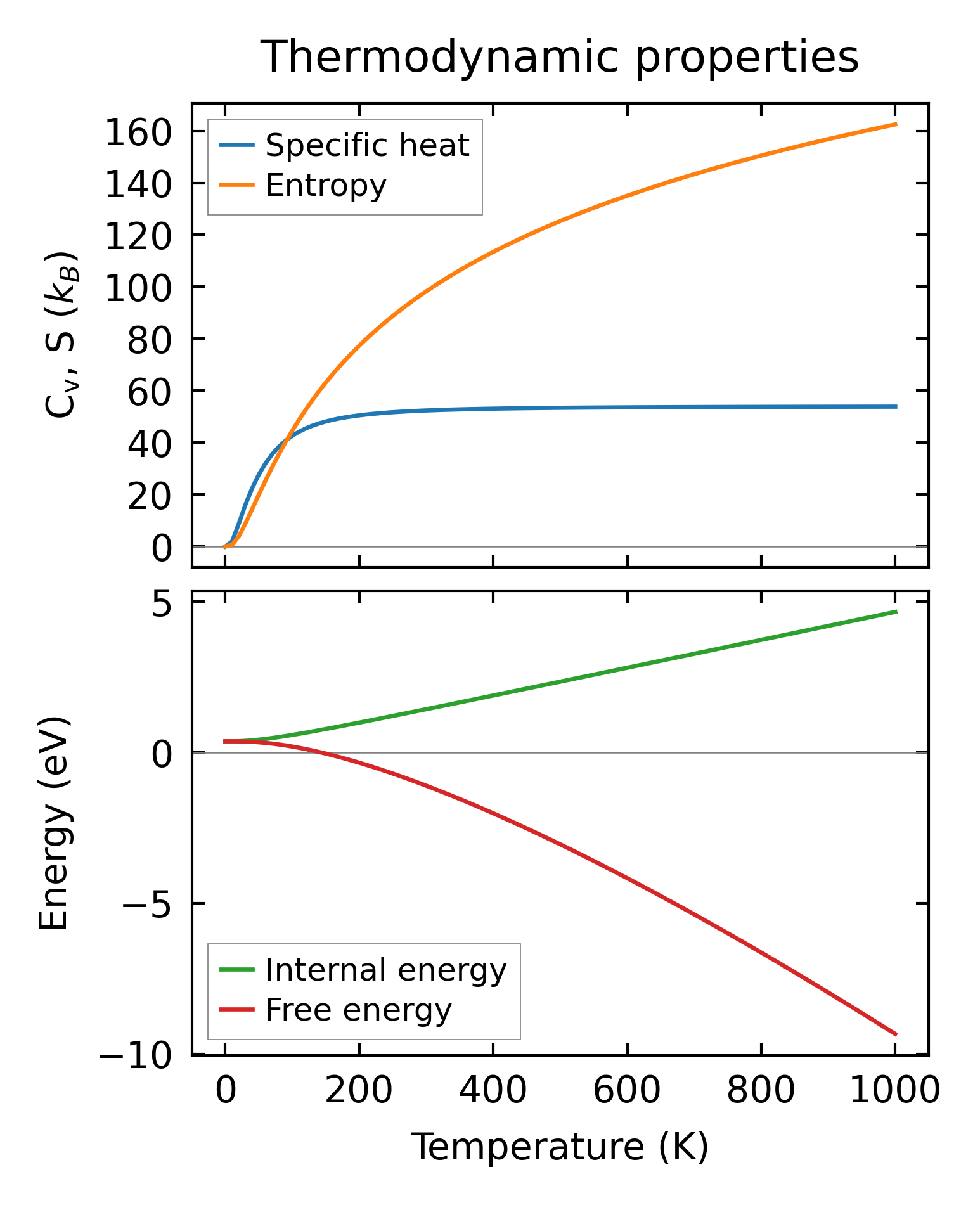

../../_images/fig_thermo1439.png — (b) Thermodynamic properties

Grüneisen parameters

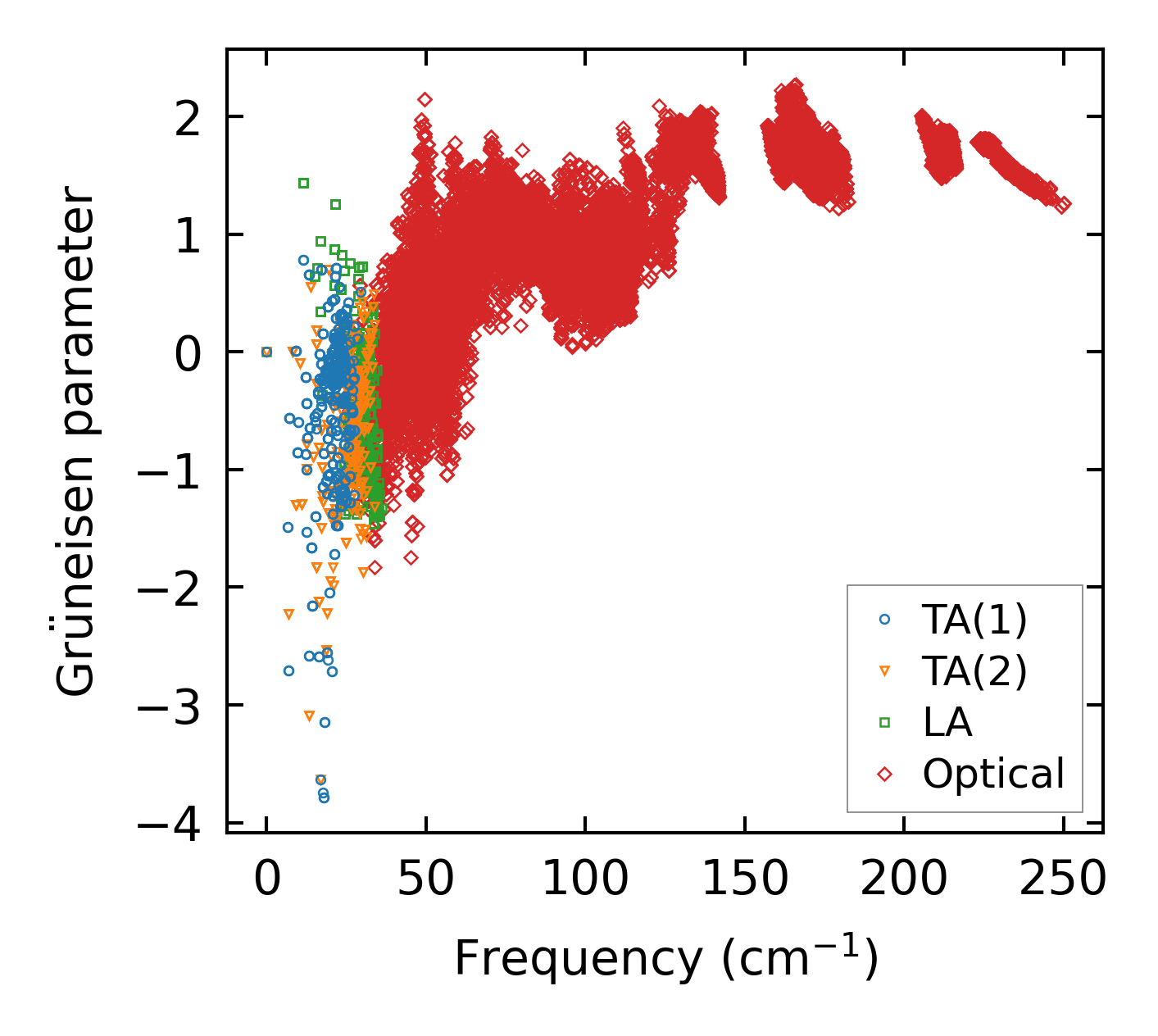

../../_images/fig_gru_all885.png — (a) Grüneisen parameters

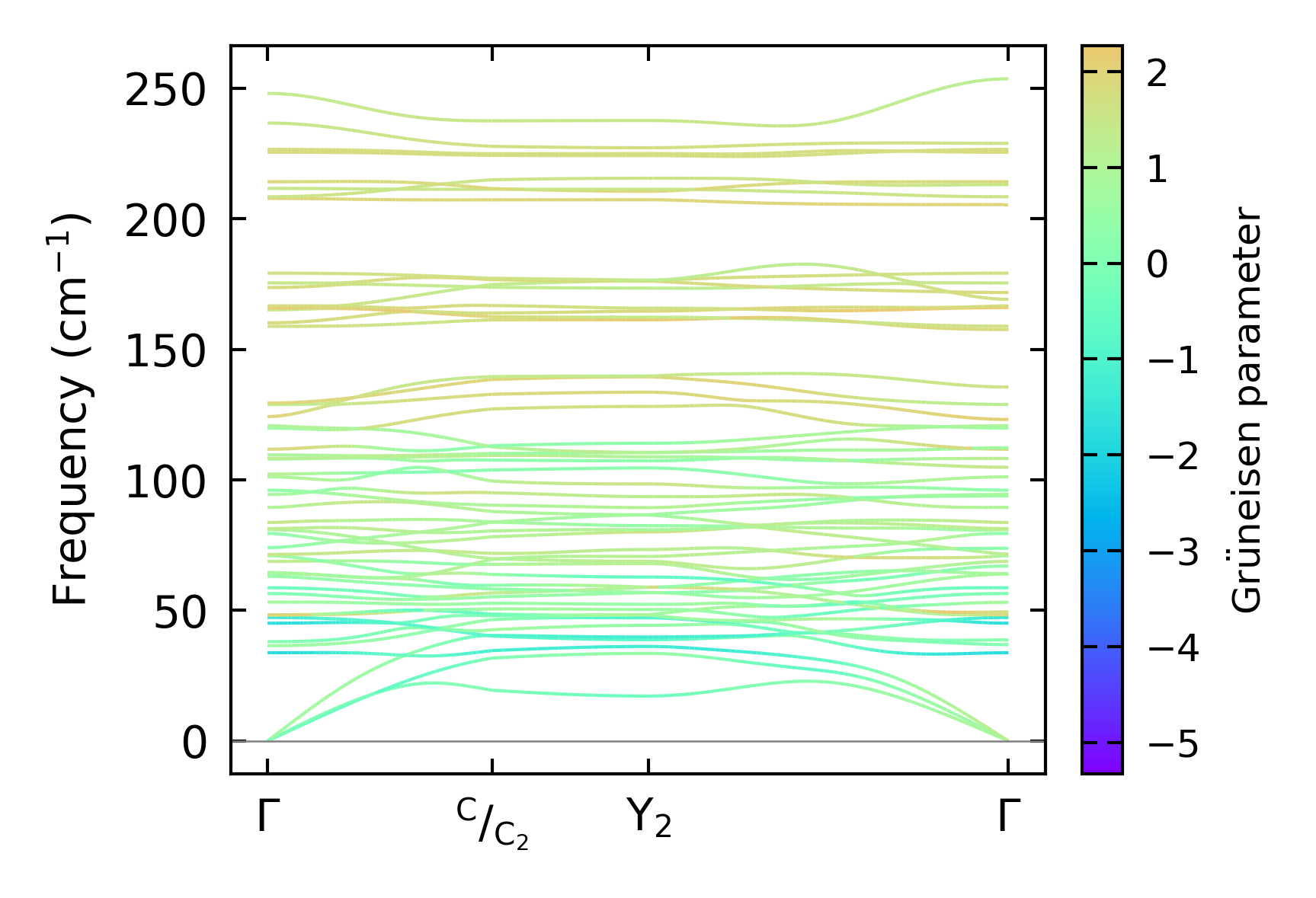

../../_images/fig_gruneisen885.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x6, supercell: 2x2x1

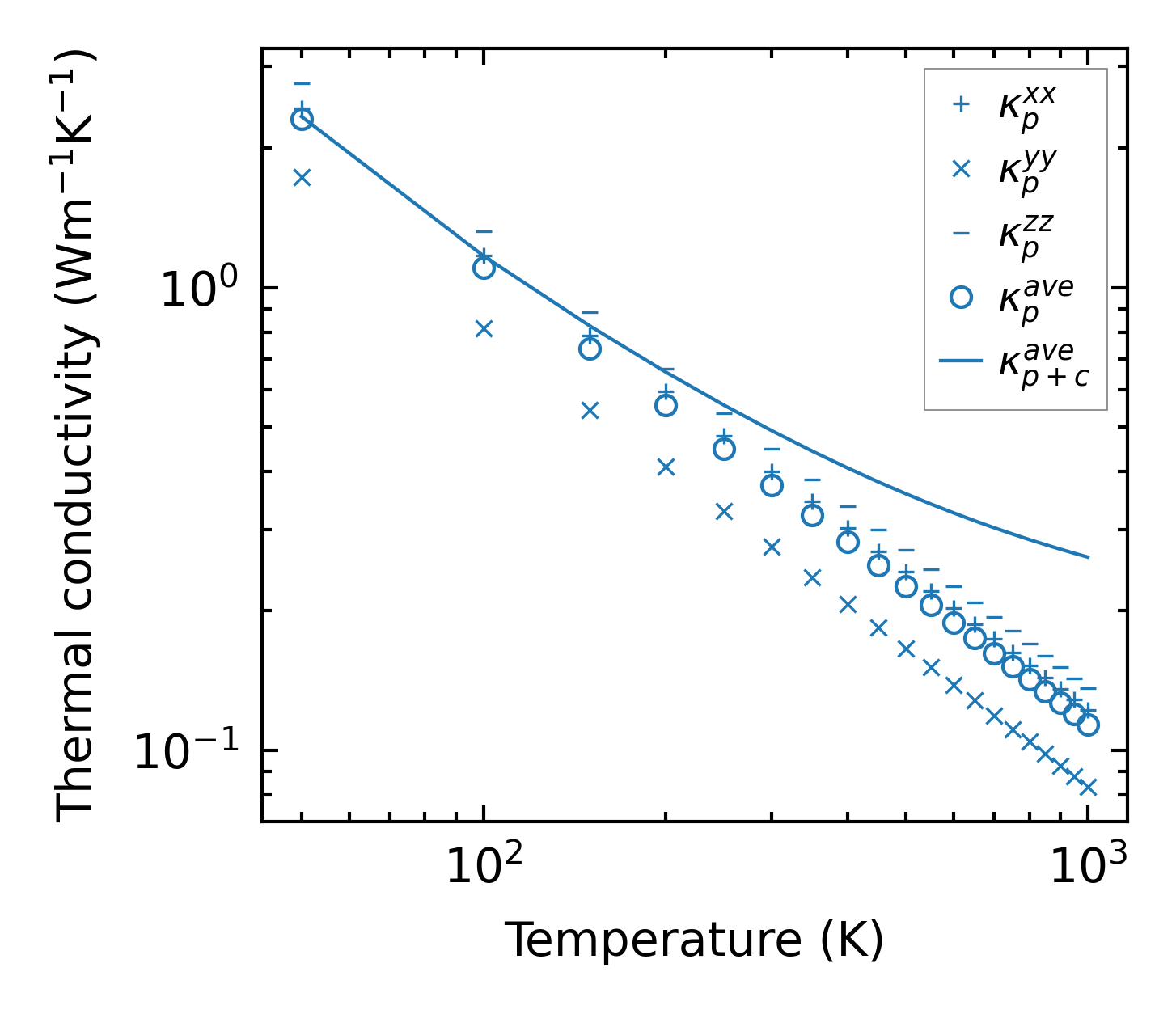

../../_images/fig_kappa1718.png — (a) Temperature-dependent lattice thermal conductivity

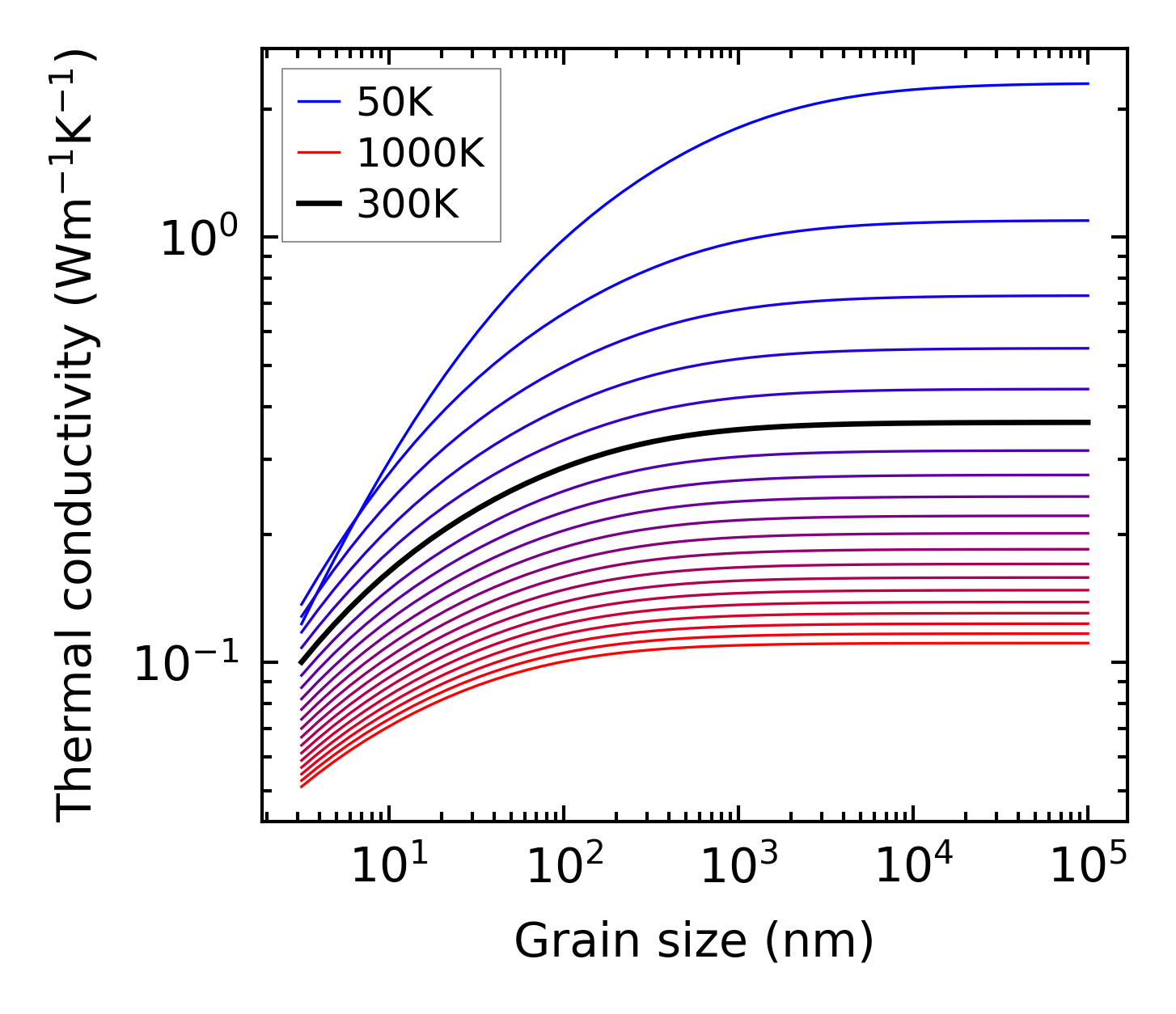

../../_images/fig_kappa_vs_grain_size895.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

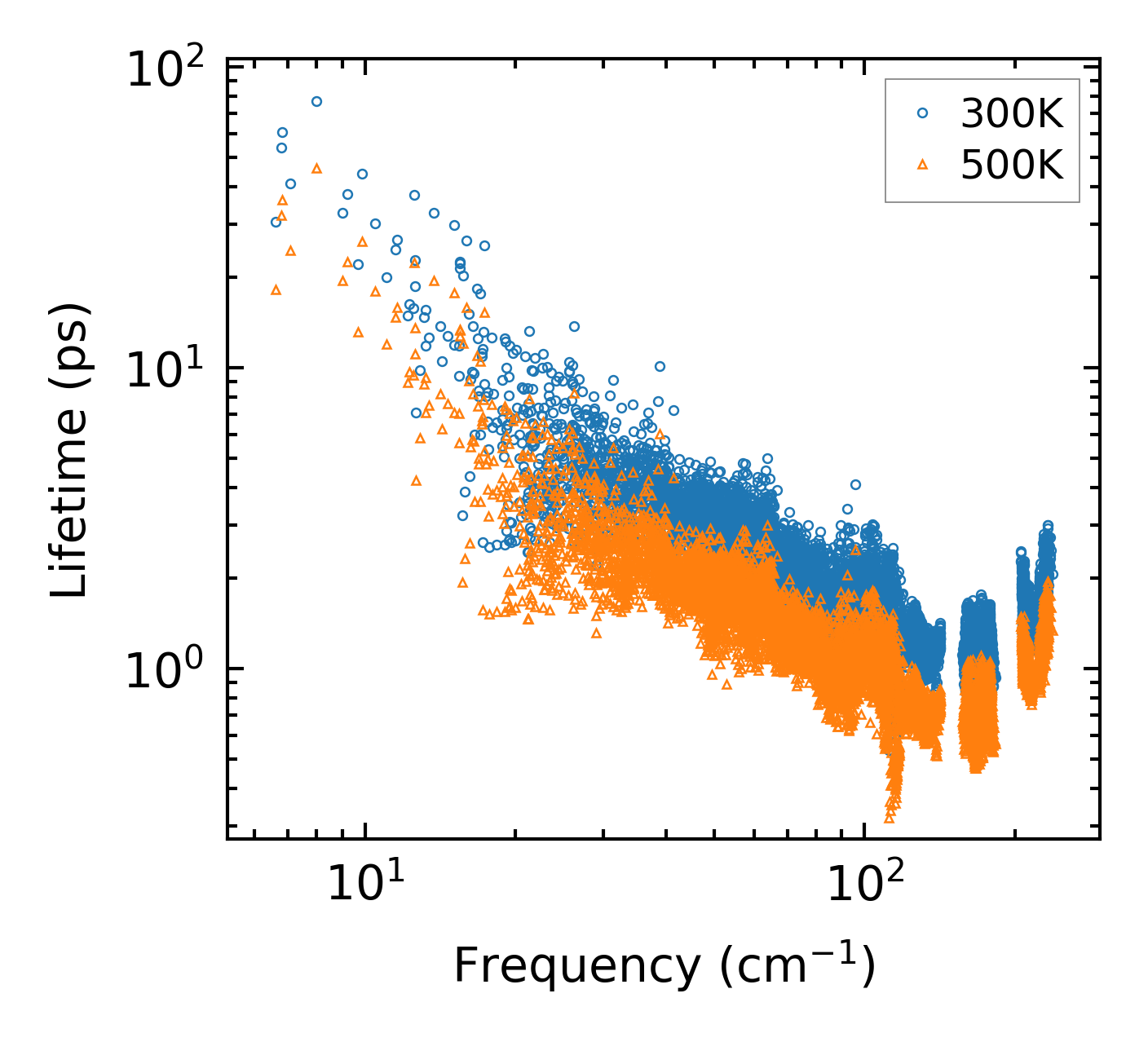

../../_images/fig_lifetime878.png — (a) Phonon lifetime due to phonon-phonon scattering

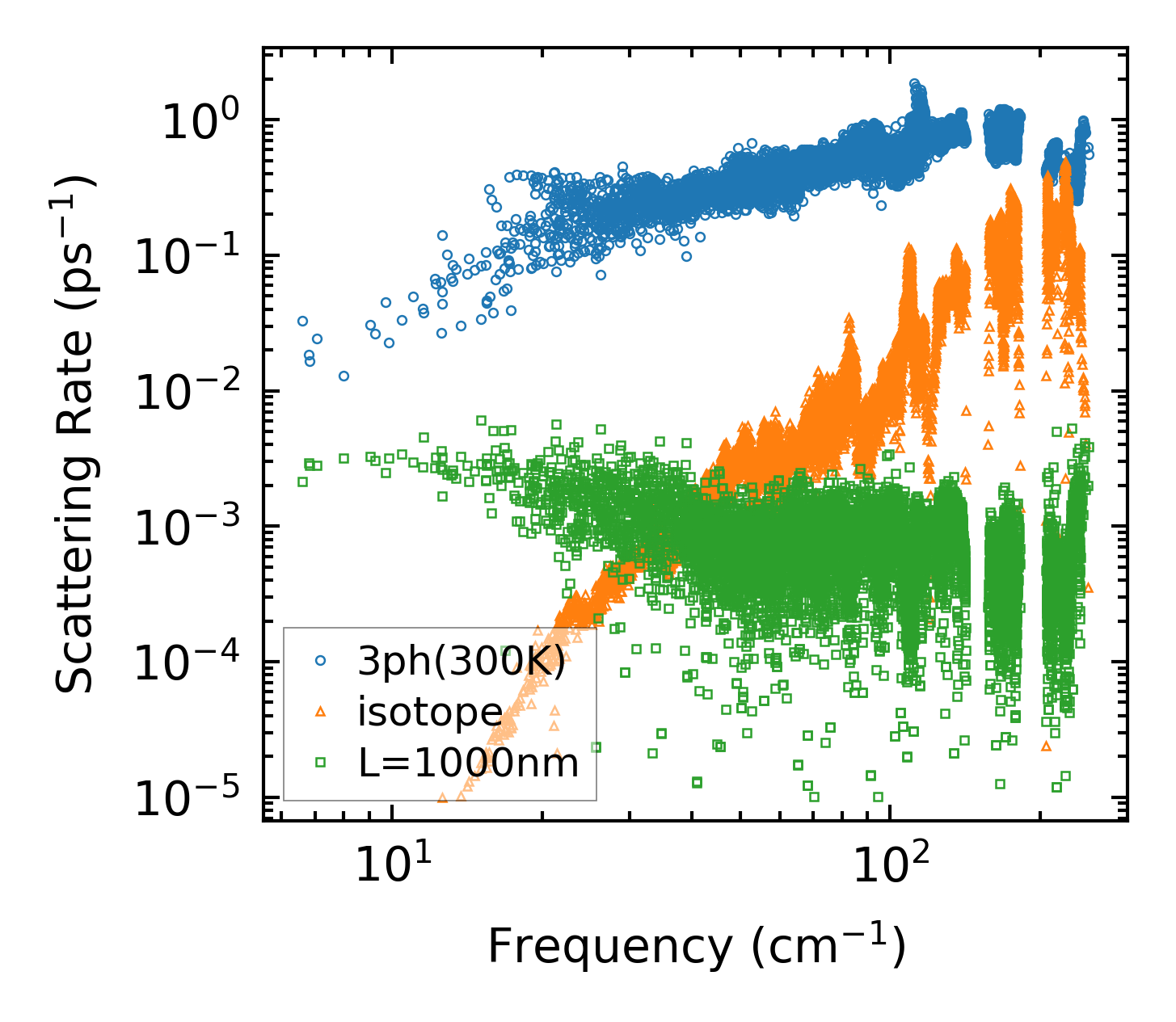

../../_images/fig_scat_rates877.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

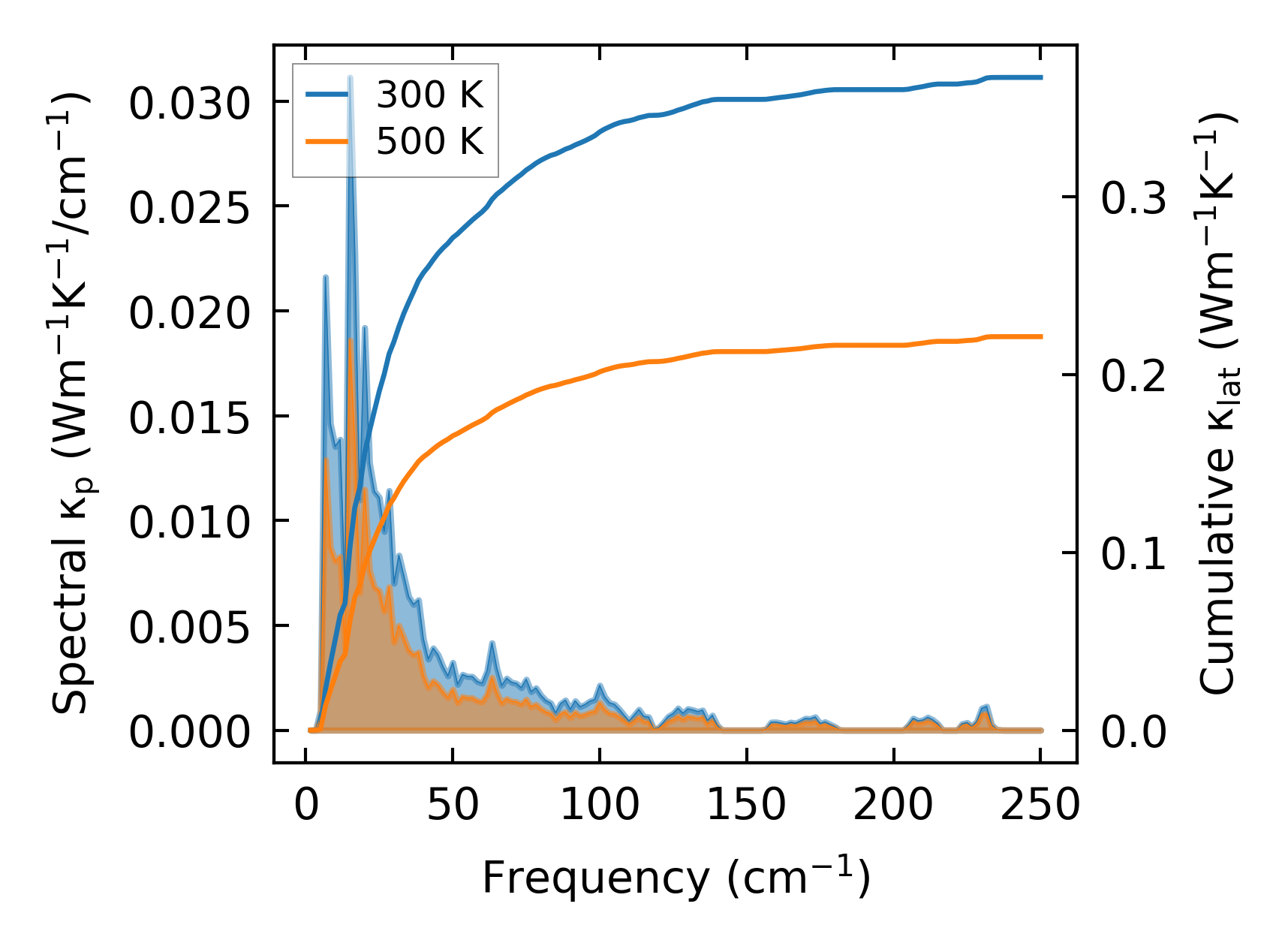

../../_images/fig_cumu_frequency878.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

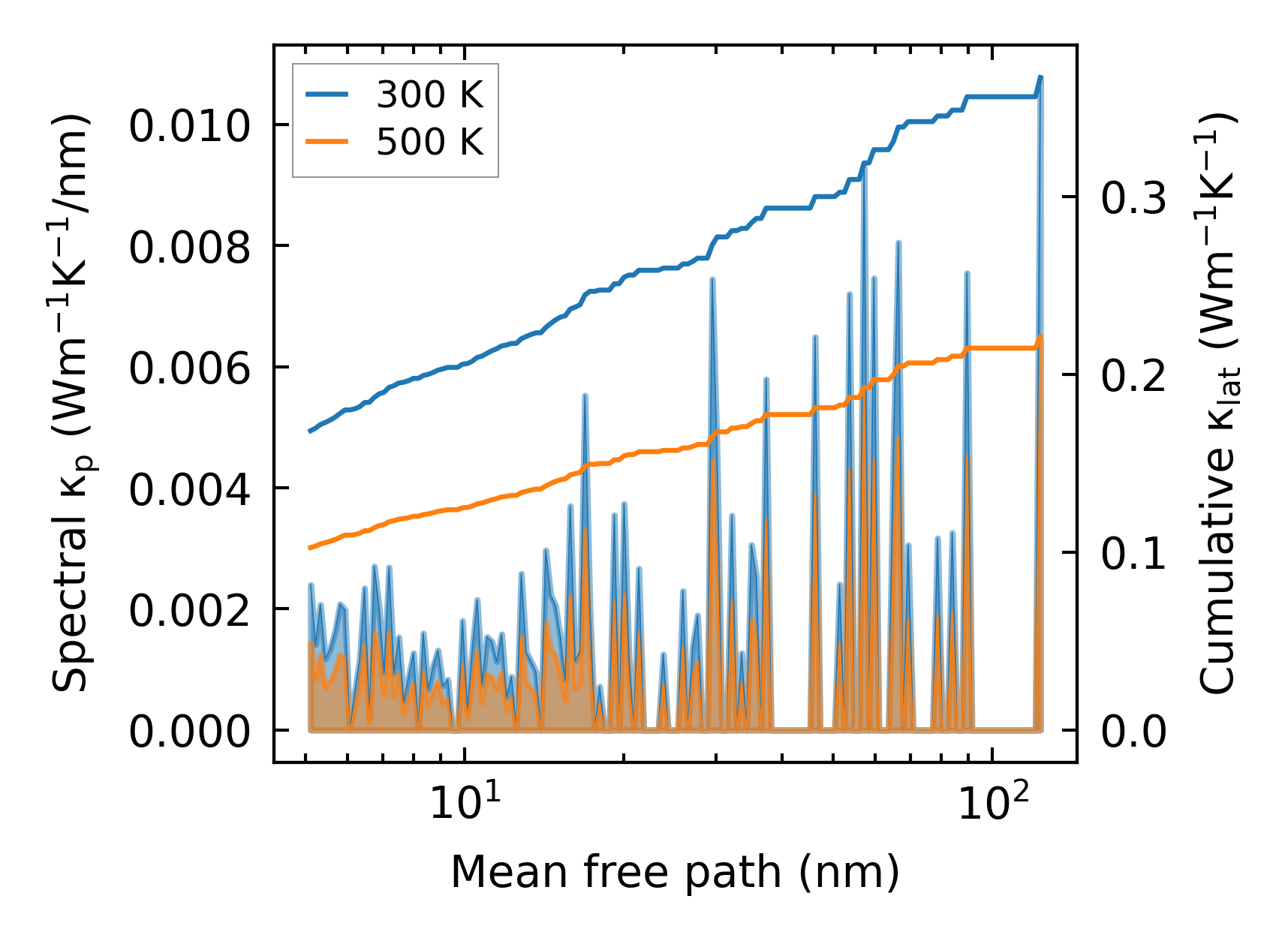

../../_images/fig_cumu_mfp878.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

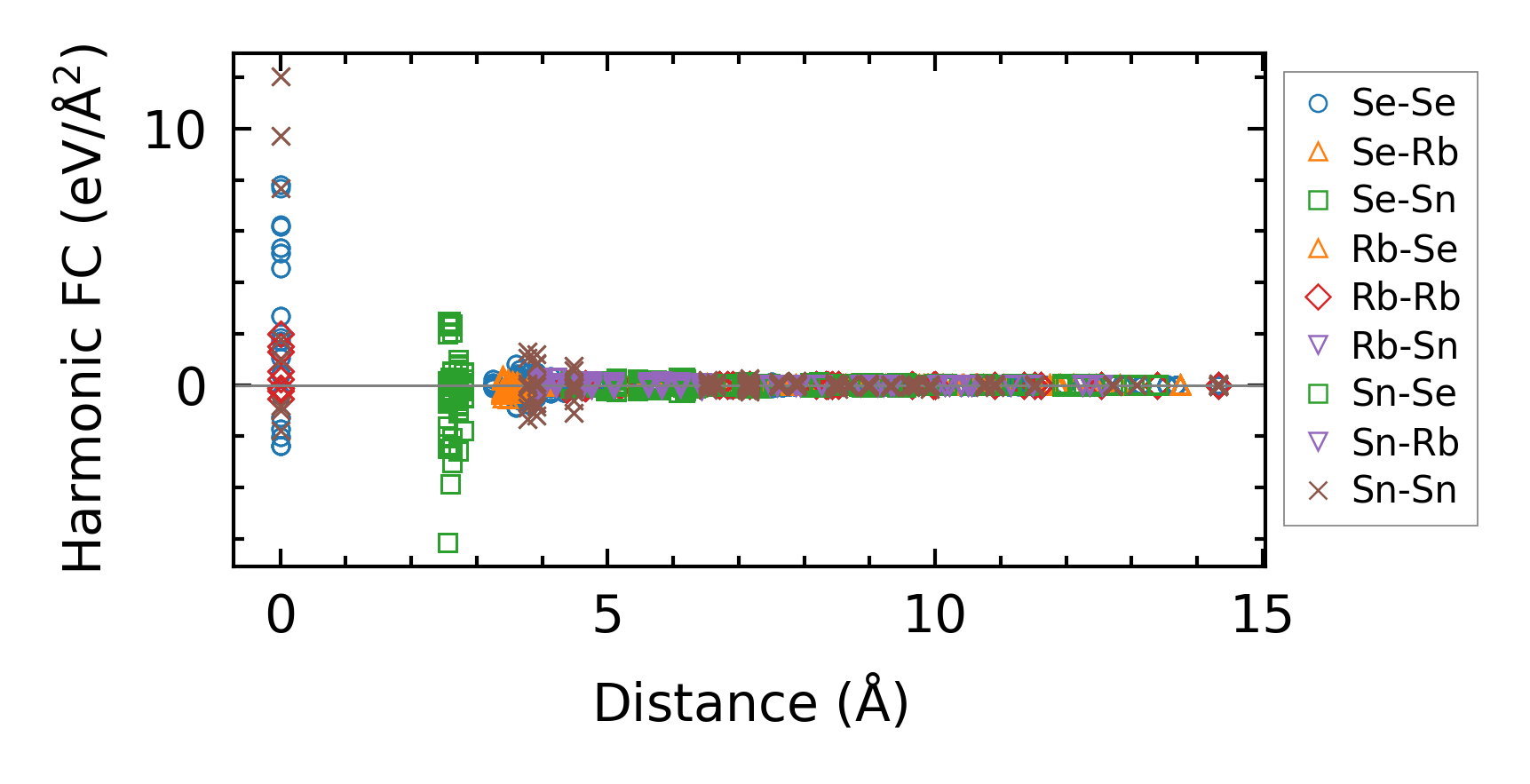

../../_images/fig_fc21291.png — (a) Force constants w.r.t atomic distance

Summary

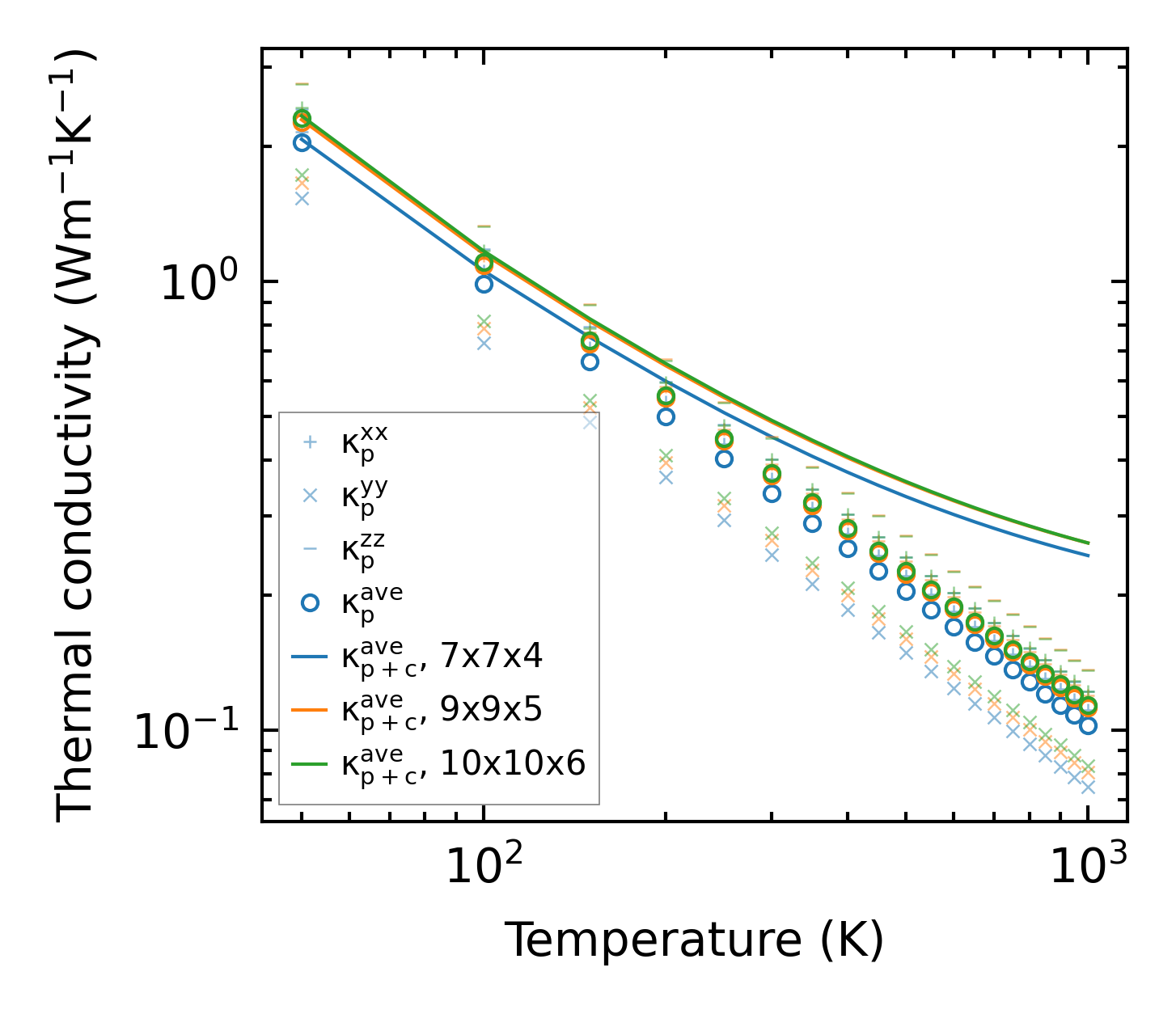

../../_images/fig_kappa1719.png — (a) Temperature-dependent lattice thermal conductivity

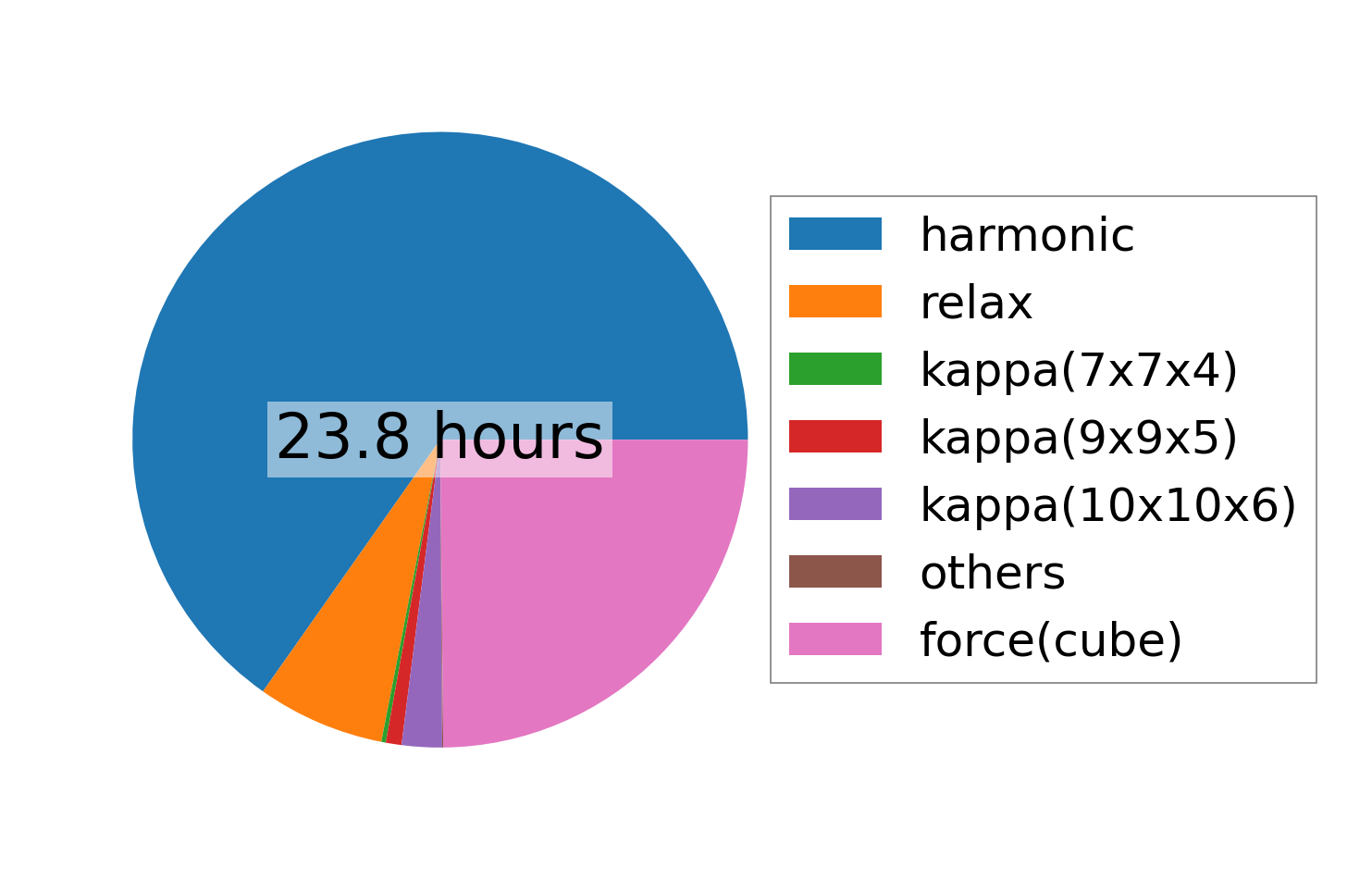

../../_images/fig_times2153.png — (b) Computation time
