mp-9703/K2LiGaAs2/anharm

Space group: Cmce (64)
Link: Materials Project
Download: mp-9703.tar.gz

Harmonic properties

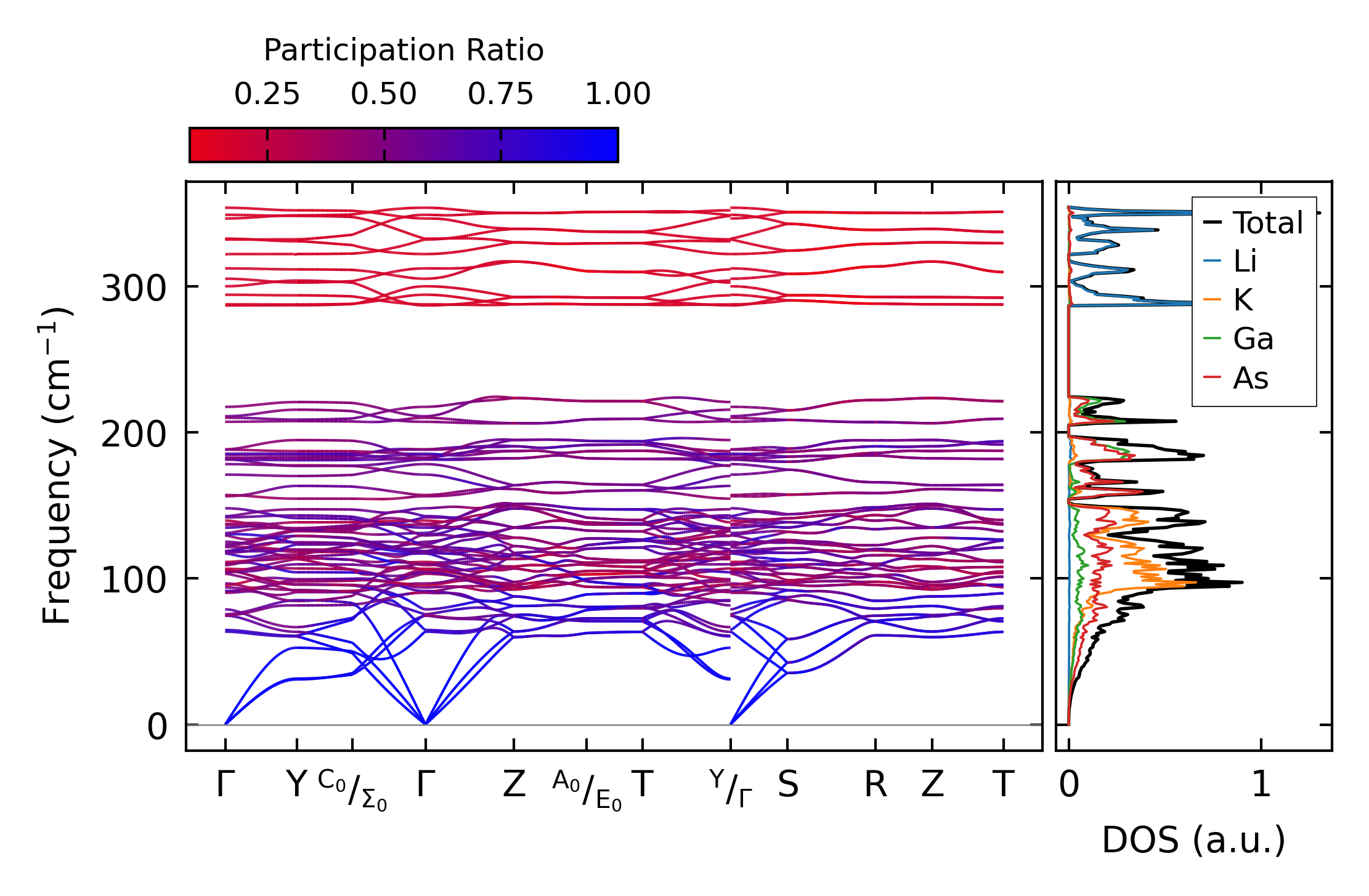

../../_images/fig_bandos_pr1194.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo1194.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all745.png — (a) Grüneisen parameters

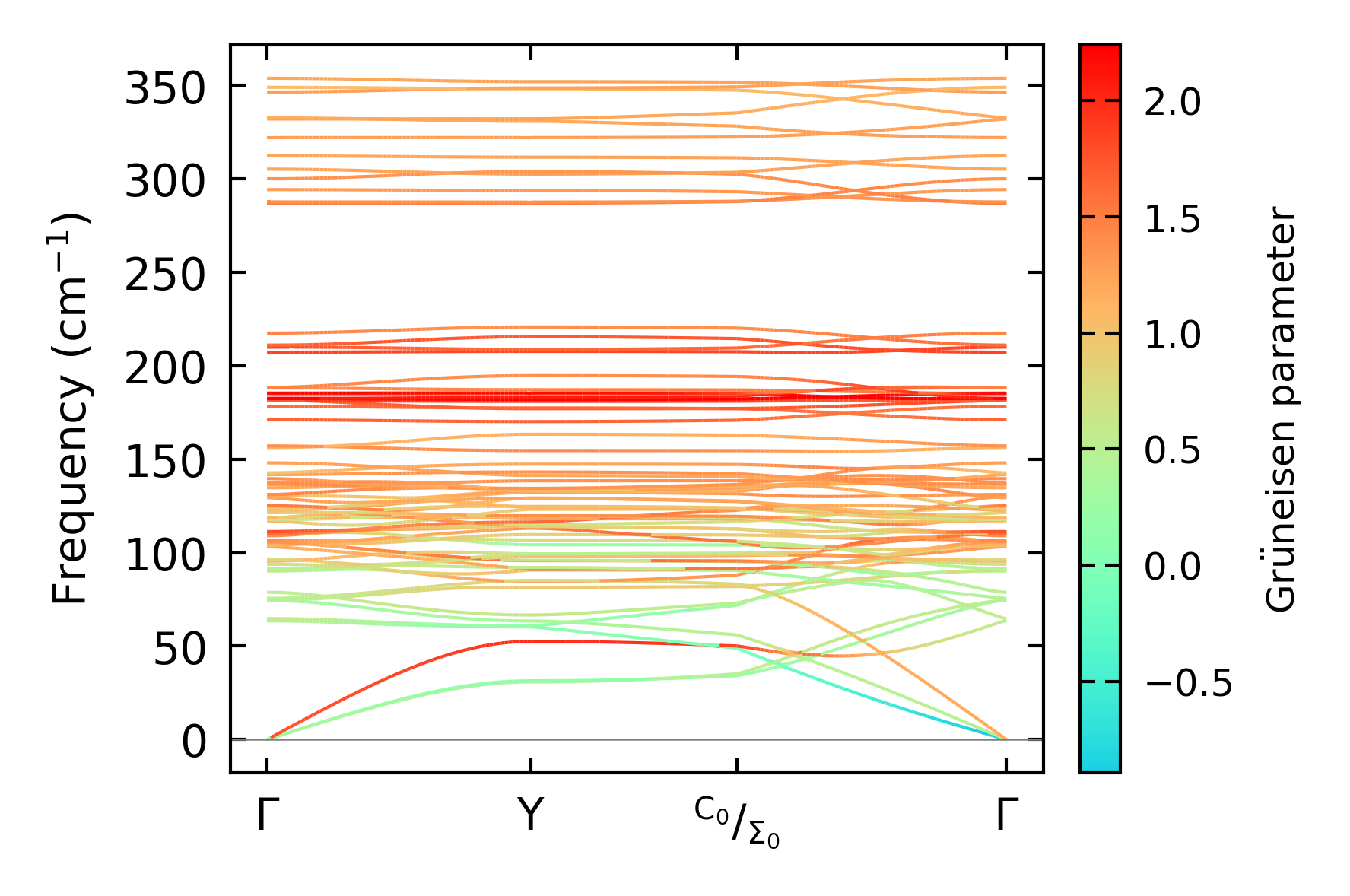

../../_images/fig_gruneisen745.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 7x7x11, supercell: 1x1x3

../../_images/fig_kappa1452.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size754.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

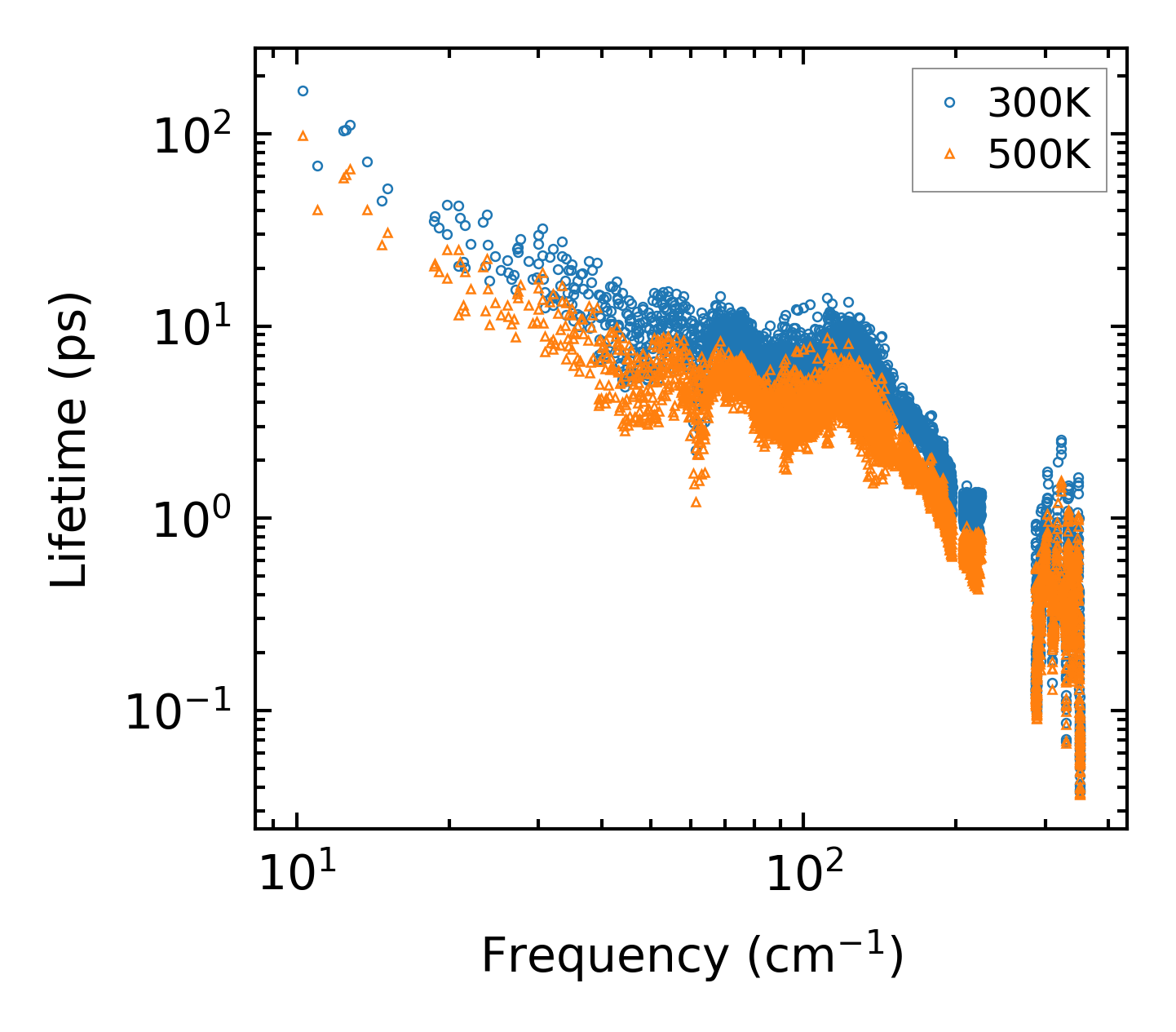

../../_images/fig_lifetime741.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates740.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

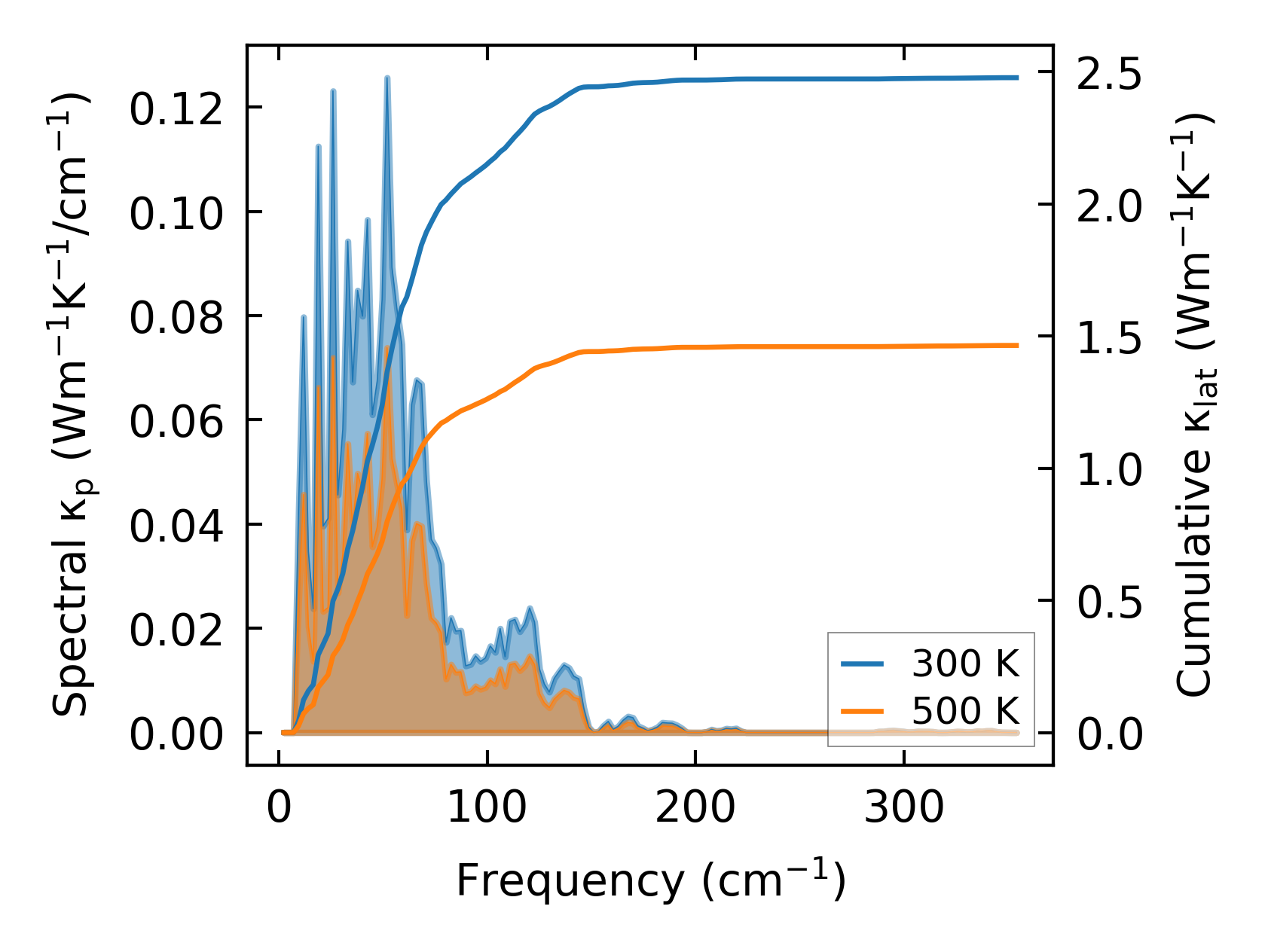

../../_images/fig_cumu_frequency741.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

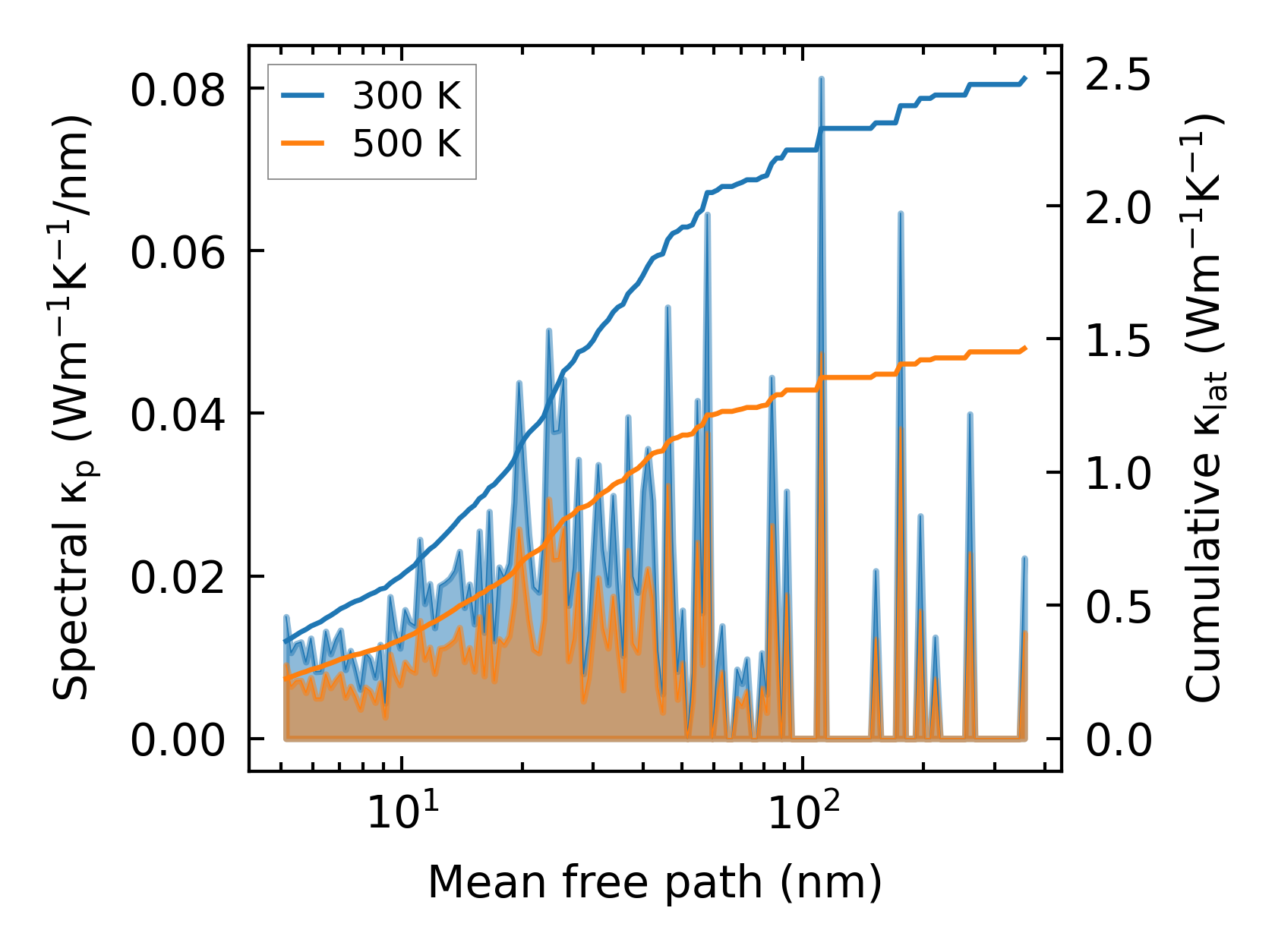

../../_images/fig_cumu_mfp741.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

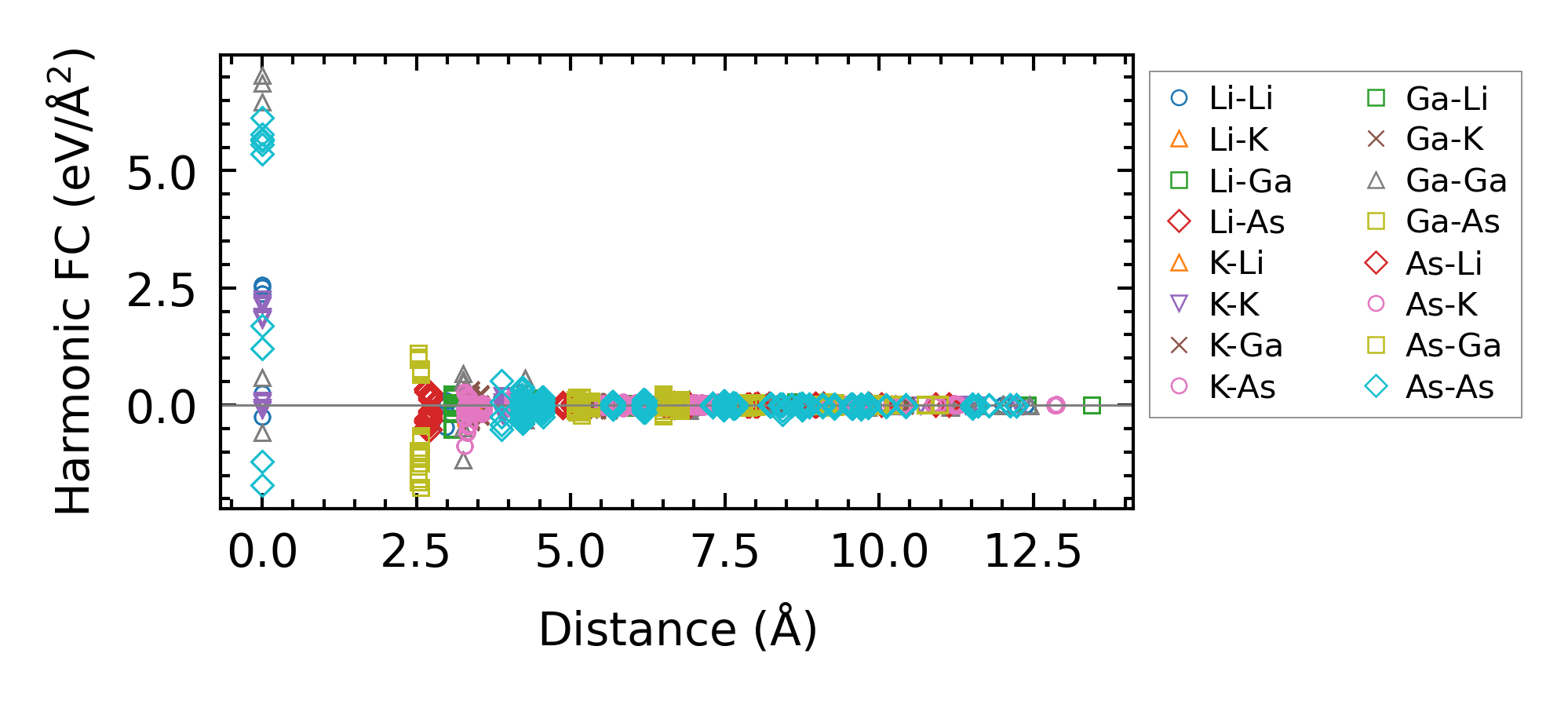

../../_images/fig_fc21060.png — (a) Force constants w.r.t atomic distance

Summary

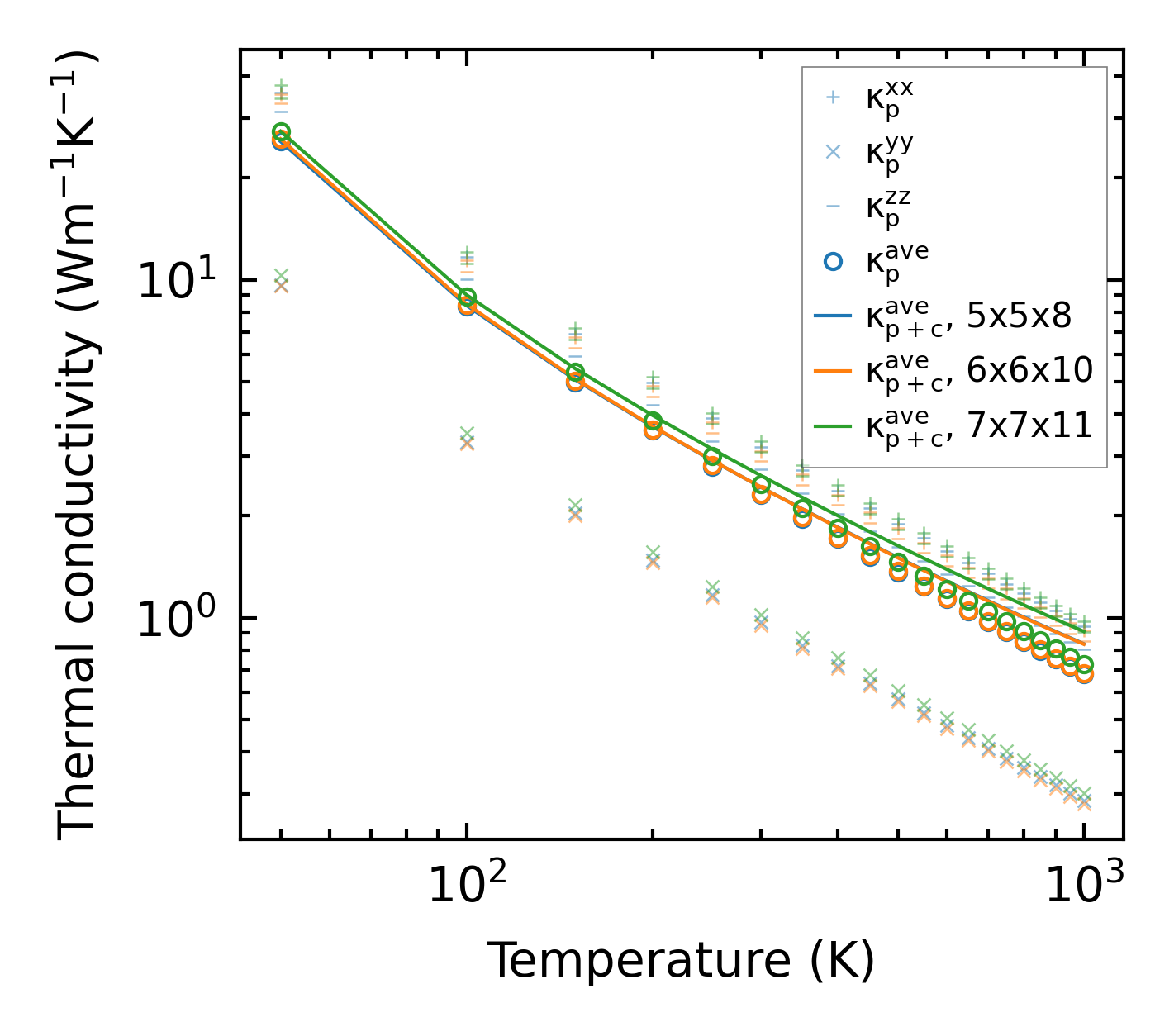

../../_images/fig_kappa1453.png — (a) Temperature-dependent lattice thermal conductivity

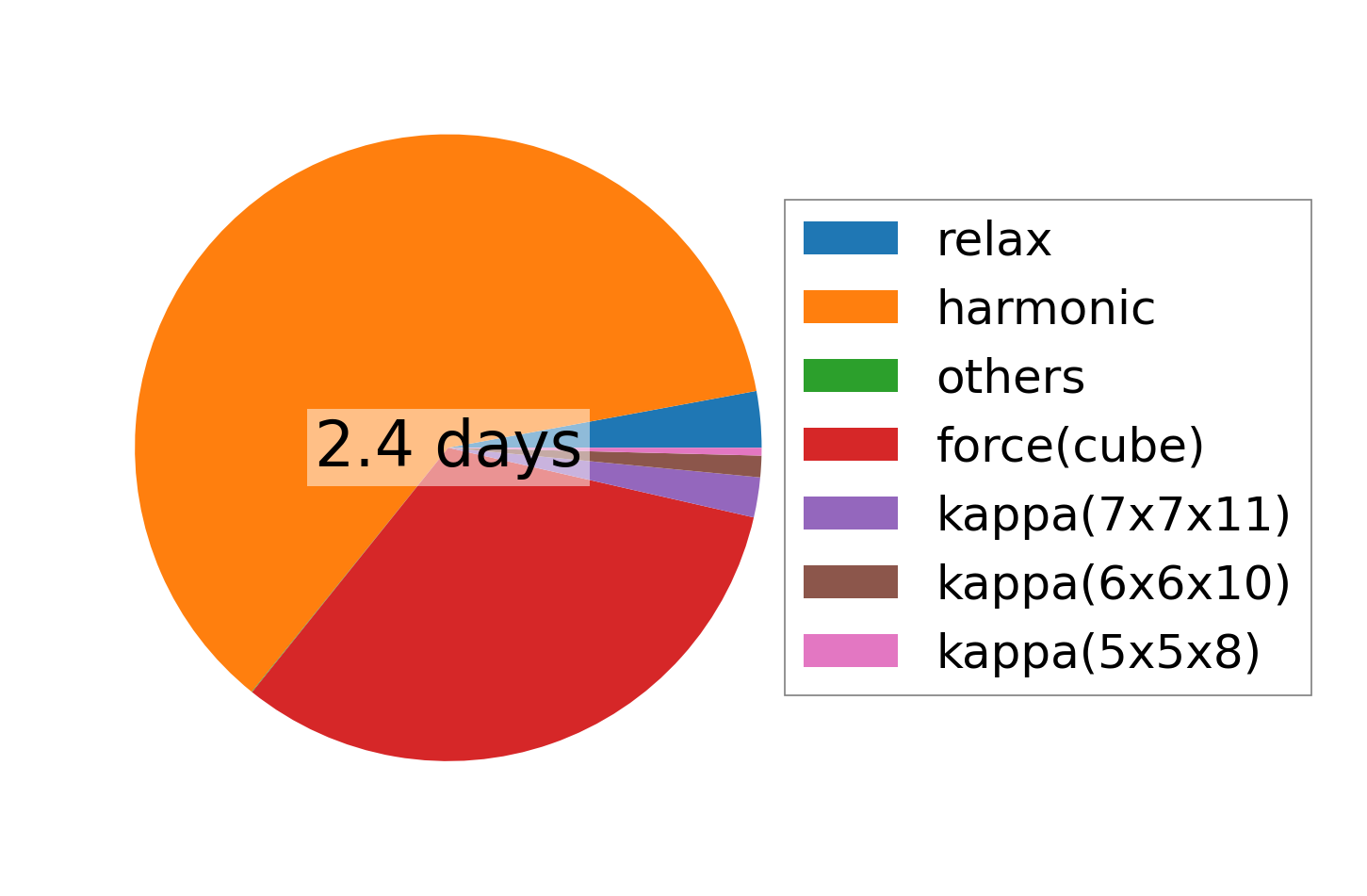

../../_images/fig_times1796.png — (b) Computation time
