mp-9619-3/ThFe4P12/anharm

Space group: Im-3 (204)
Link: Materials Project
Download: mp-9619-3.tar.gz

Equation of state

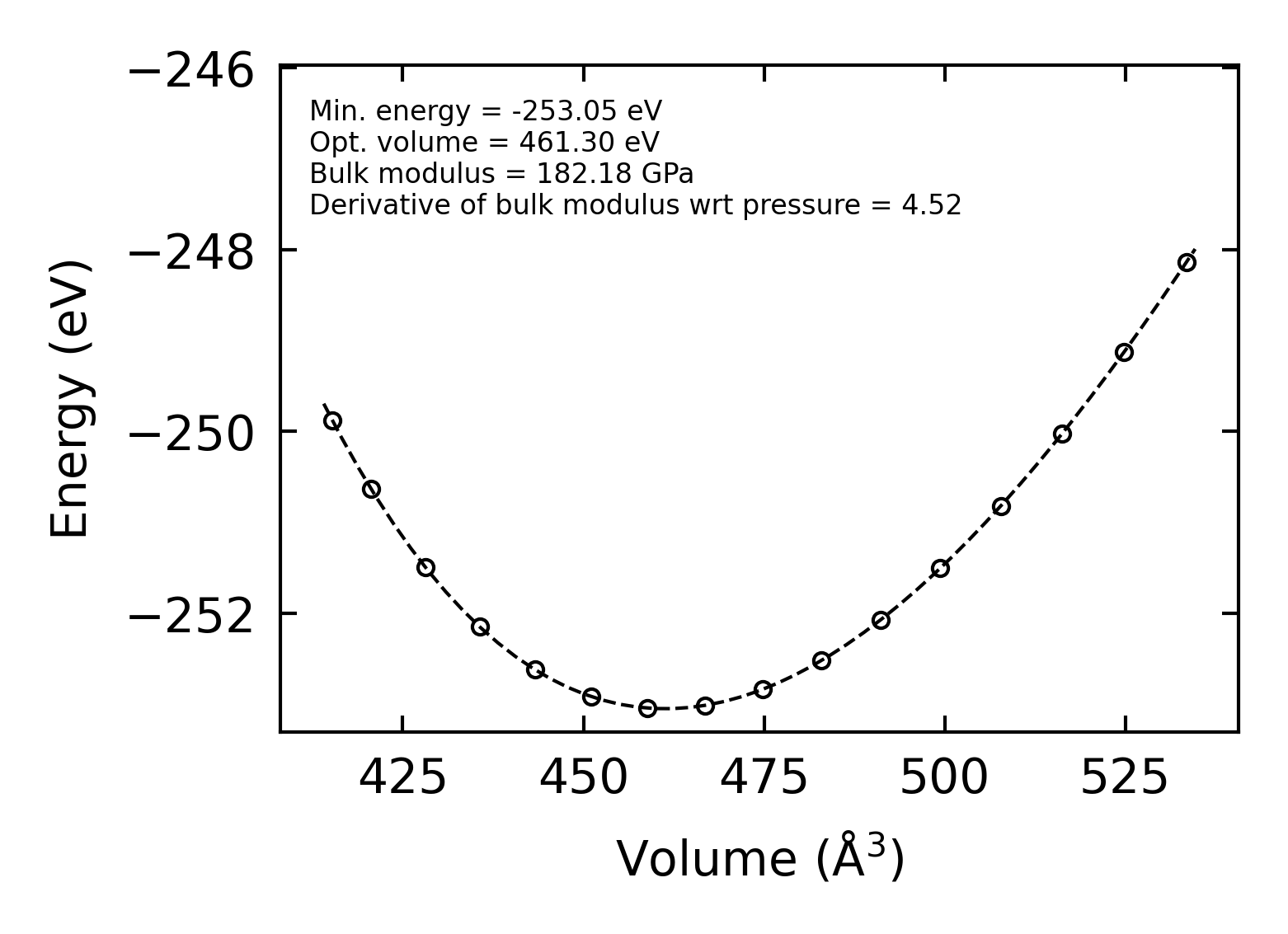

../../_images/fig_bm389.png — (a) Equation of state

Harmonic properties

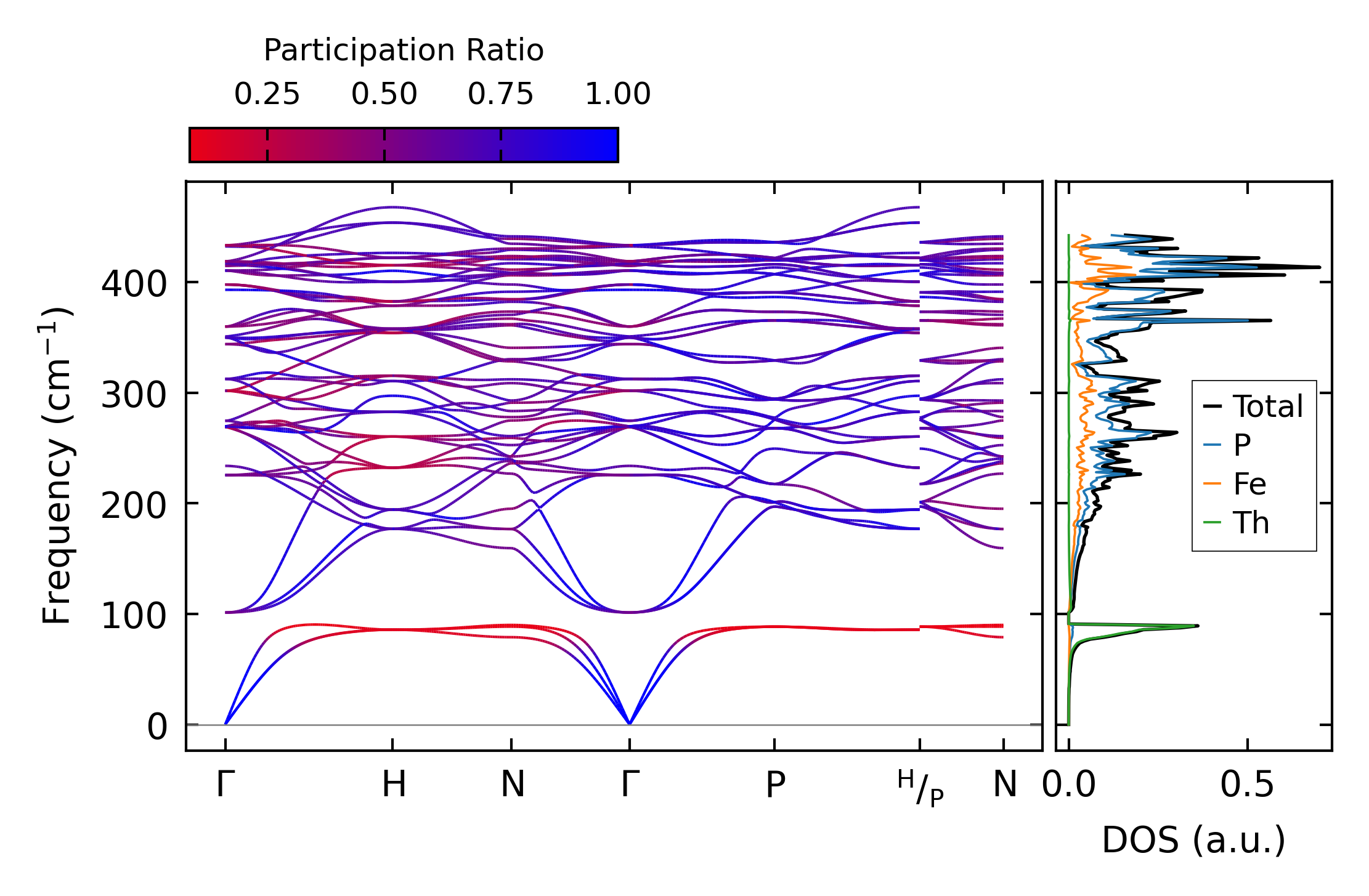

../../_images/fig_bandos_pr1168.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo1168.png — (b) Thermodynamic properties

Grüneisen parameters

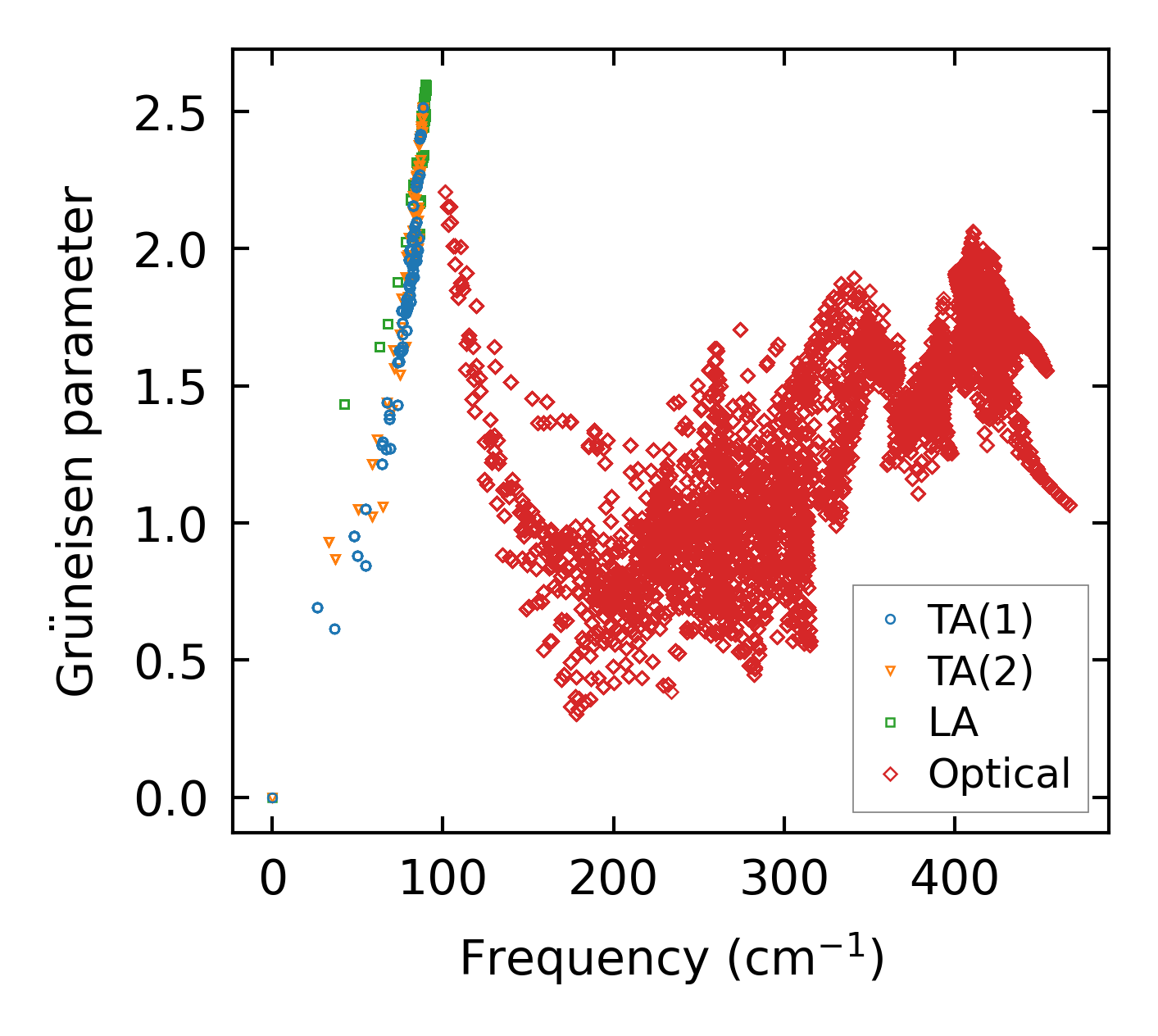

../../_images/fig_gru_all723.png — (a) Grüneisen parameters

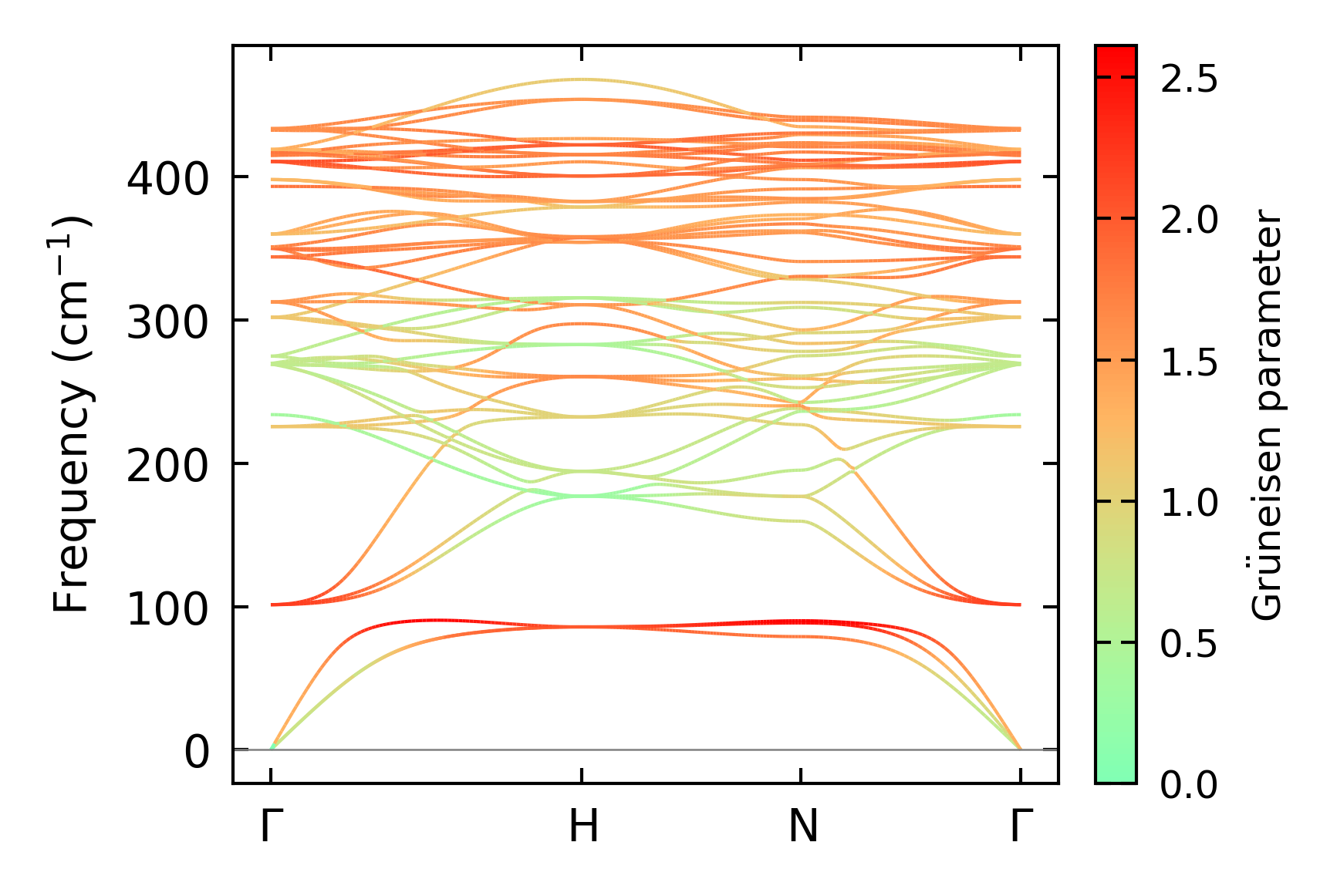

../../_images/fig_gruneisen723.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x11x11, supercell: 1x1x1

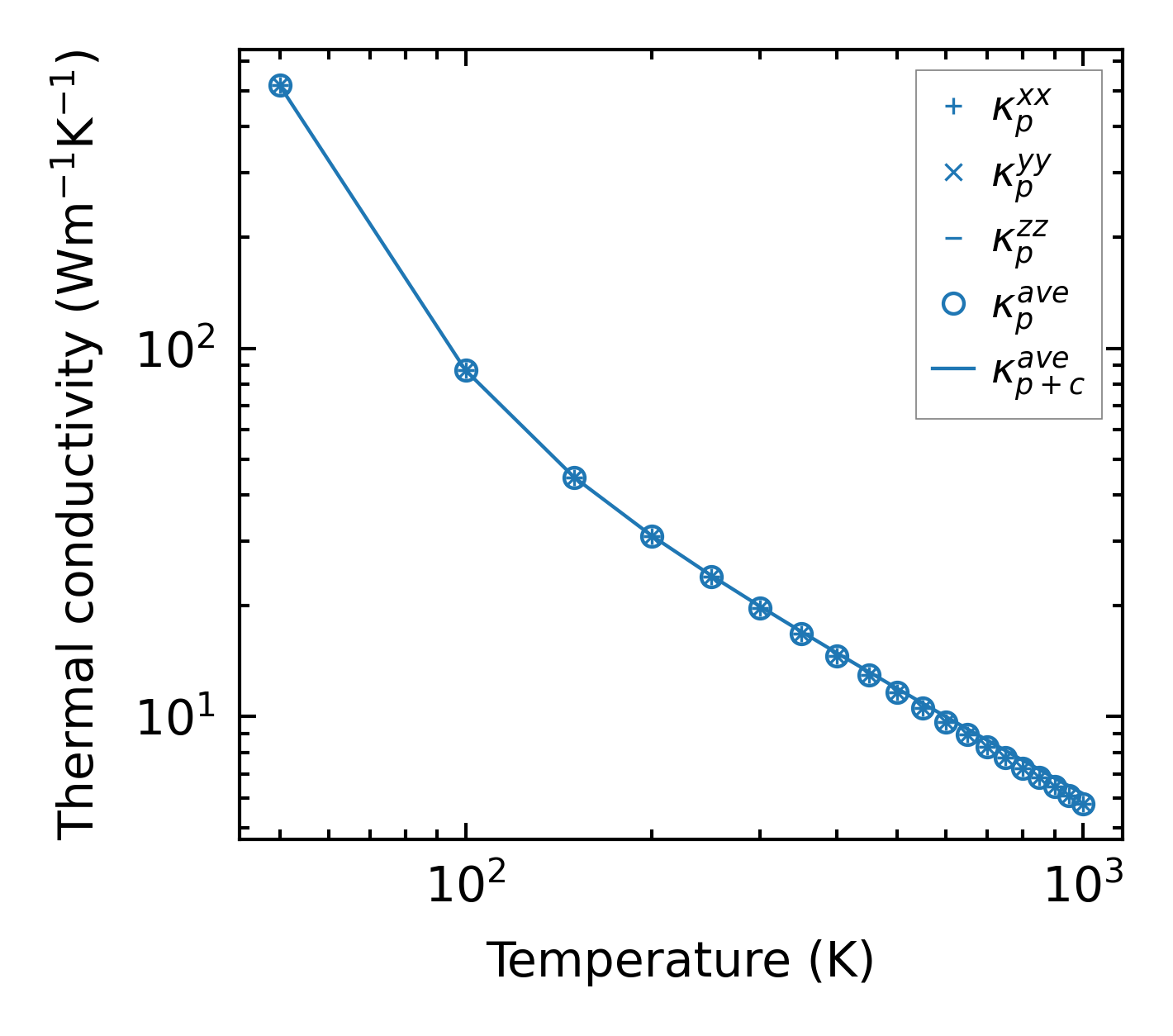

../../_images/fig_kappa1412.png — (a) Temperature-dependent lattice thermal conductivity

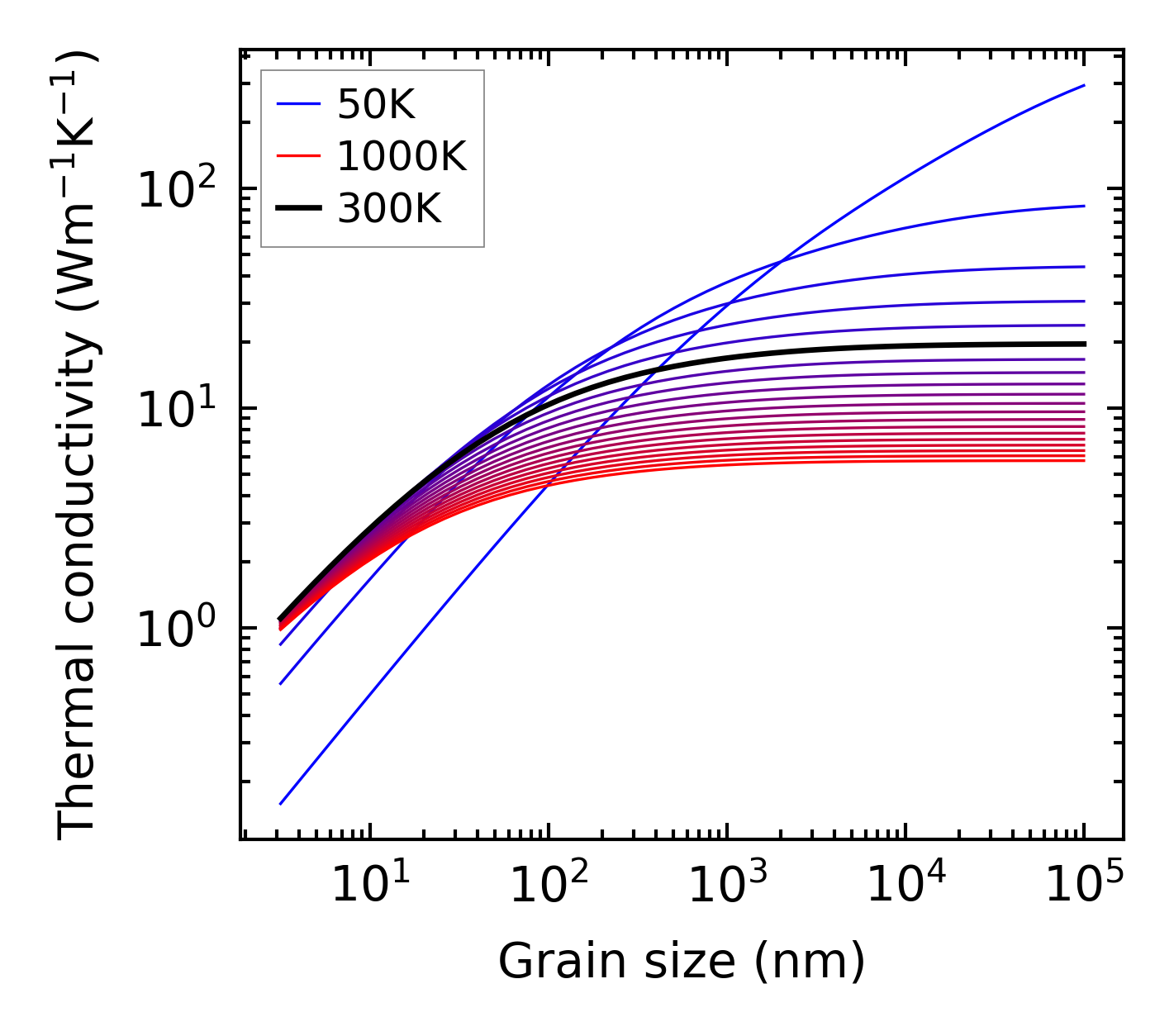

../../_images/fig_kappa_vs_grain_size732.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

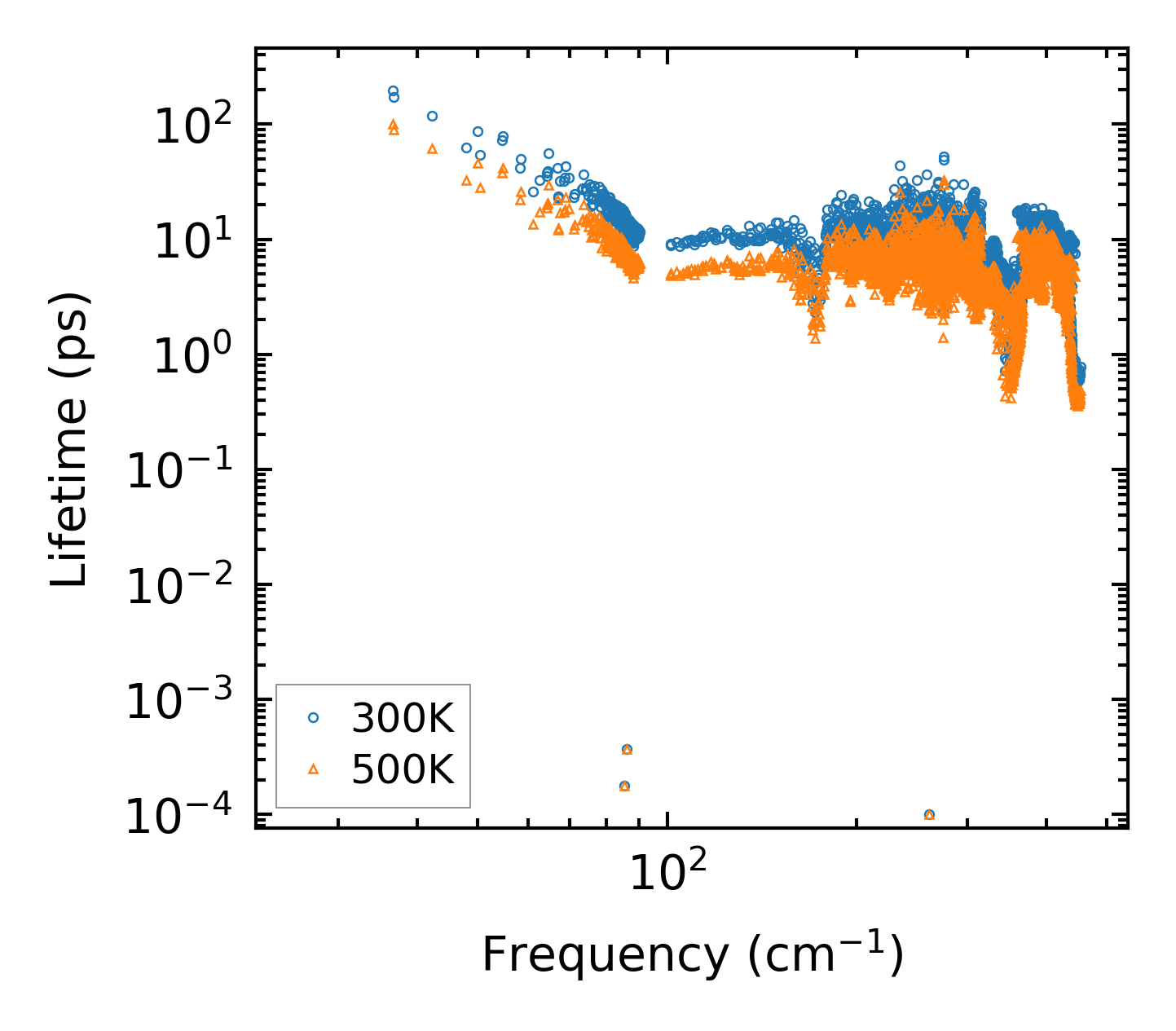

../../_images/fig_lifetime721.png — (a) Phonon lifetime due to phonon-phonon scattering

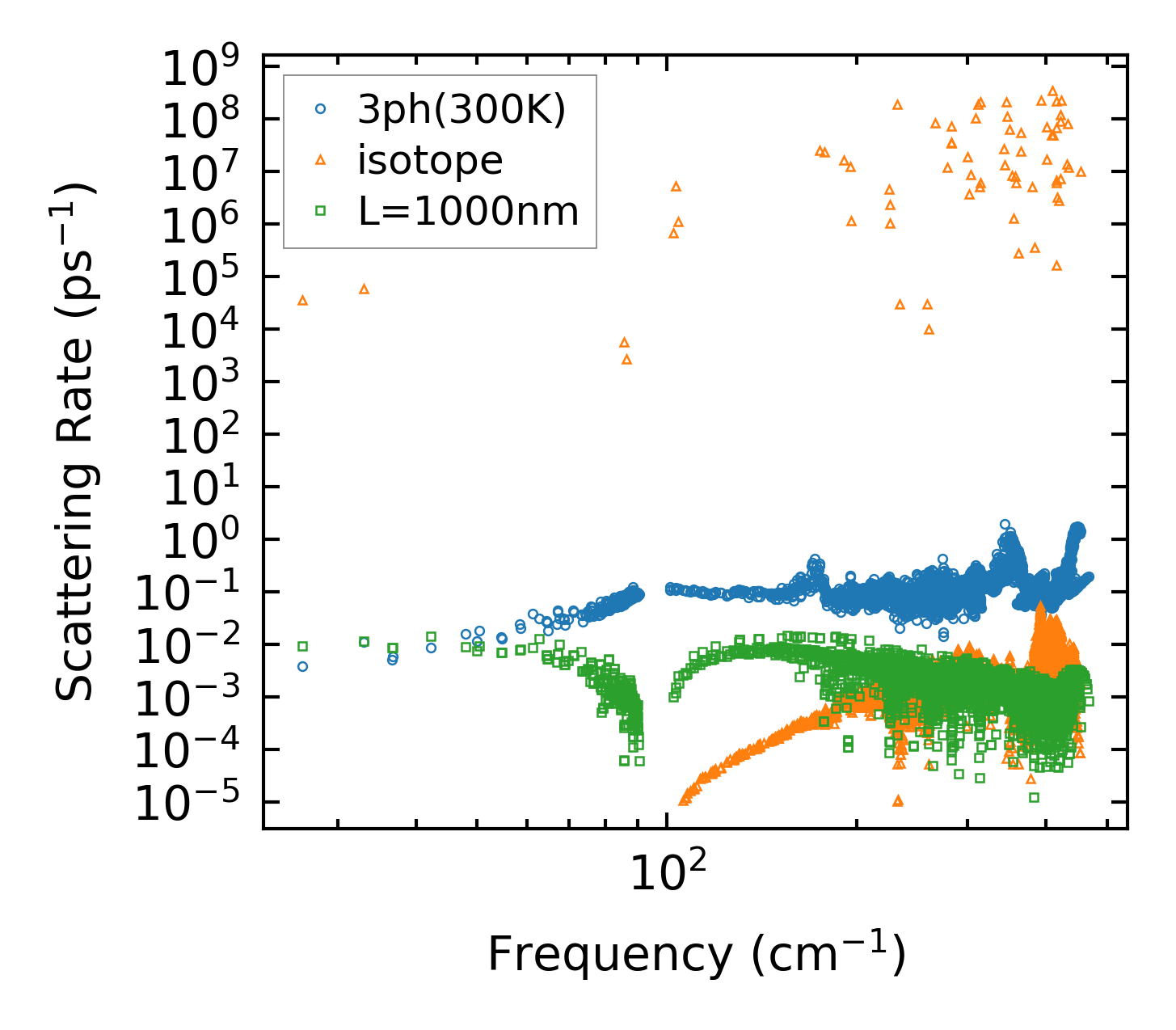

../../_images/fig_scat_rates720.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

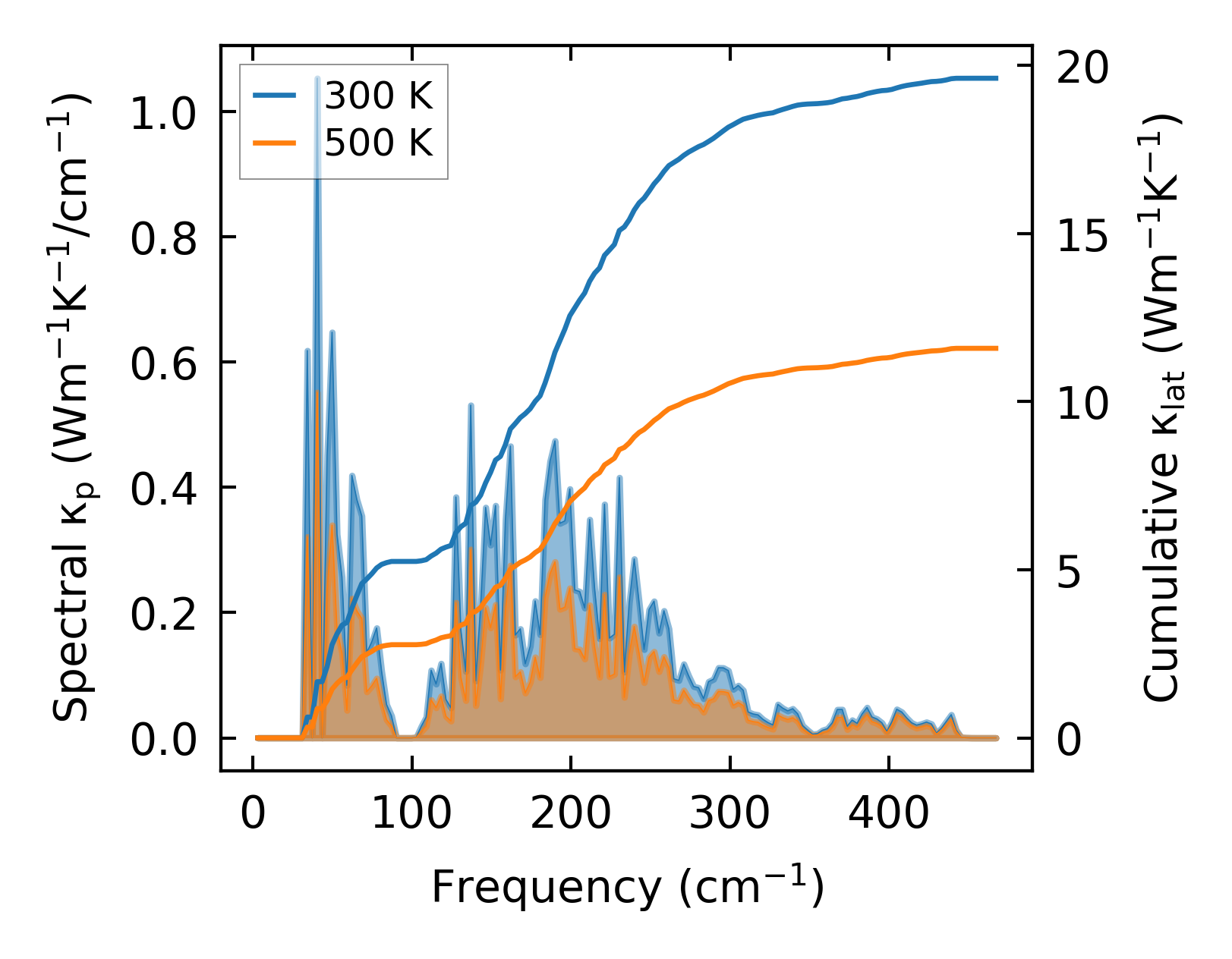

../../_images/fig_cumu_frequency721.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

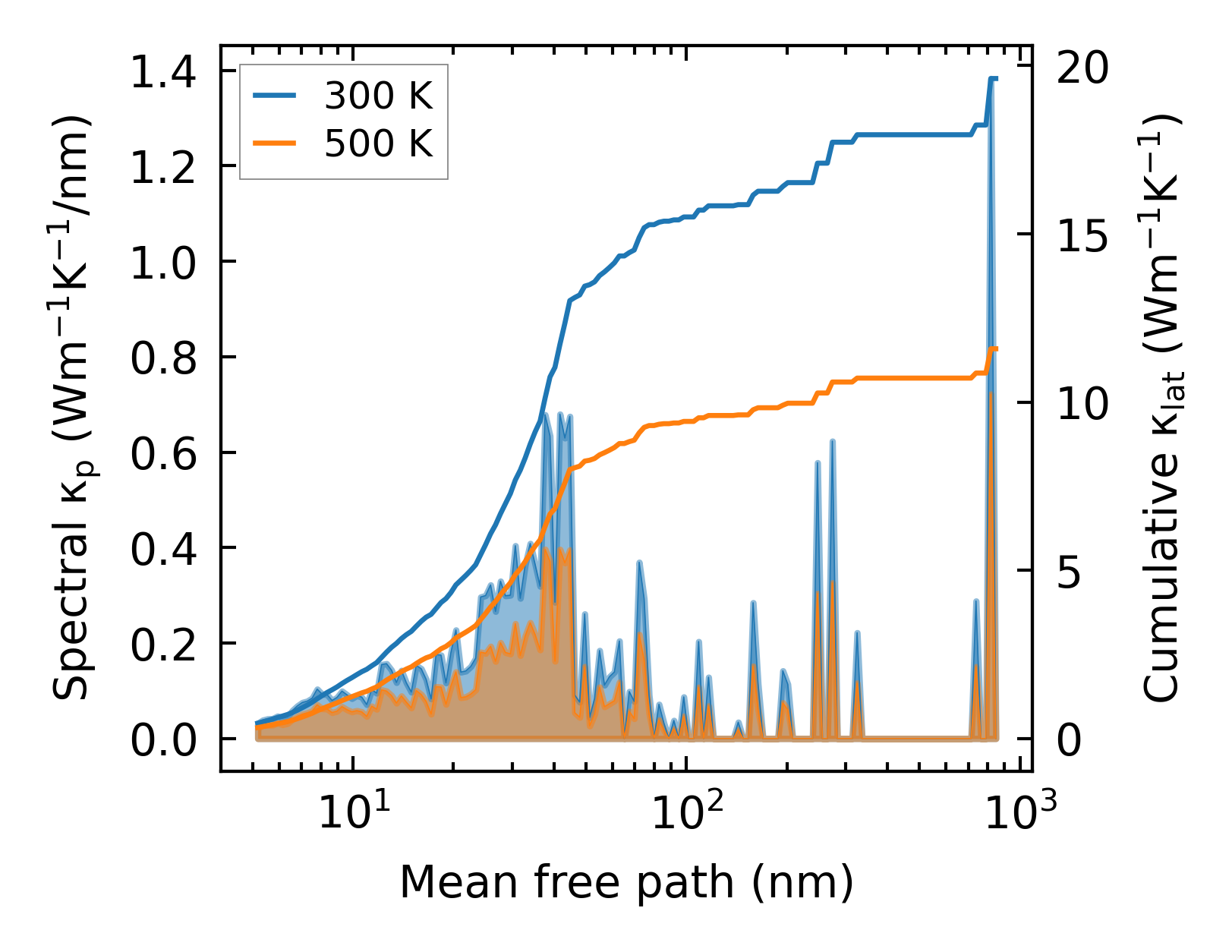

../../_images/fig_cumu_mfp721.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

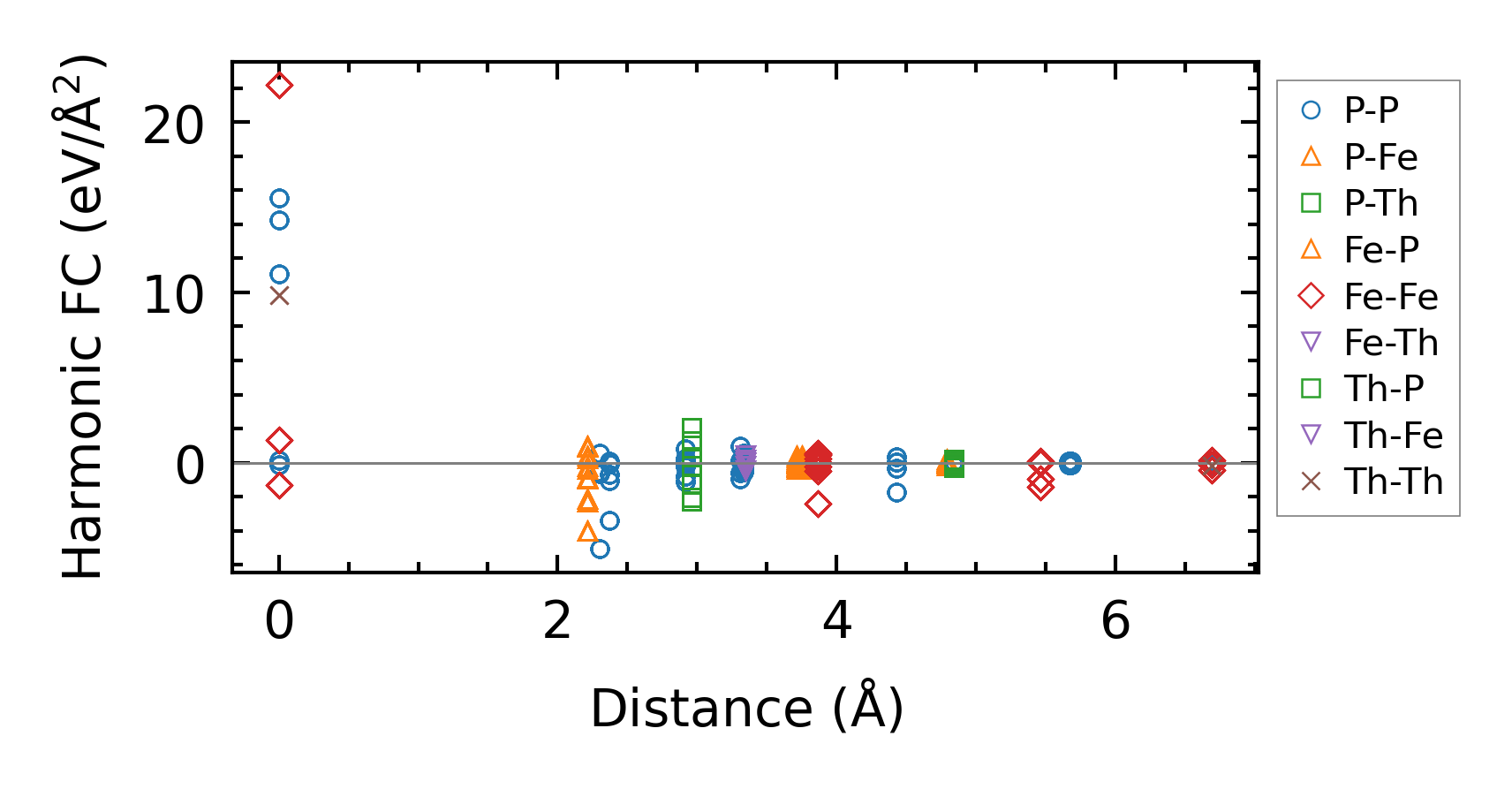

../../_images/fig_fc21034.png — (a) Force constants w.r.t atomic distance

Summary

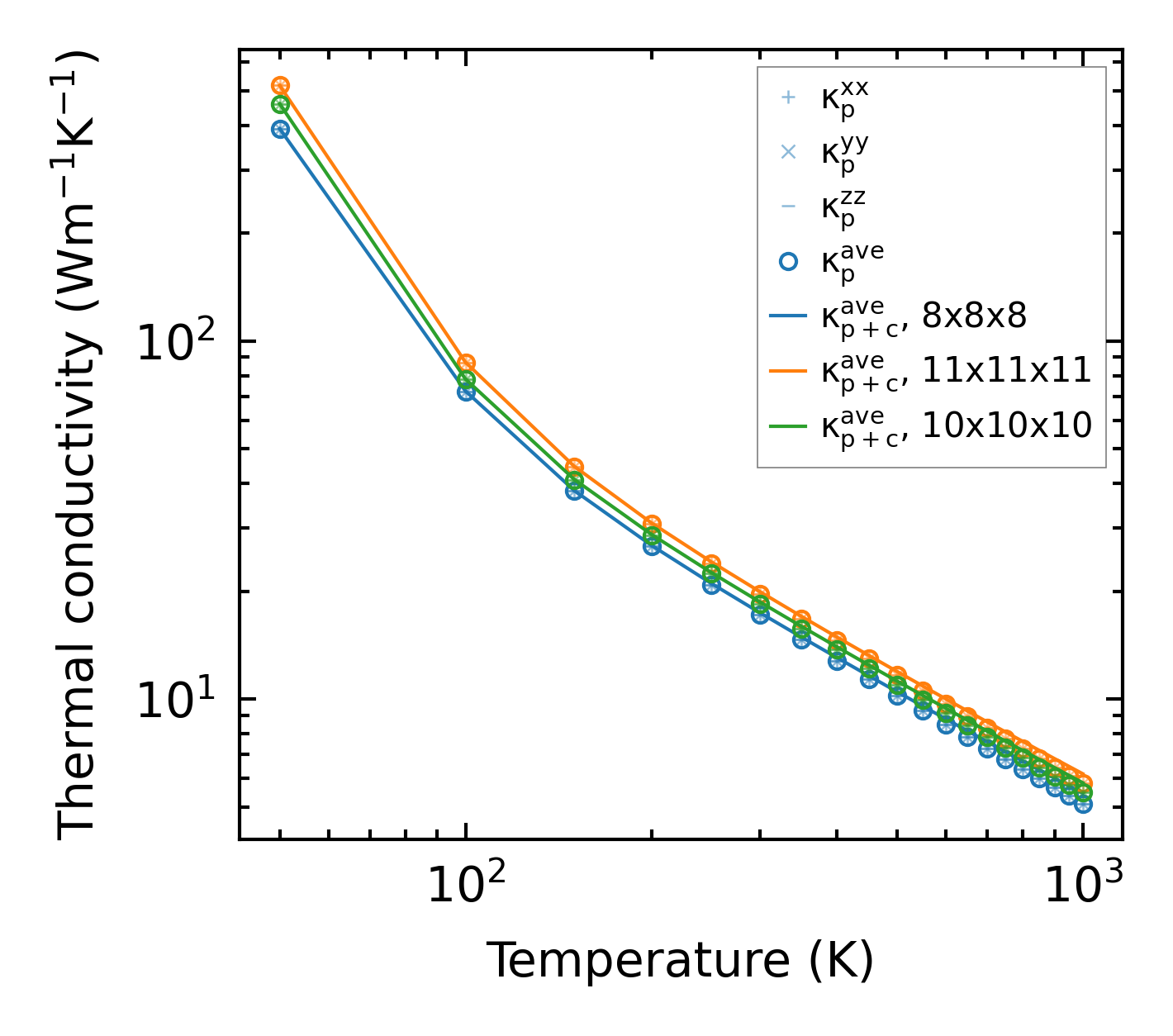

../../_images/fig_kappa1413.png — (a) Temperature-dependent lattice thermal conductivity

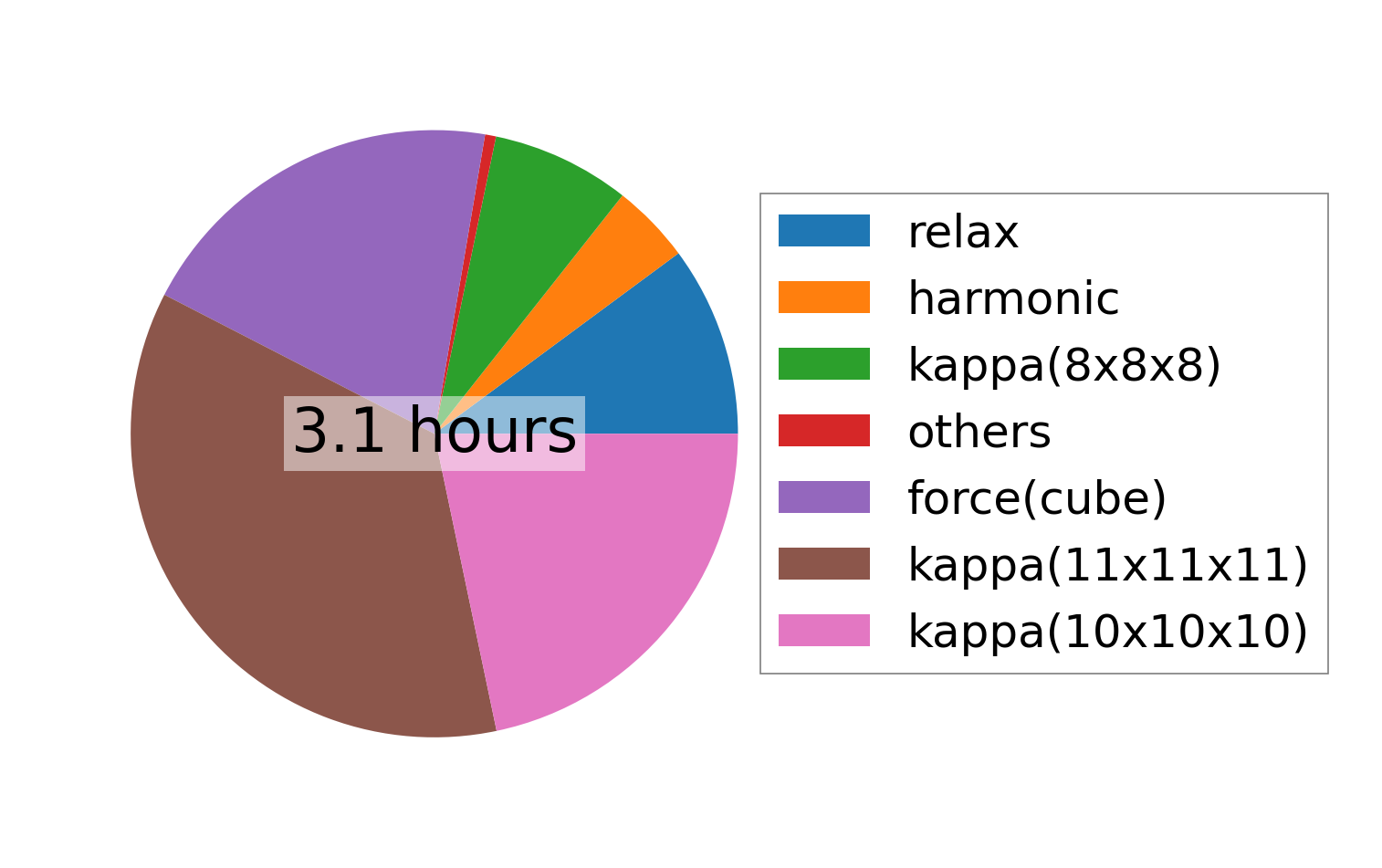

../../_images/fig_times1752.png — (b) Computation time
