mp-9719/Na2LiAlP2/anharm

Space group: Cmce (64)
Link: Materials Project
Download: mp-9719.tar.gz

Harmonic properties

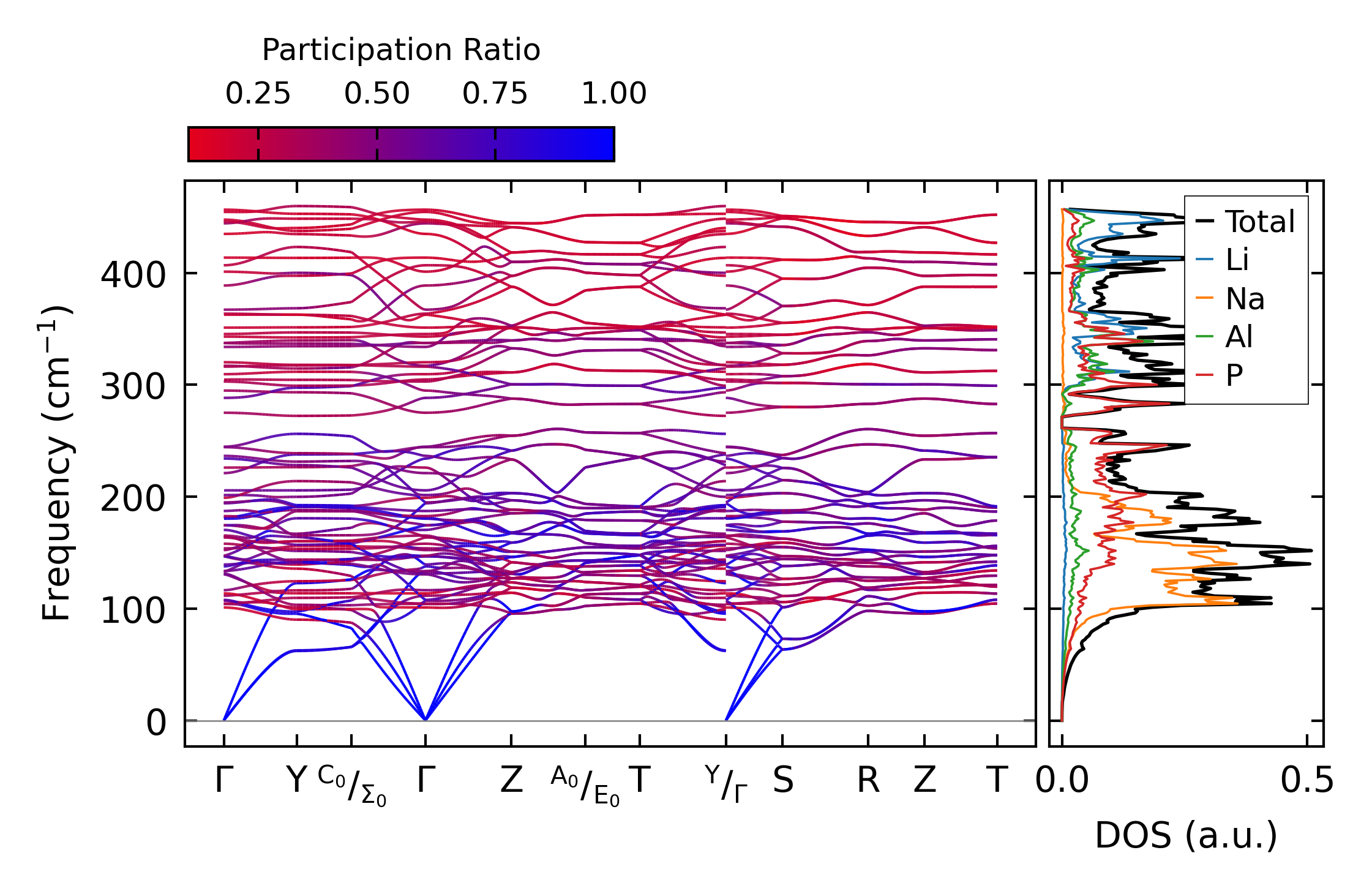

../../_images/fig_bandos_pr1203.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo1203.png — (b) Thermodynamic properties

Grüneisen parameters

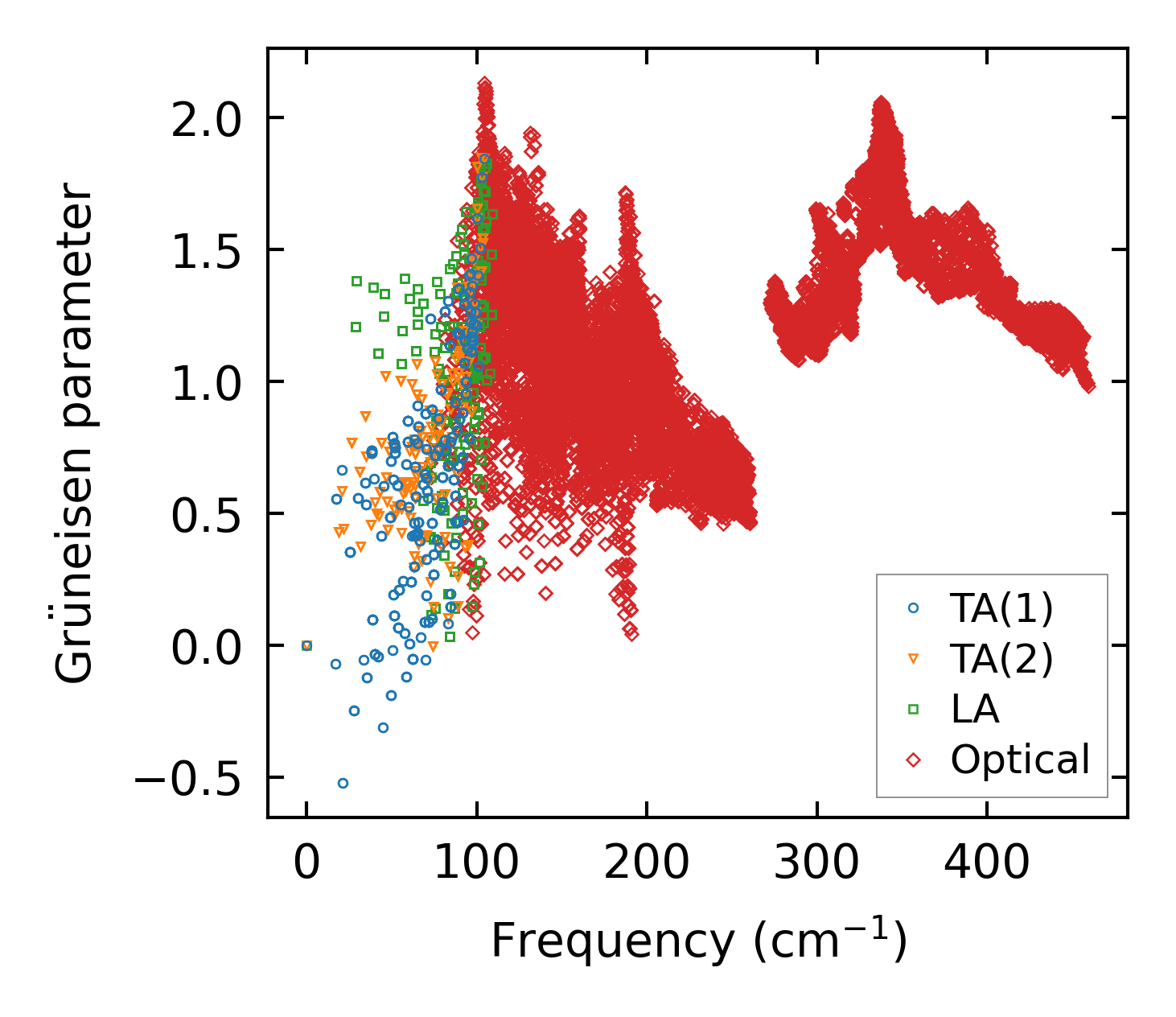

../../_images/fig_gru_all748.png — (a) Grüneisen parameters

../../_images/fig_gruneisen748.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 8x8x12, supercell: 1x1x3

../../_images/fig_kappa1458.png — (a) Temperature-dependent lattice thermal conductivity

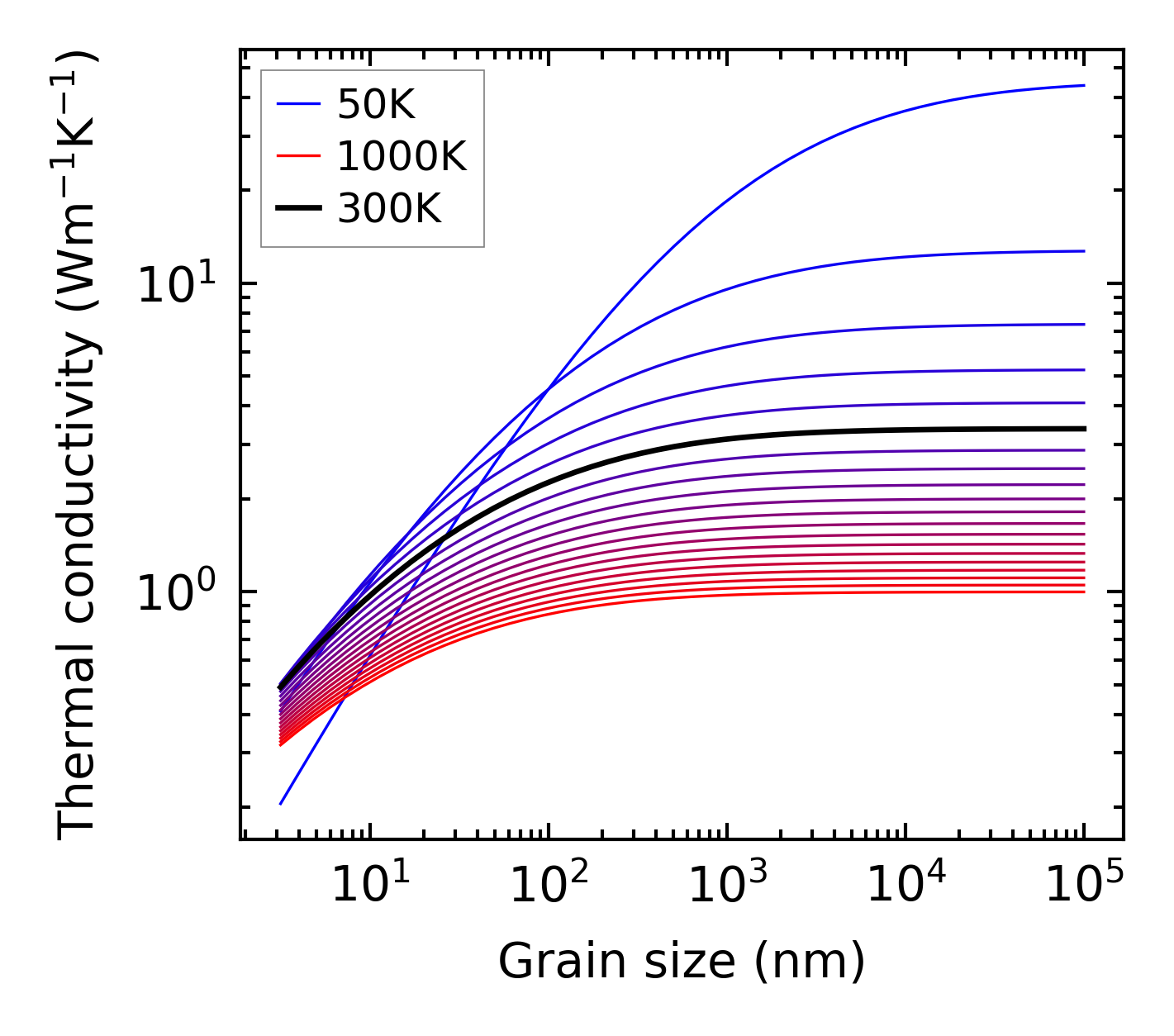

../../_images/fig_kappa_vs_grain_size757.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime744.png — (a) Phonon lifetime due to phonon-phonon scattering

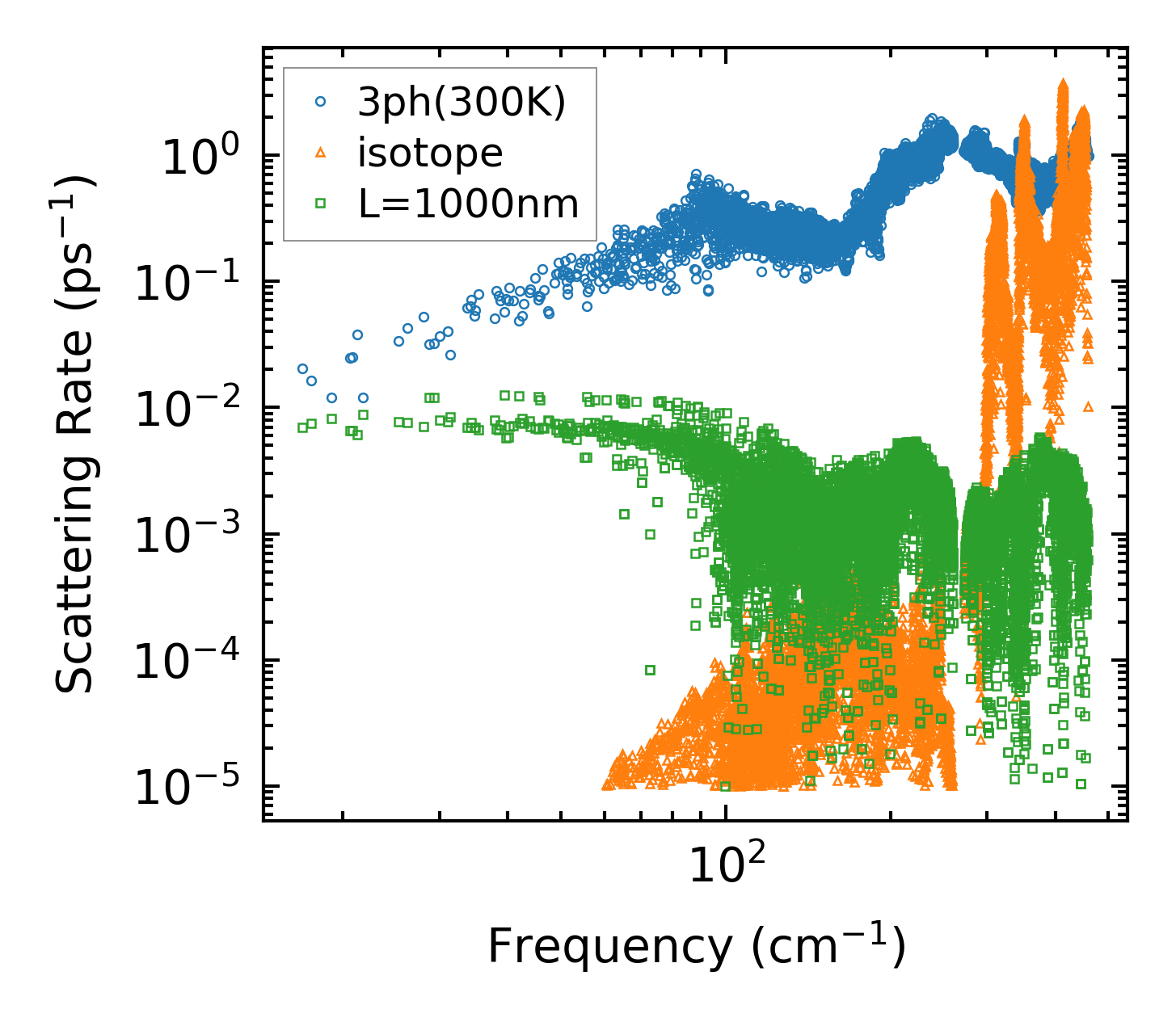

../../_images/fig_scat_rates743.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency744.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

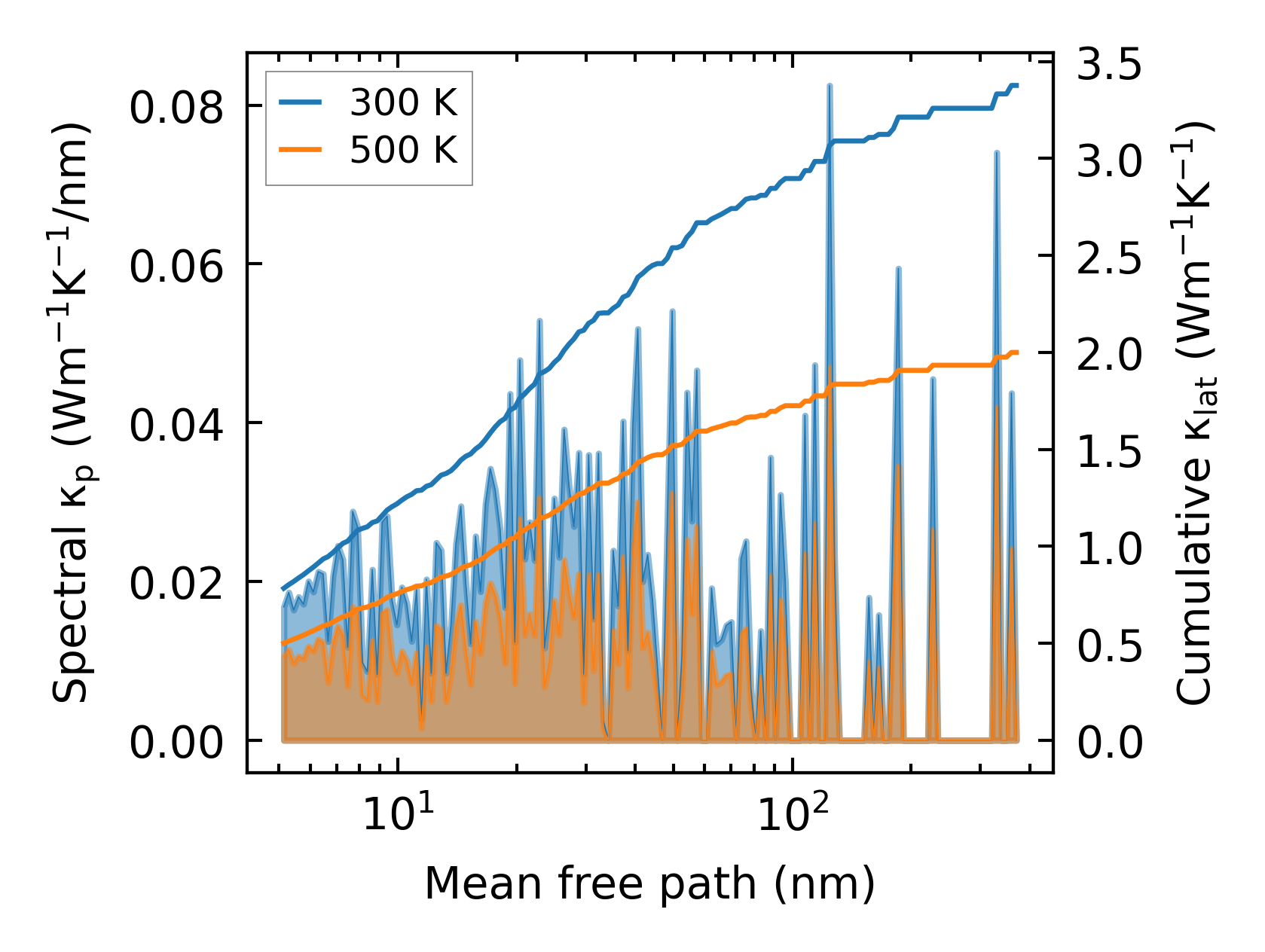

../../_images/fig_cumu_mfp744.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

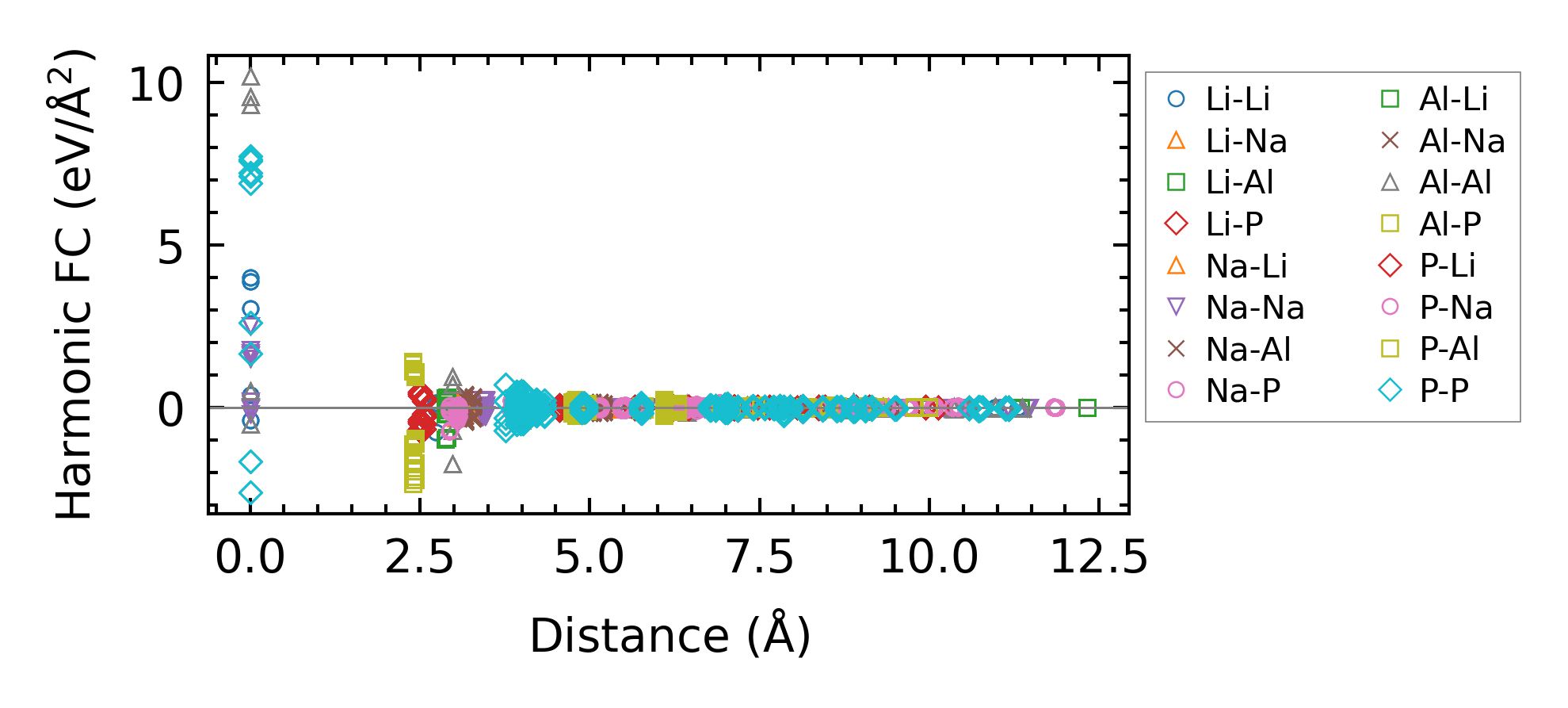

../../_images/fig_fc21069.png — (a) Force constants w.r.t atomic distance

Summary

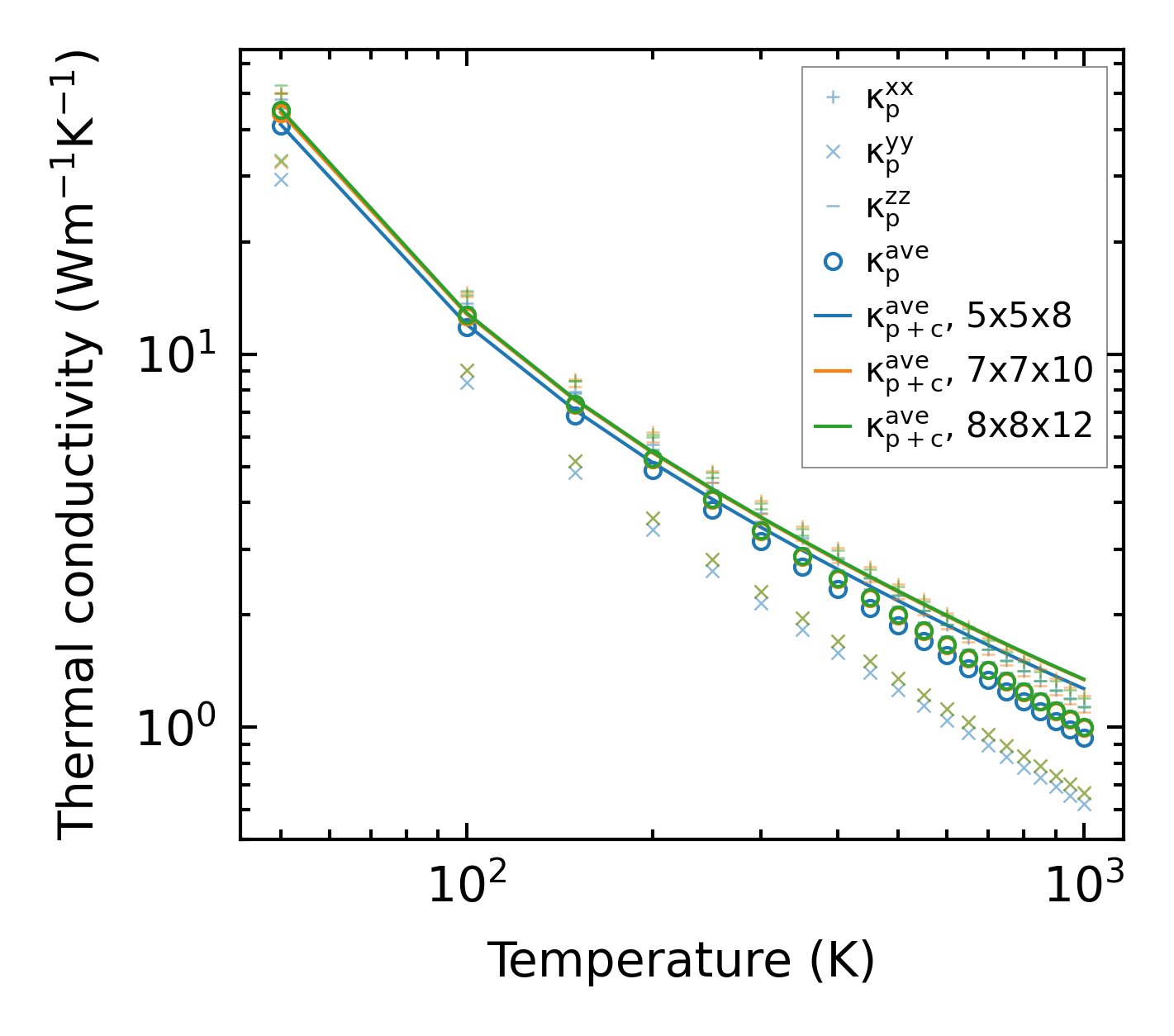

../../_images/fig_kappa1459.png — (a) Temperature-dependent lattice thermal conductivity

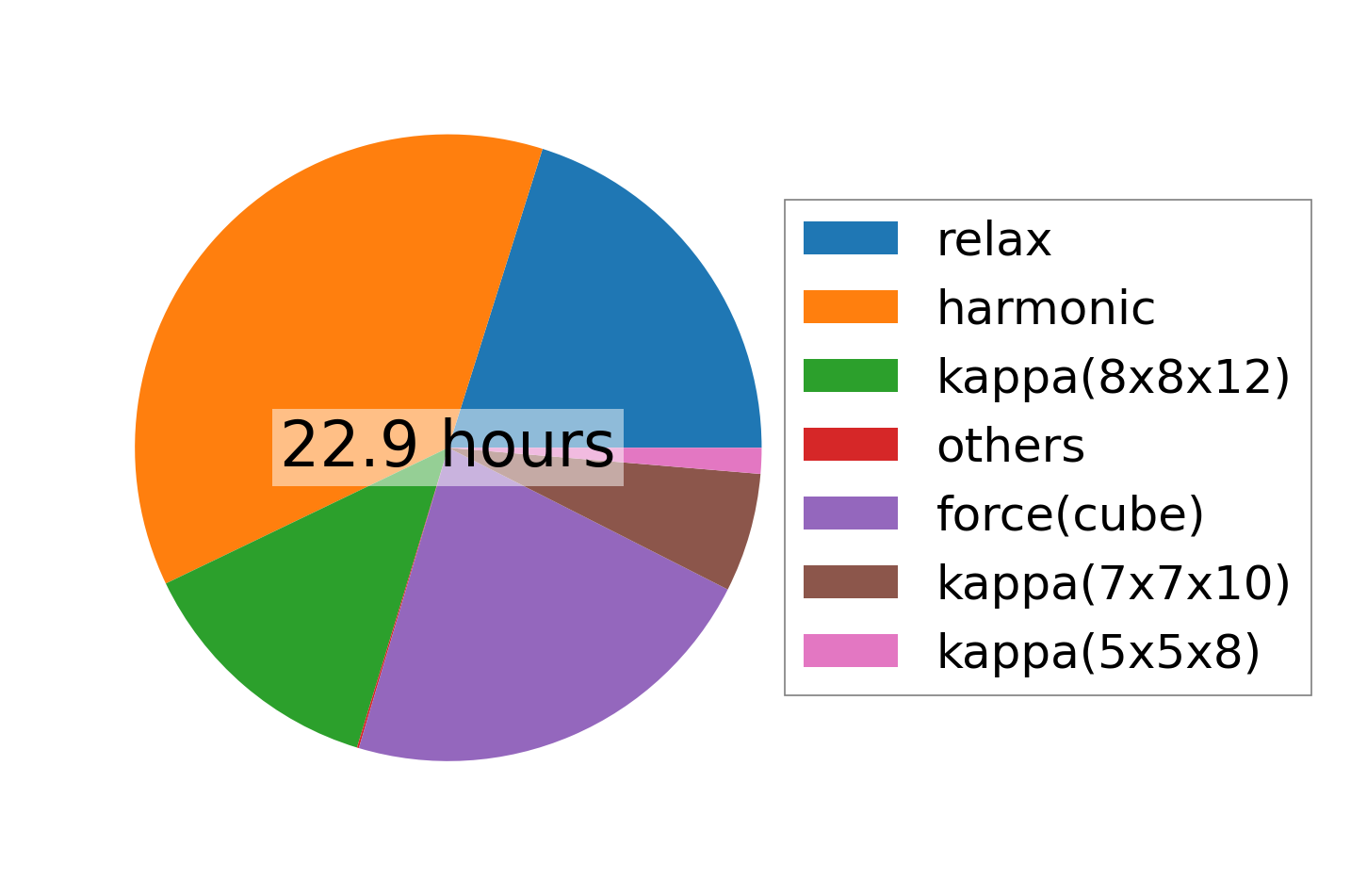

../../_images/fig_times1805.png — (b) Computation time
