mp-9230-2/KAlAs2O7/anharm

Space group: P-1 (2)
Link: Materials Project
Download: mp-9230-2.tar.gz

Equation of state

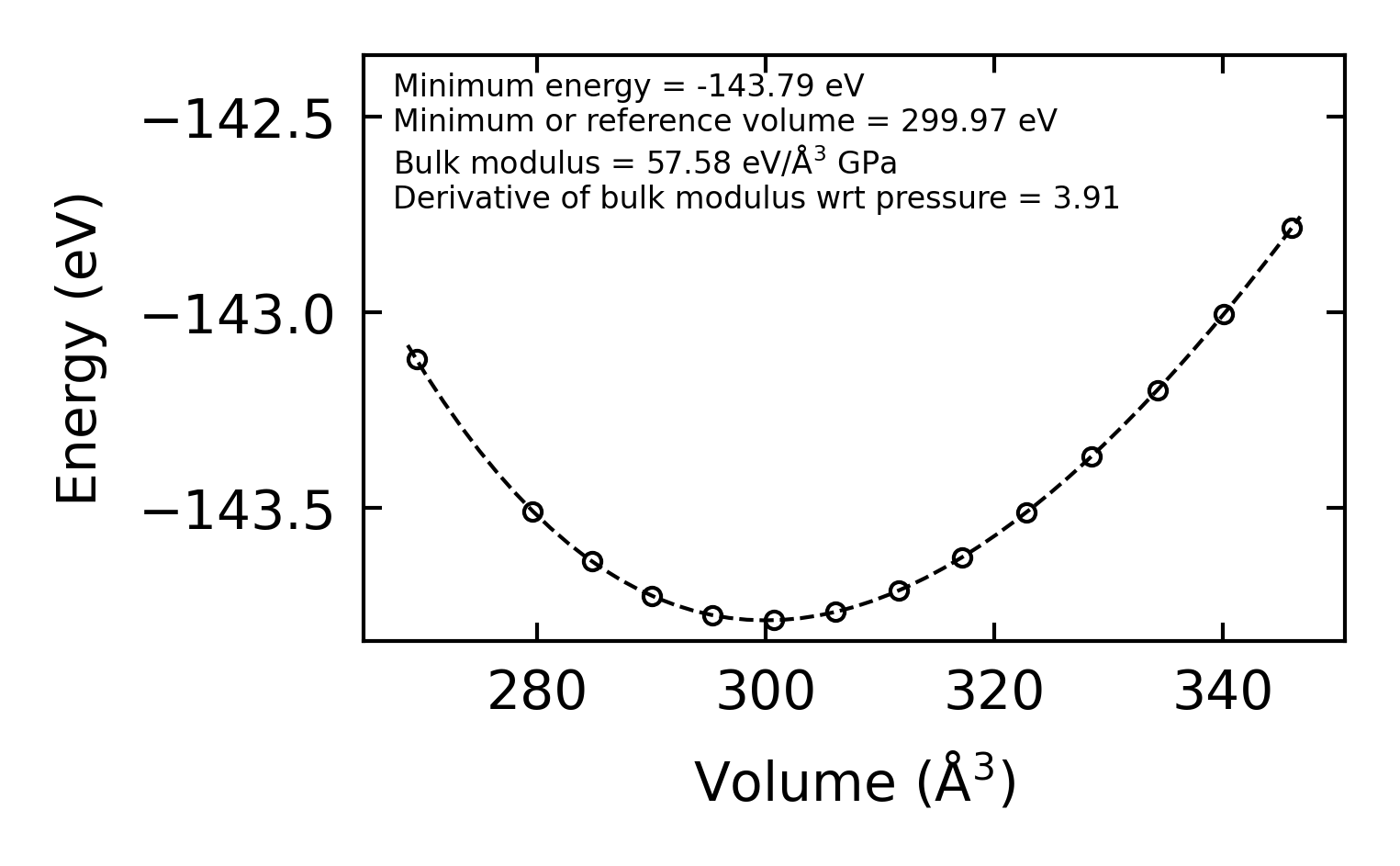

../../_images/fig_bm497.png — (a) Equation of state

Harmonic properties

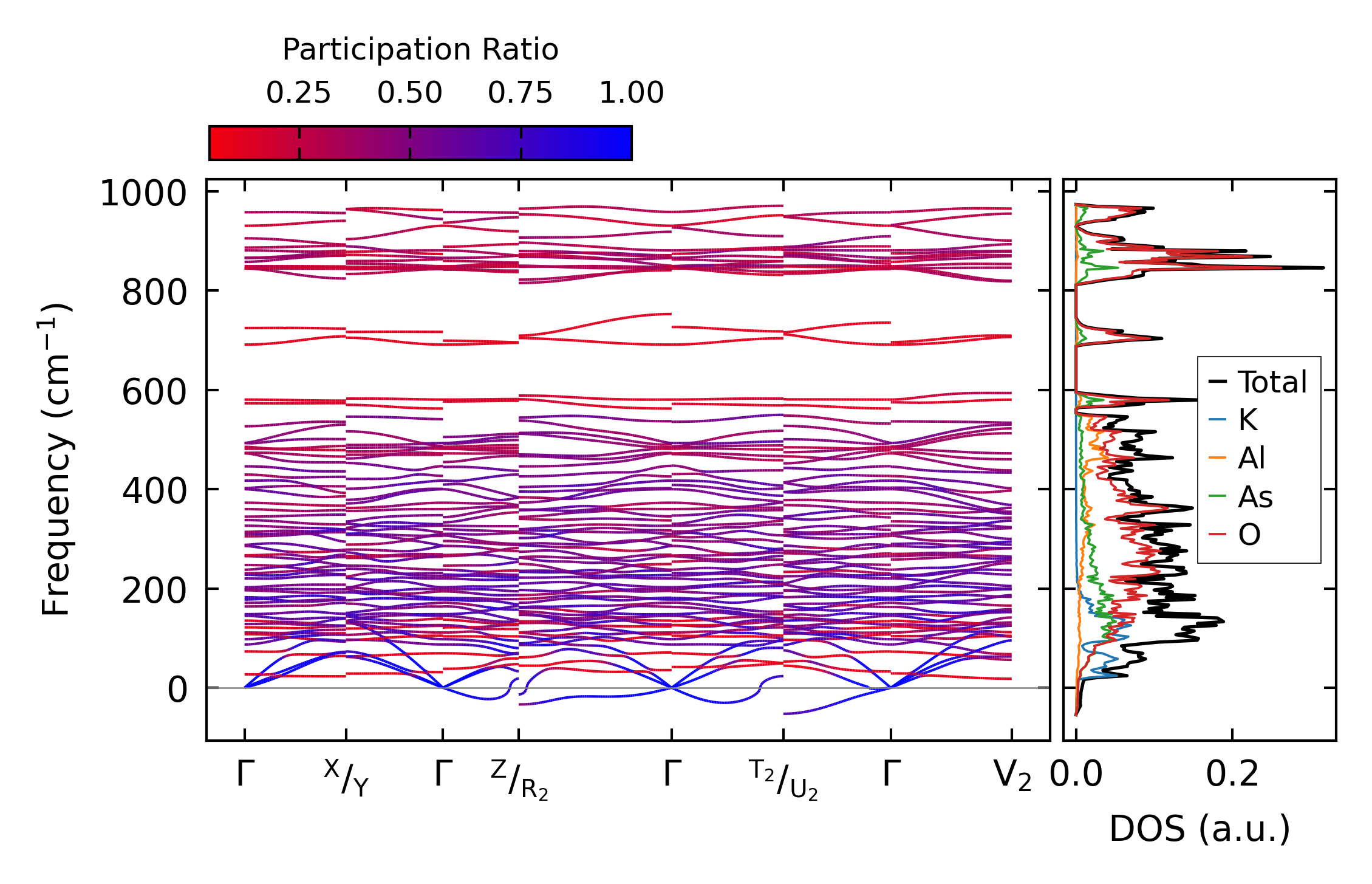

../../_images/fig_bandos_pr1397.png — (a) Phonon dispersion with participation ratio and DOS

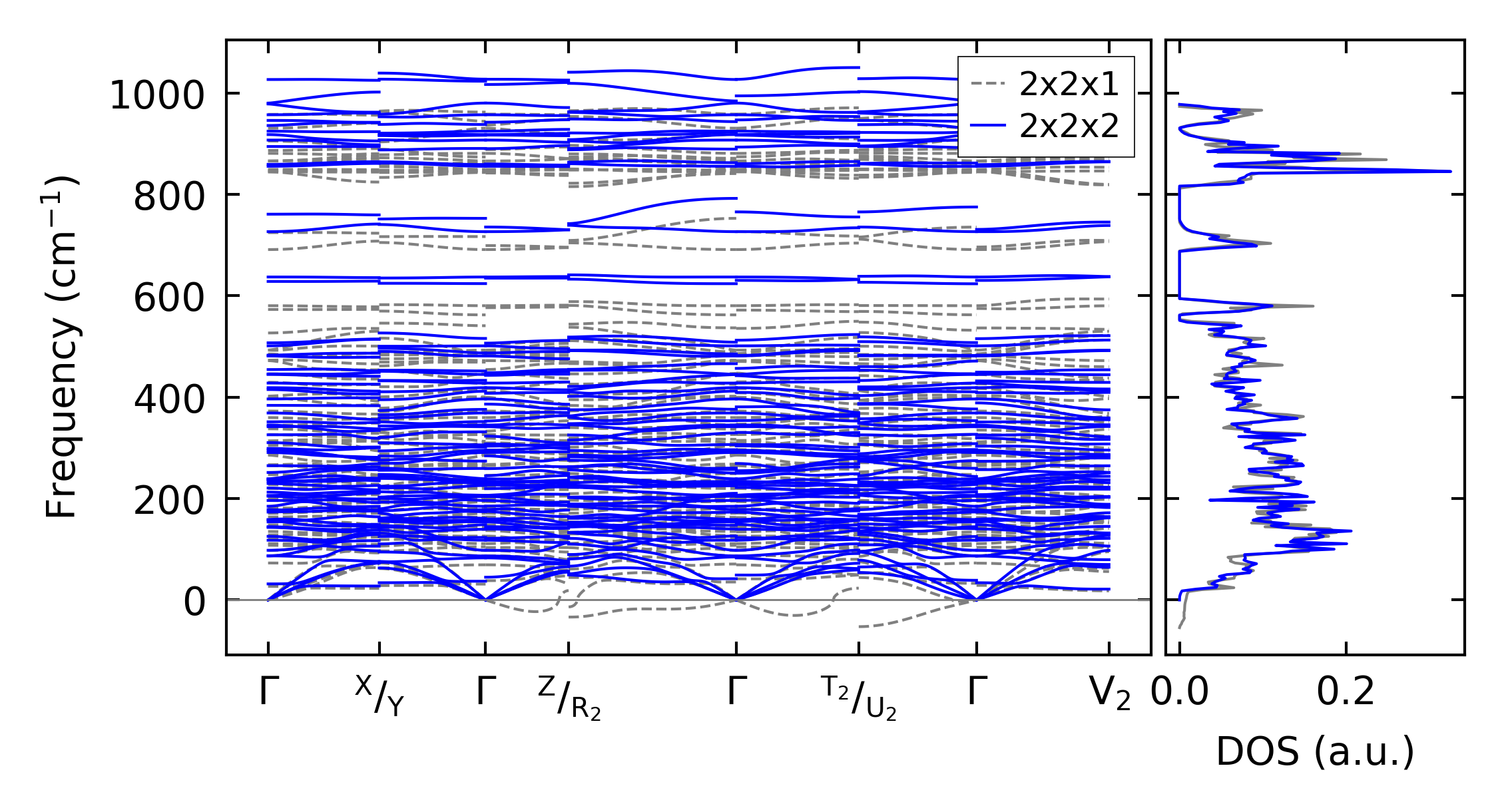

../../_images/fig_bandos1318.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo1397.png — (c) Thermodynamic properties

Grüneisen parameters

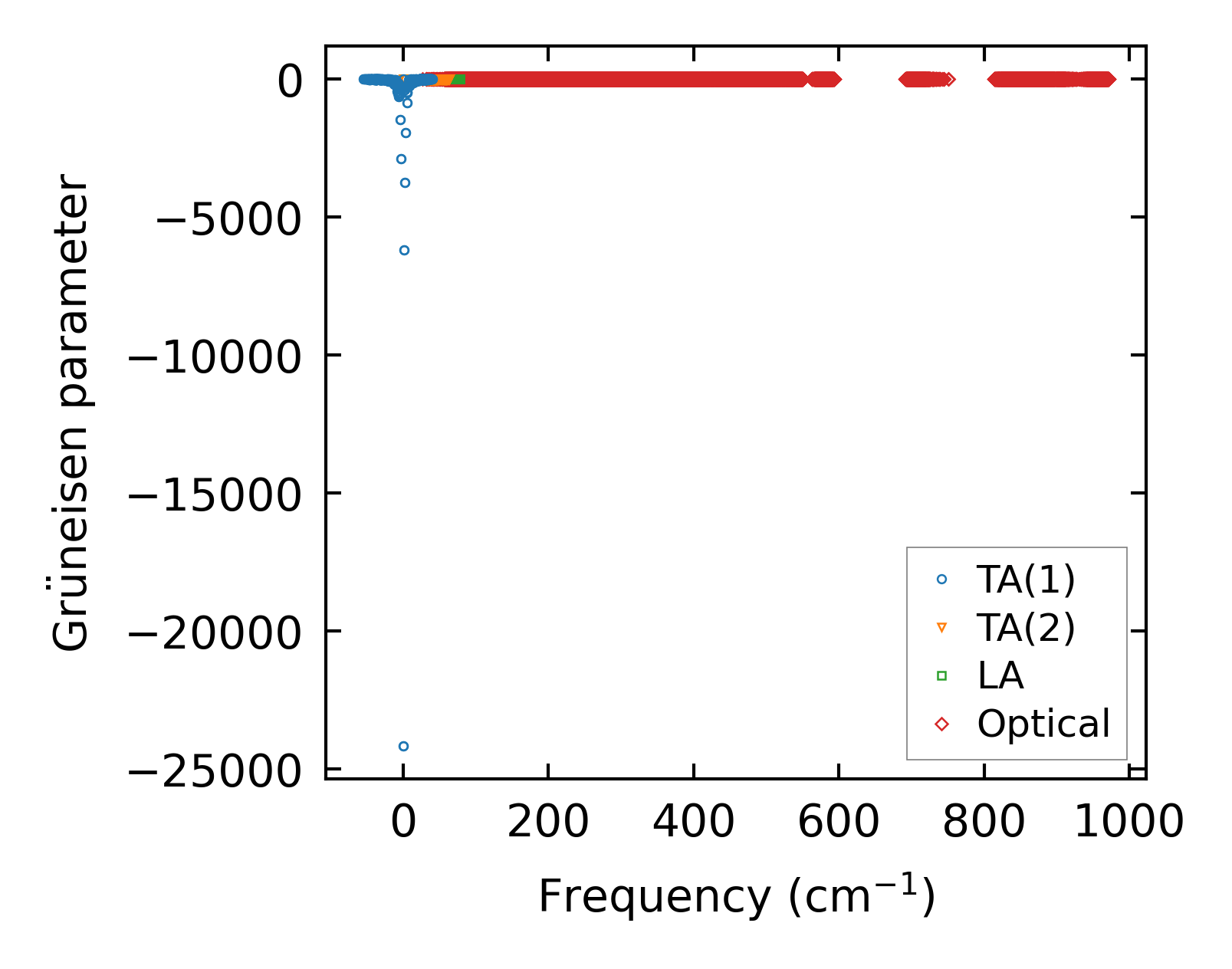

../../_images/fig_gru_all861.png — (a) Grüneisen parameters

../../_images/fig_gruneisen861.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x2x2 — q-mesh: 11x11x9, supercell: 2x2x2

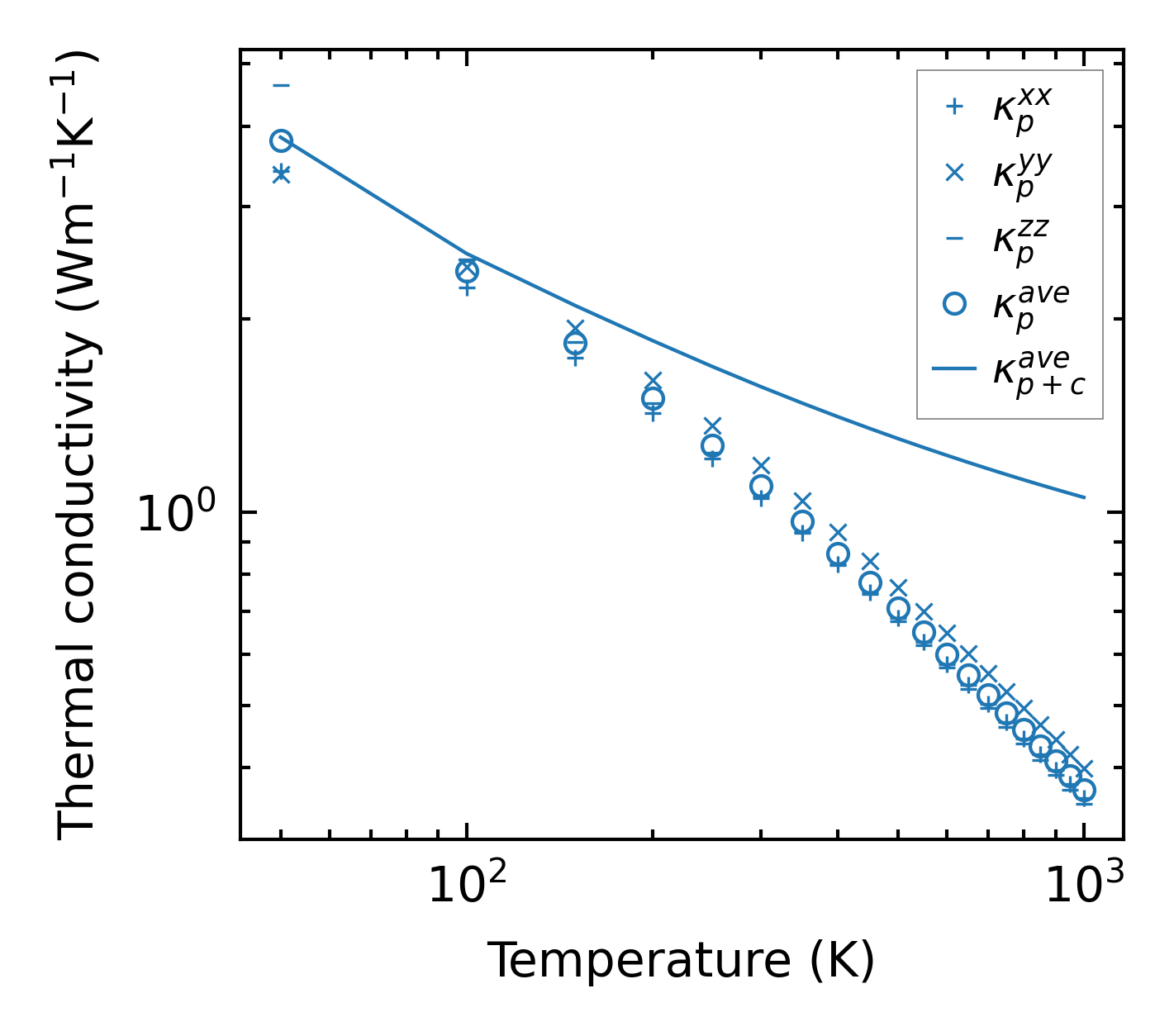

../../_images/fig_kappa1672.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size871.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

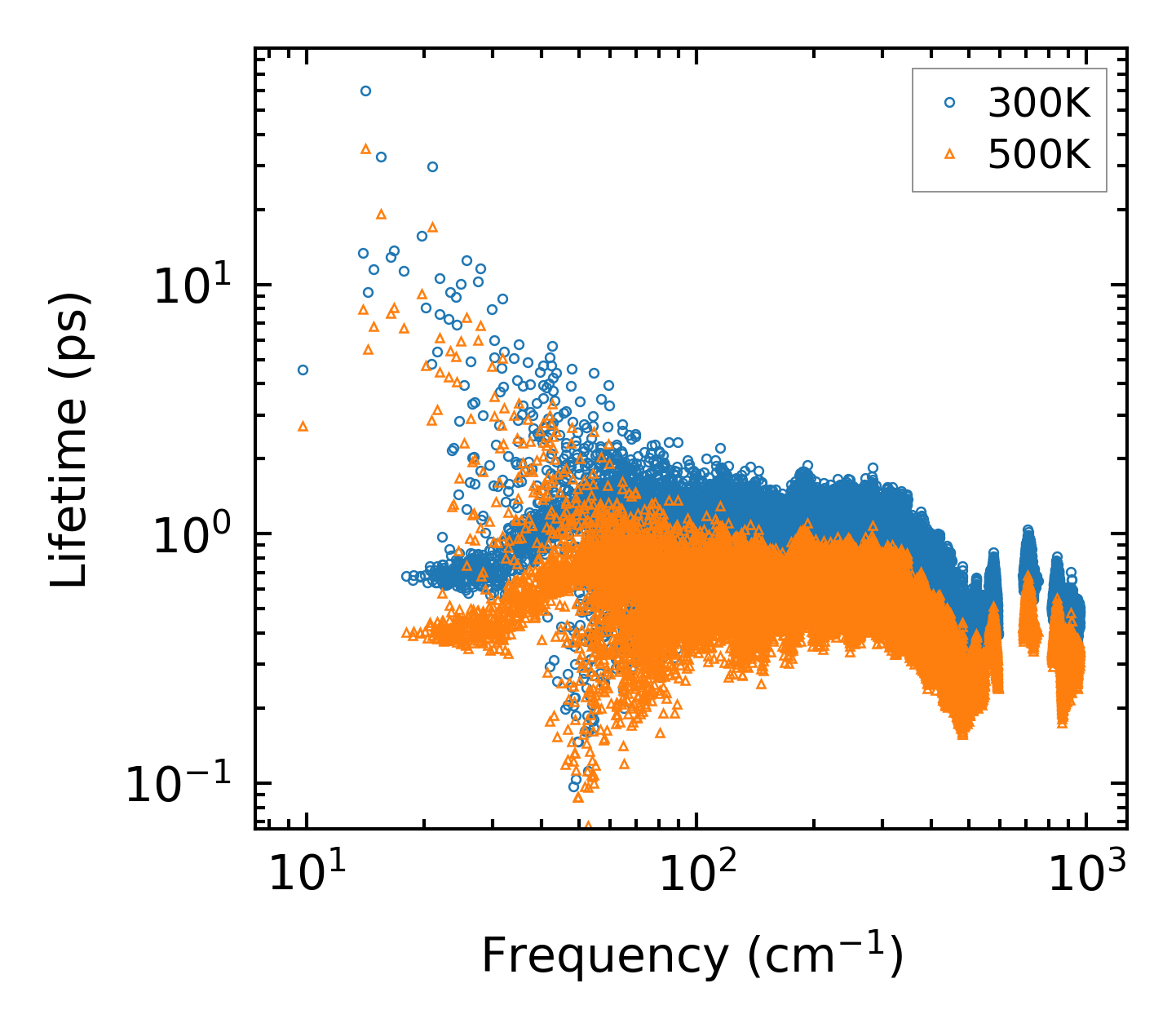

../../_images/fig_lifetime855.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates854.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency855.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp855.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

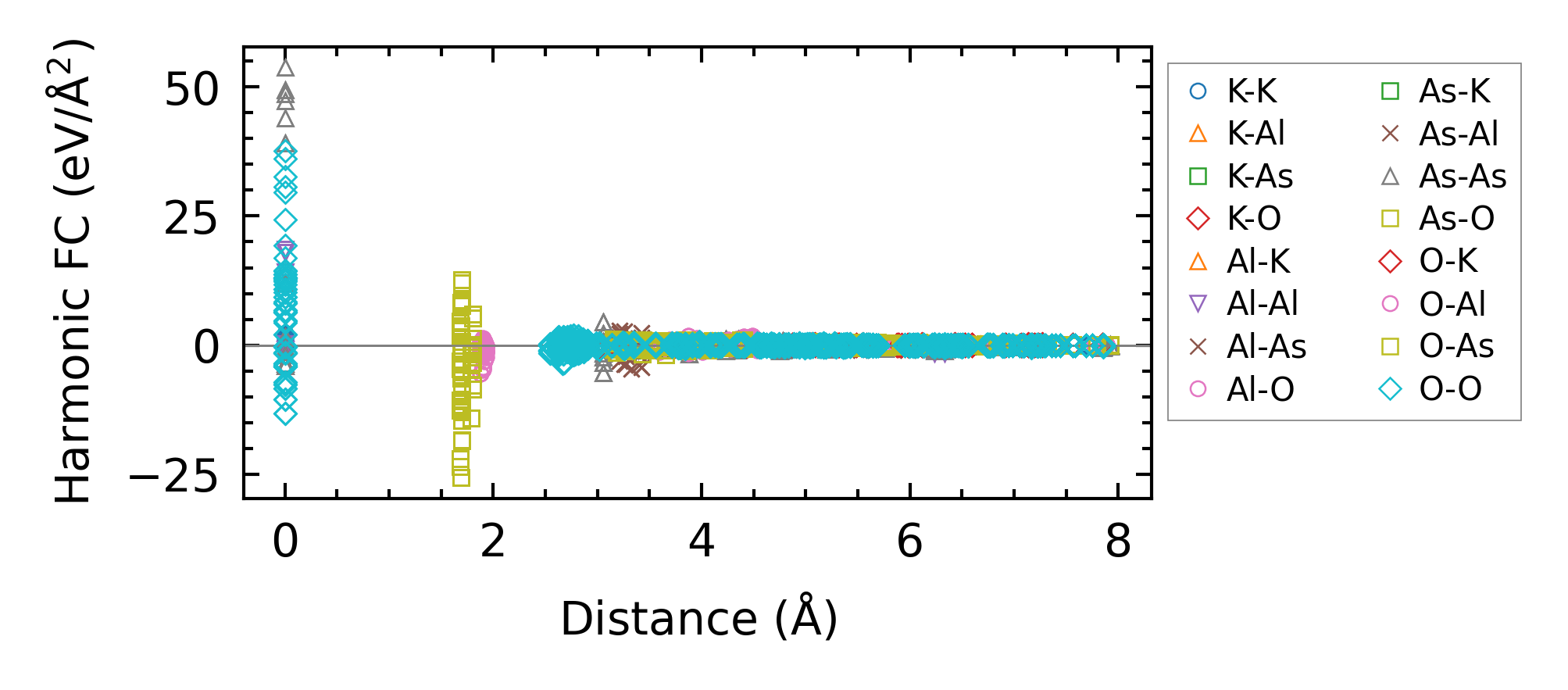

../../_images/fig_fc21250.png — (a) Force constants w.r.t atomic distance

Summary

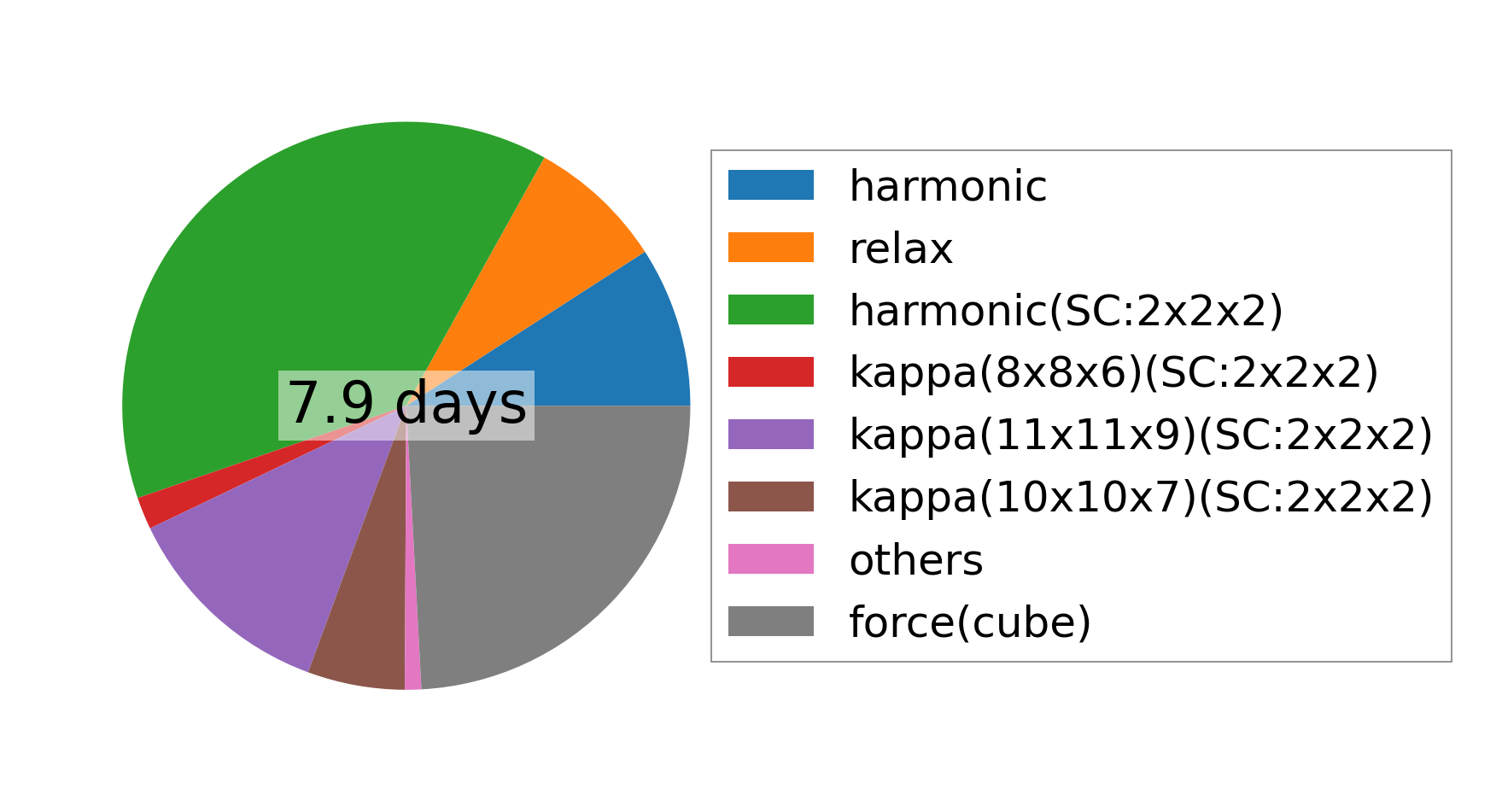

../../_images/fig_times2106.png — (a) Computation time
