mp-9514/MgAl2C2/anharm

Space group: P-3m1 (164)
Link: Materials Project
Download: mp-9514.tar.gz

Harmonic properties

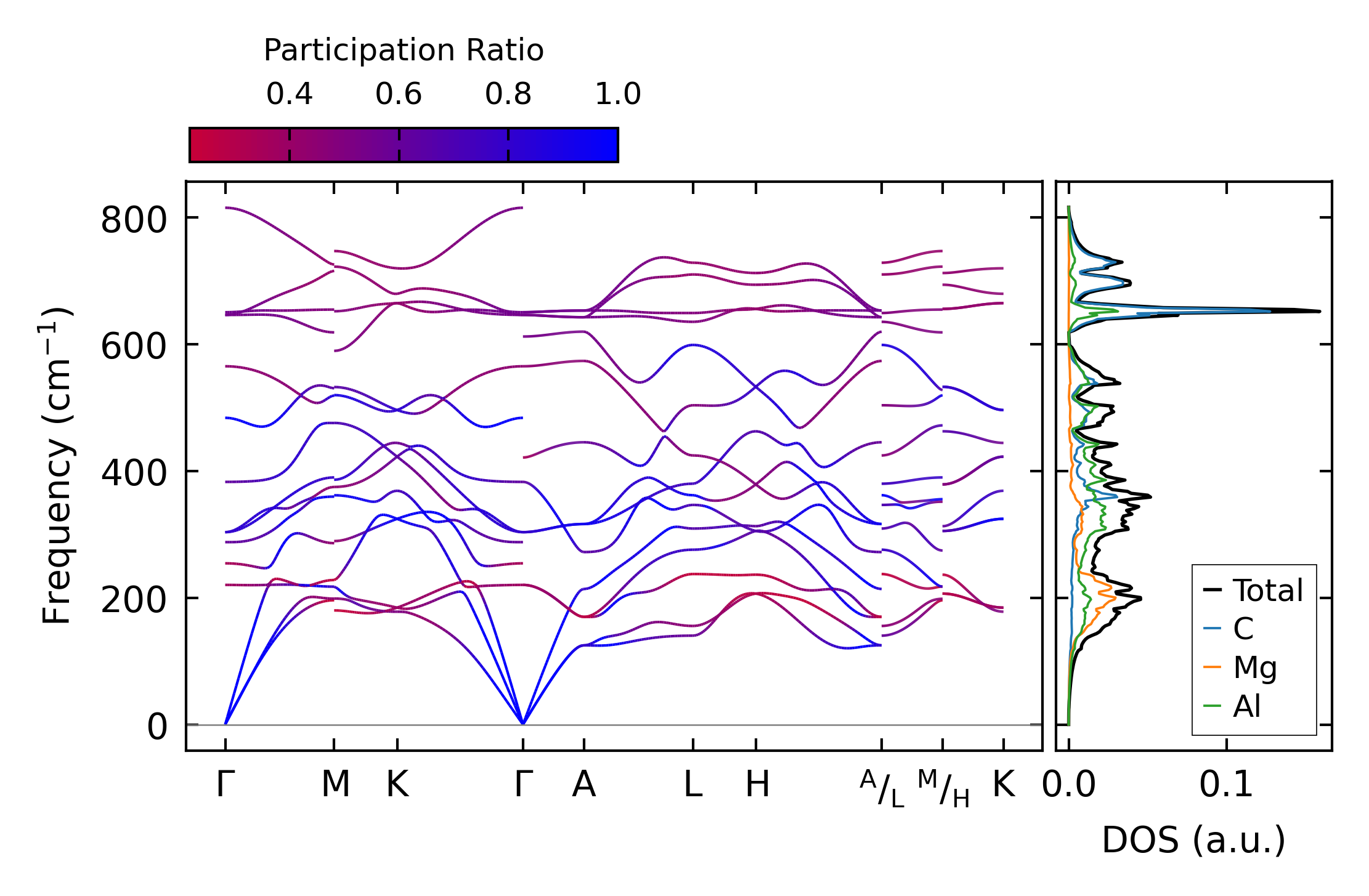

../../_images/fig_bandos_pr1139.png — (a) Phonon dispersion with participation ratio and DOS

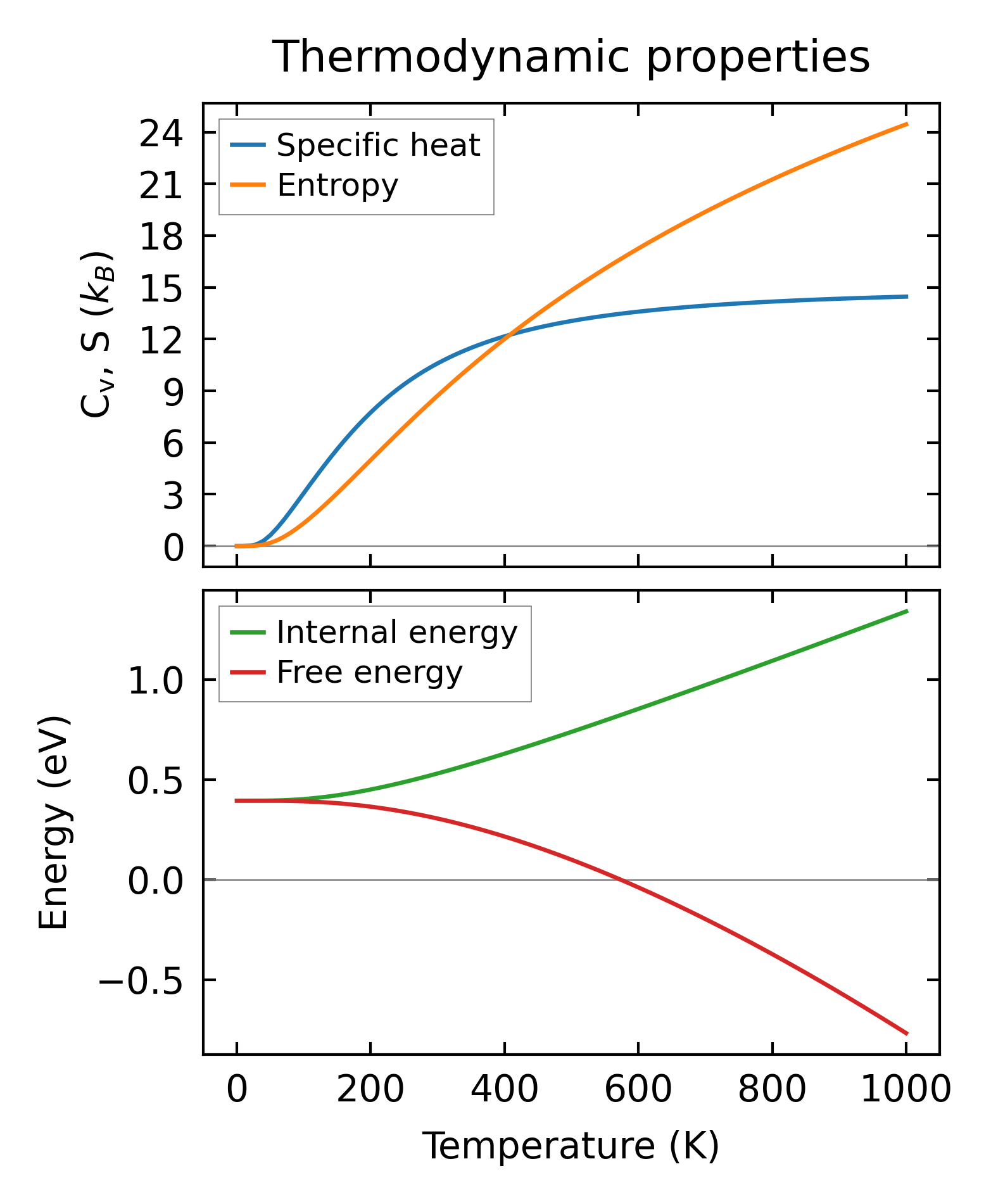

../../_images/fig_thermo1139.png — (b) Thermodynamic properties

Grüneisen parameters

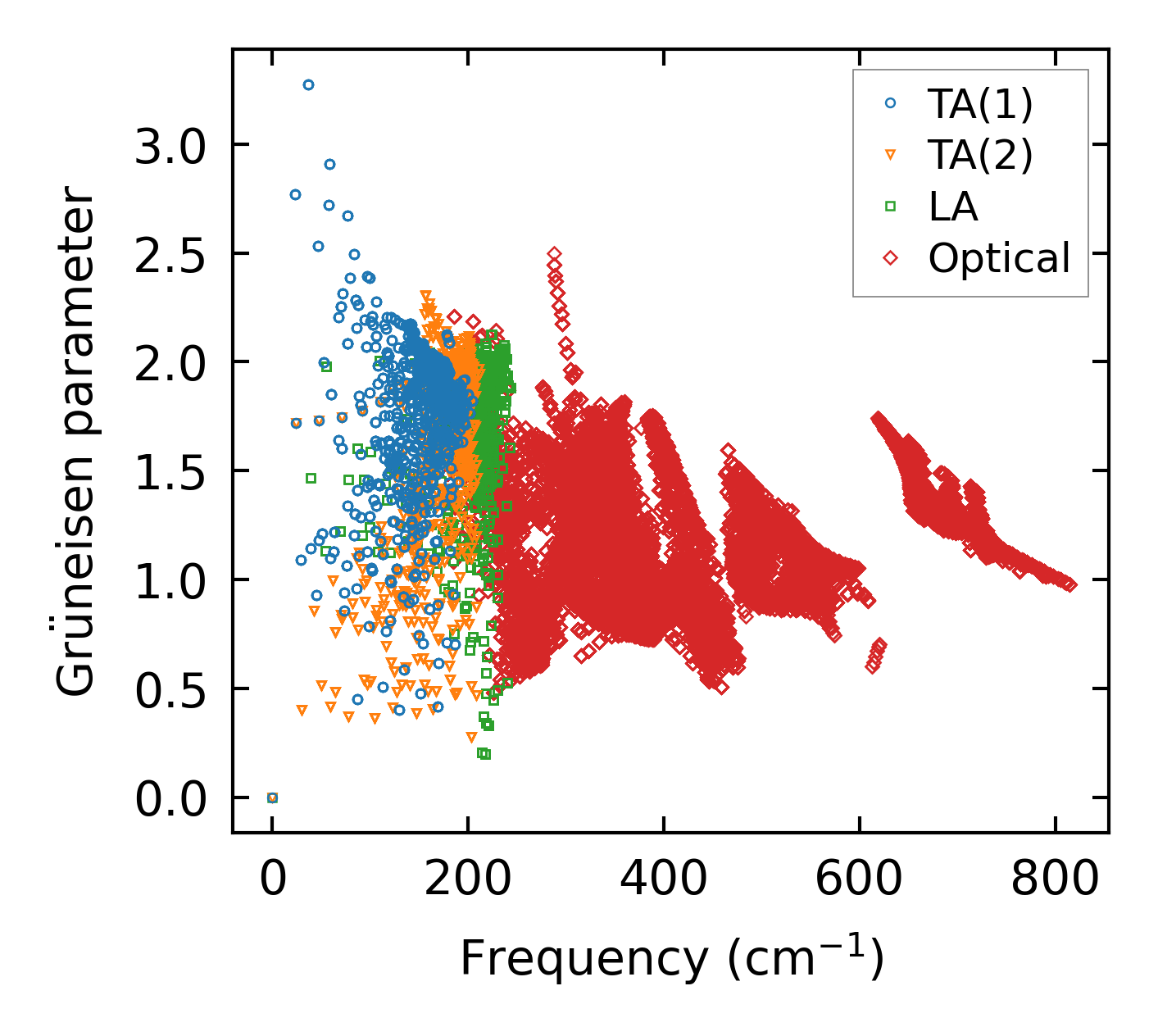

../../_images/fig_gru_all697.png — (a) Grüneisen parameters

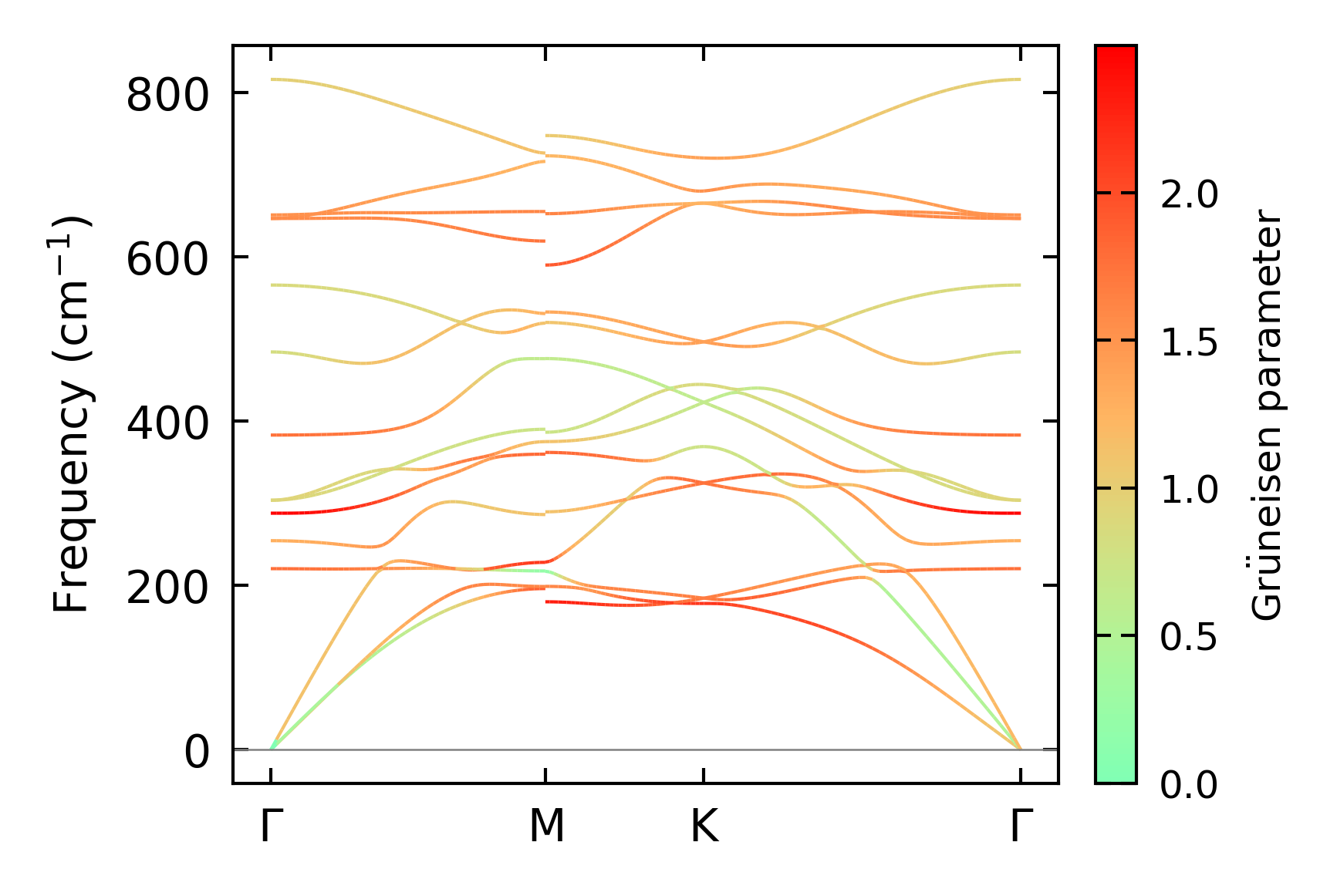

../../_images/fig_gruneisen697.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 22x22x13, supercell: 3x3x2

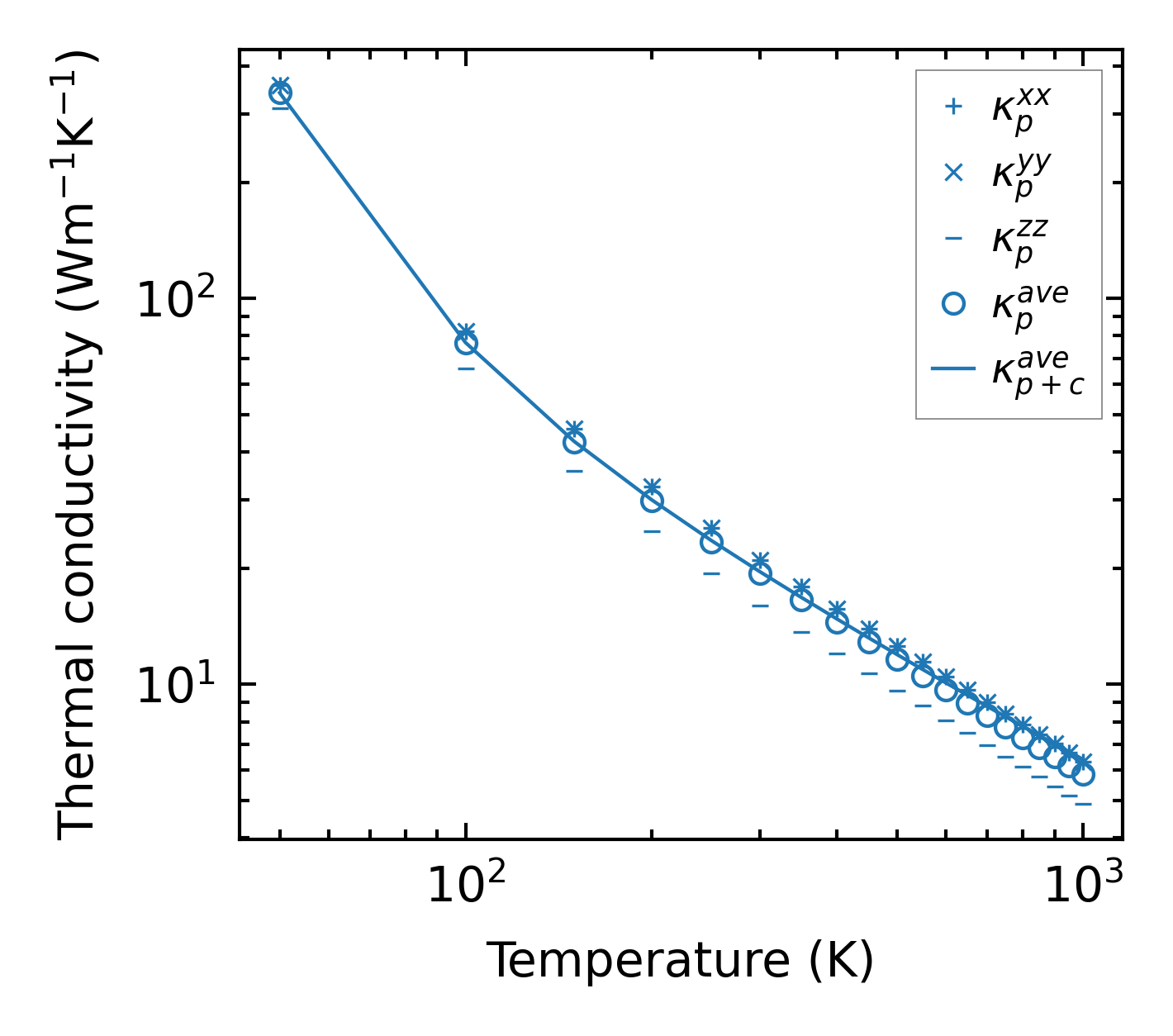

../../_images/fig_kappa1360.png — (a) Temperature-dependent lattice thermal conductivity

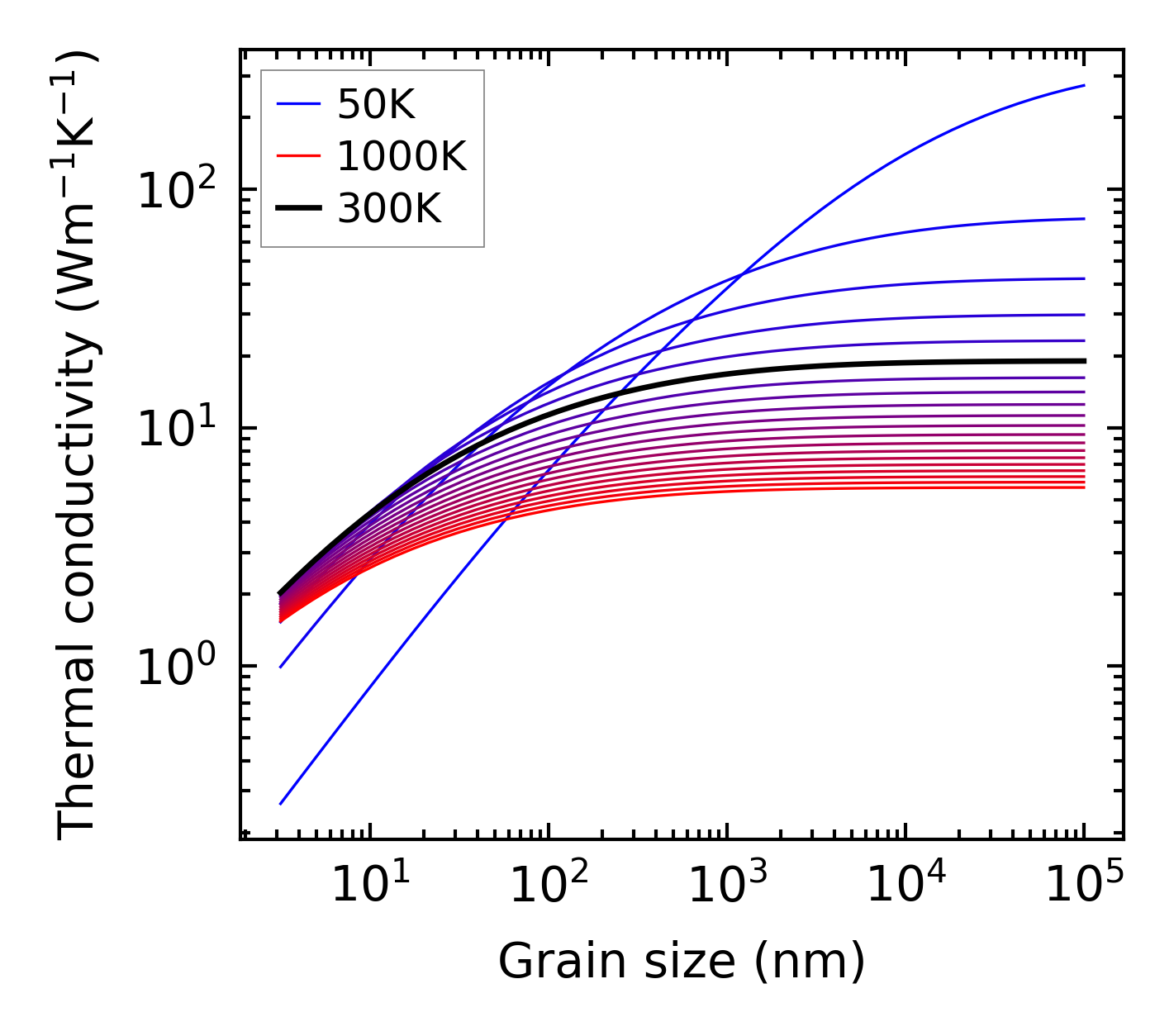

../../_images/fig_kappa_vs_grain_size706.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

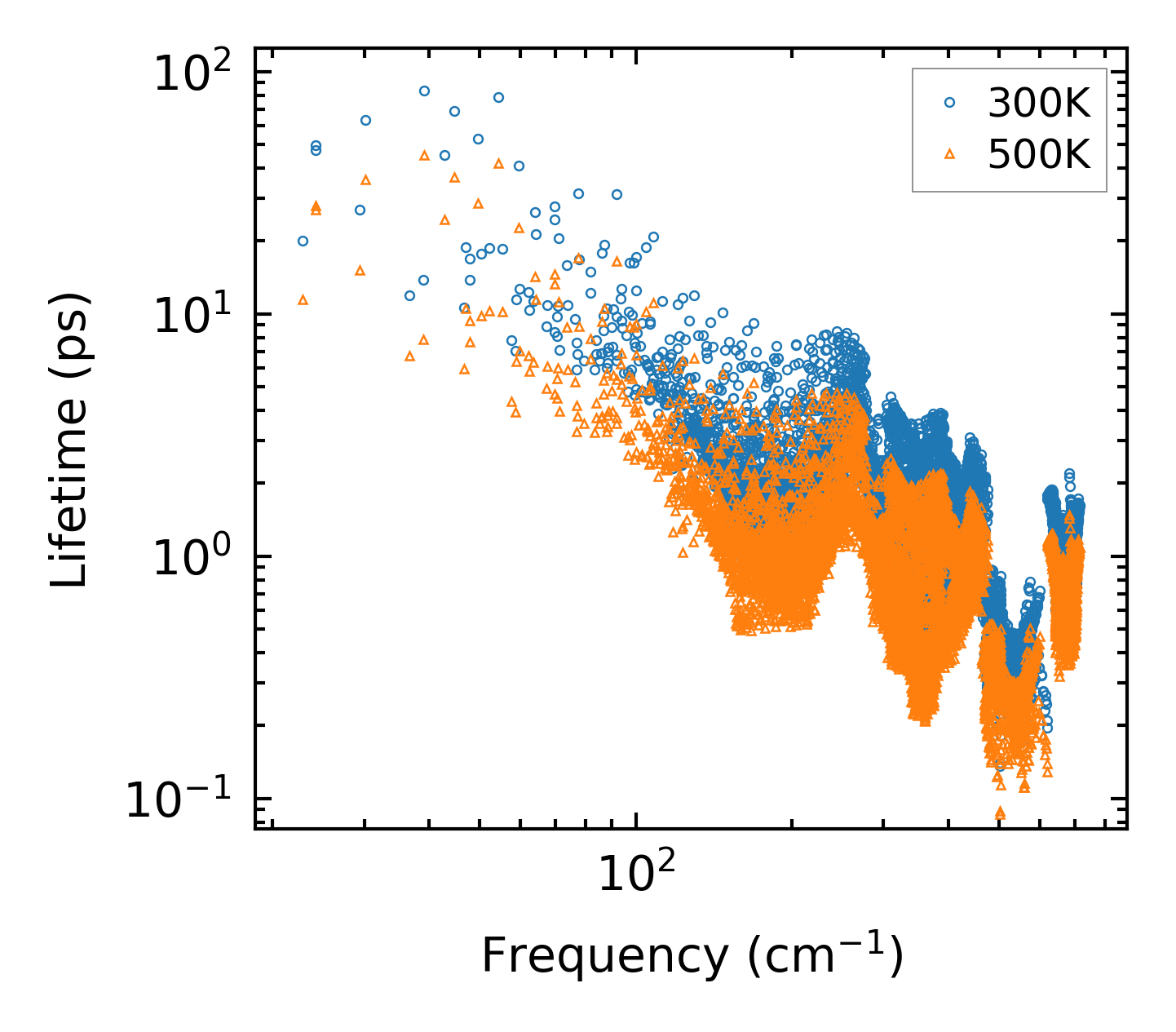

../../_images/fig_lifetime695.png — (a) Phonon lifetime due to phonon-phonon scattering

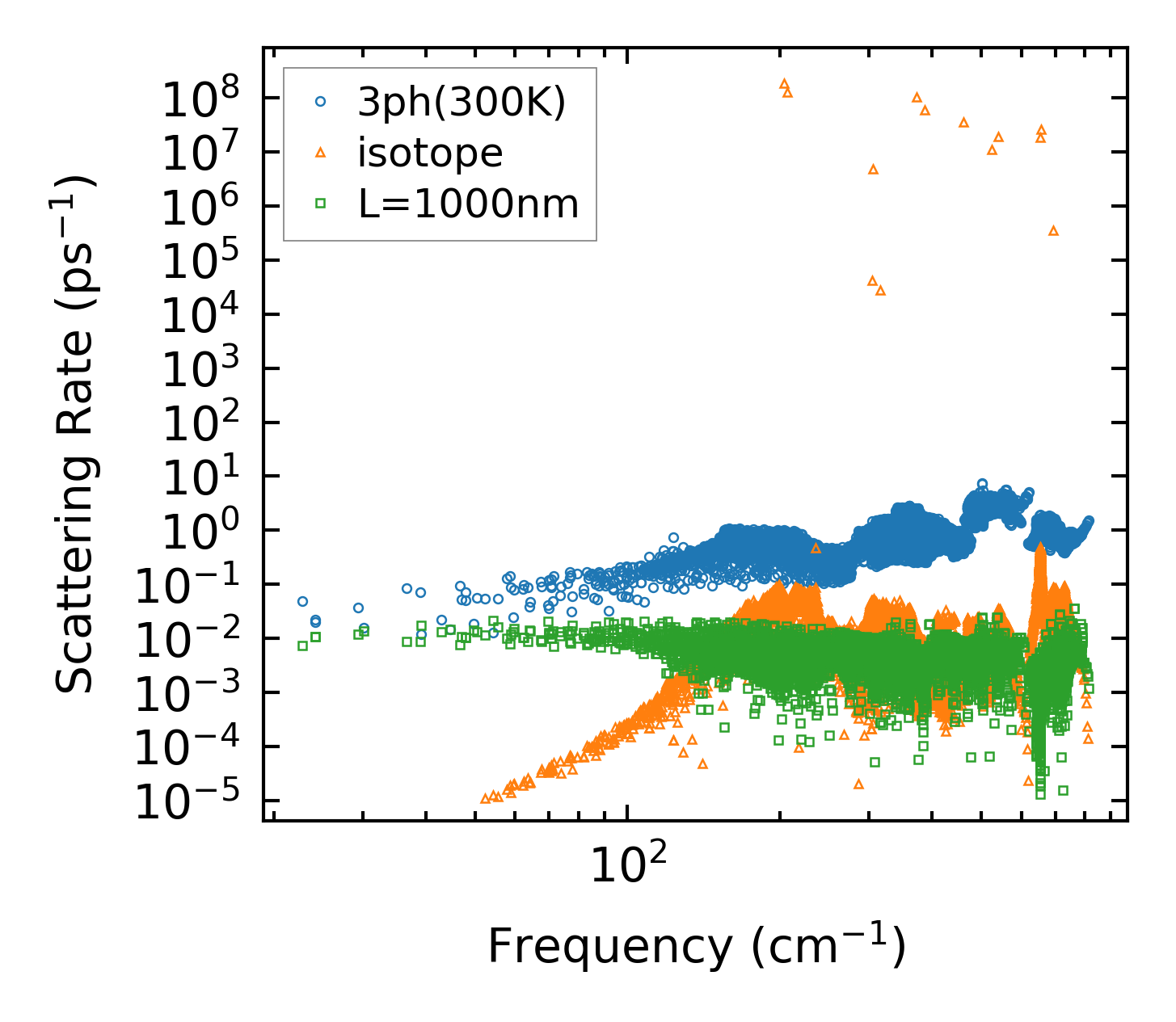

../../_images/fig_scat_rates694.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

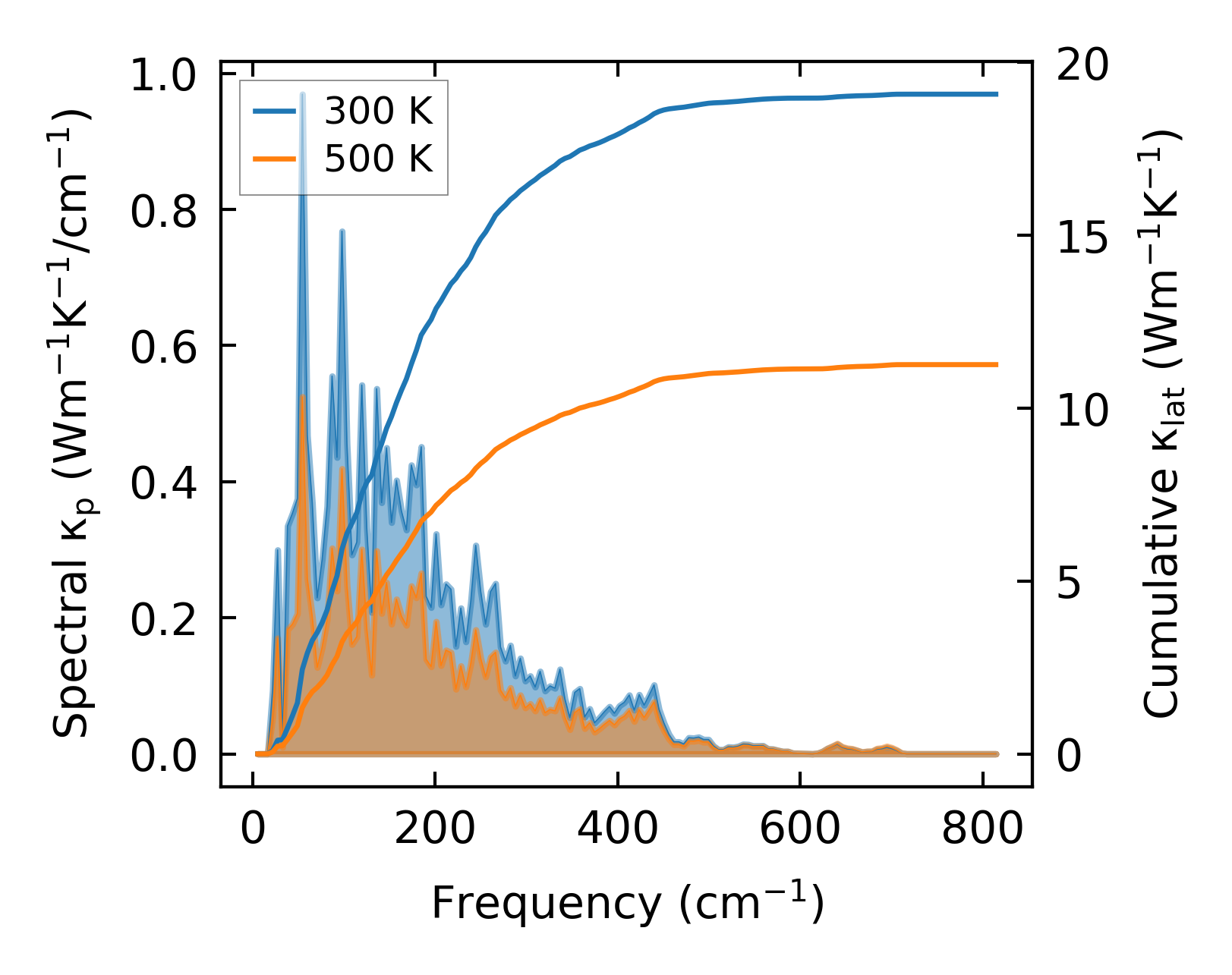

../../_images/fig_cumu_frequency695.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

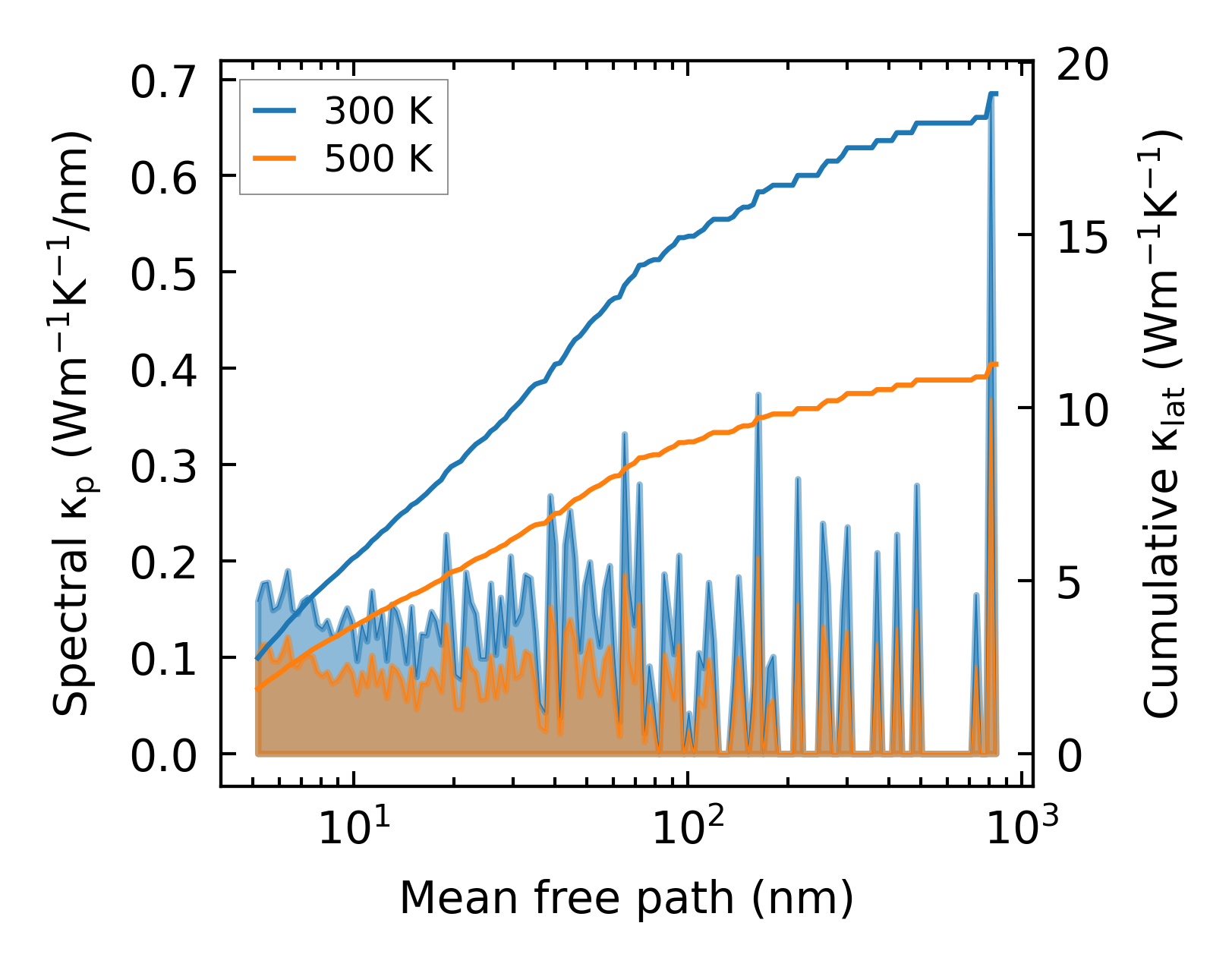

../../_images/fig_cumu_mfp695.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

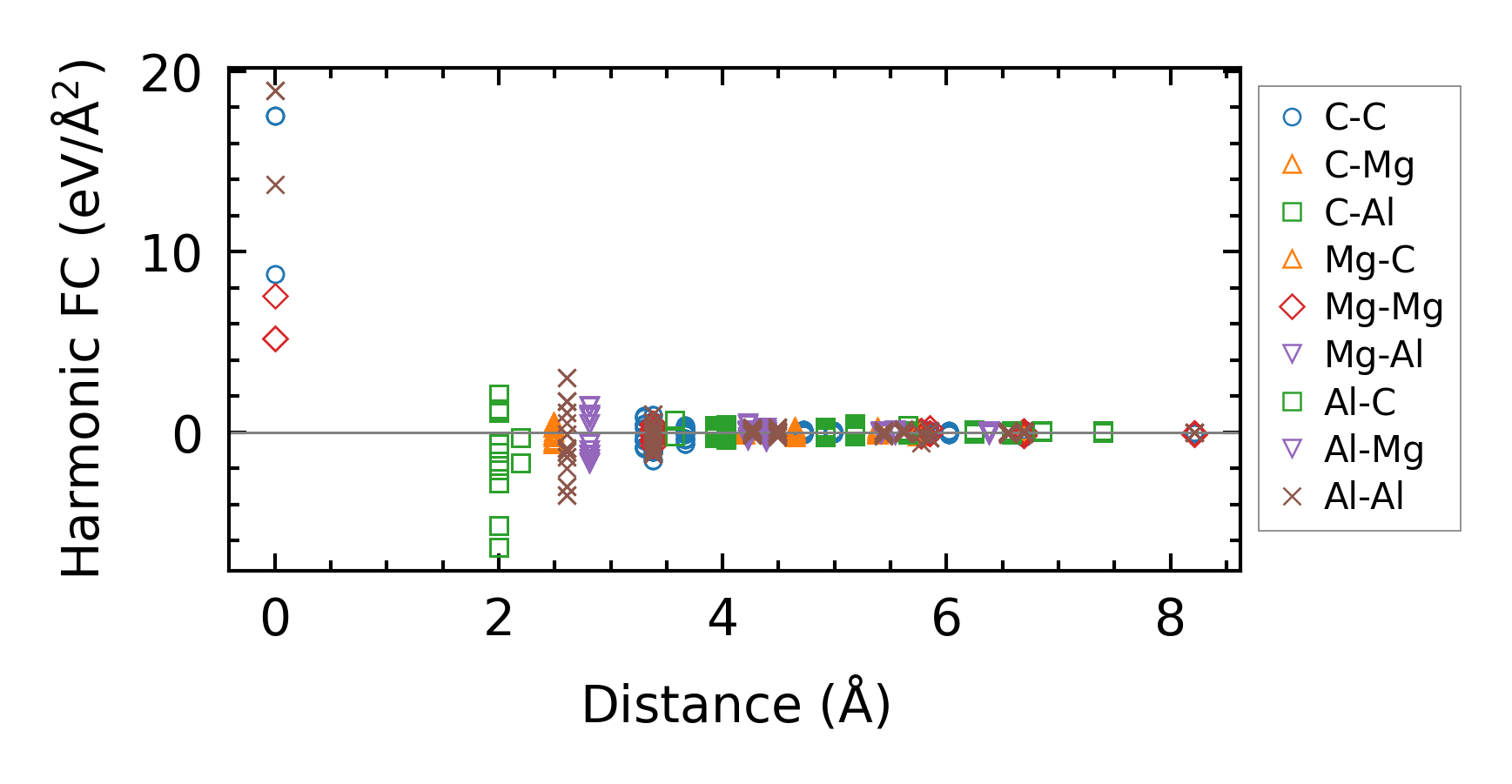

../../_images/fig_fc21005.png — (a) Force constants w.r.t atomic distance

Summary

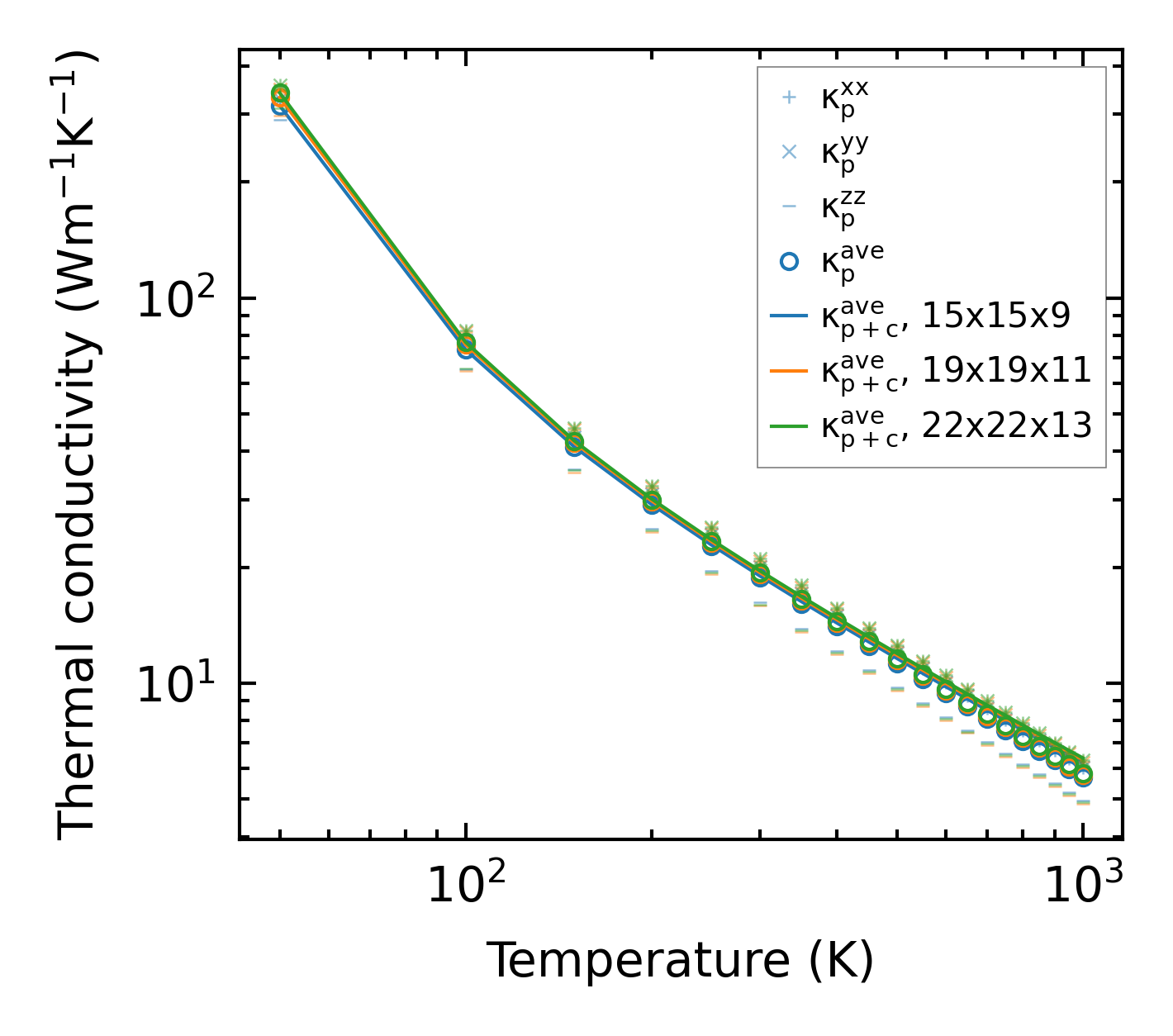

../../_images/fig_kappa1361.png — (a) Temperature-dependent lattice thermal conductivity

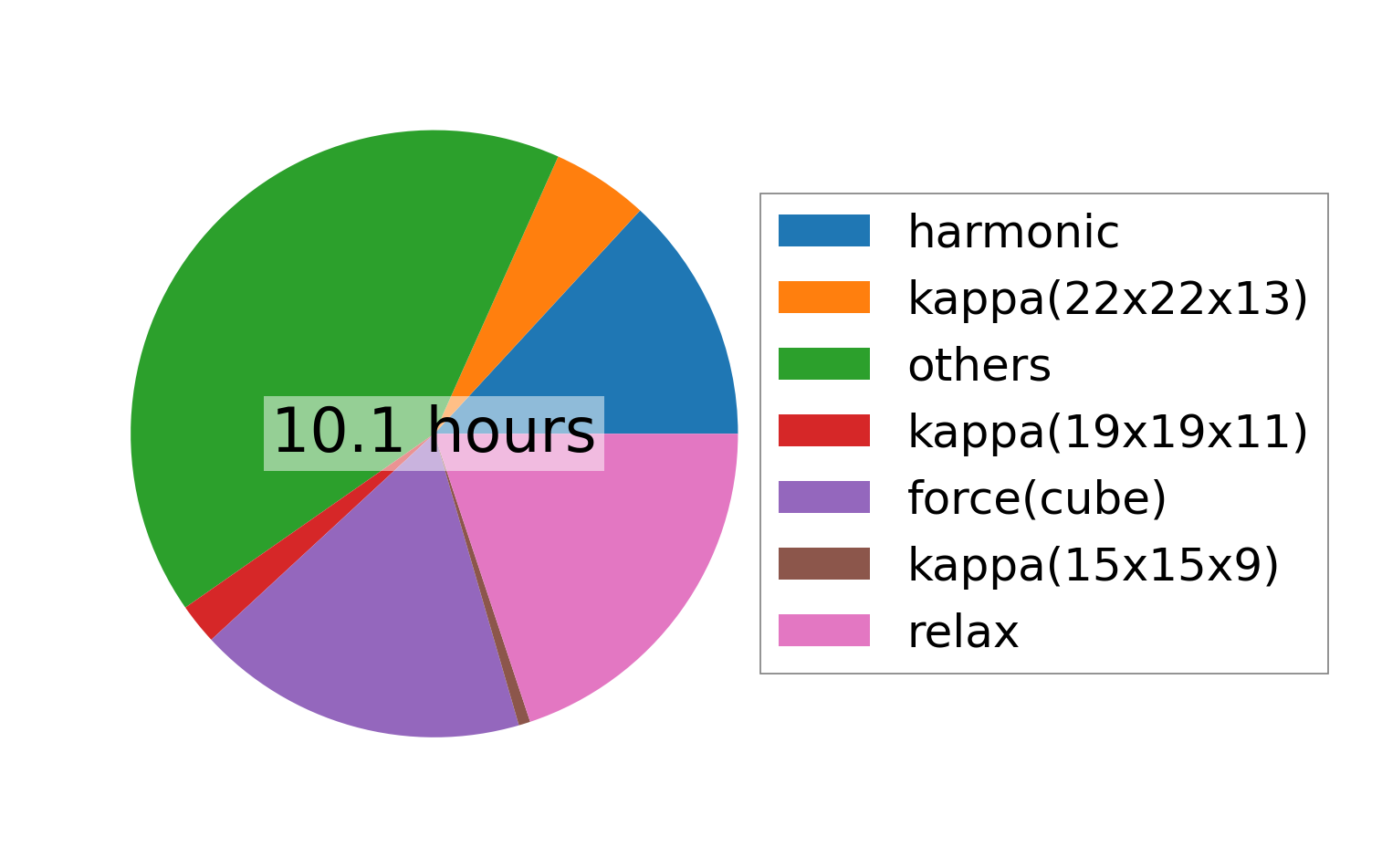

../../_images/fig_times1712.png — (b) Computation time
