mp-9812/ZnCO3/anharm

Space group: R-3c (167)
Link: Materials Project
Download: mp-9812.tar.gz

Harmonic properties

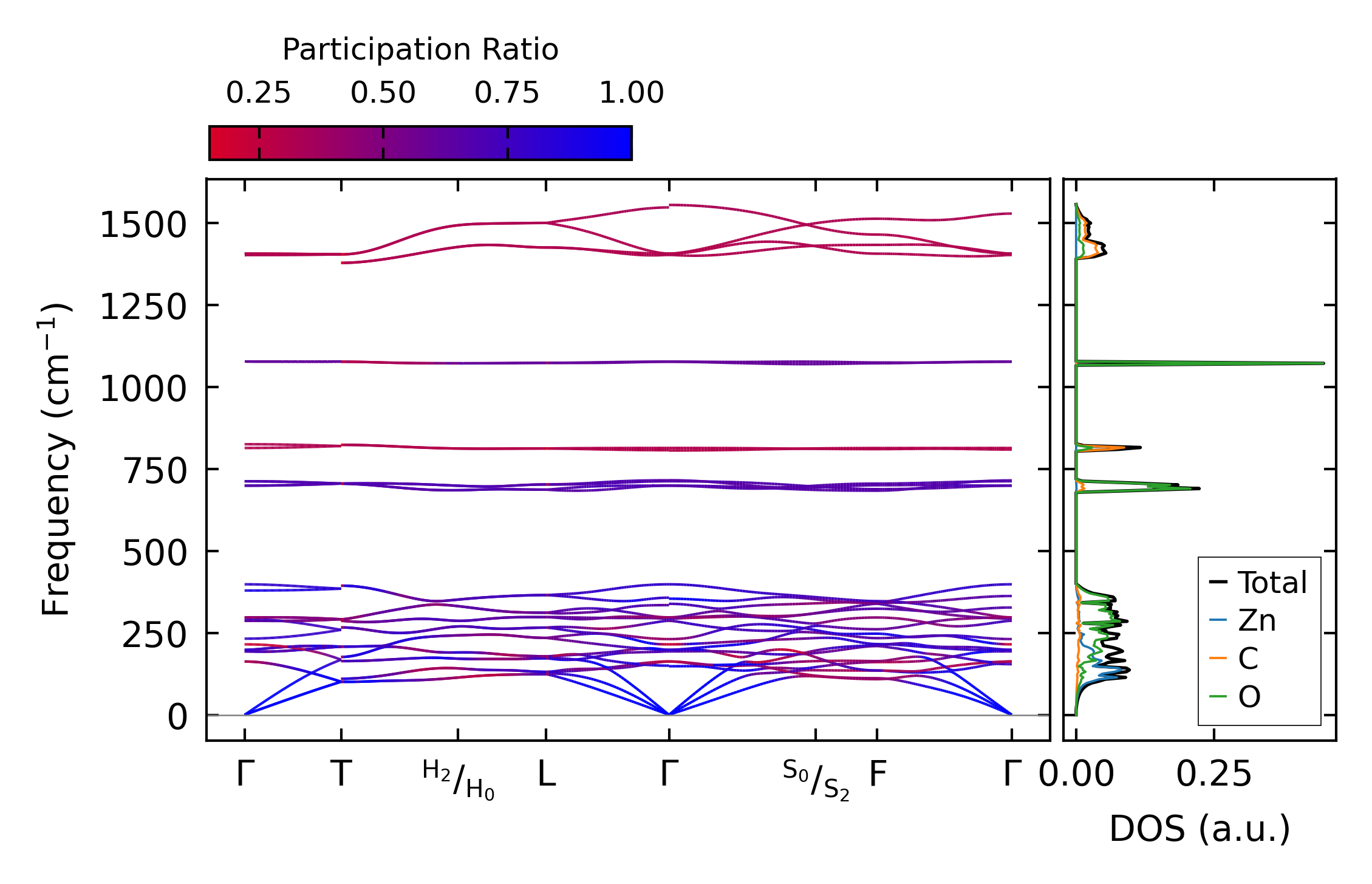

../../_images/fig_bandos_pr1249.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo1249.png — (b) Thermodynamic properties

Grüneisen parameters

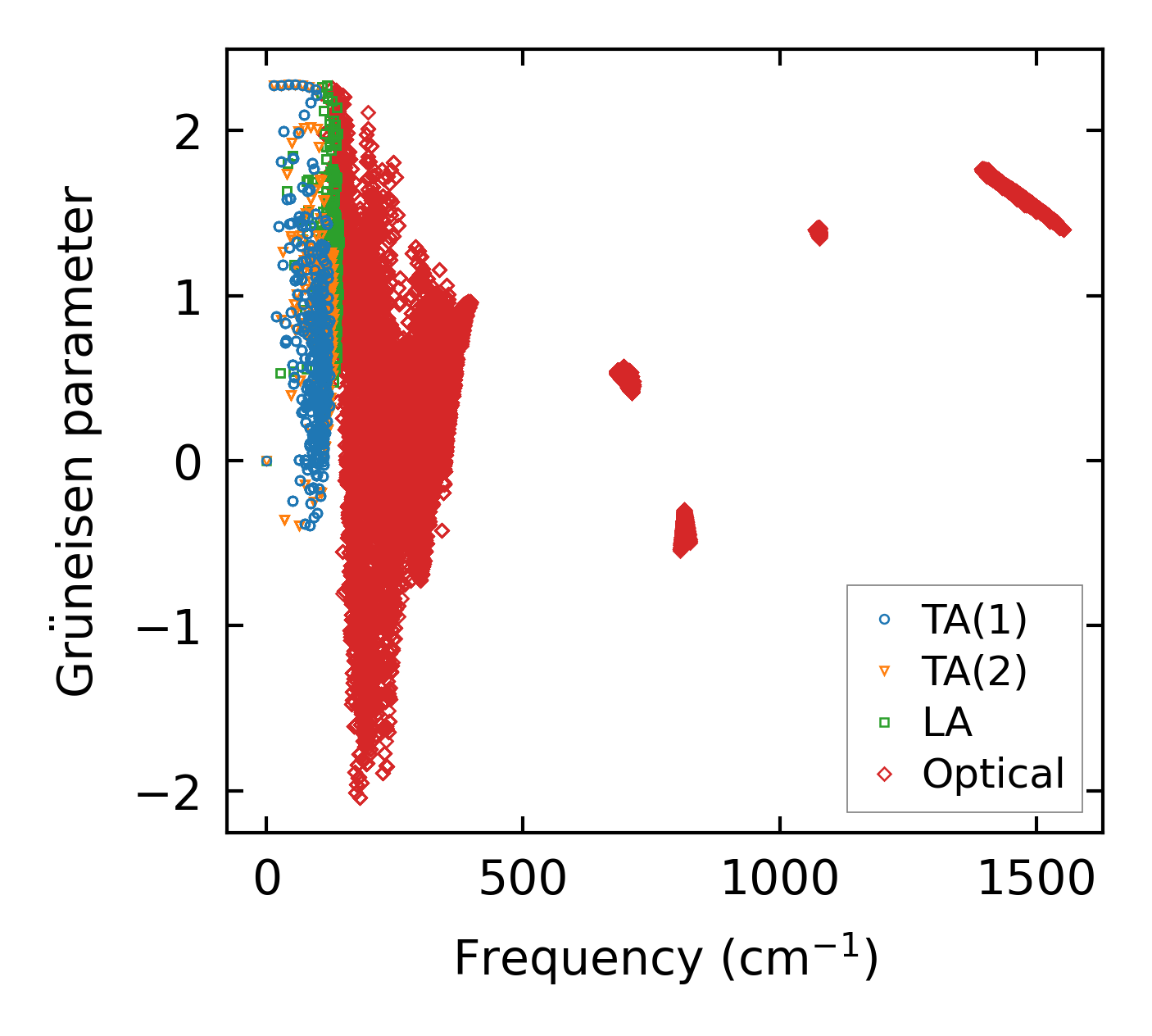

../../_images/fig_gru_all770.png — (a) Grüneisen parameters

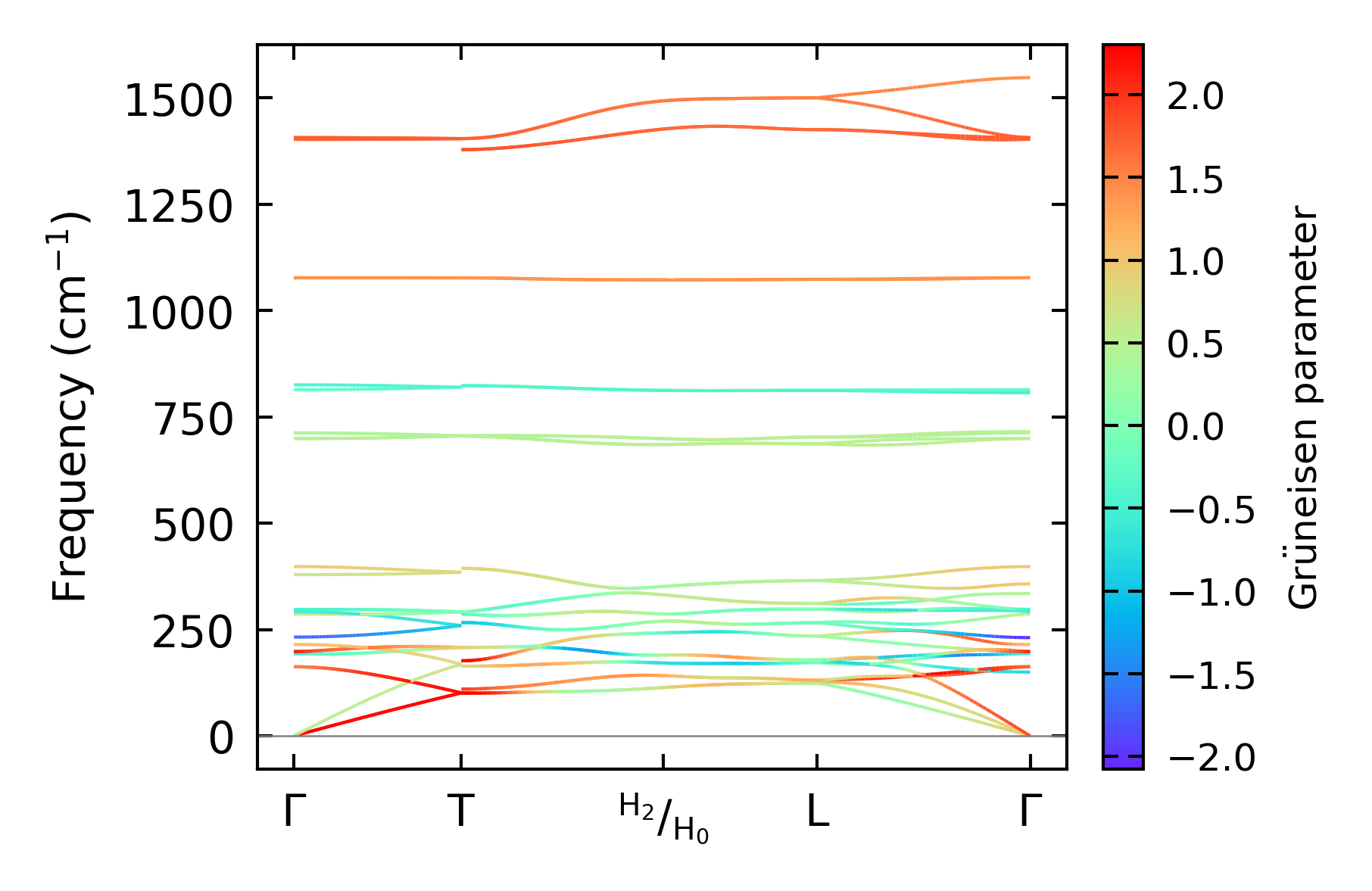

../../_images/fig_gruneisen770.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 15x15x15, supercell: 2x2x1

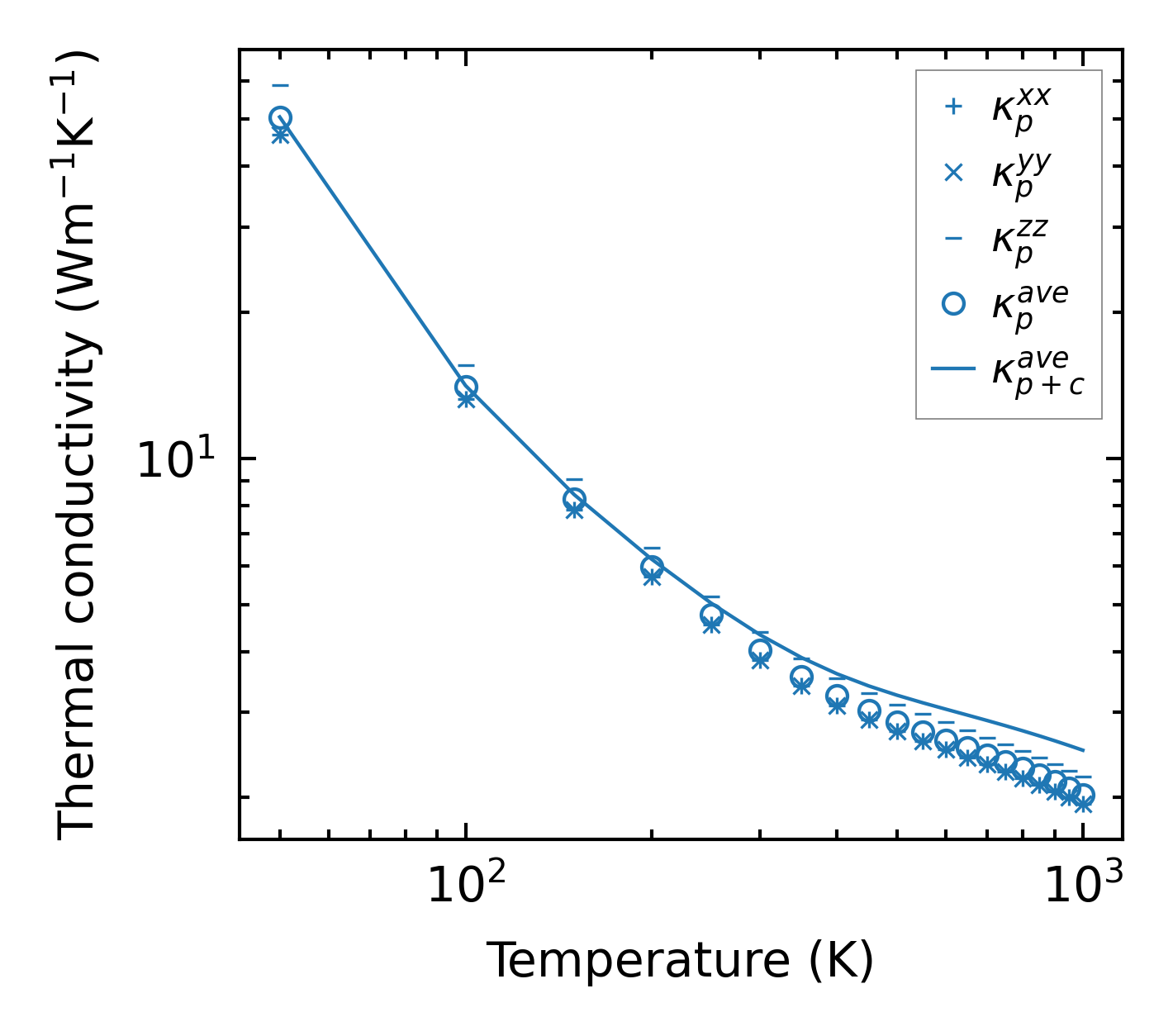

../../_images/fig_kappa1498.png — (a) Temperature-dependent lattice thermal conductivity

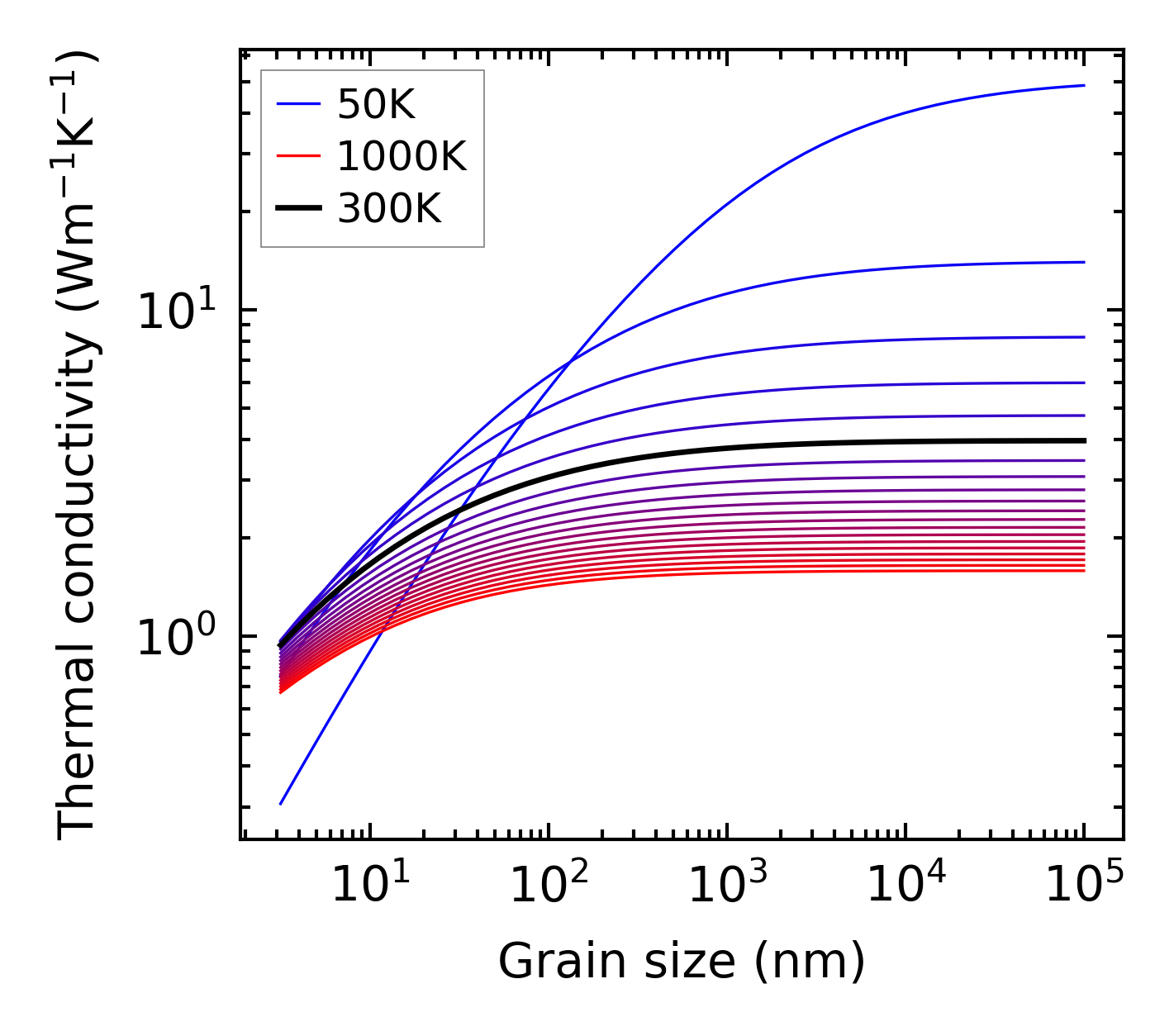

../../_images/fig_kappa_vs_grain_size778.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

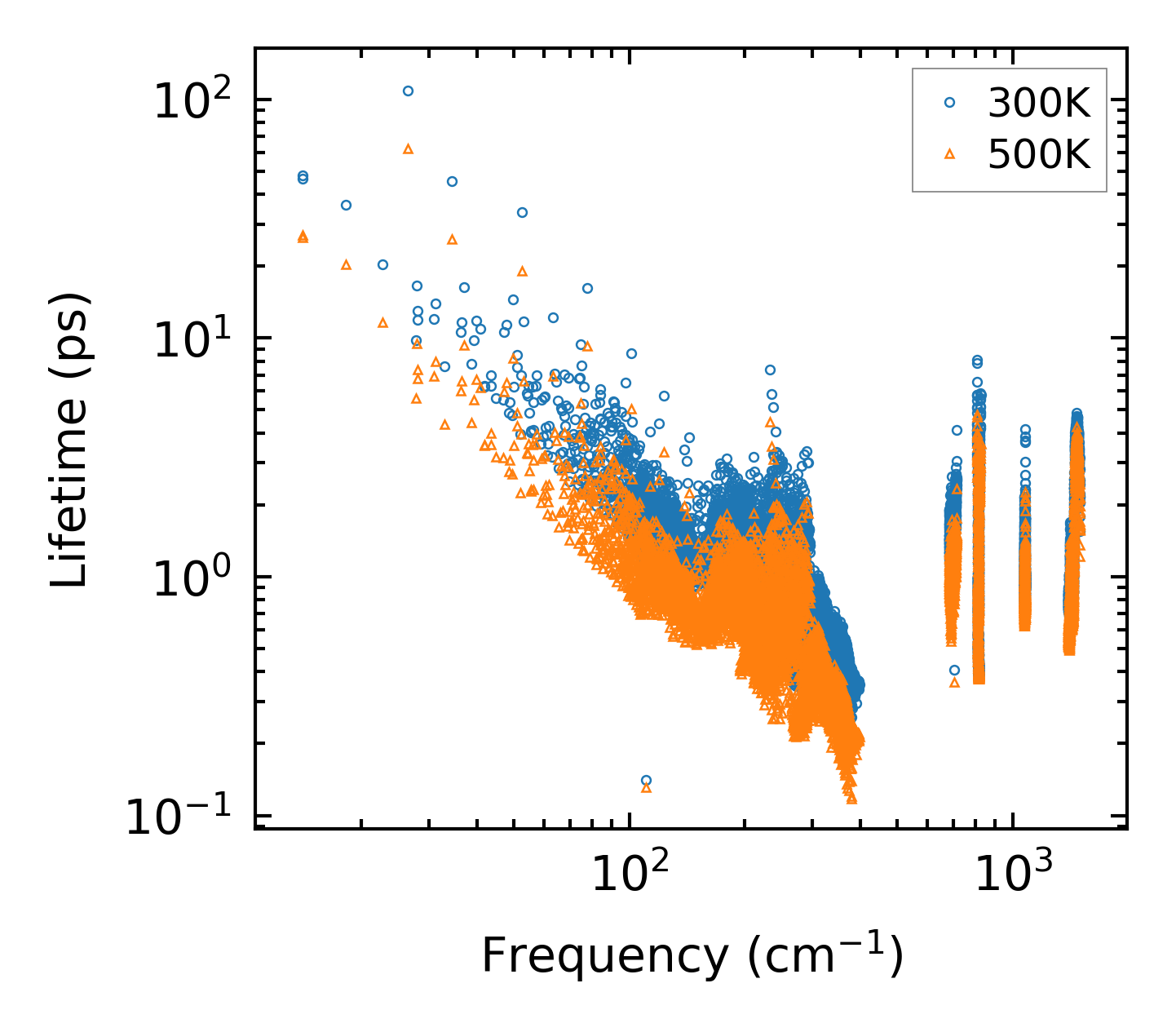

../../_images/fig_lifetime764.png — (a) Phonon lifetime due to phonon-phonon scattering

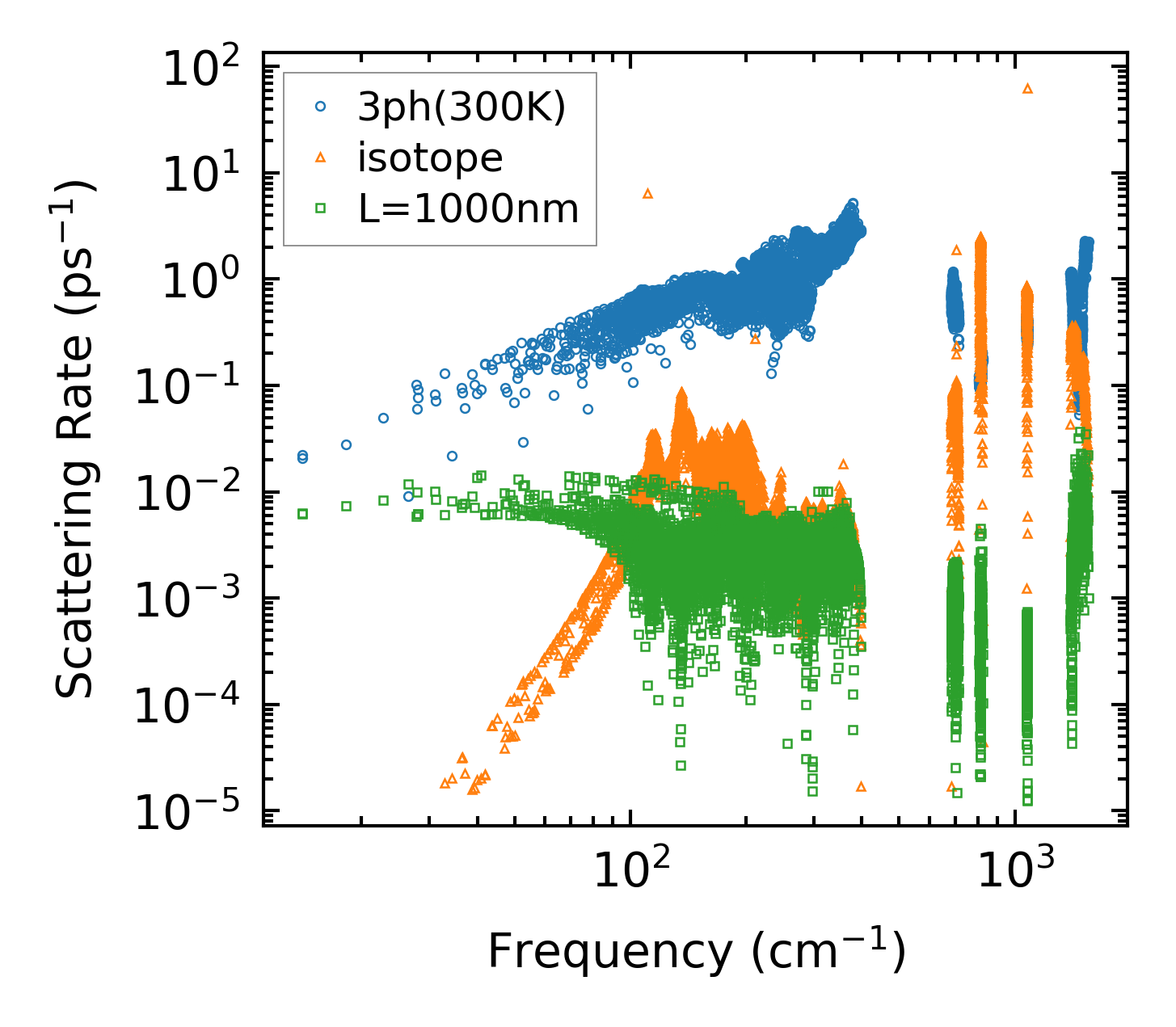

../../_images/fig_scat_rates763.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

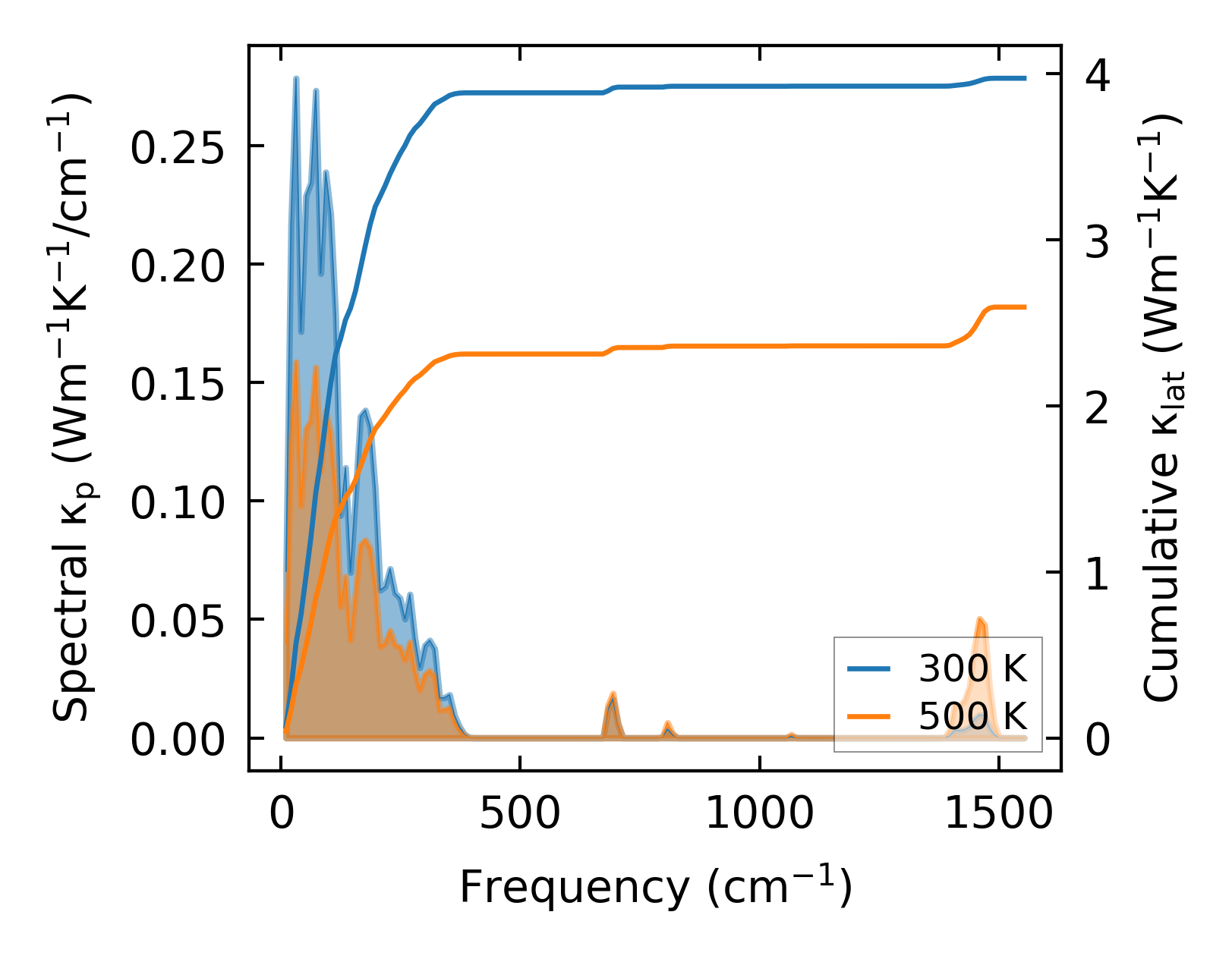

../../_images/fig_cumu_frequency764.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

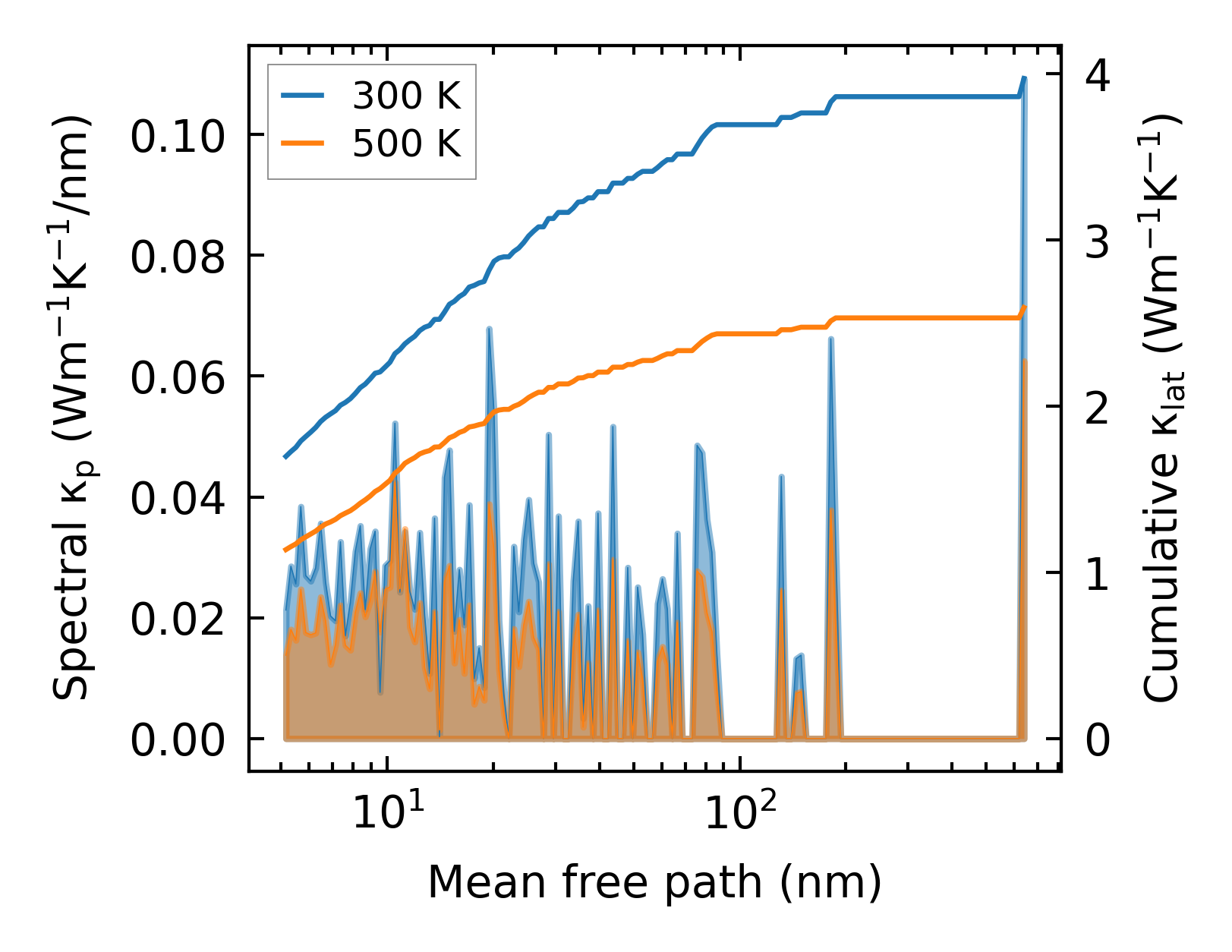

../../_images/fig_cumu_mfp764.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

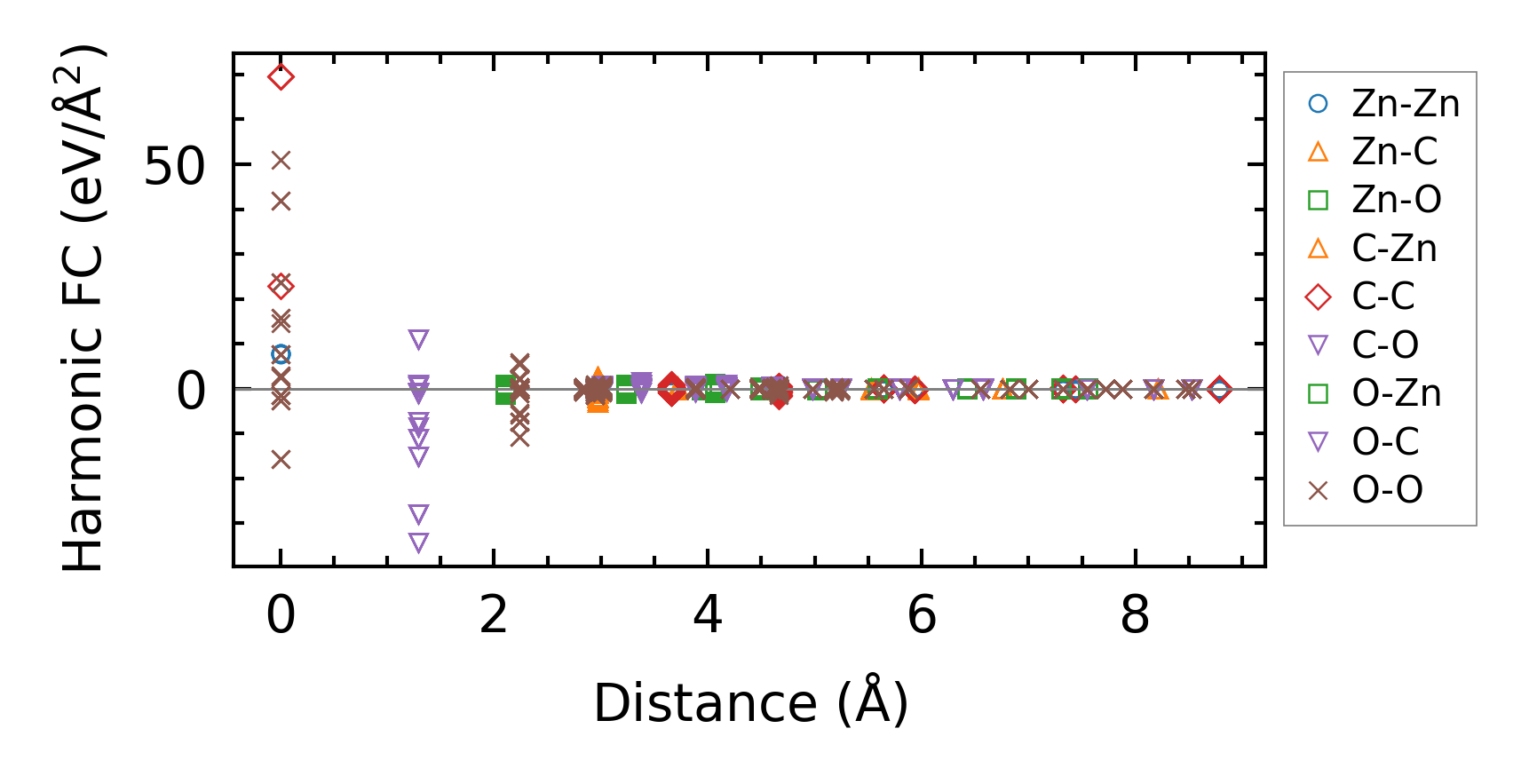

../../_images/fig_fc21115.png — (a) Force constants w.r.t atomic distance

Summary

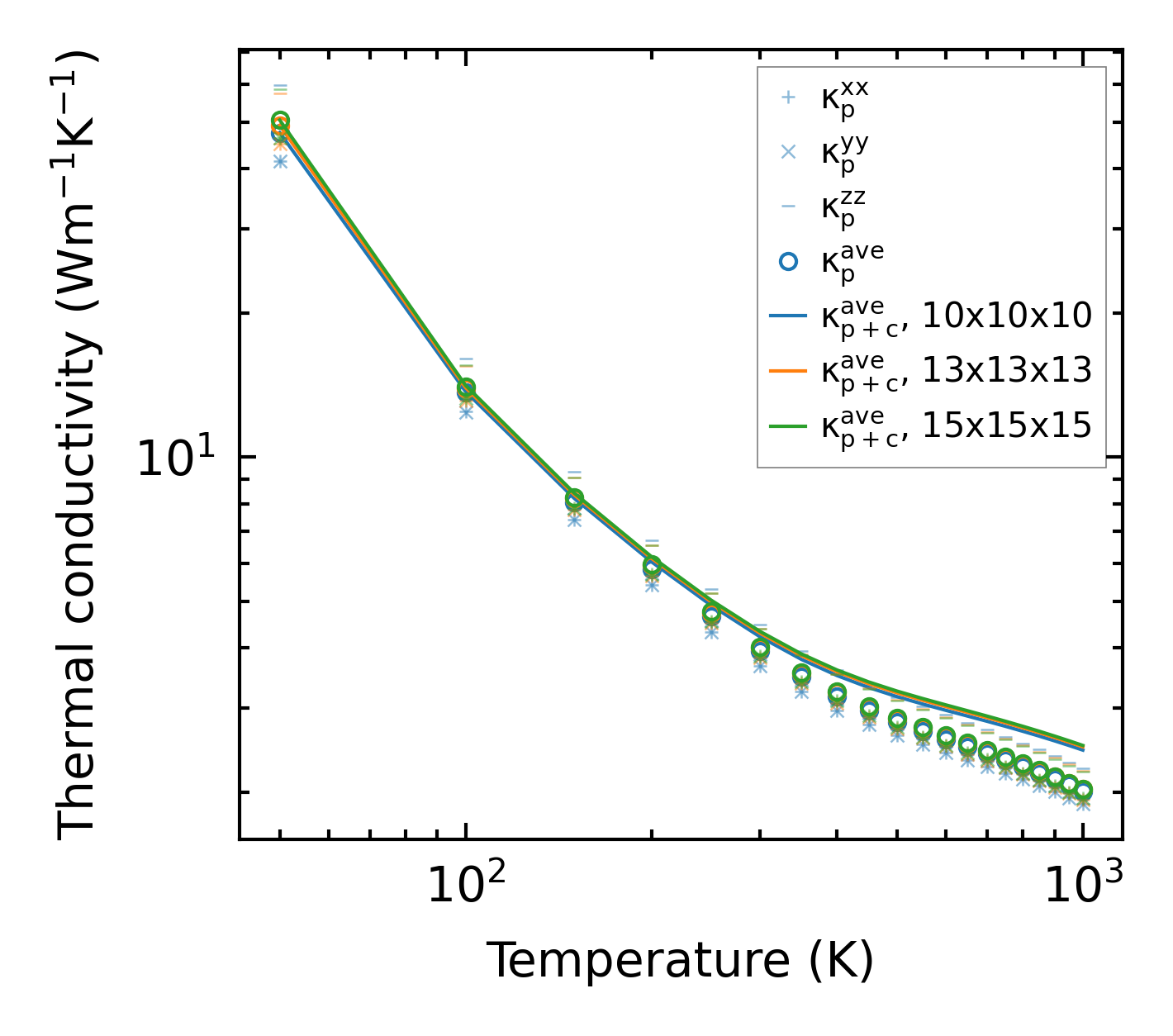

../../_images/fig_kappa1499.png — (a) Temperature-dependent lattice thermal conductivity

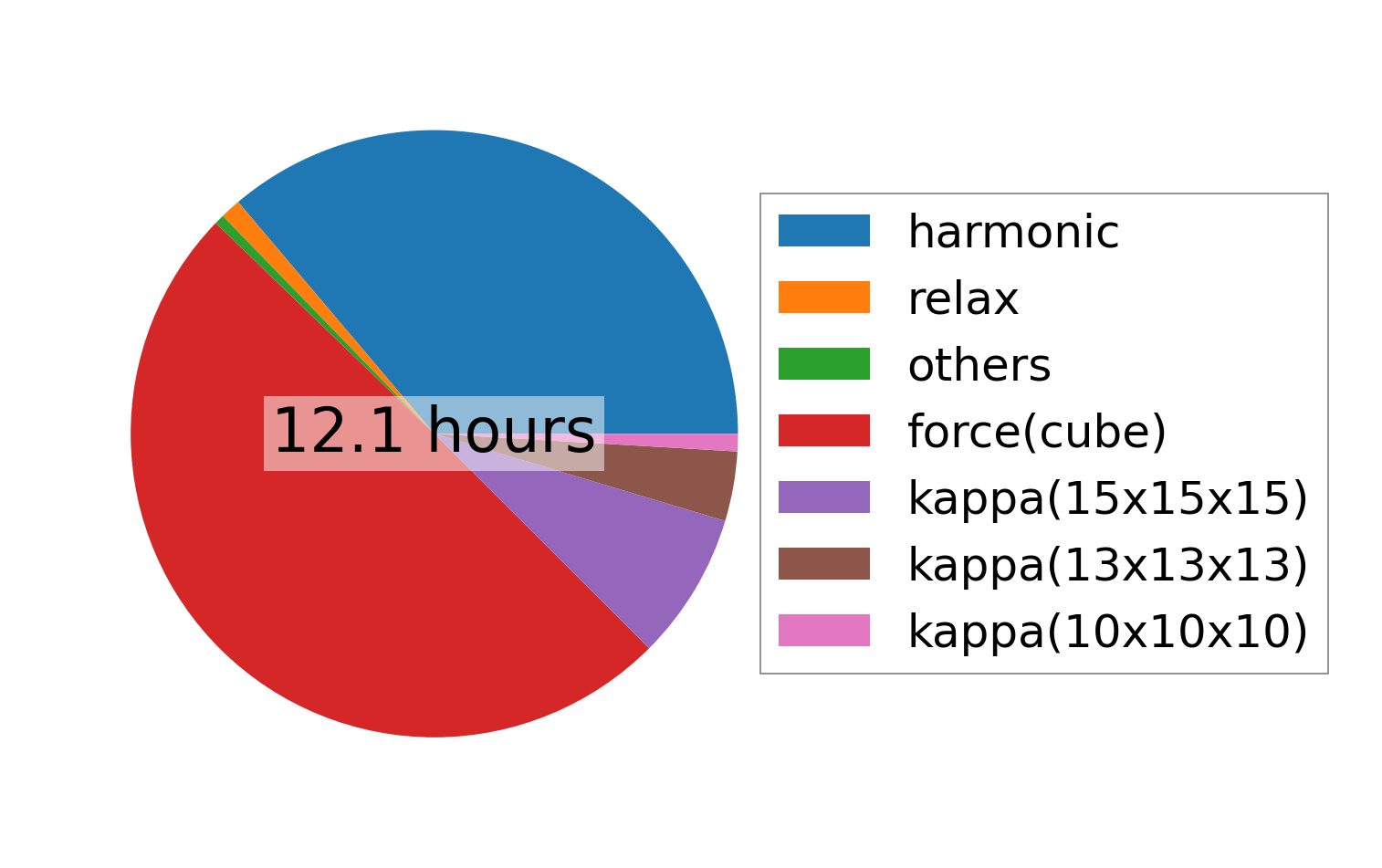

../../_images/fig_times1869.png — (b) Computation time
