mp-9323/Tb2S3/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-9323.tar.gz

Harmonic properties

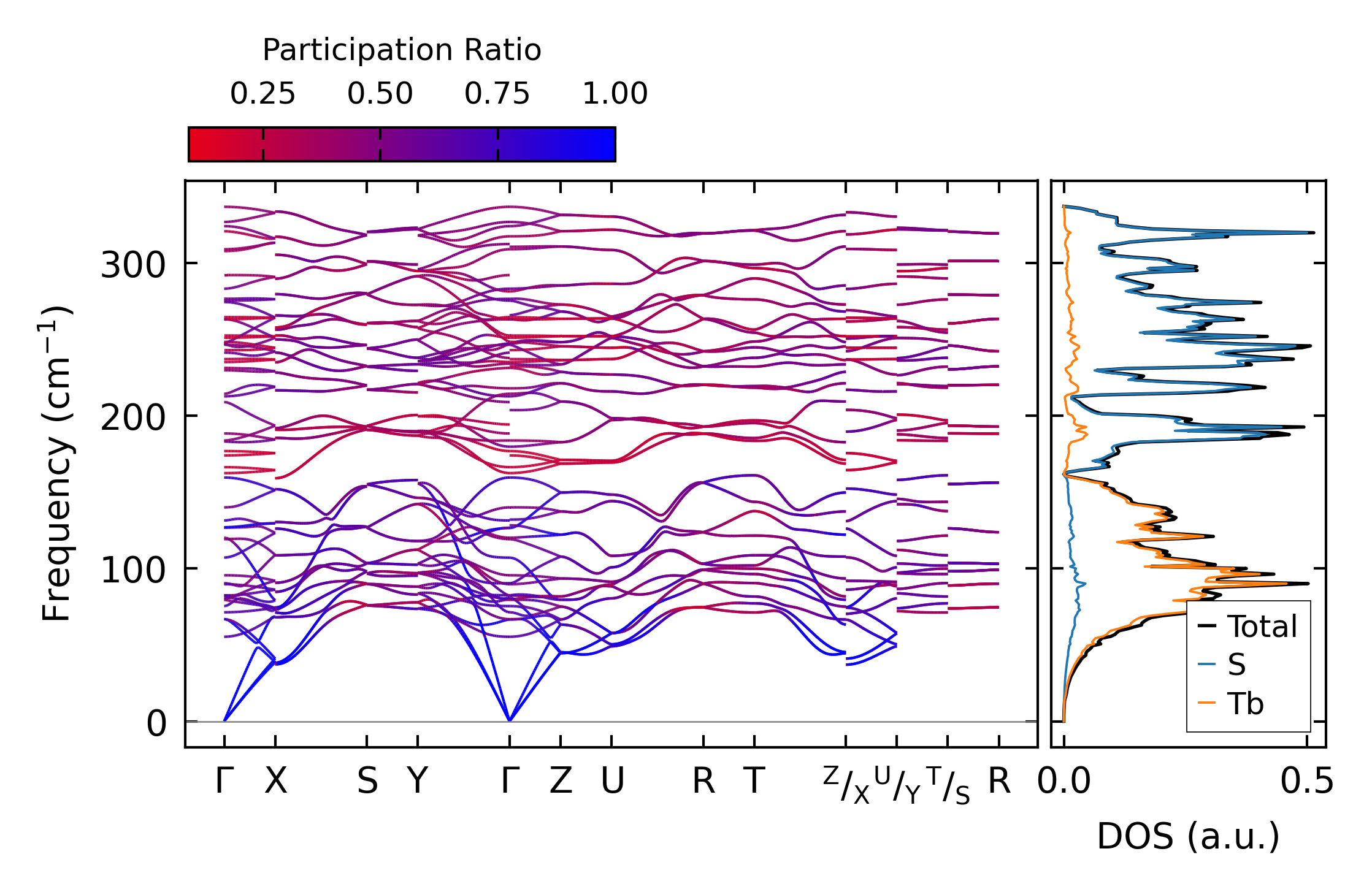

../../_images/fig_bandos_pr1440.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo1440.png — (b) Thermodynamic properties

Grüneisen parameters

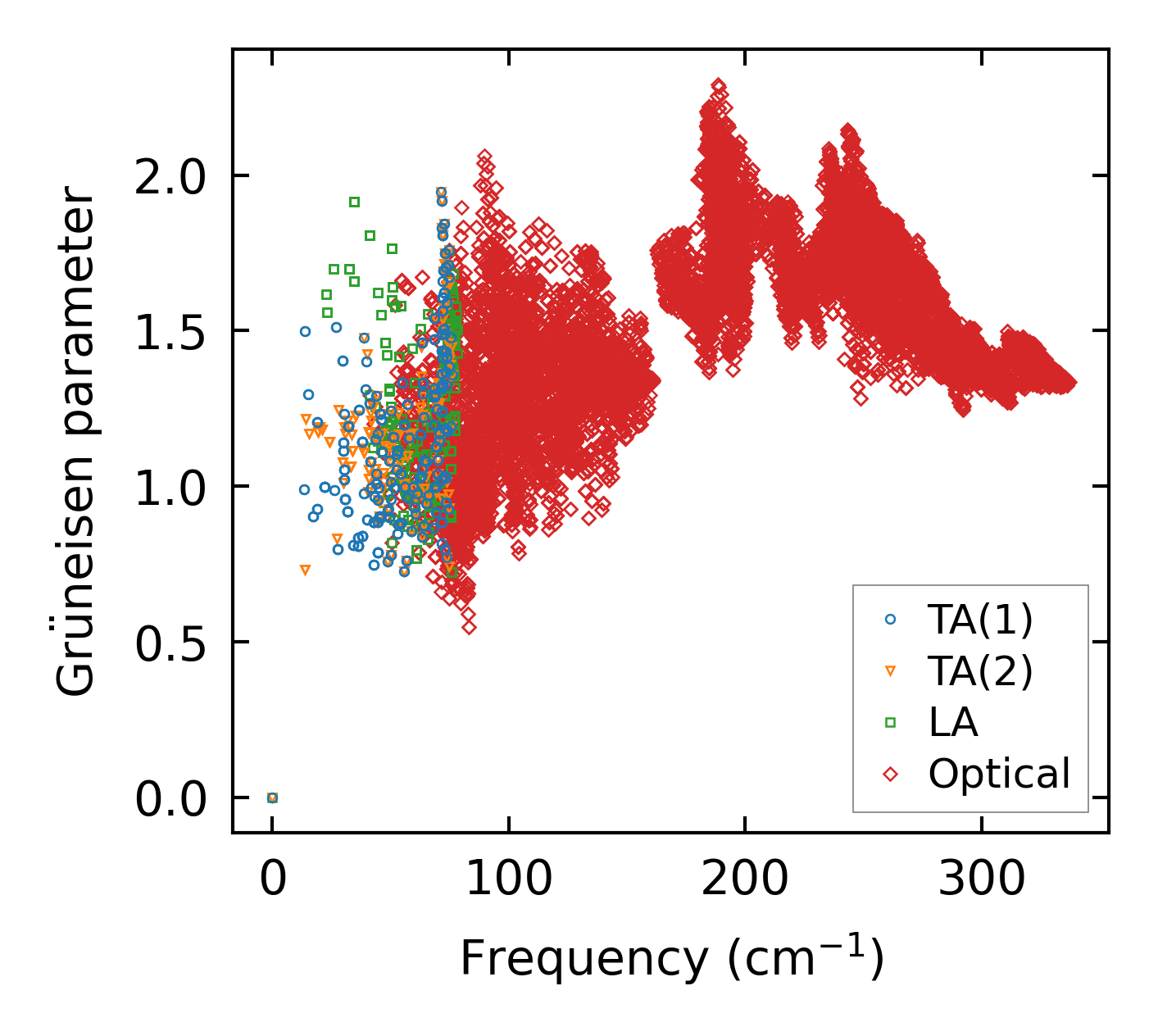

../../_images/fig_gru_all886.png — (a) Grüneisen parameters

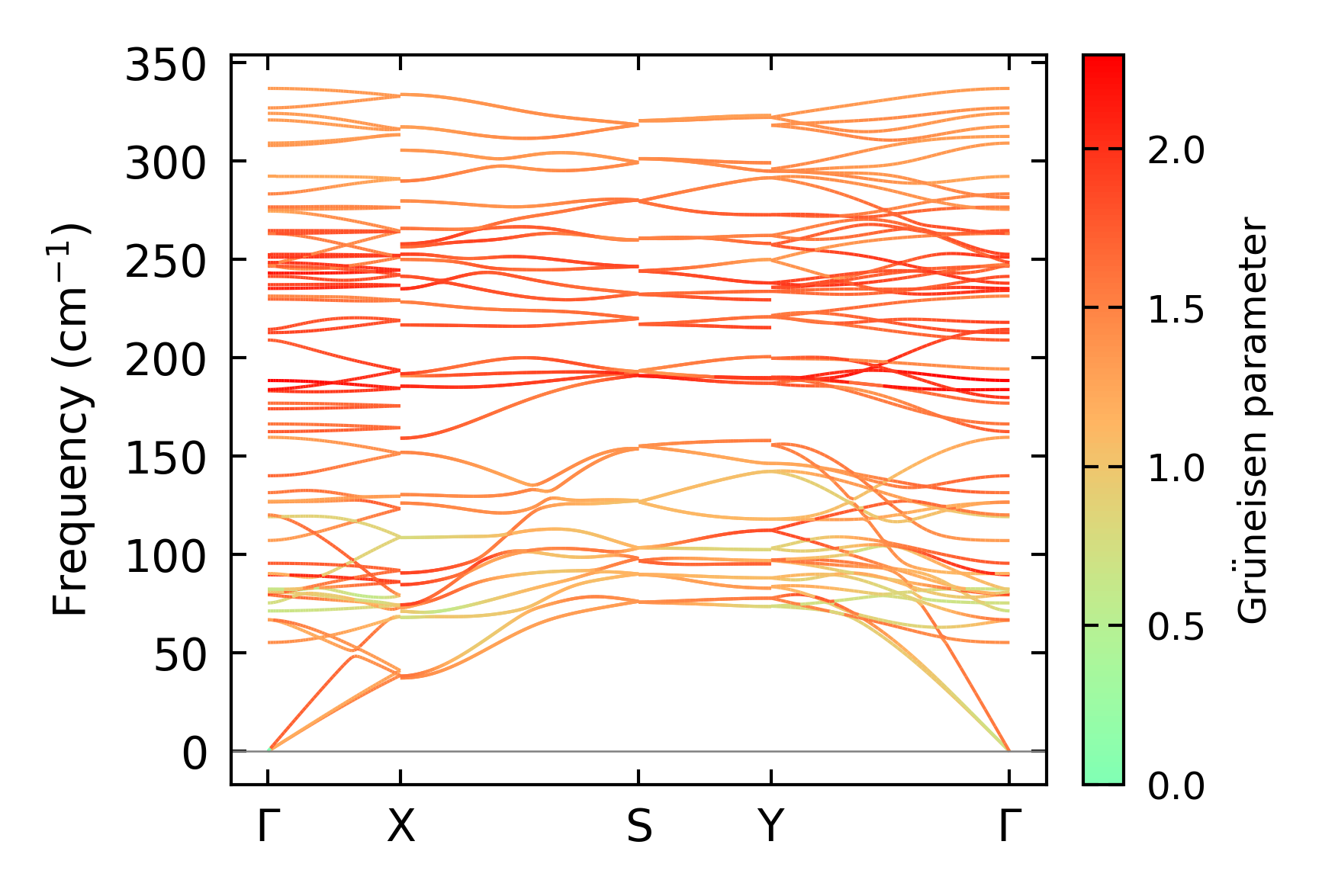

../../_images/fig_gruneisen886.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 6x18x6, supercell: 1x3x2

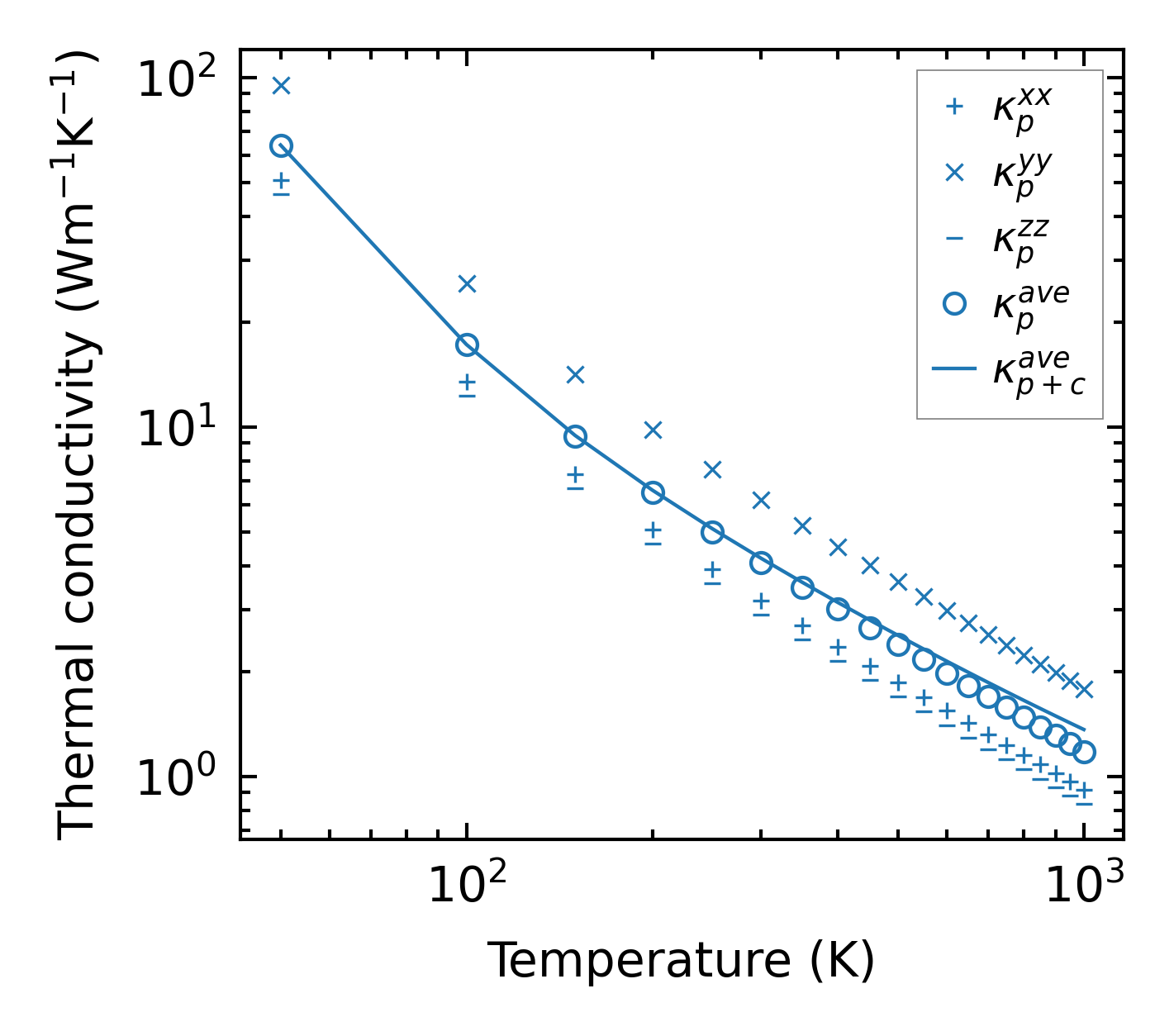

../../_images/fig_kappa1720.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size896.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

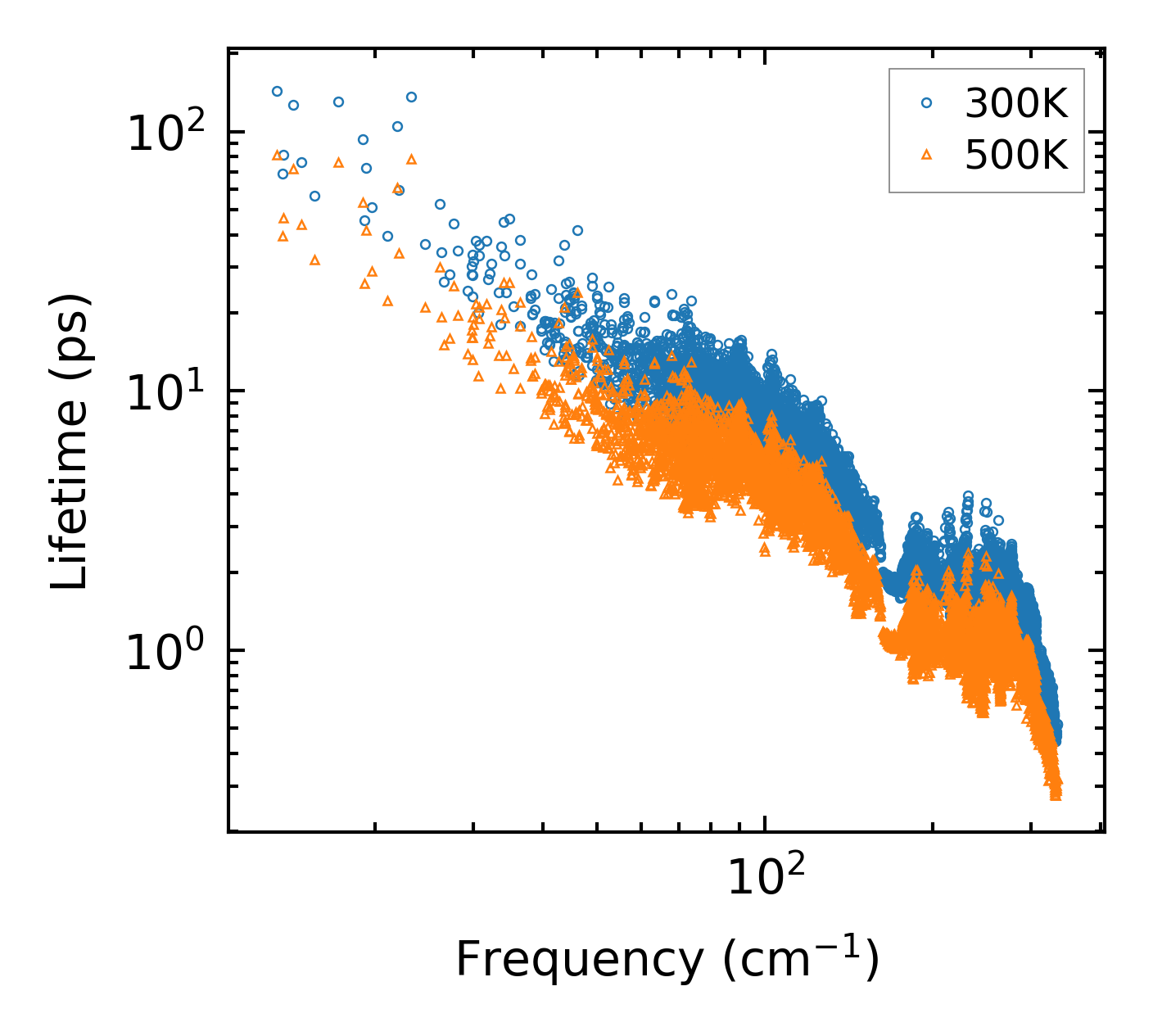

../../_images/fig_lifetime879.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates878.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

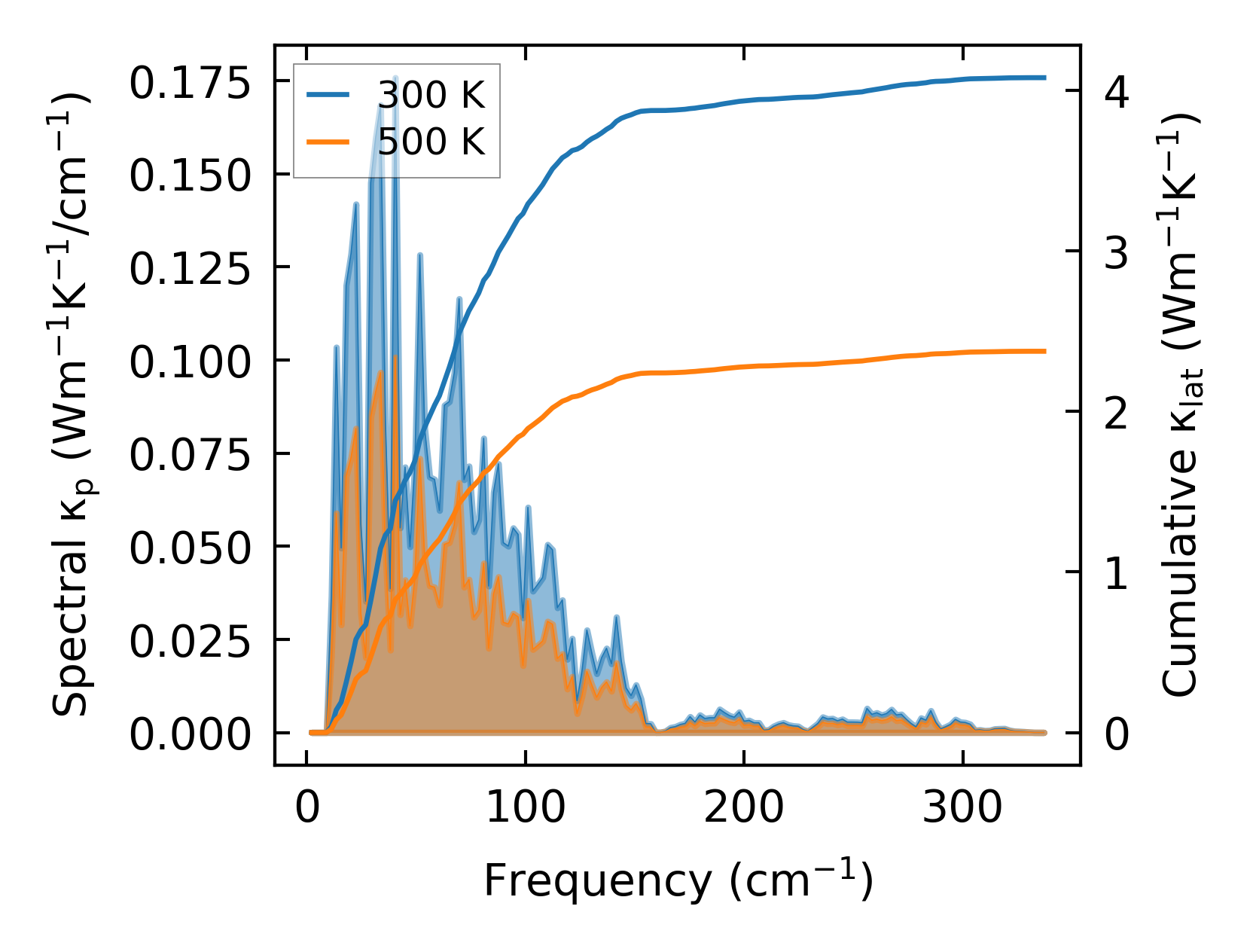

../../_images/fig_cumu_frequency879.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

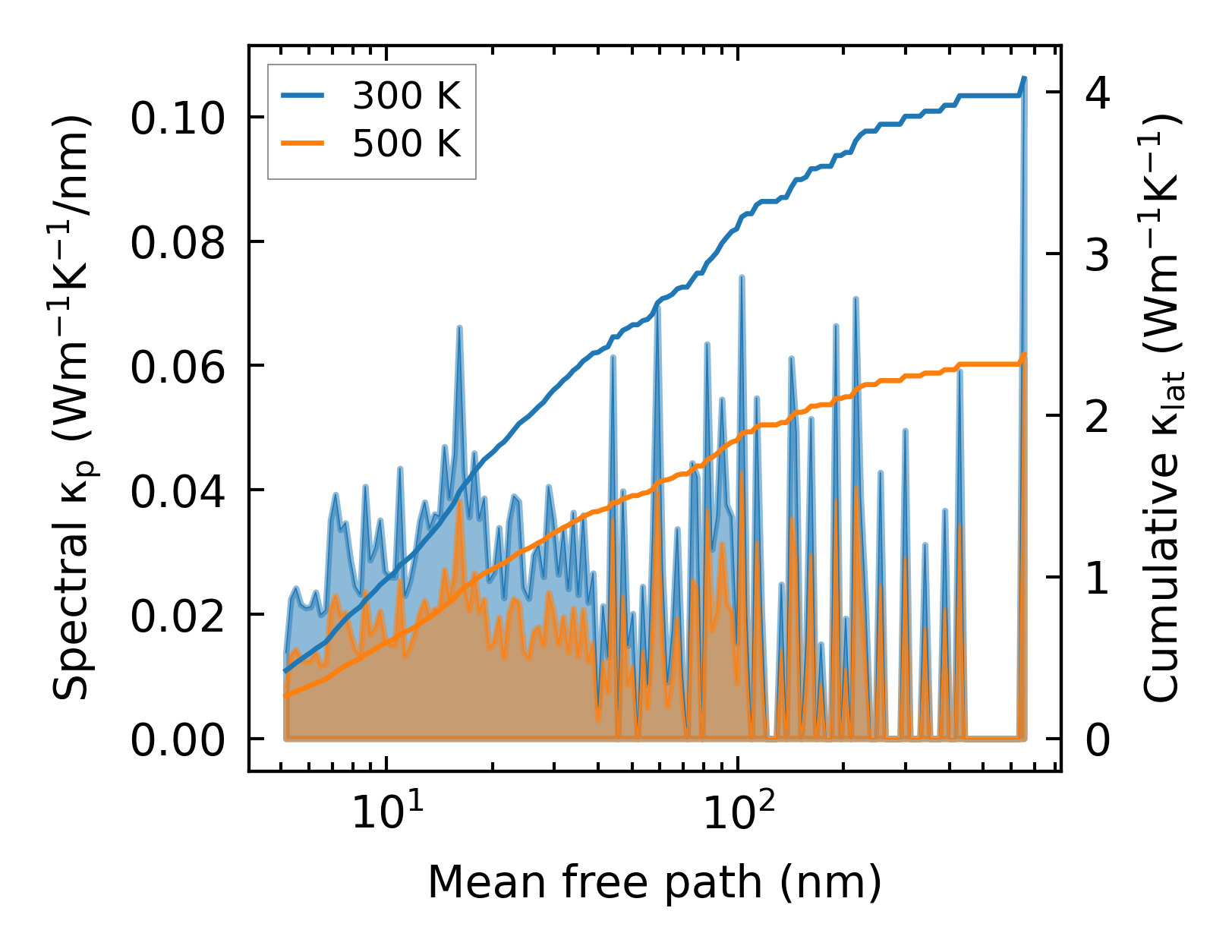

../../_images/fig_cumu_mfp879.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc21292.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa1721.png — (a) Temperature-dependent lattice thermal conductivity

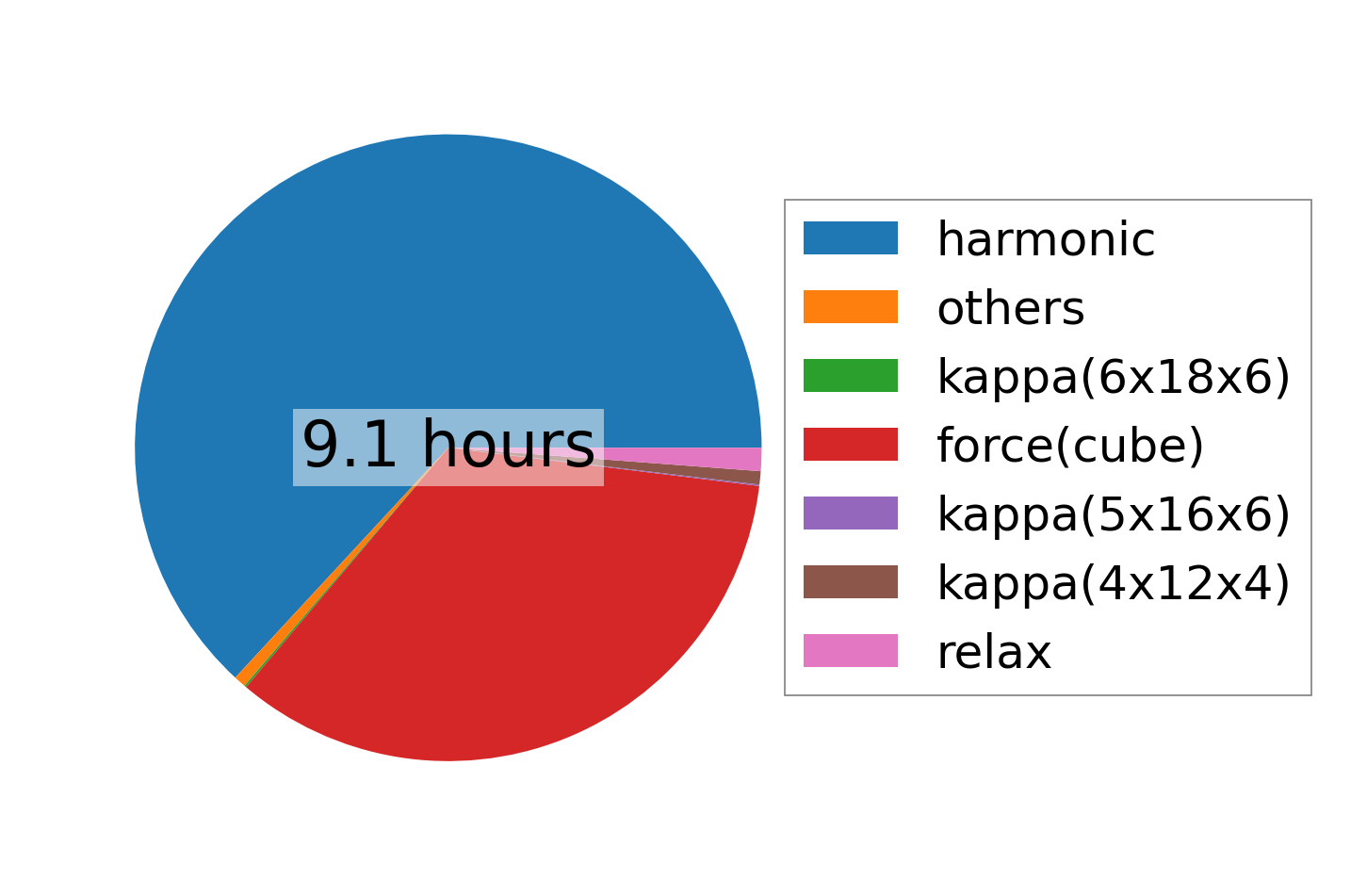

../../_images/fig_times2154.png — (b) Computation time
