mp-9062/RbS/anharm

Space group: P-62m (189)
Link: Materials Project
Download: mp-9062.tar.gz

Harmonic properties

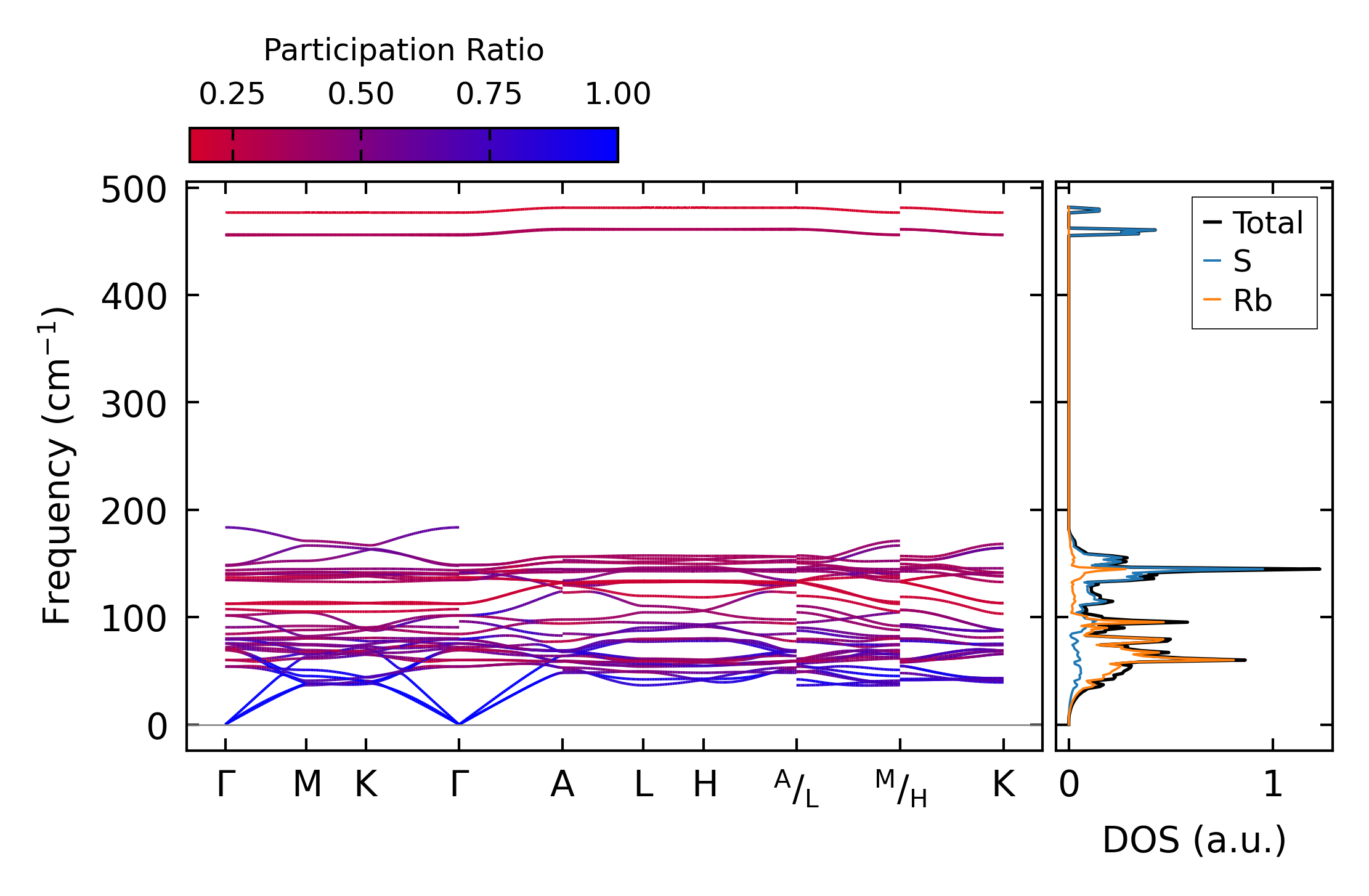

../../_images/fig_bandos_pr1352.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo1352.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all833.png — (a) Grüneisen parameters

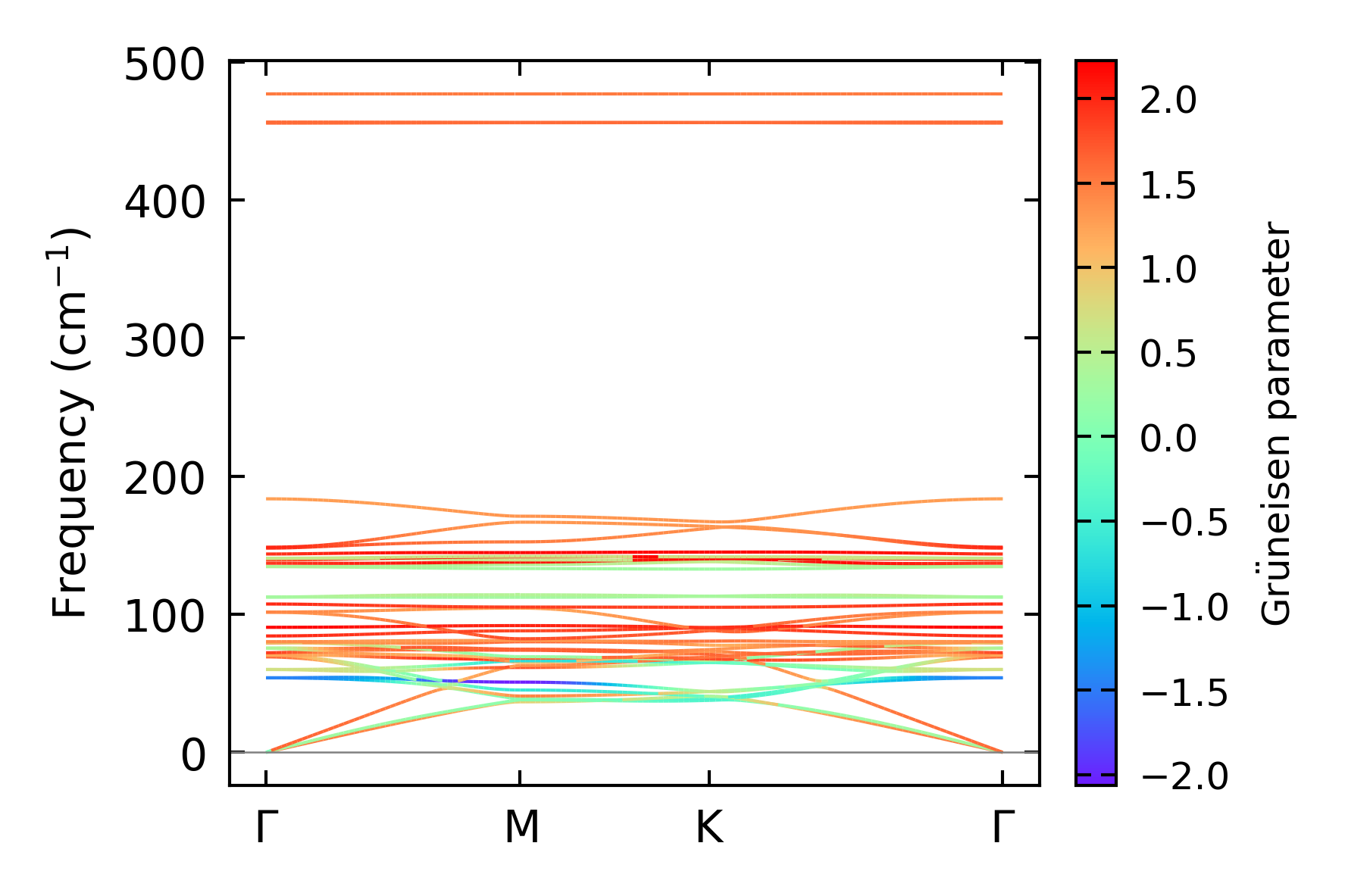

../../_images/fig_gruneisen833.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 8x8x12, supercell: 2x2x3

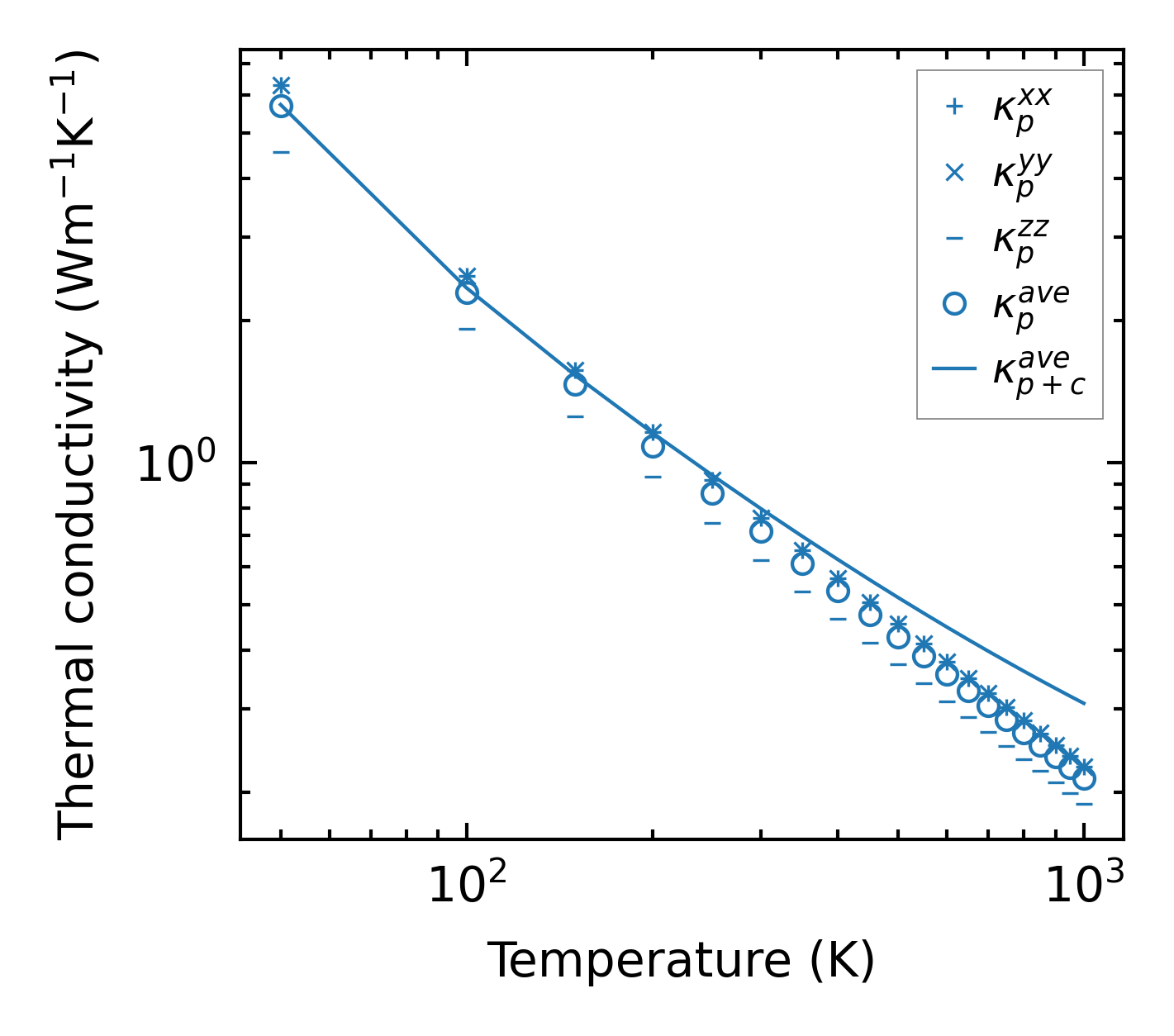

../../_images/fig_kappa1618.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size843.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime827.png — (a) Phonon lifetime due to phonon-phonon scattering

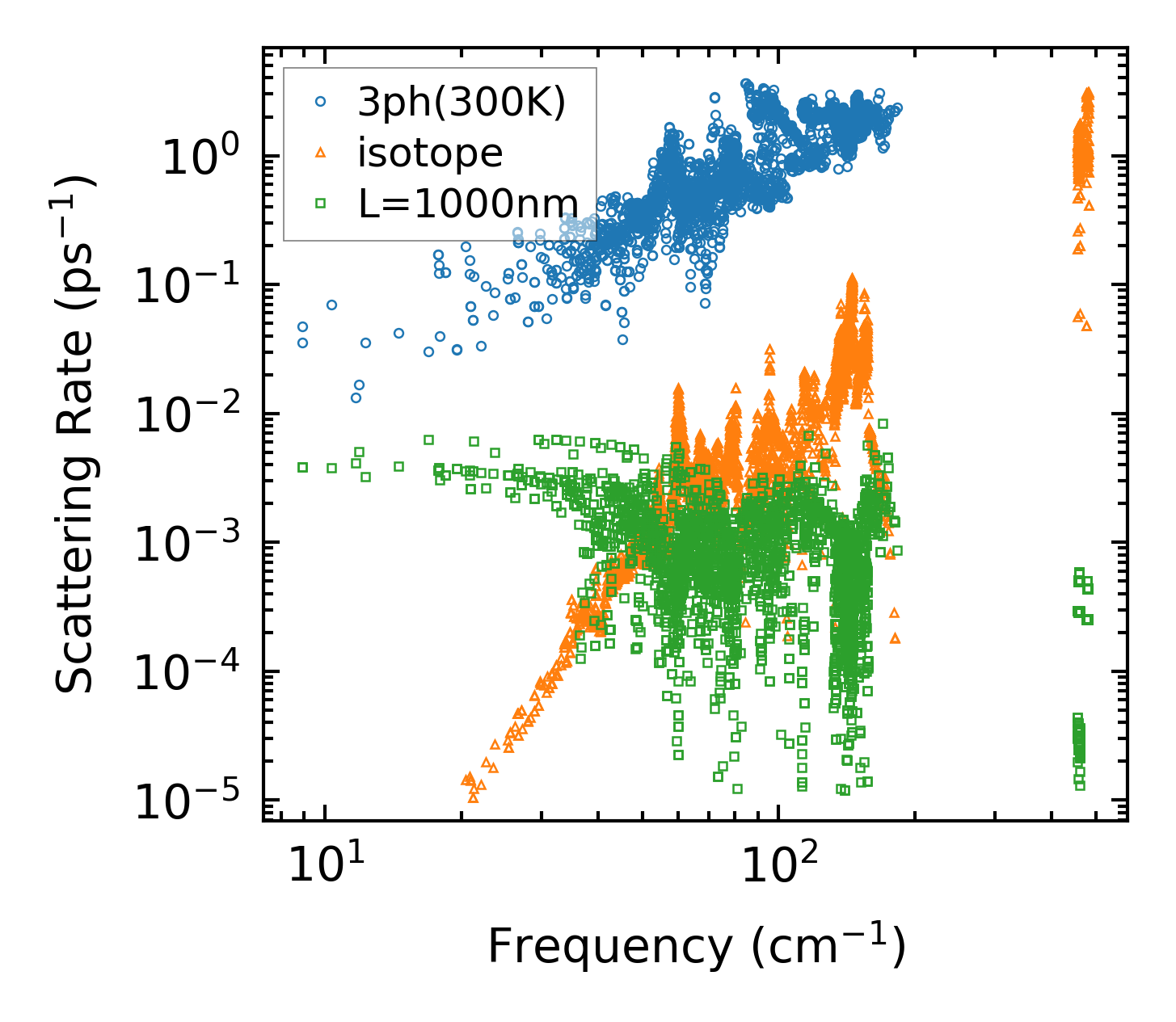

../../_images/fig_scat_rates826.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

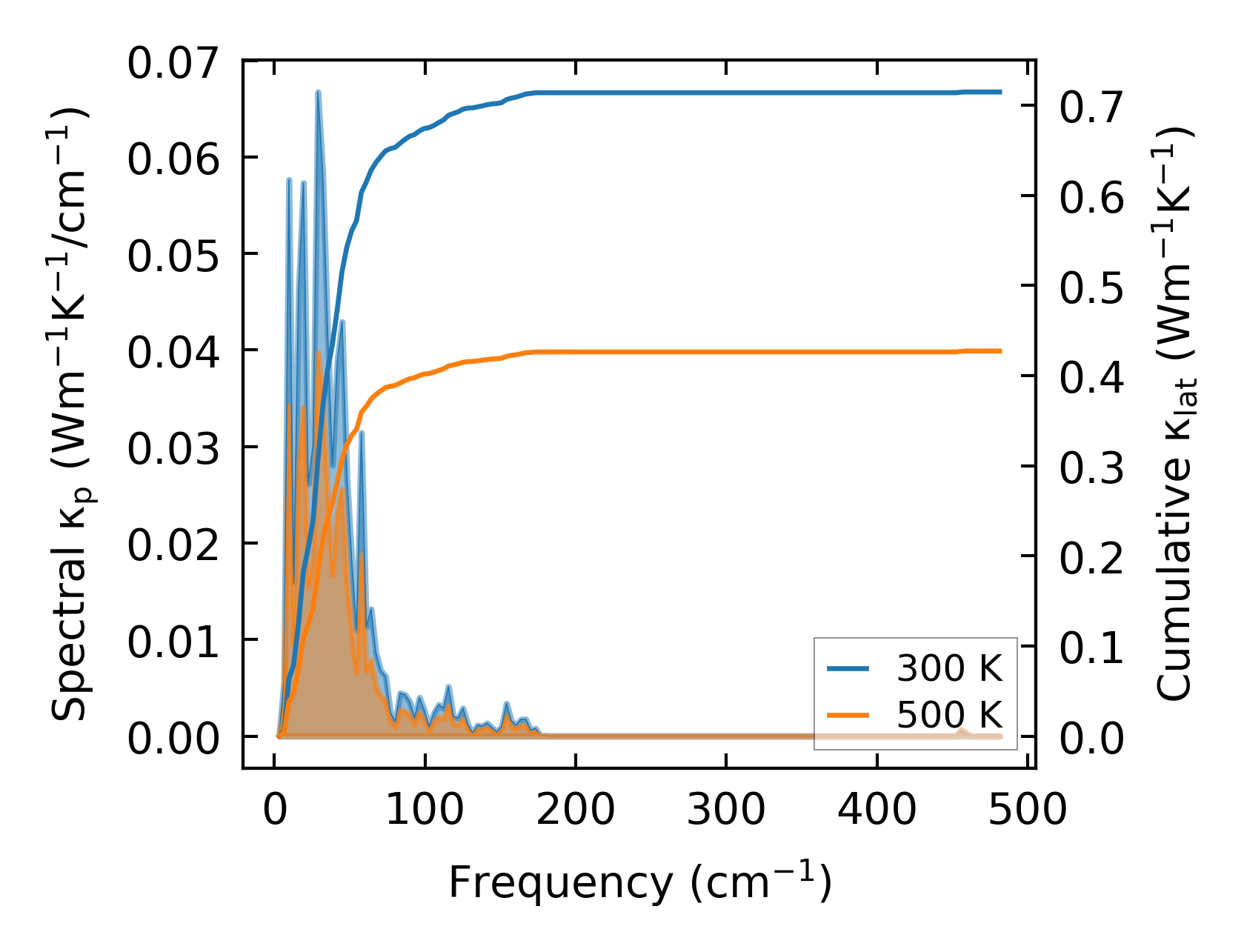

../../_images/fig_cumu_frequency827.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

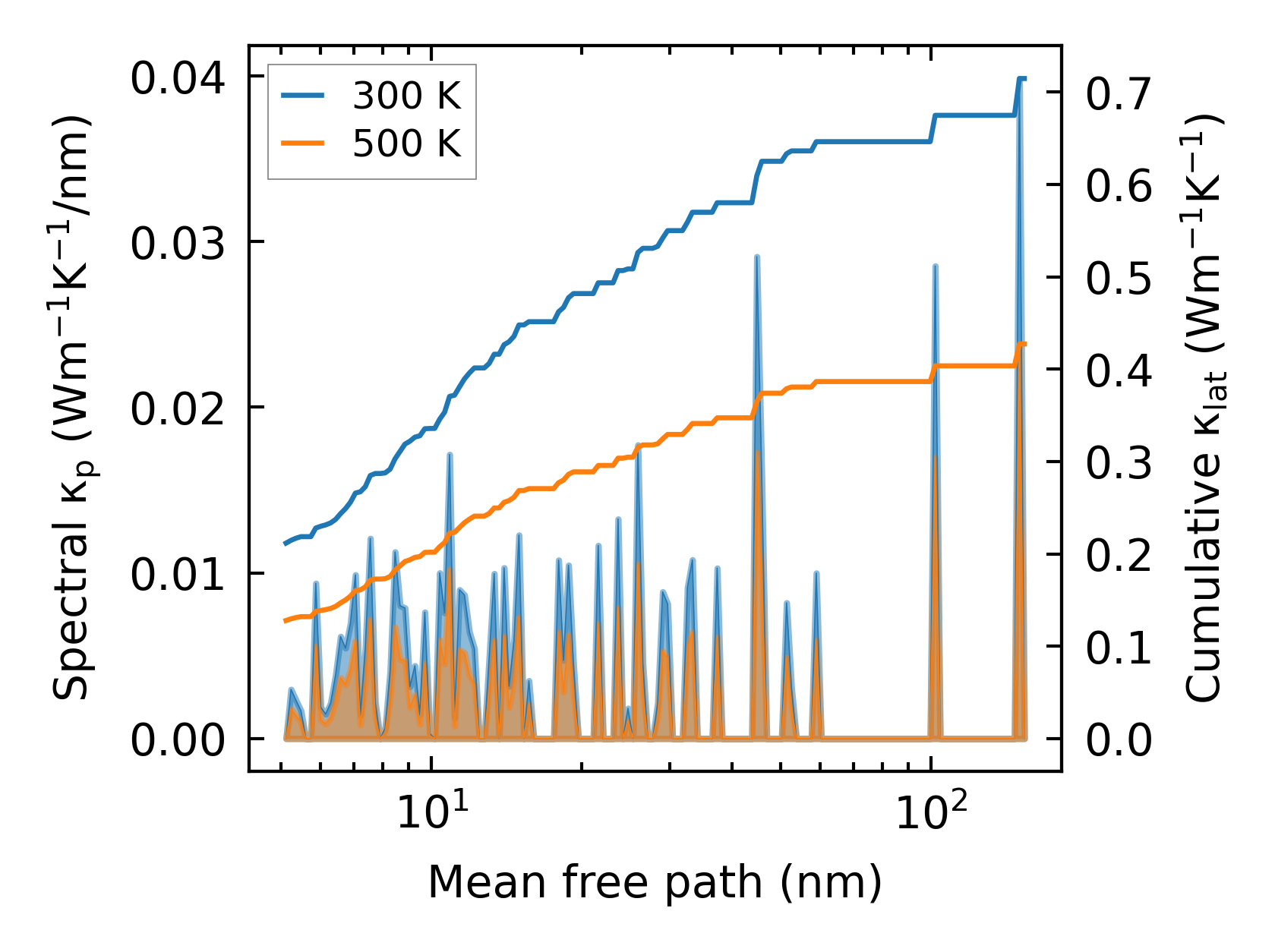

../../_images/fig_cumu_mfp827.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

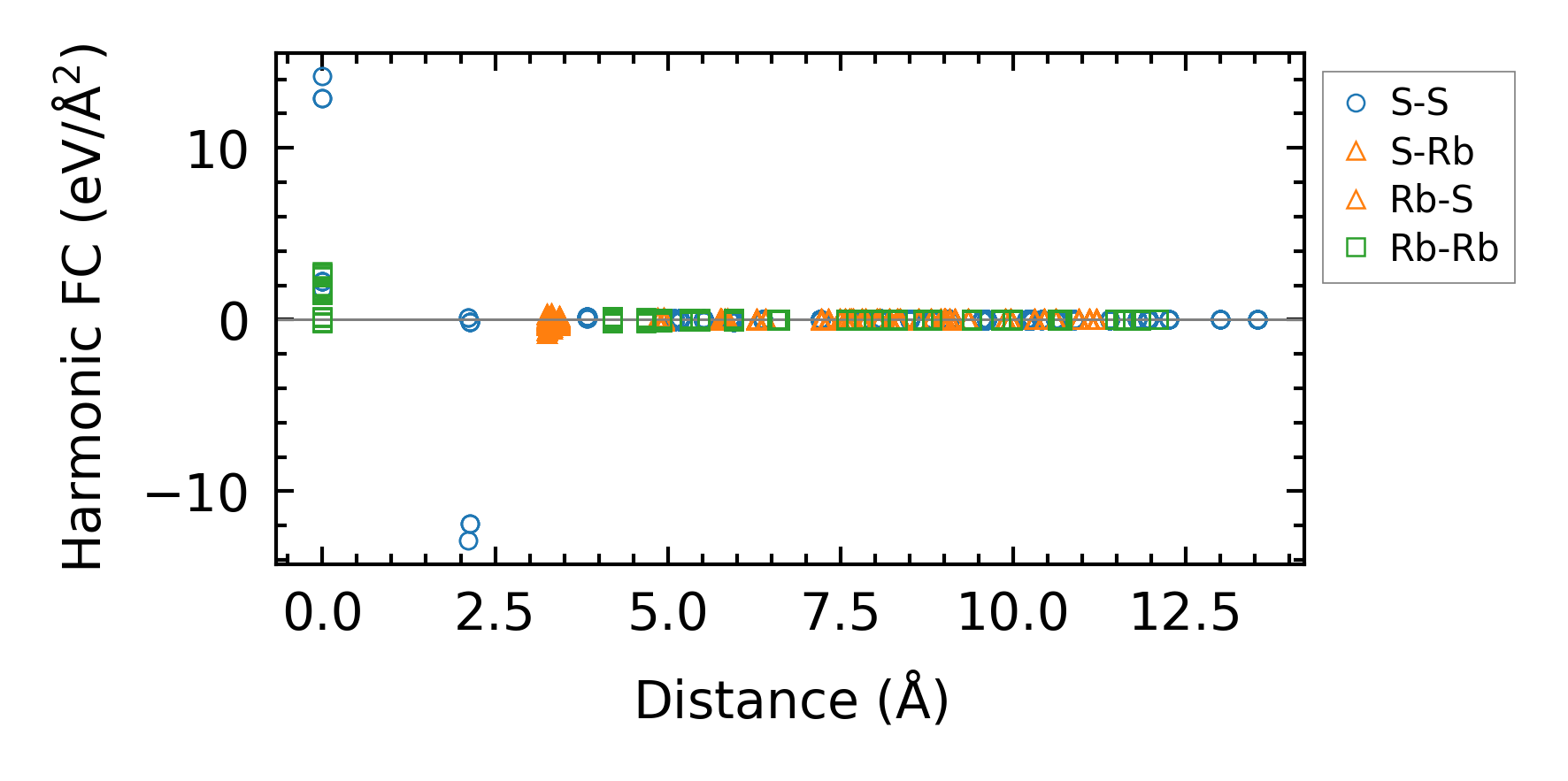

../../_images/fig_fc21207.png — (a) Force constants w.r.t atomic distance

Summary

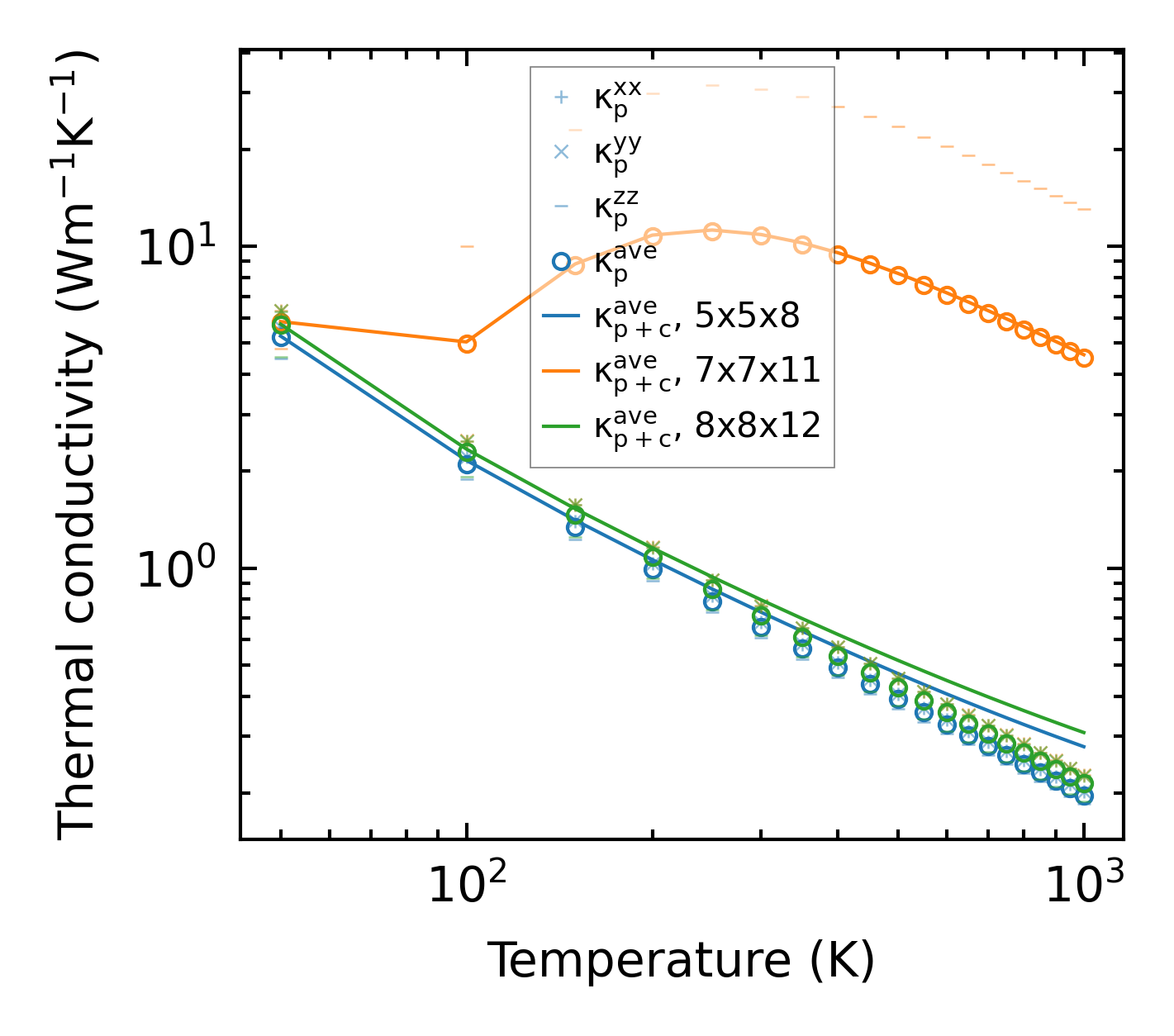

../../_images/fig_kappa1619.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times2034.png — (b) Computation time
