mp-9947/SiC/anharm

Space group: R3m (160)
Link: Materials Project
Download: mp-9947.tar.gz

Harmonic properties

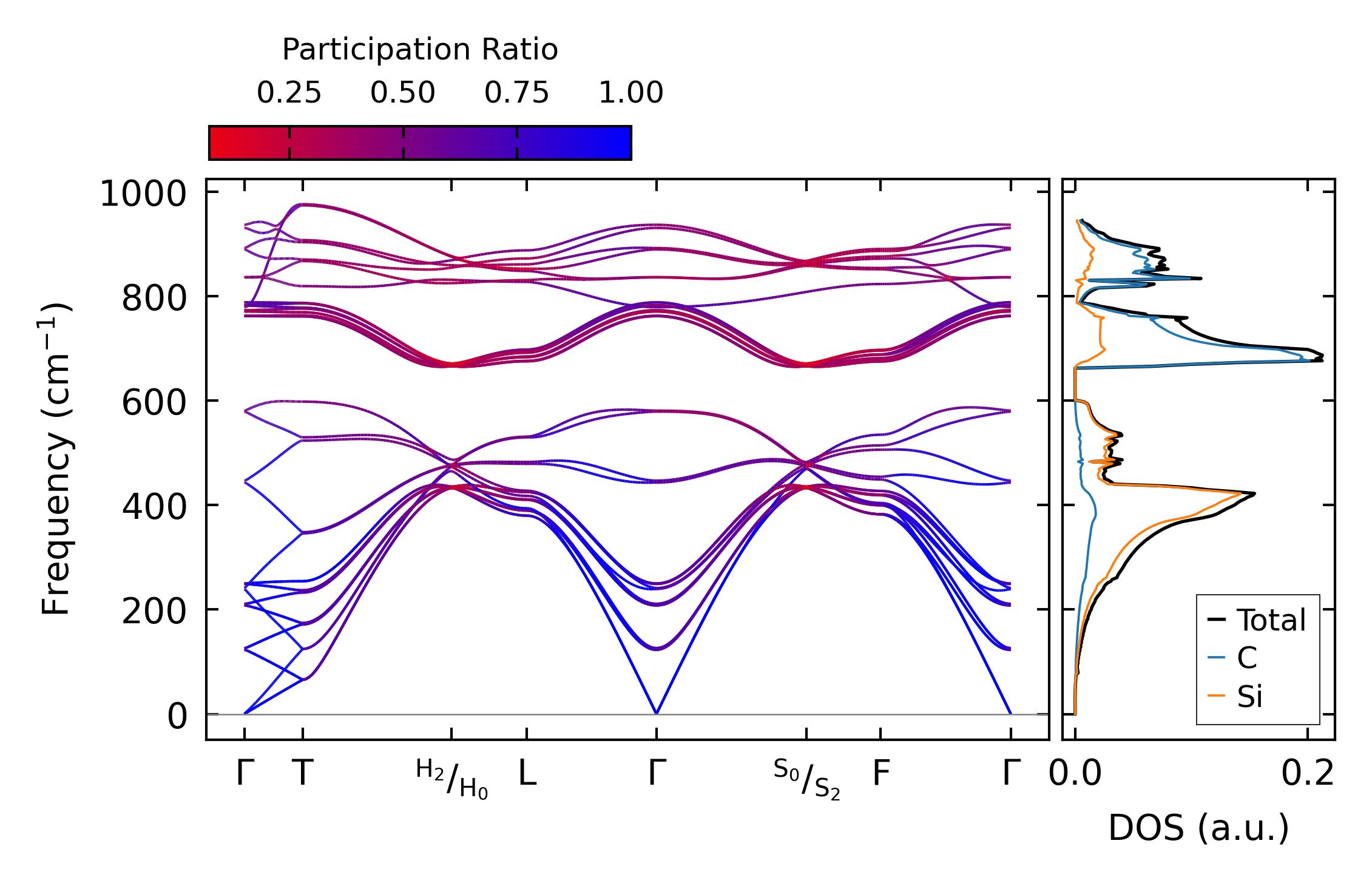

../../_images/fig_bandos_pr1287.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo1287.png — (b) Thermodynamic properties

Grüneisen parameters

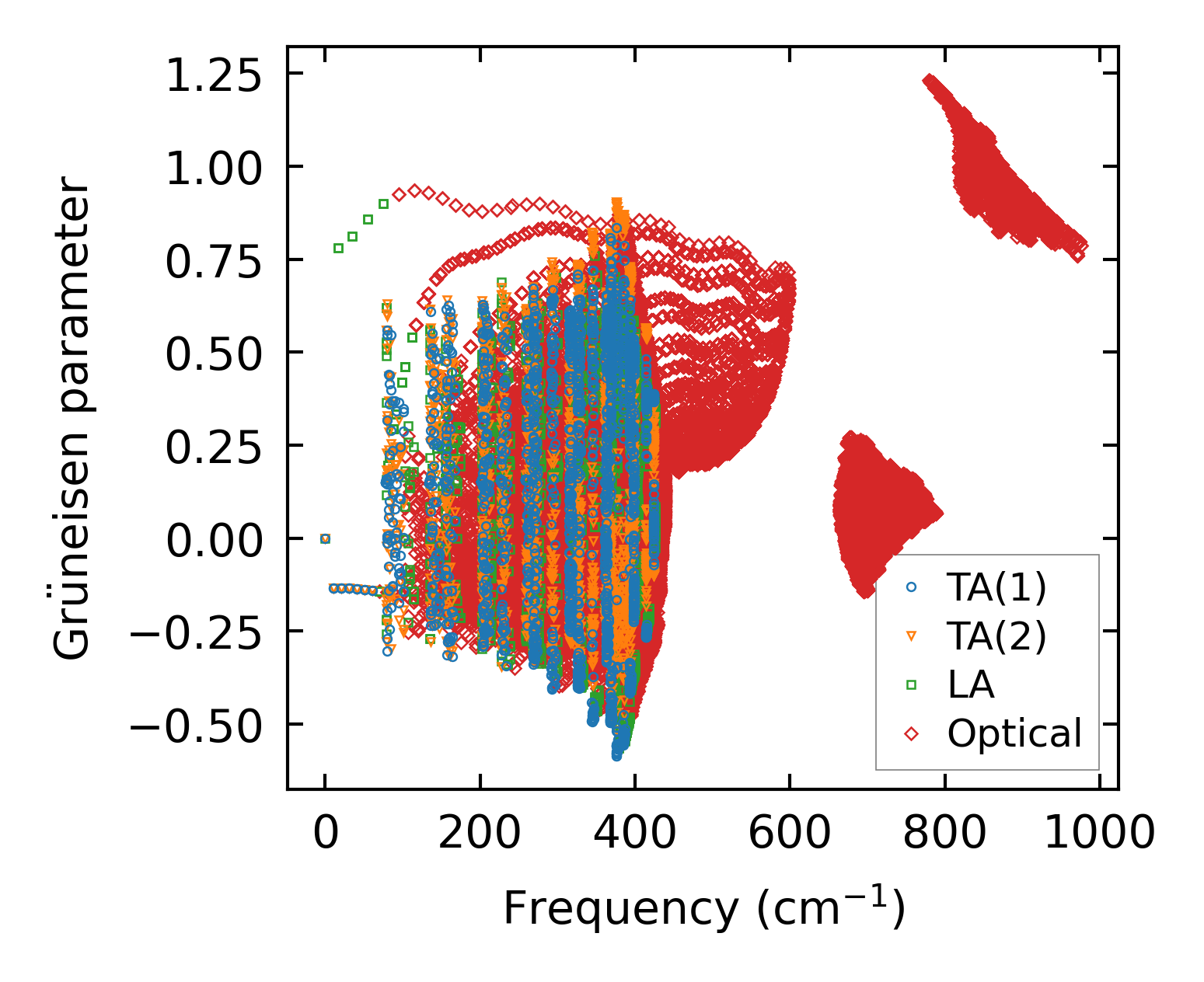

../../_images/fig_gru_all793.png — (a) Grüneisen parameters

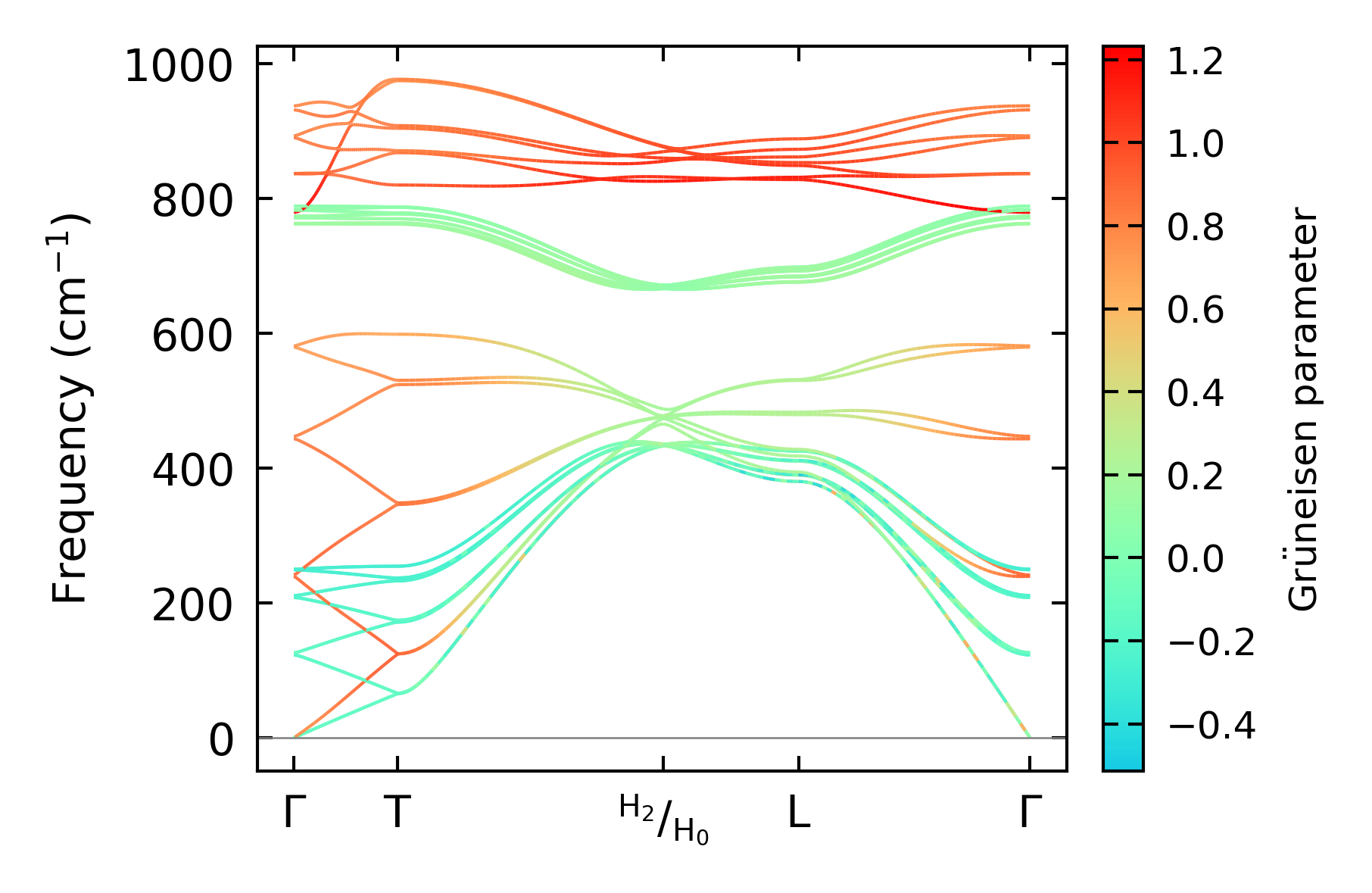

../../_images/fig_gruneisen793.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x13x13, supercell: 1x1x1

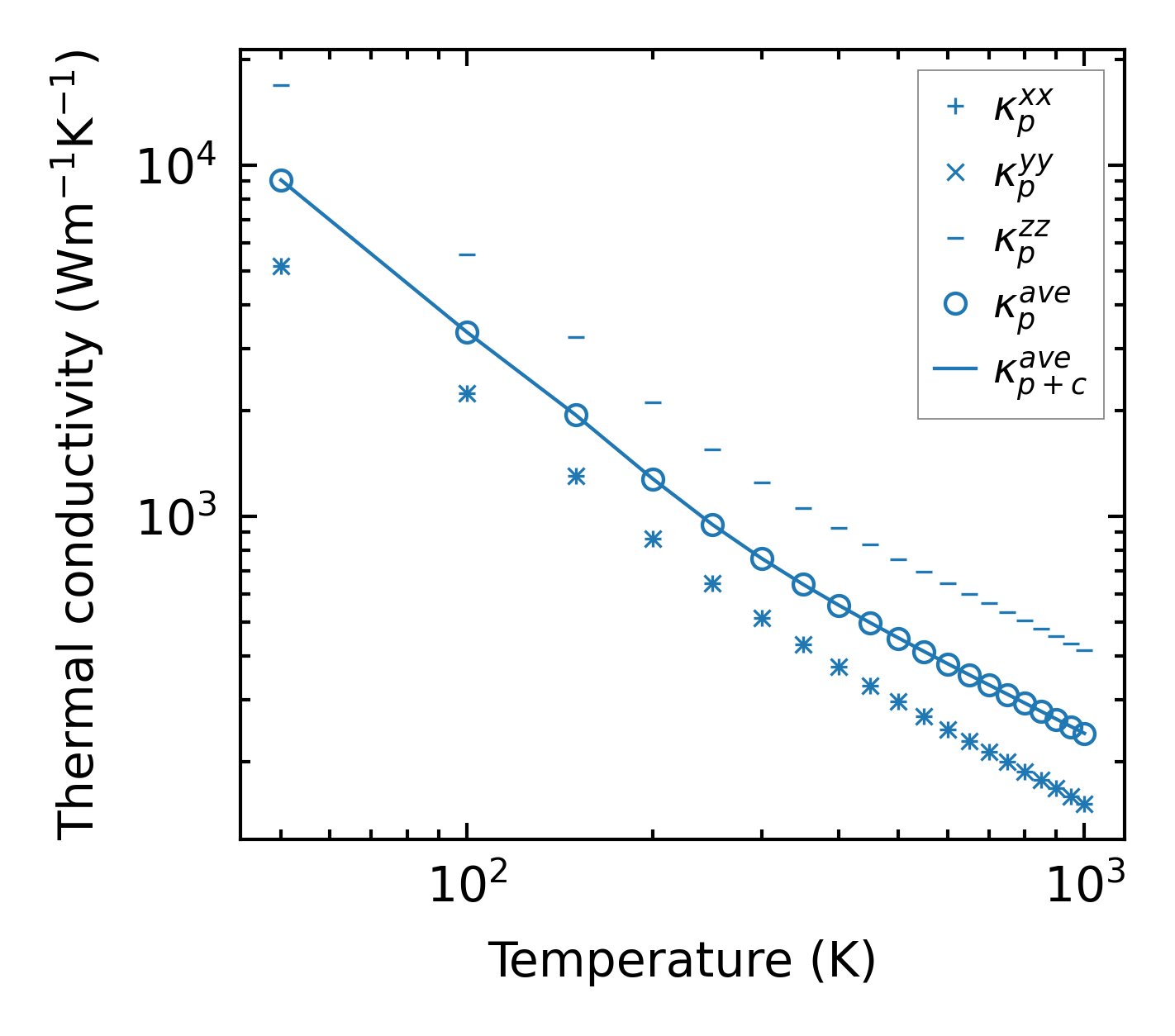

../../_images/fig_kappa1540.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size801.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

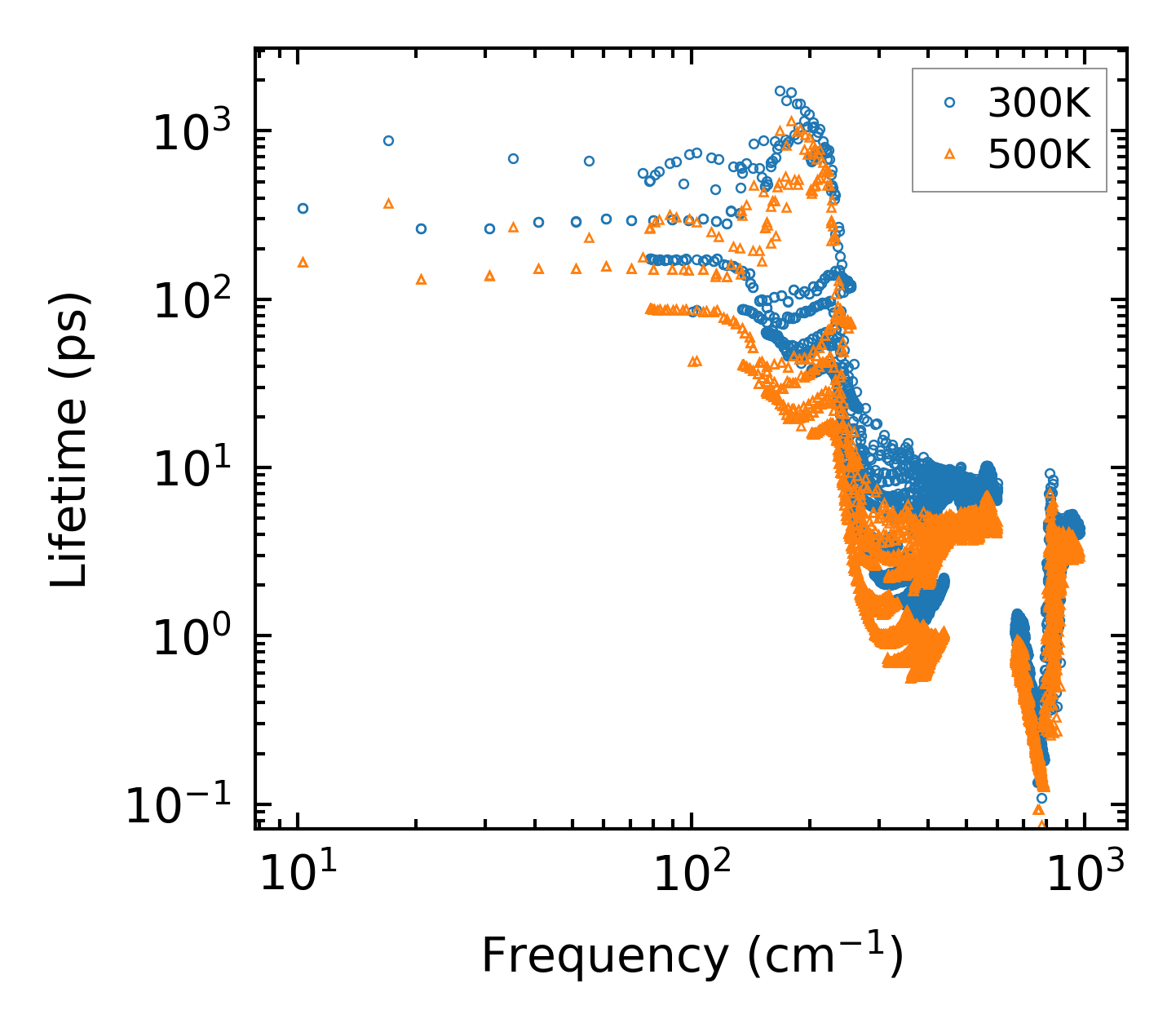

../../_images/fig_lifetime787.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates786.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

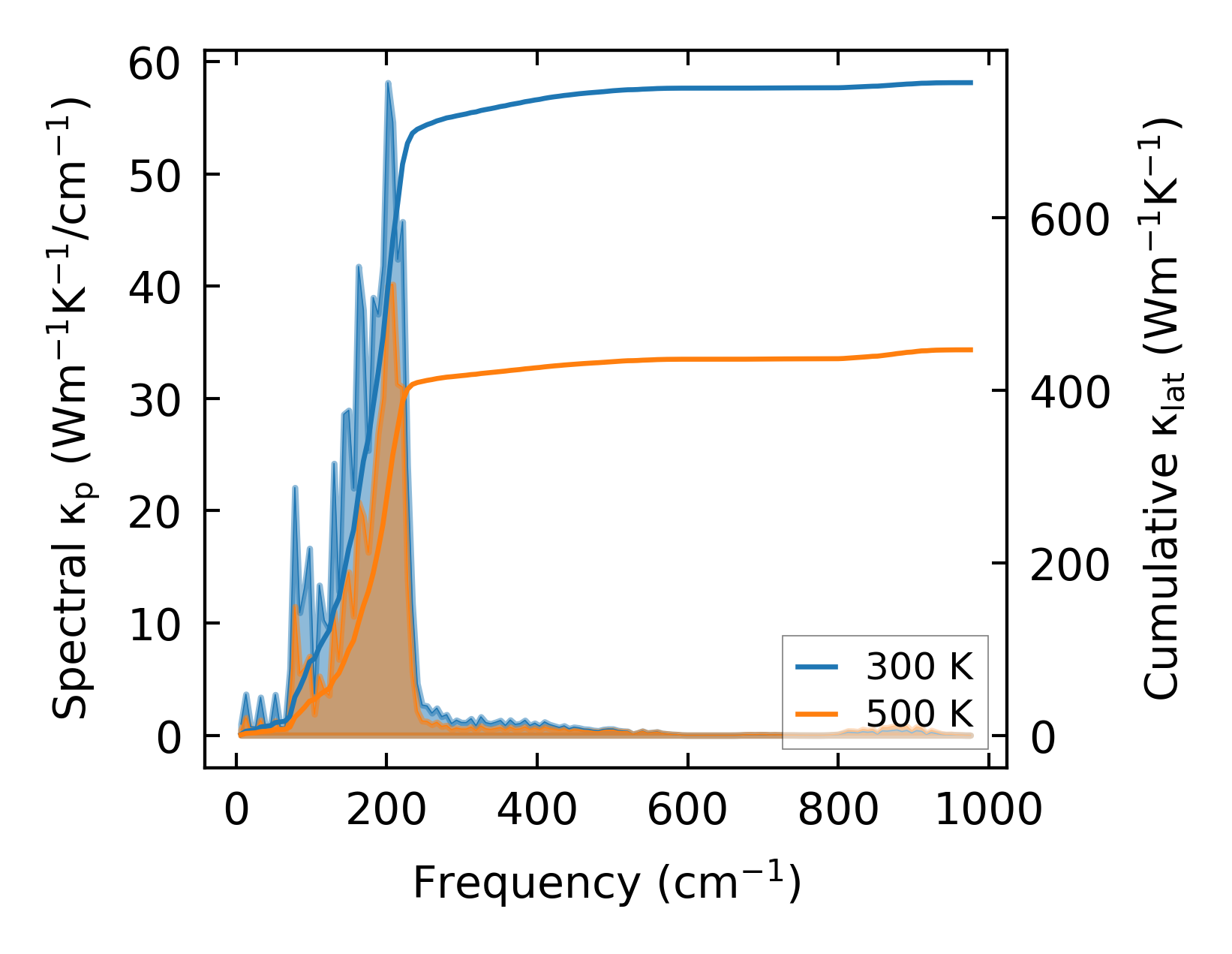

../../_images/fig_cumu_frequency787.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp787.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc21153.png — (a) Force constants w.r.t atomic distance

Summary

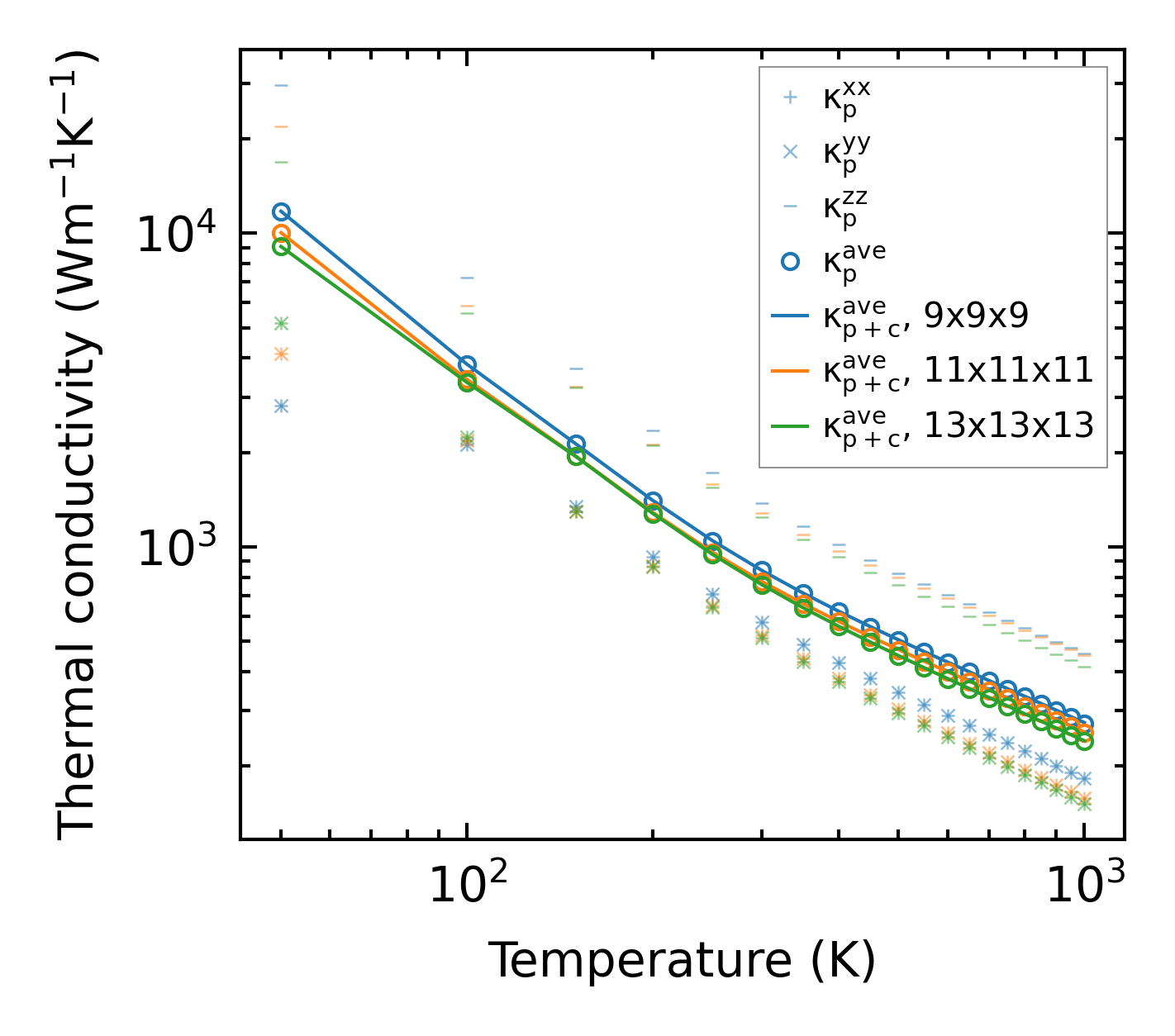

../../_images/fig_kappa1541.png — (a) Temperature-dependent lattice thermal conductivity

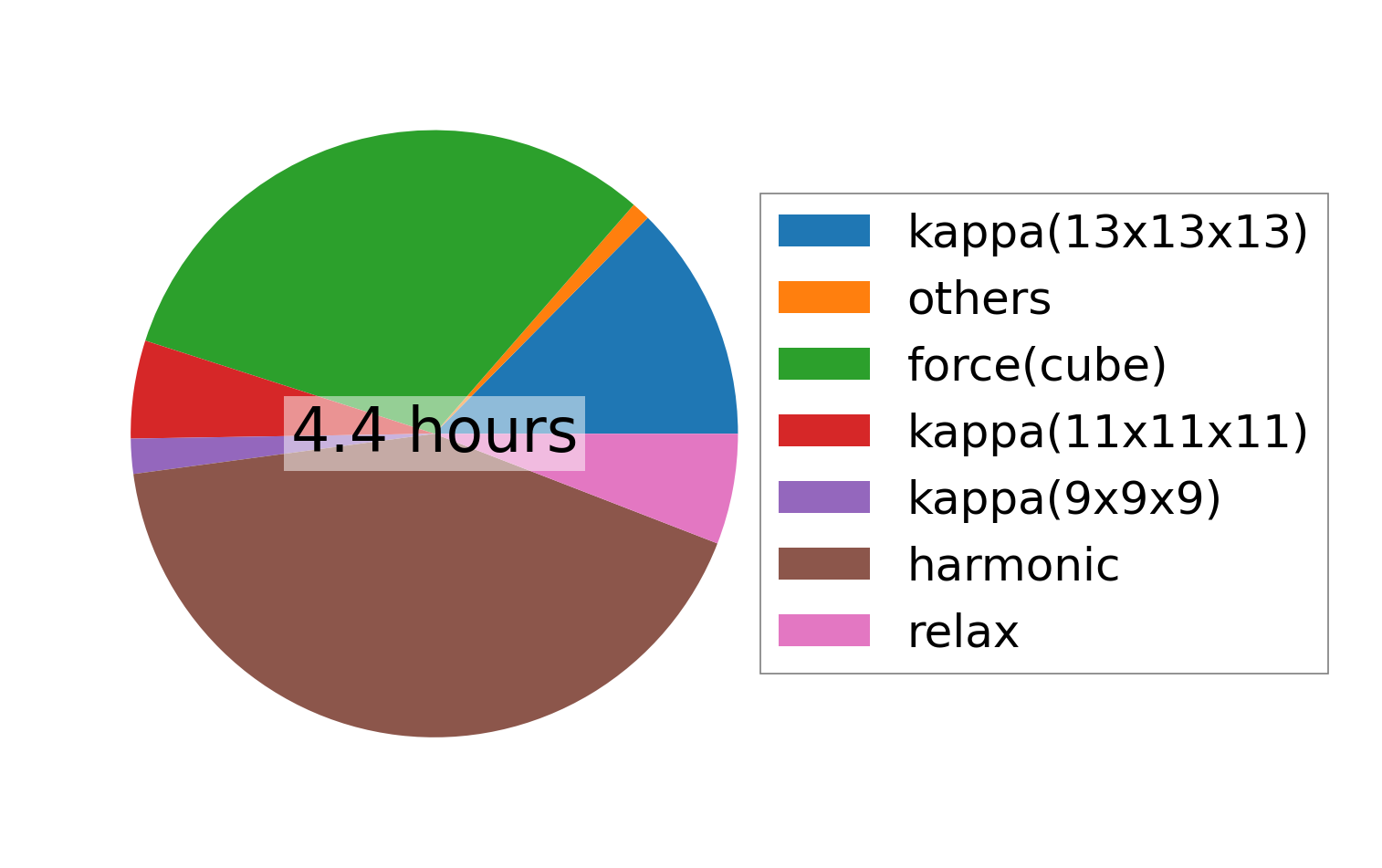

../../_images/fig_times1923.png — (b) Computation time
