mp-9676/K2NaGaAs2/anharm

Space group: Ibam (72)
Link: Materials Project
Download: mp-9676.tar.gz

Harmonic properties

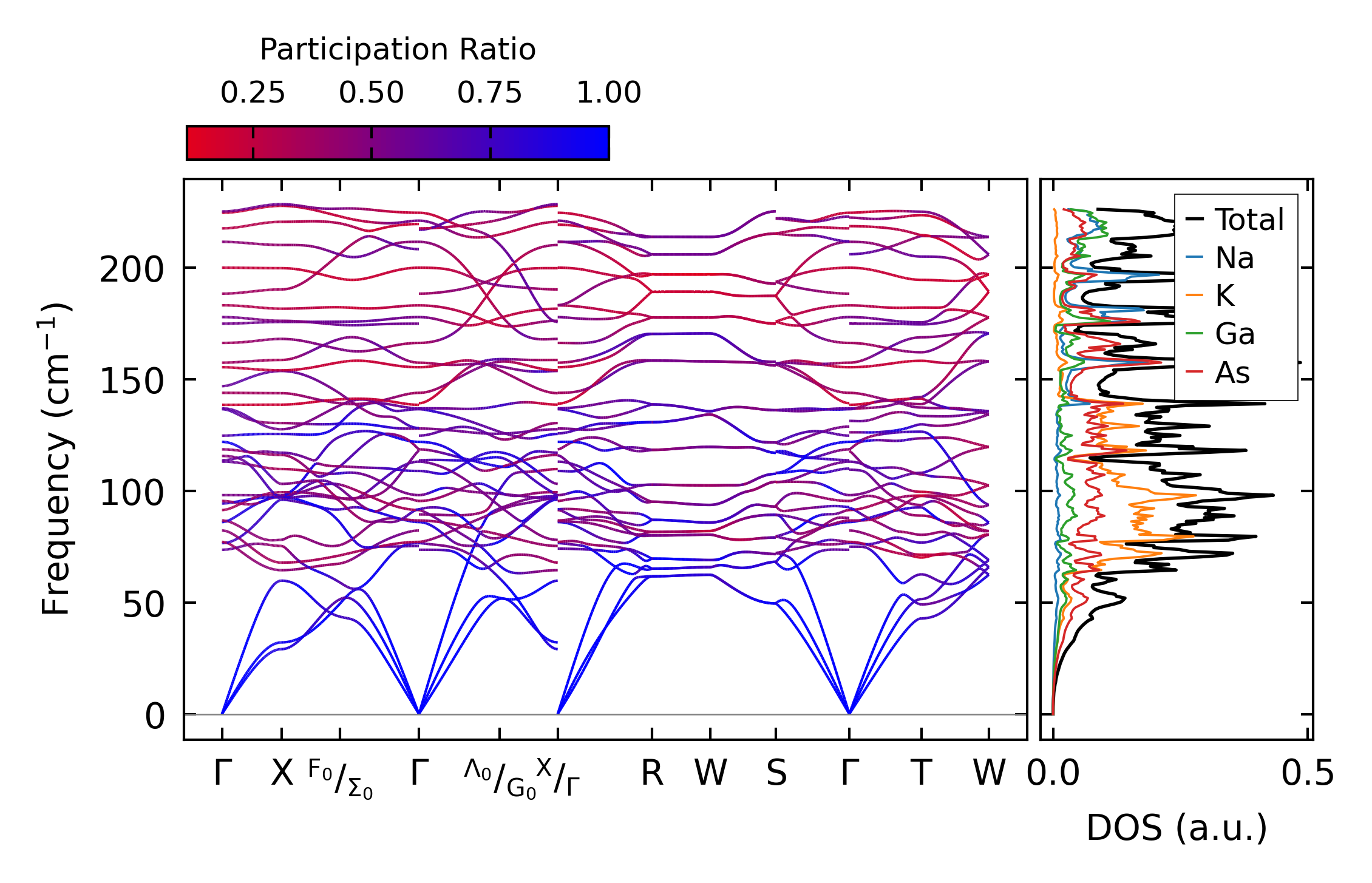

../../_images/fig_bandos_pr1188.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo1188.png — (b) Thermodynamic properties

Grüneisen parameters

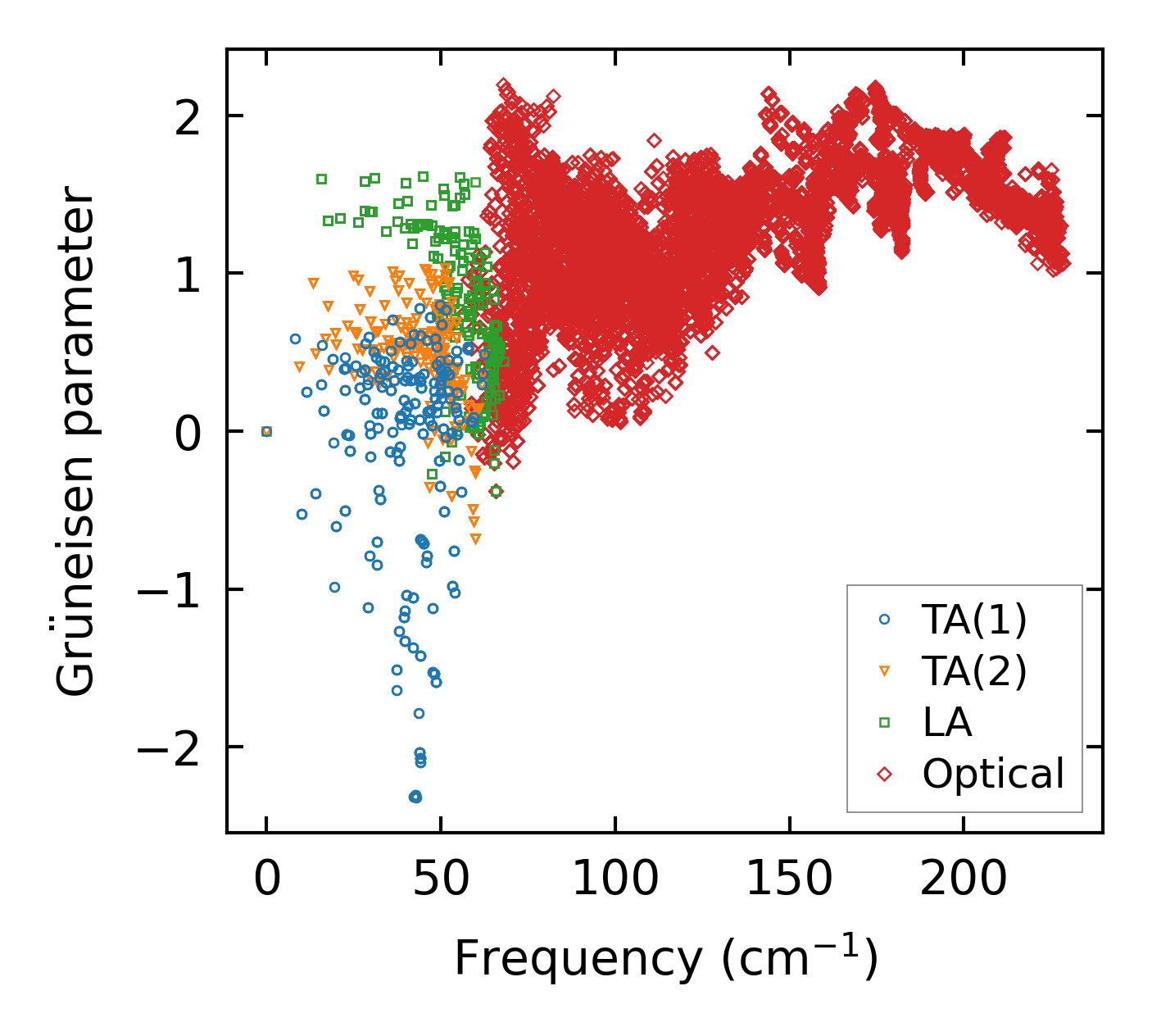

../../_images/fig_gru_all739.png — (a) Grüneisen parameters

../../_images/fig_gruneisen739.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x10, supercell: 2x1x3

../../_images/fig_kappa1442.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size748.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

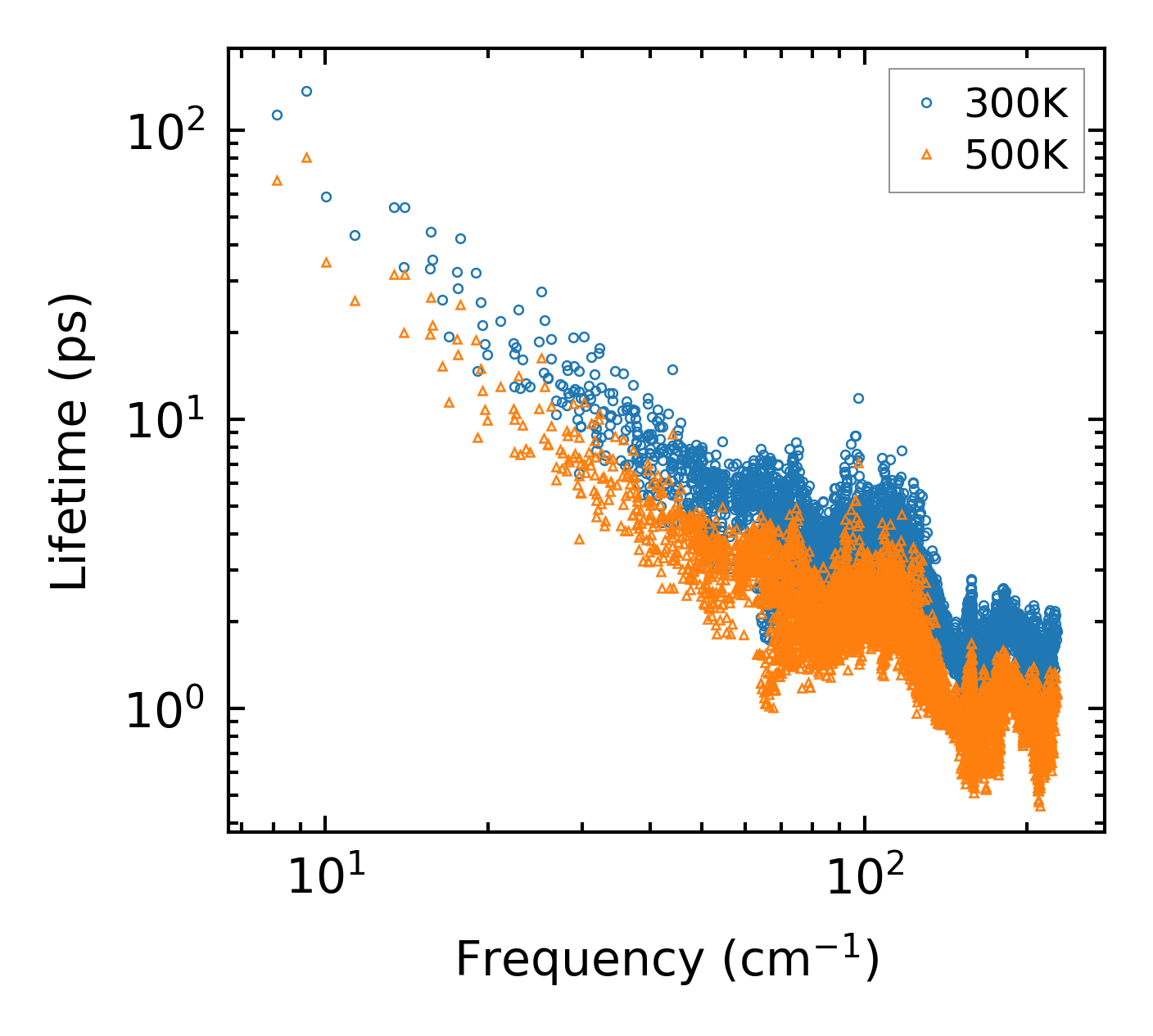

../../_images/fig_lifetime735.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates734.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

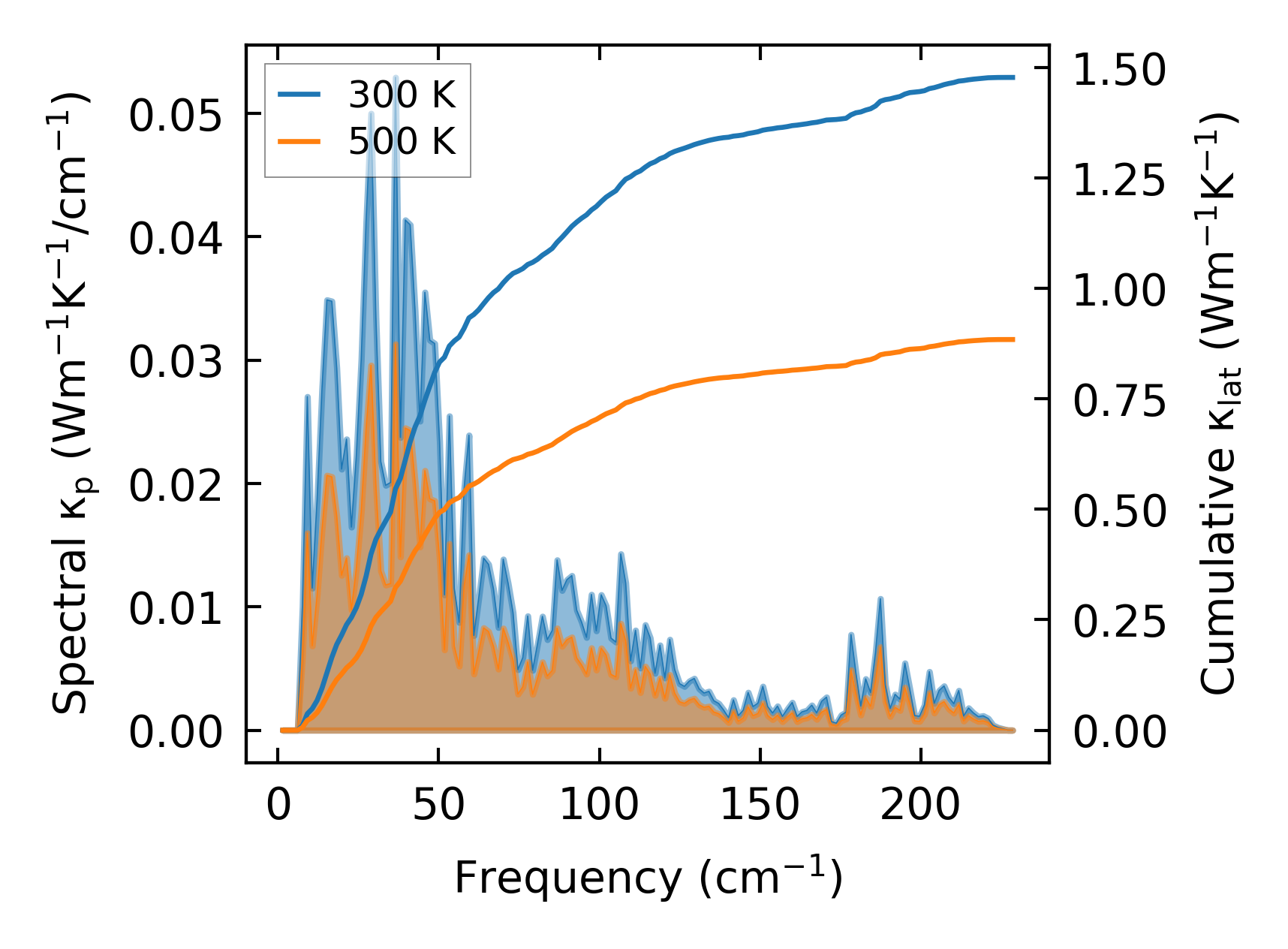

../../_images/fig_cumu_frequency735.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

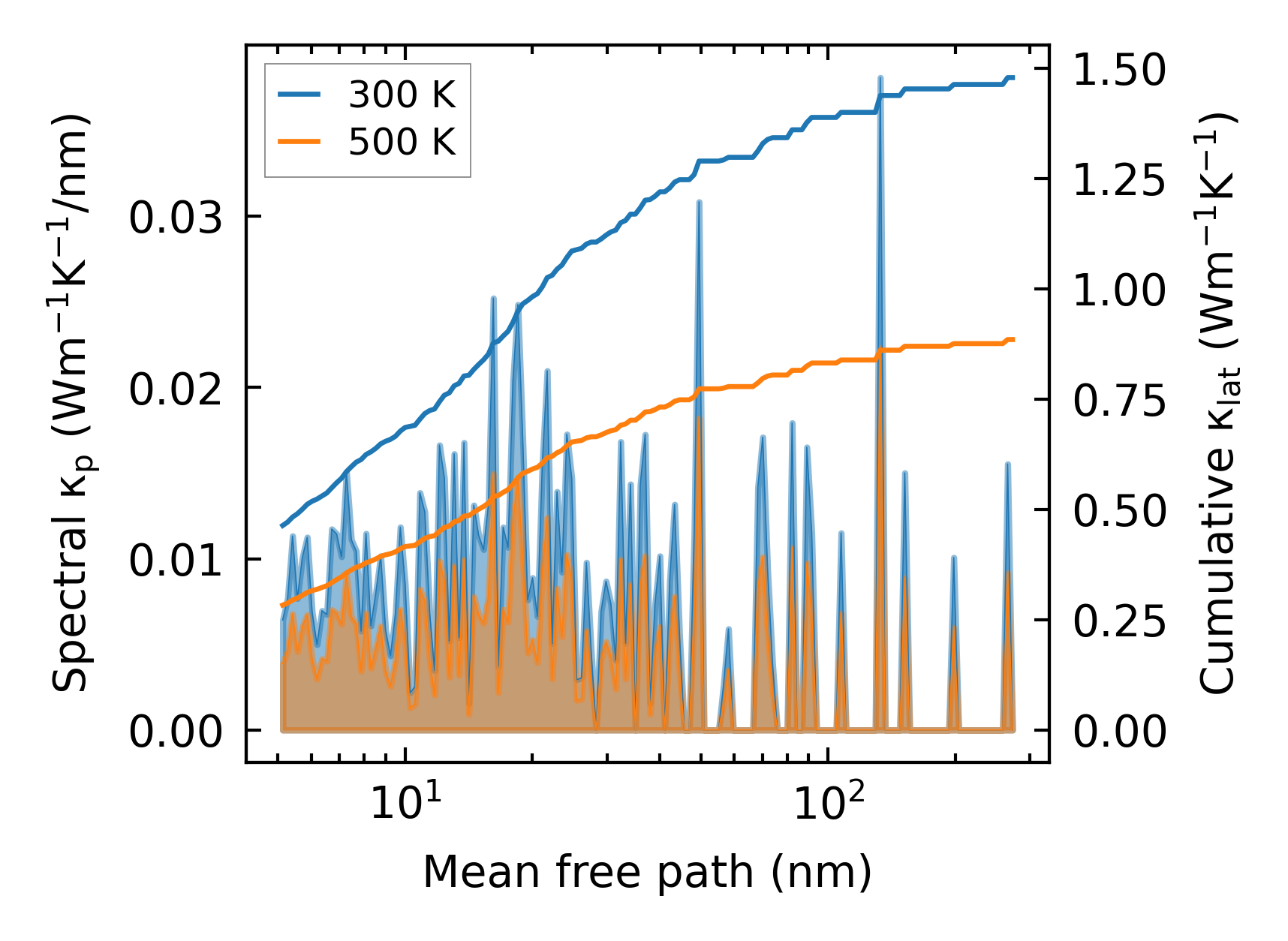

../../_images/fig_cumu_mfp735.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

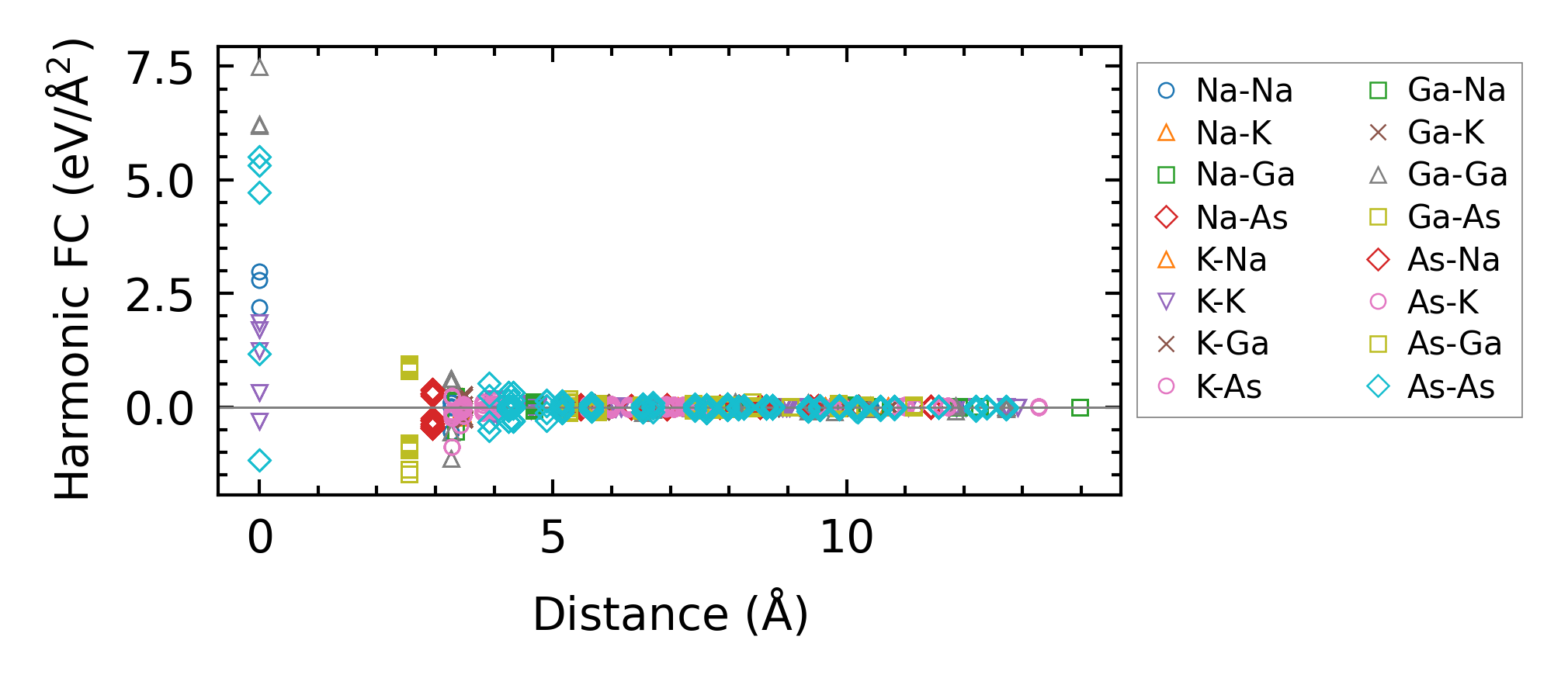

../../_images/fig_fc21054.png — (a) Force constants w.r.t atomic distance

Summary

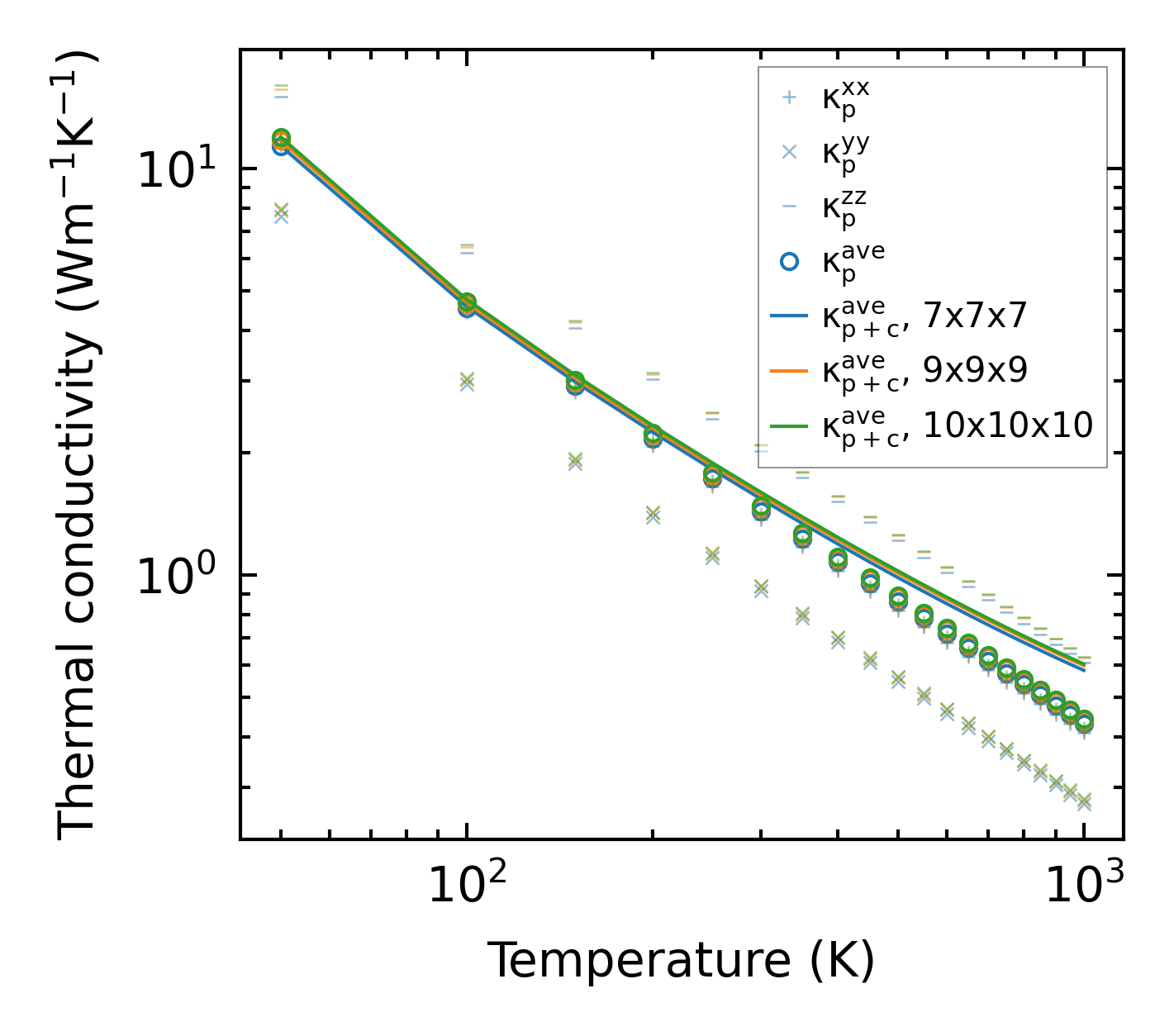

../../_images/fig_kappa1443.png — (a) Temperature-dependent lattice thermal conductivity

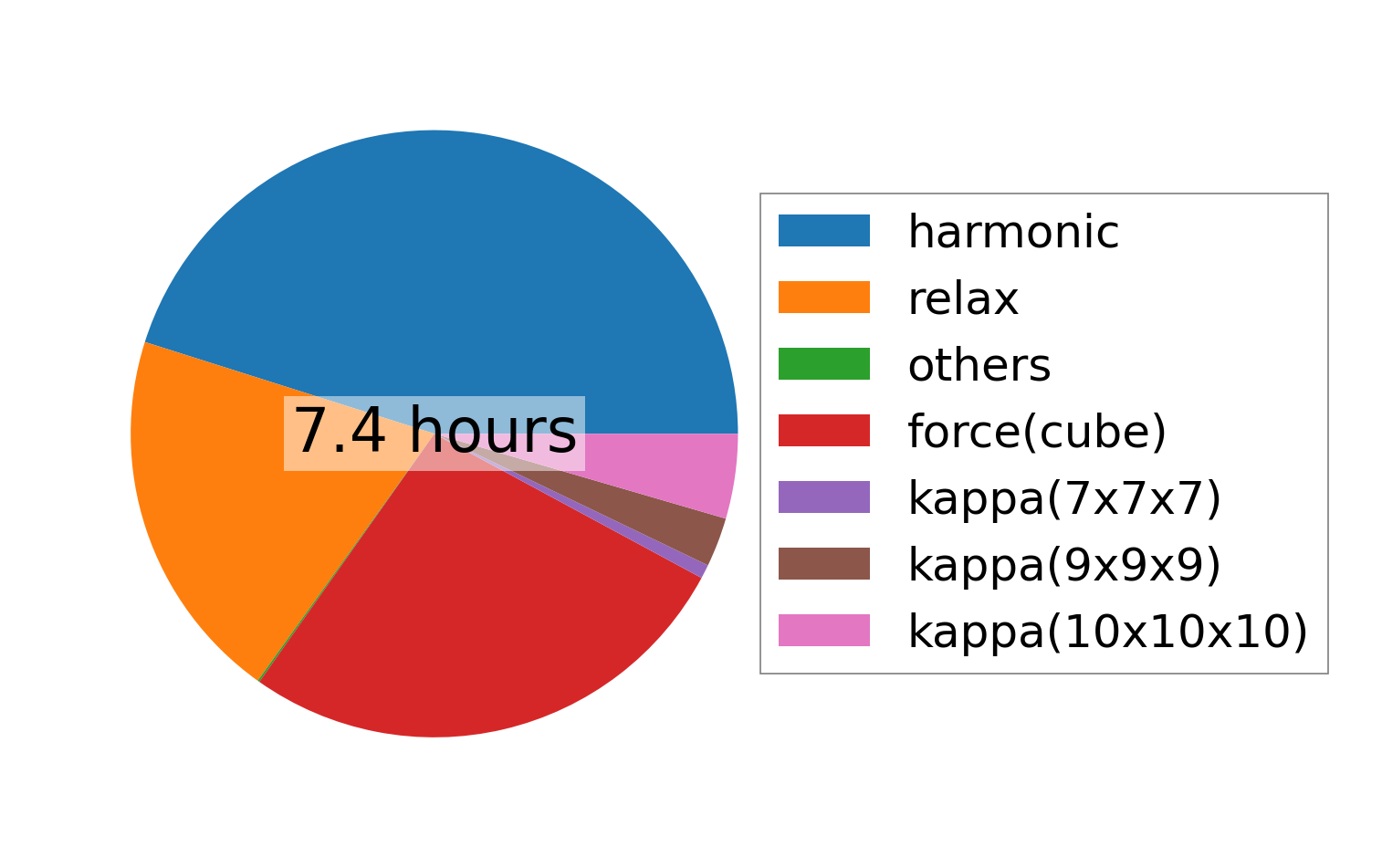

../../_images/fig_times1781.png — (b) Computation time
