mp-6987/SrGa2Te4/anharm

Space group: Cccm (66)
Link: Materials Project
Download: mp-6987.tar.gz

Harmonic properties

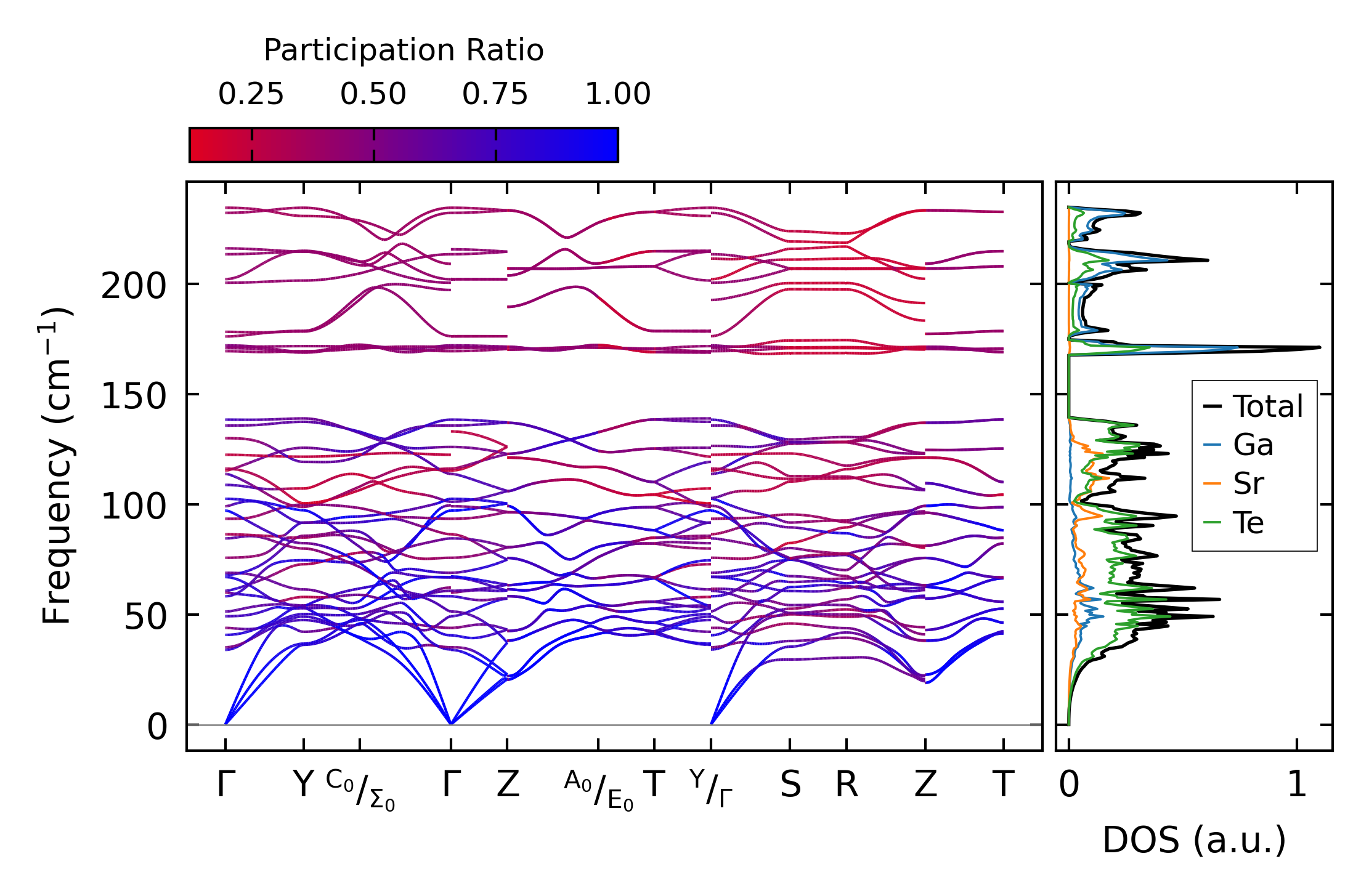

../../_images/fig_bandos_pr6238.png — (a) Phonon dispersion with participation ratio and DOS

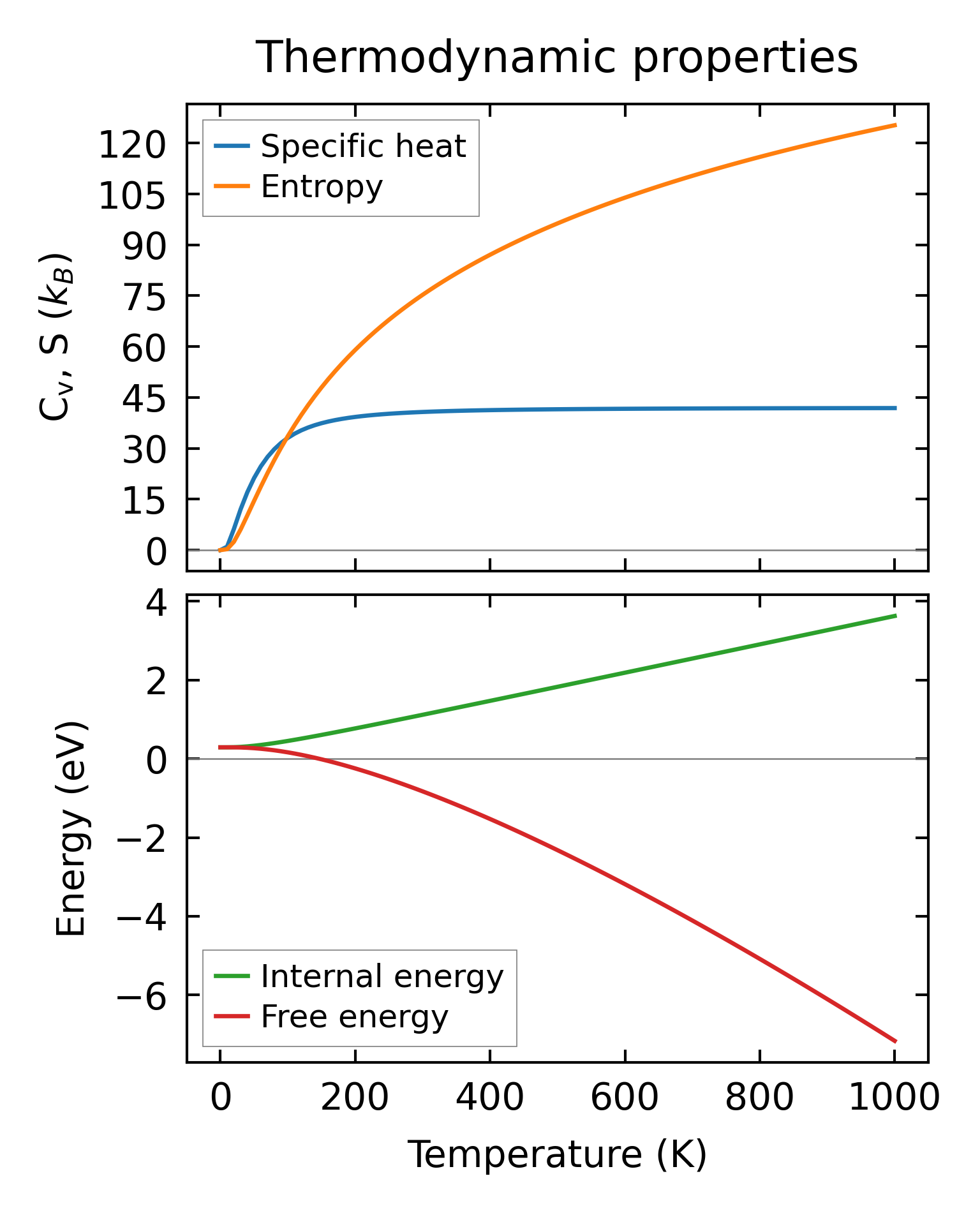

../../_images/fig_thermo6238.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all2542.png — (a) Grüneisen parameters

../../_images/fig_gruneisen2542.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x11x6, supercell: 2x2x1

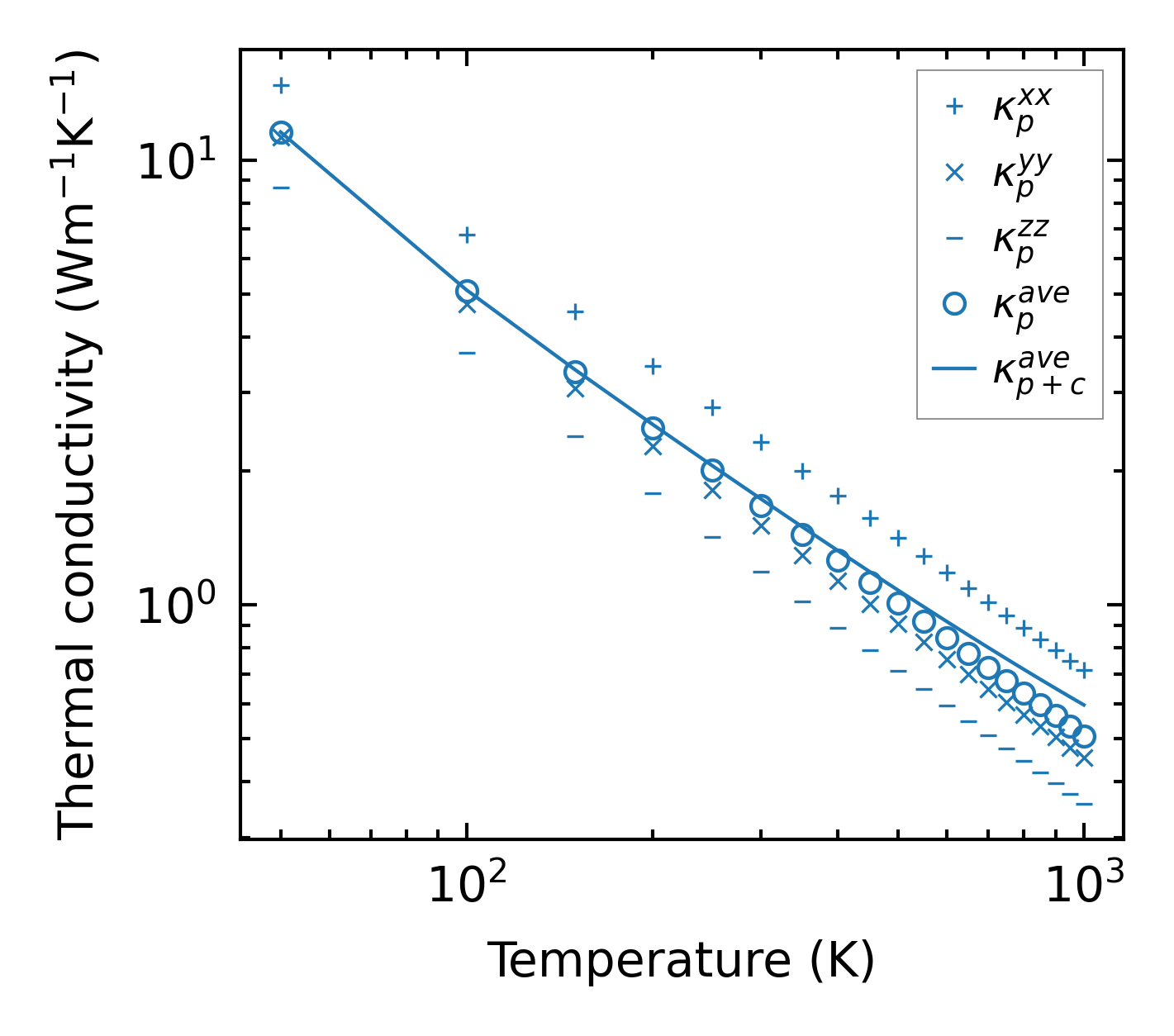

../../_images/fig_kappa4838.png — (a) Temperature-dependent lattice thermal conductivity

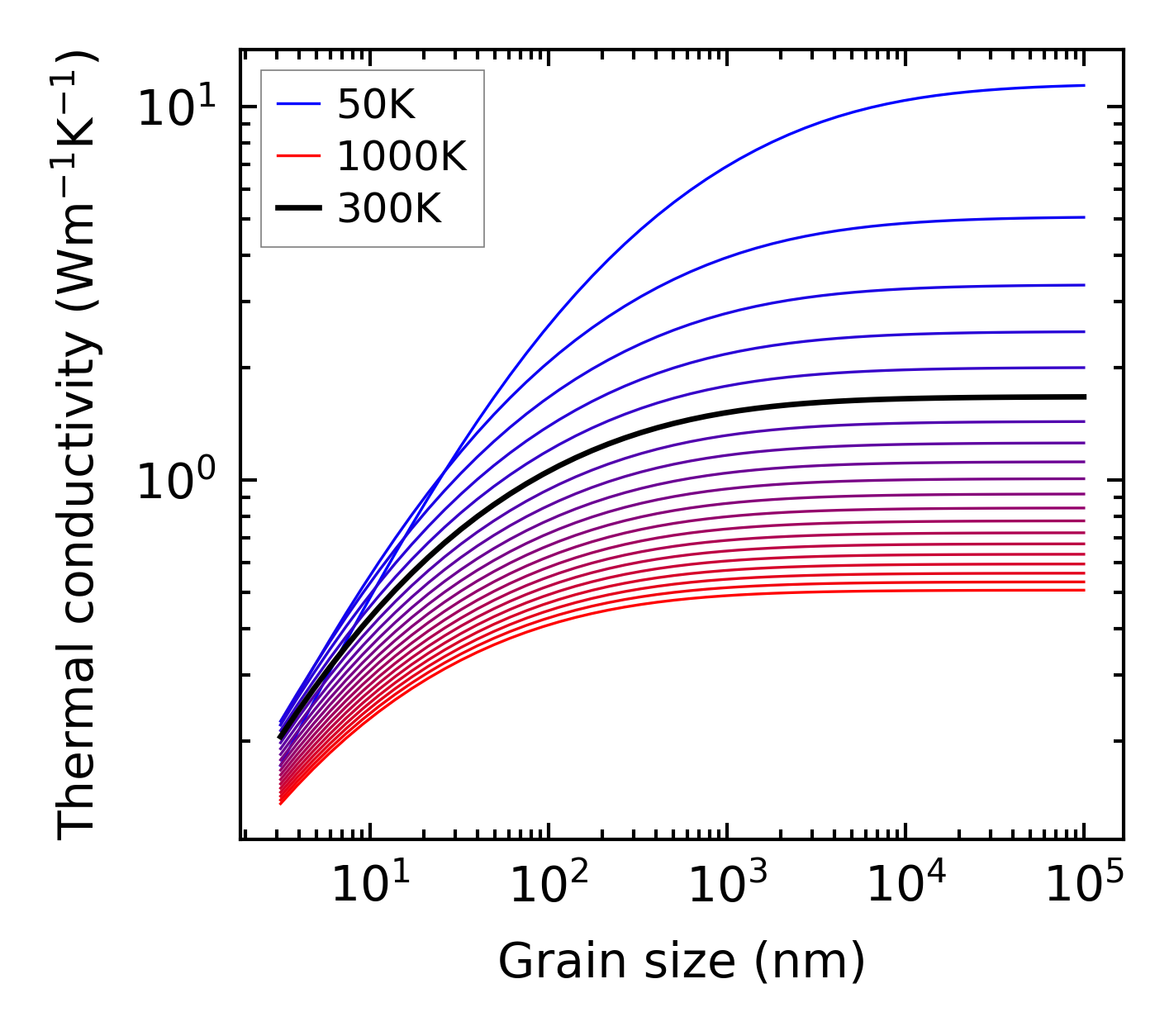

../../_images/fig_kappa_vs_grain_size2576.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime2523.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates2522.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

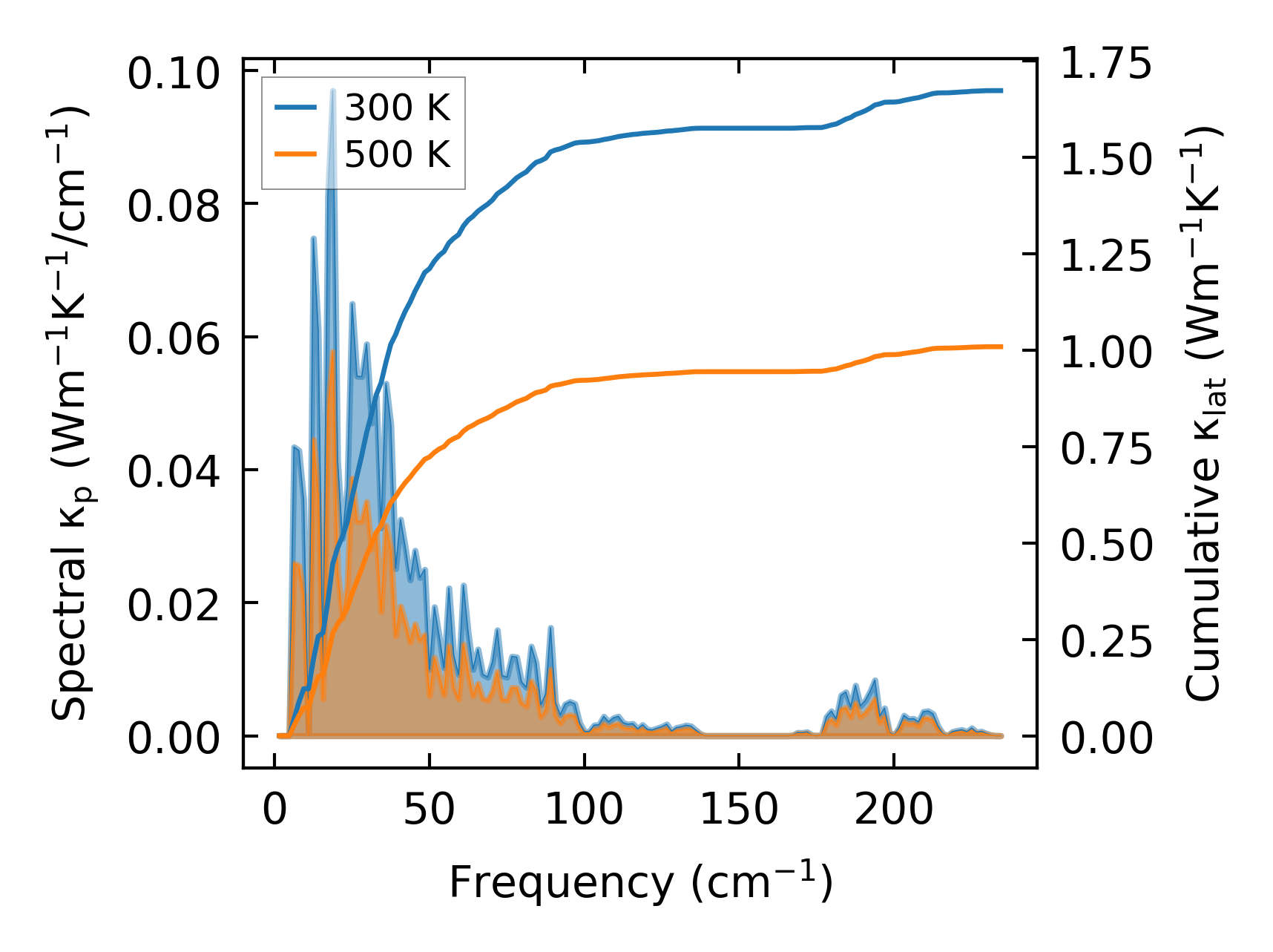

../../_images/fig_cumu_frequency2523.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

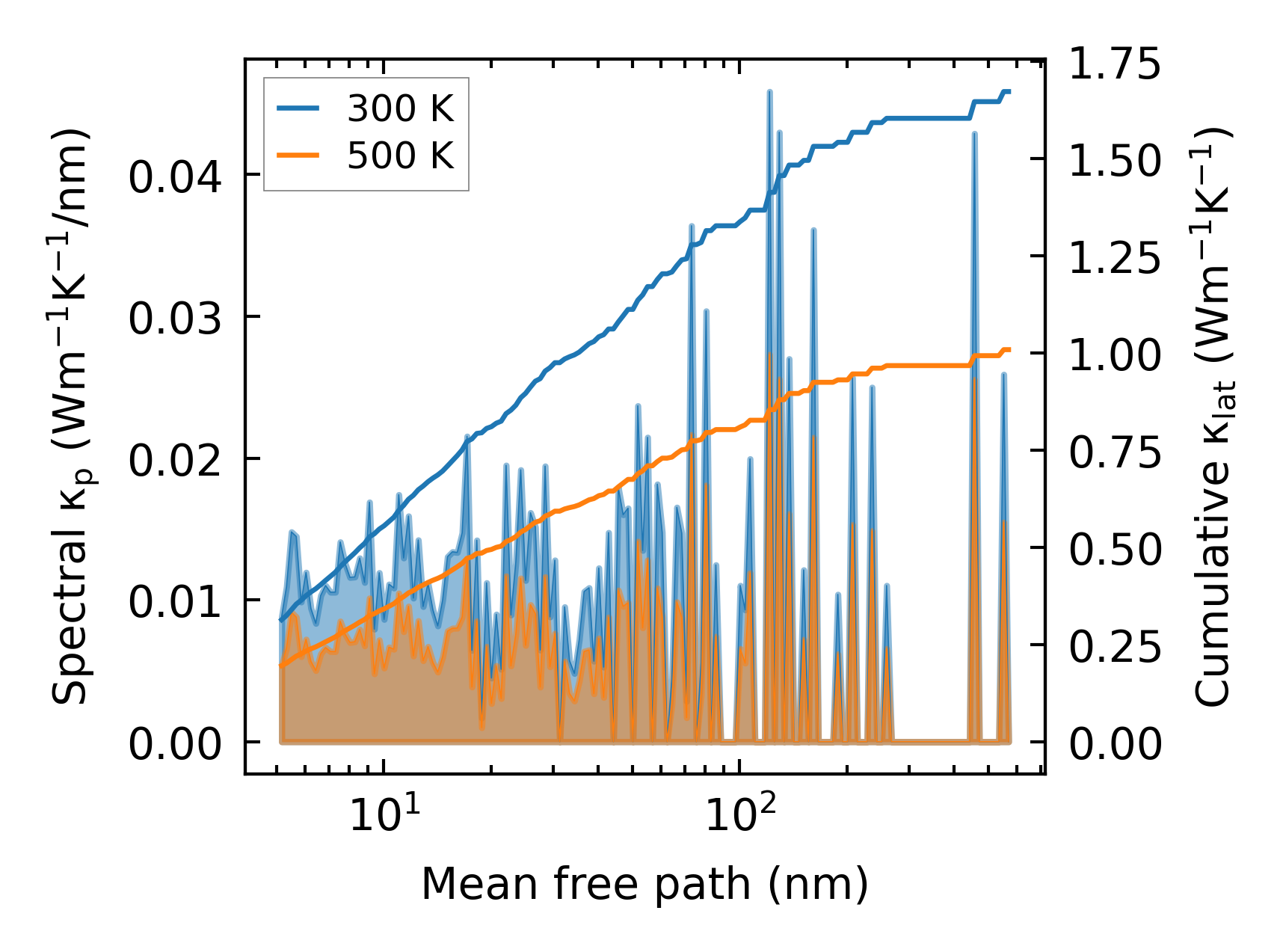

../../_images/fig_cumu_mfp2522.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

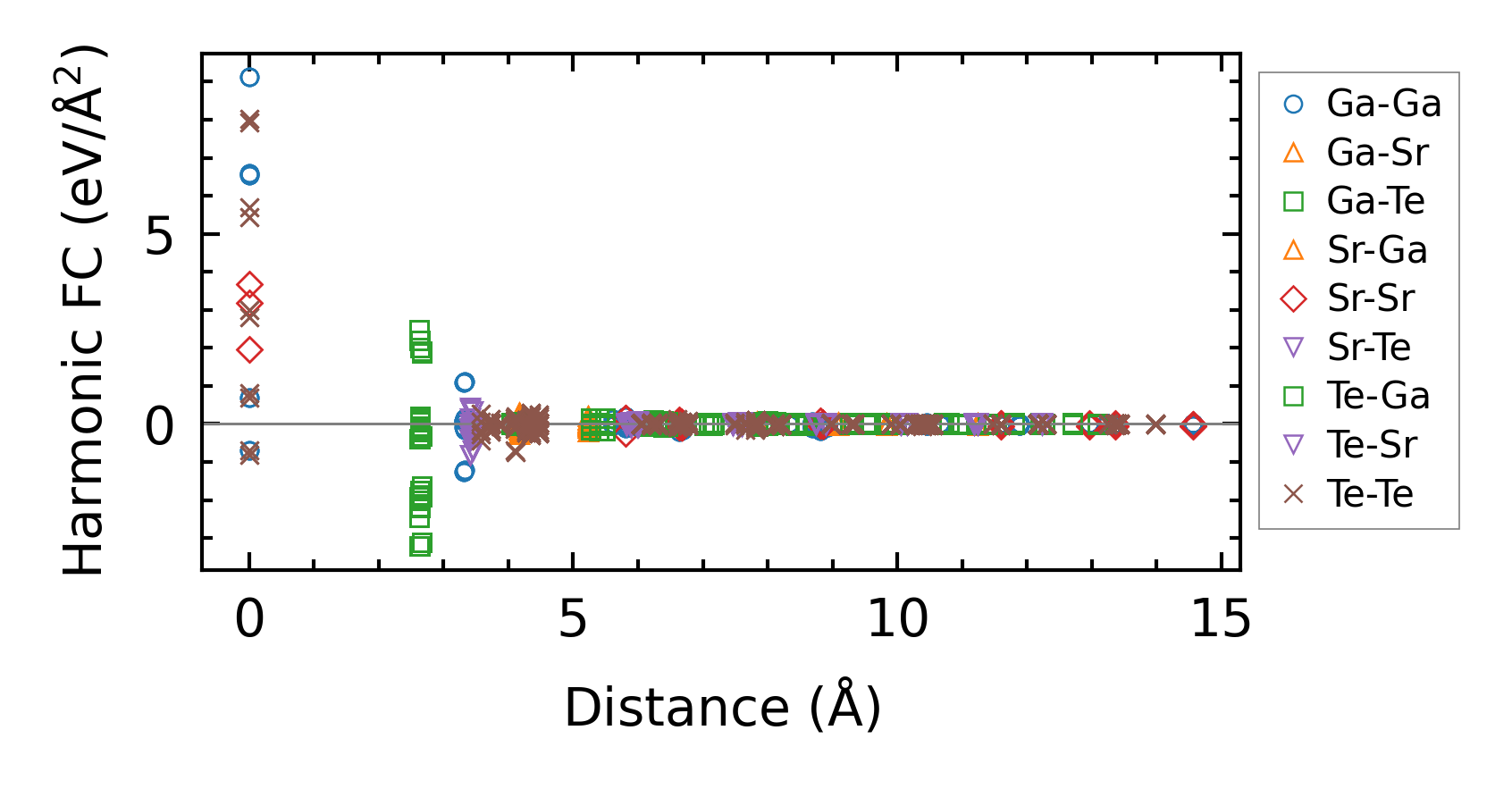

../../_images/fig_fc26028.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa4839.png — (a) Temperature-dependent lattice thermal conductivity

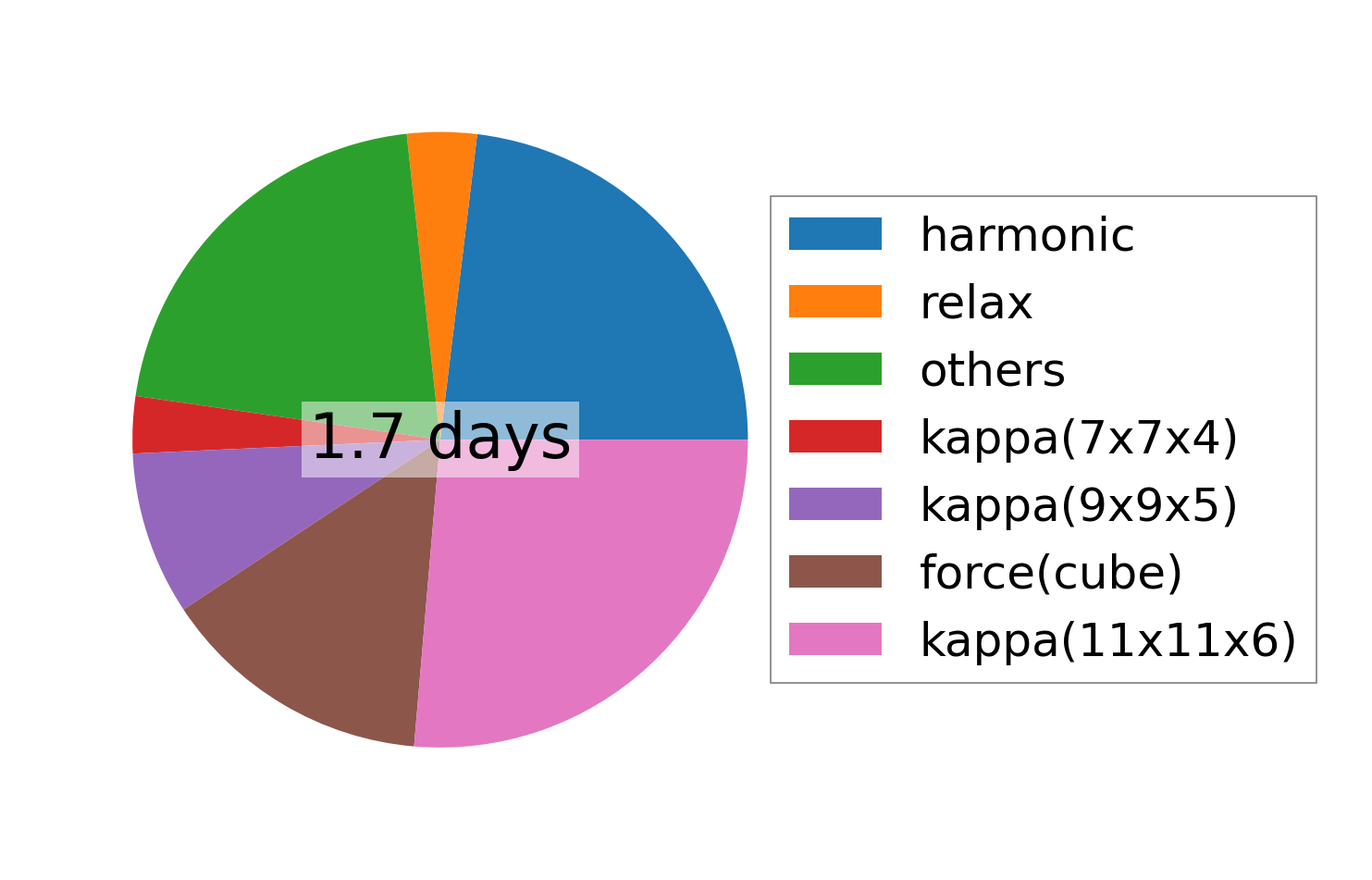

../../_images/fig_times11329.png — (b) Computation time
