mp-6383/BaBe2Si2O7/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-6383.tar.gz

Harmonic properties

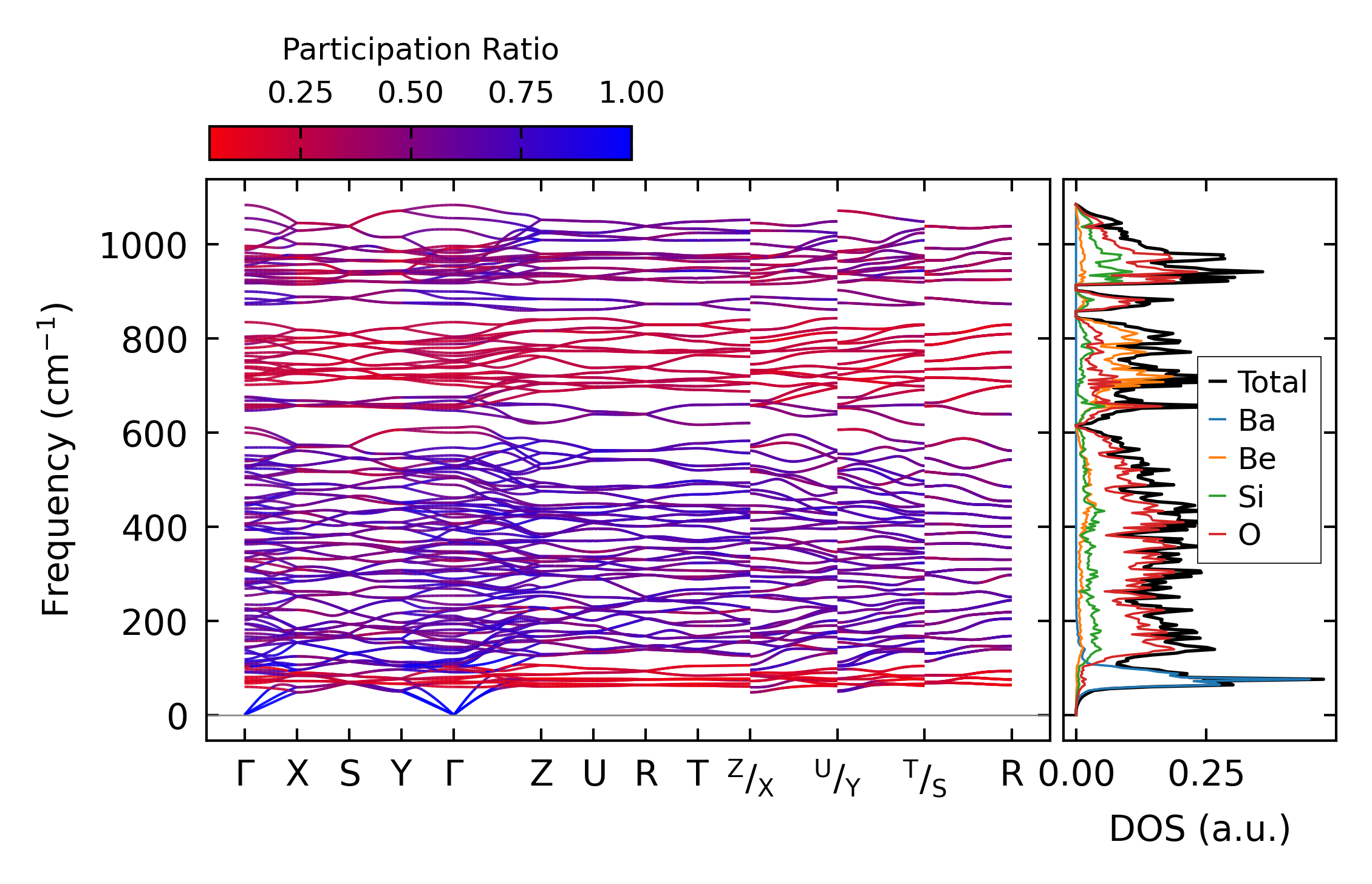

../../_images/fig_bandos_pr6391.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo6391.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all2604.png — (a) Grüneisen parameters

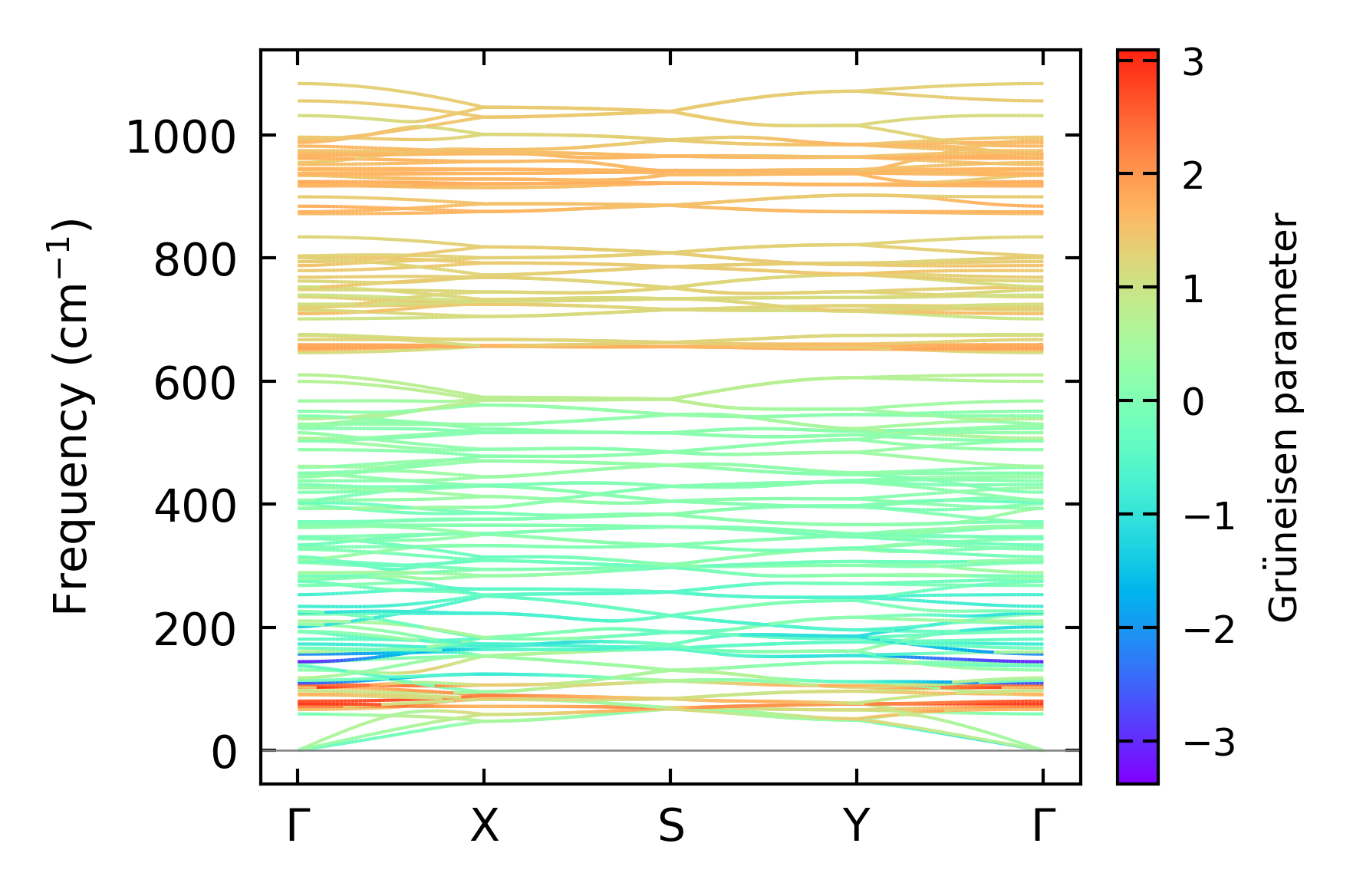

../../_images/fig_gruneisen2604.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 7x6x15, supercell: 1x1x3

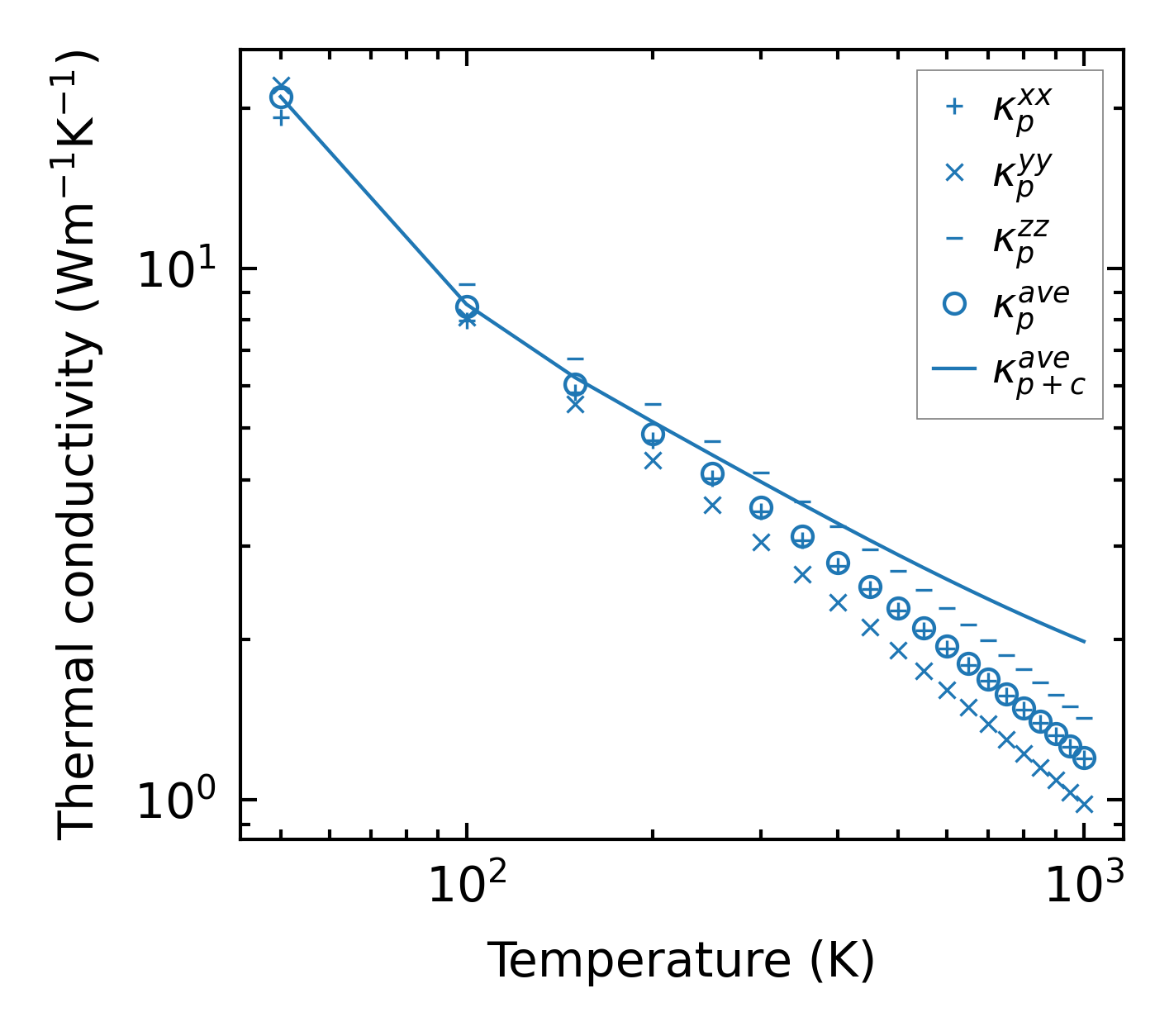

../../_images/fig_kappa4951.png — (a) Temperature-dependent lattice thermal conductivity

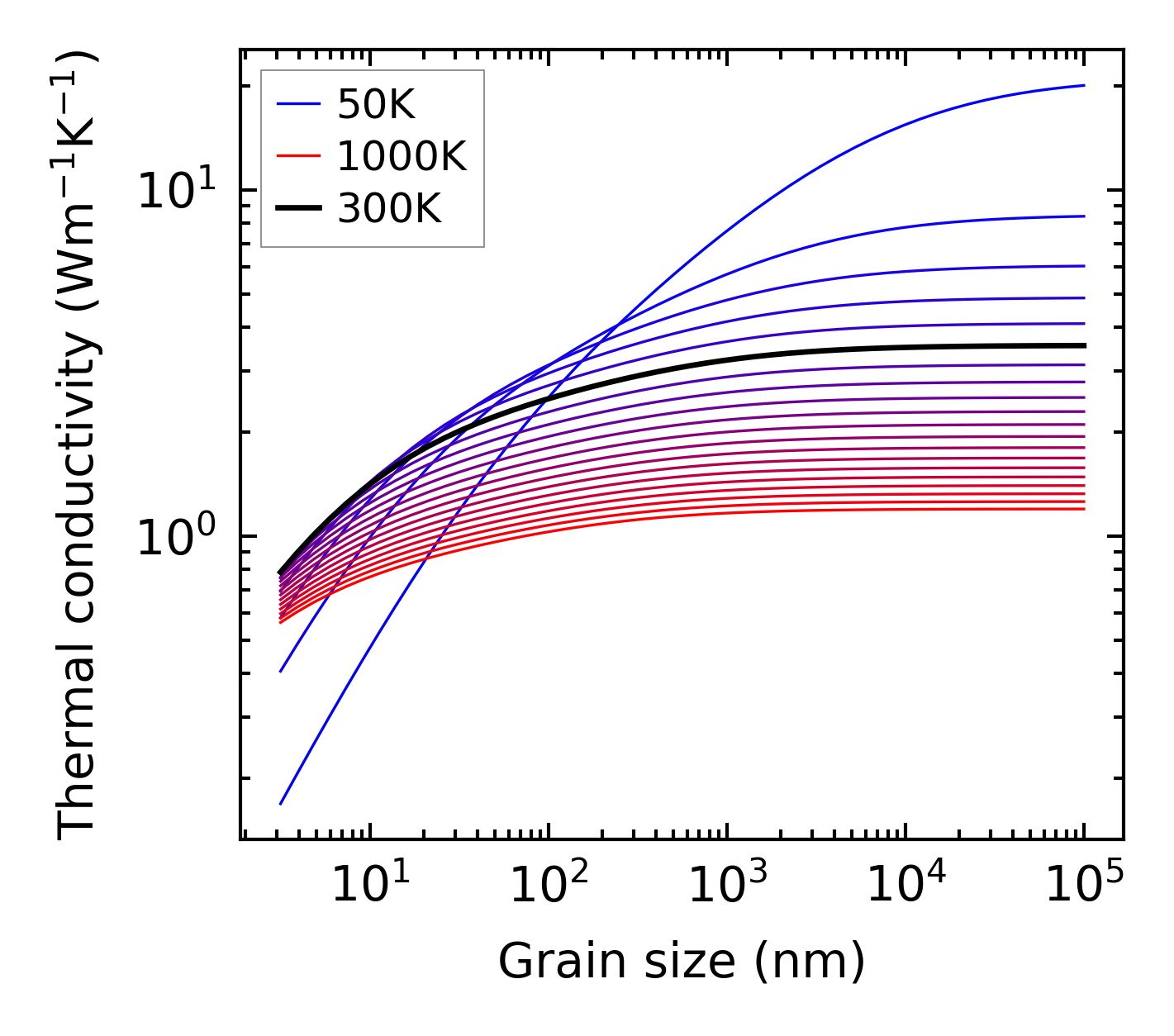

../../_images/fig_kappa_vs_grain_size2639.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime2582.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates2581.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

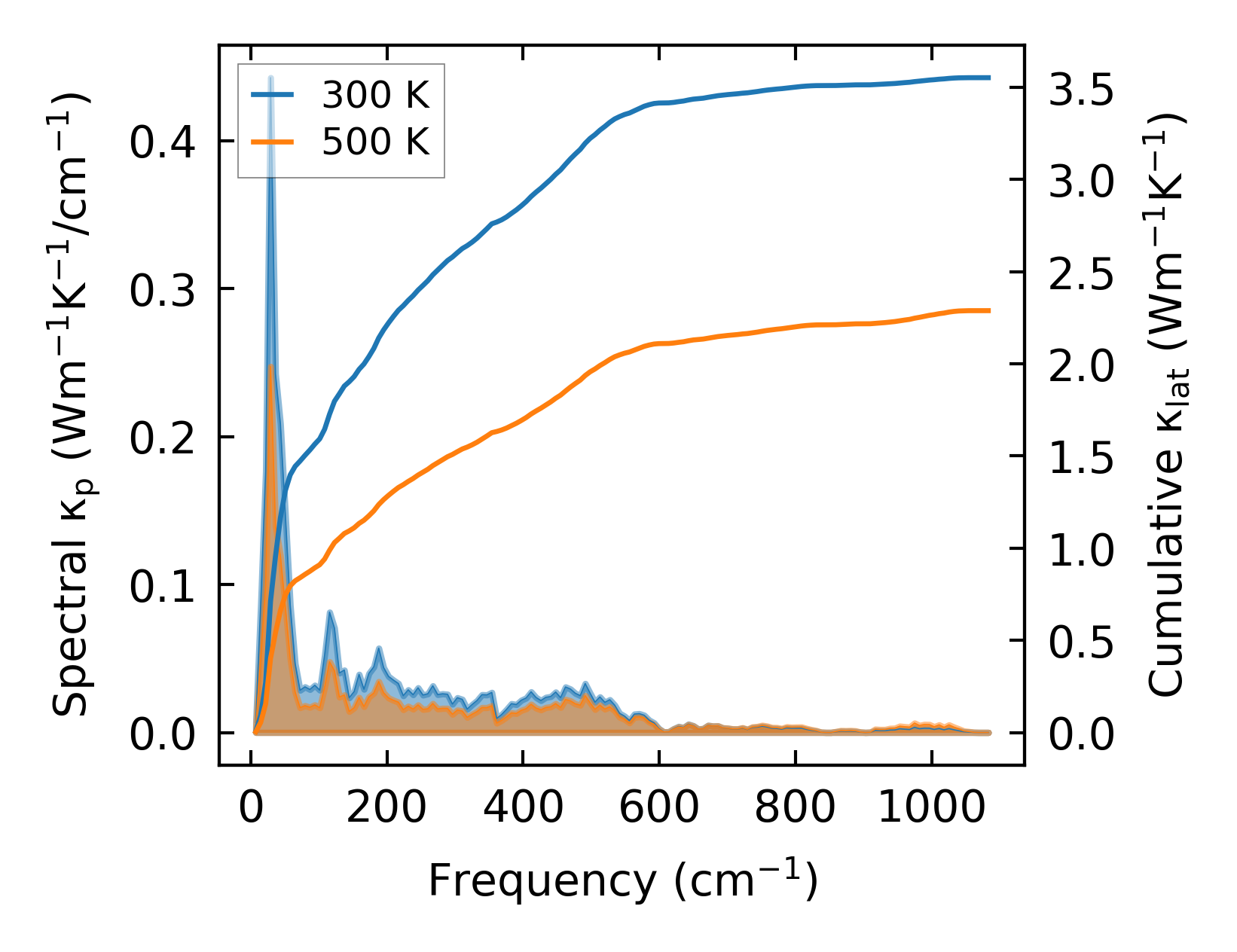

../../_images/fig_cumu_frequency2582.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

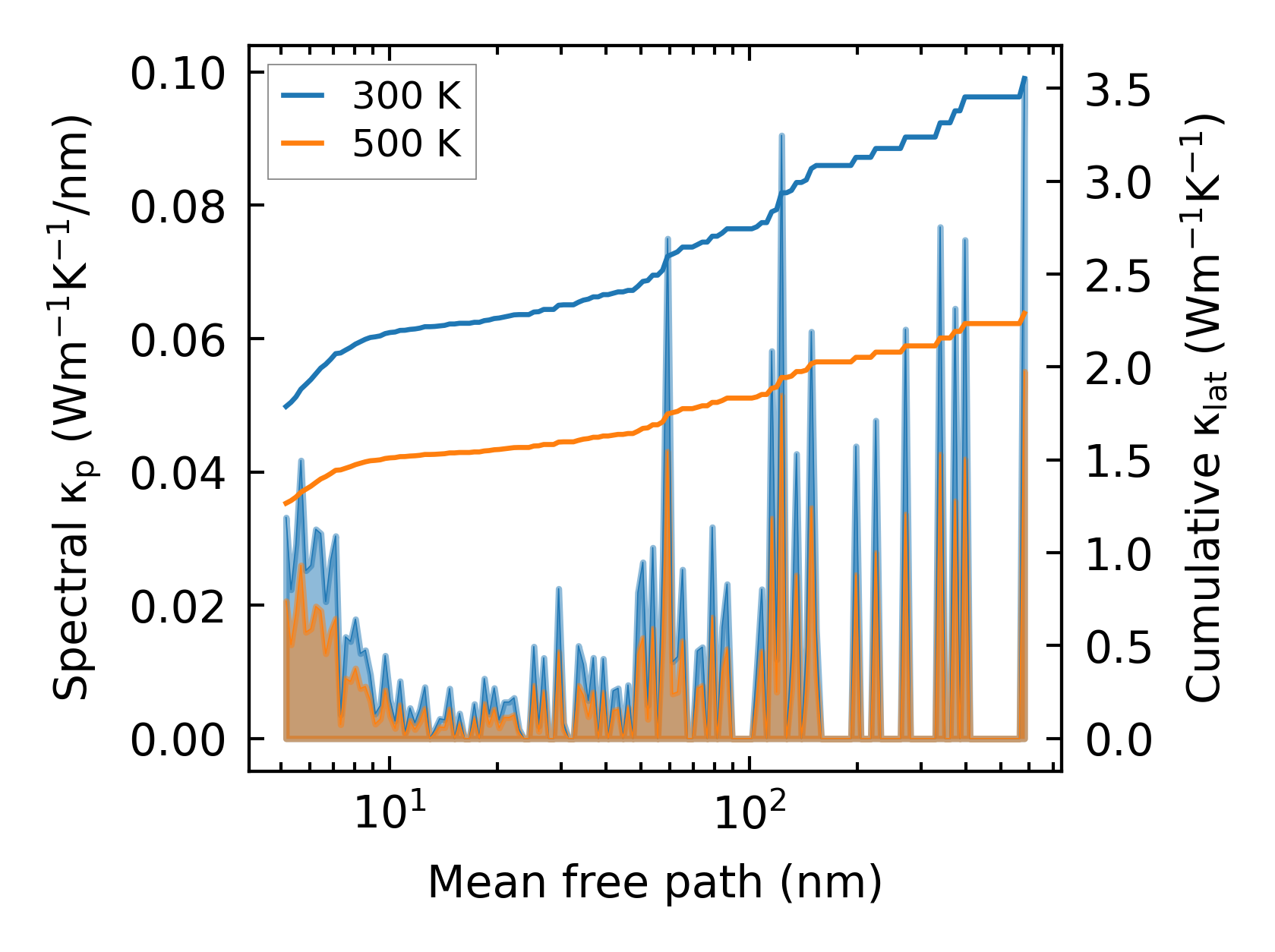

../../_images/fig_cumu_mfp2581.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc26181.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa4952.png — (a) Temperature-dependent lattice thermal conductivity

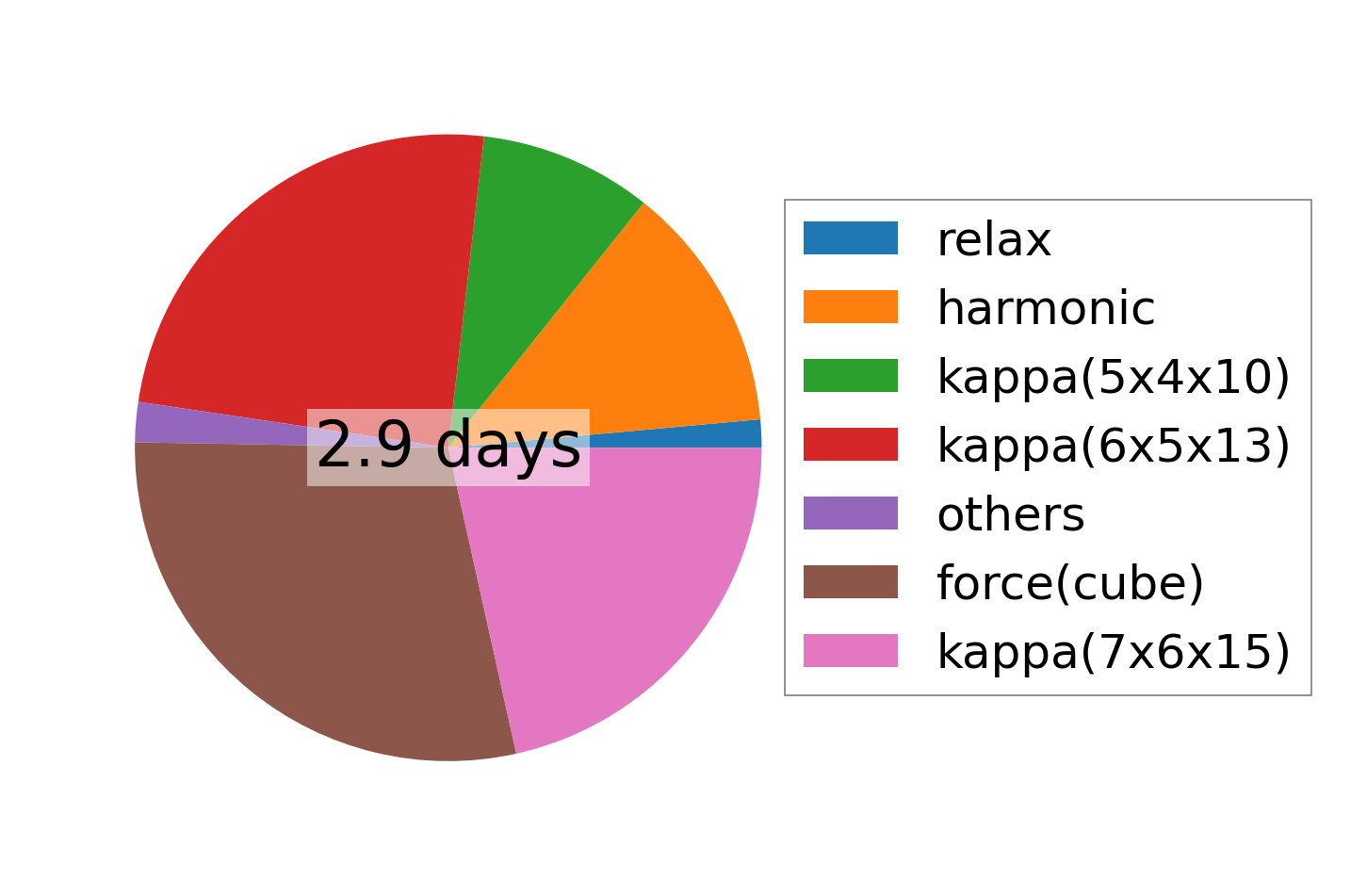

../../_images/fig_times11523.png — (b) Computation time
