mp-6499-2/BaLiBO3/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-6499-2.tar.gz

Equation of state

../../_images/fig_bm3411.png — (a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr6447.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_bandos9292.png — (b) Phonon dispersion and DOS

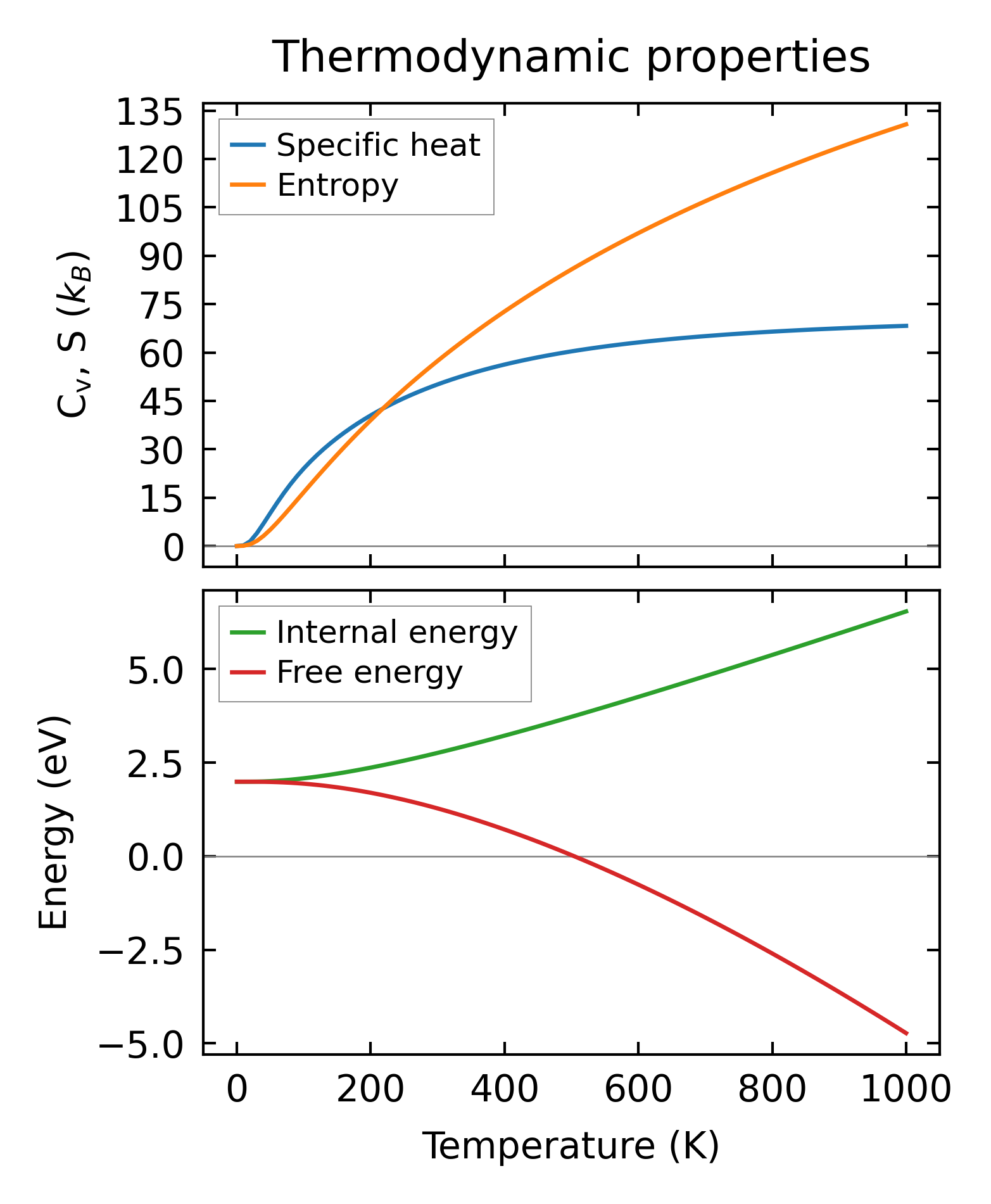

../../_images/fig_thermo6447.png — (c) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all2630.png — (a) Grüneisen parameters

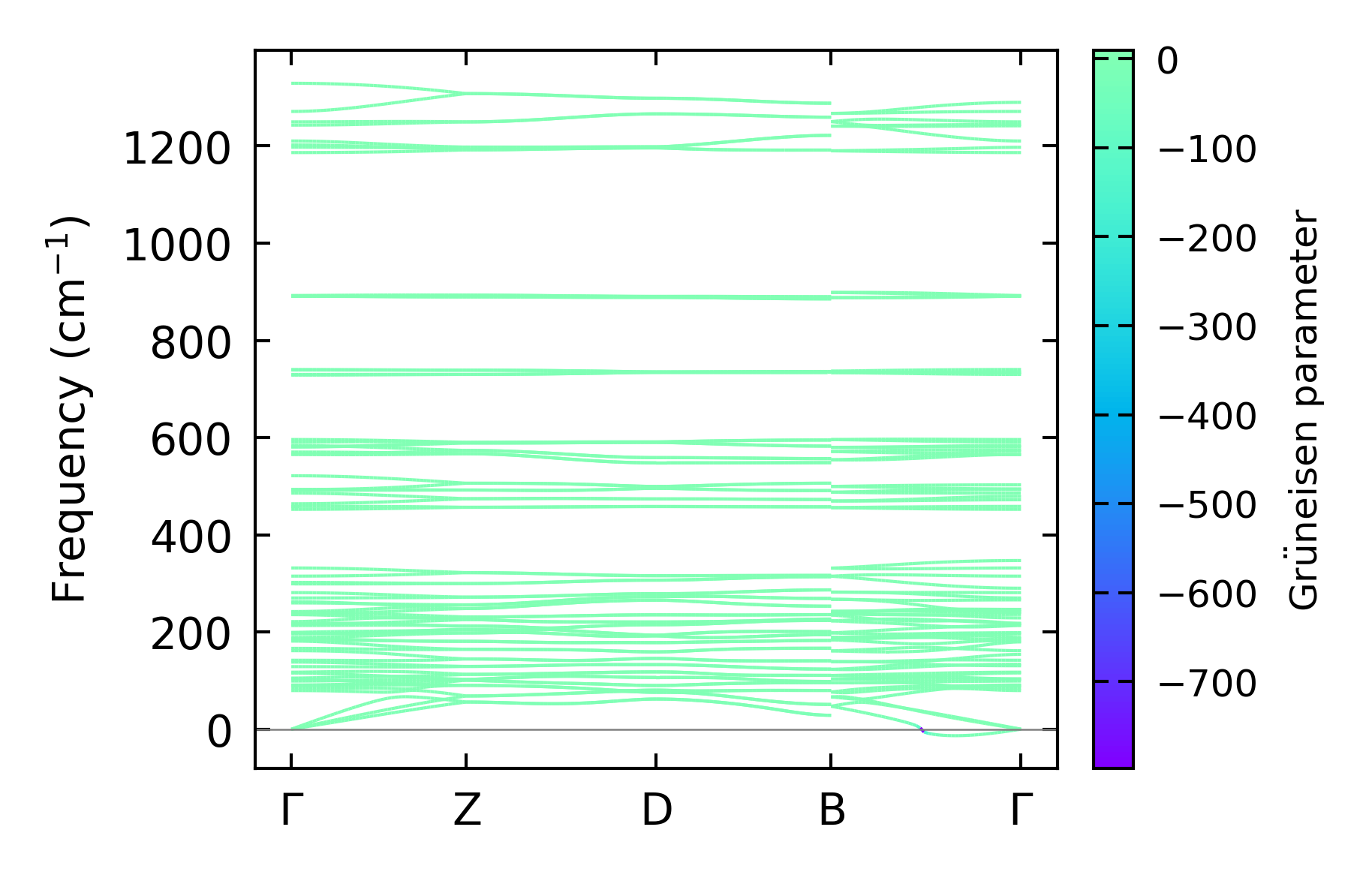

../../_images/fig_gruneisen2630.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x2x2 — q-mesh: 11x10x10, supercell: 2x2x2

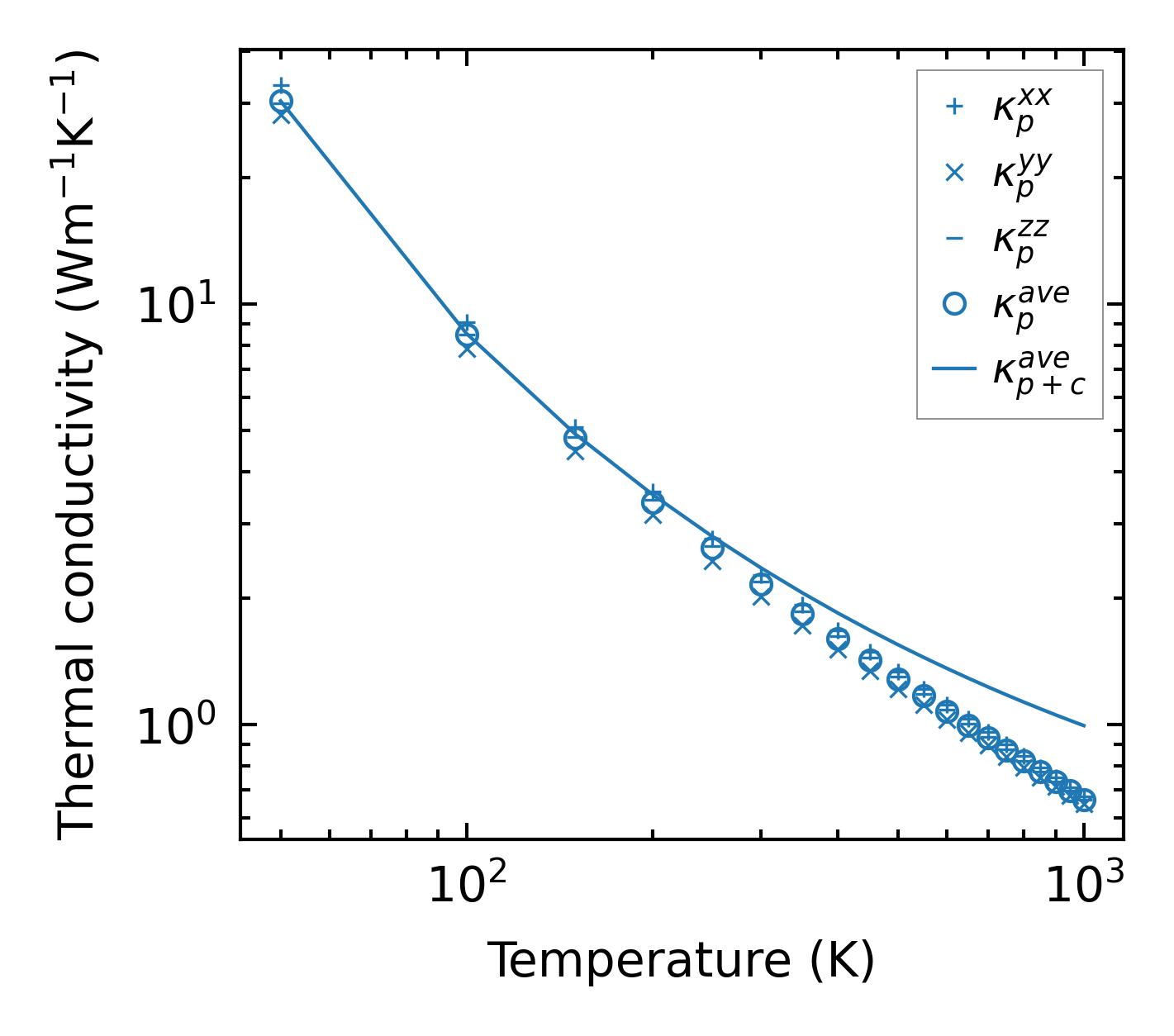

../../_images/fig_kappa5000.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size2666.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

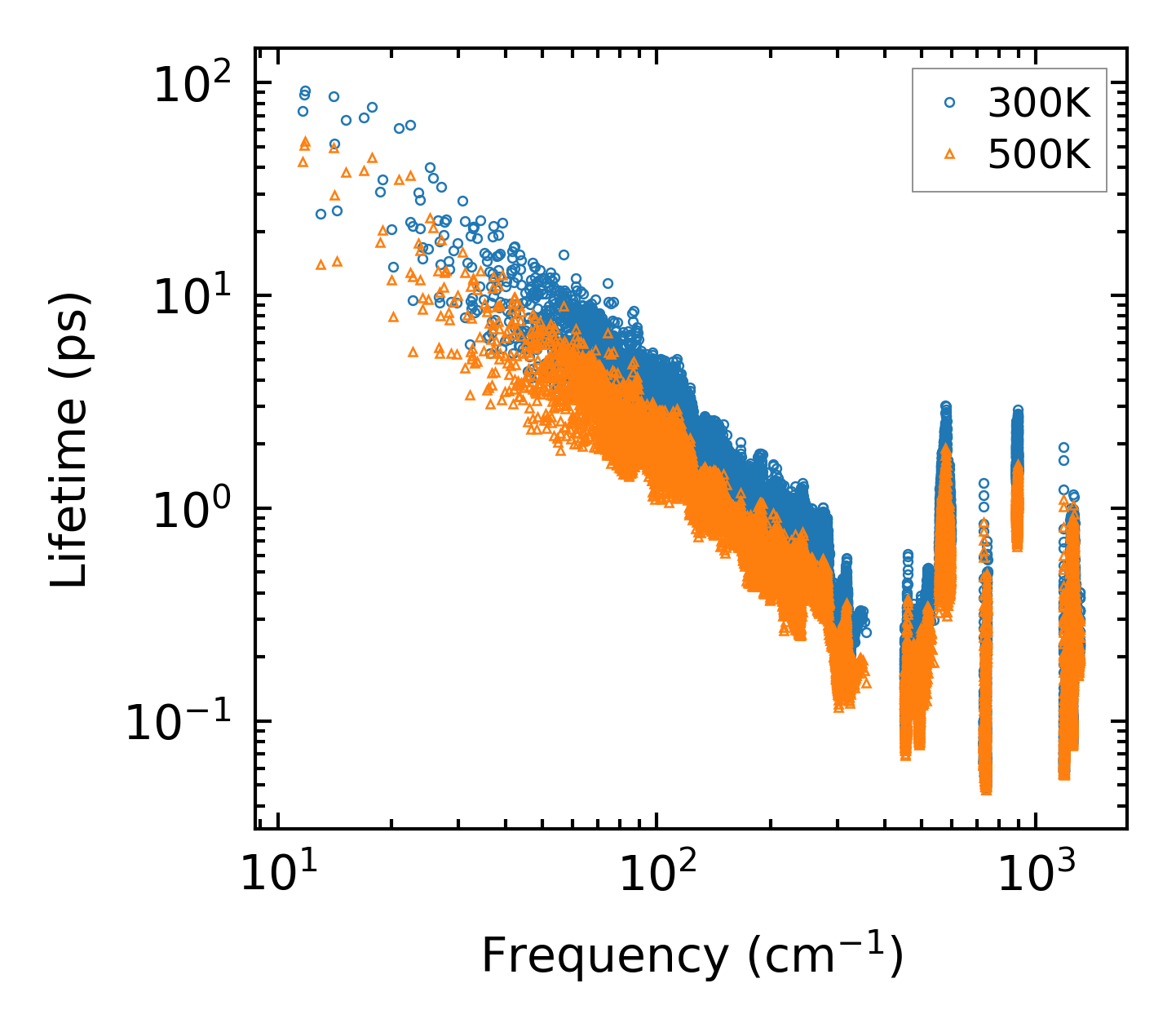

../../_images/fig_lifetime2608.png — (a) Phonon lifetime due to phonon-phonon scattering

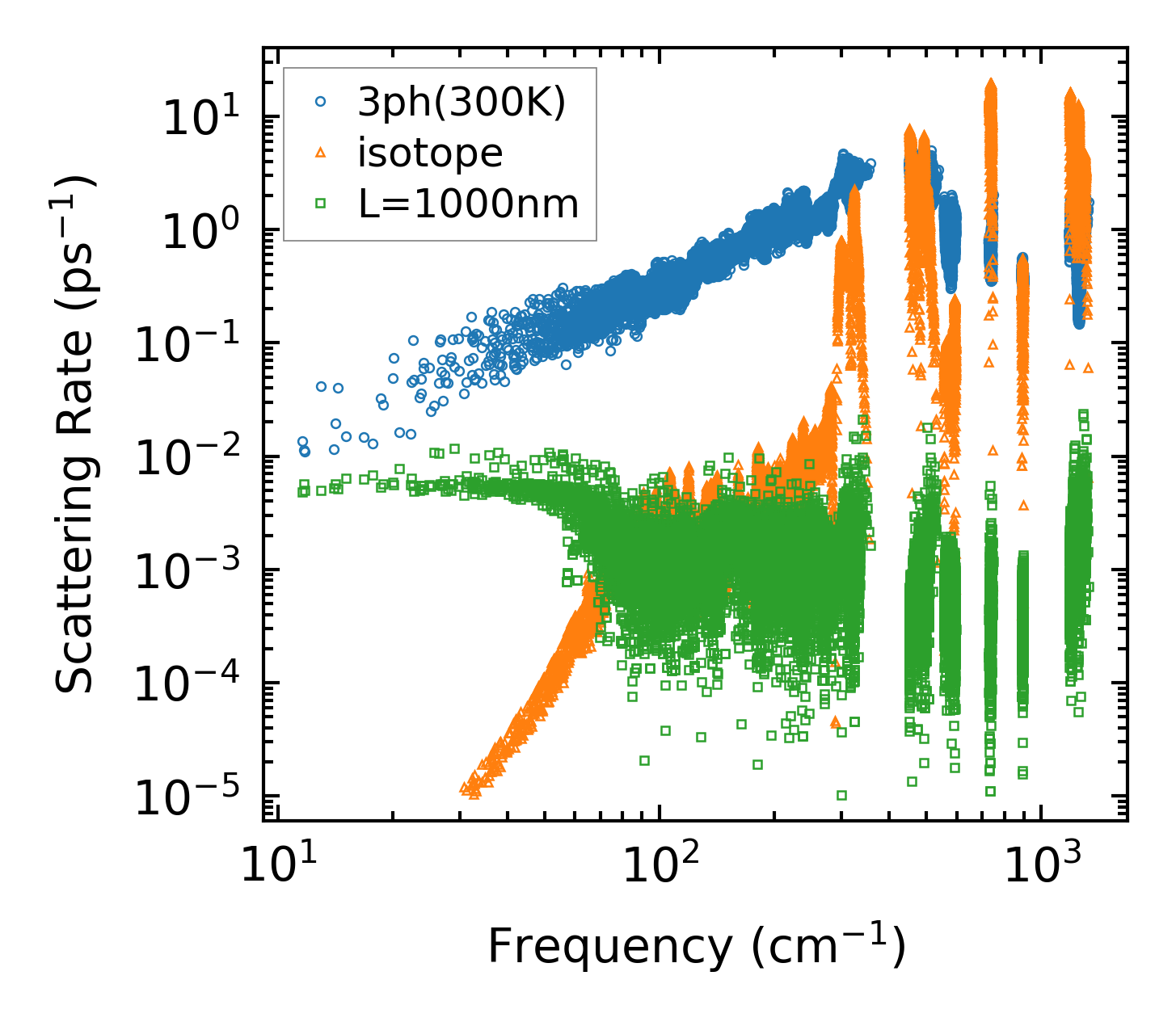

../../_images/fig_scat_rates2607.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

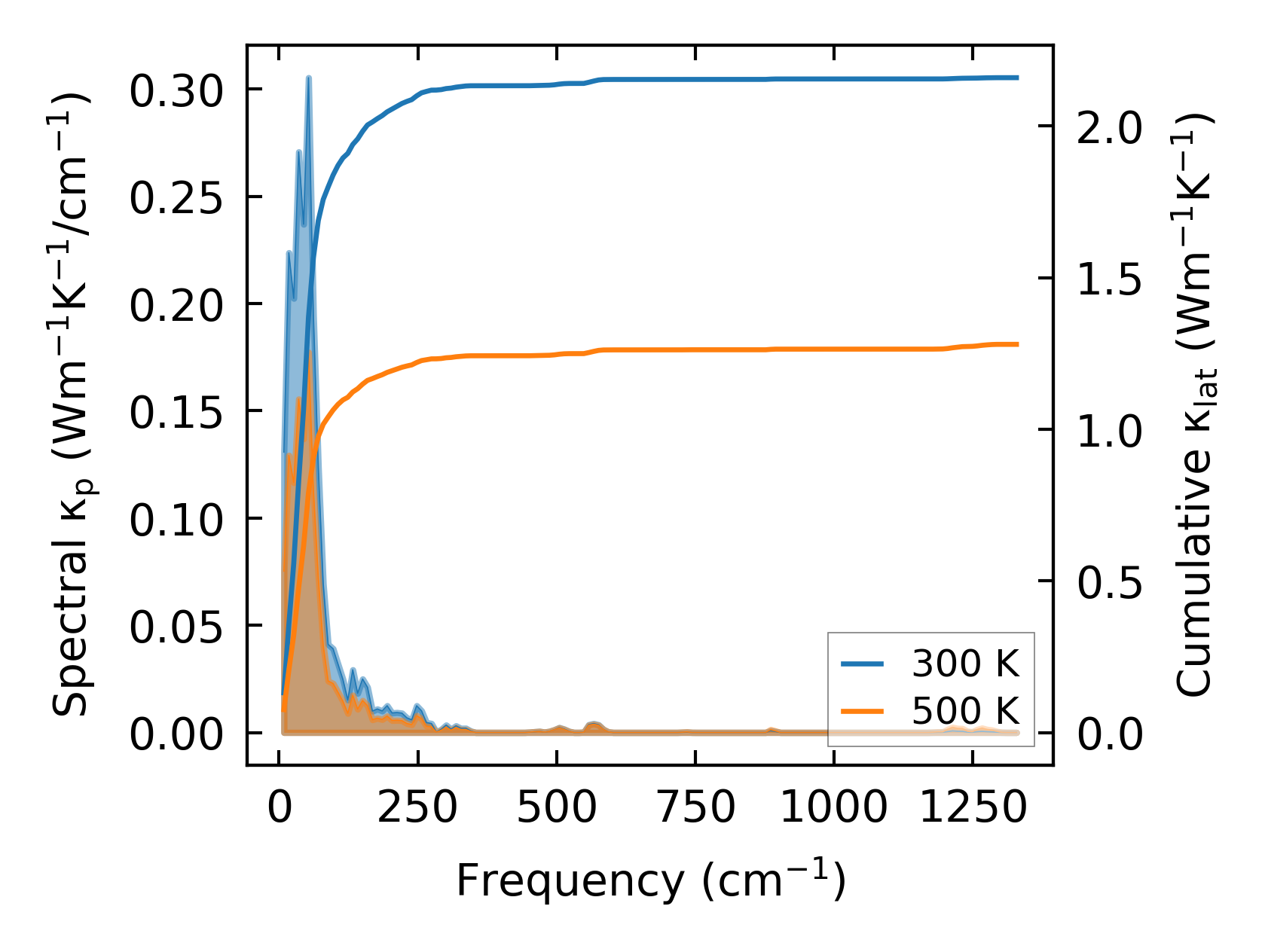

../../_images/fig_cumu_frequency2608.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

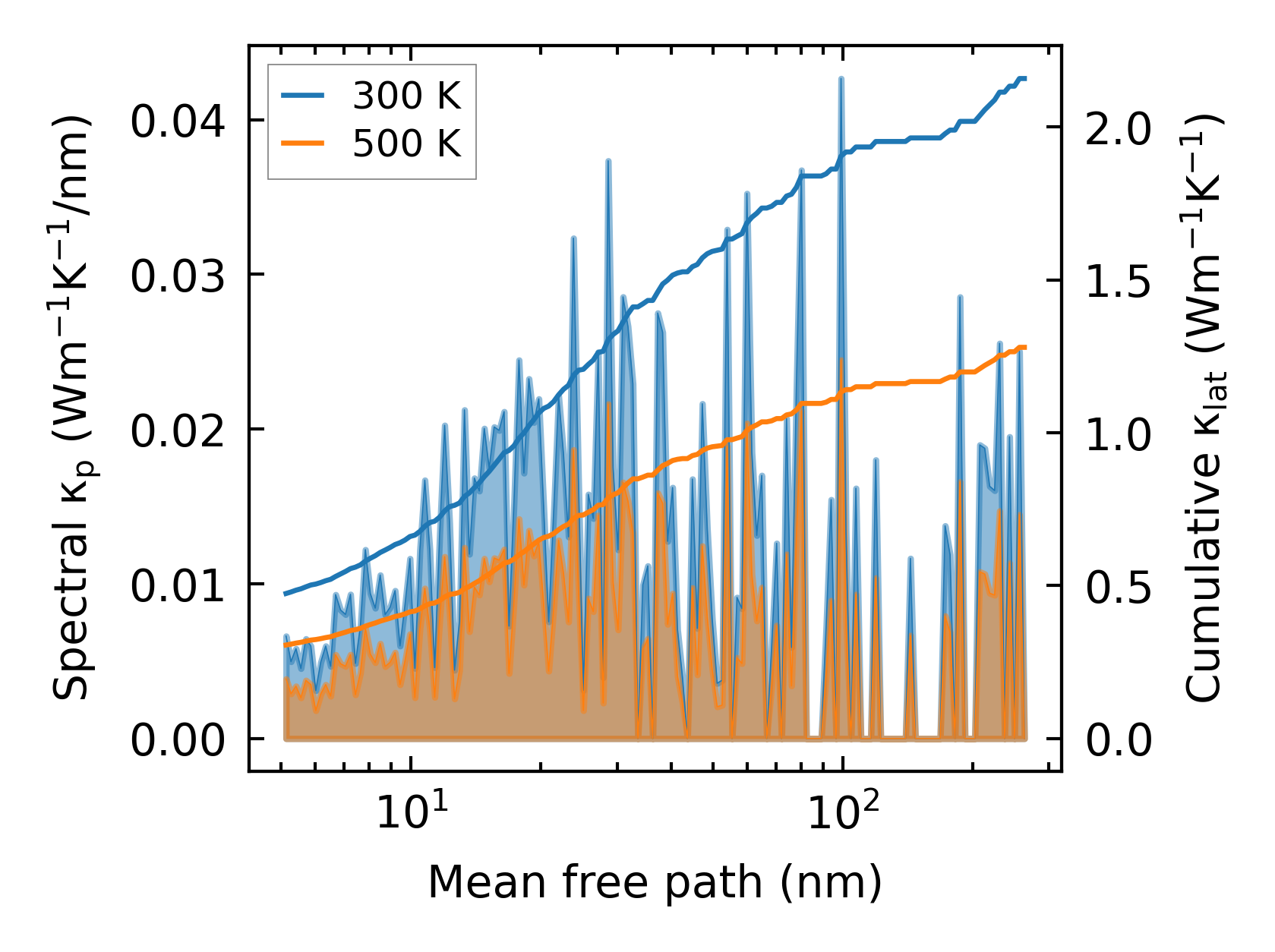

../../_images/fig_cumu_mfp2607.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

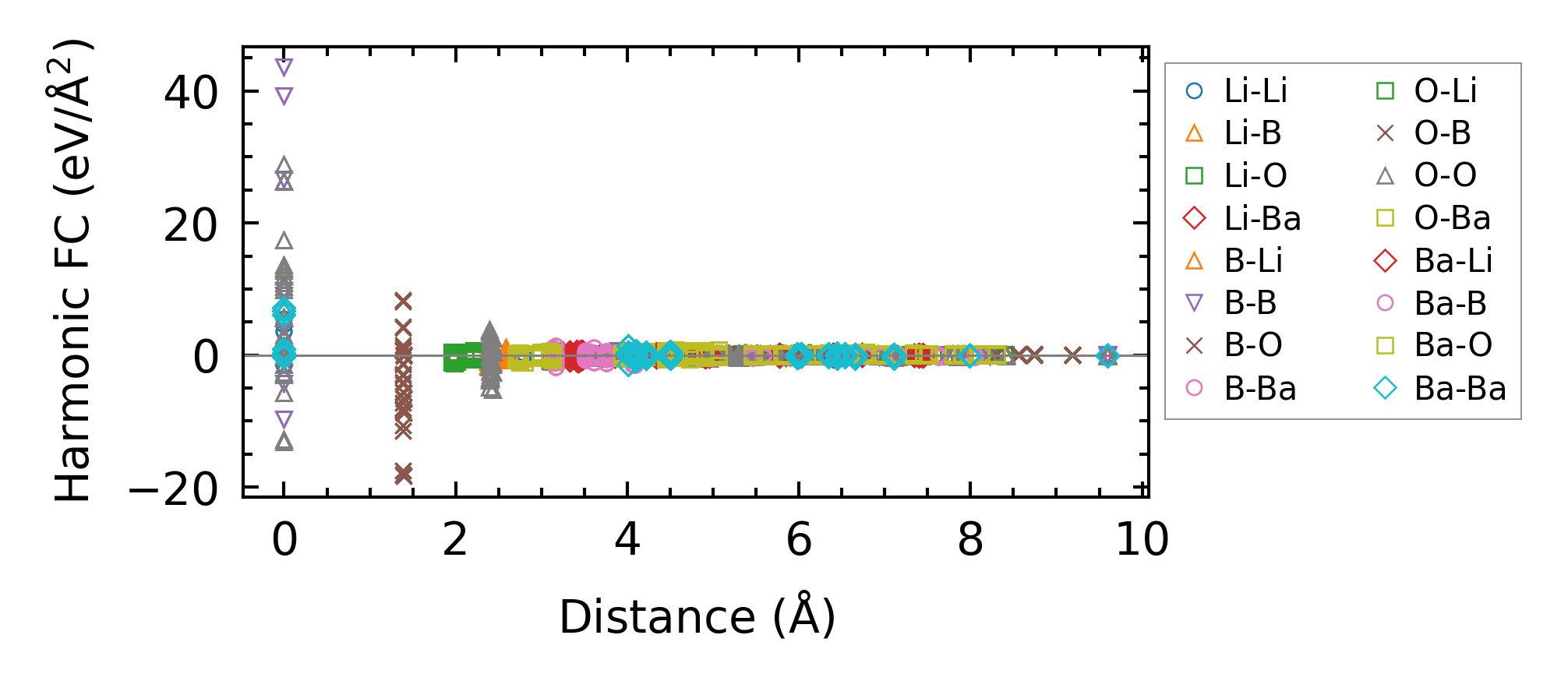

../../_images/fig_fc26237.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_times11599.png — (a) Computation time
