mp-6856/Be3Zn4Si3SO12/anharm

Space group: P-43n (218)
Link: Materials Project
Download: mp-6856.tar.gz

Harmonic properties

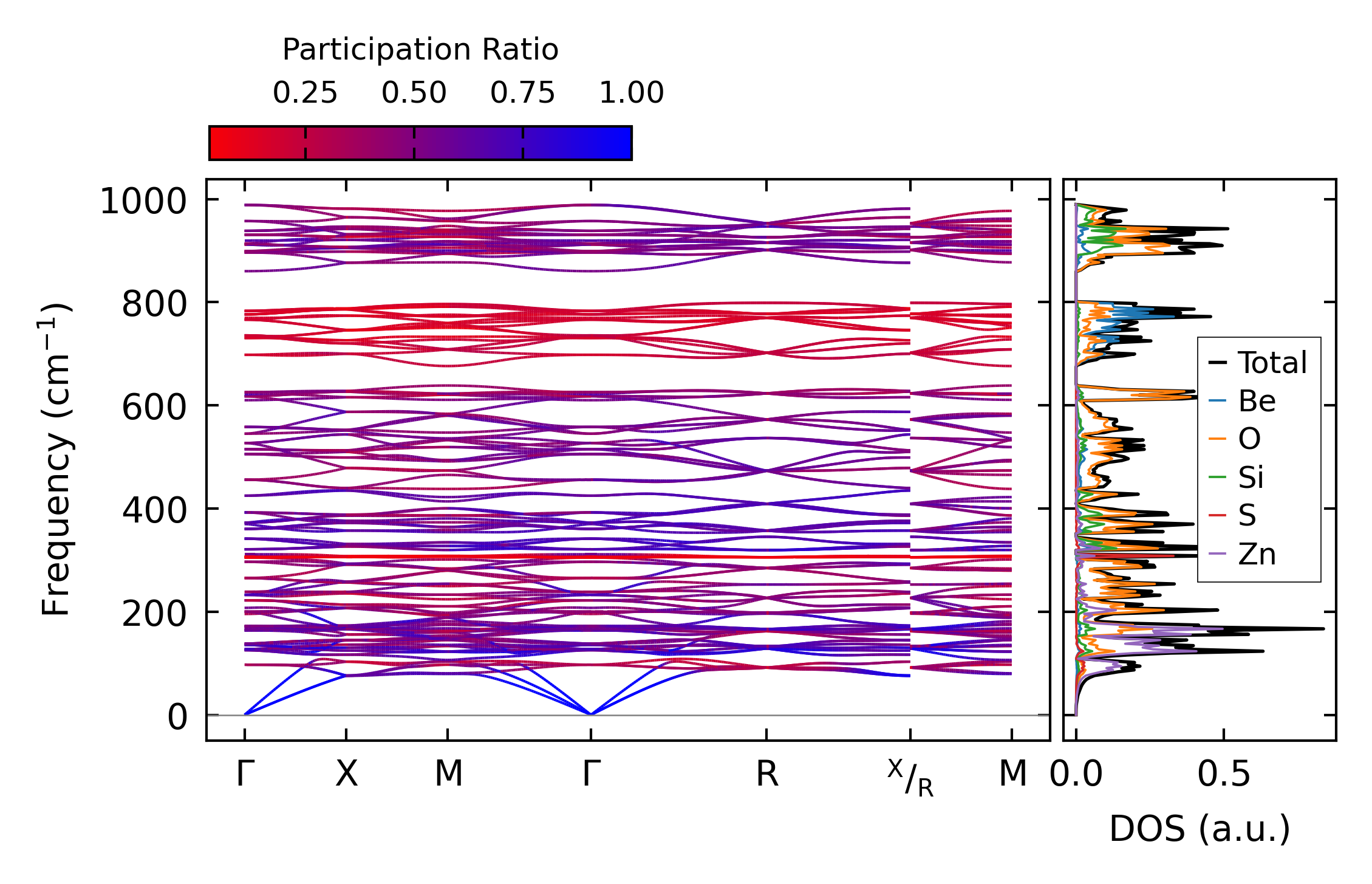

../../_images/fig_bandos_pr6191.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo6191.png — (b) Thermodynamic properties

Grüneisen parameters

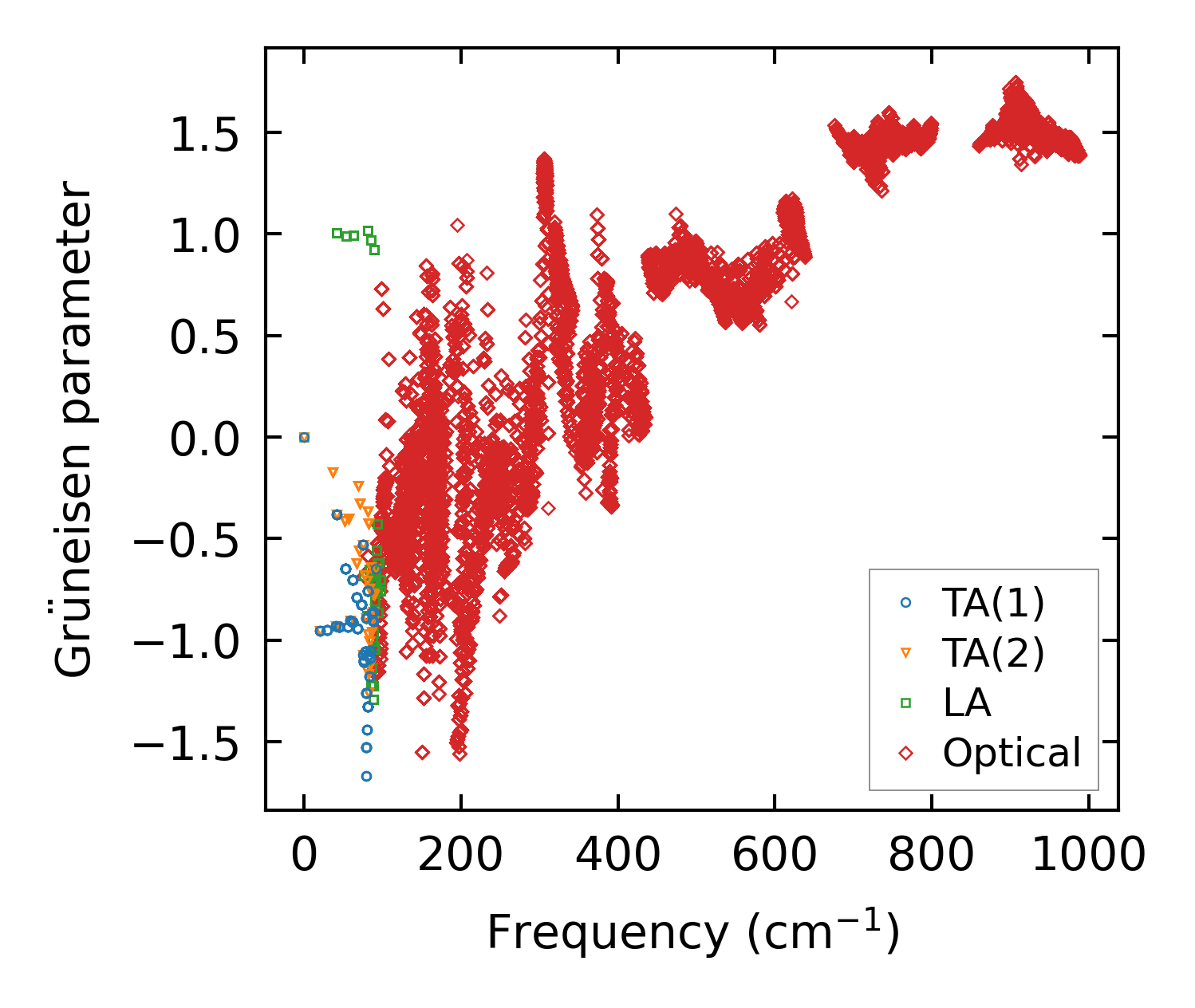

../../_images/fig_gru_all2512.png — (a) Grüneisen parameters

../../_images/fig_gruneisen2512.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 8x8x8, supercell: 1x1x1

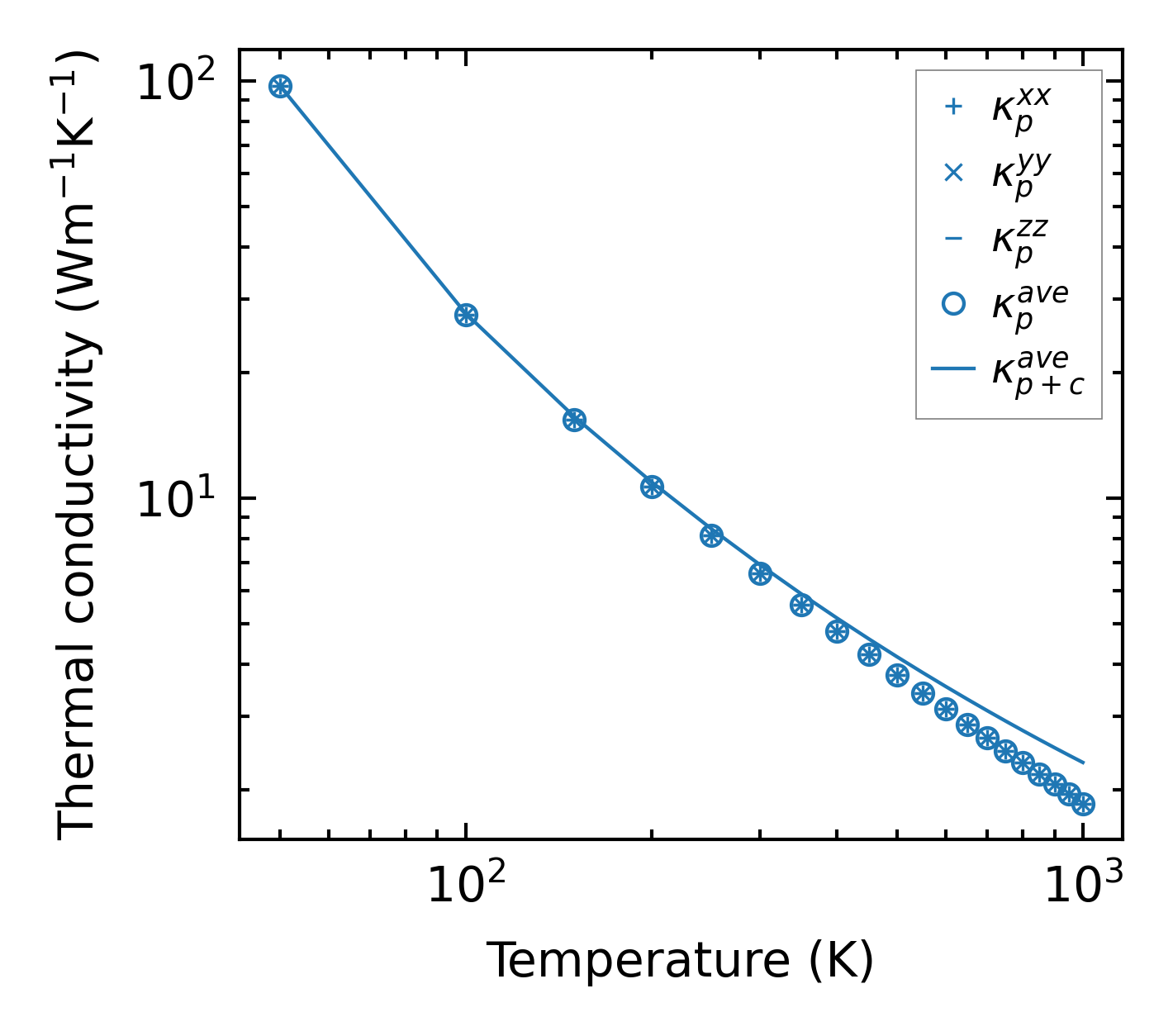

../../_images/fig_kappa4777.png — (a) Temperature-dependent lattice thermal conductivity

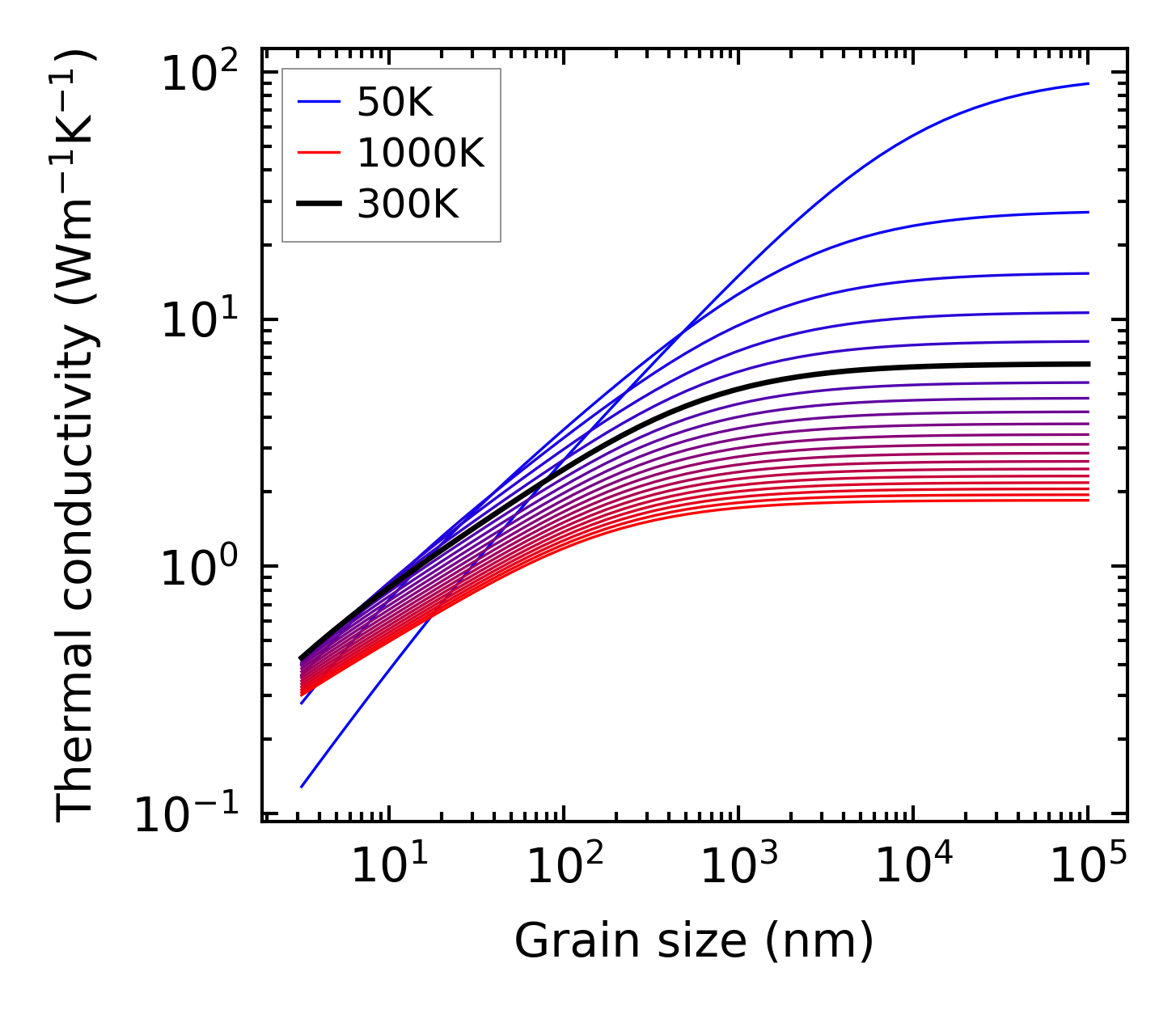

../../_images/fig_kappa_vs_grain_size2544.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime2494.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates2493.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

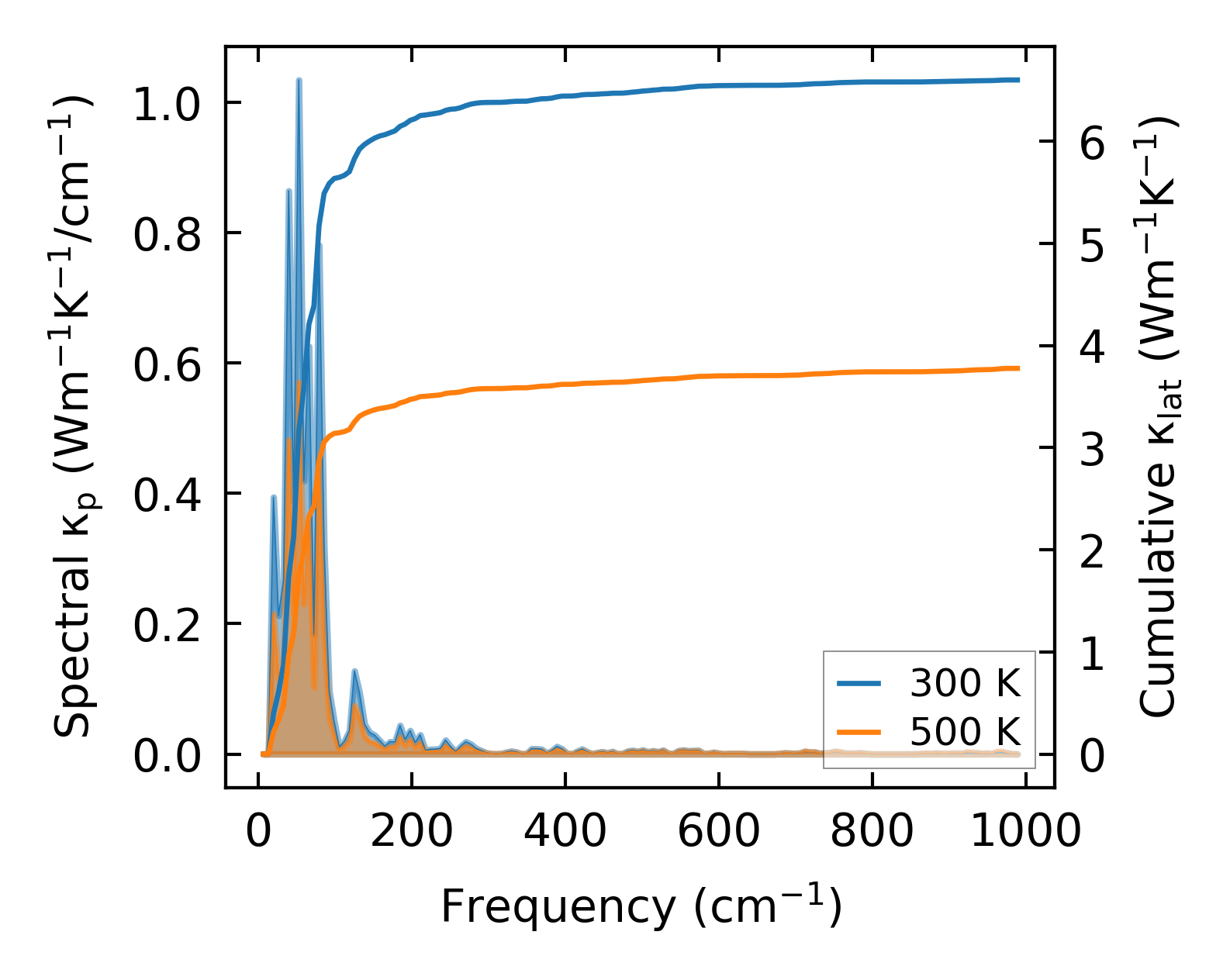

../../_images/fig_cumu_frequency2494.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp2493.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

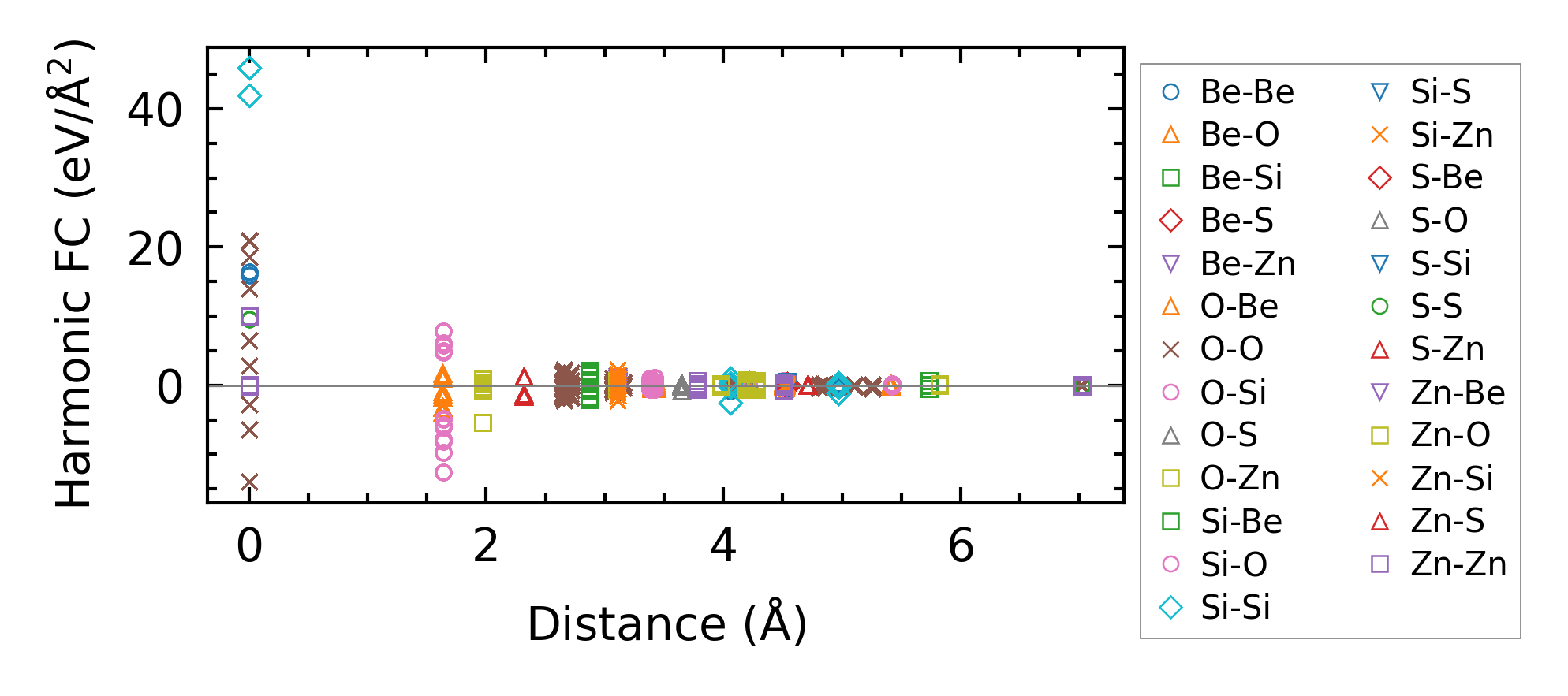

../../_images/fig_fc25982.png — (a) Force constants w.r.t atomic distance

Summary

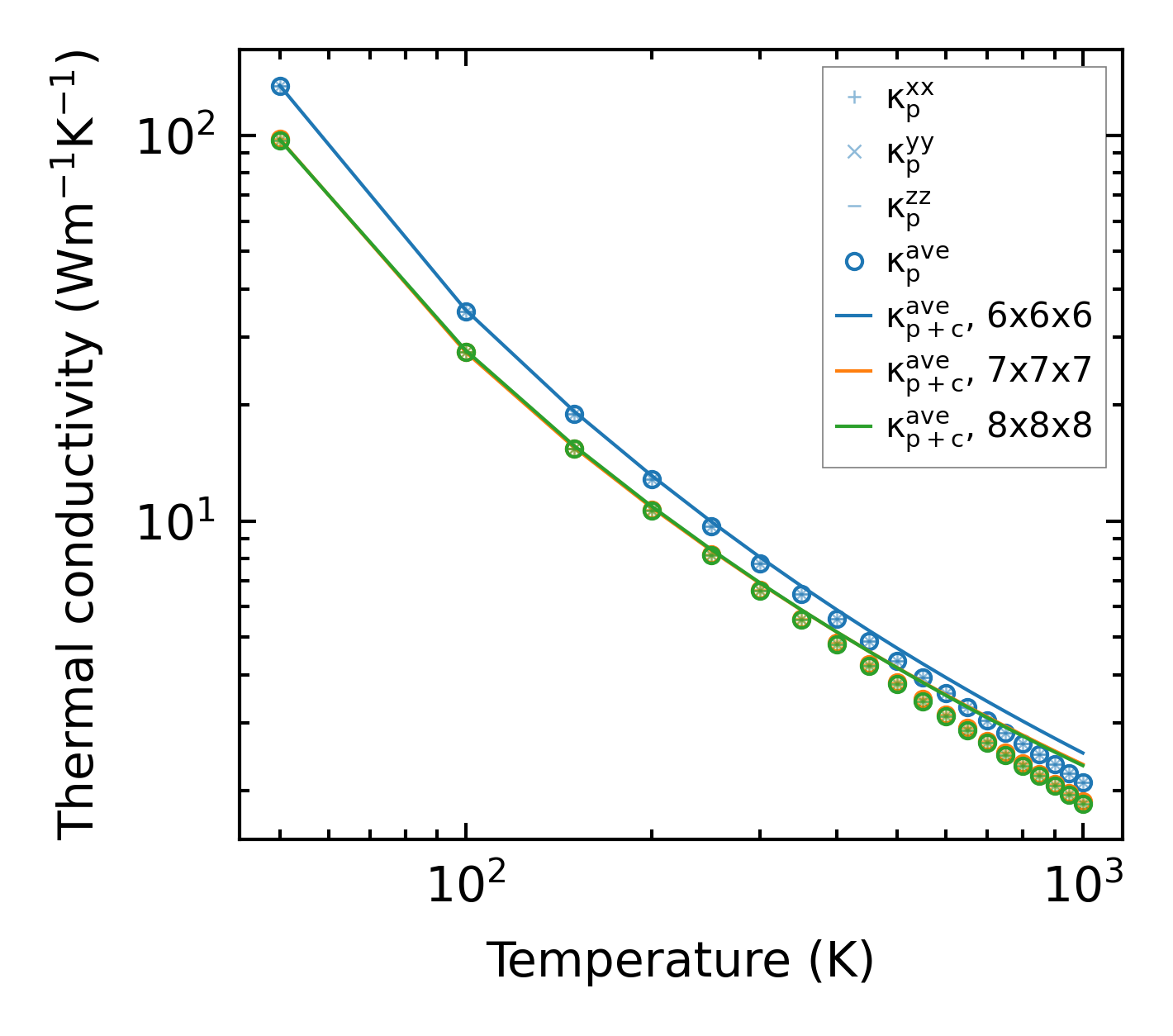

../../_images/fig_kappa4778.png — (a) Temperature-dependent lattice thermal conductivity

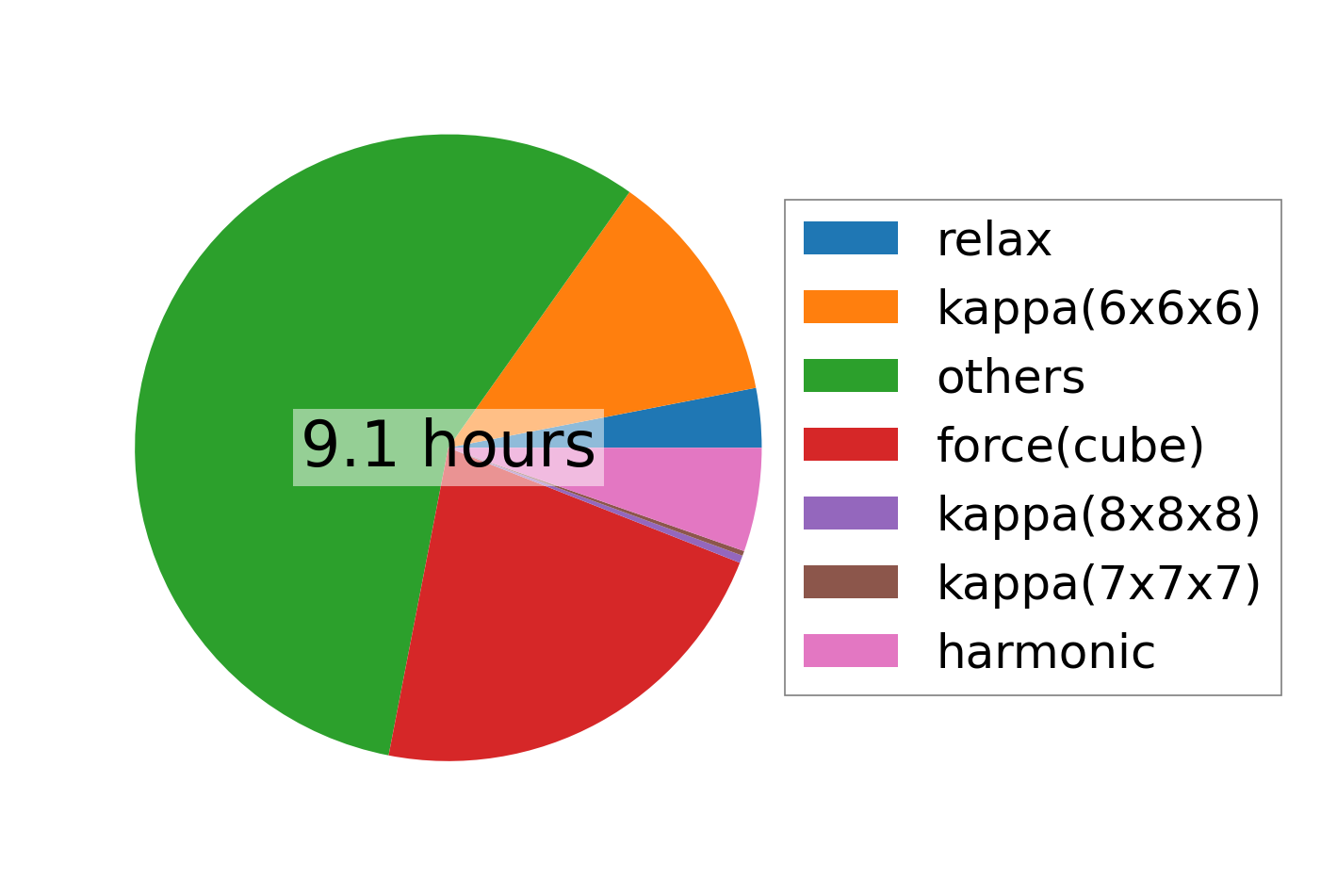

../../_images/fig_times11270.png — (b) Computation time
