mp-6174-2/Mg2Al4Si5O18/anharm

Space group: Cccm (66)
Link: Materials Project
Download: mp-6174-2.tar.gz

Equation of state

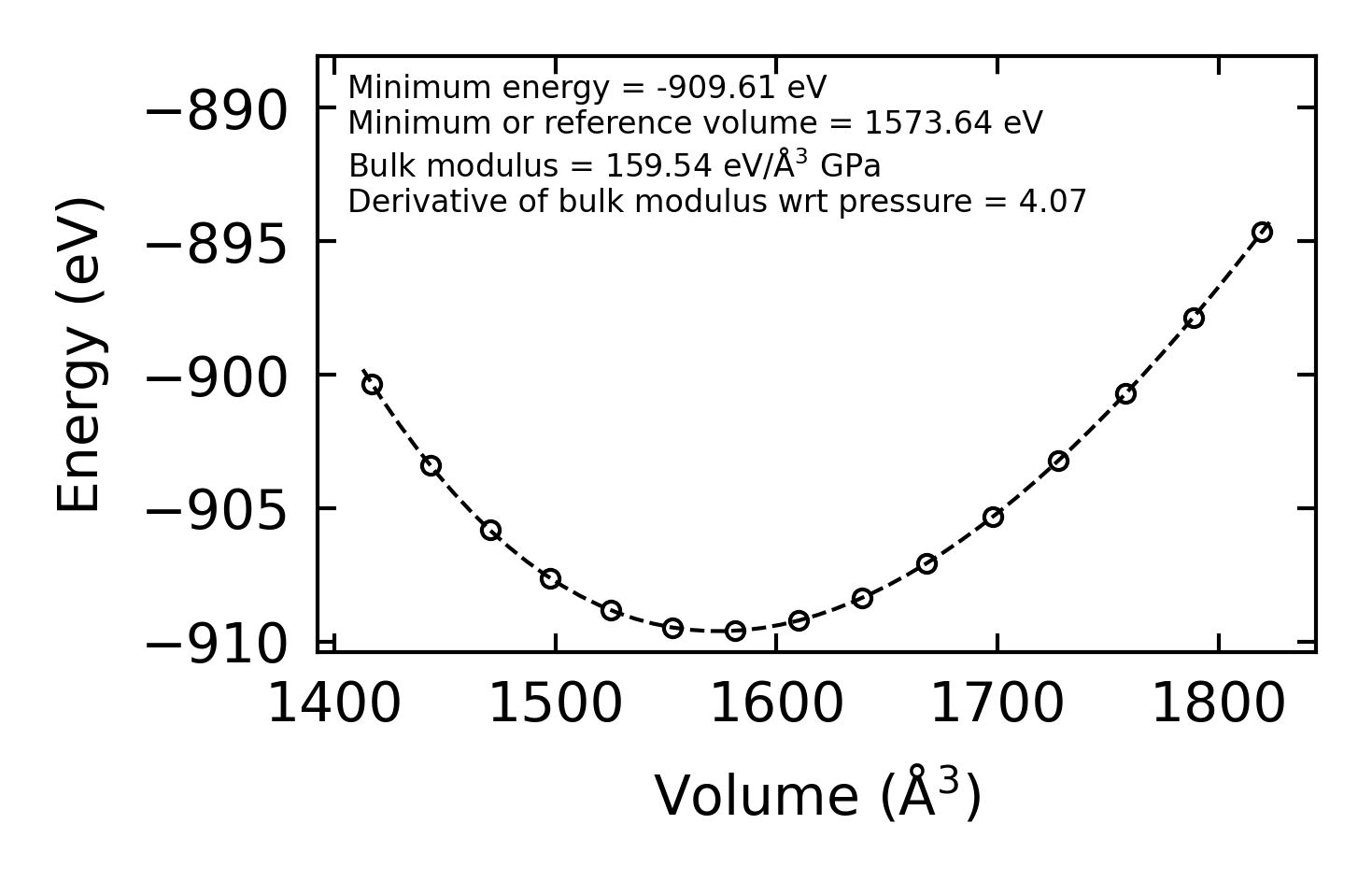

../../_images/fig_bm3325.png — (a) Equation of state

Harmonic properties

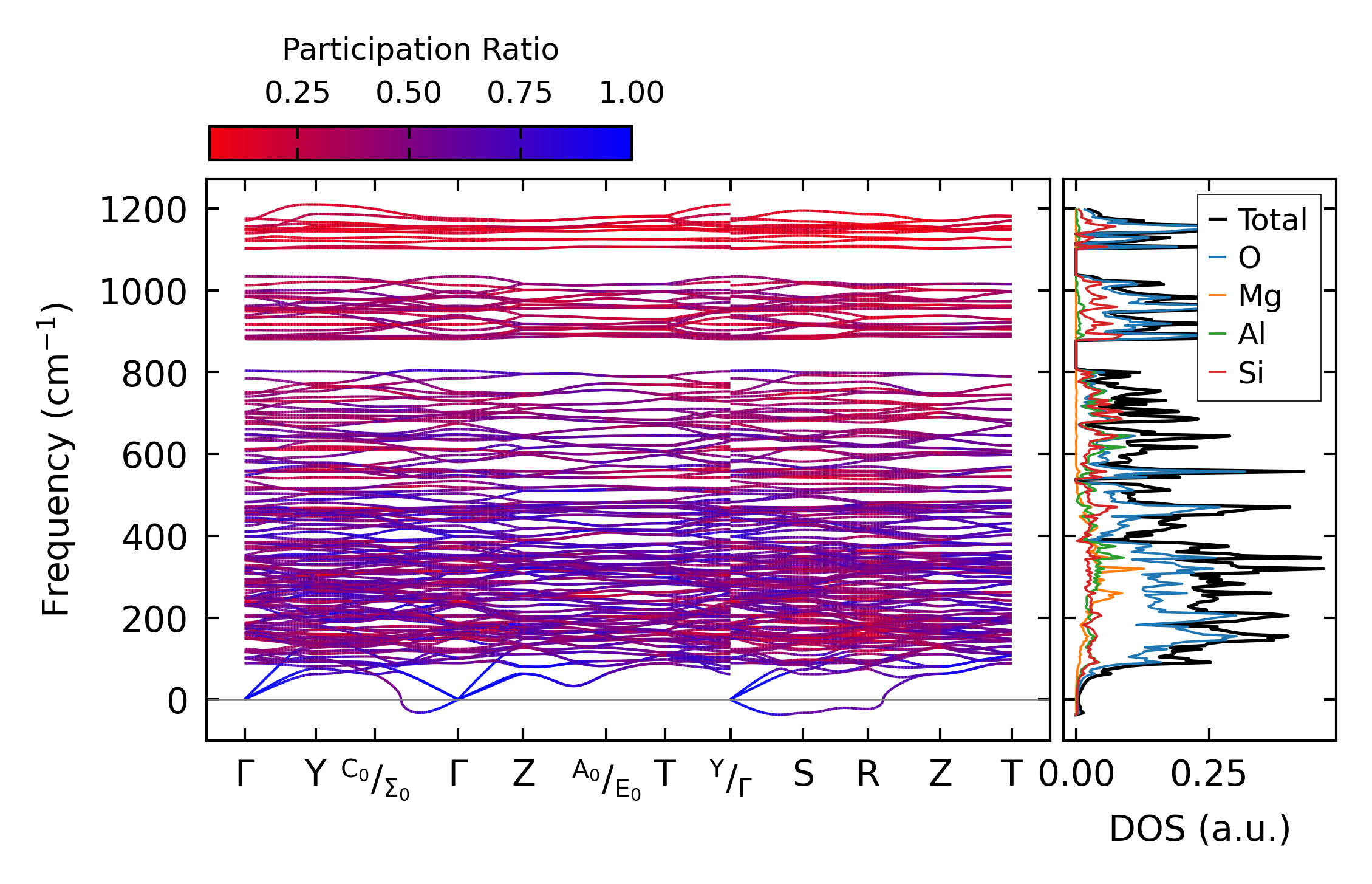

../../_images/fig_bandos_pr6294.png — (a) Phonon dispersion with participation ratio and DOS

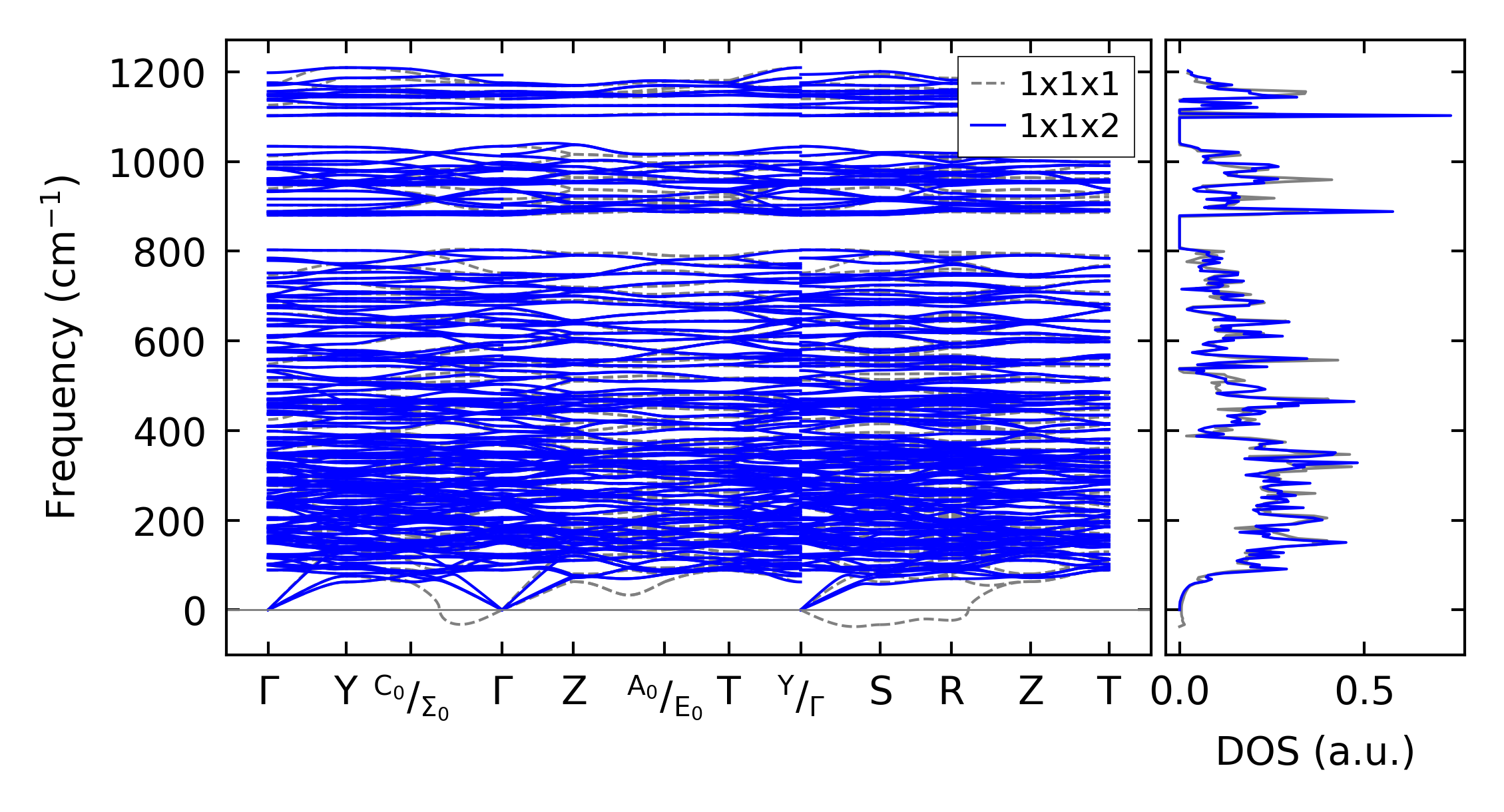

../../_images/fig_bandos9156.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo6294.png — (c) Thermodynamic properties

Grüneisen parameters

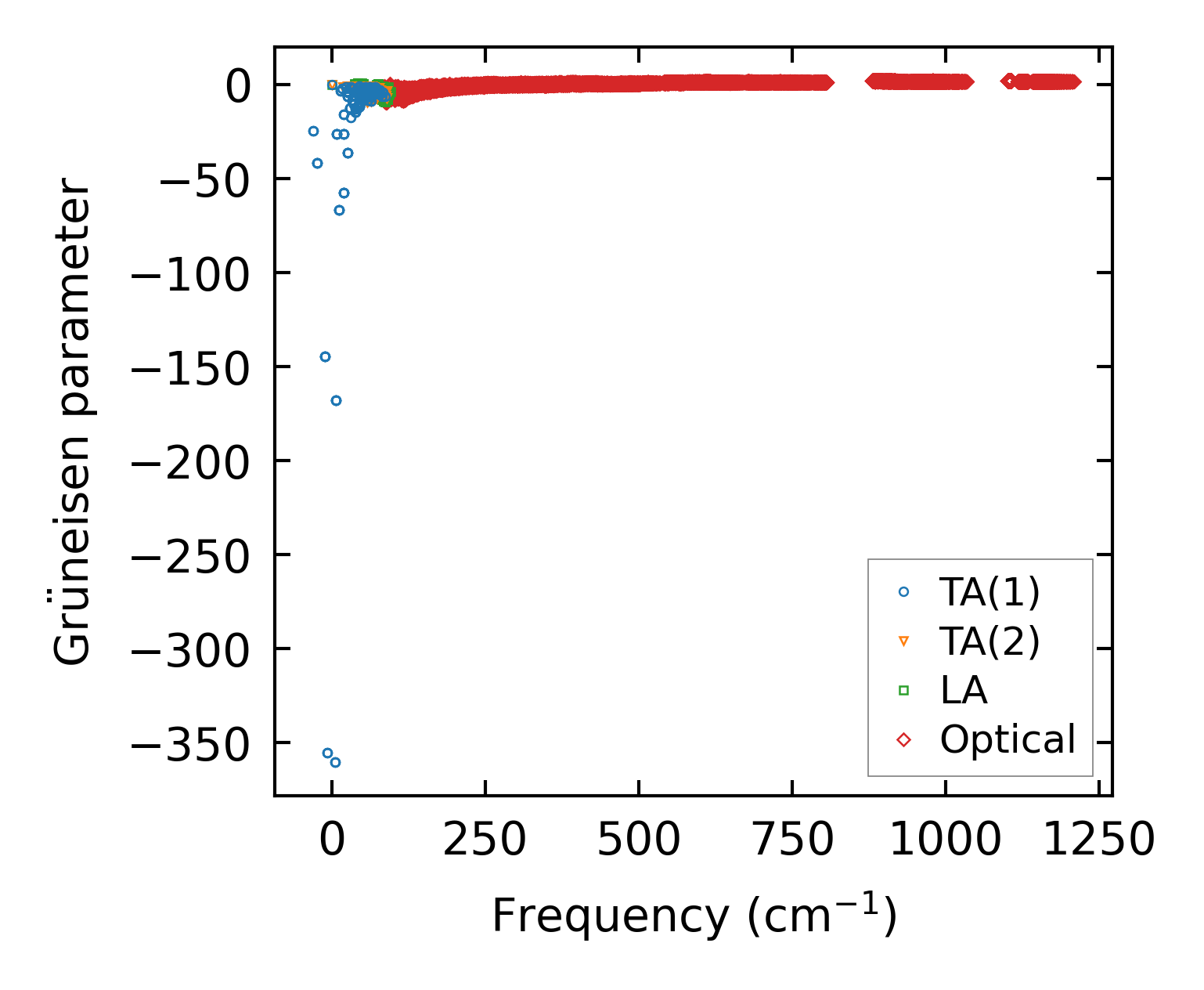

../../_images/fig_gru_all2567.png — (a) Grüneisen parameters

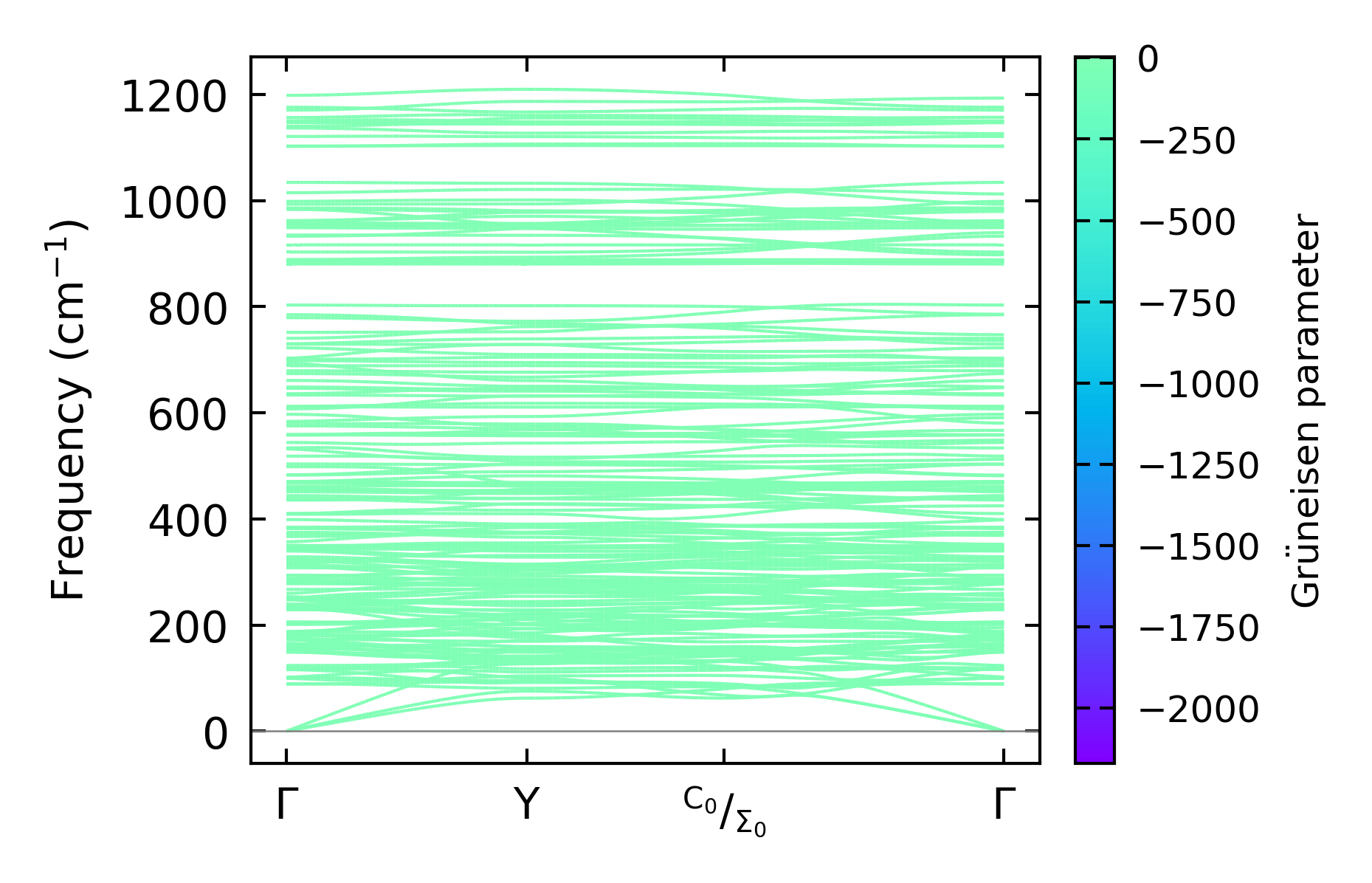

../../_images/fig_gruneisen2567.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 1x1x2 — q-mesh: 7x7x8, supercell: 1x1x2

../../_images/fig_kappa4884.png — (a) Temperature-dependent lattice thermal conductivity

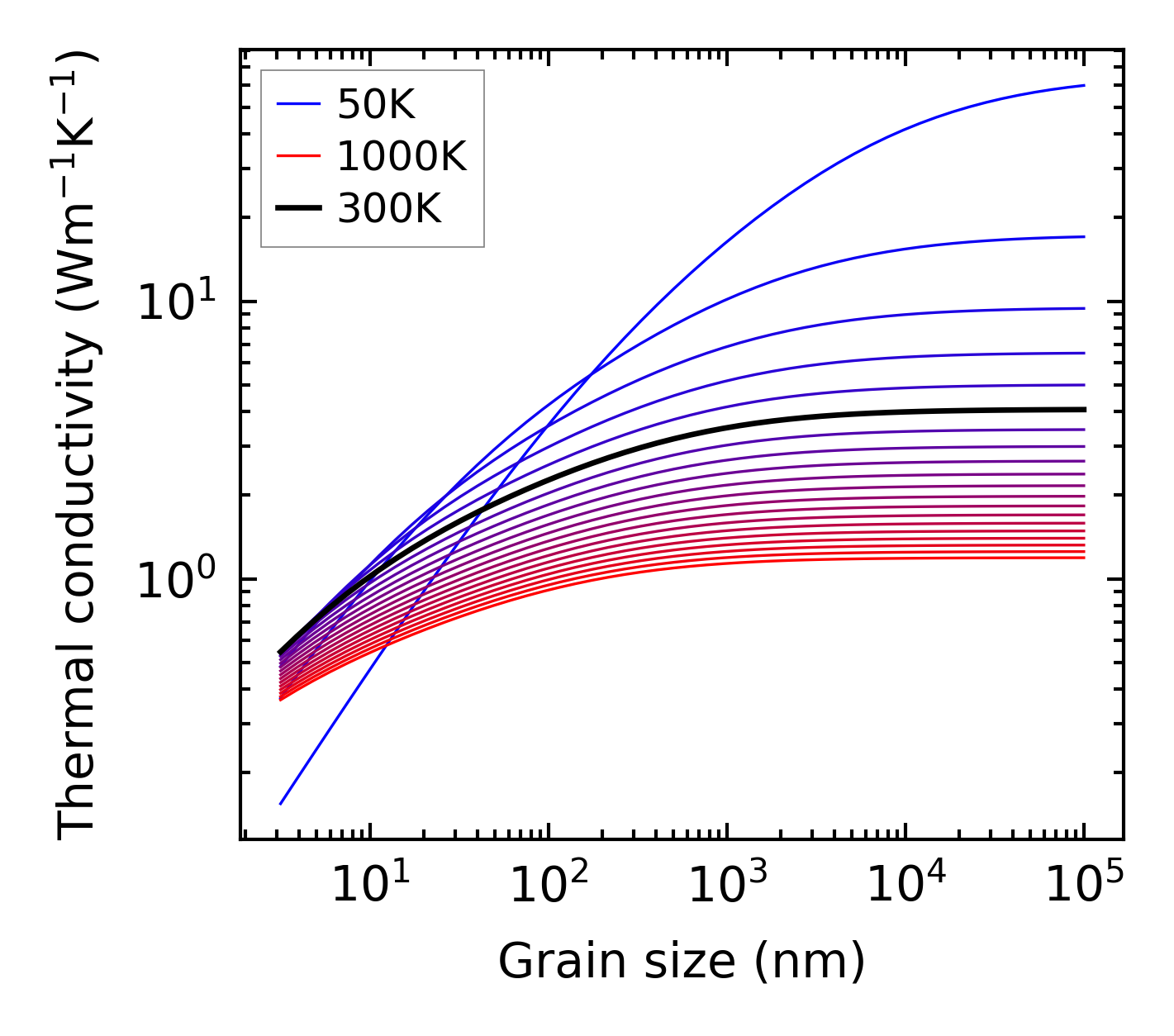

../../_images/fig_kappa_vs_grain_size2602.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

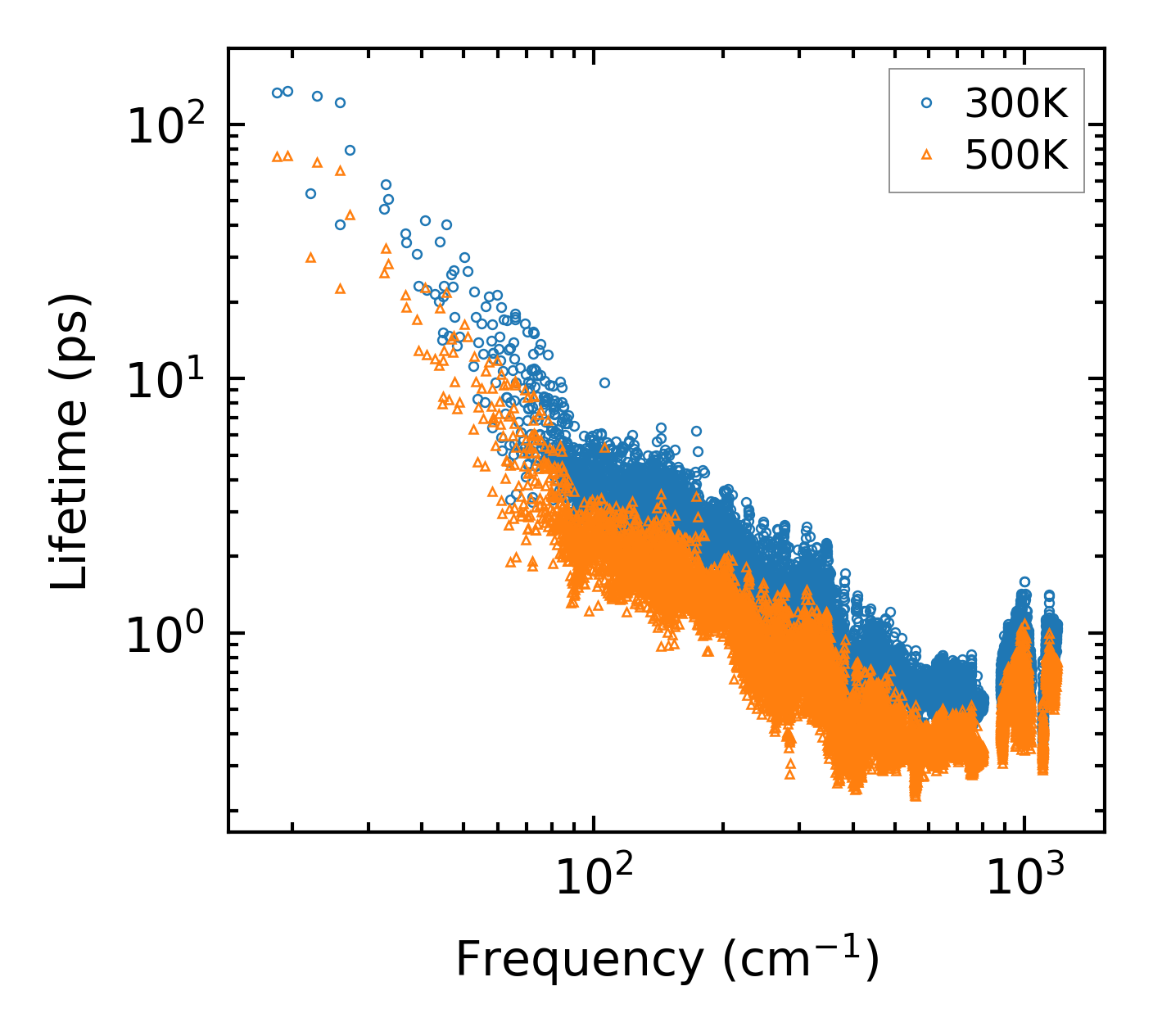

../../_images/fig_lifetime2548.png — (a) Phonon lifetime due to phonon-phonon scattering

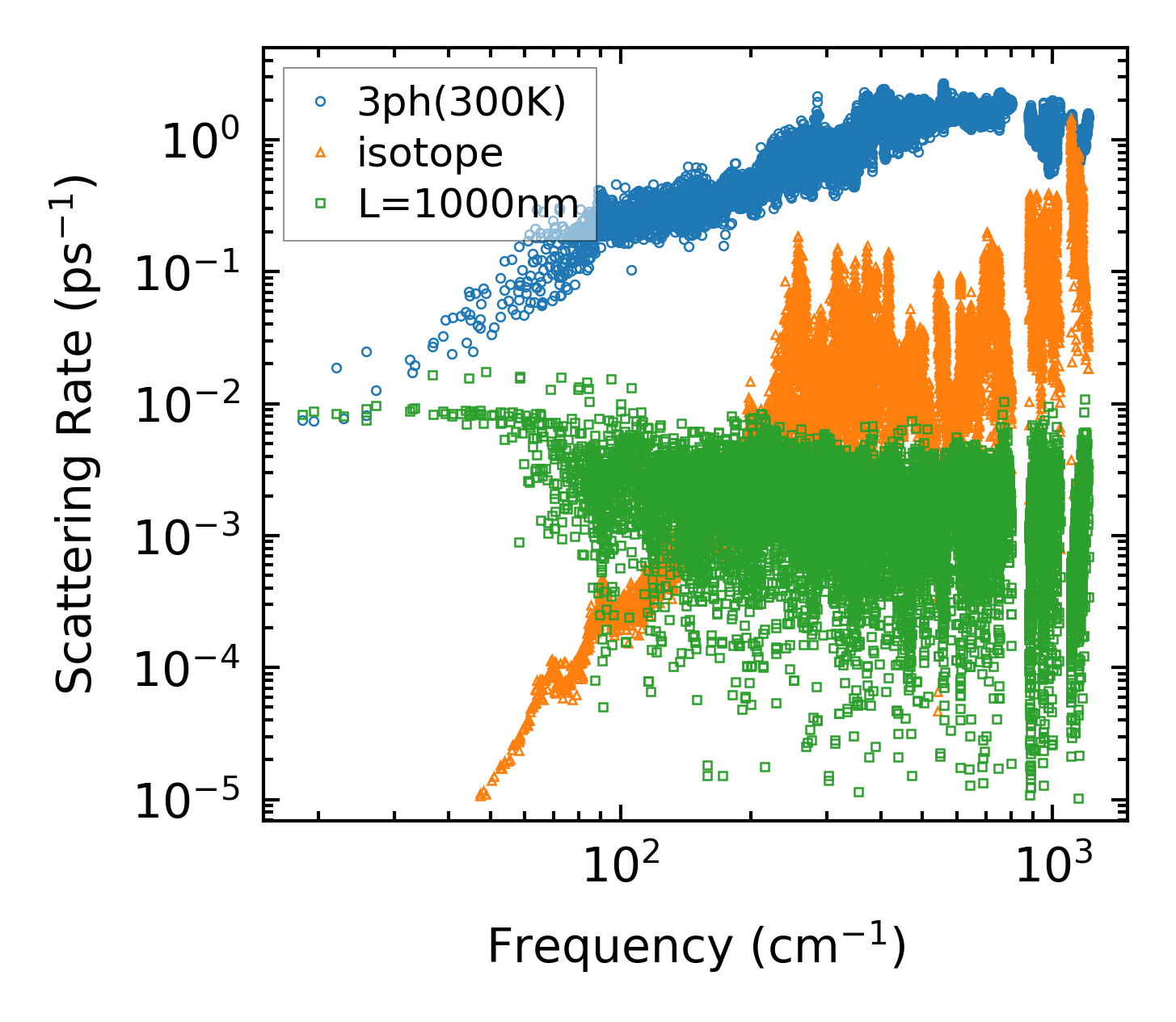

../../_images/fig_scat_rates2547.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

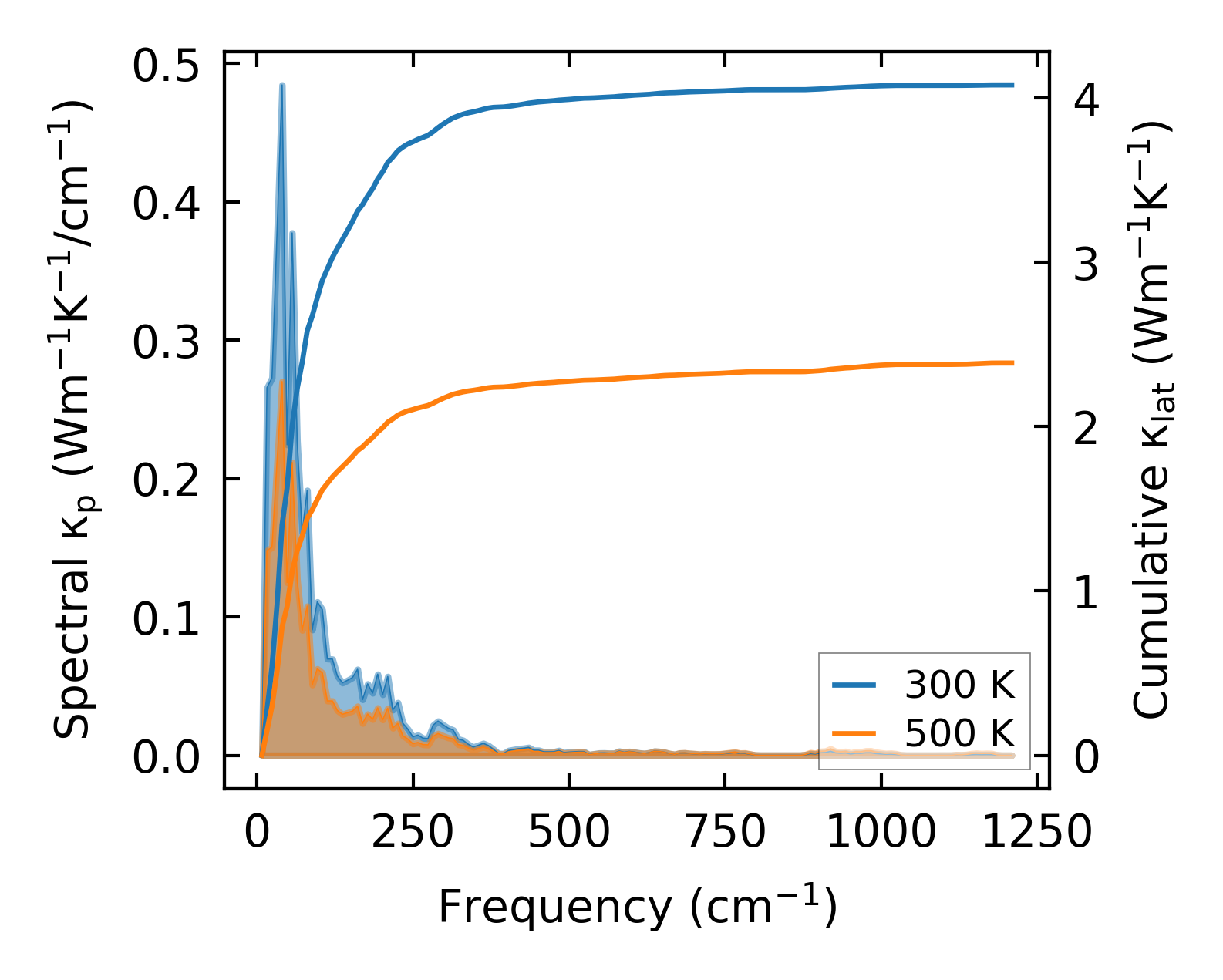

../../_images/fig_cumu_frequency2548.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

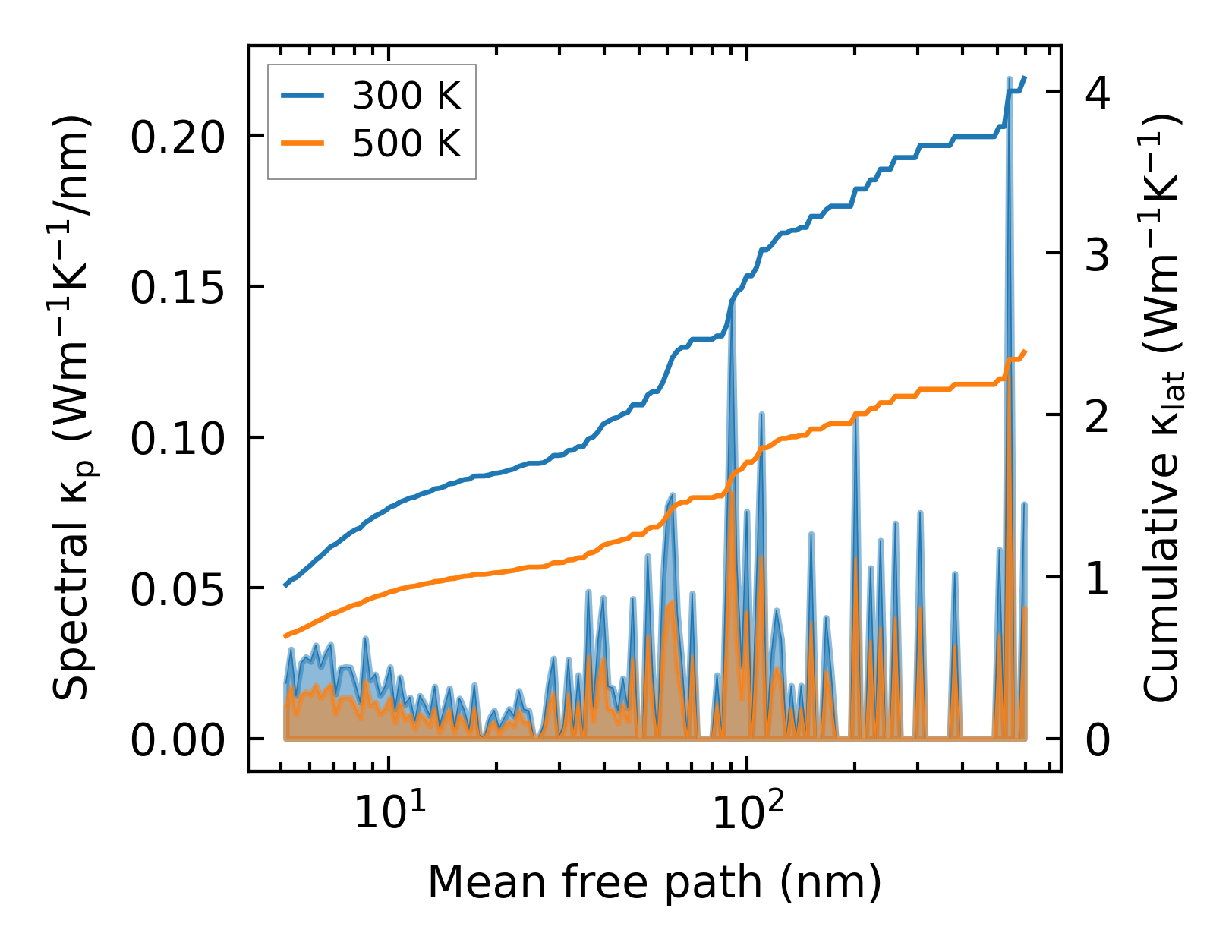

../../_images/fig_cumu_mfp2547.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

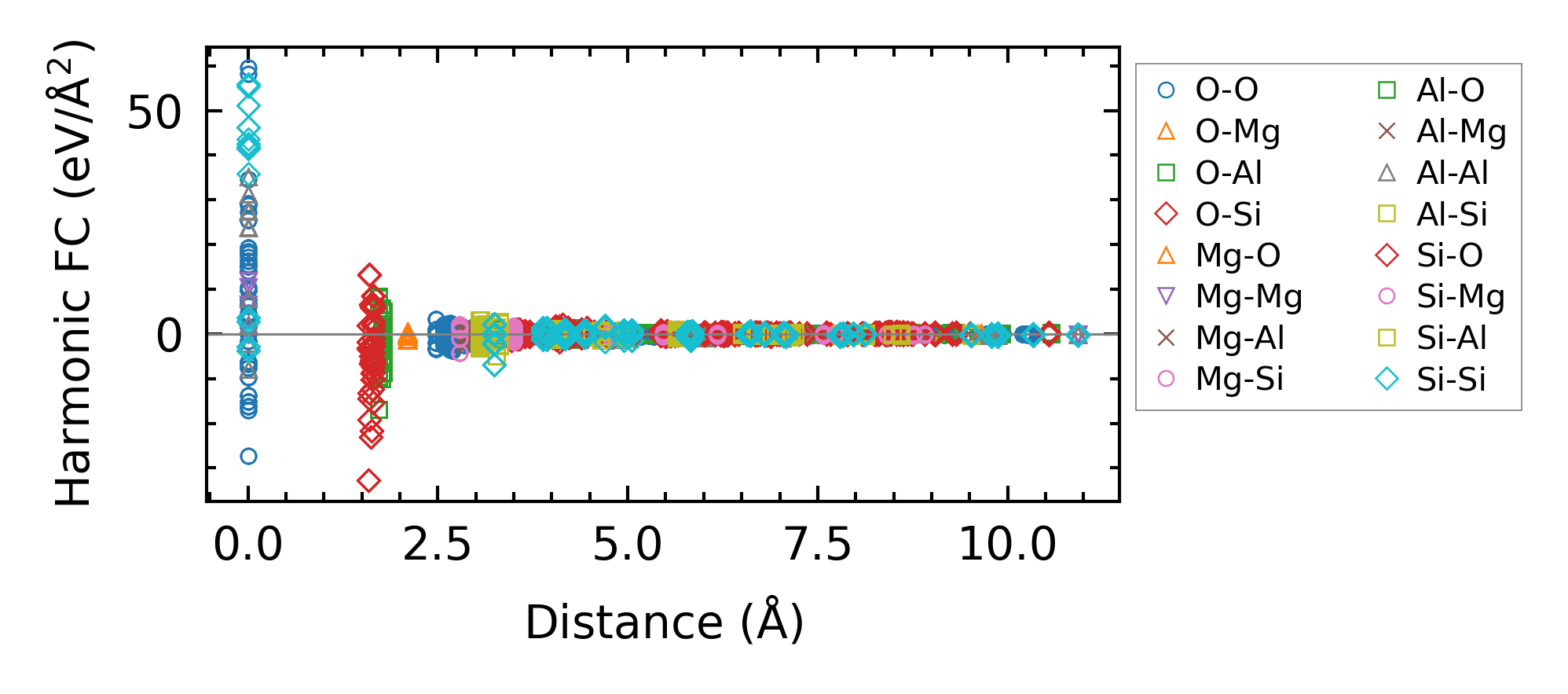

../../_images/fig_fc26084.png — (a) Force constants w.r.t atomic distance

Summary

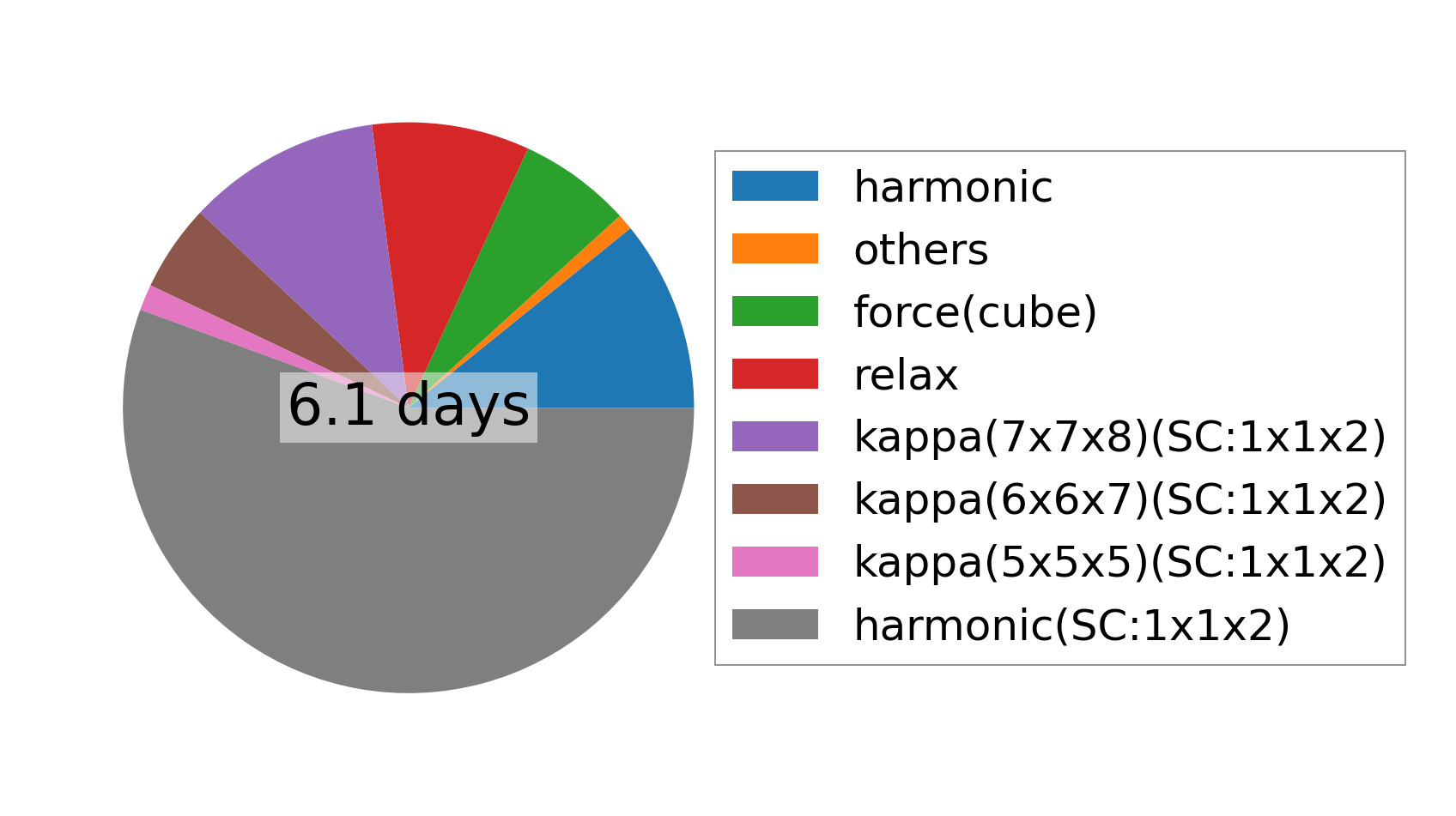

../../_images/fig_times11410.png — (a) Computation time
