mp-6687/Ba2HoSbO6/anharm

Space group: Fm-3m (225)
Link: Materials Project
Download: mp-6687.tar.gz

Harmonic properties

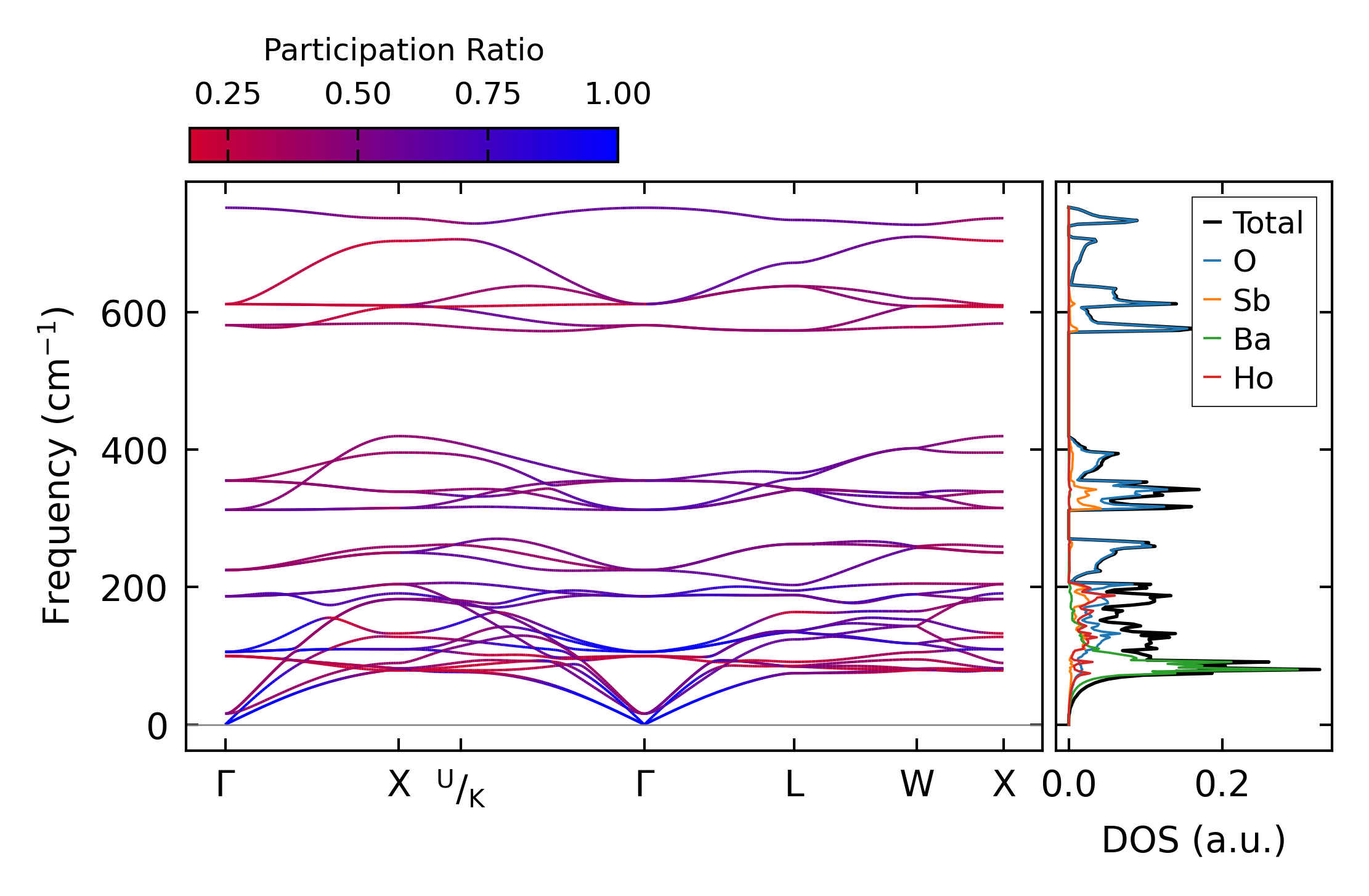

../../_images/fig_bandos_pr6123.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo6123.png — (b) Thermodynamic properties

Grüneisen parameters

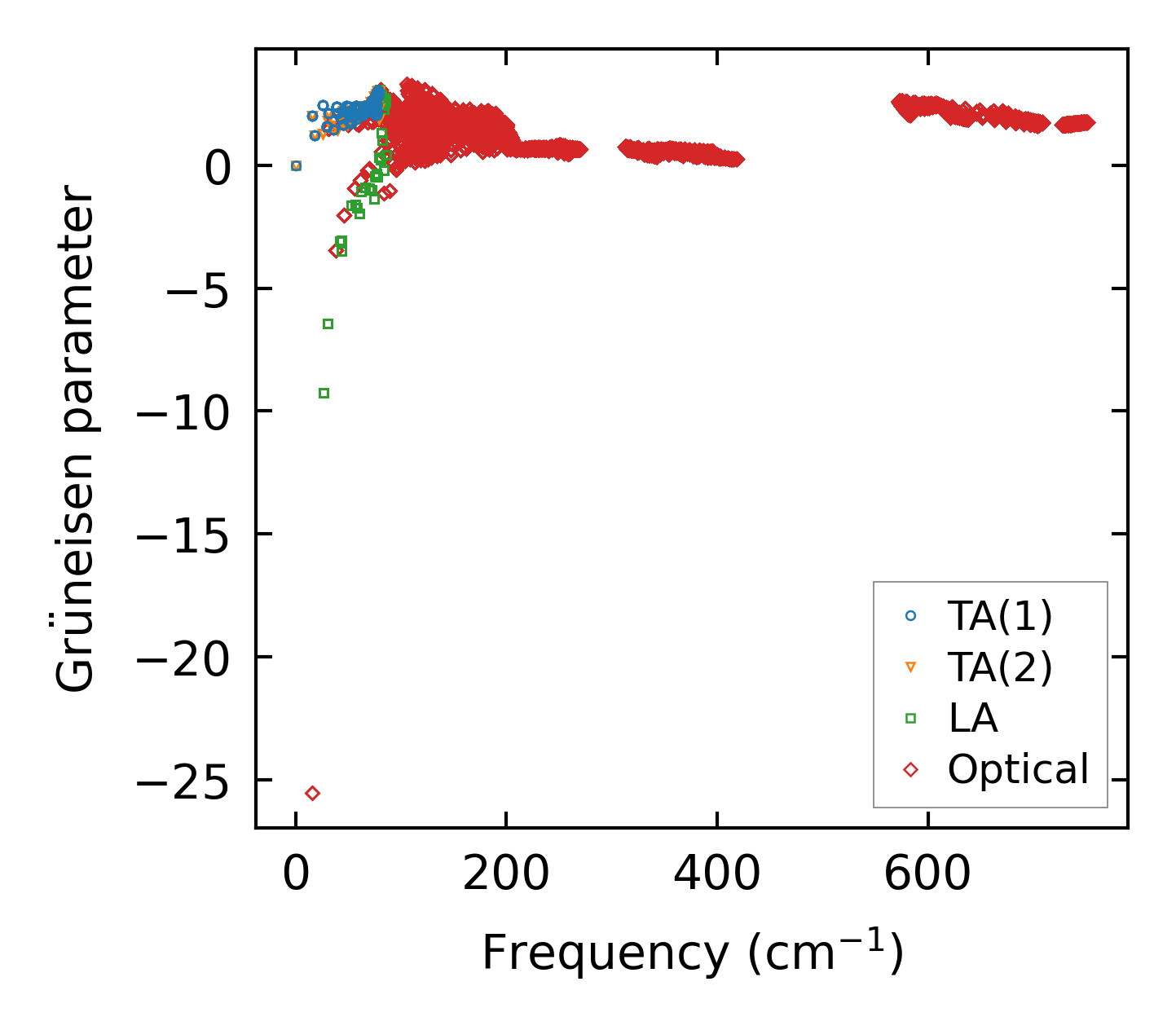

../../_images/fig_gru_all2485.png — (a) Grüneisen parameters

../../_images/fig_gruneisen2485.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x13x13, supercell: 1x1x1

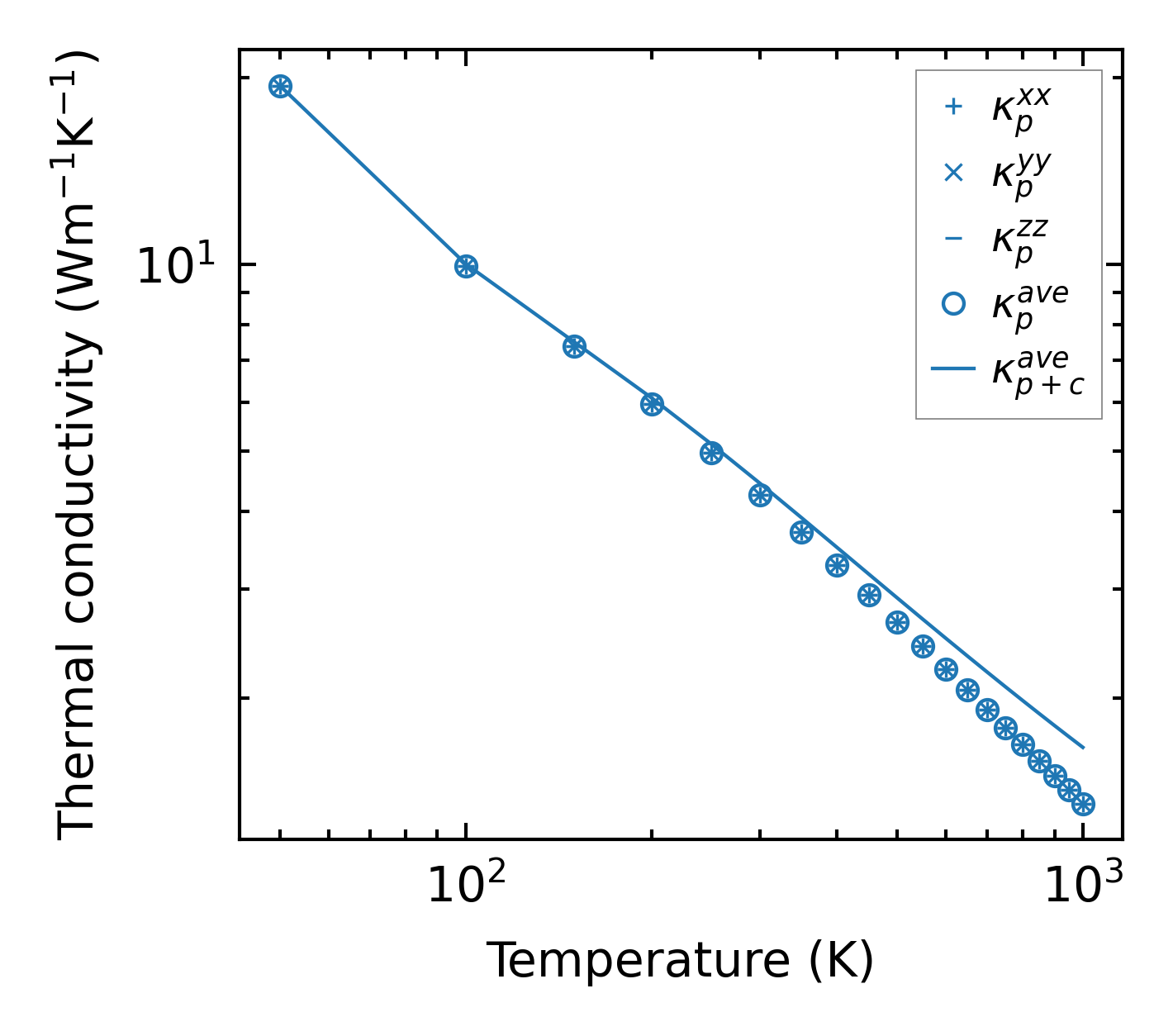

../../_images/fig_kappa4728.png — (a) Temperature-dependent lattice thermal conductivity

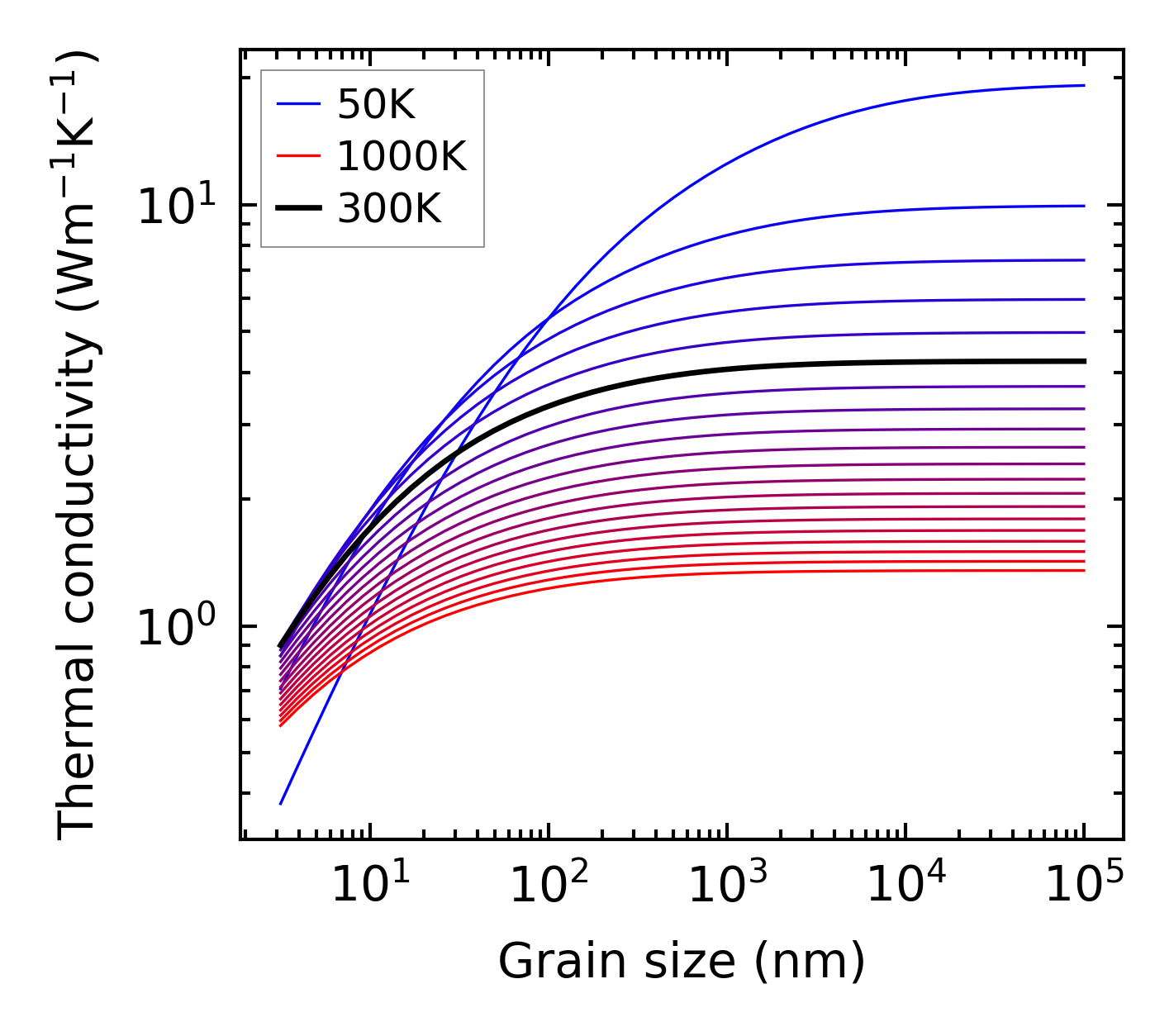

../../_images/fig_kappa_vs_grain_size2515.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

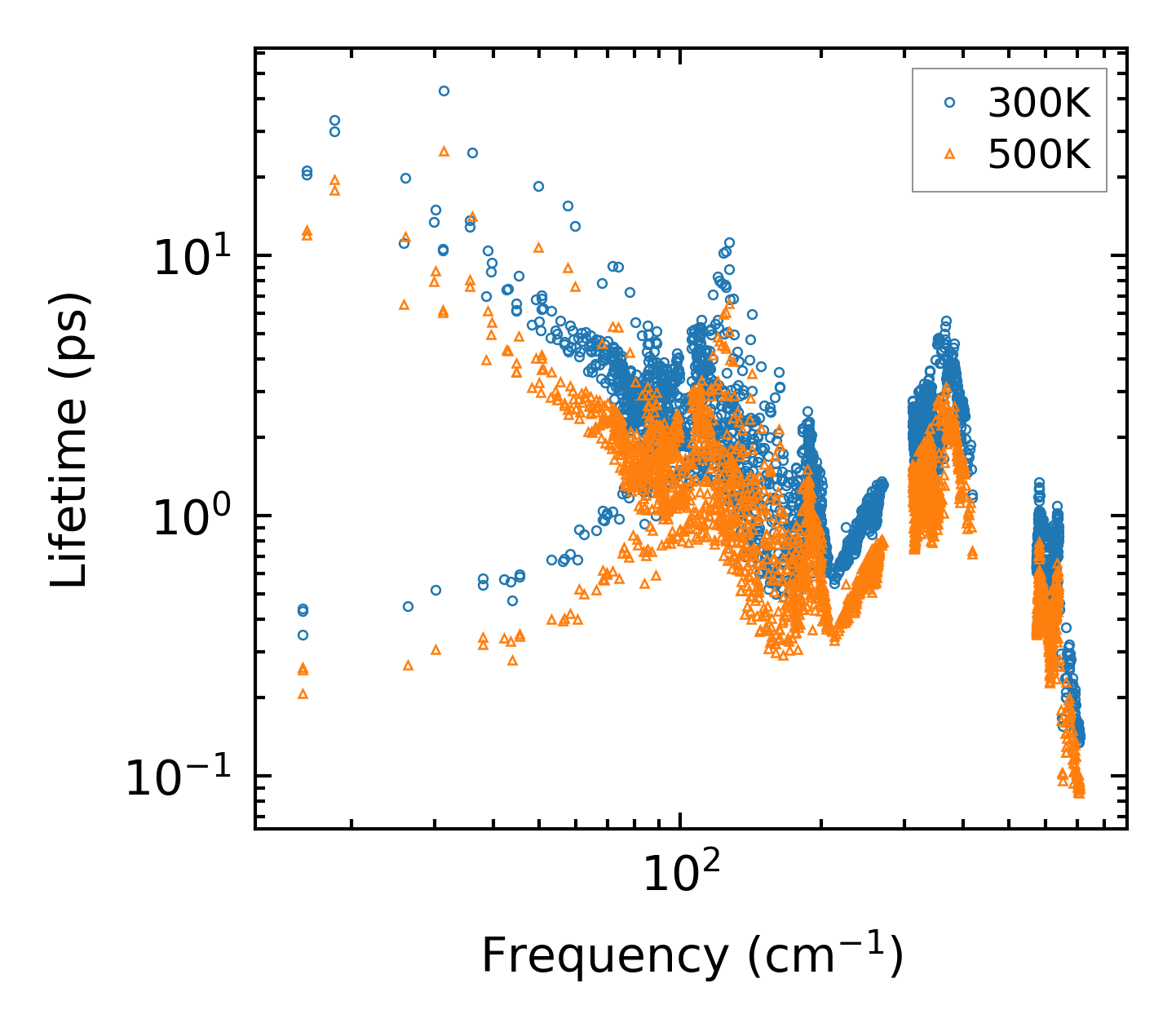

../../_images/fig_lifetime2467.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates2466.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

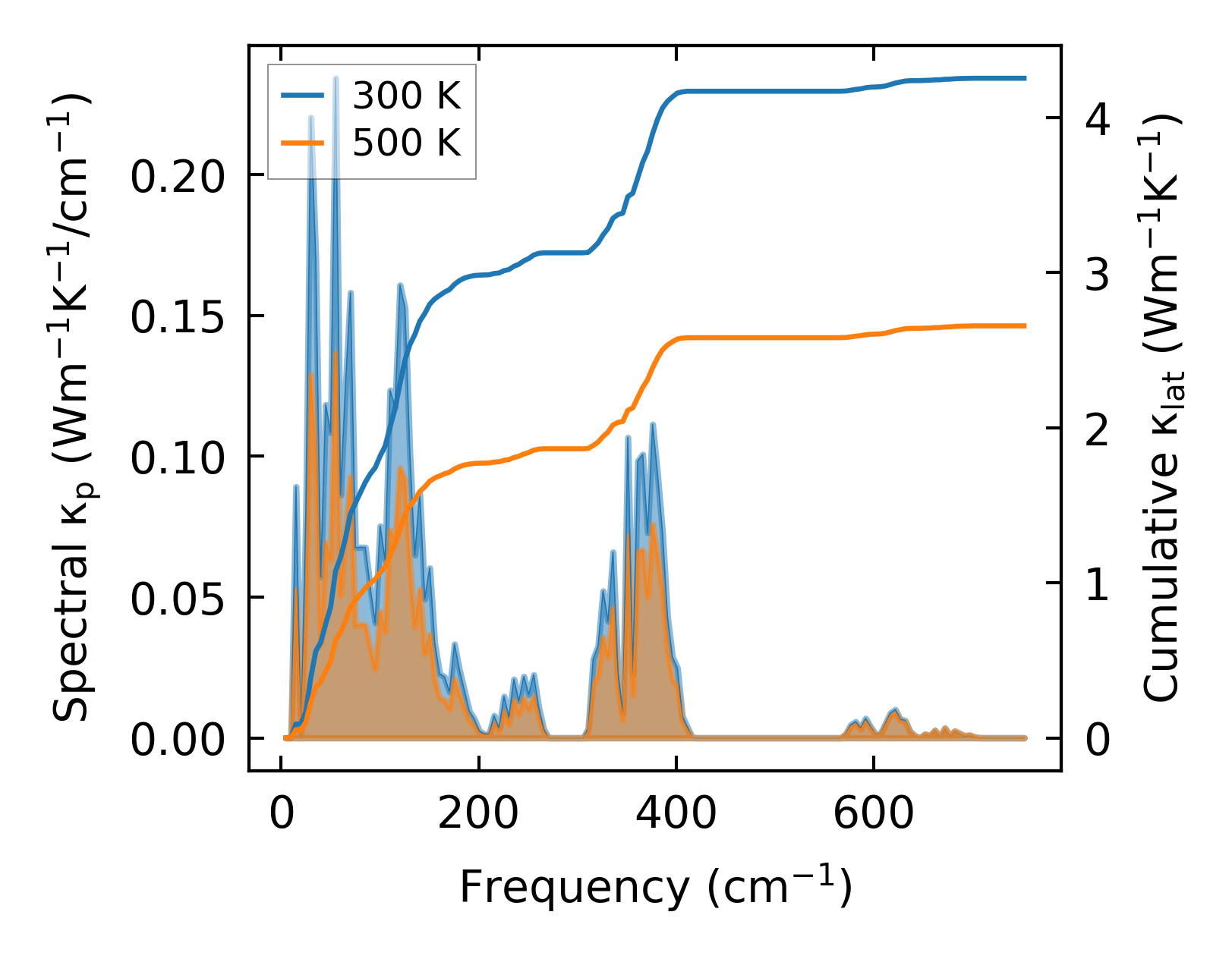

../../_images/fig_cumu_frequency2467.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp2466.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

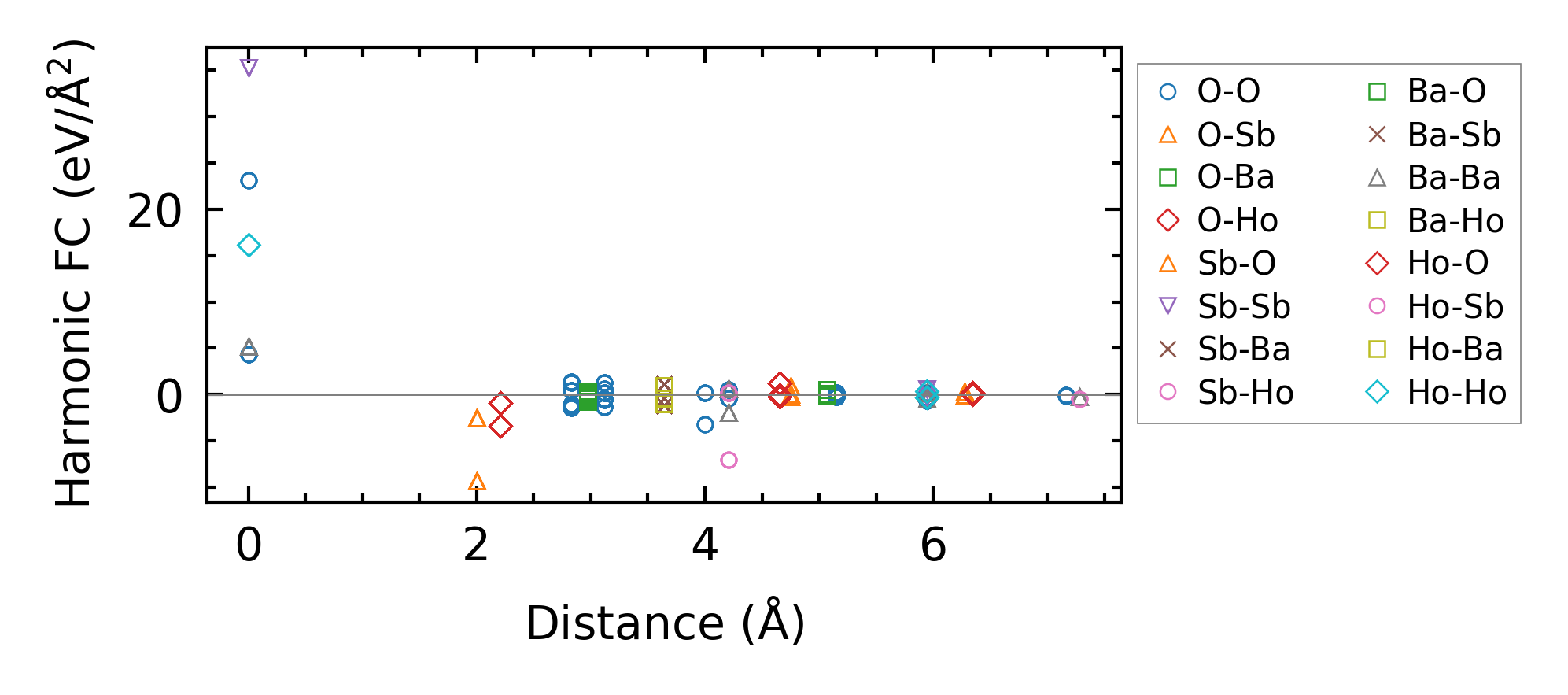

../../_images/fig_fc25914.png — (a) Force constants w.r.t atomic distance

Summary

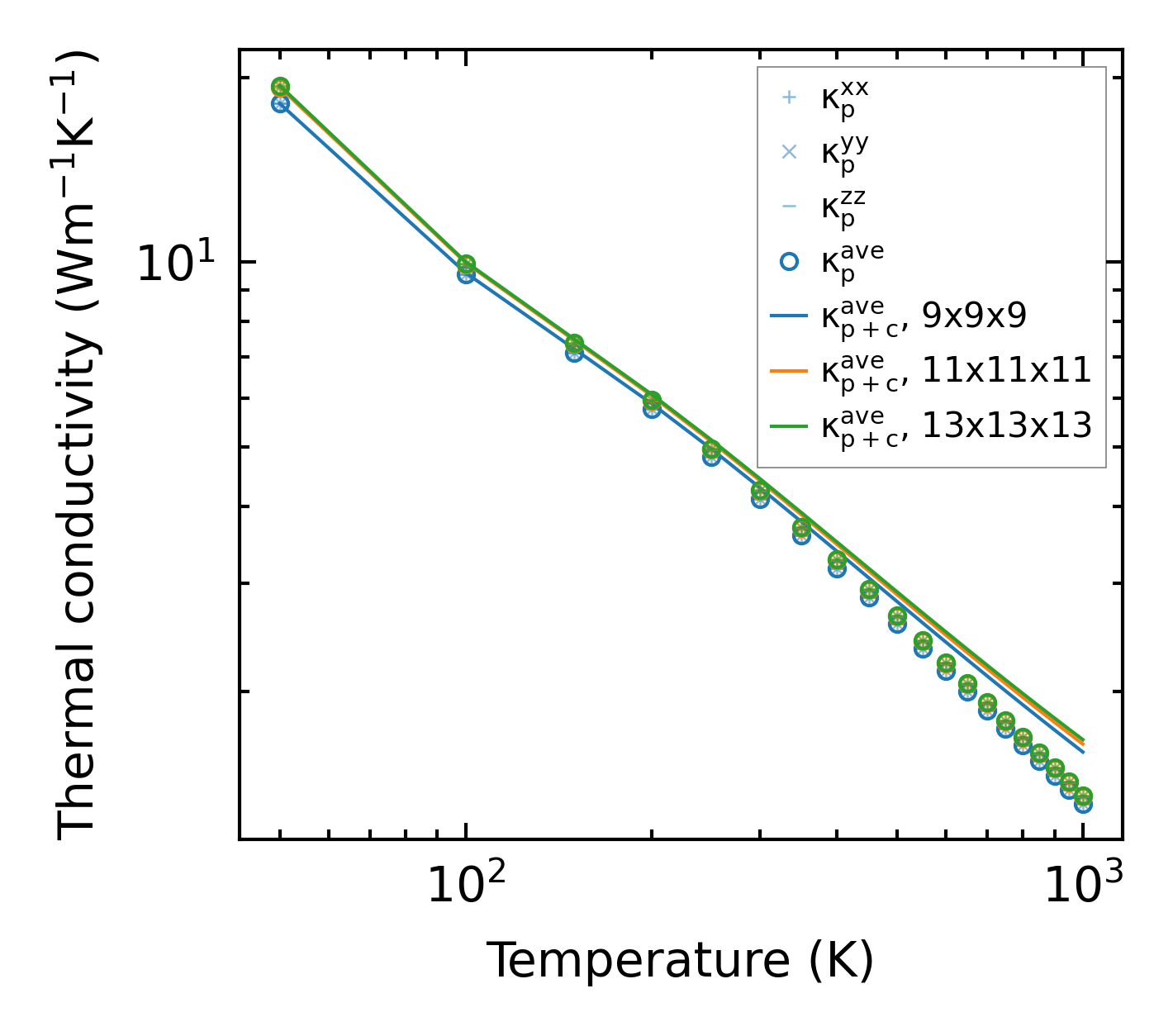

../../_images/fig_kappa4729.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times11178.png — (b) Computation time
