mp-6972-2/YCuO2/anharm

Space group: R-3m (166)
Link: Materials Project
Download: mp-6972-2.tar.gz

Equation of state

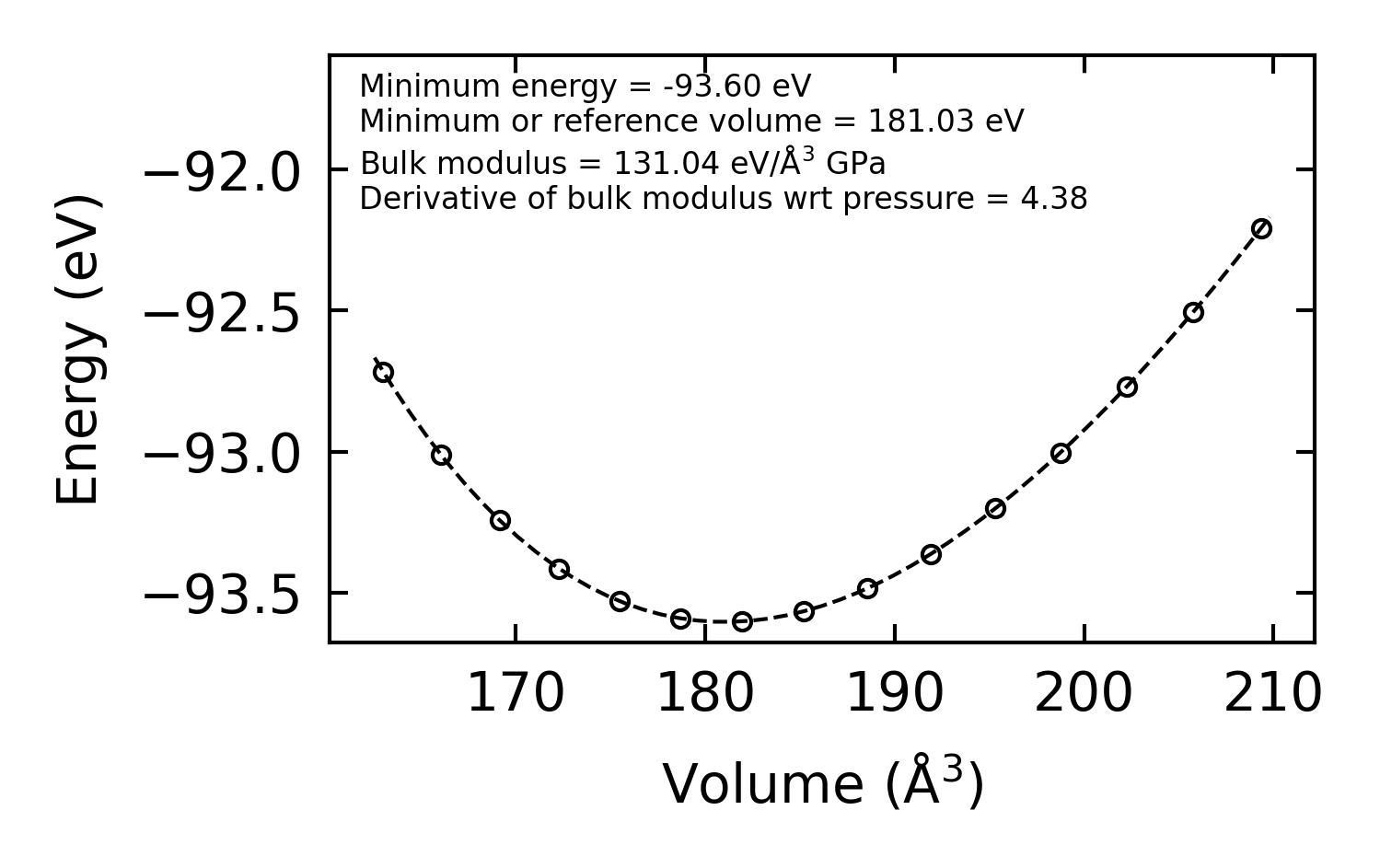

../../_images/fig_bm3287.png — (a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr6230.png — (a) Phonon dispersion with participation ratio and DOS

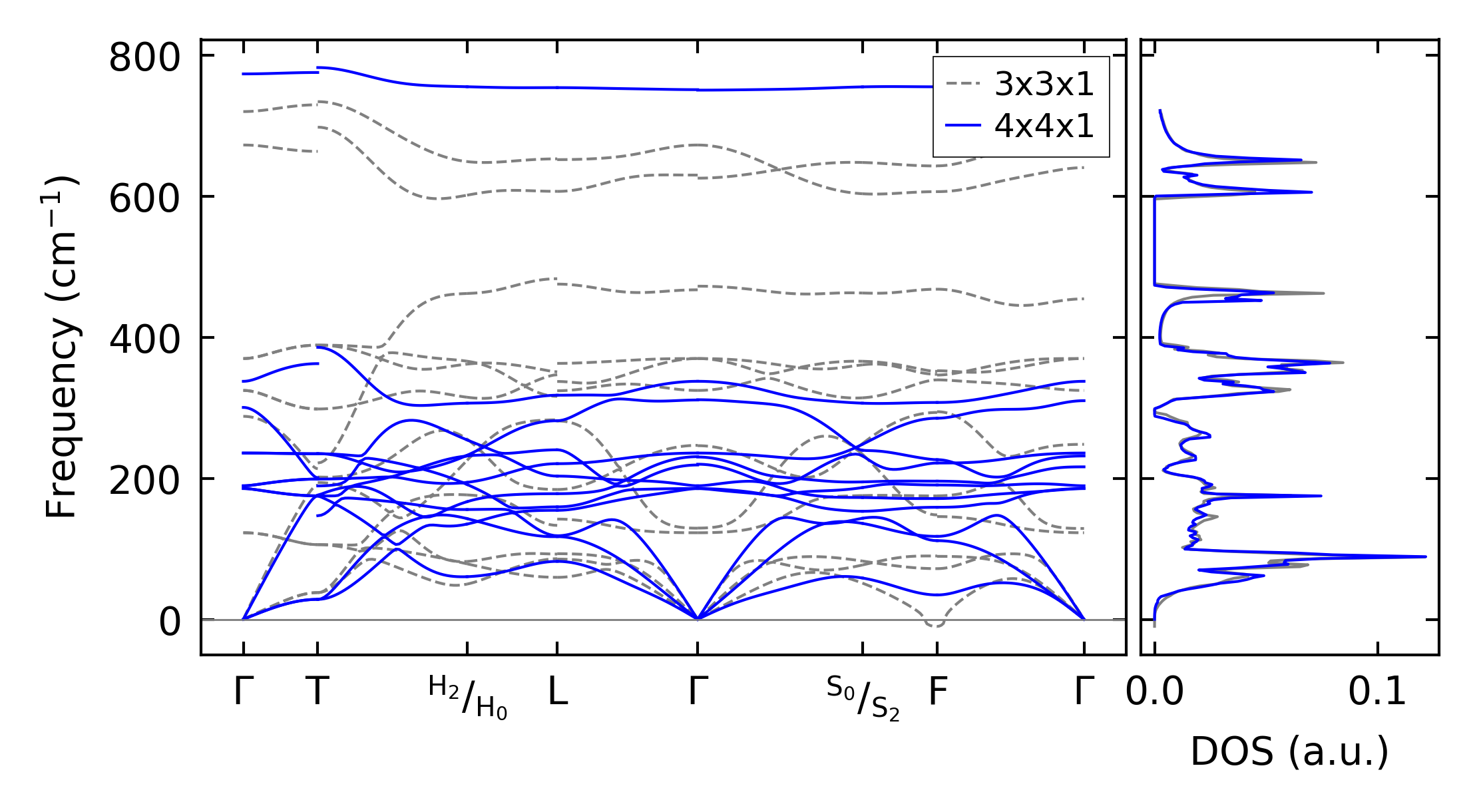

../../_images/fig_bandos9092.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo6230.png — (c) Thermodynamic properties

Grüneisen parameters

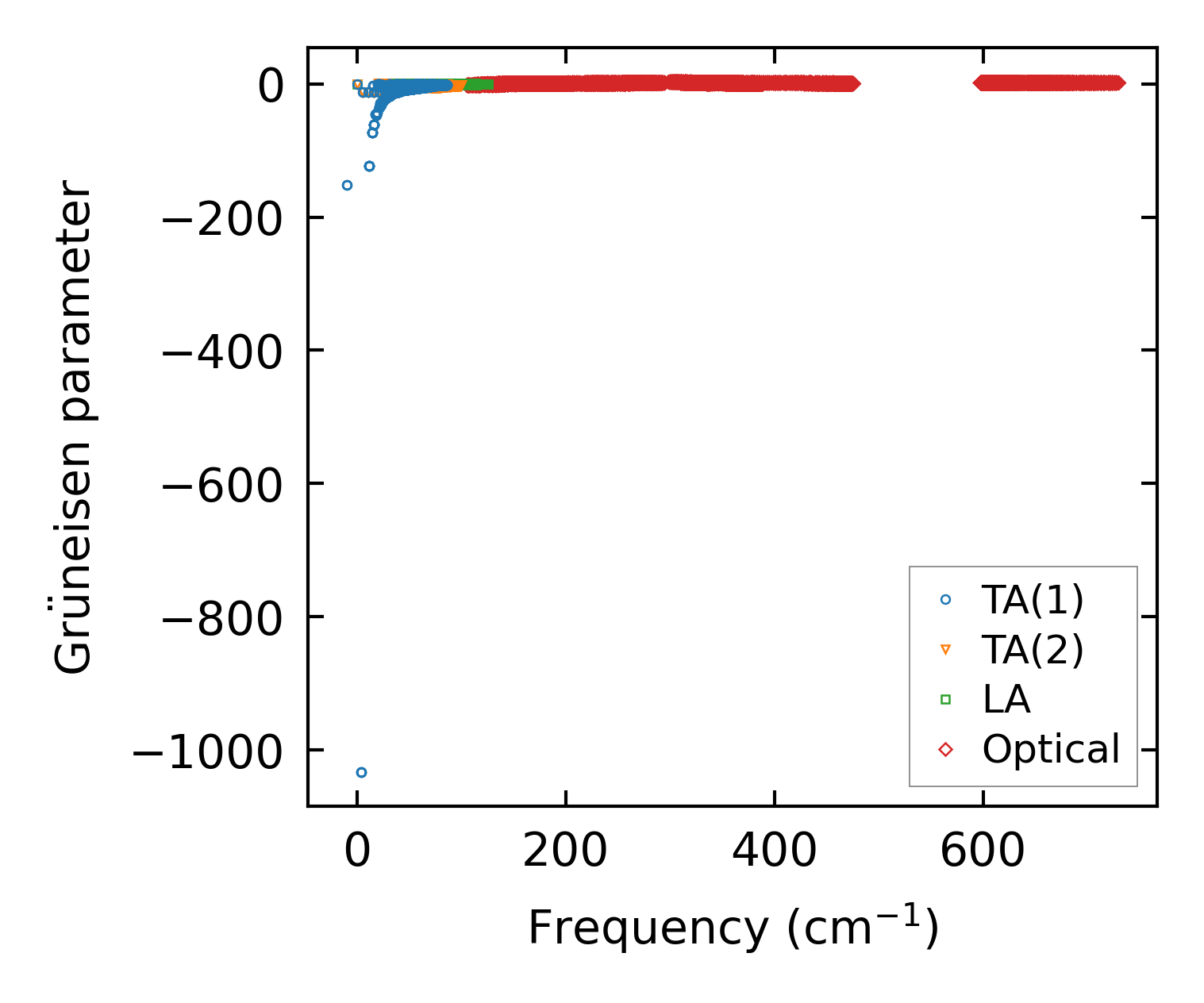

../../_images/fig_gru_all2534.png — (a) Grüneisen parameters

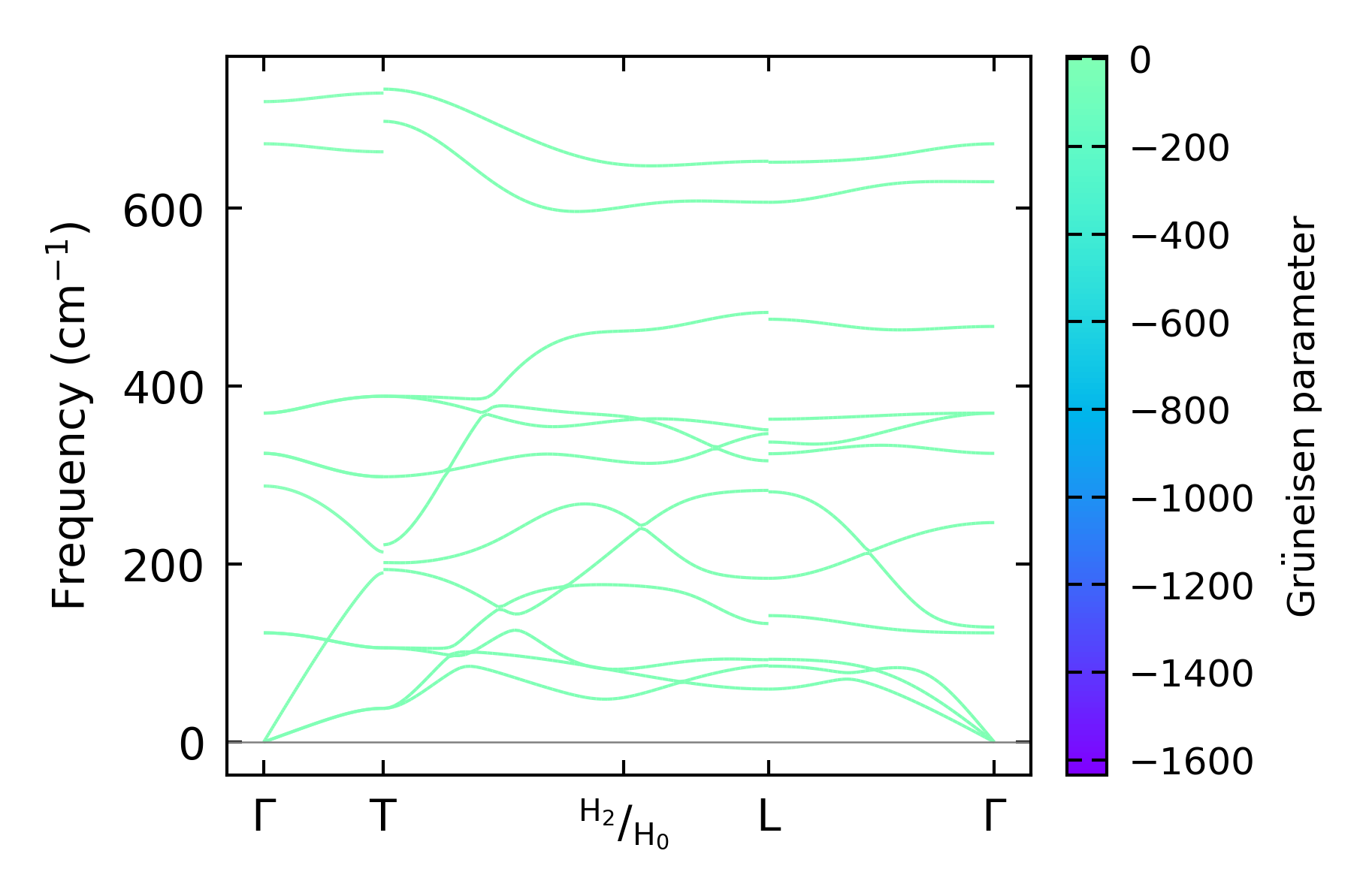

../../_images/fig_gruneisen2534.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 4x4x1 — q-mesh: 18x18x18, supercell: 4x4x1

../../_images/fig_kappa4821.png — (a) Temperature-dependent lattice thermal conductivity

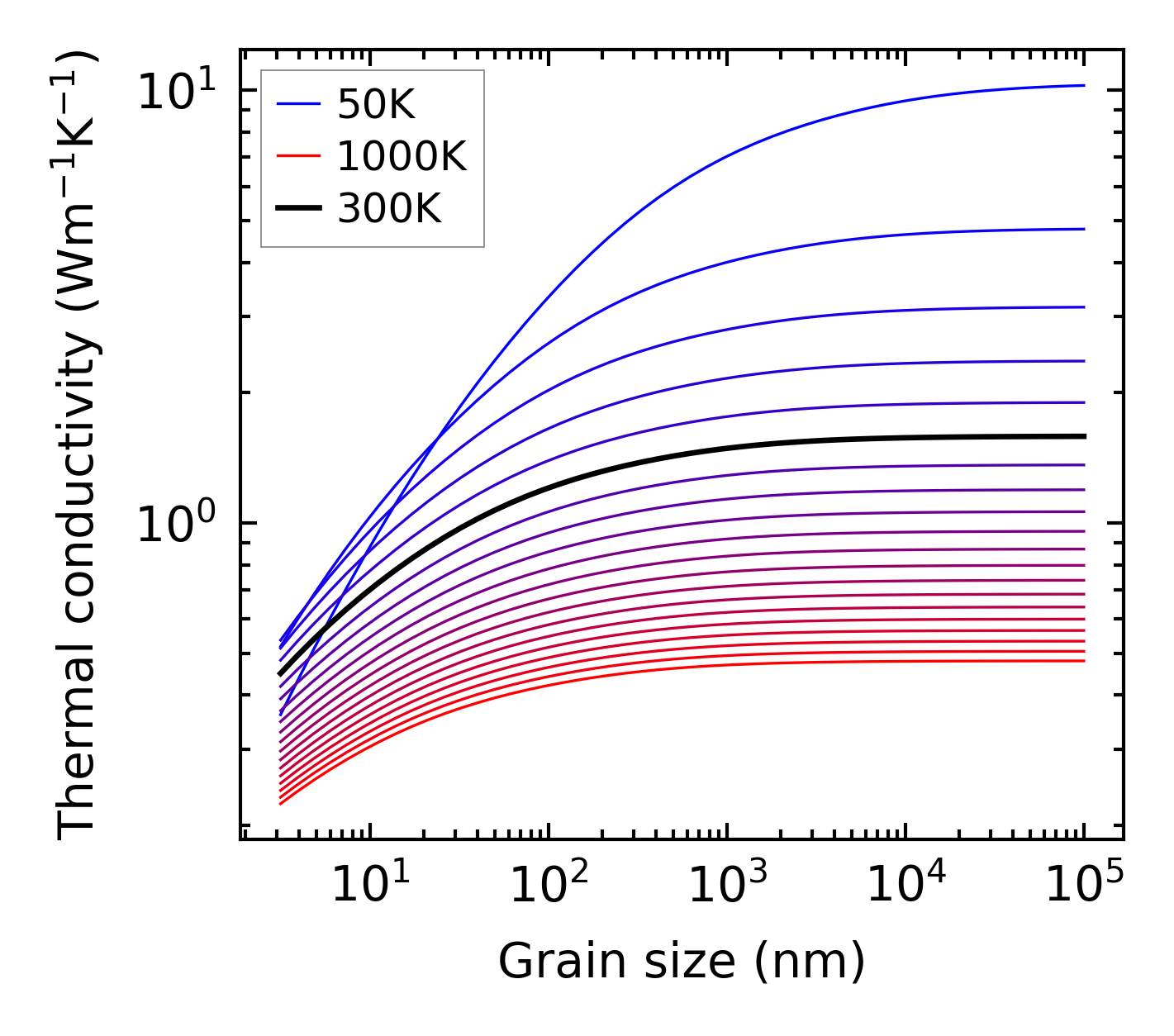

../../_images/fig_kappa_vs_grain_size2567.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

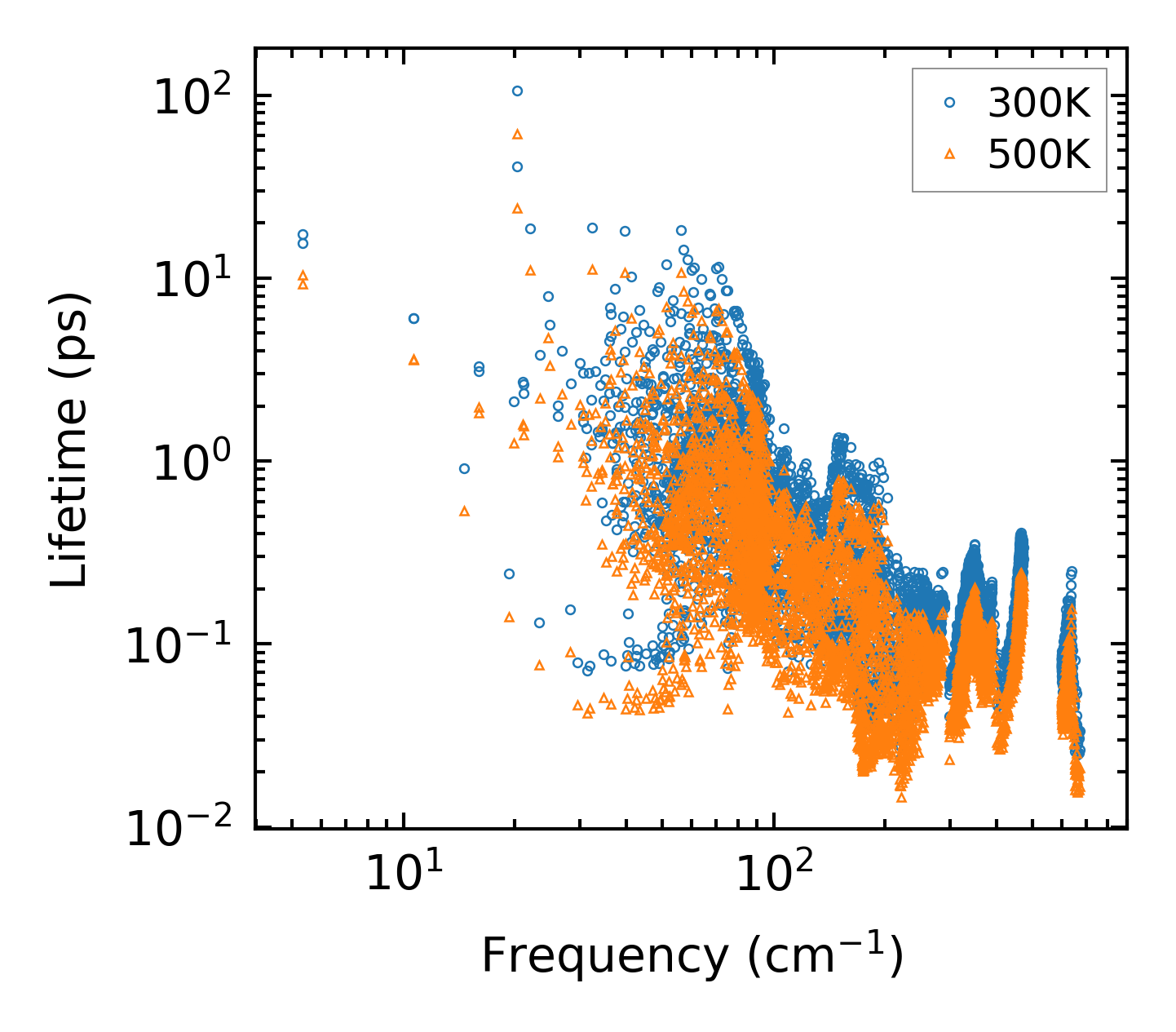

../../_images/fig_lifetime2515.png — (a) Phonon lifetime due to phonon-phonon scattering

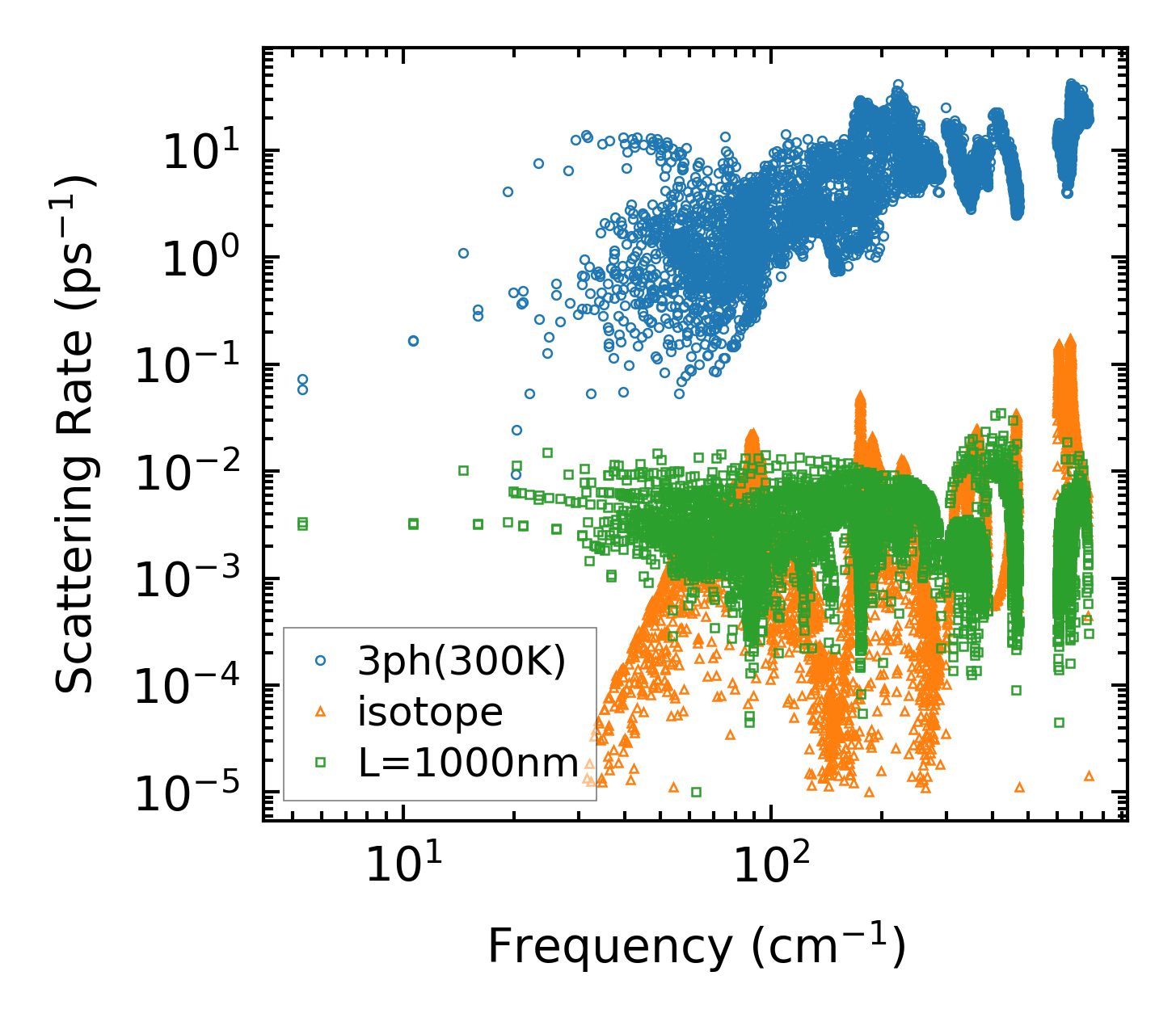

../../_images/fig_scat_rates2514.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency2515.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp2514.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc26020.png — (a) Force constants w.r.t atomic distance

Summary

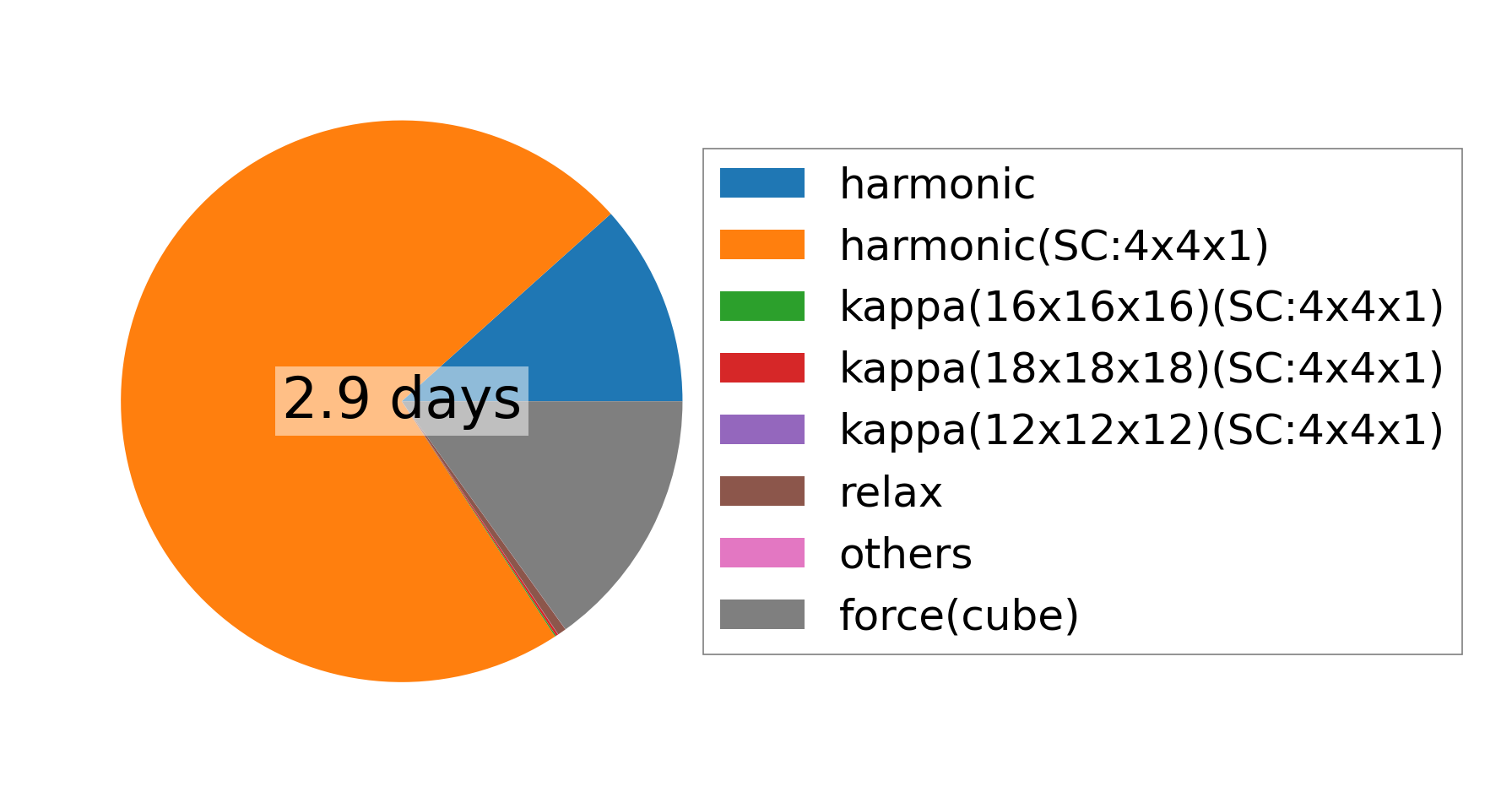

../../_images/fig_times11320.png — (a) Computation time
