mp-6610-2/K3CuC4N4/anharm

Space group: R3c (161)
Link: Materials Project
Download: mp-6610-2.tar.gz

Equation of state

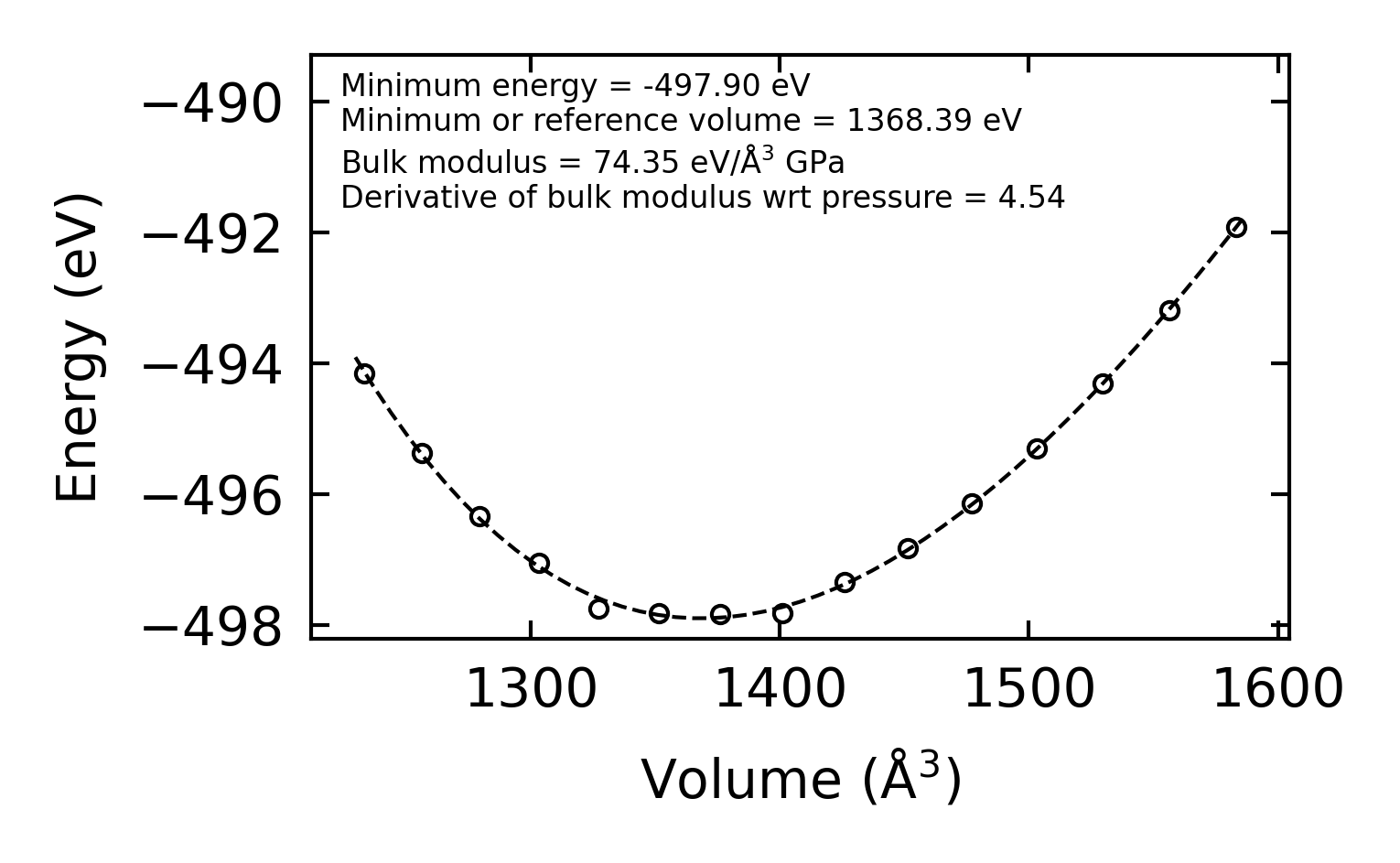

../../_images/fig_bm3208.png — (a) Equation of state

Harmonic properties

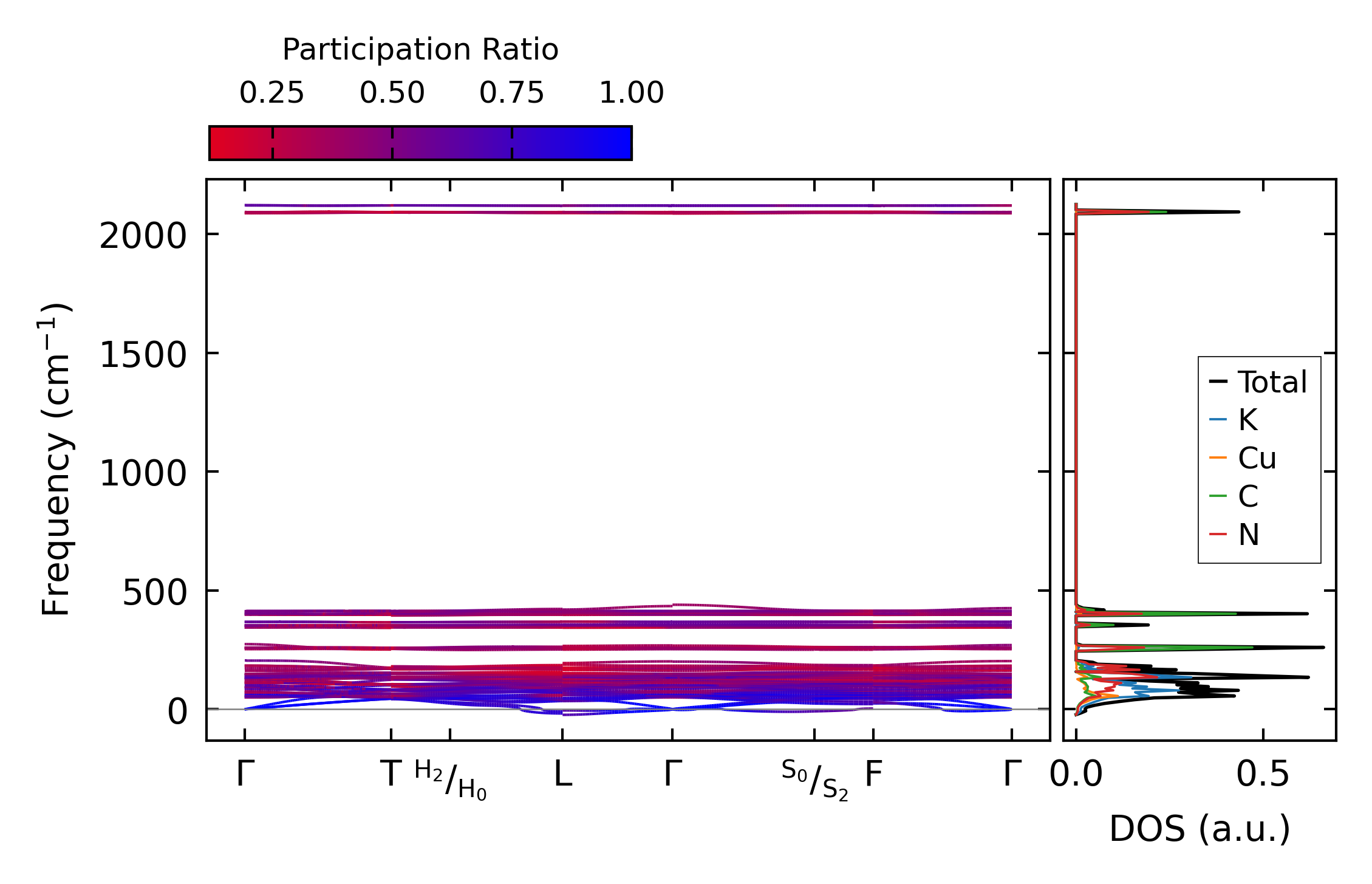

../../_images/fig_bandos_pr6087.png — (a) Phonon dispersion with participation ratio and DOS

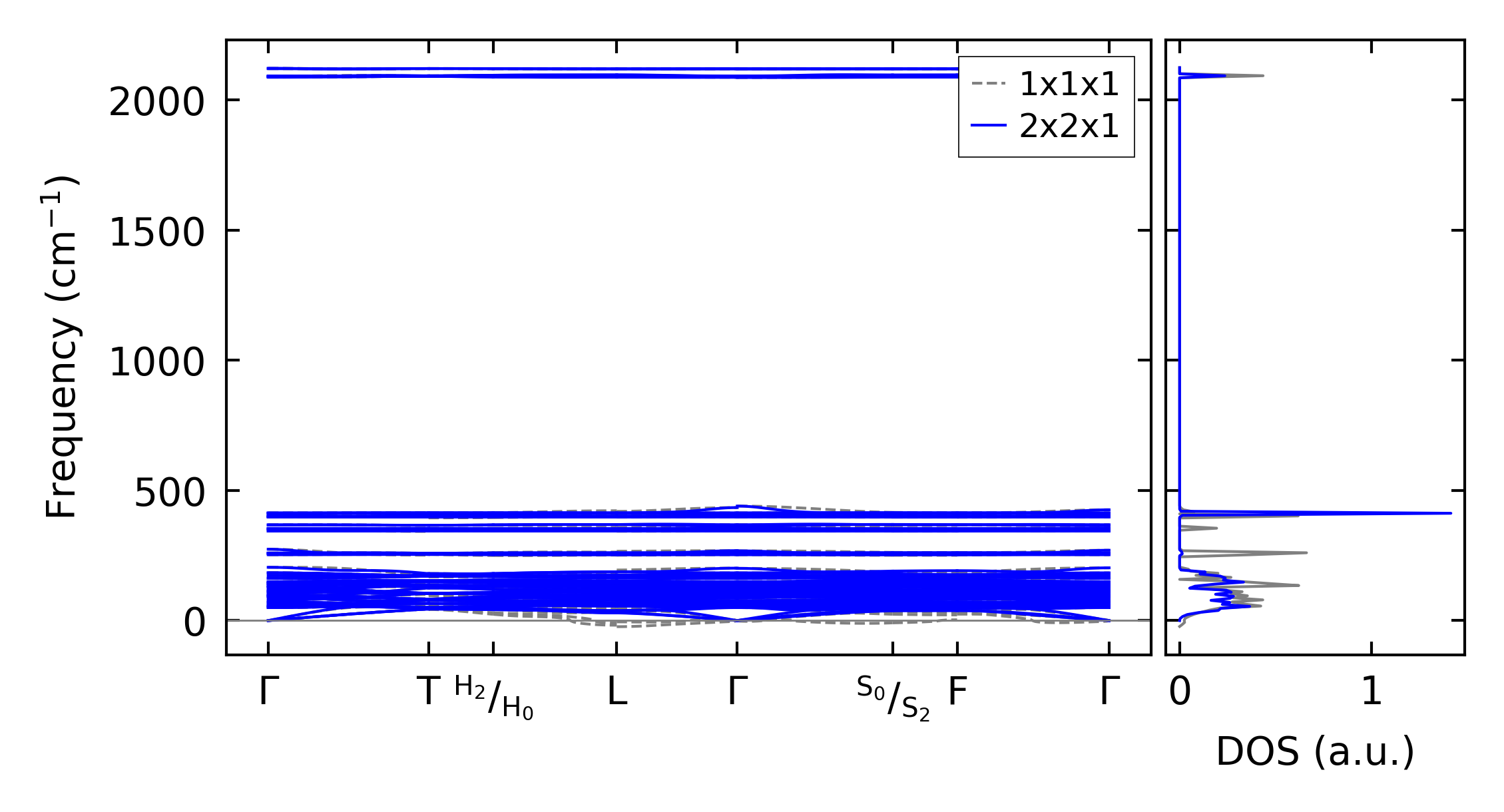

../../_images/fig_bandos8955.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo6087.png — (c) Thermodynamic properties

Grüneisen parameters

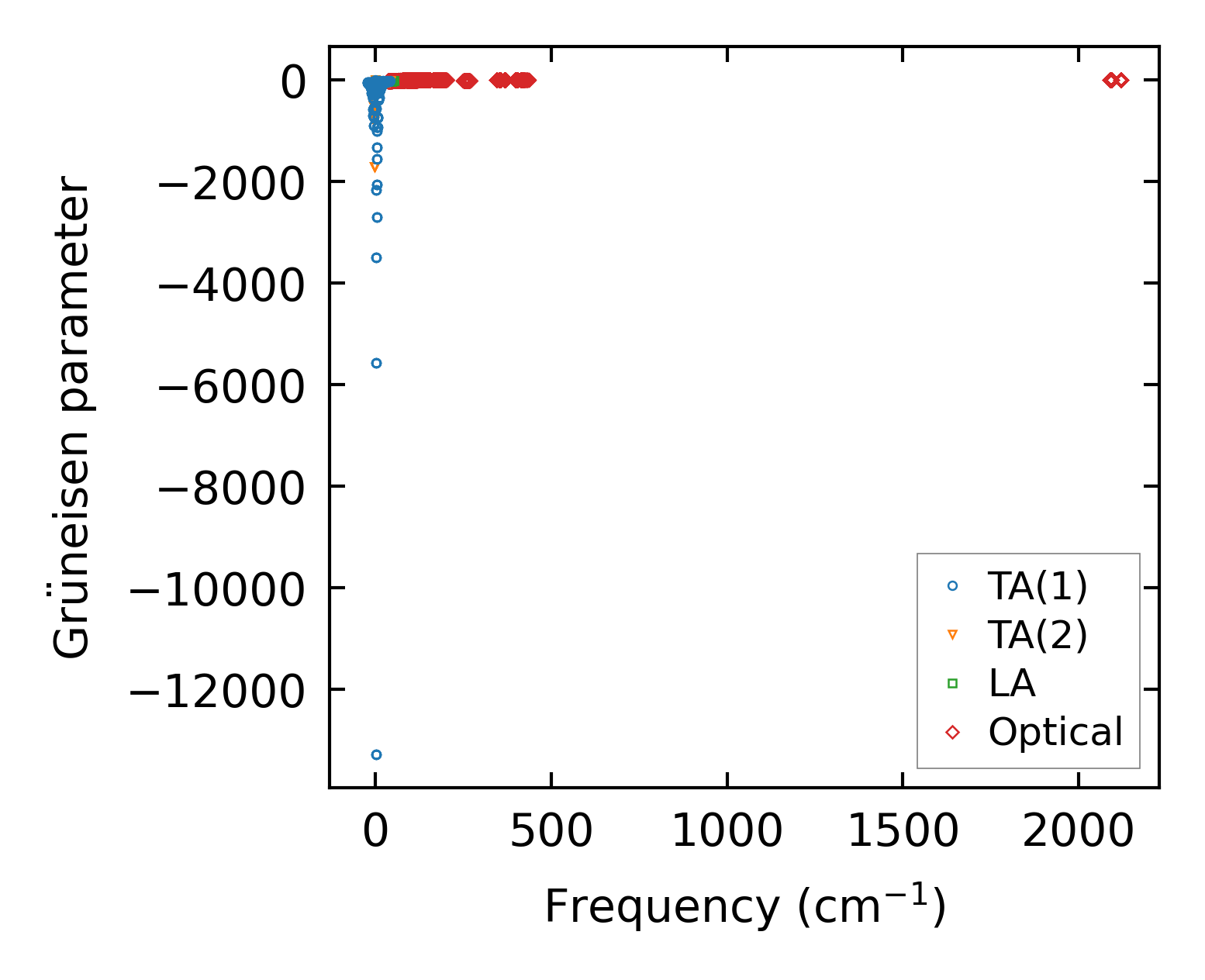

../../_images/fig_gru_all2470.png — (a) Grüneisen parameters

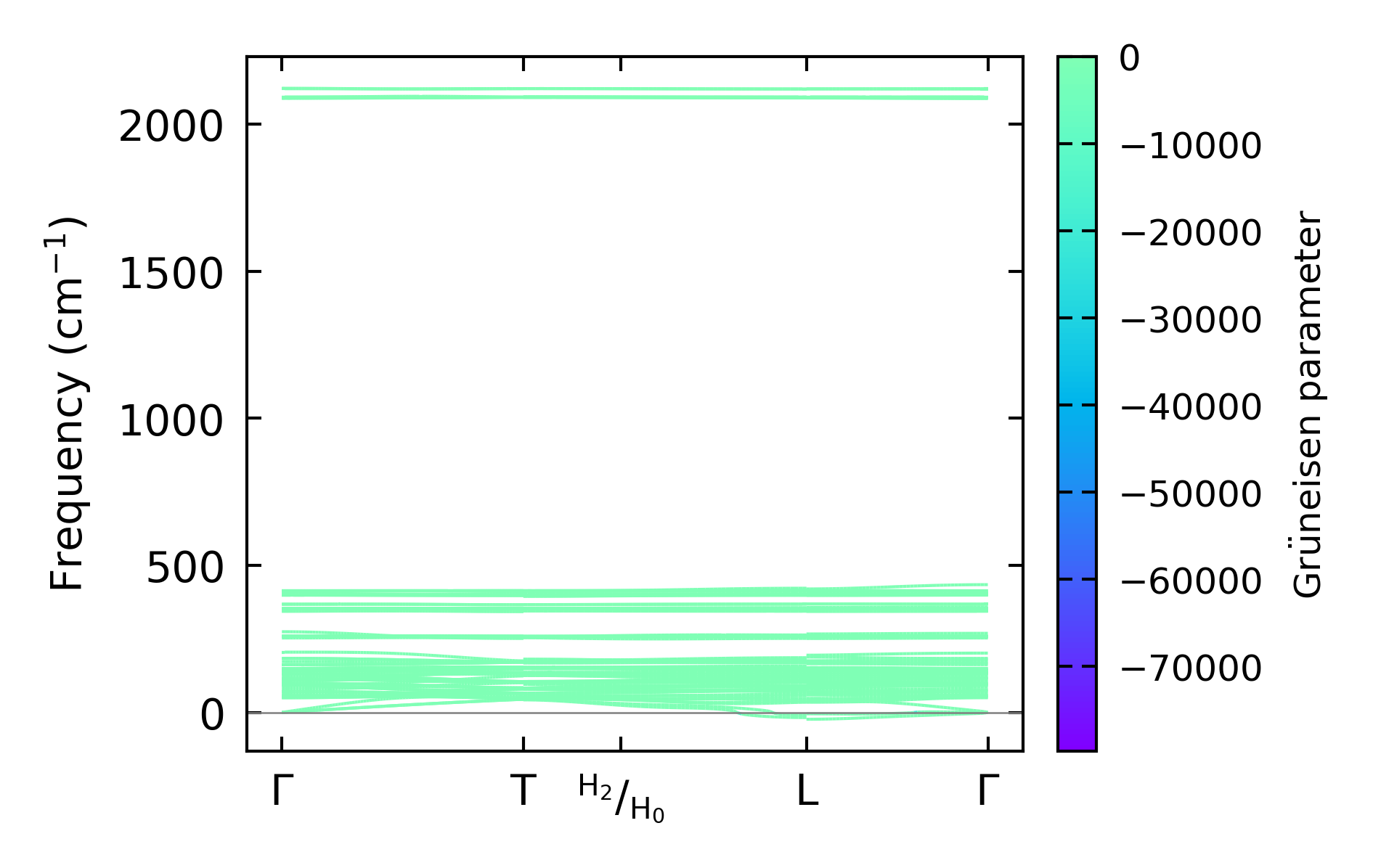

../../_images/fig_gruneisen2470.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x2x1 — q-mesh: 9x9x9, supercell: 2x2x1

../../_images/fig_kappa4701.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size2501.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

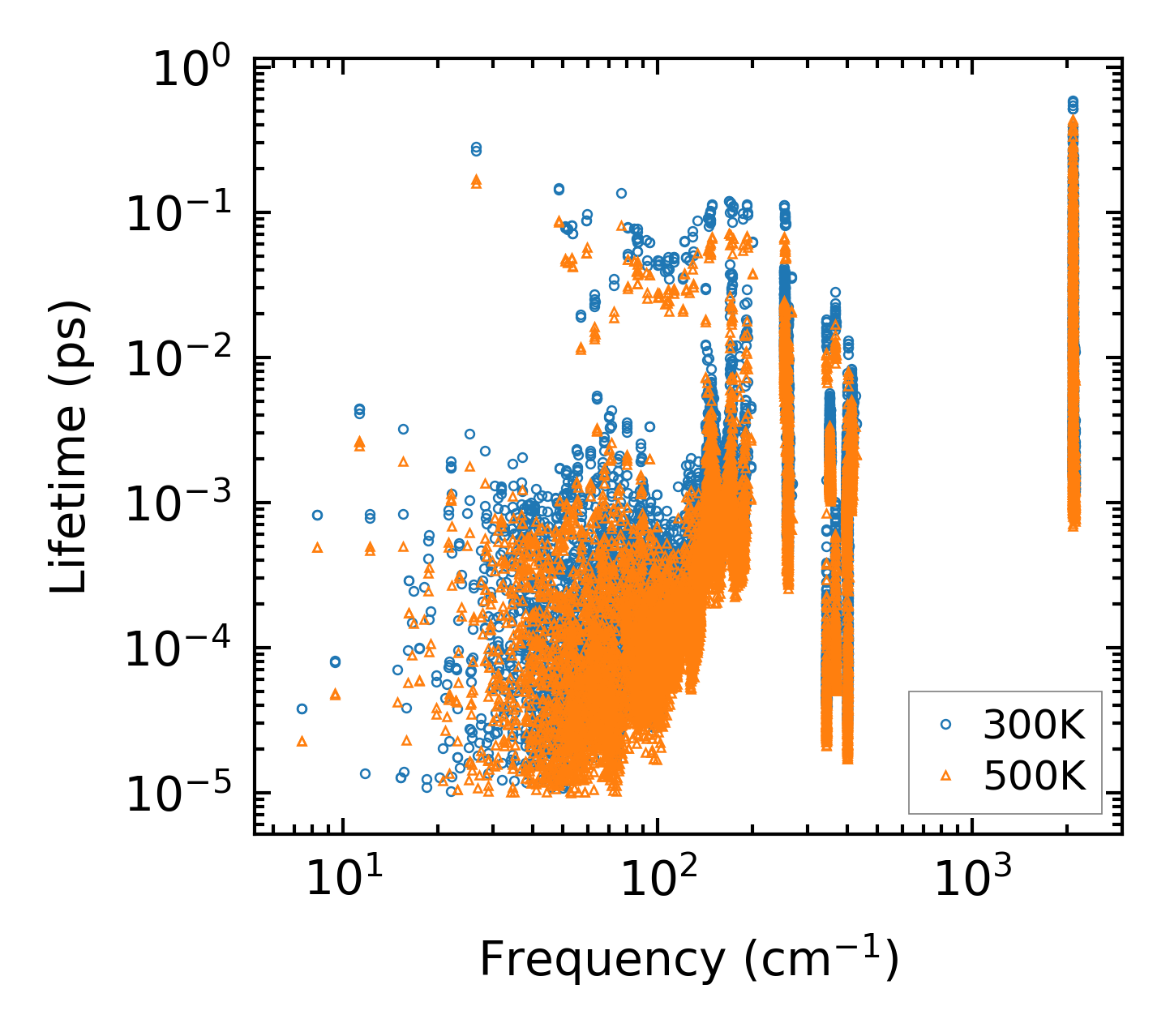

../../_images/fig_lifetime2453.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates2452.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency2453.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp2452.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

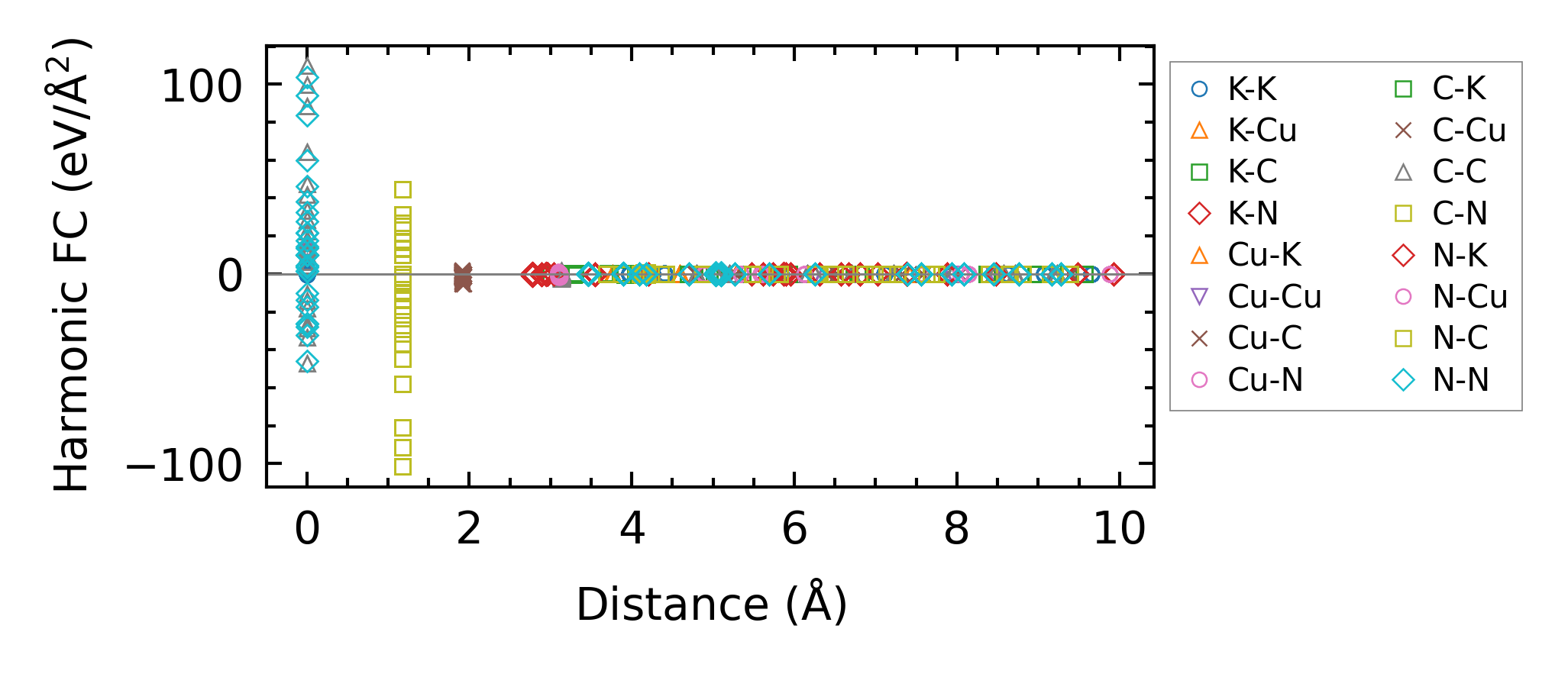

../../_images/fig_fc25878.png — (a) Force constants w.r.t atomic distance

Summary

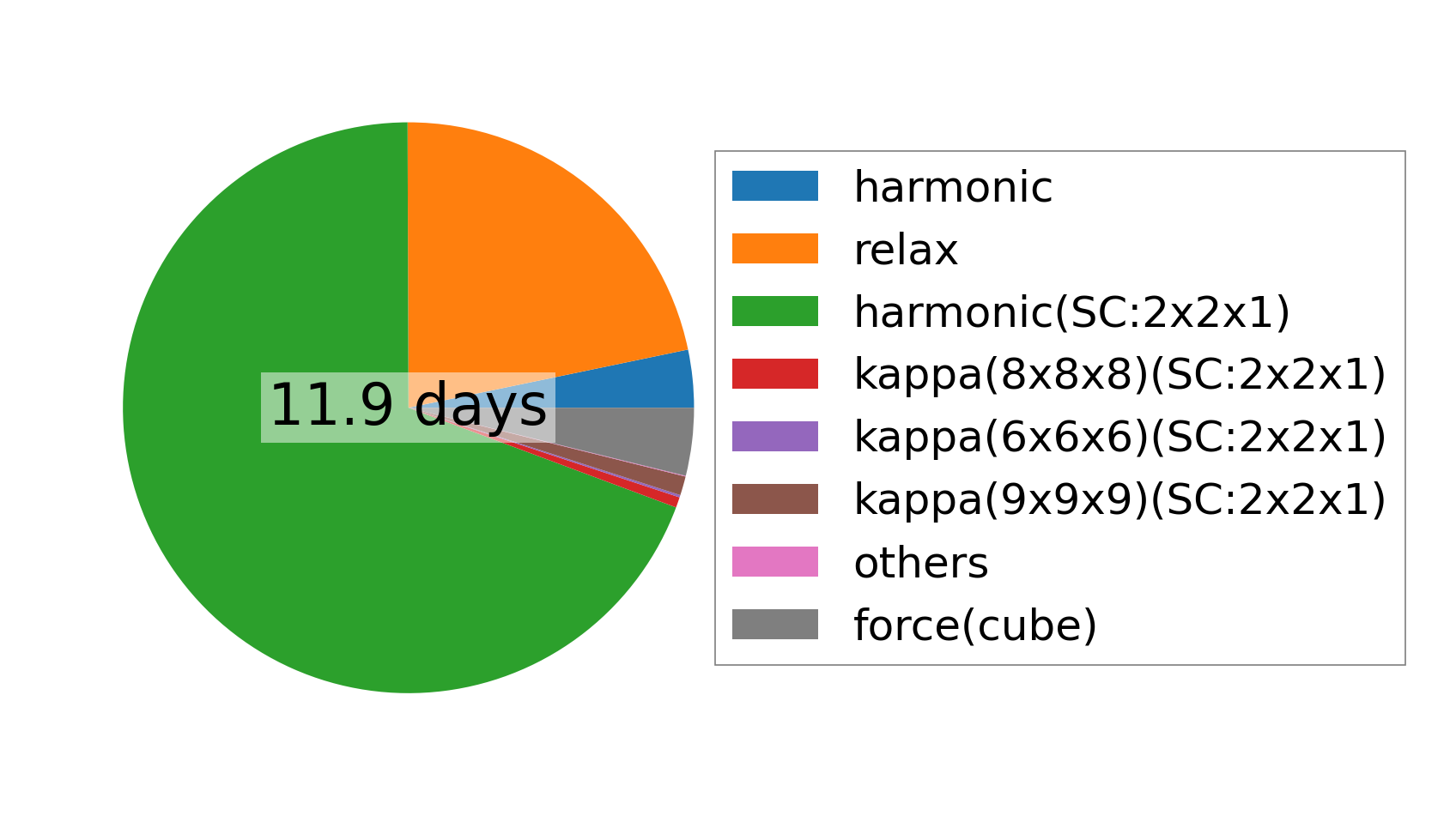

../../_images/fig_times11132.png — (a) Computation time
