mp-6032/SrSi2B2O8/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-6032.tar.gz

Harmonic properties

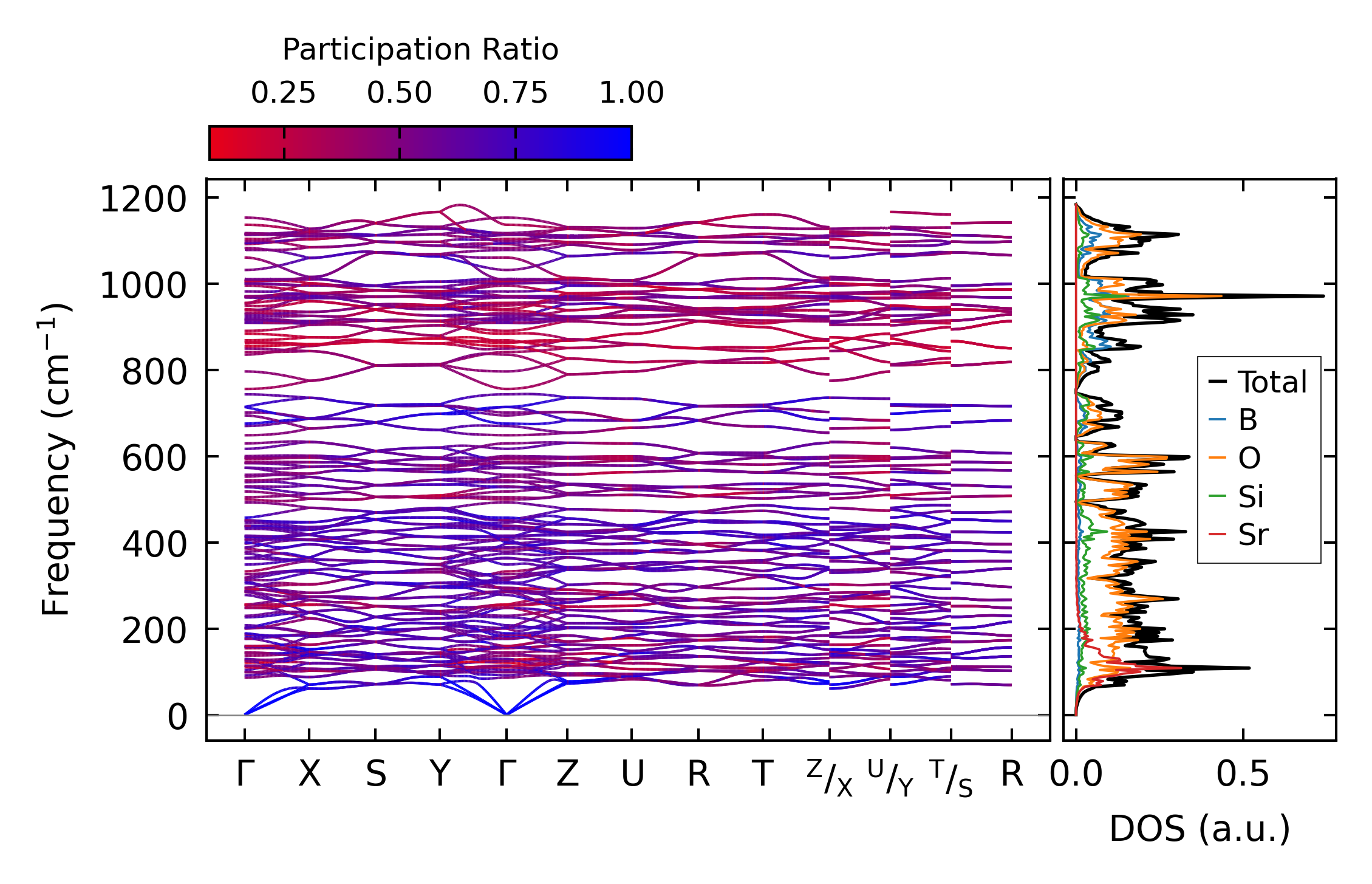

../../_images/fig_bandos_pr6596.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo6596.png — (b) Thermodynamic properties

Grüneisen parameters

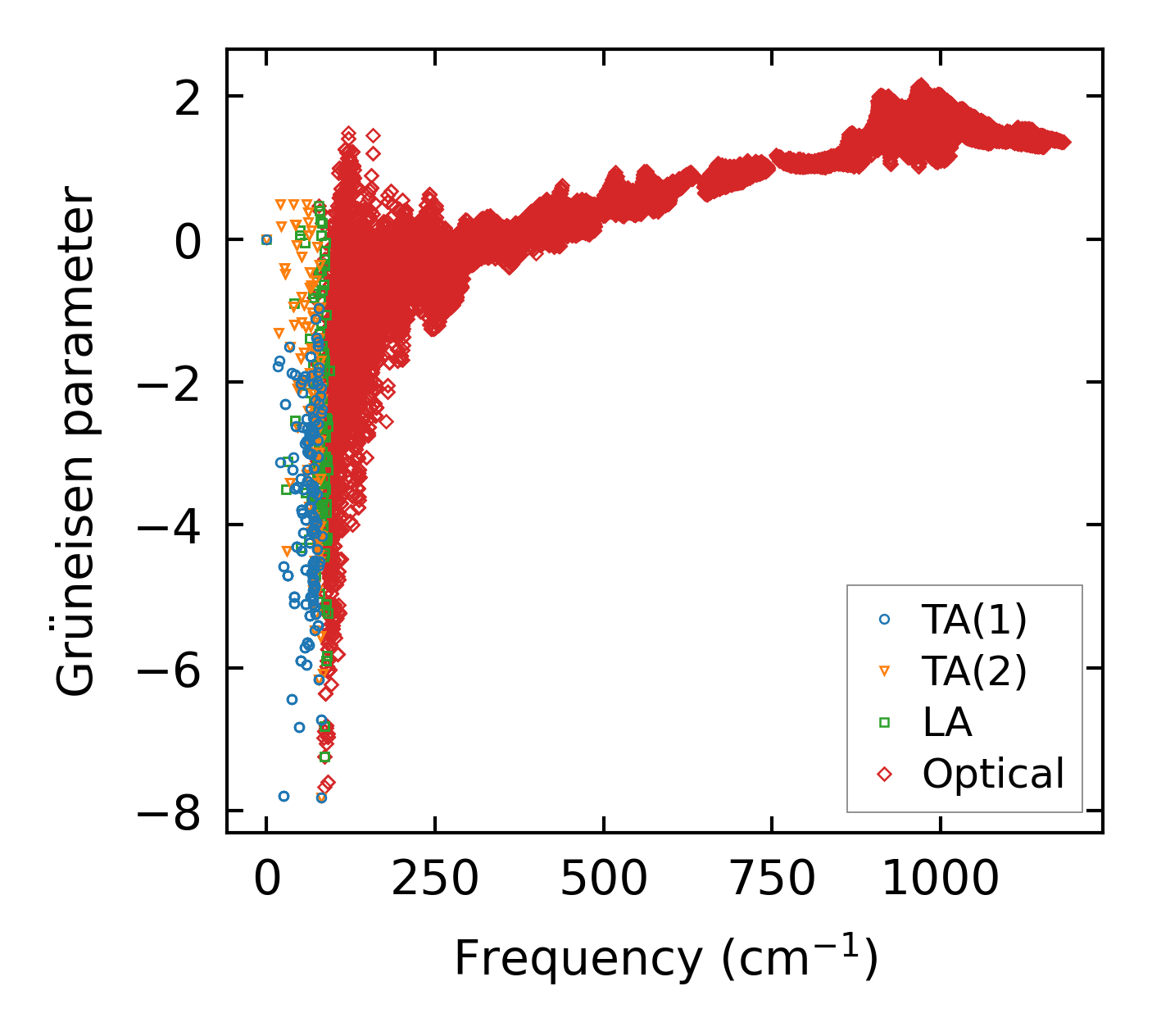

../../_images/fig_gru_all2689.png — (a) Grüneisen parameters

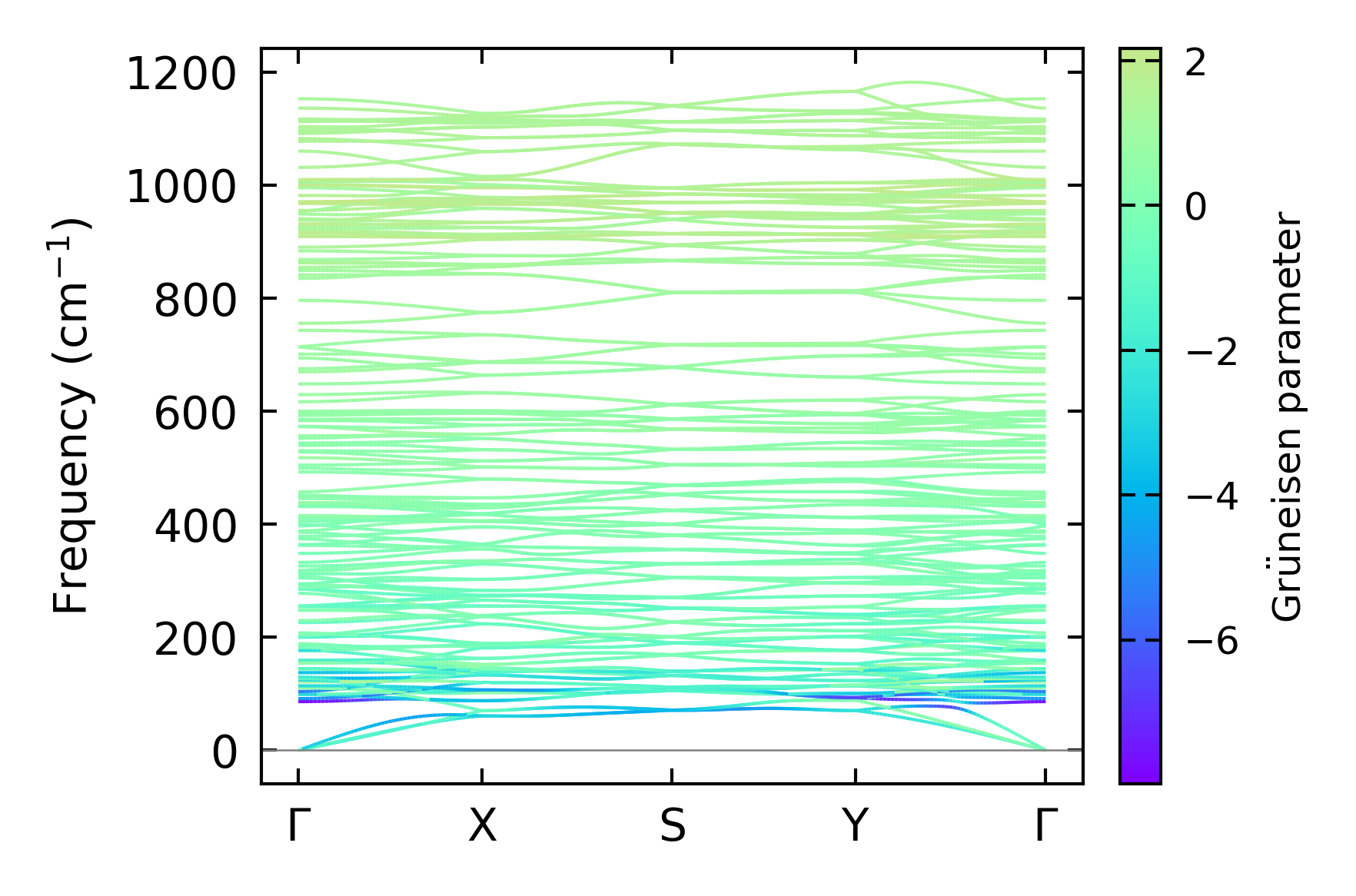

../../_images/fig_gruneisen2689.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 8x9x8, supercell: 1x2x1

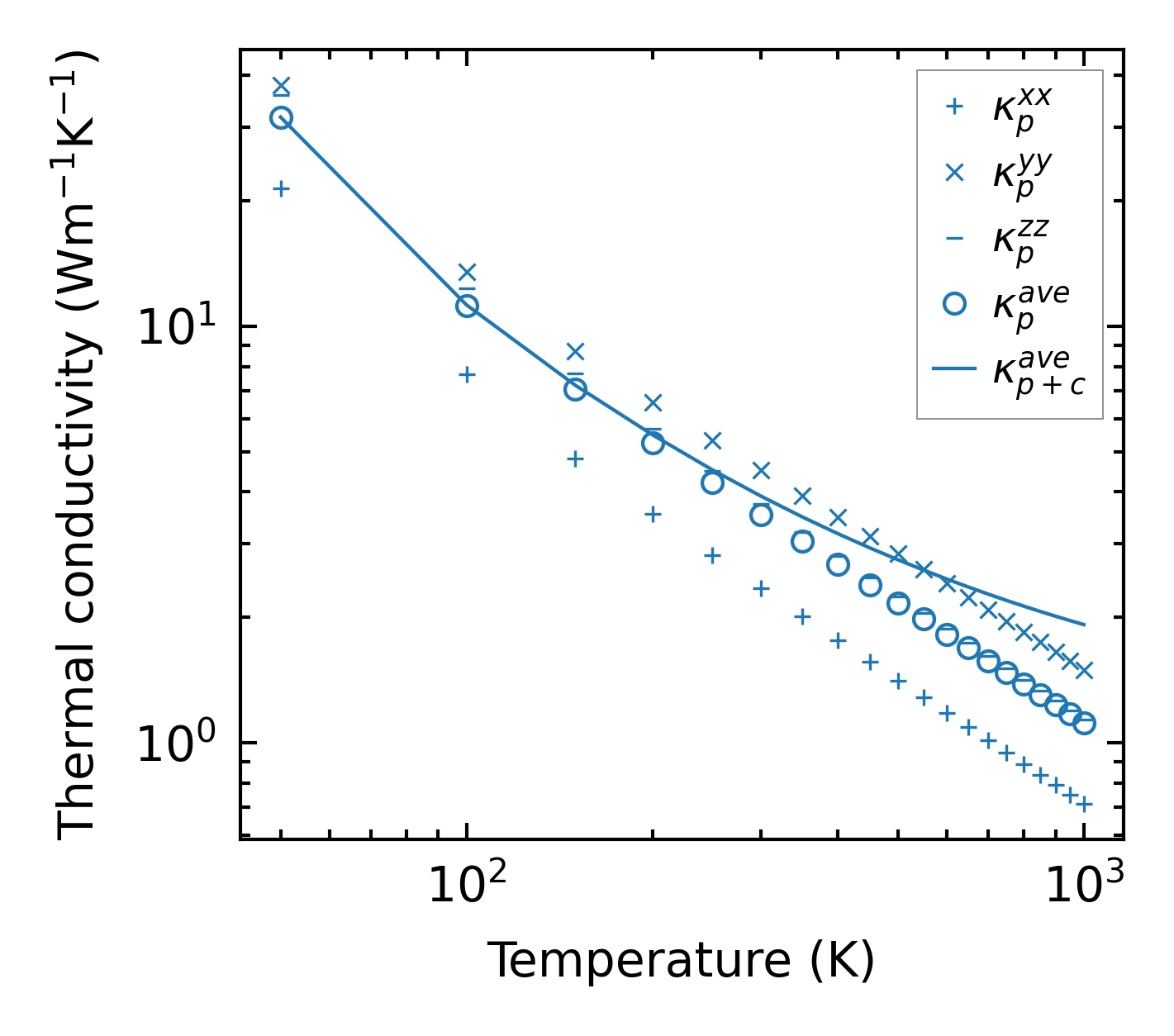

../../_images/fig_kappa5110.png — (a) Temperature-dependent lattice thermal conductivity

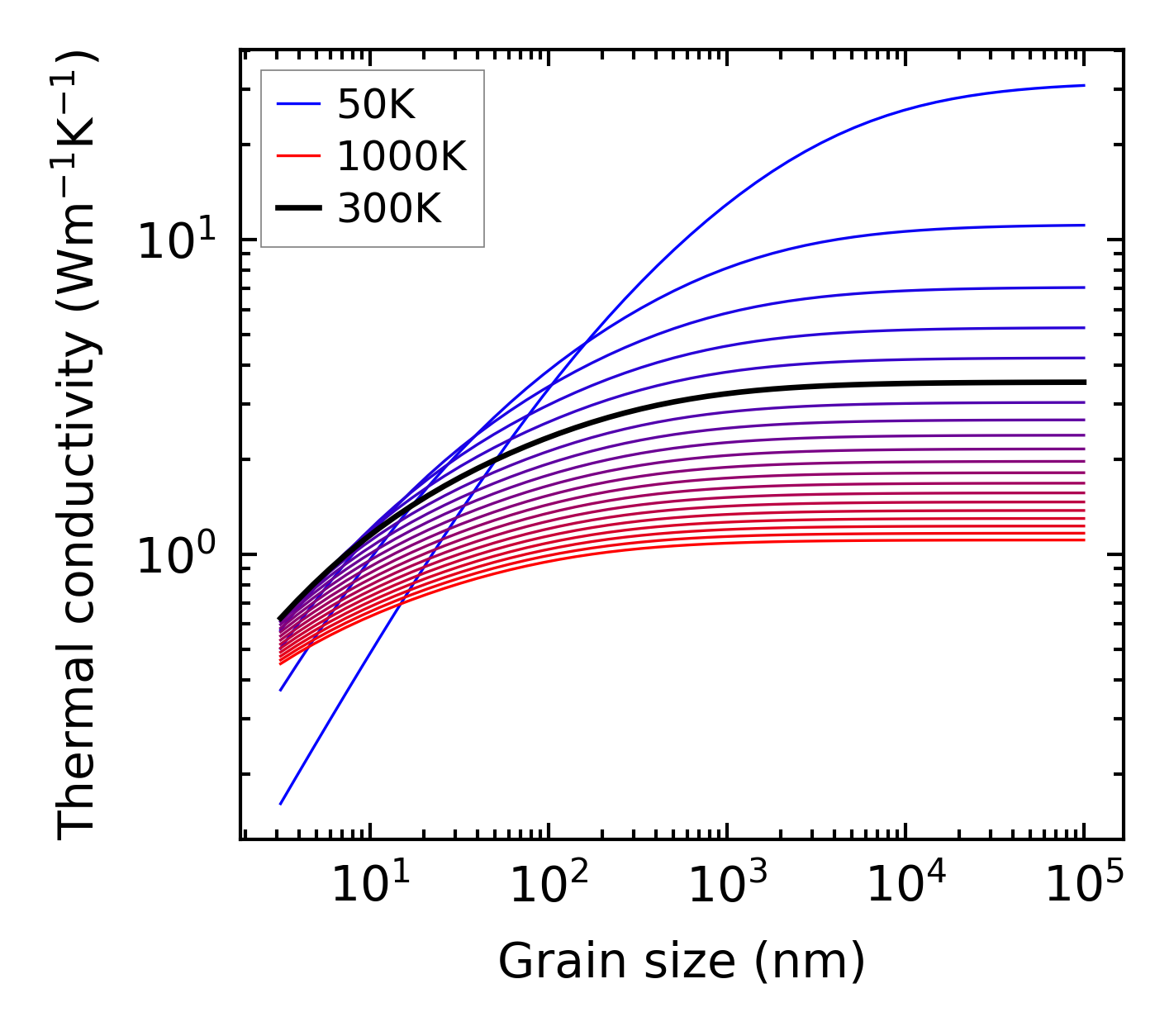

../../_images/fig_kappa_vs_grain_size2726.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

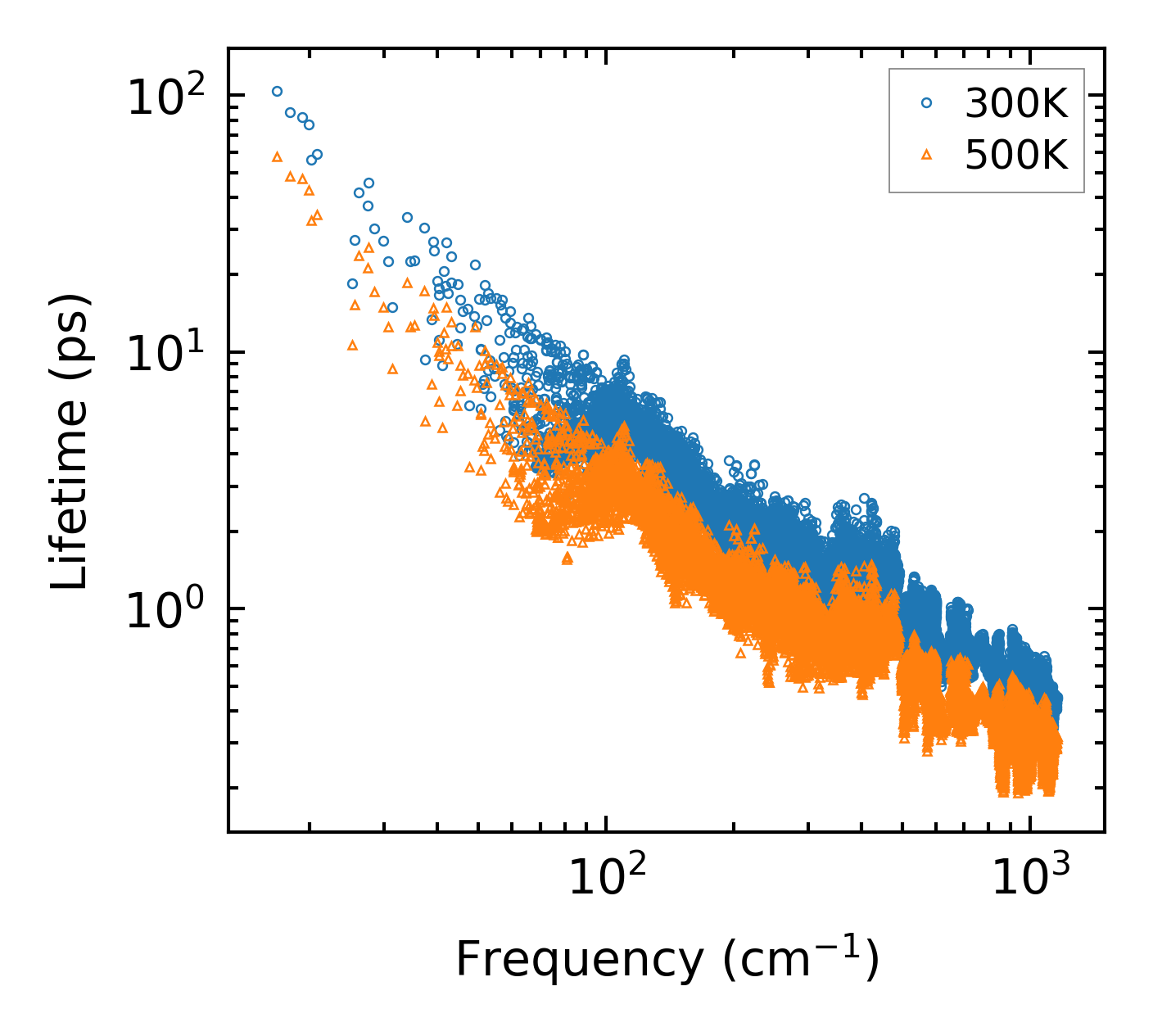

../../_images/fig_lifetime2665.png — (a) Phonon lifetime due to phonon-phonon scattering

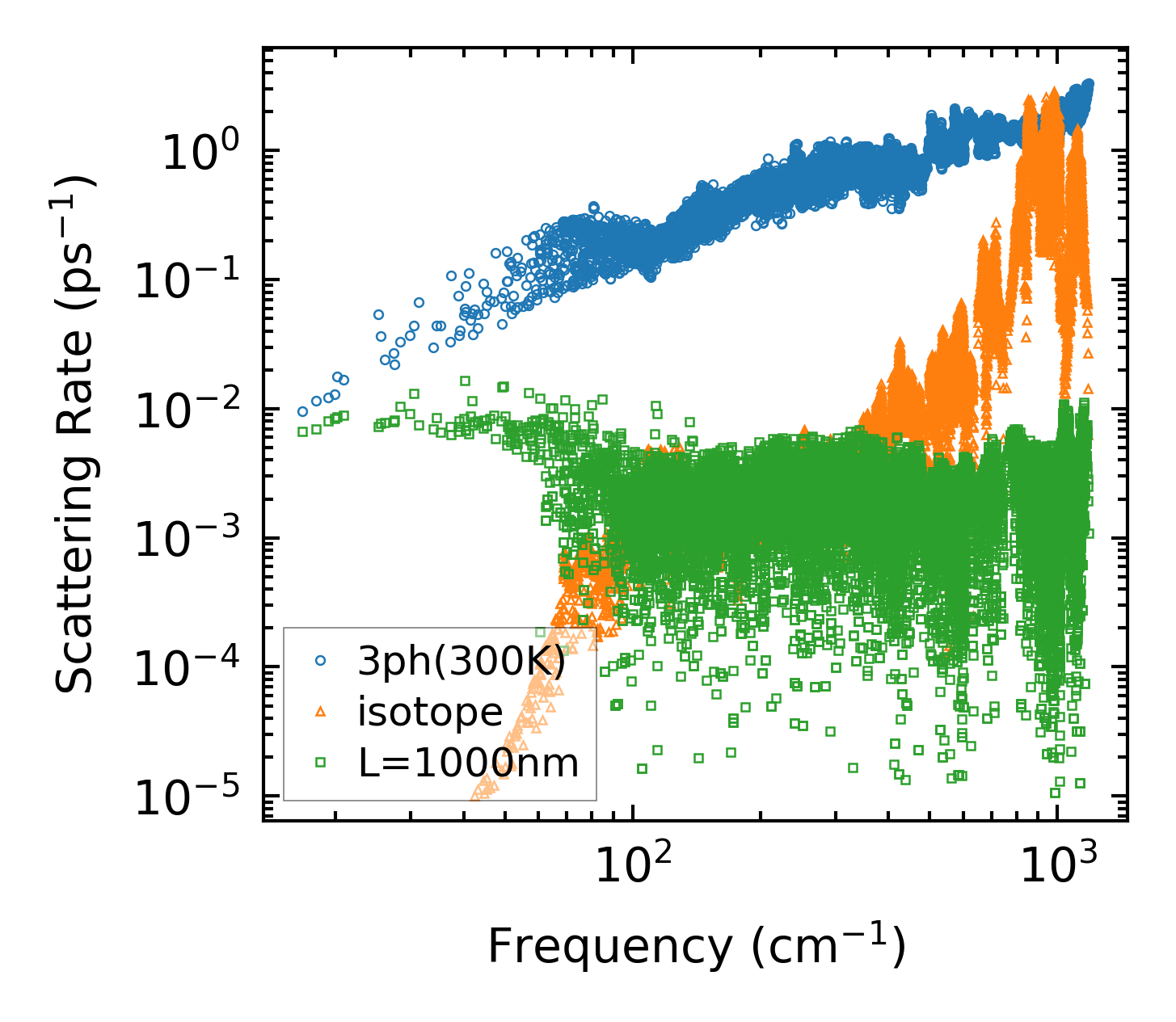

../../_images/fig_scat_rates2664.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

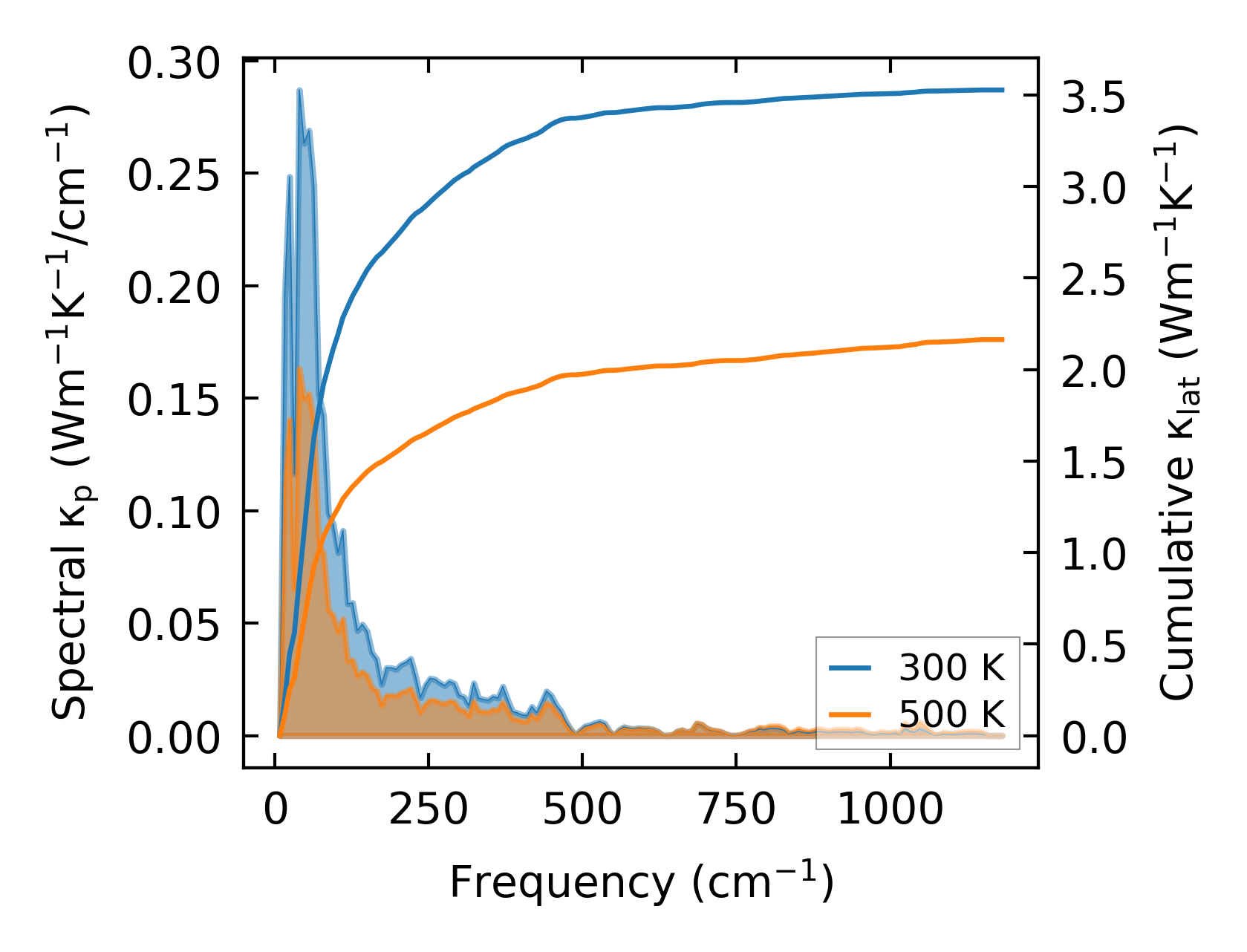

../../_images/fig_cumu_frequency2665.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

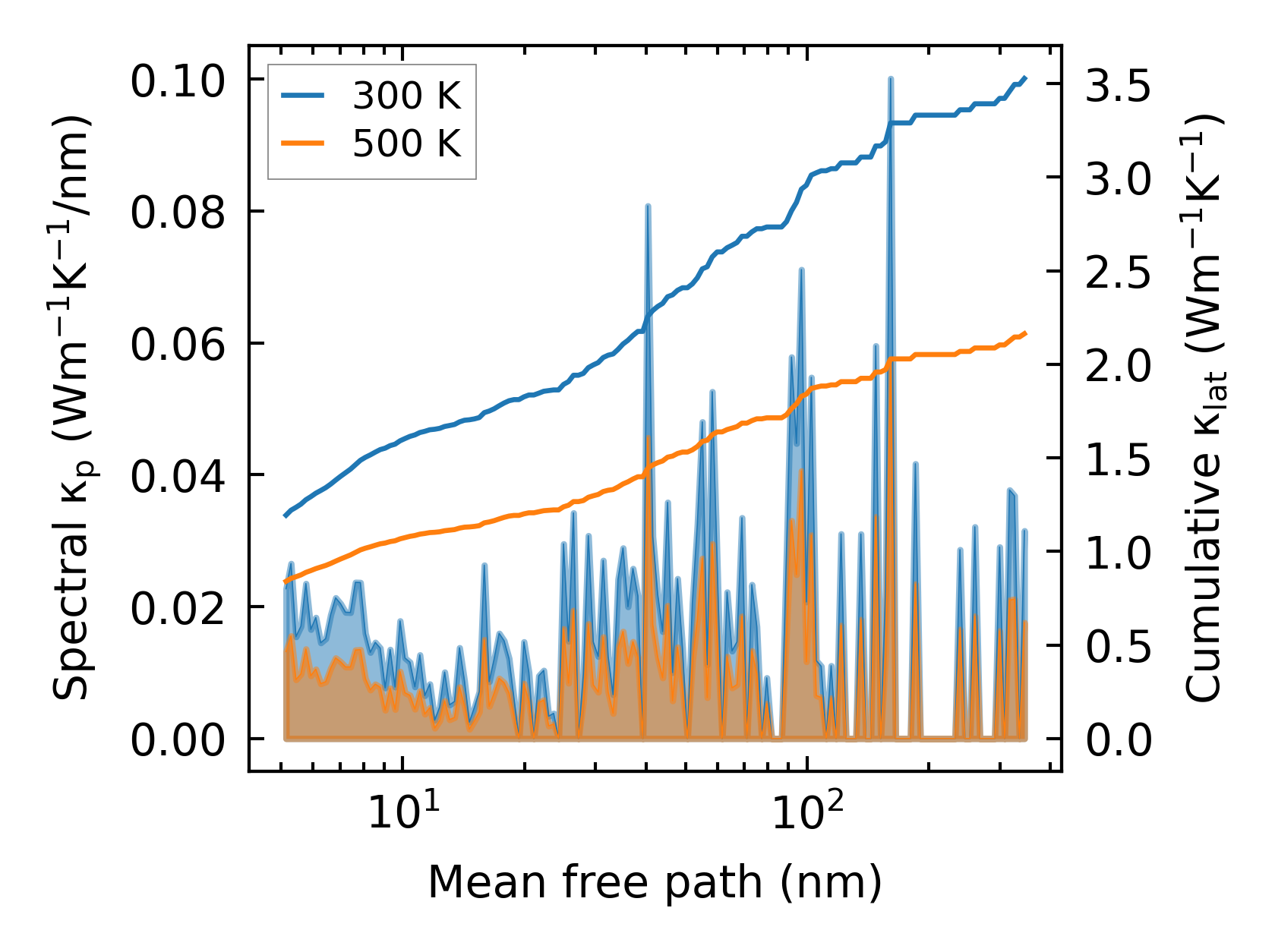

../../_images/fig_cumu_mfp2664.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

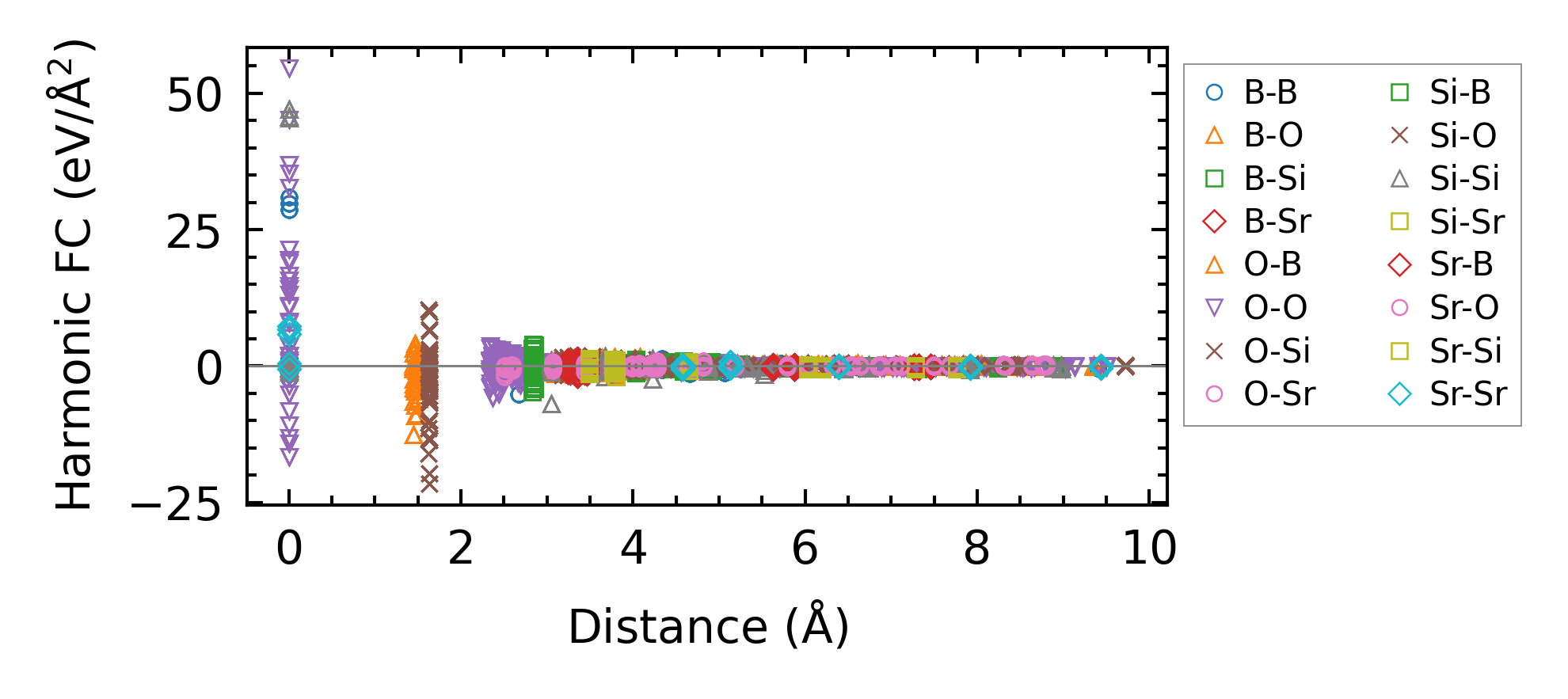

../../_images/fig_fc26386.png — (a) Force constants w.r.t atomic distance

Summary

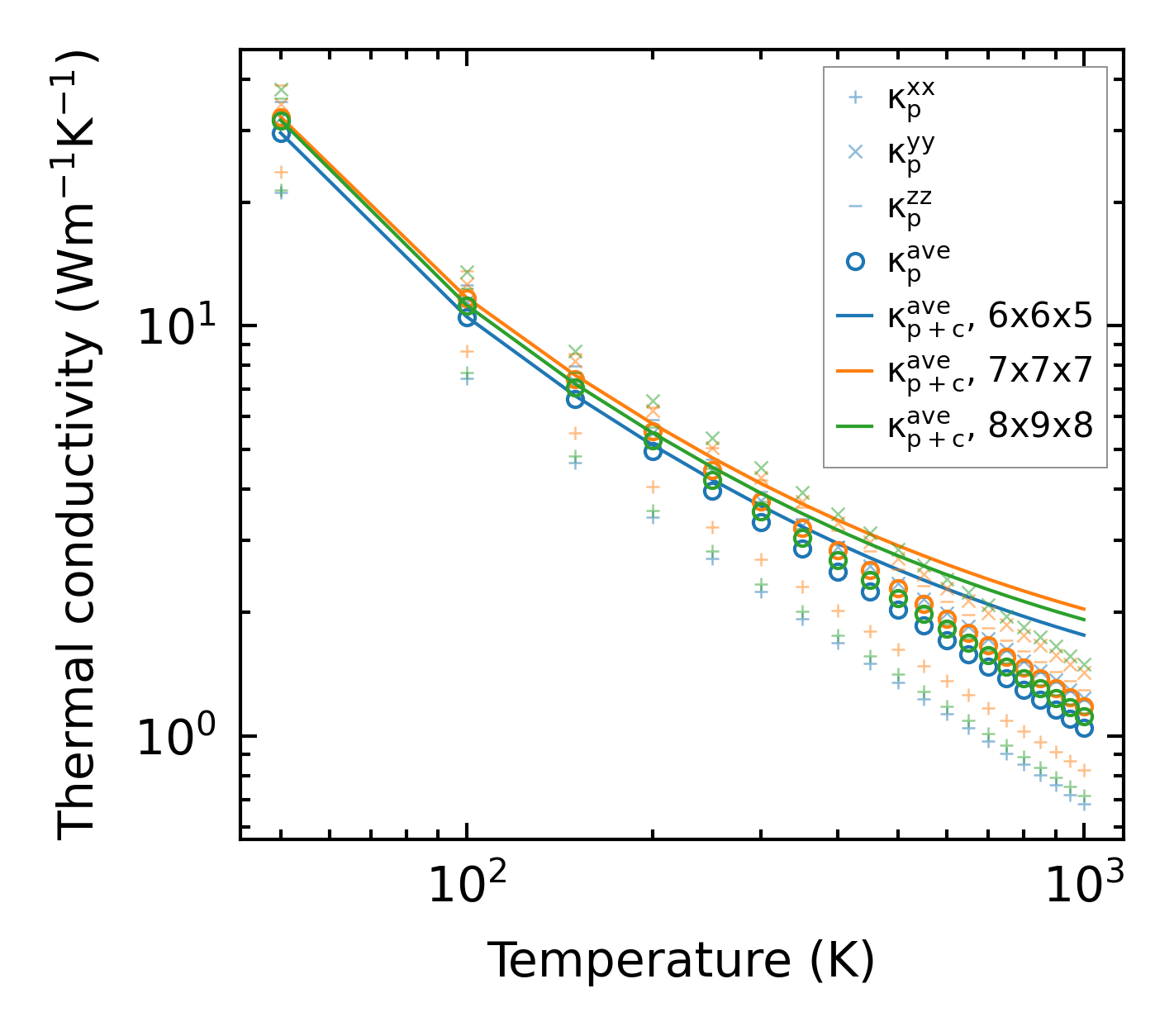

../../_images/fig_kappa5111.png — (a) Temperature-dependent lattice thermal conductivity

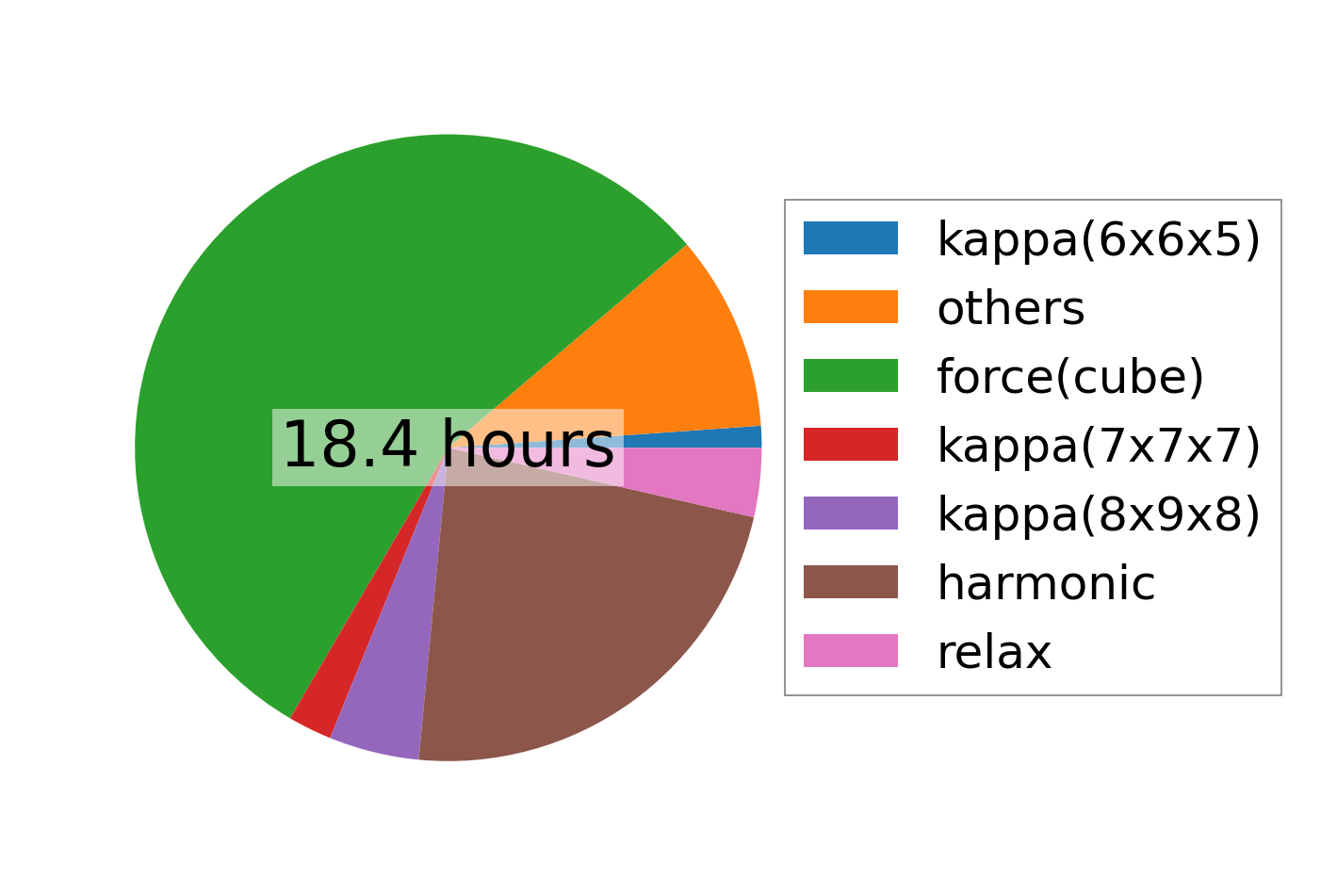

../../_images/fig_times11846.png — (b) Computation time
