mp-6753-2/Ca5Si2C2O13/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-6753-2.tar.gz

Equation of state

../../_images/fig_bm3241.png — (a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr6144.png — (a) Phonon dispersion with participation ratio and DOS

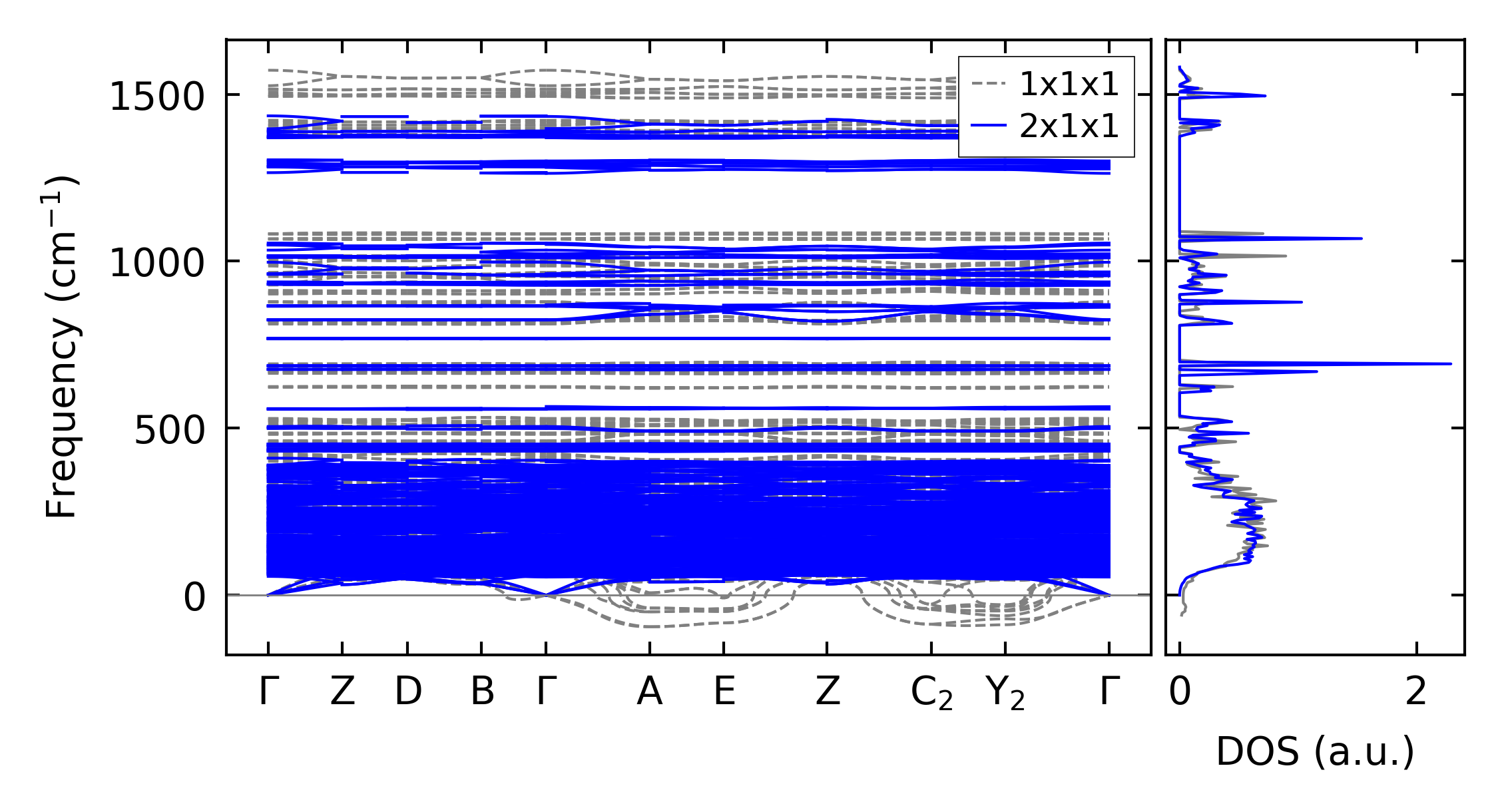

../../_images/fig_bandos9012.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo6144.png — (c) Thermodynamic properties

Grüneisen parameters

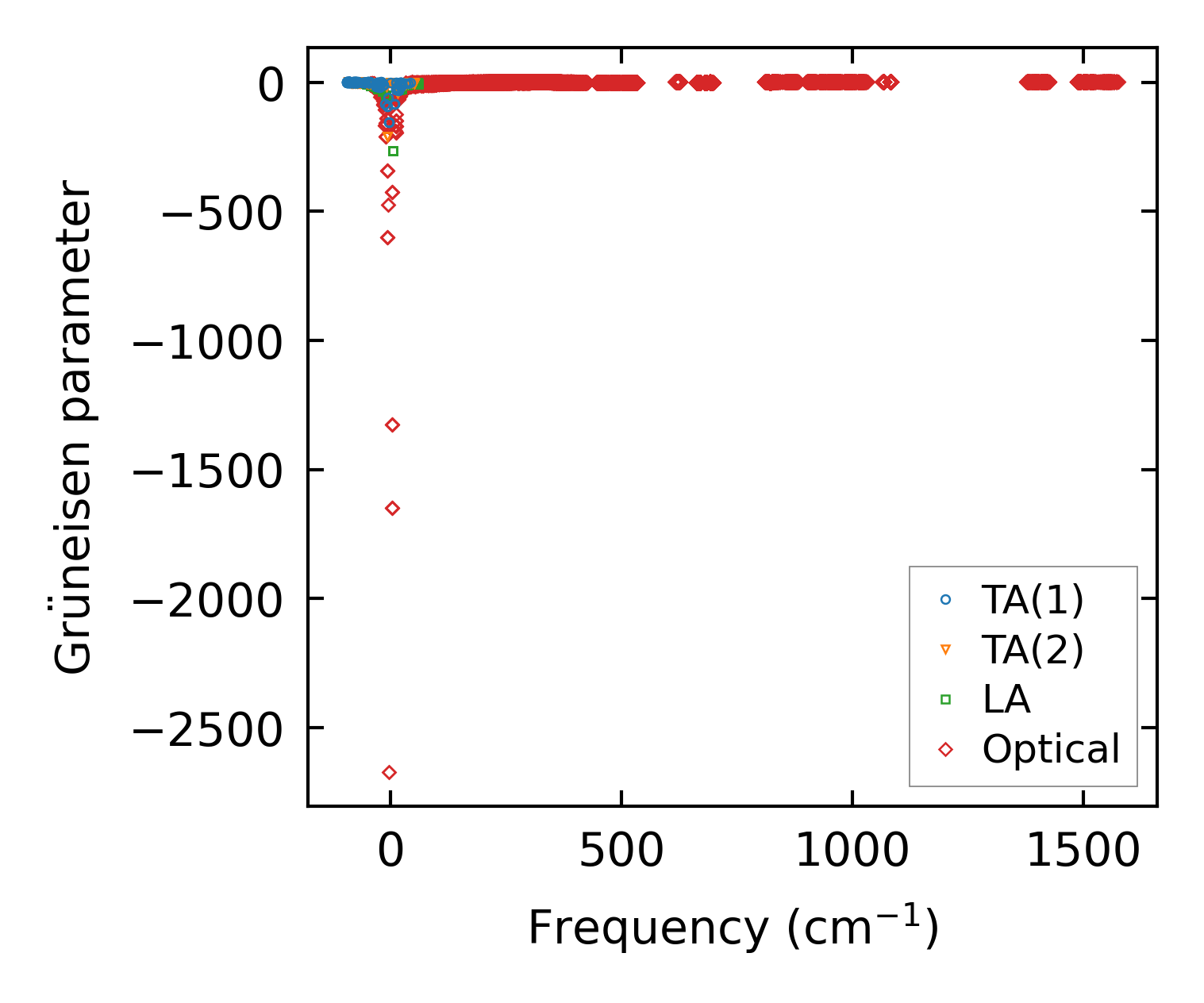

../../_images/fig_gru_all2494.png — (a) Grüneisen parameters

../../_images/fig_gruneisen2494.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x1x1 — q-mesh: 9x7x4, supercell: 2x1x1

../../_images/fig_kappa4746.png — (a) Temperature-dependent lattice thermal conductivity

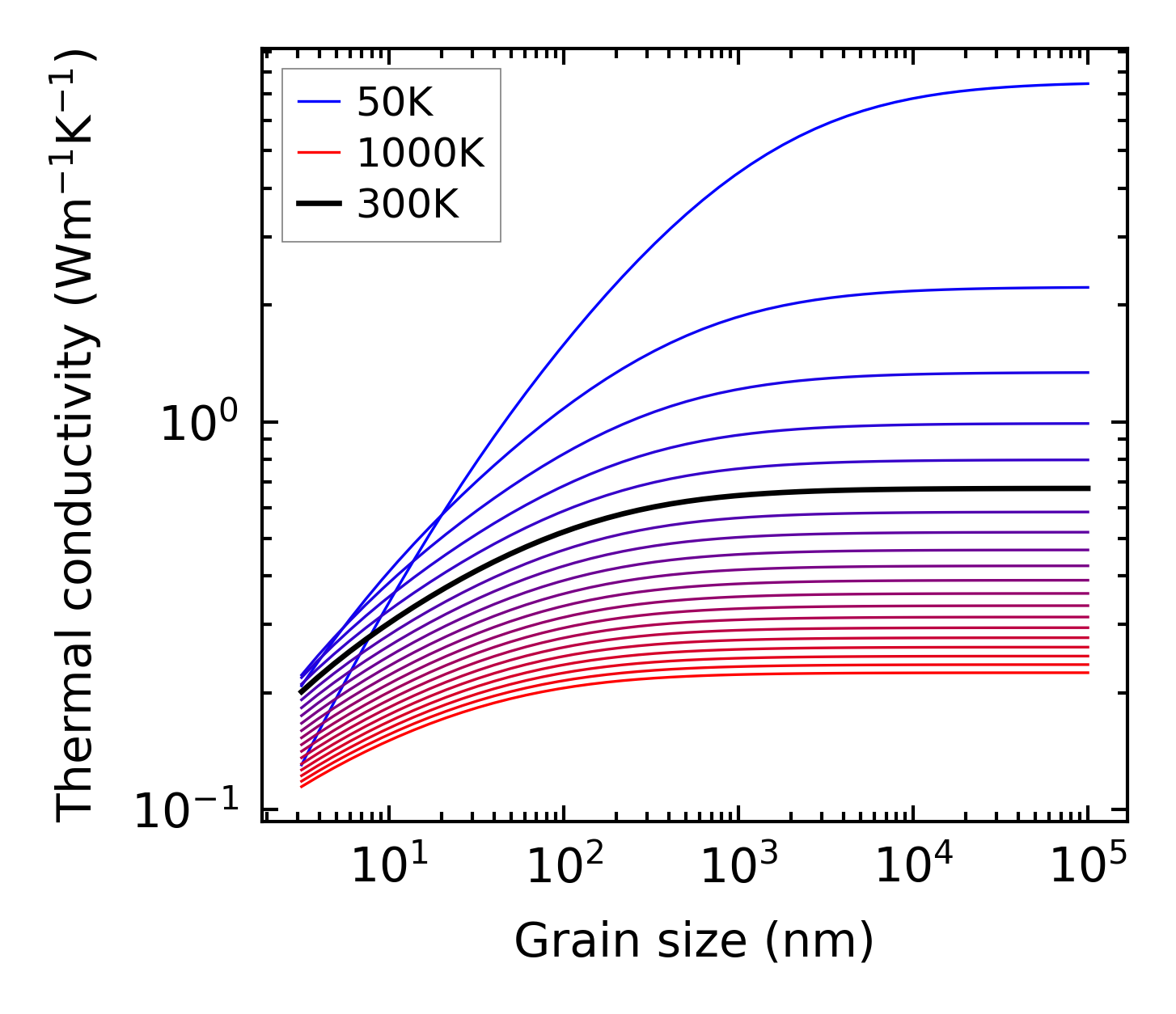

../../_images/fig_kappa_vs_grain_size2524.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

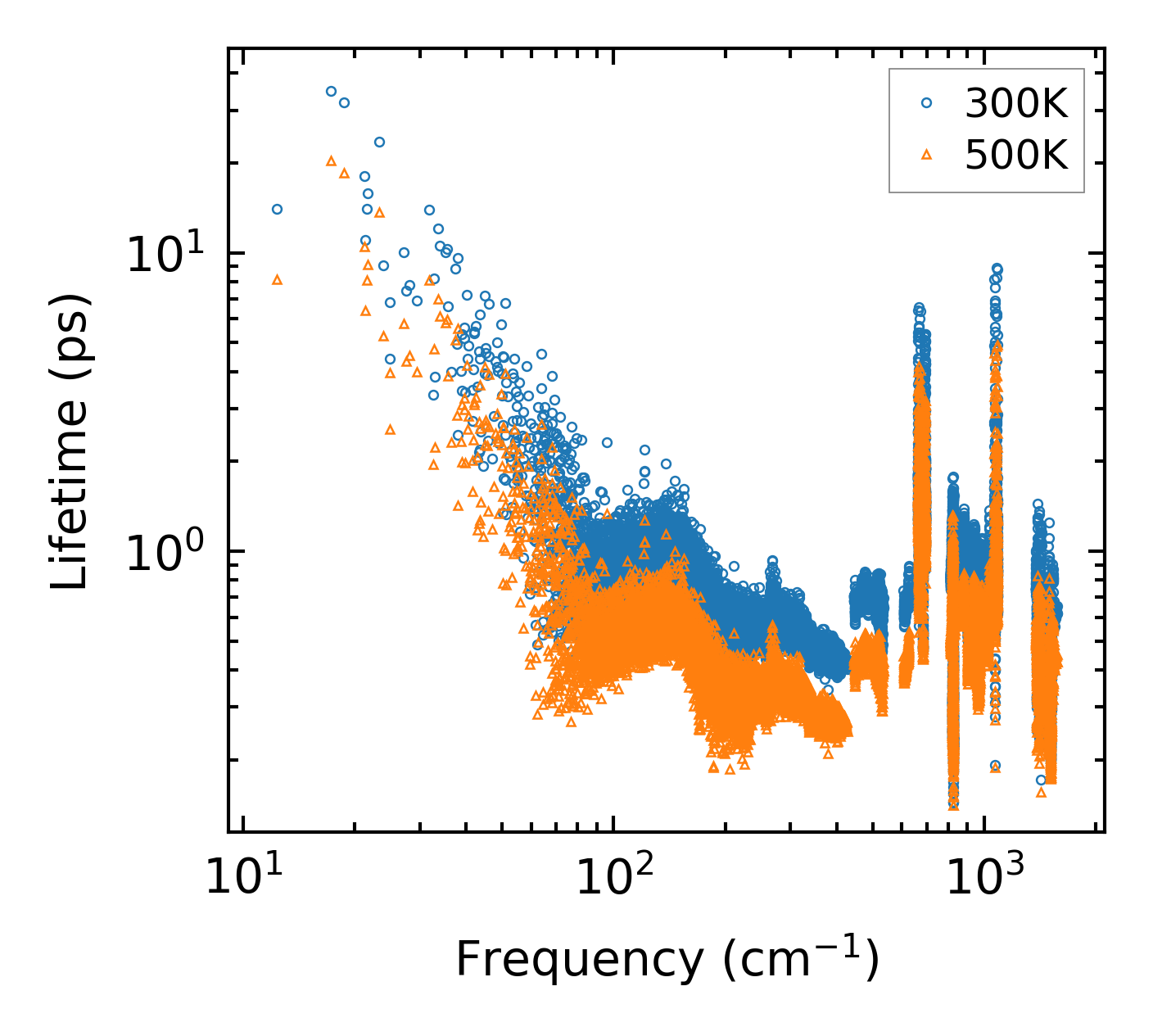

../../_images/fig_lifetime2476.png — (a) Phonon lifetime due to phonon-phonon scattering

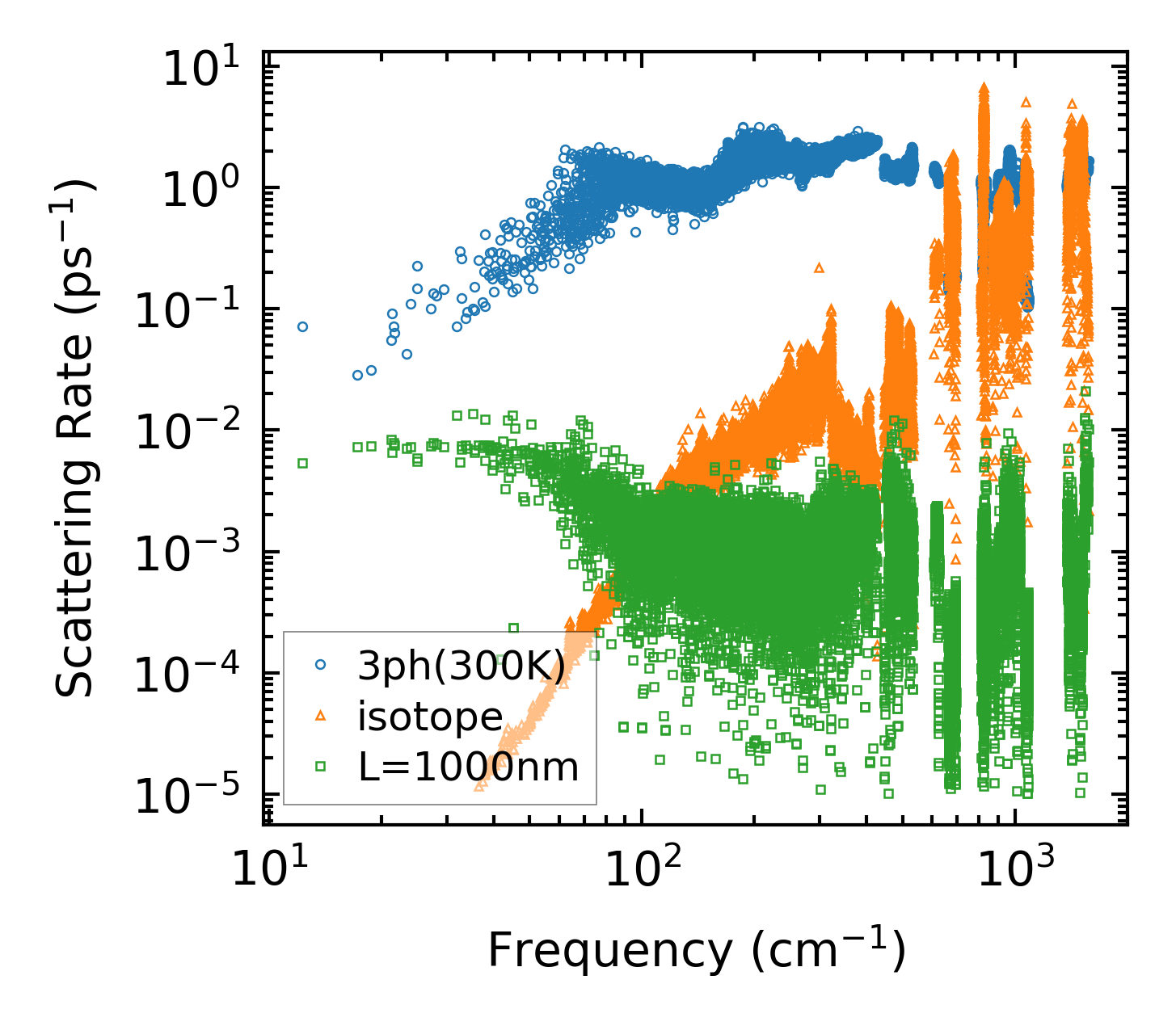

../../_images/fig_scat_rates2475.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

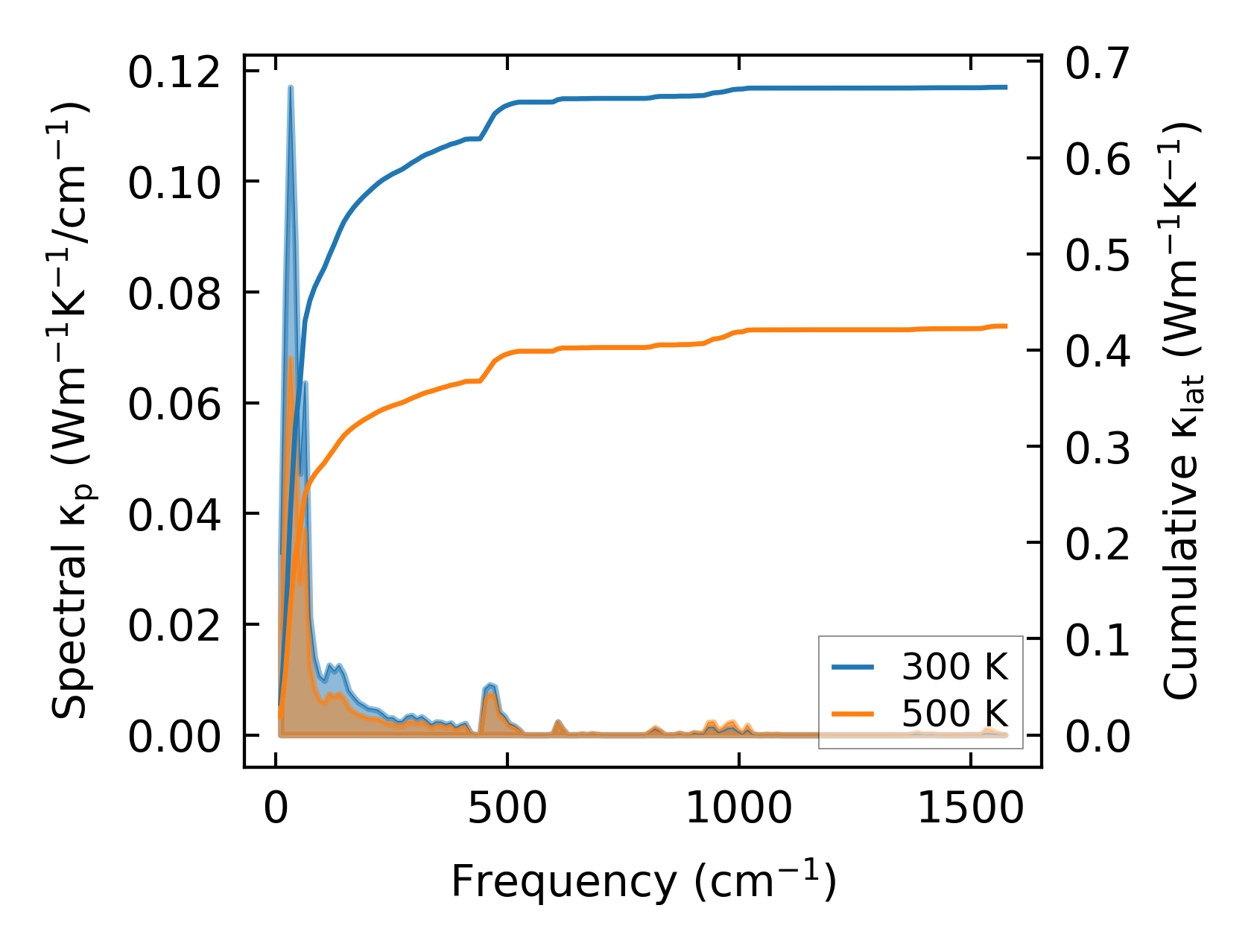

../../_images/fig_cumu_frequency2476.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

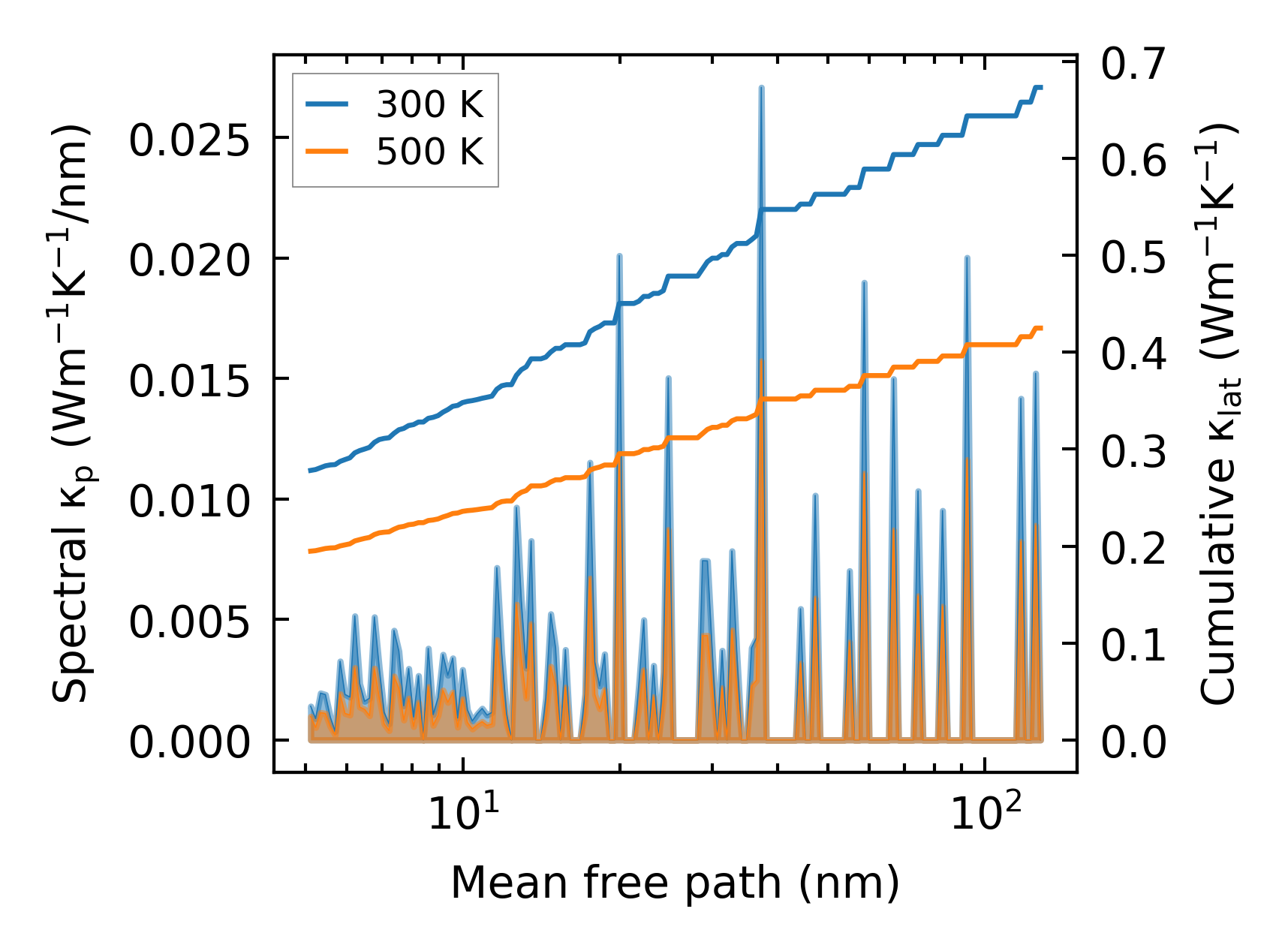

../../_images/fig_cumu_mfp2475.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc25935.png — (a) Force constants w.r.t atomic distance

Summary

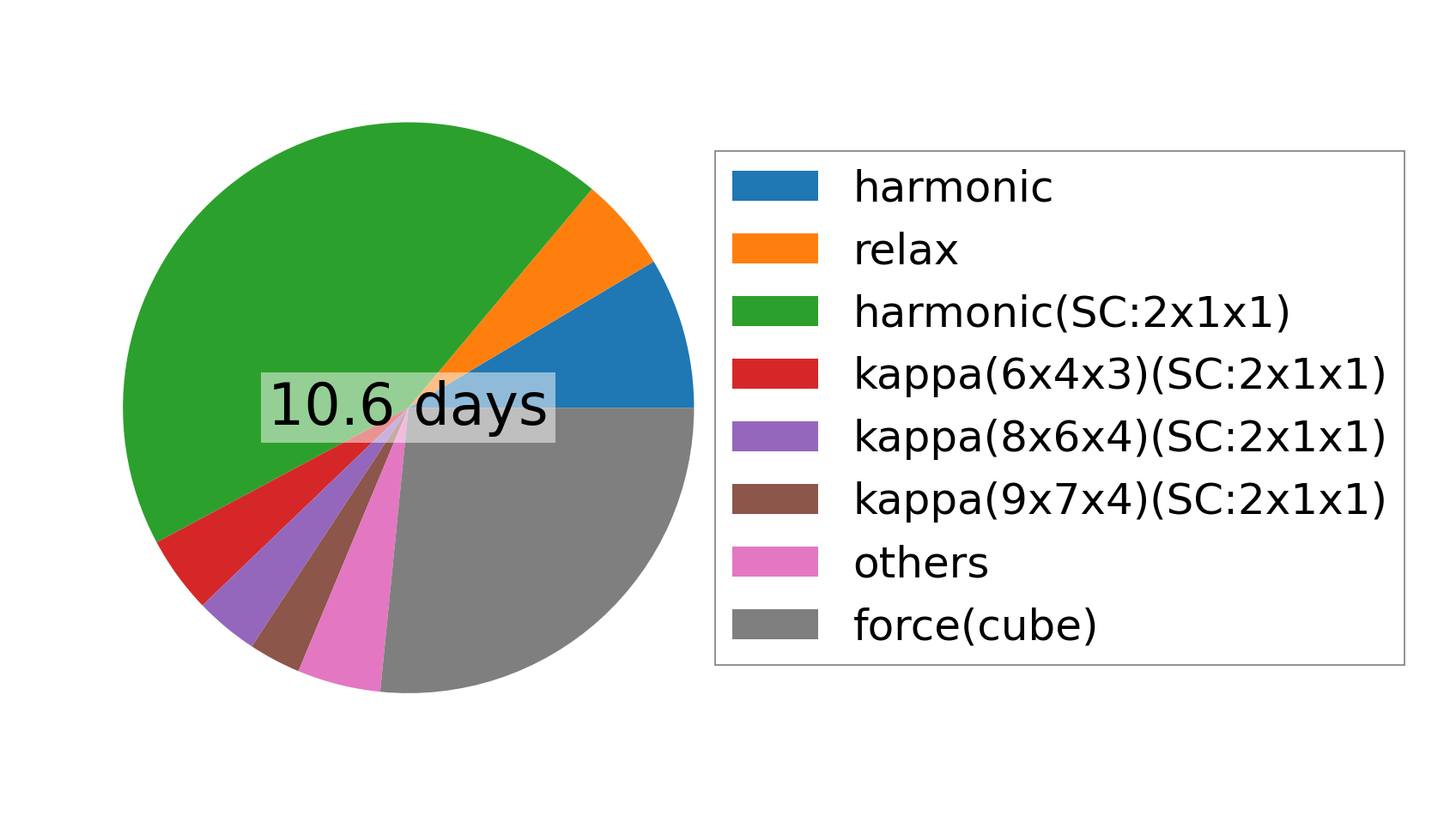

../../_images/fig_times11210.png — (a) Computation time
