mp-6511-3/KCSN/anharm

Space group: Pbcm (57)
Link: Materials Project
Download: mp-6511-3.tar.gz

Equation of state

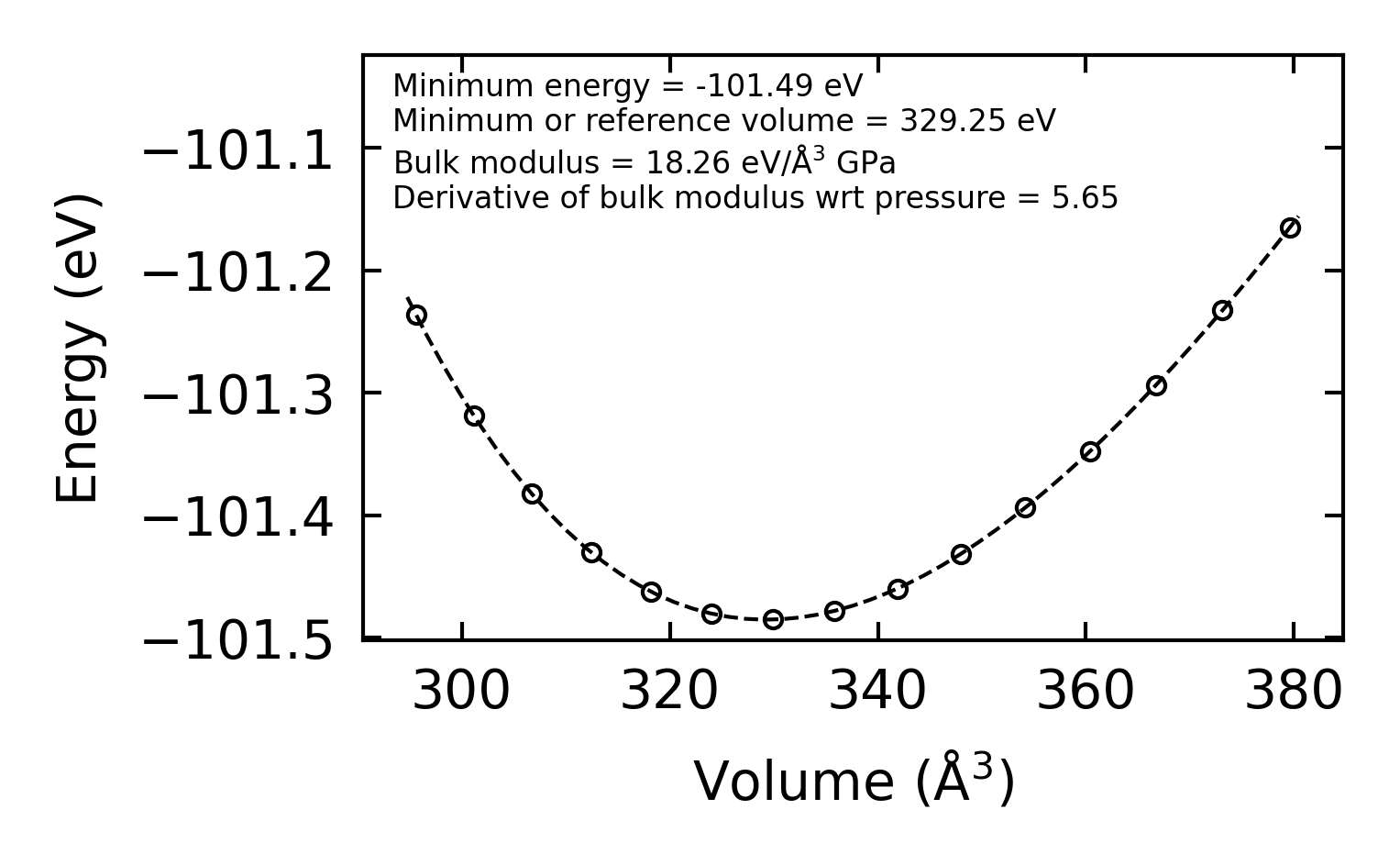

../../_images/fig_bm3418.png — (a) Equation of state

Harmonic properties

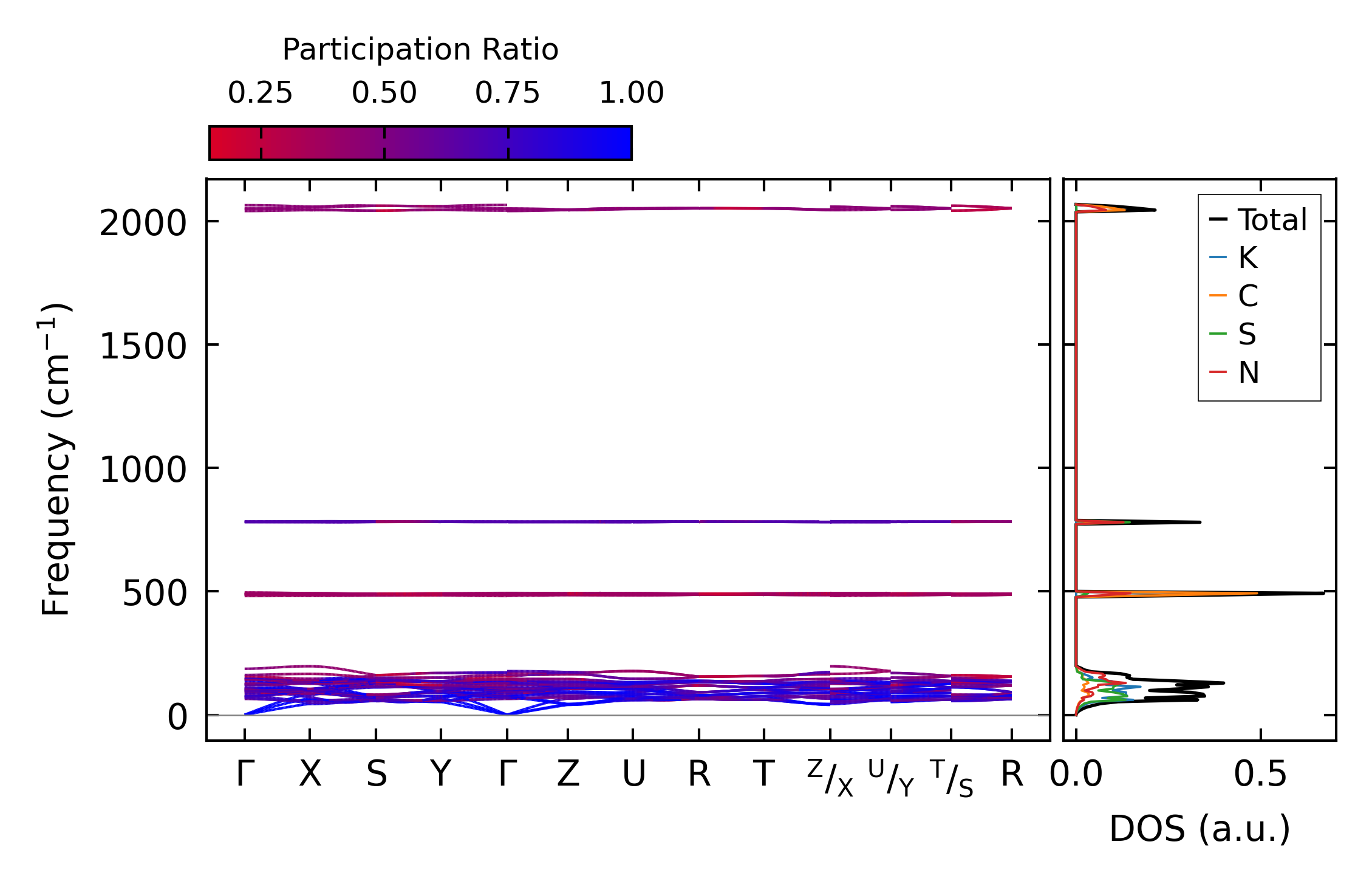

../../_images/fig_bandos_pr6455.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo6455.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all2634.png — (a) Grüneisen parameters

../../_images/fig_gruneisen2634.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x9, supercell: 2x2x2

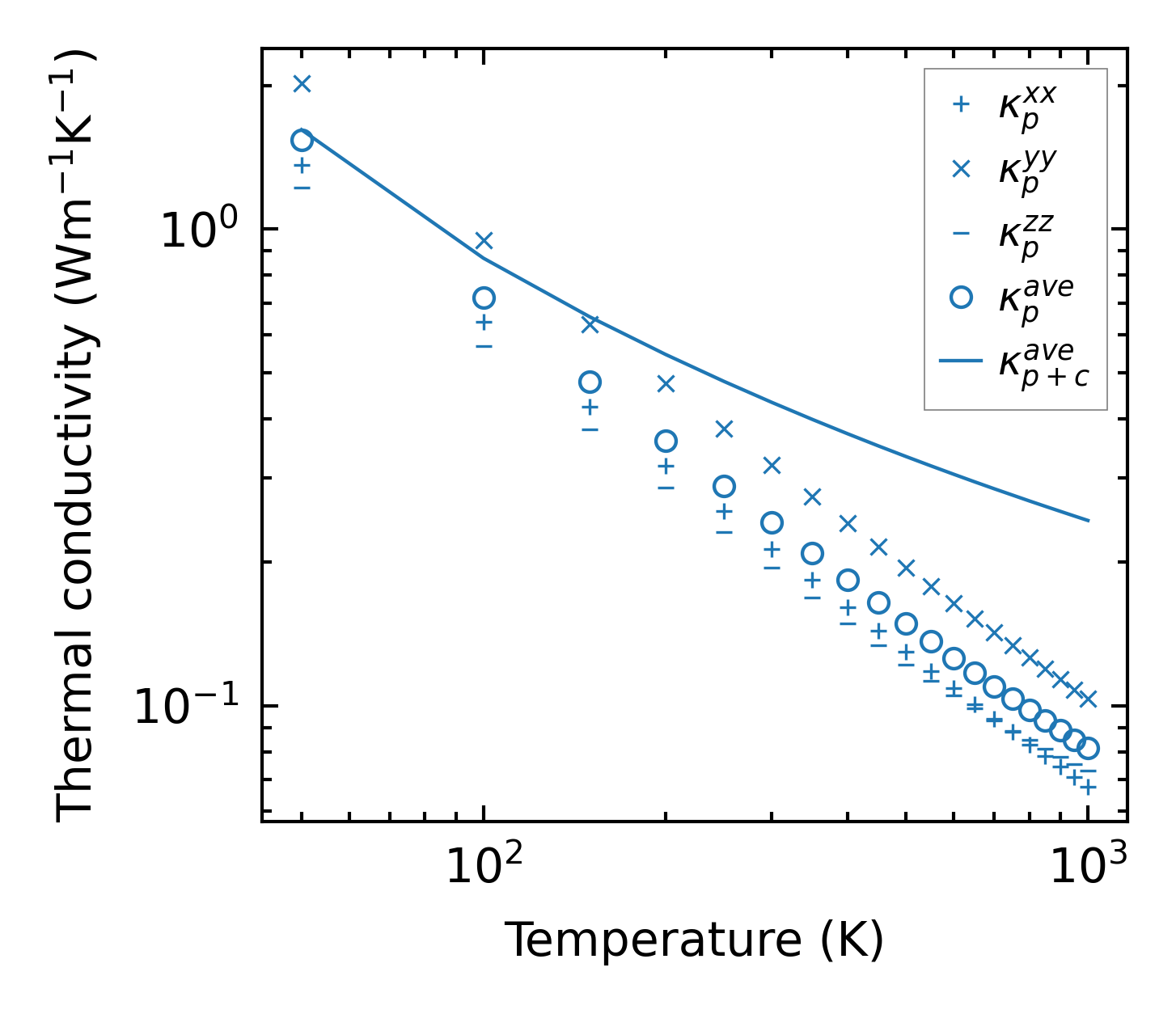

../../_images/fig_kappa5007.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size2670.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime2612.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates2611.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

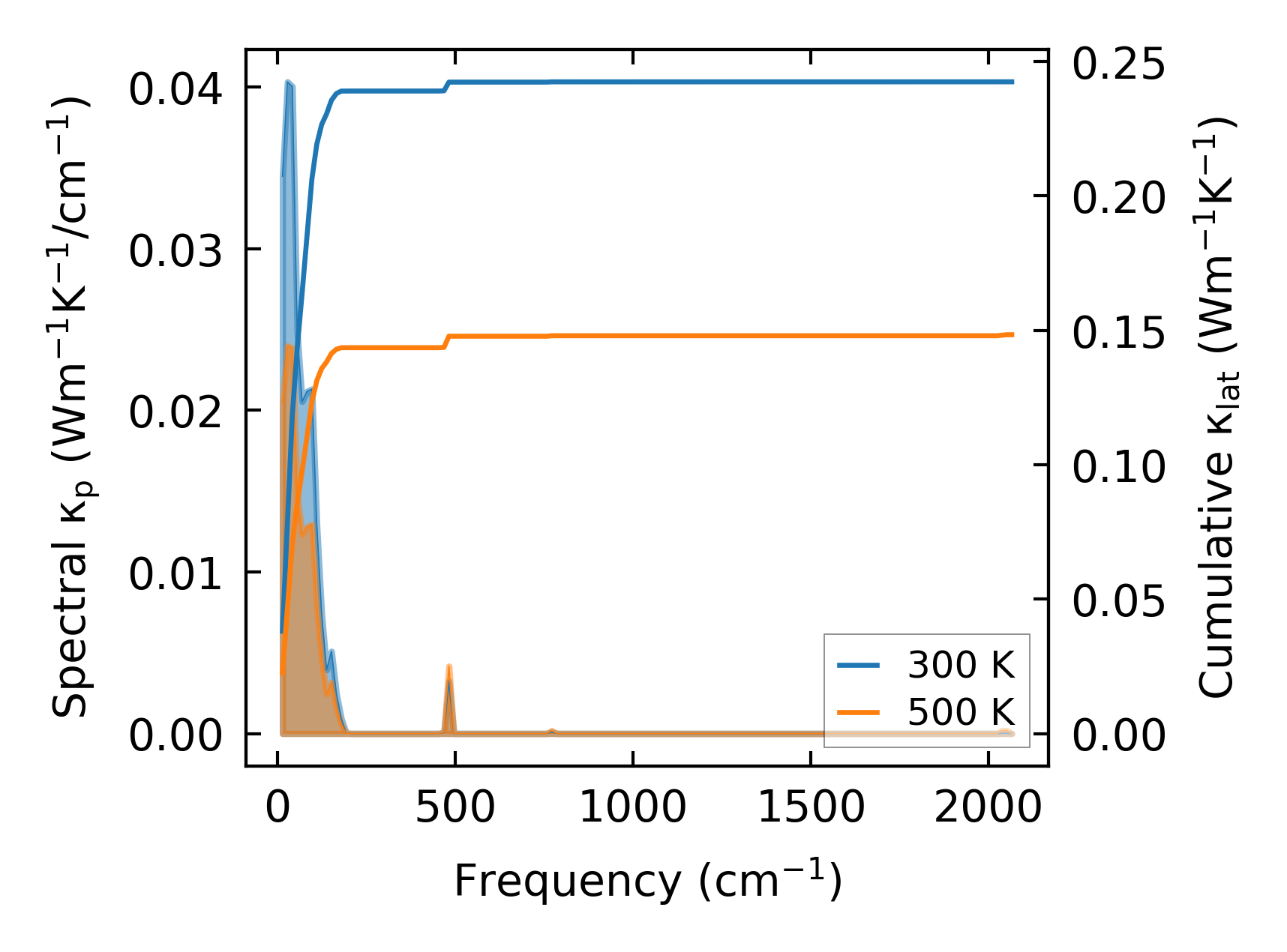

../../_images/fig_cumu_frequency2612.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

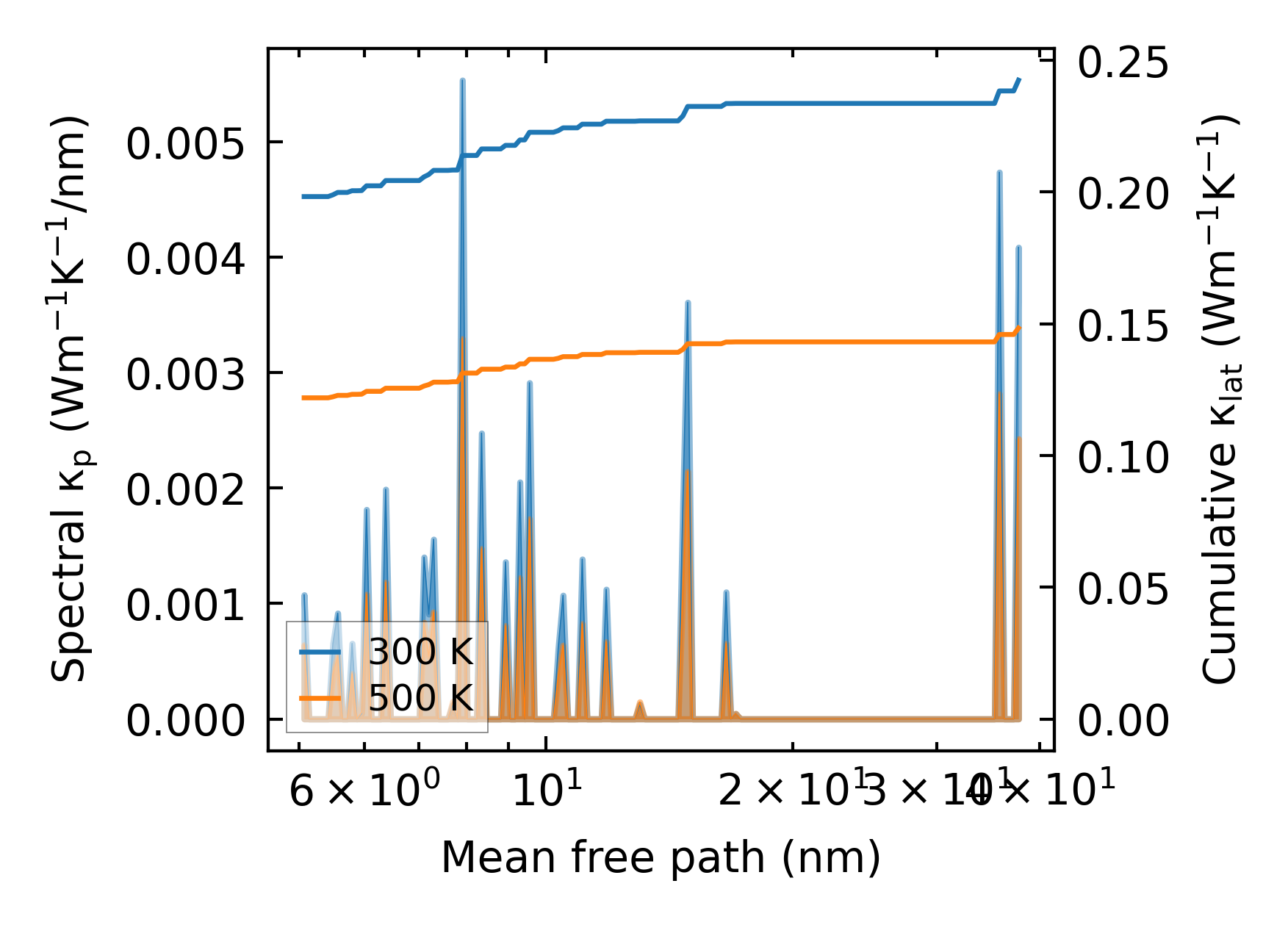

../../_images/fig_cumu_mfp2611.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

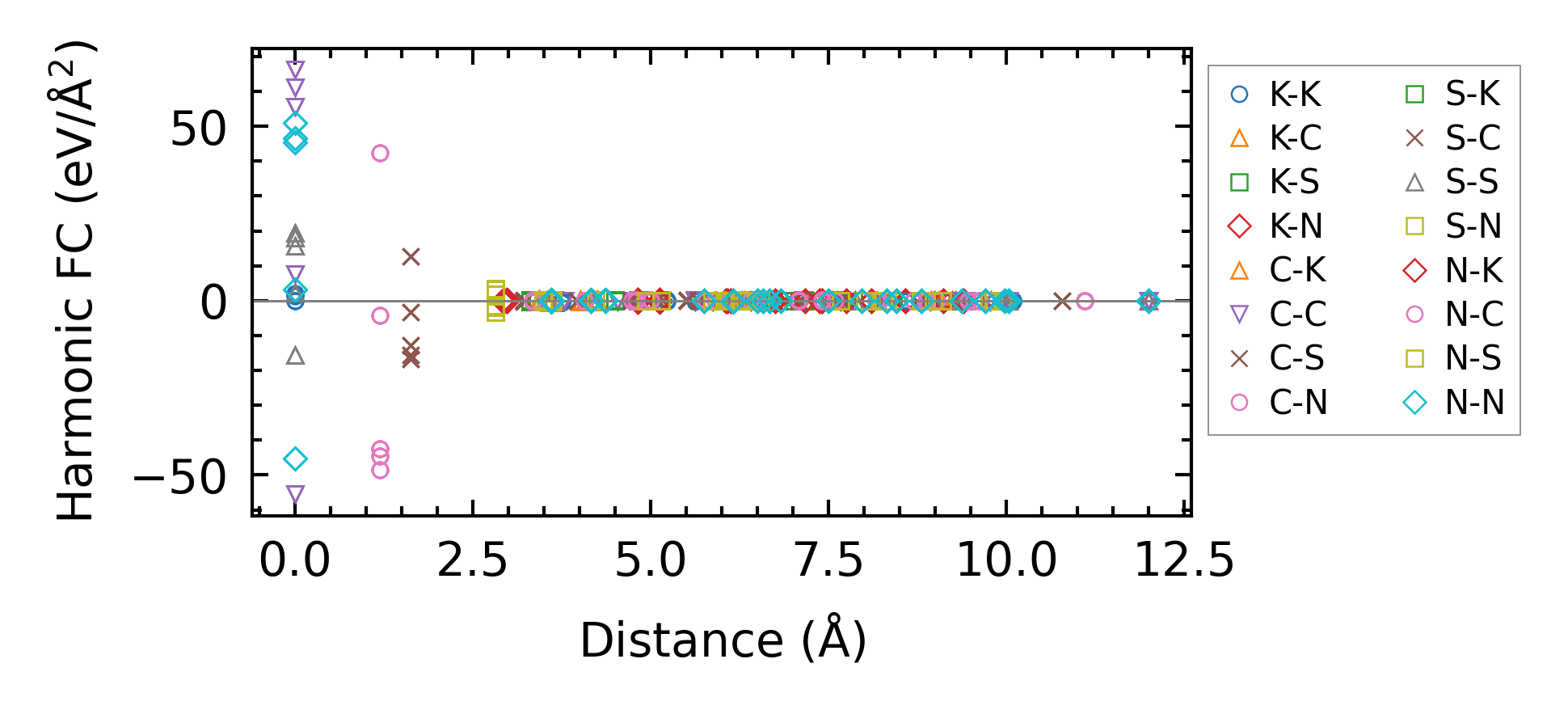

../../_images/fig_fc26245.png — (a) Force constants w.r.t atomic distance

Summary

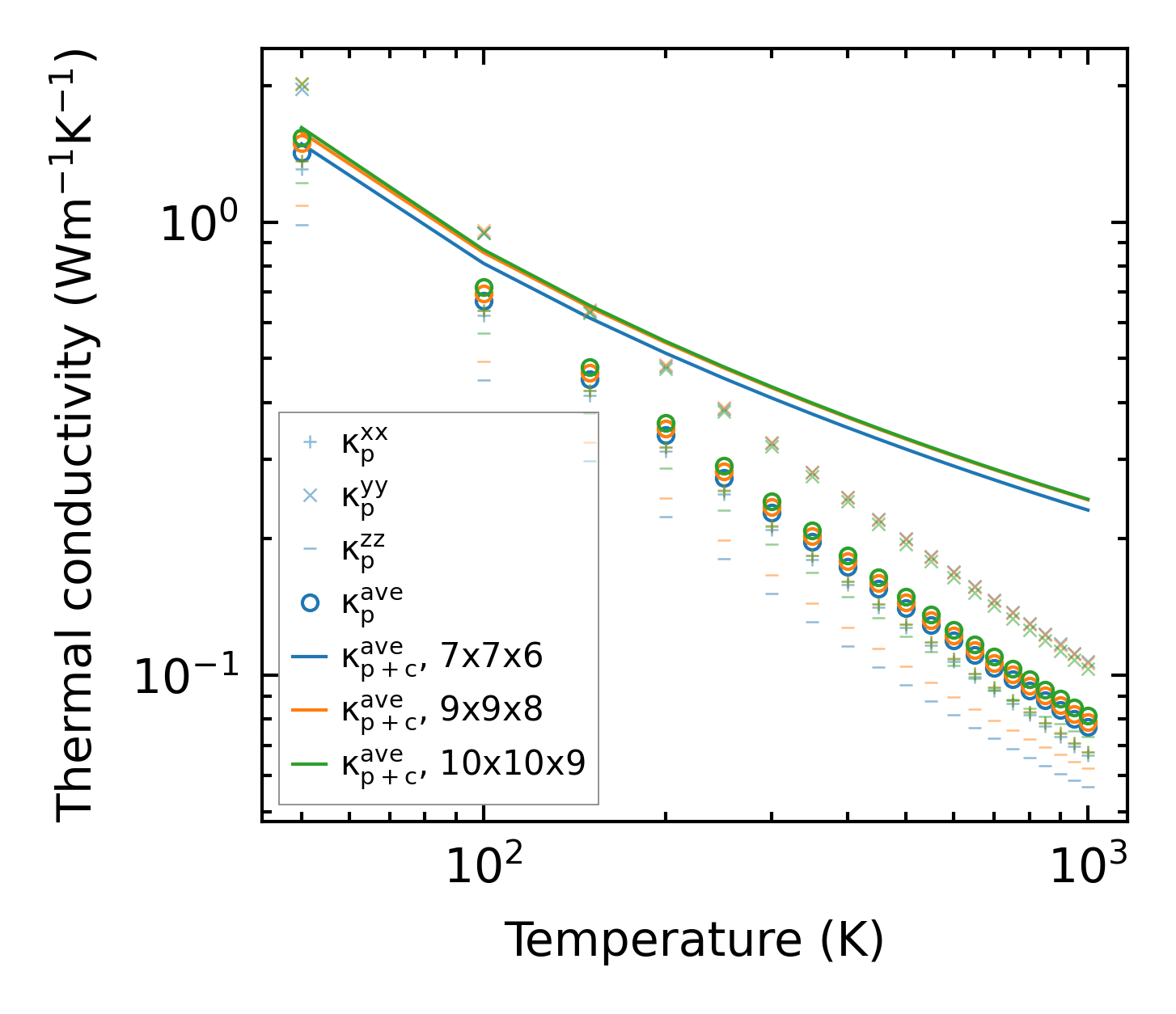

../../_images/fig_kappa5008.png — (a) Temperature-dependent lattice thermal conductivity

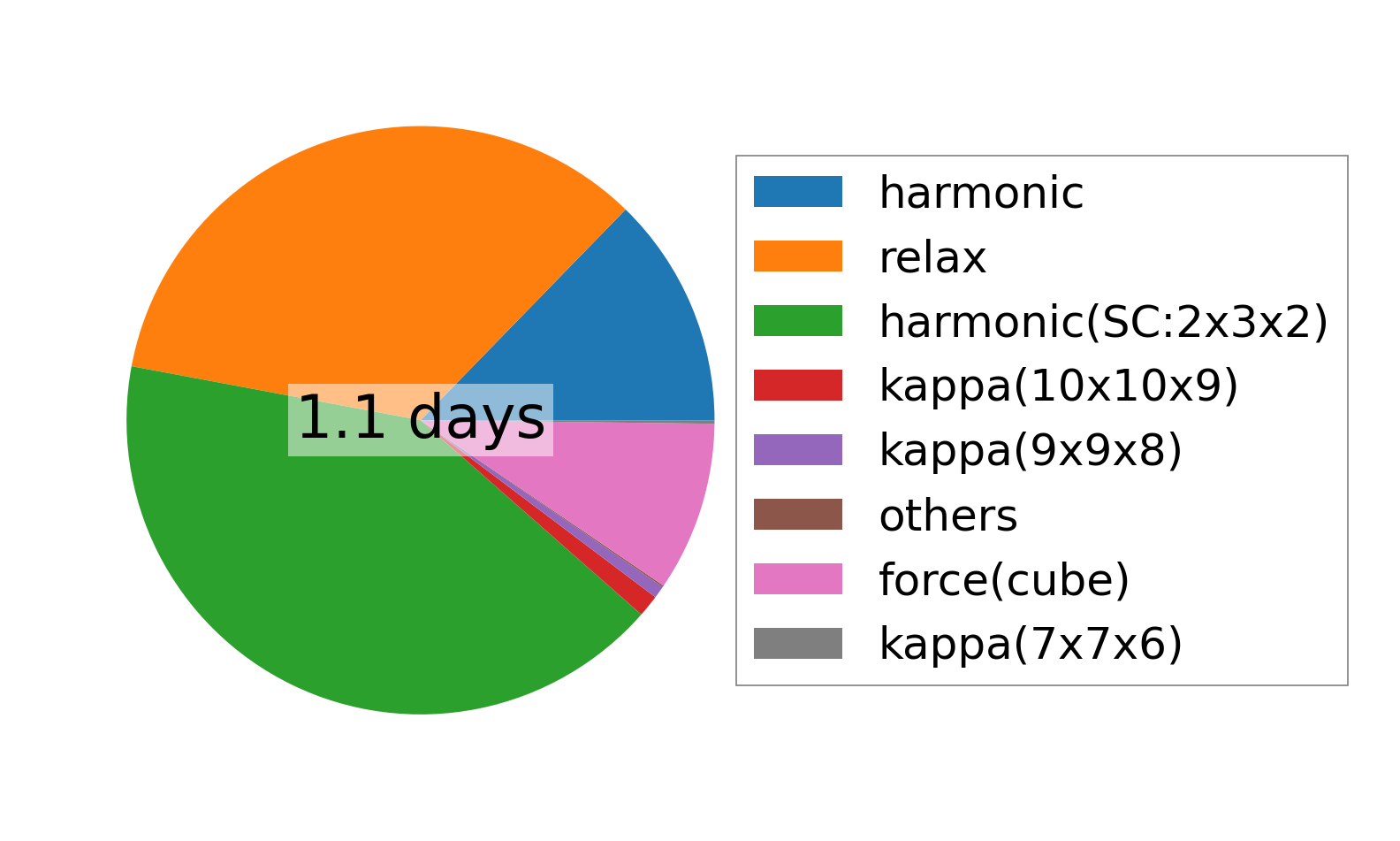

../../_images/fig_times11612.png — (b) Computation time
