mp-6124/NaAlSi2O6/anharm

Space group: C2/c (15)
Link: Materials Project
Download: mp-6124.tar.gz

Equation of state

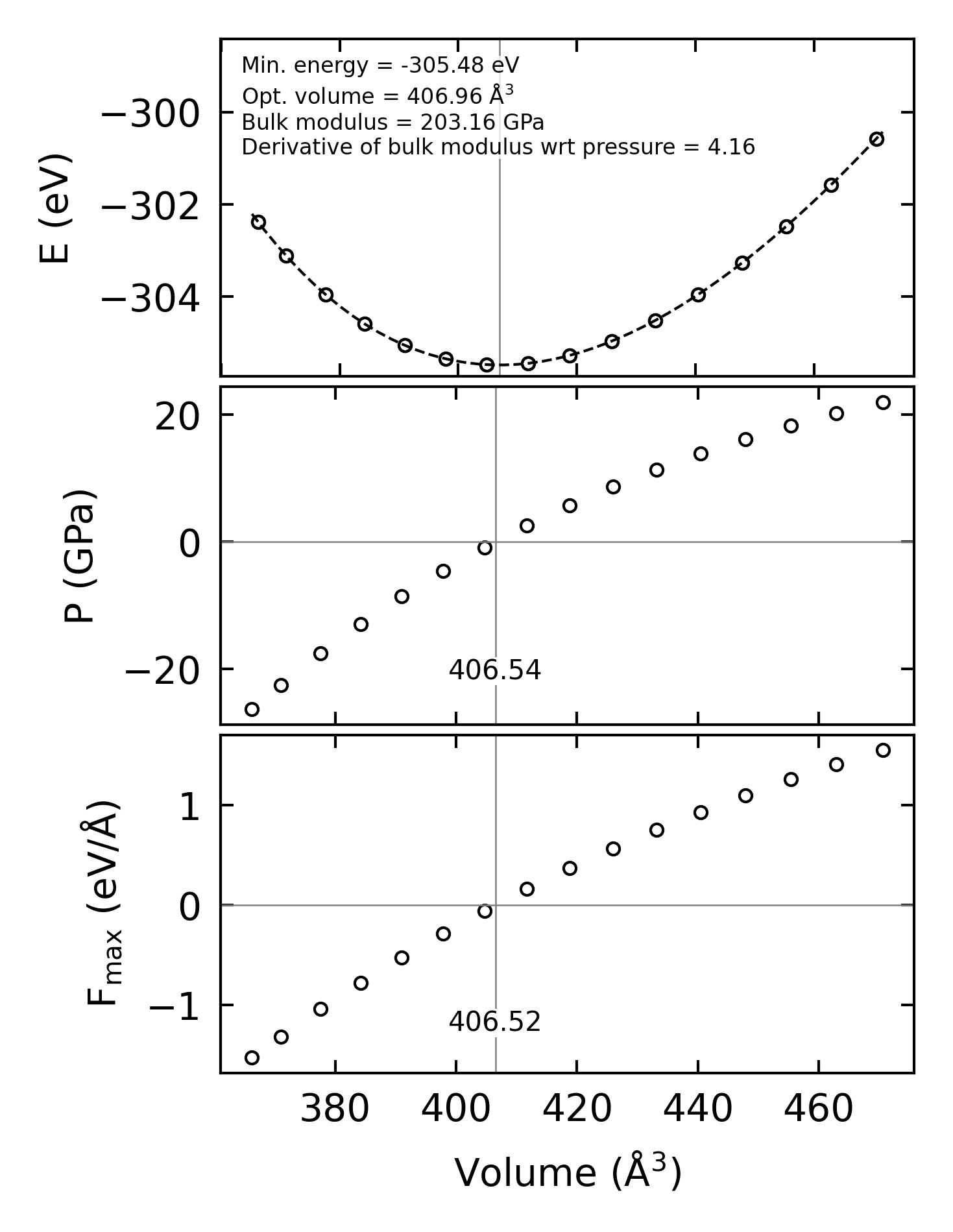

../../_images/fig_bm3549.png — (a) Equation of state

Harmonic properties

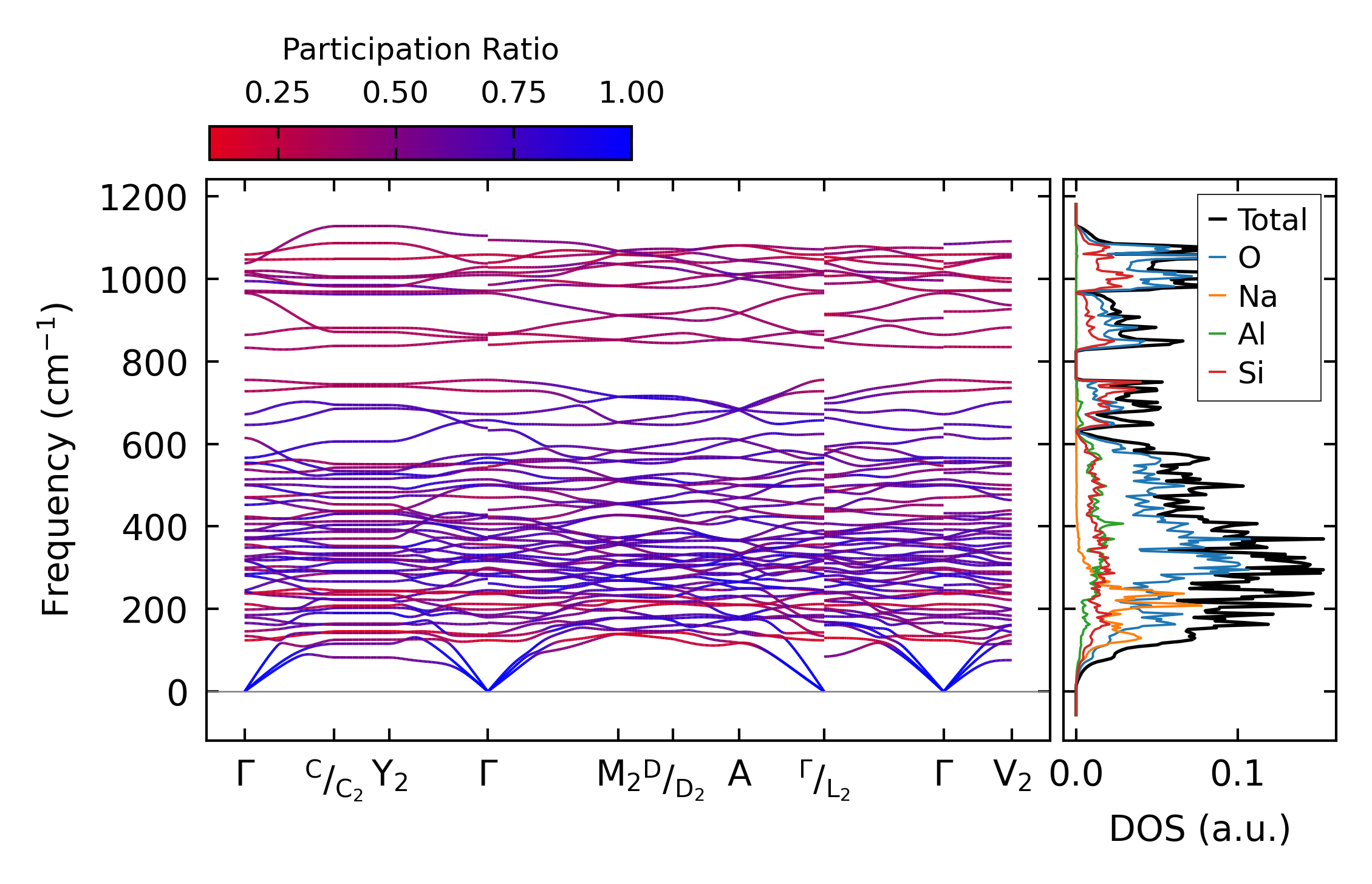

../../_images/fig_bandos_pr6646.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo6646.png — (b) Thermodynamic properties

Grüneisen parameters

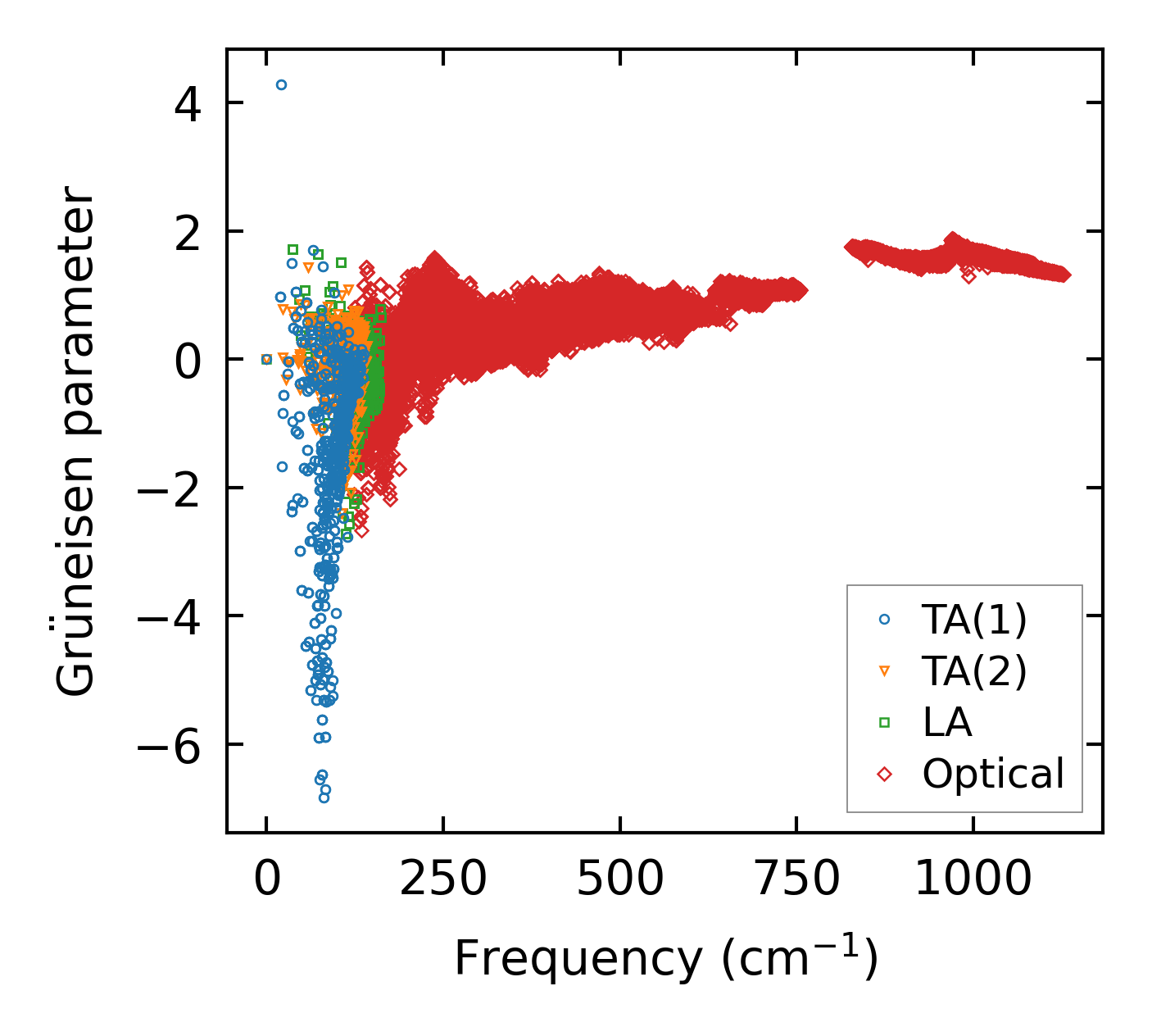

../../_images/fig_gru_all2708.png — (a) Grüneisen parameters

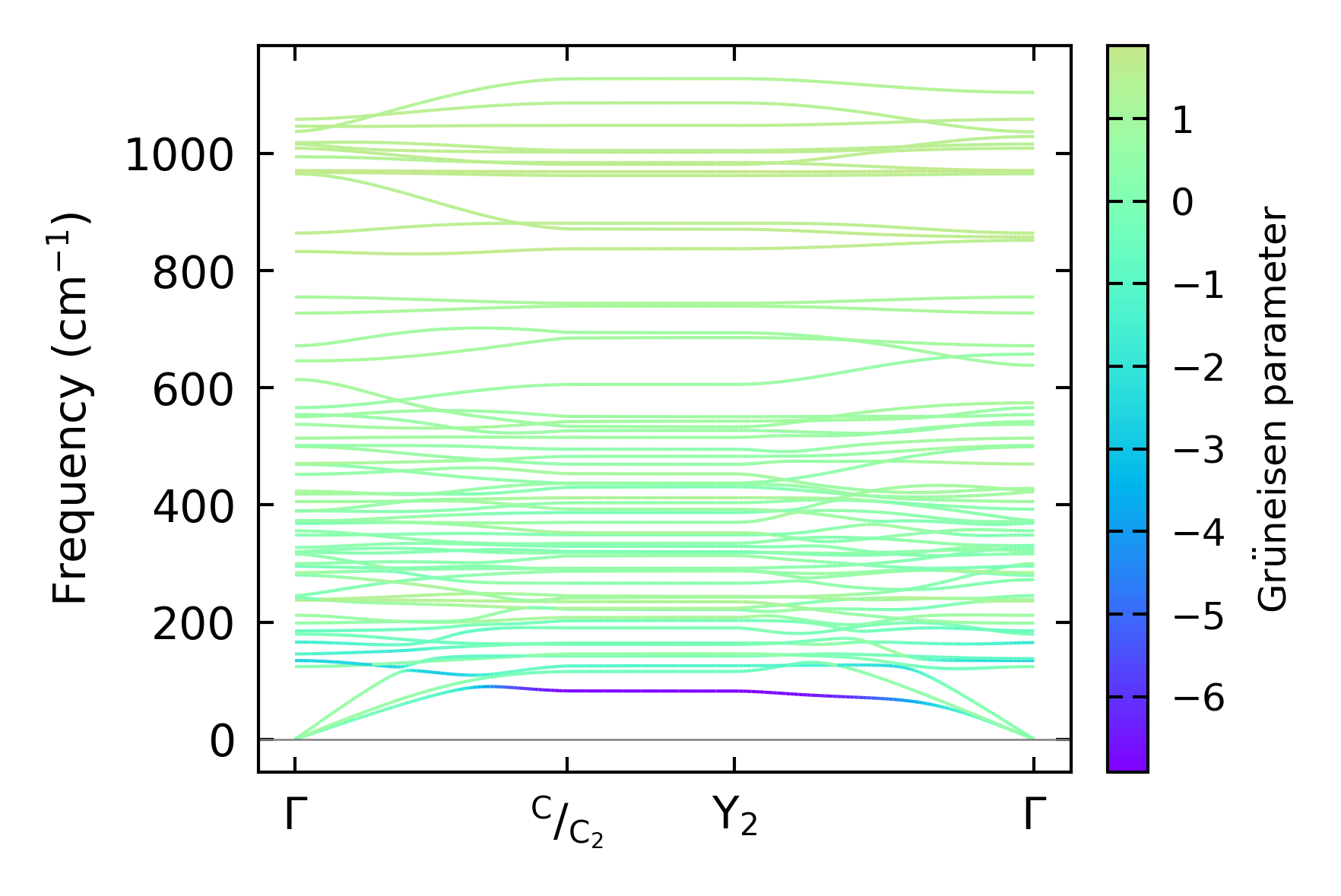

../../_images/fig_gruneisen2708.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x11x13, supercell: 1x1x2

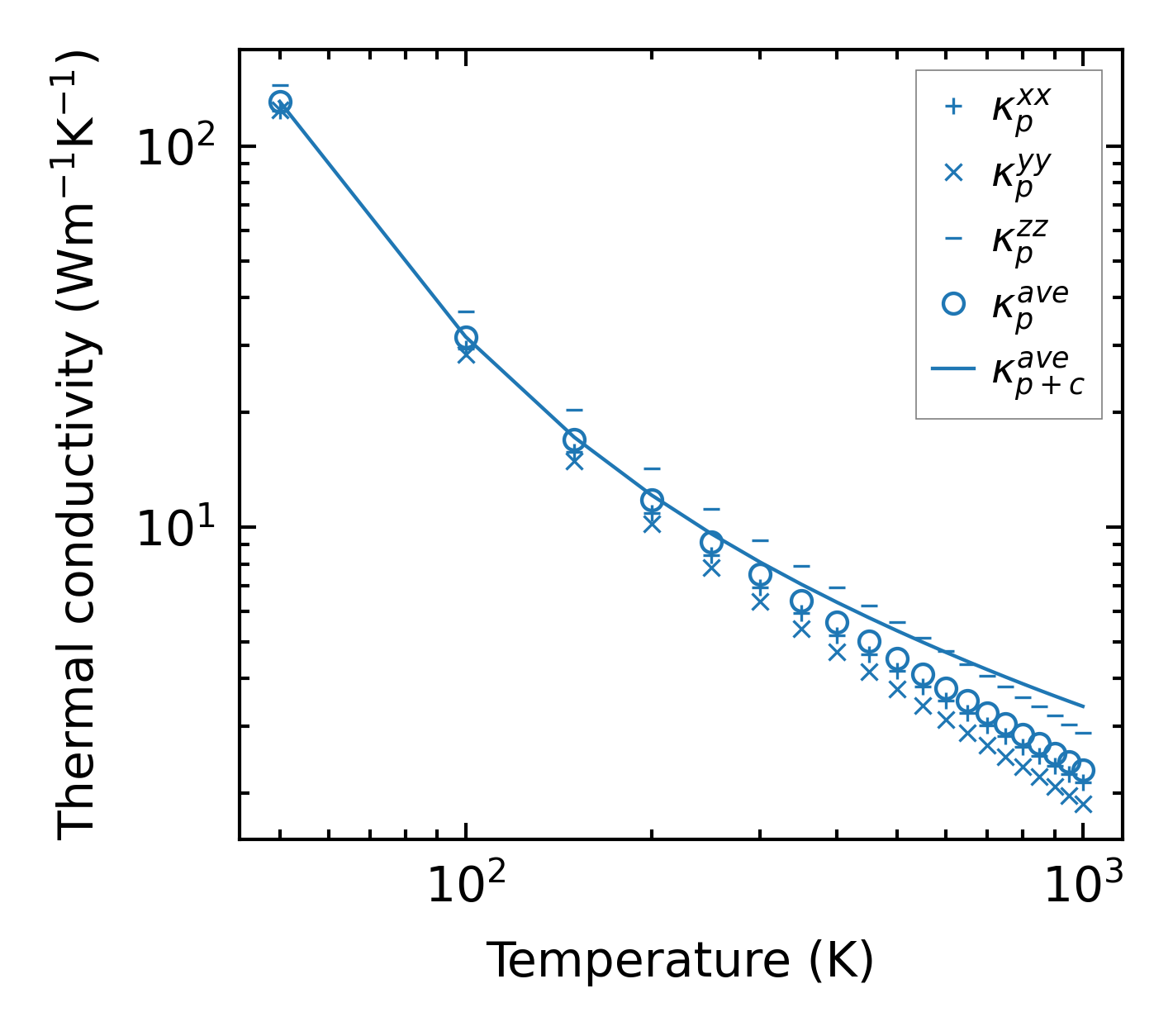

../../_images/fig_kappa5148.png — (a) Temperature-dependent lattice thermal conductivity

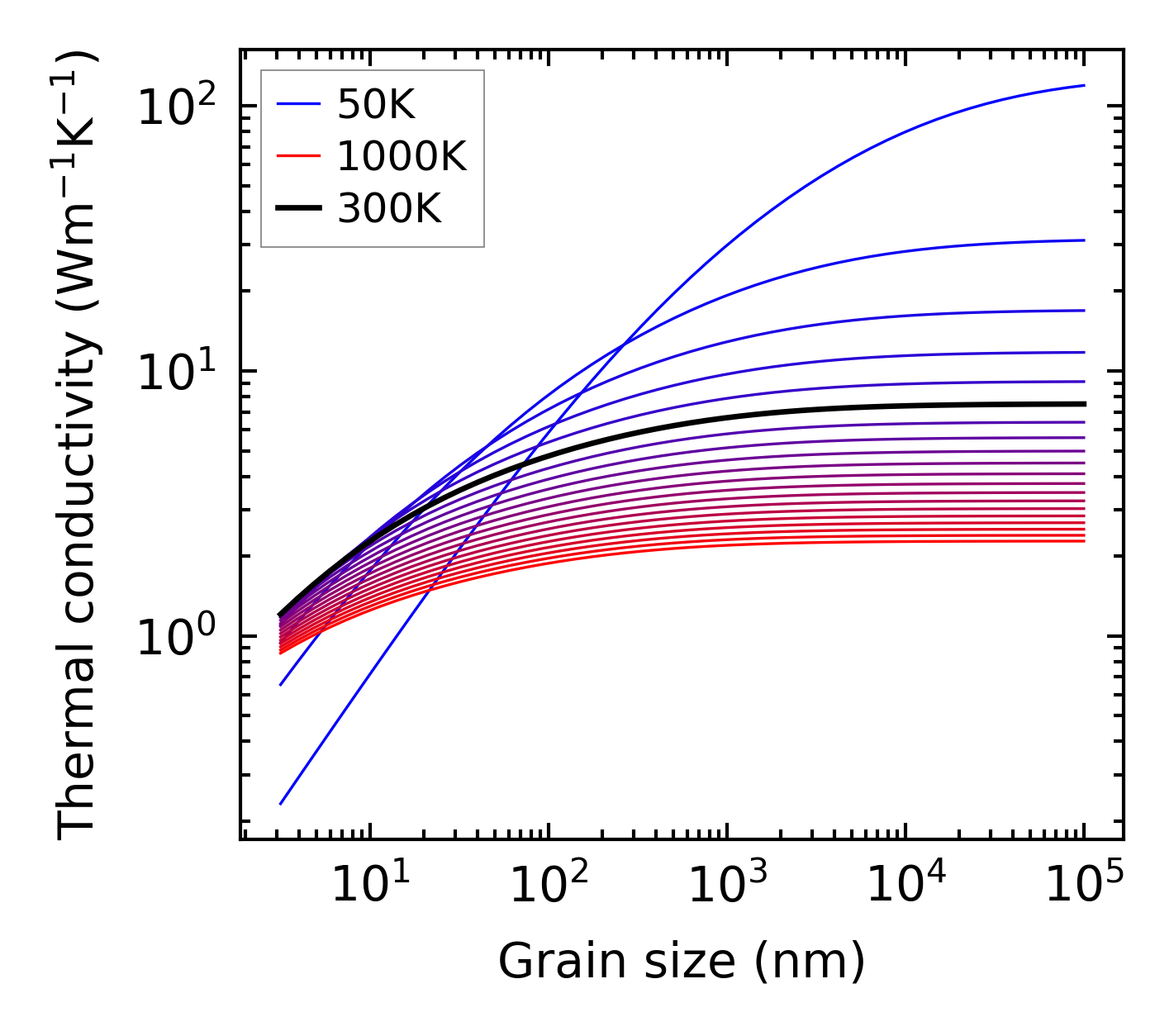

../../_images/fig_kappa_vs_grain_size2747.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

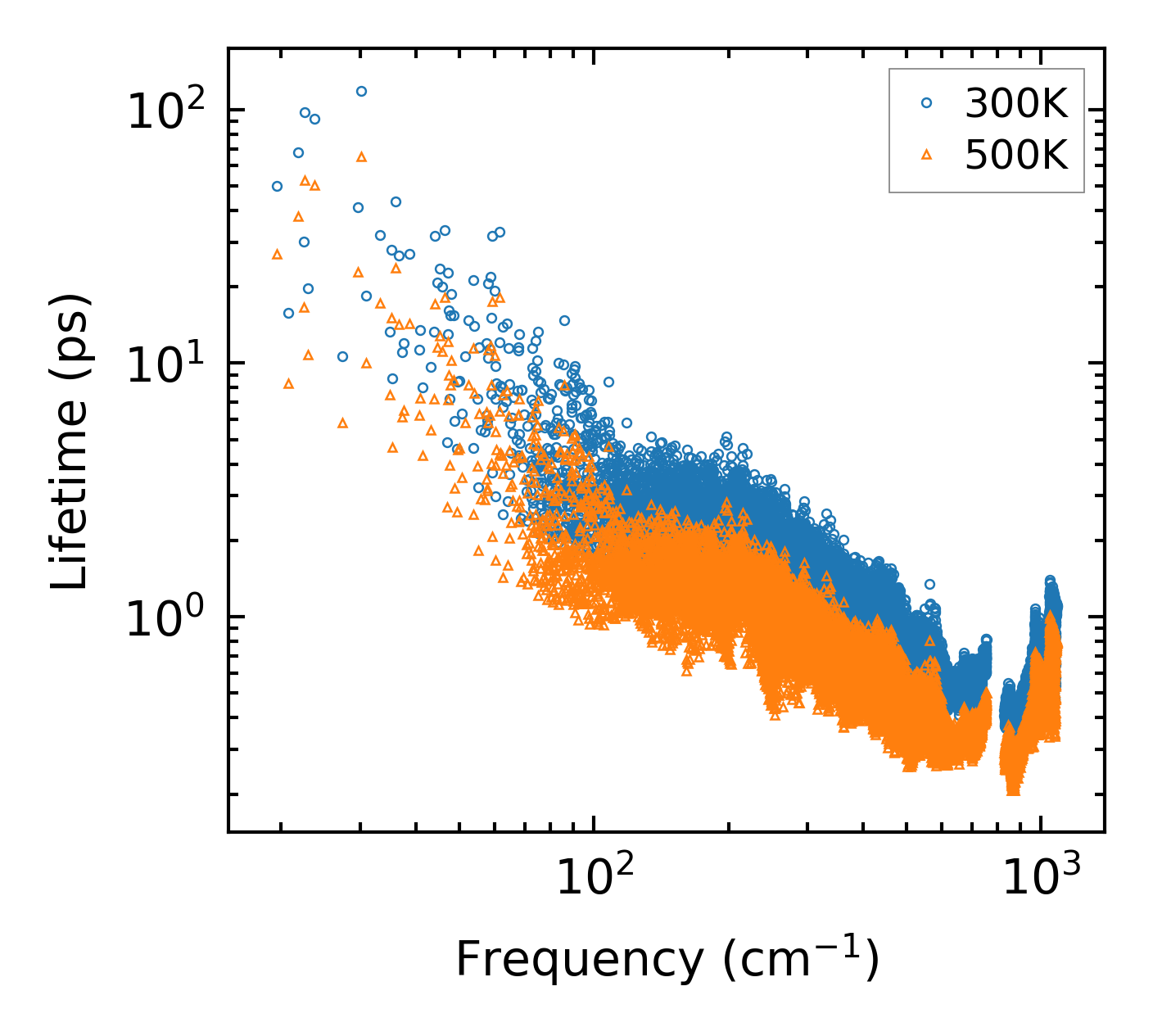

../../_images/fig_lifetime2684.png — (a) Phonon lifetime due to phonon-phonon scattering

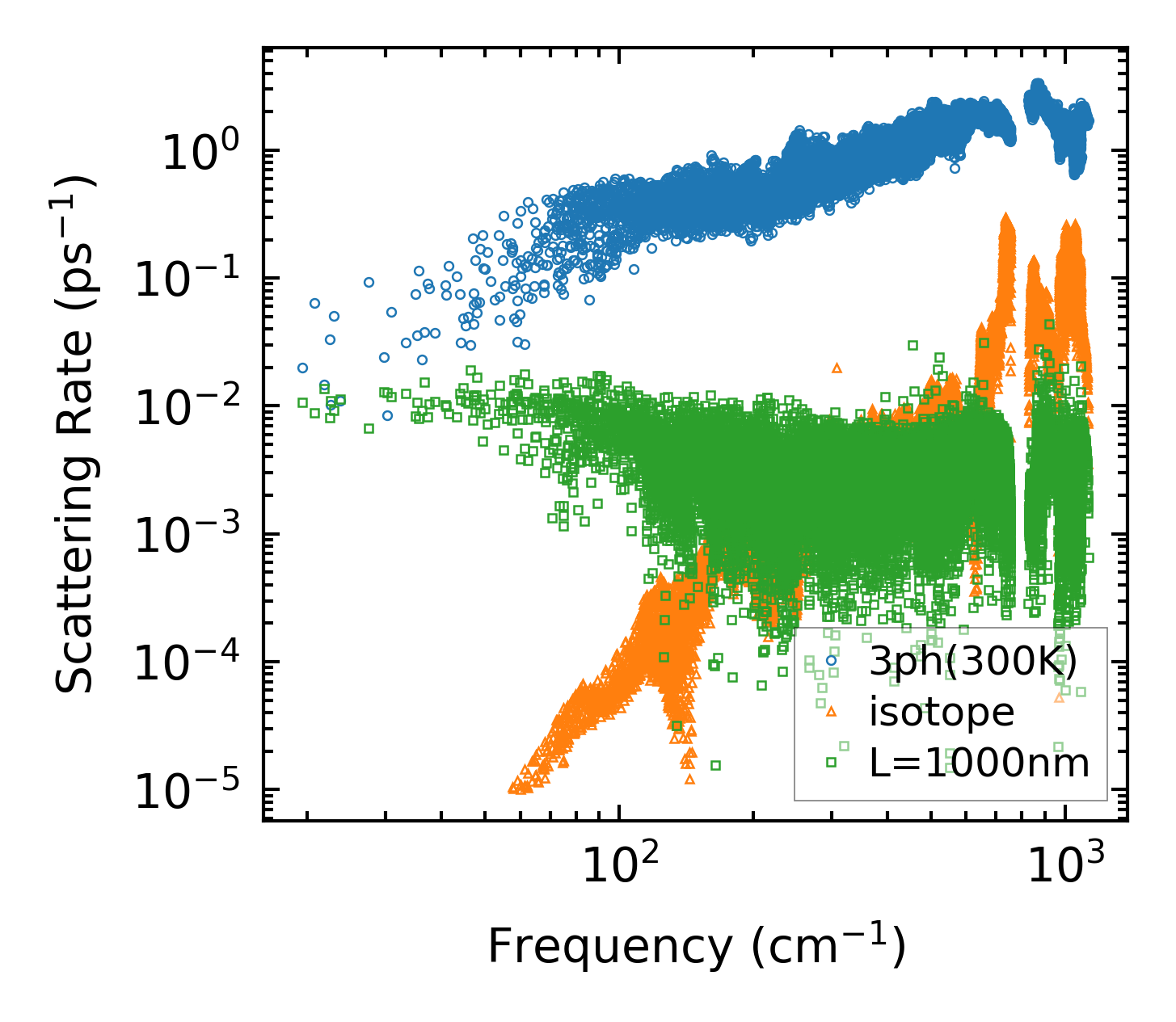

../../_images/fig_scat_rates2683.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

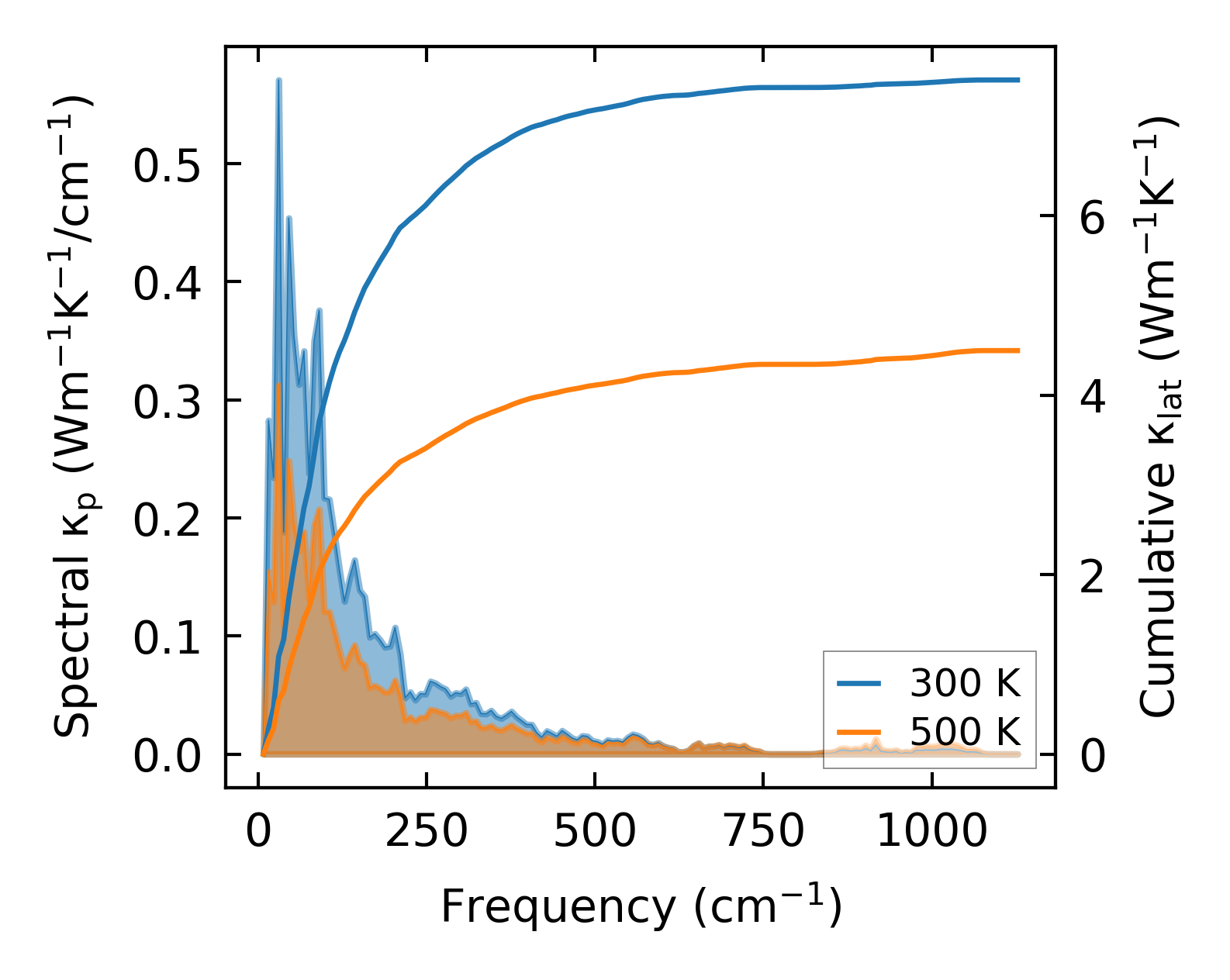

../../_images/fig_cumu_frequency2684.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

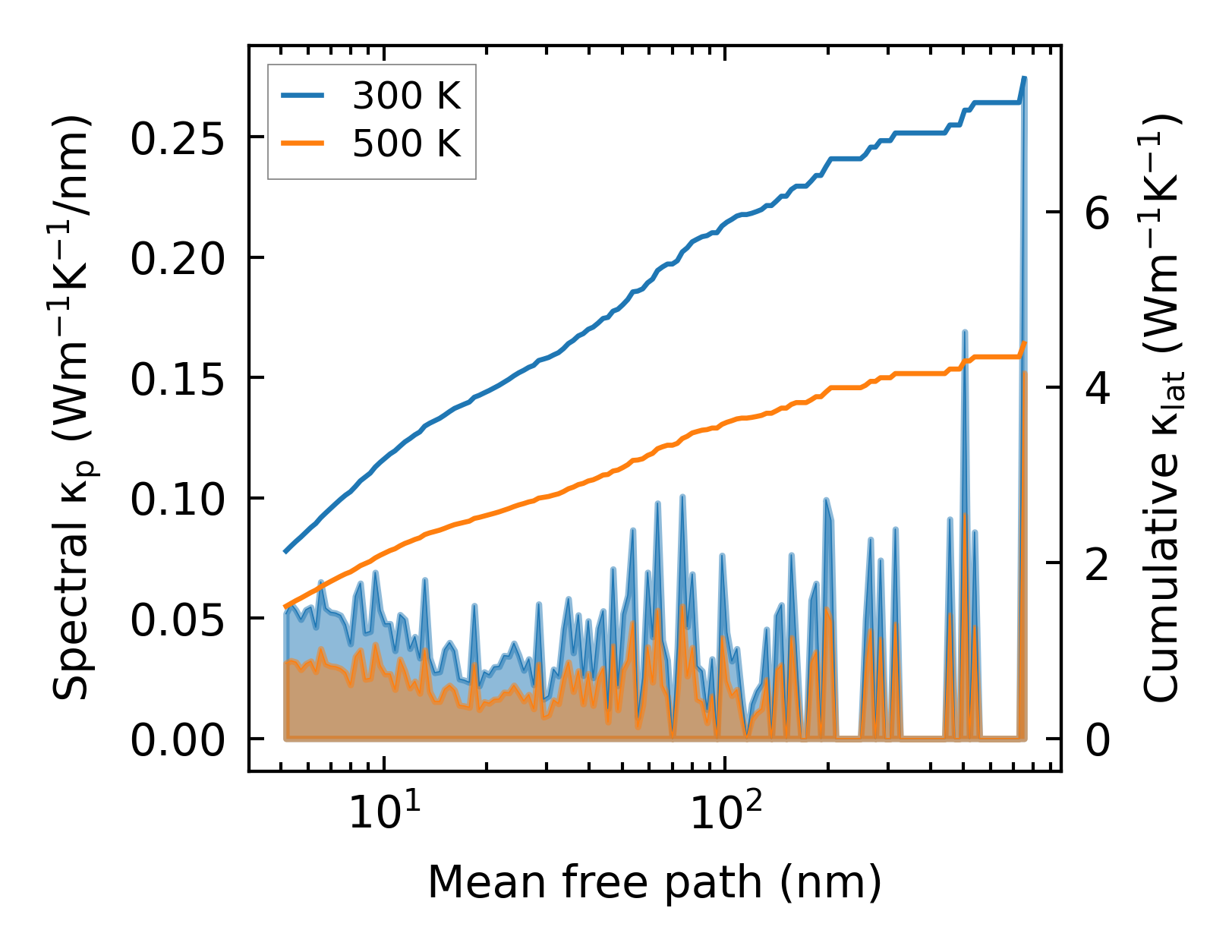

../../_images/fig_cumu_mfp2683.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

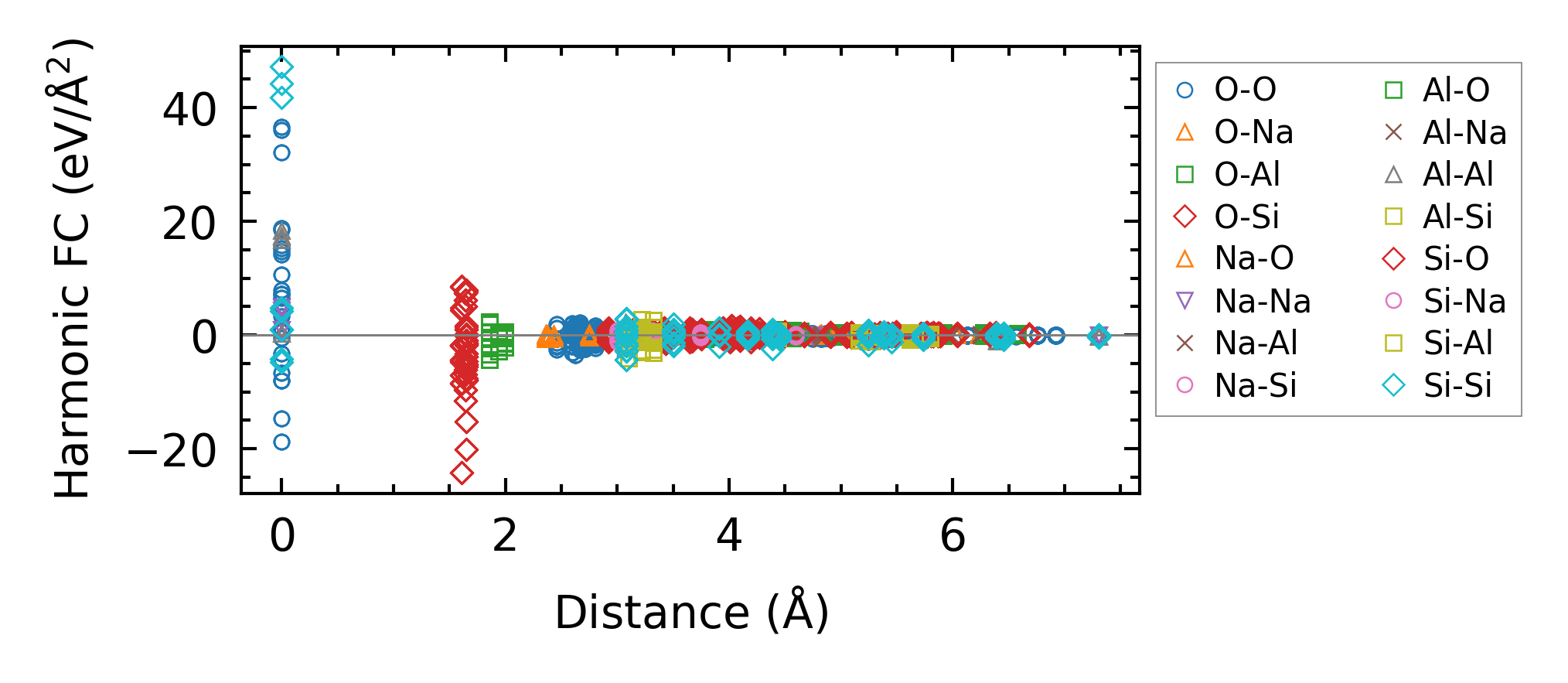

../../_images/fig_fc26436.png — (a) Force constants w.r.t atomic distance

Summary

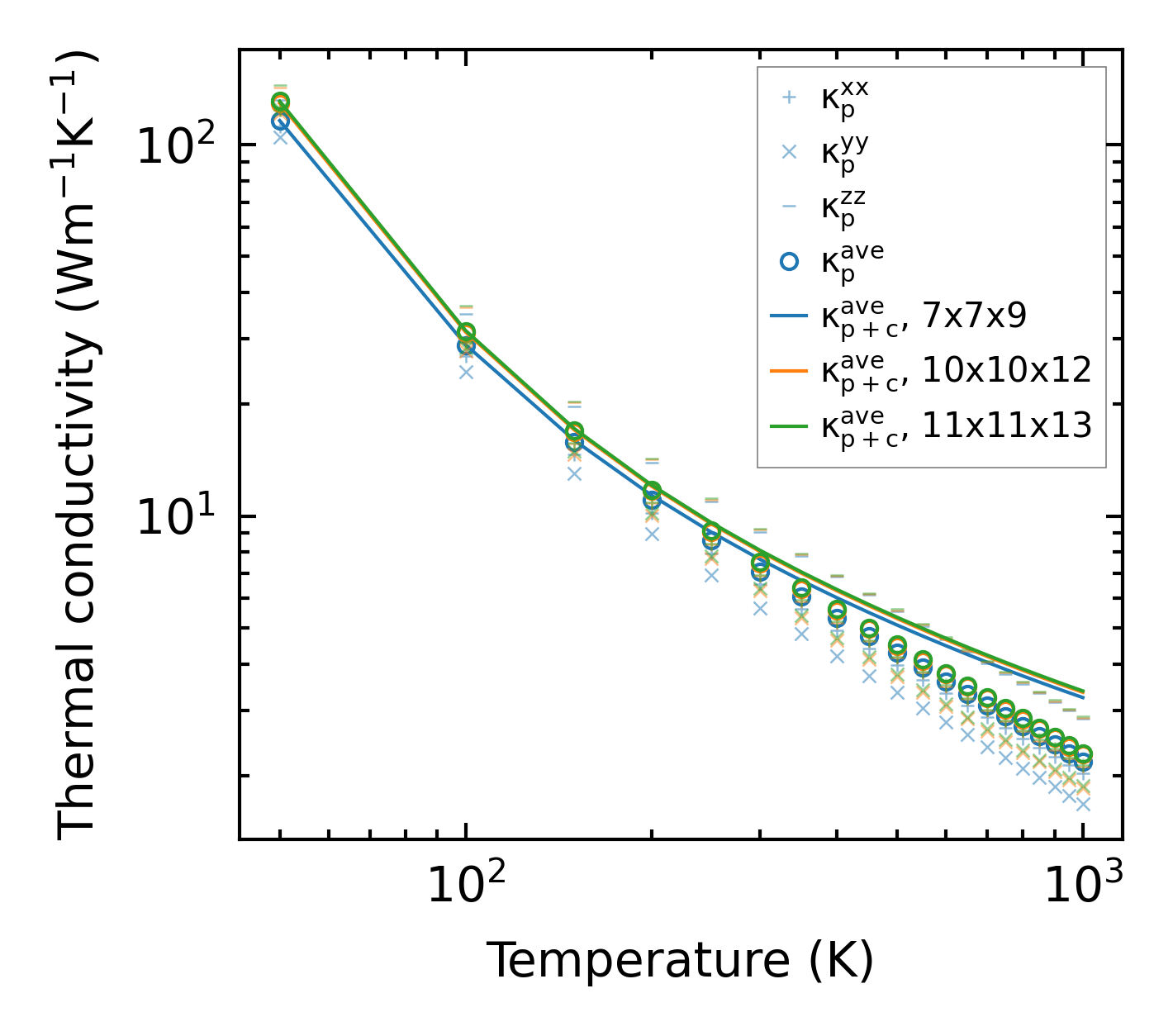

../../_images/fig_kappa5149.png — (a) Temperature-dependent lattice thermal conductivity

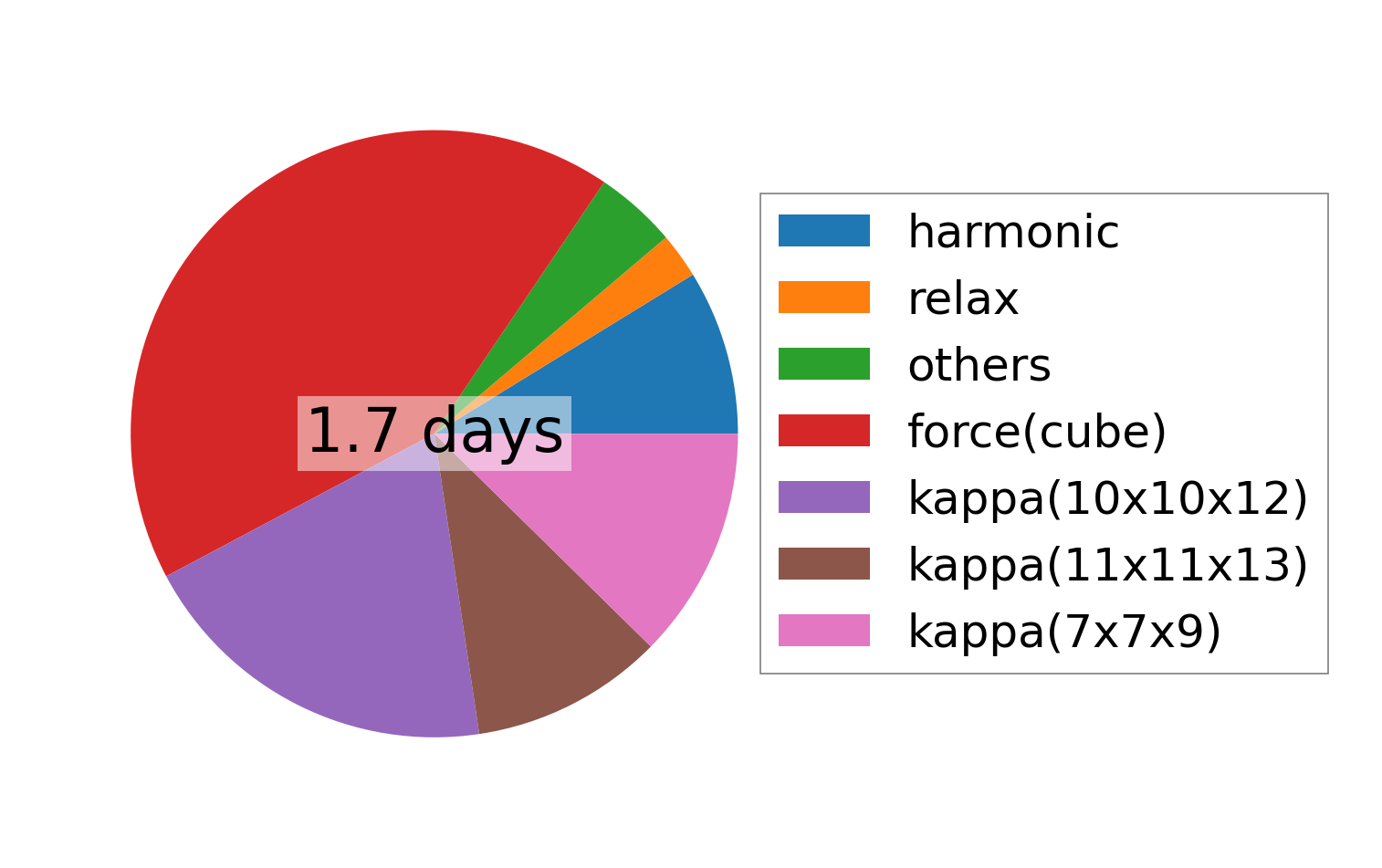

../../_images/fig_times11913.png — (b) Computation time
