mp-6017-2/Na3InP2O8/anharm

Space group: C2/m (12)
Link: Materials Project
Download: mp-6017-2.tar.gz

Equation of state

../../_images/fig_bm3513.png — (a) Equation of state

Harmonic properties

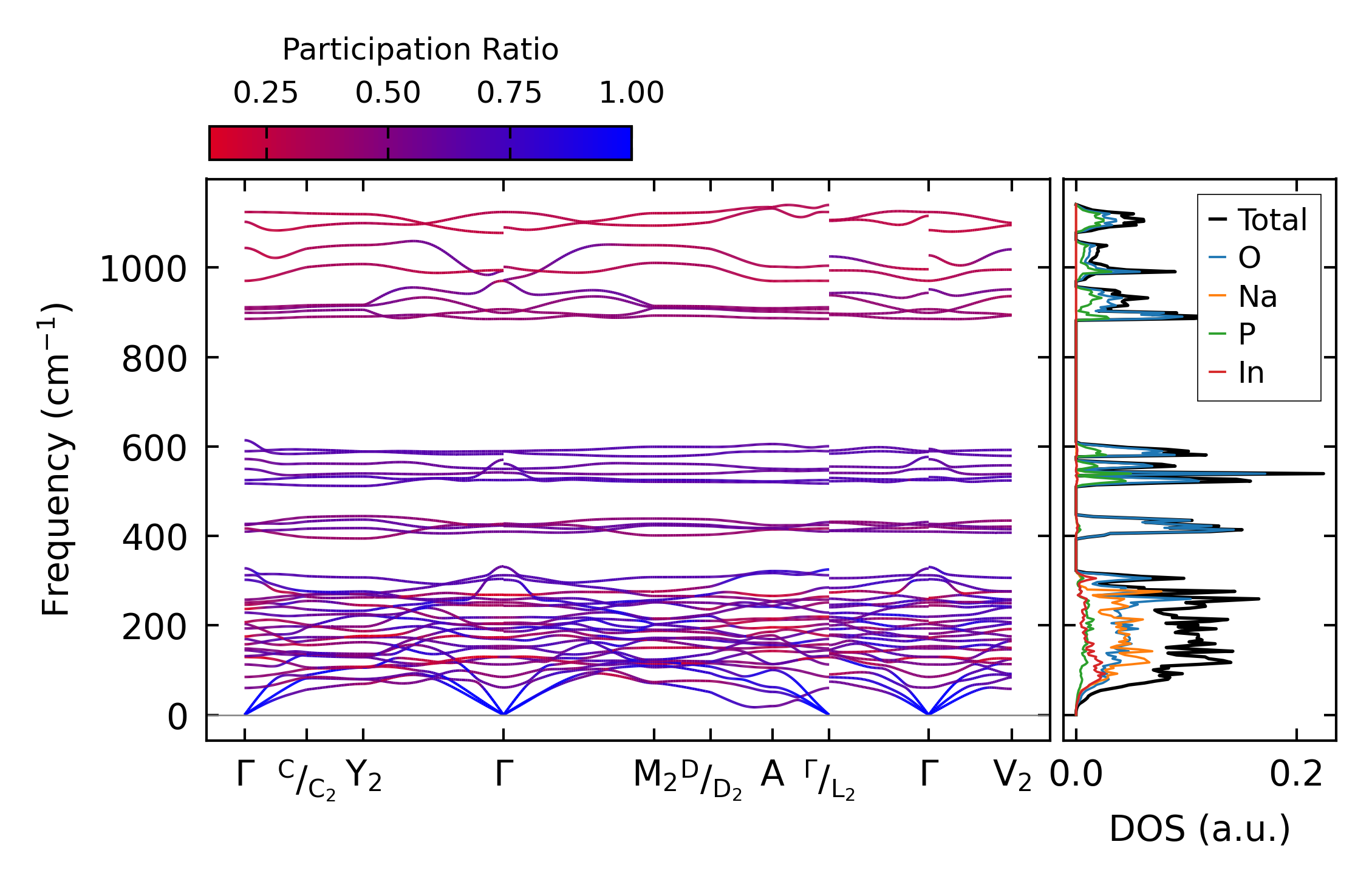

../../_images/fig_bandos_pr6587.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo6587.png — (b) Thermodynamic properties

Grüneisen parameters

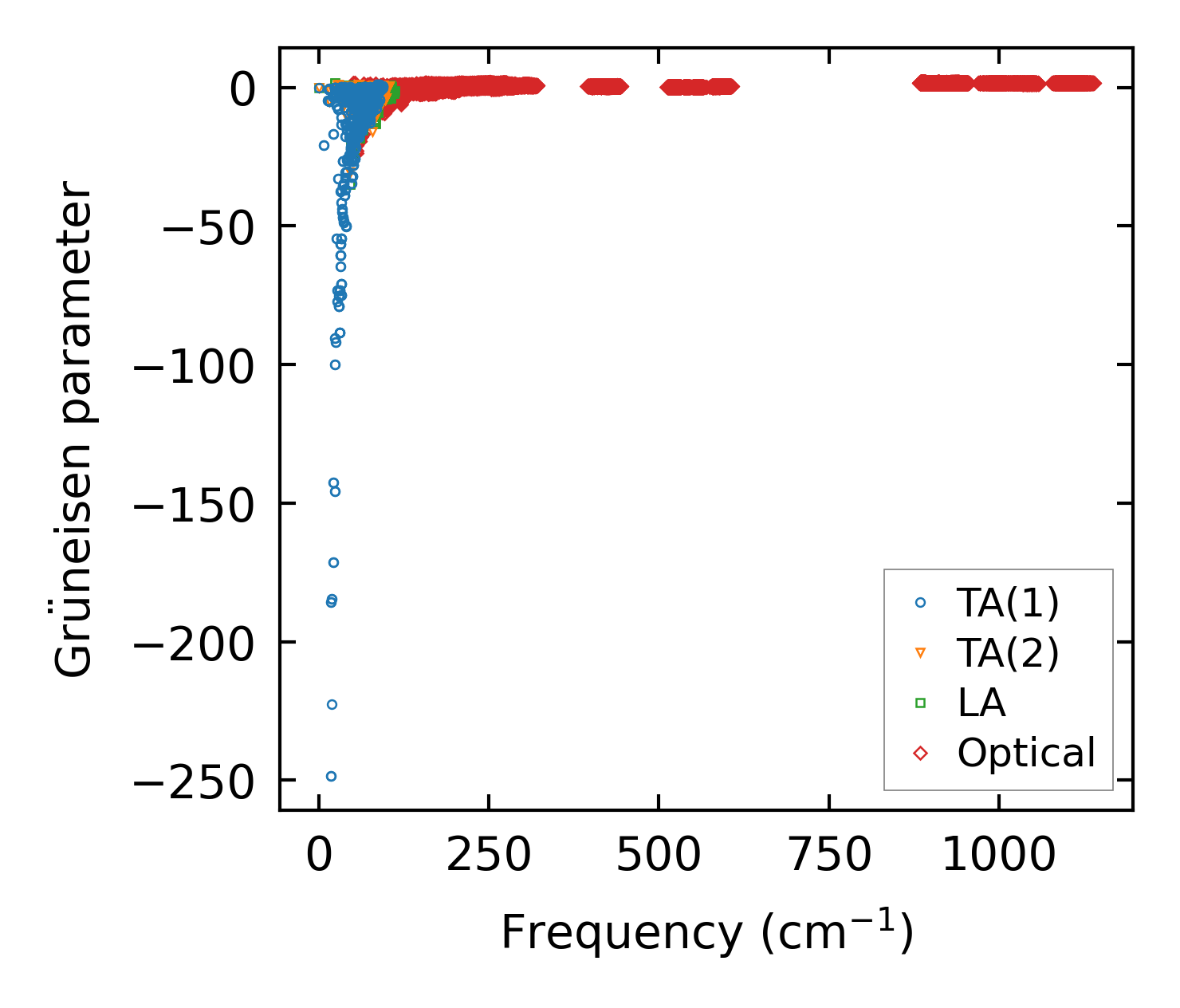

../../_images/fig_gru_all2683.png — (a) Grüneisen parameters

../../_images/fig_gruneisen2683.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 14x14x10, supercell: 1x2x2

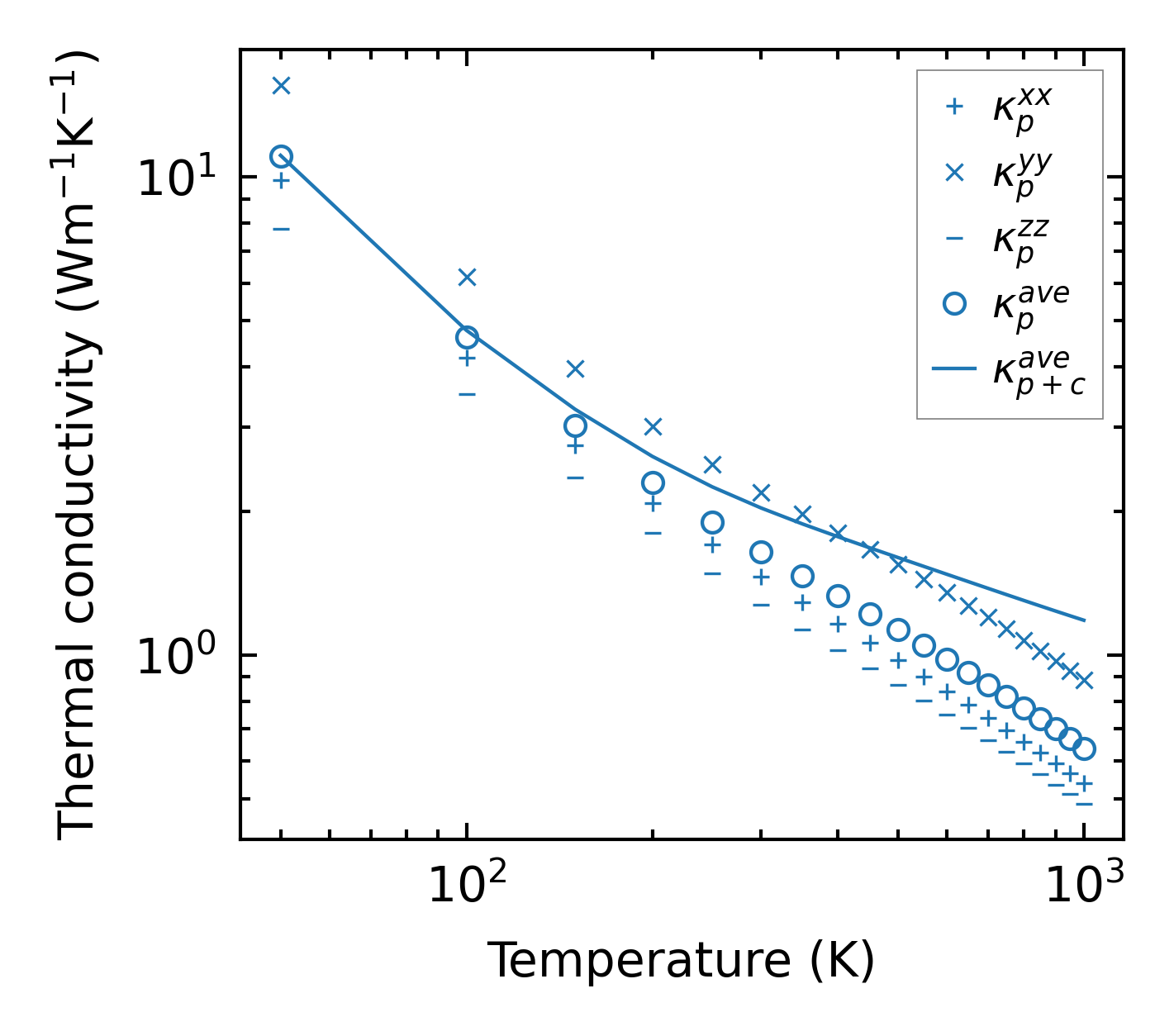

../../_images/fig_kappa5098.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size2720.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

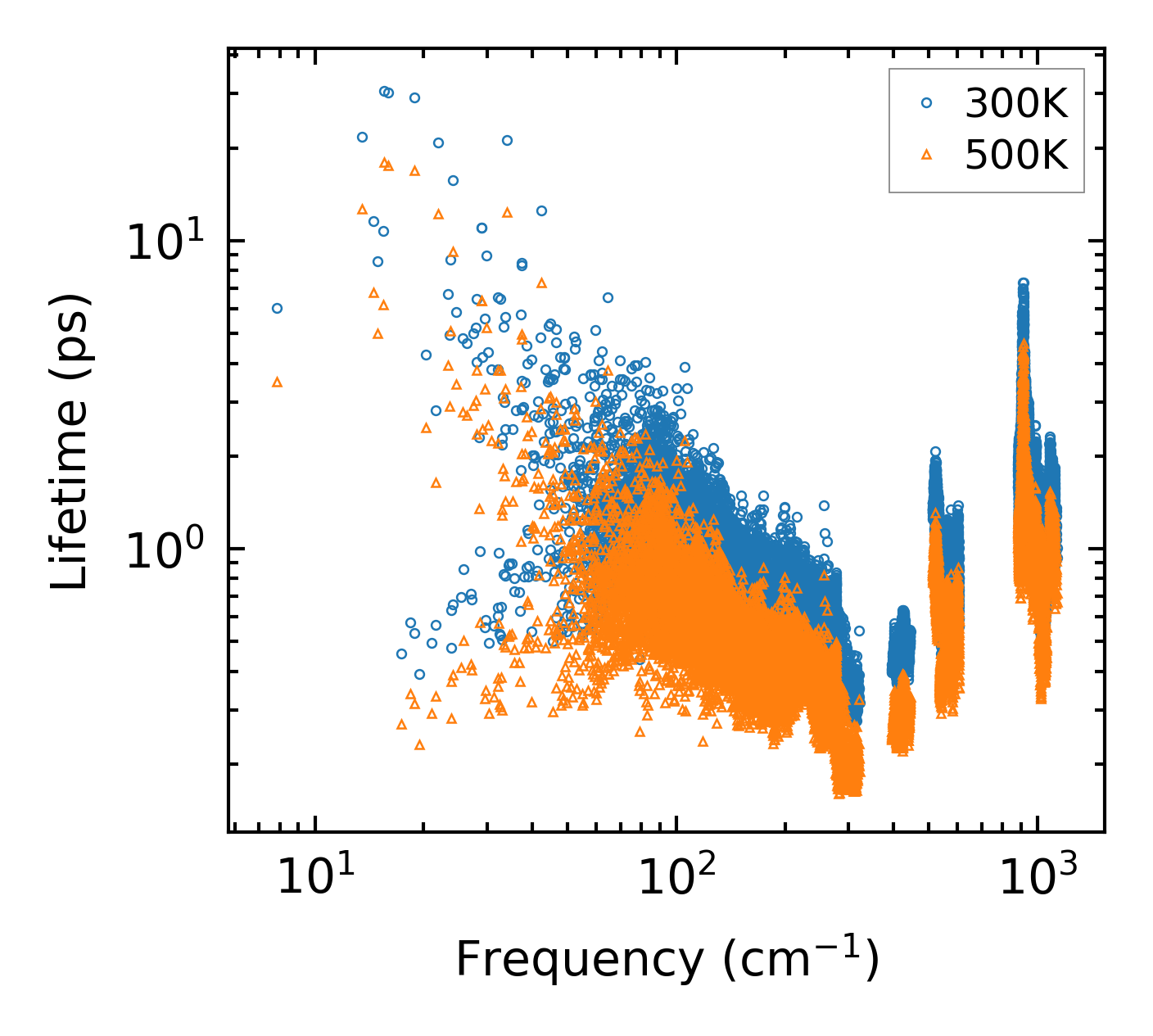

../../_images/fig_lifetime2659.png — (a) Phonon lifetime due to phonon-phonon scattering

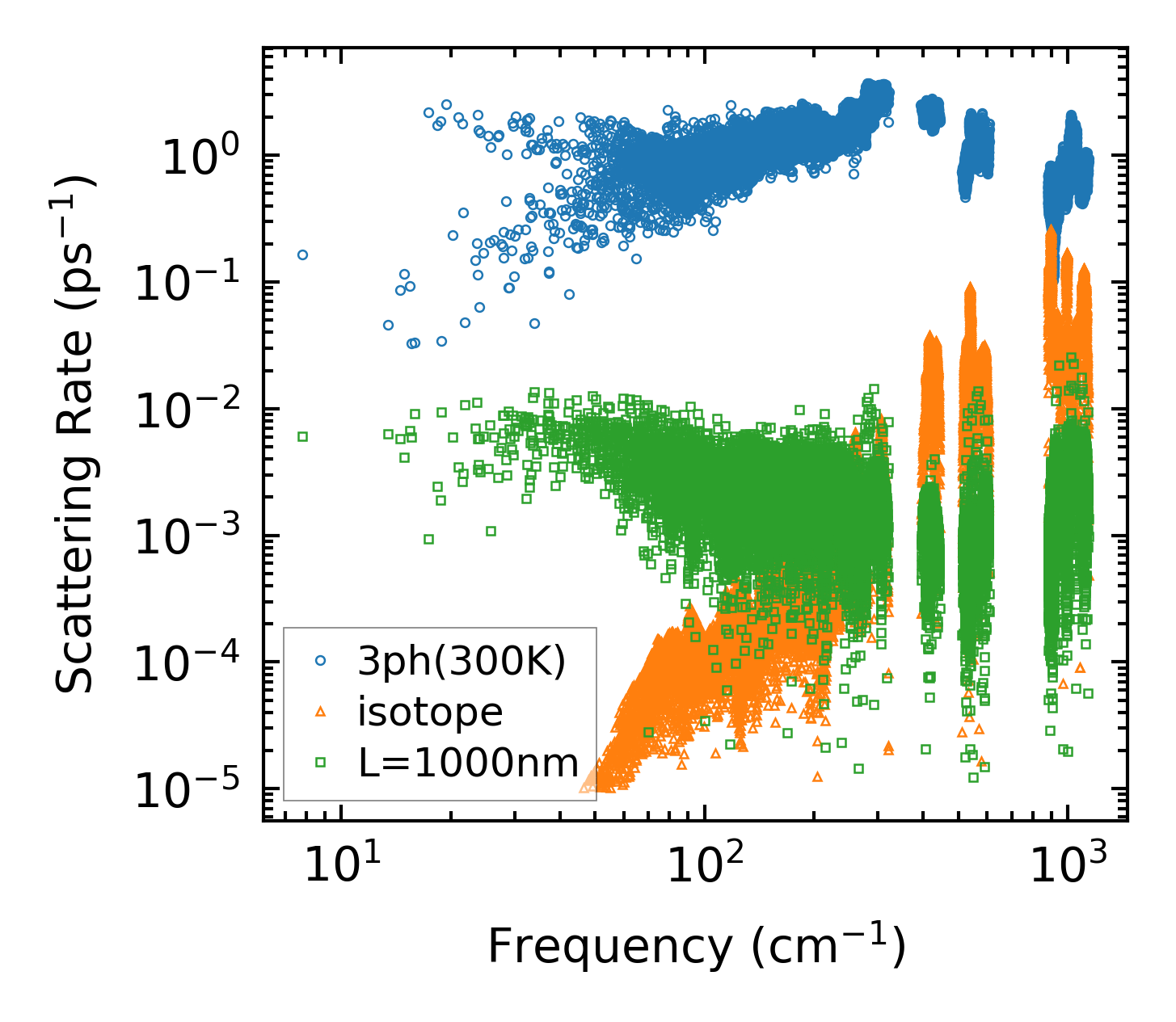

../../_images/fig_scat_rates2658.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

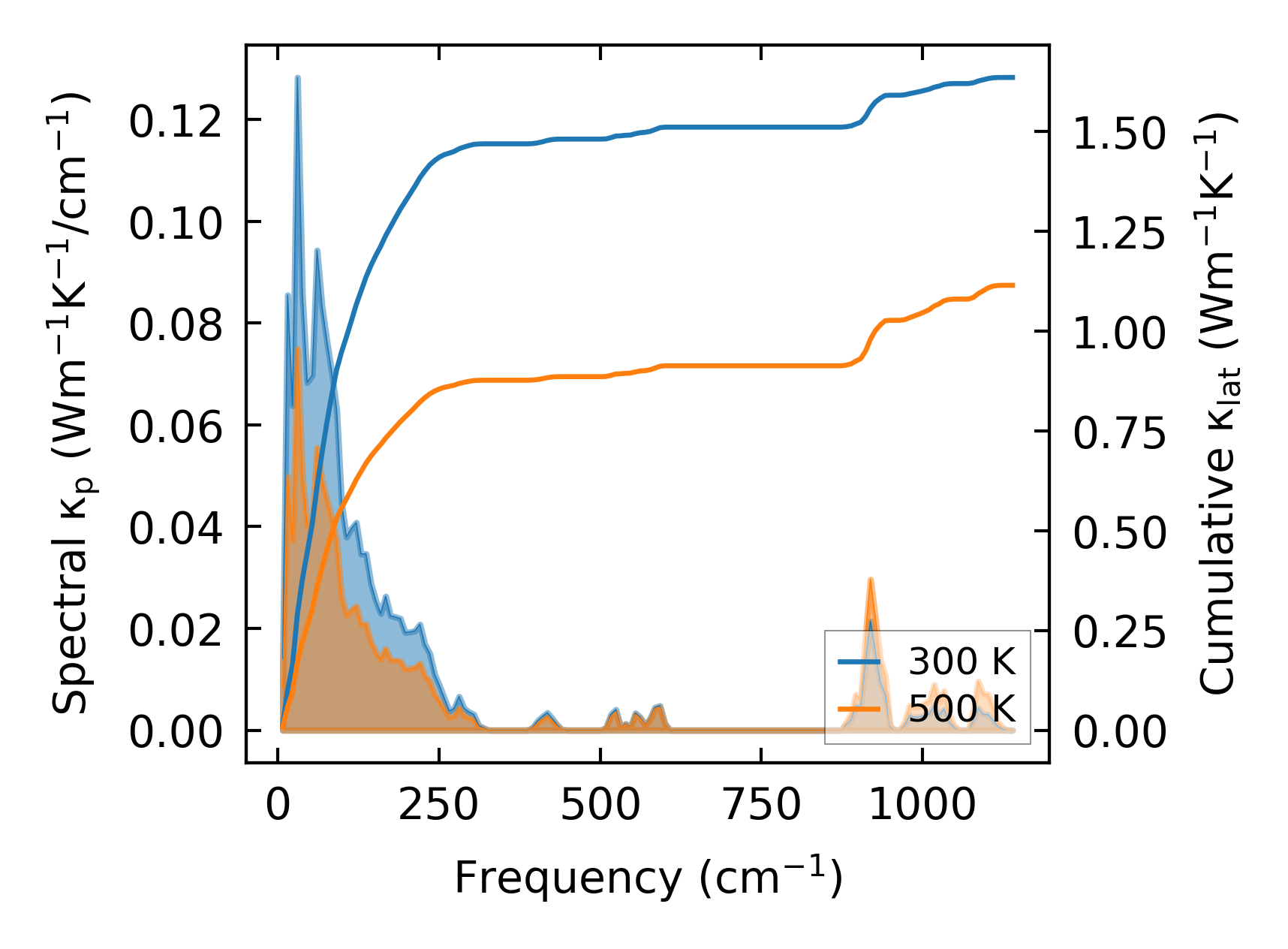

../../_images/fig_cumu_frequency2659.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp2658.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

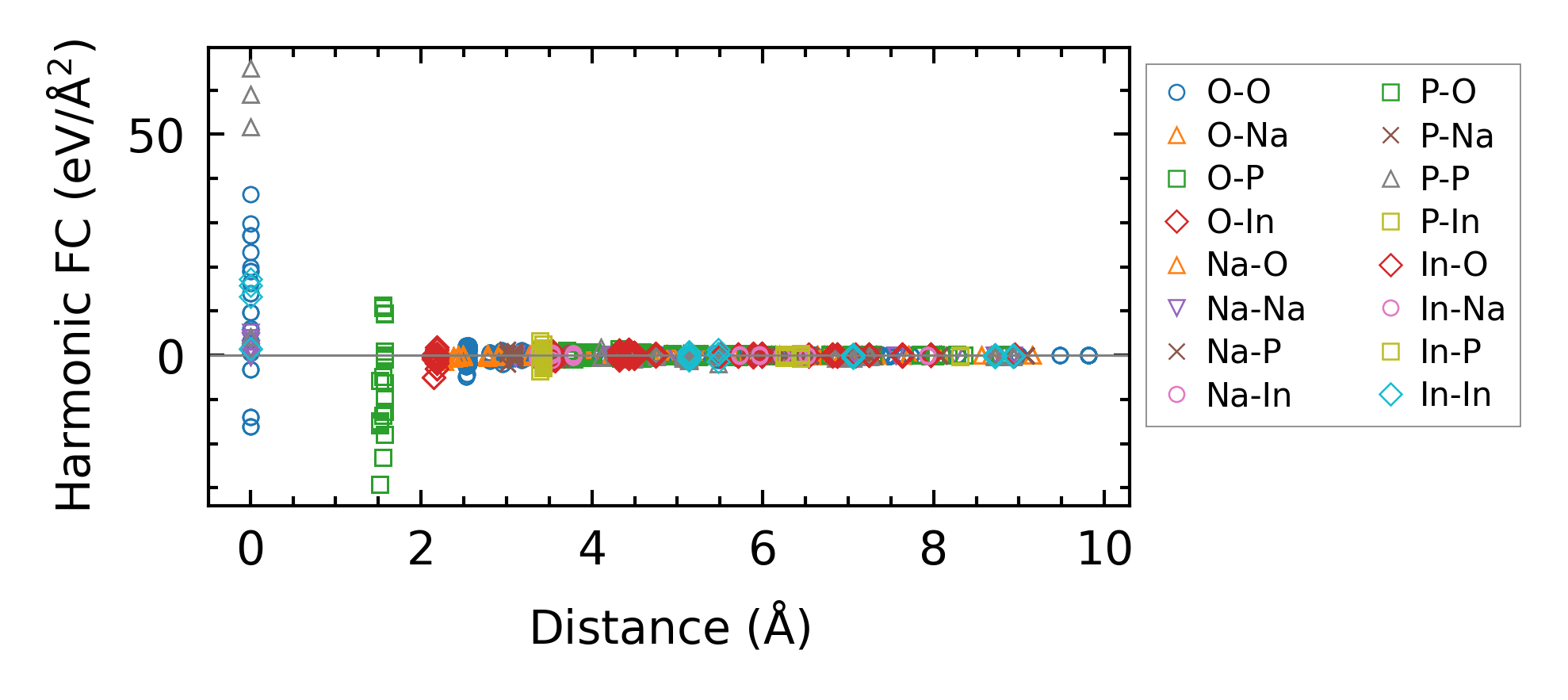

../../_images/fig_fc26377.png — (a) Force constants w.r.t atomic distance

Summary

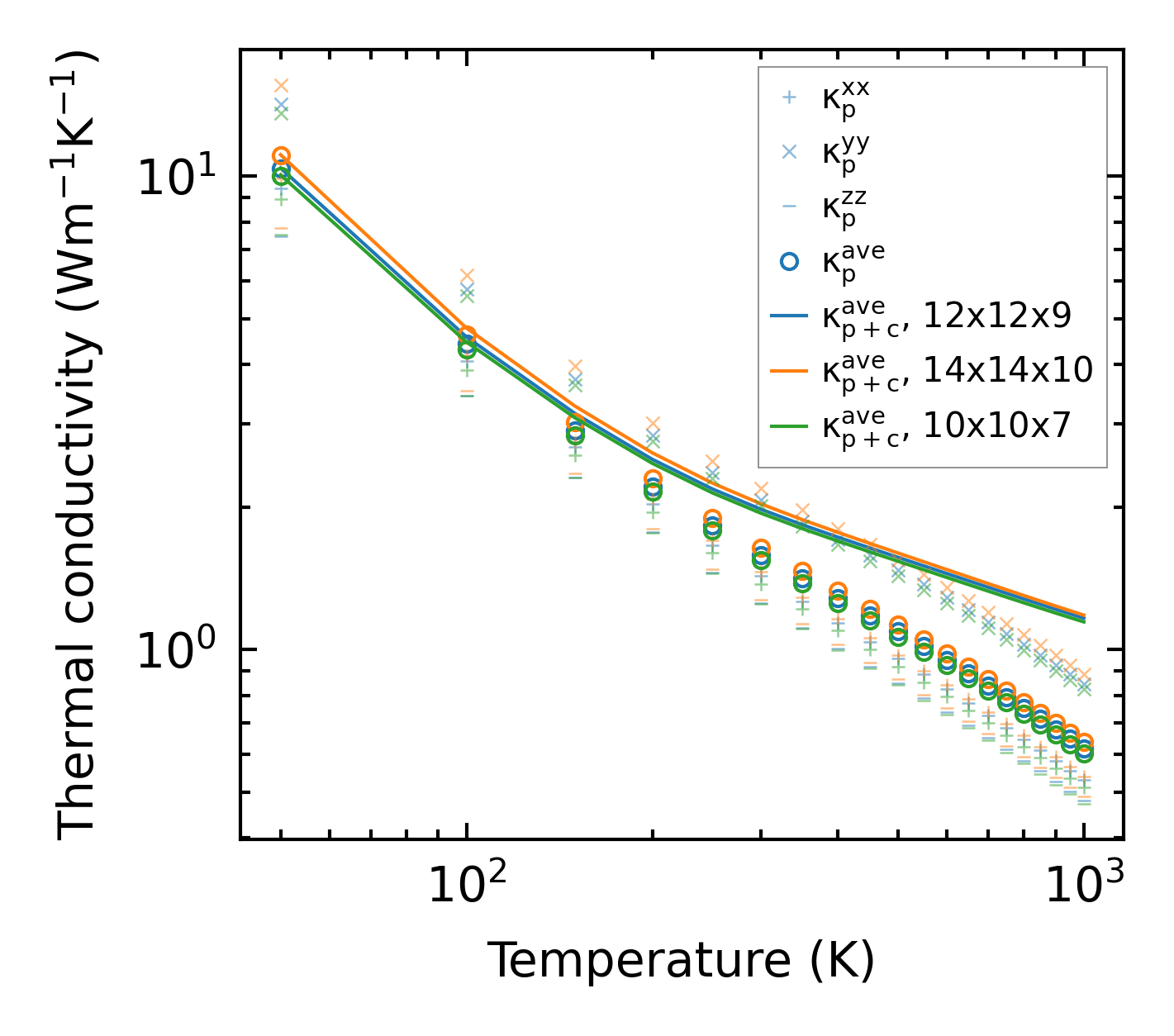

../../_images/fig_kappa5099.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times11835.png — (b) Computation time
