mp-6075-2/Ba2LiB5O10/anharm

Space group: P2_1/m (11)
Link: Materials Project
Download: mp-6075-2.tar.gz

Equation of state

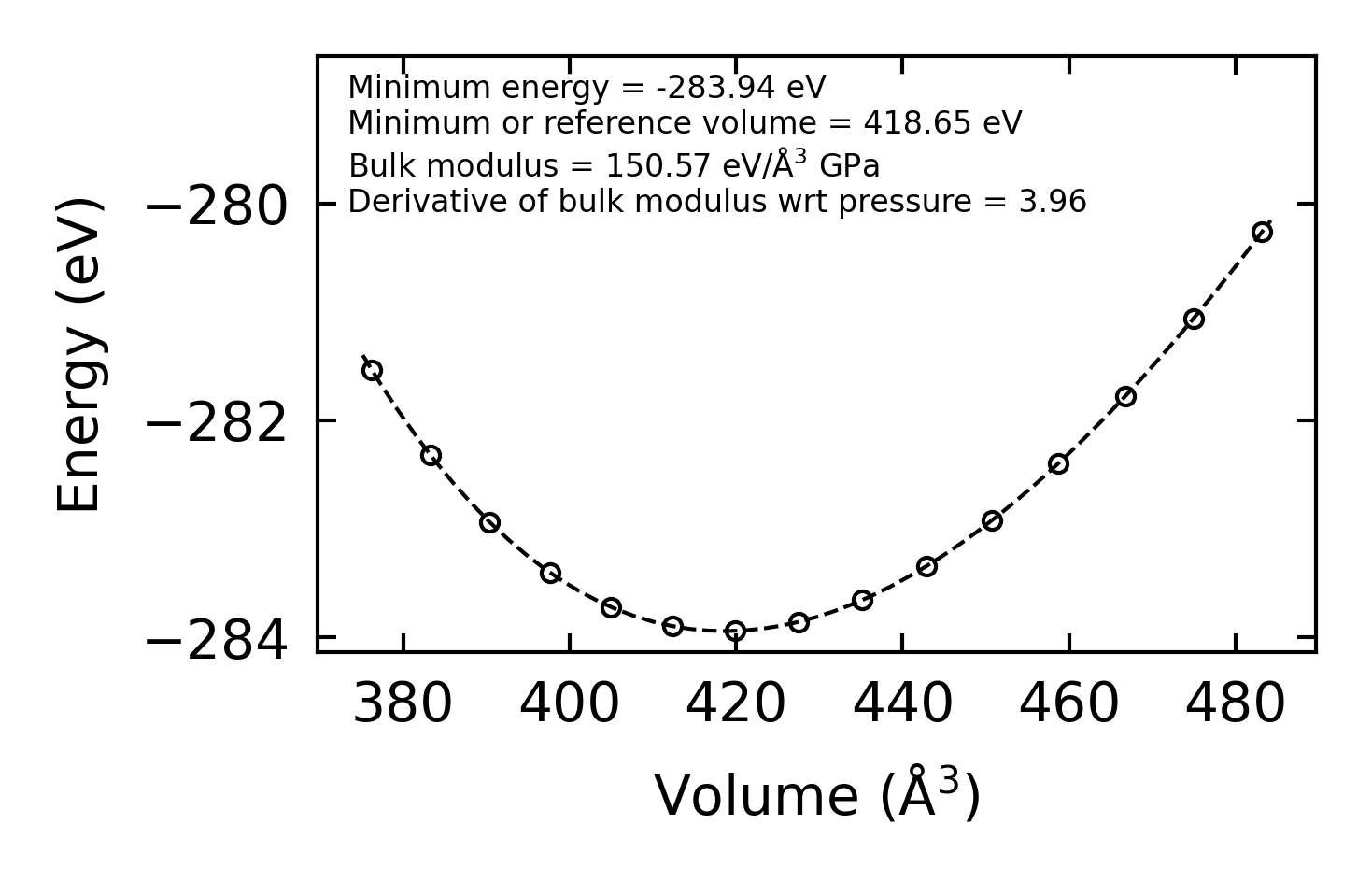

../../_images/fig_bm3532.png — (a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr6627.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_bandos9511.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo6627.png — (c) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all2701.png — (a) Grüneisen parameters

../../_images/fig_gruneisen2701.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 3x1x2 — q-mesh: 16x4x10, supercell: 3x1x2

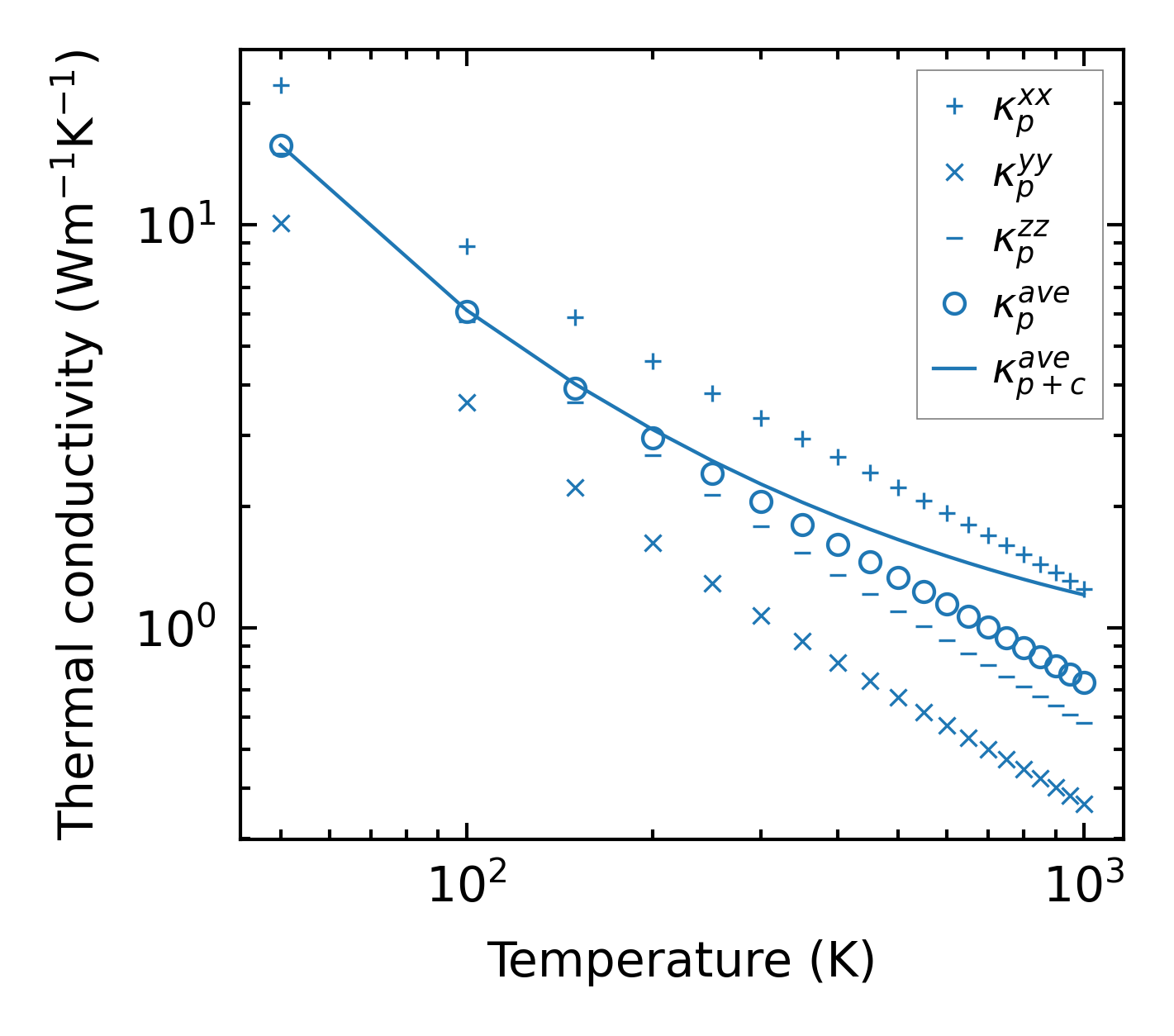

../../_images/fig_kappa5135.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size2740.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

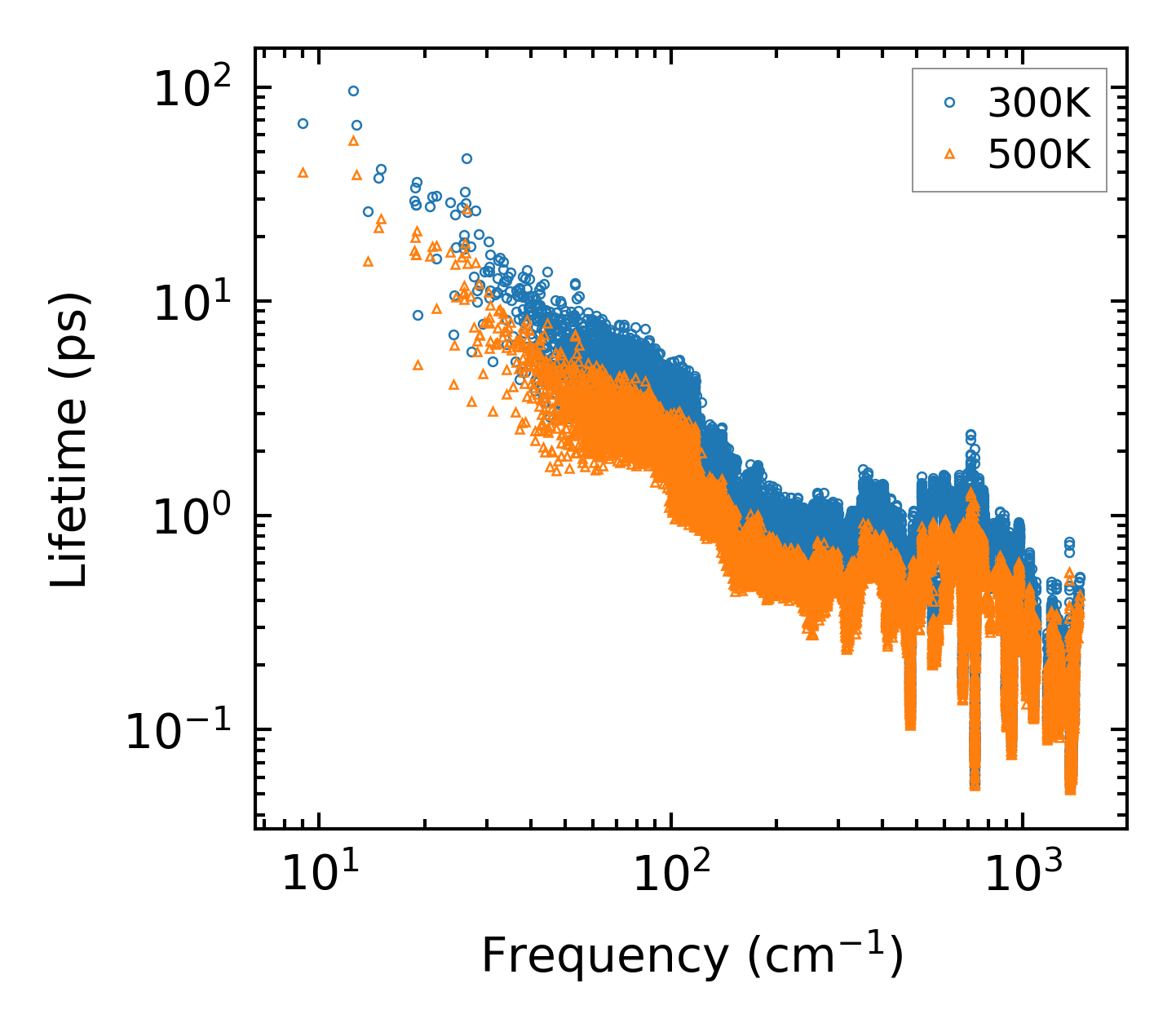

../../_images/fig_lifetime2677.png — (a) Phonon lifetime due to phonon-phonon scattering

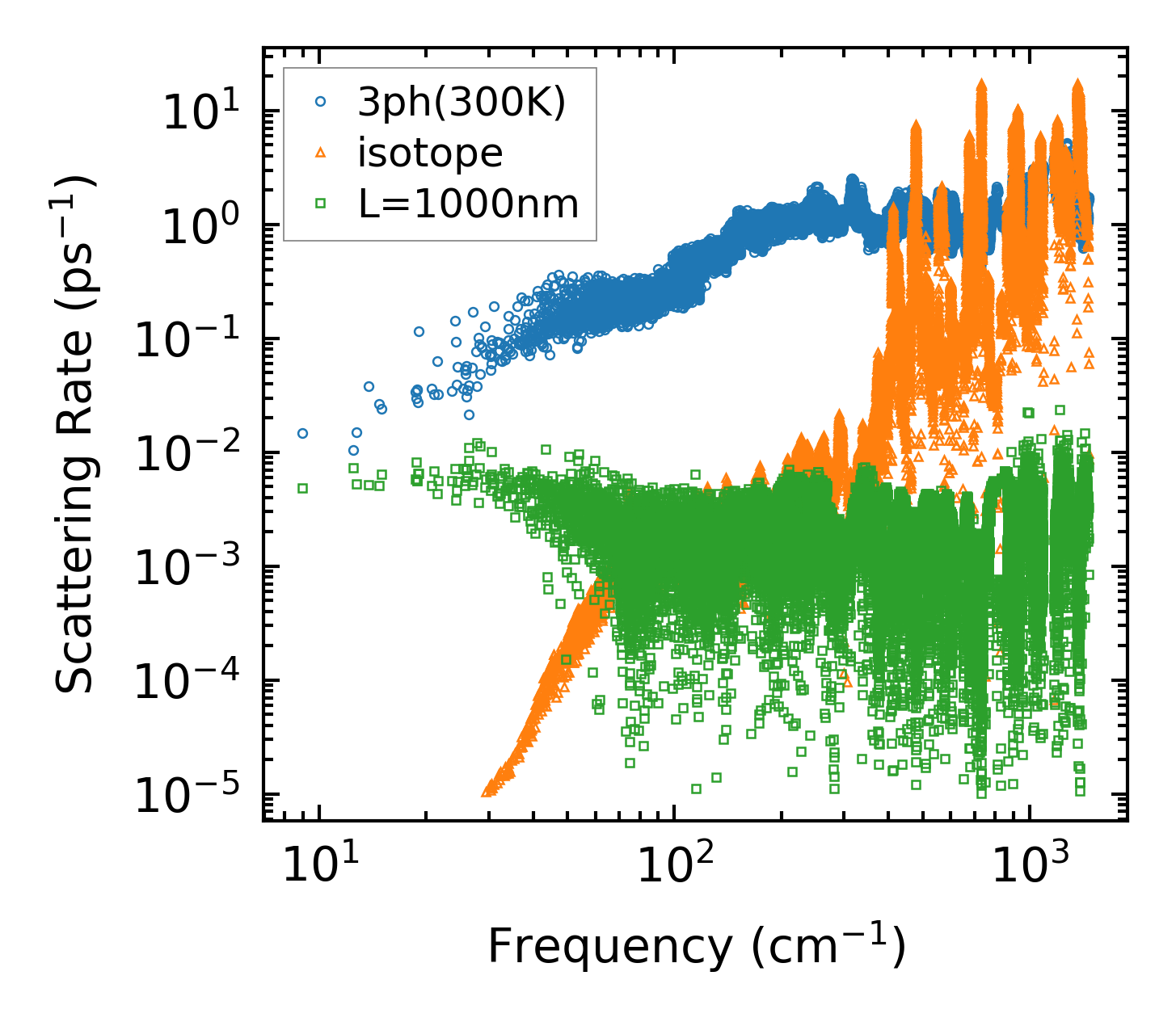

../../_images/fig_scat_rates2676.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

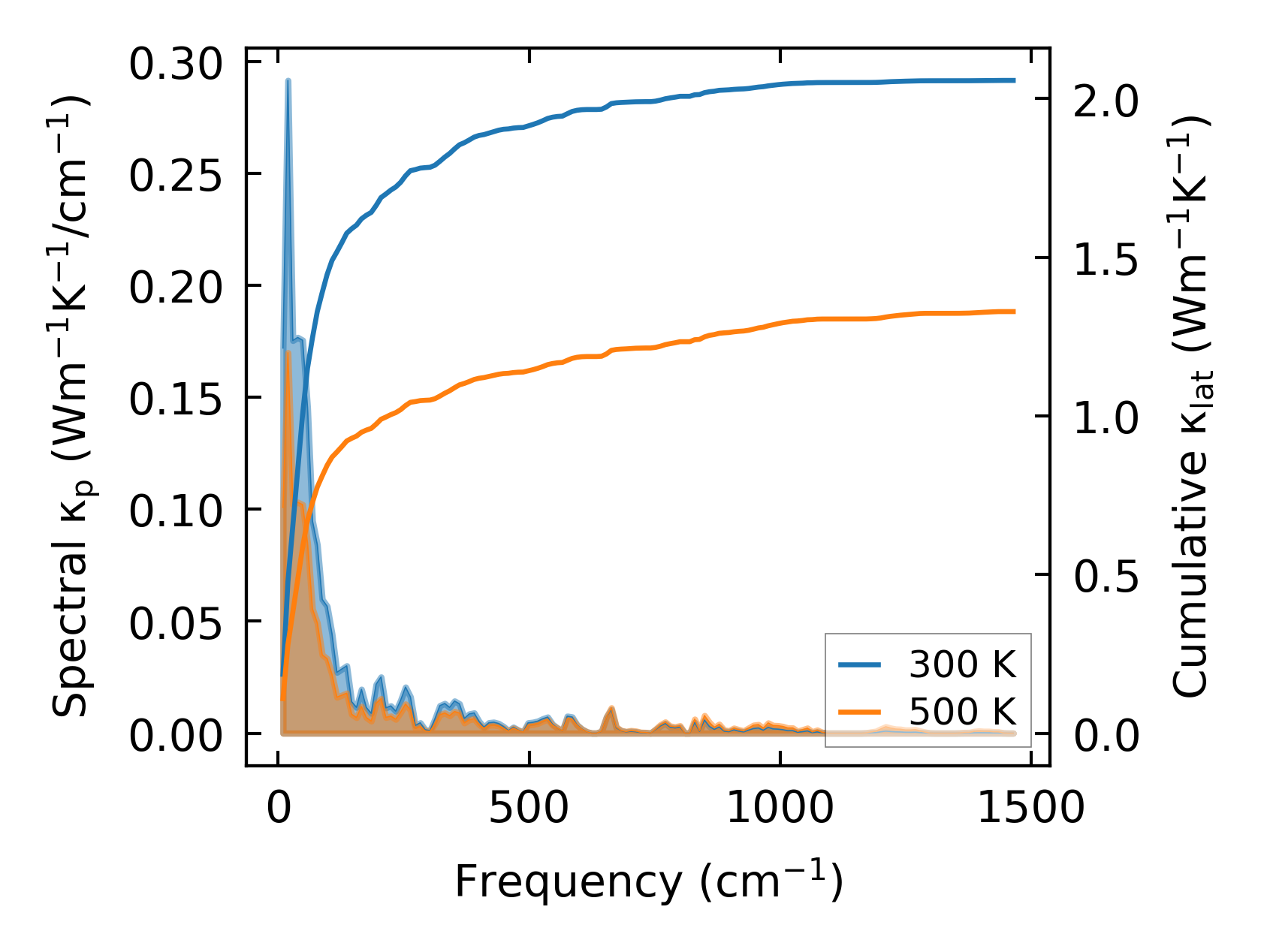

../../_images/fig_cumu_frequency2677.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

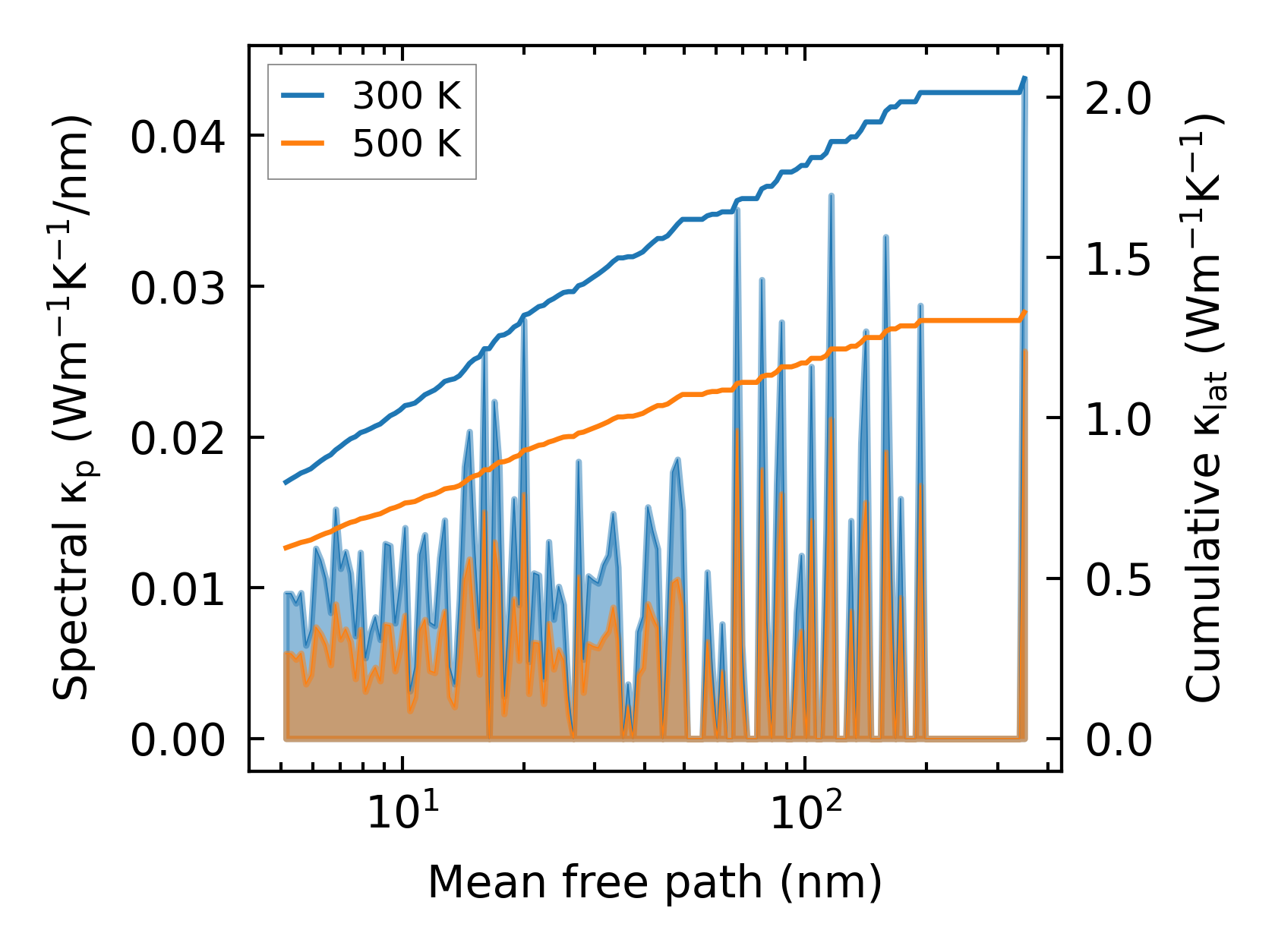

../../_images/fig_cumu_mfp2676.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

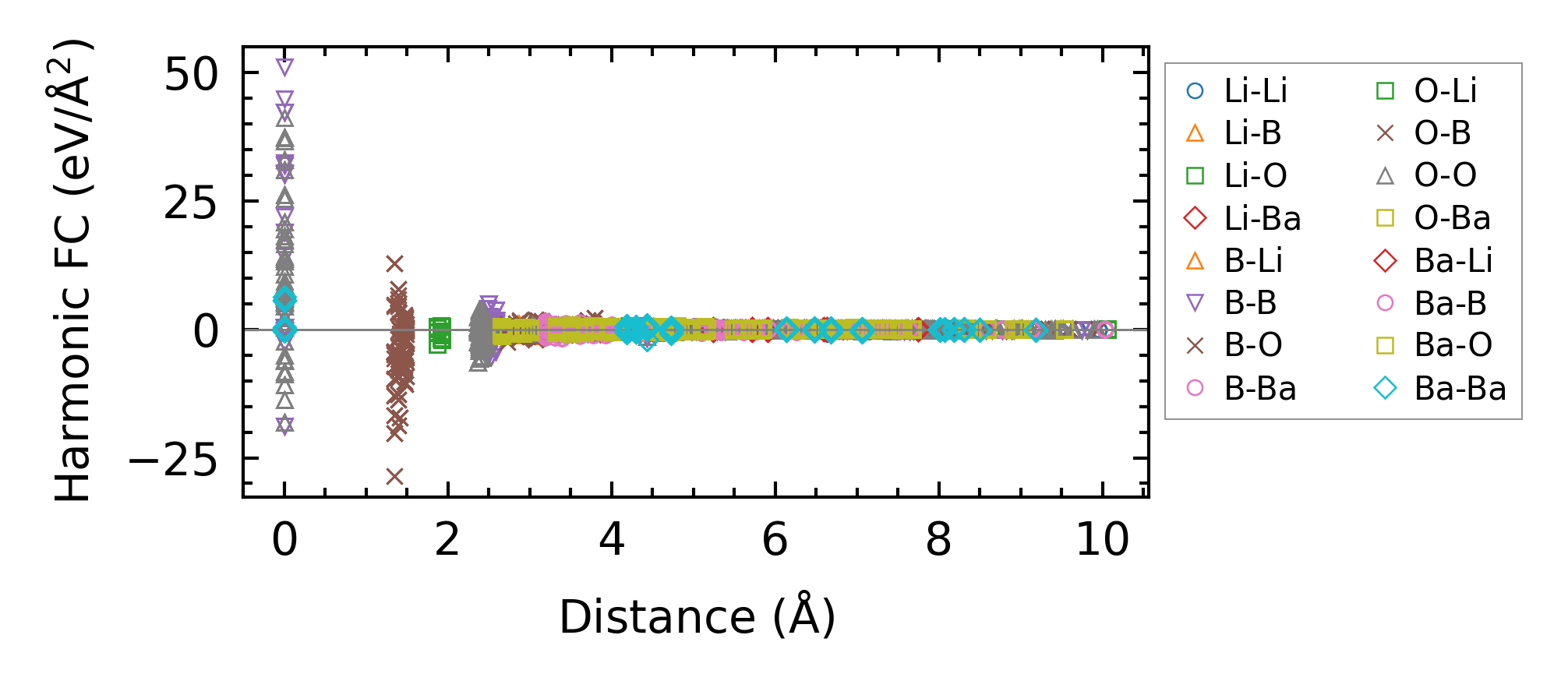

../../_images/fig_fc26417.png — (a) Force constants w.r.t atomic distance

Summary

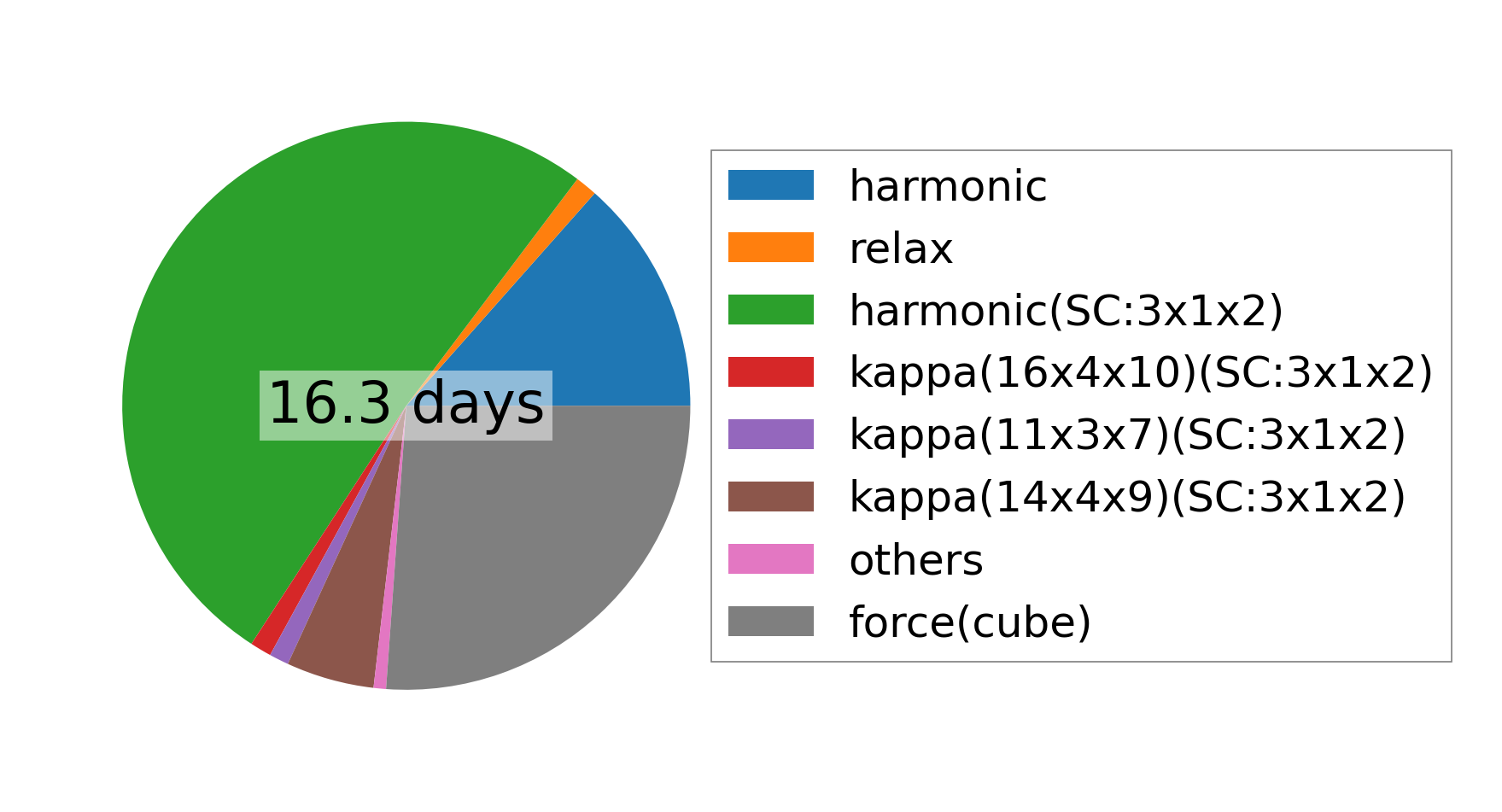

../../_images/fig_times11878.png — (a) Computation time
