mp-6231/Ba2ErSbO6/anharm

Space group: Fm-3m (225)
Link: Materials Project
Download: mp-6231.tar.gz

Harmonic properties

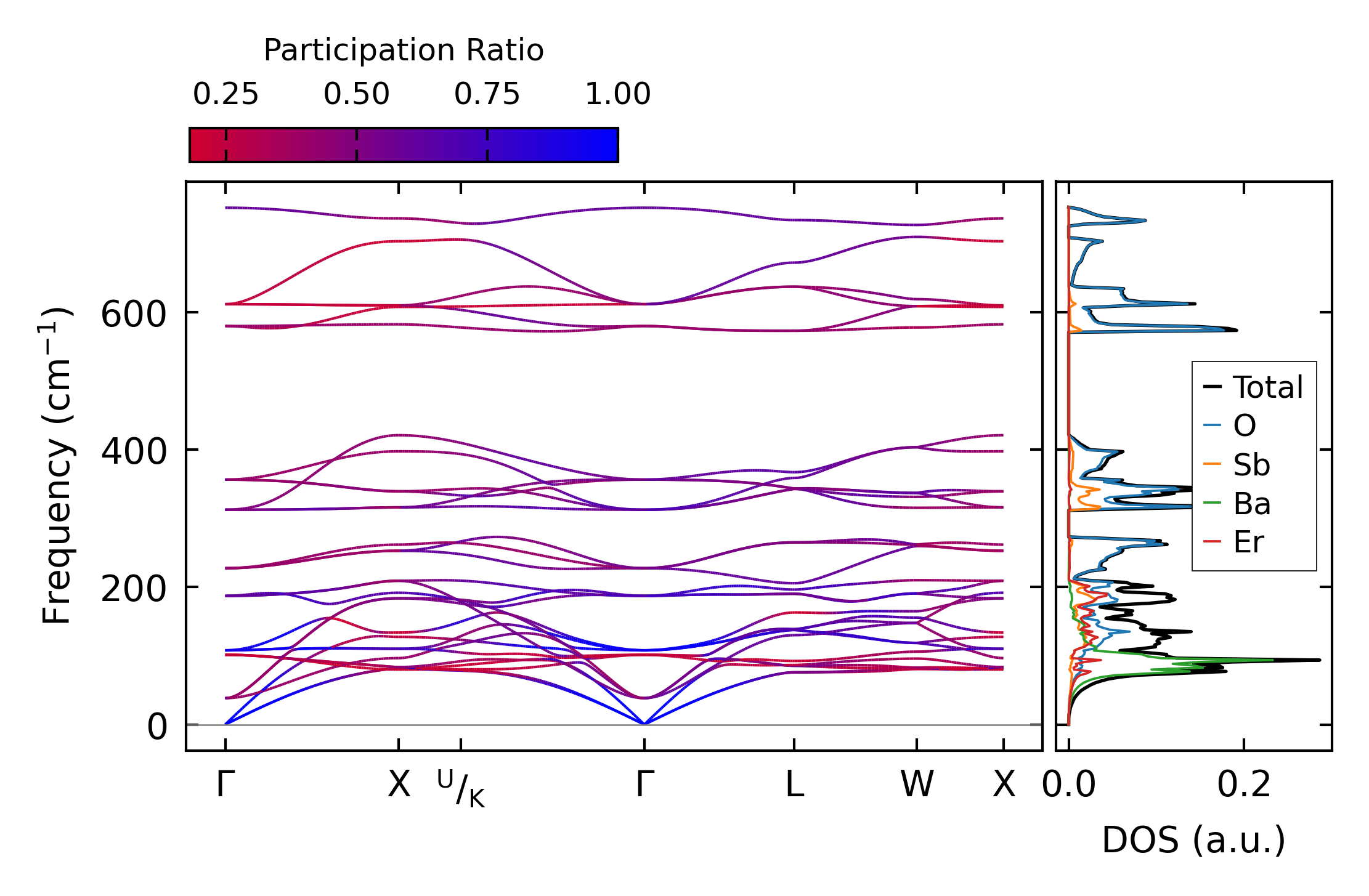

../../_images/fig_bandos_pr6321.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo6321.png — (b) Thermodynamic properties

Grüneisen parameters

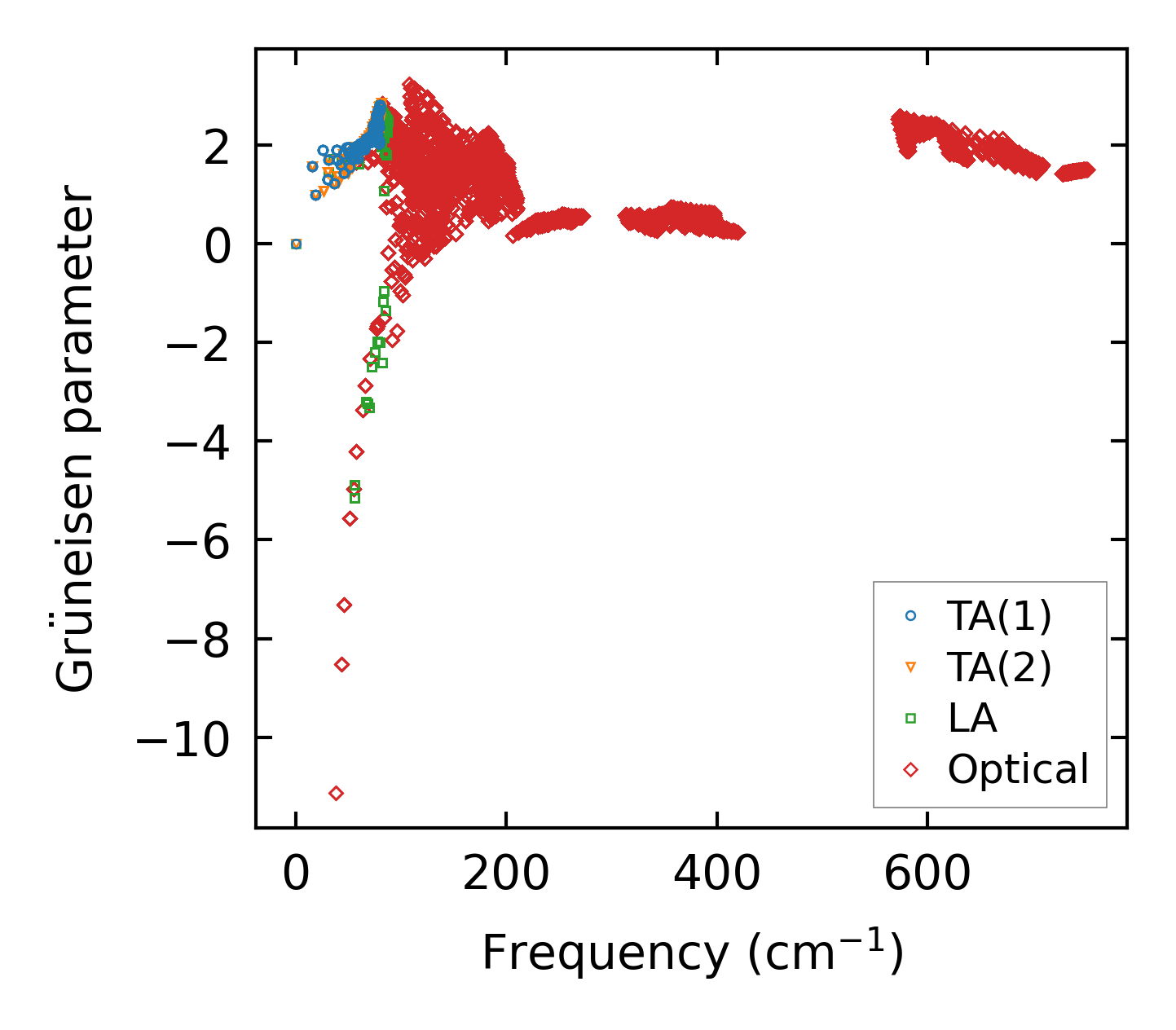

../../_images/fig_gru_all2577.png — (a) Grüneisen parameters

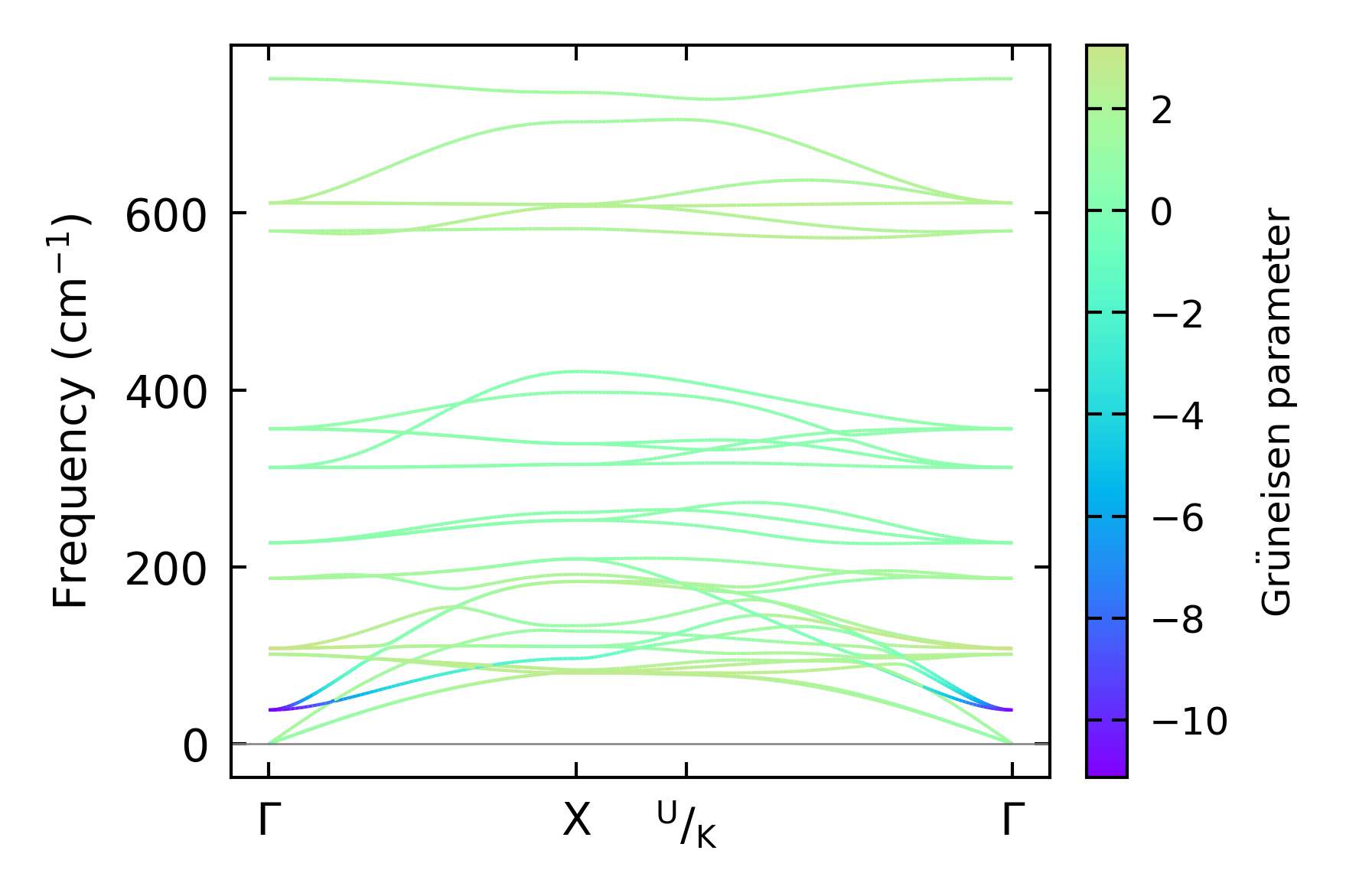

../../_images/fig_gruneisen2577.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x13x13, supercell: 1x1x1

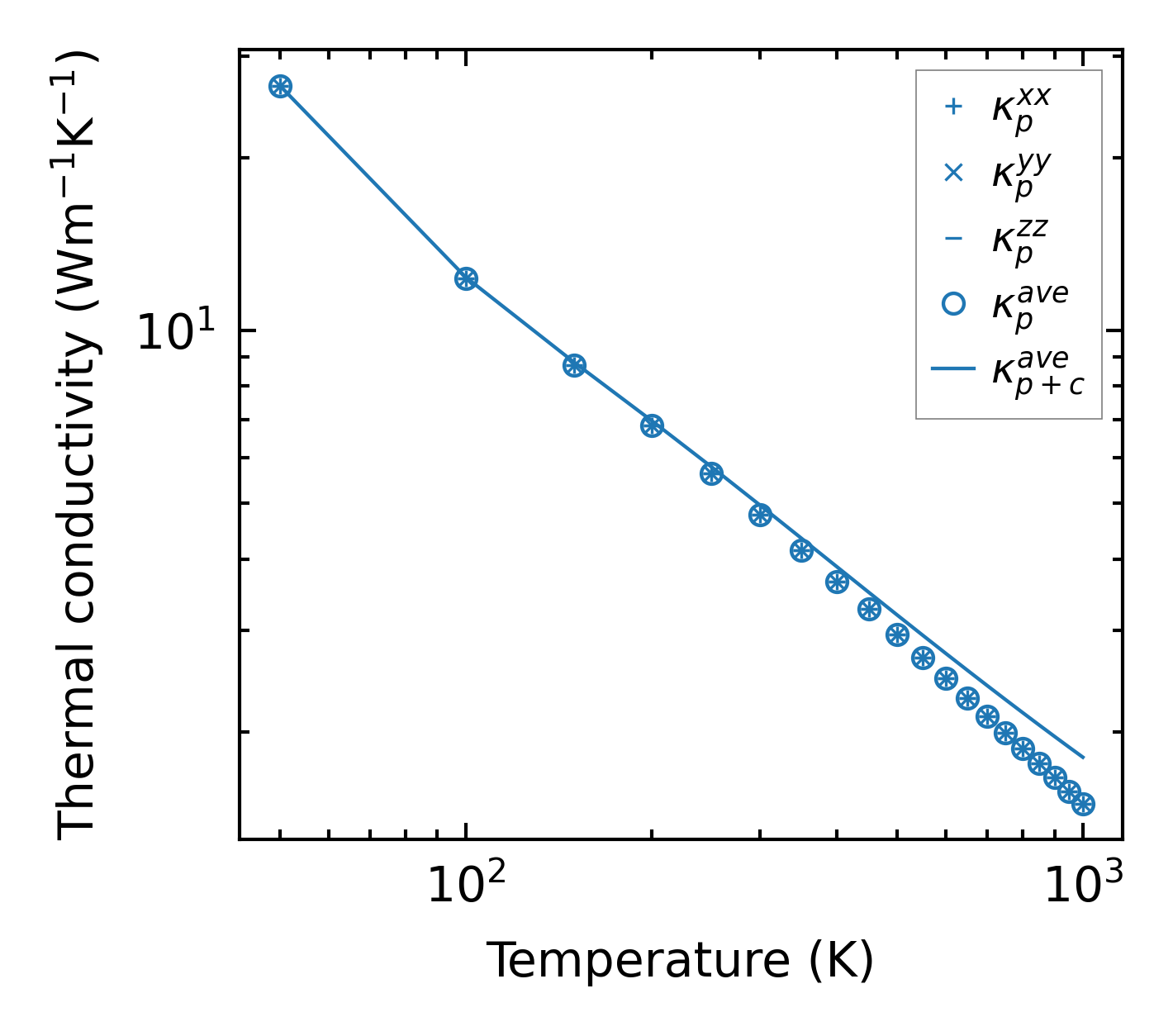

../../_images/fig_kappa4902.png — (a) Temperature-dependent lattice thermal conductivity

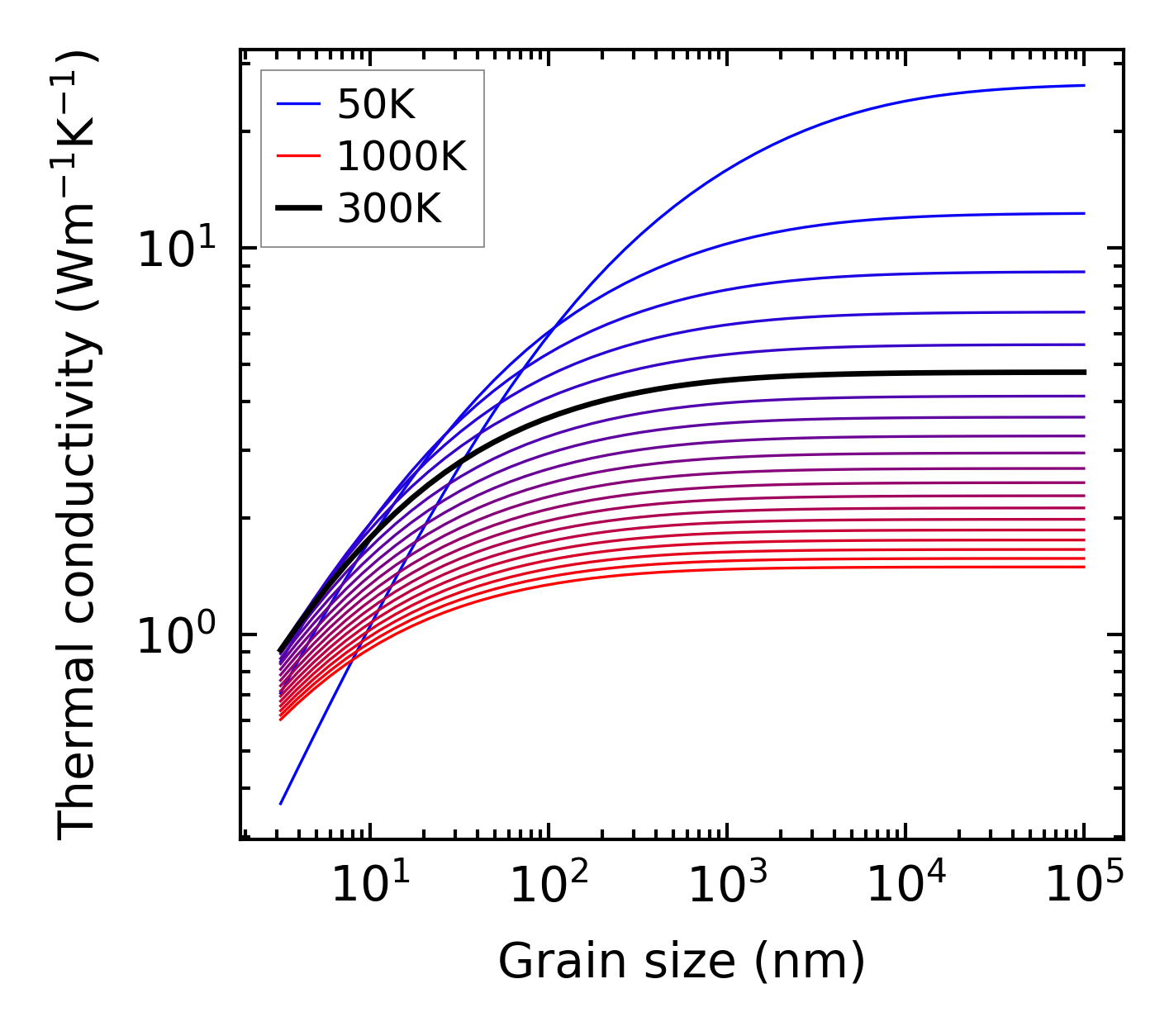

../../_images/fig_kappa_vs_grain_size2612.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Force constants

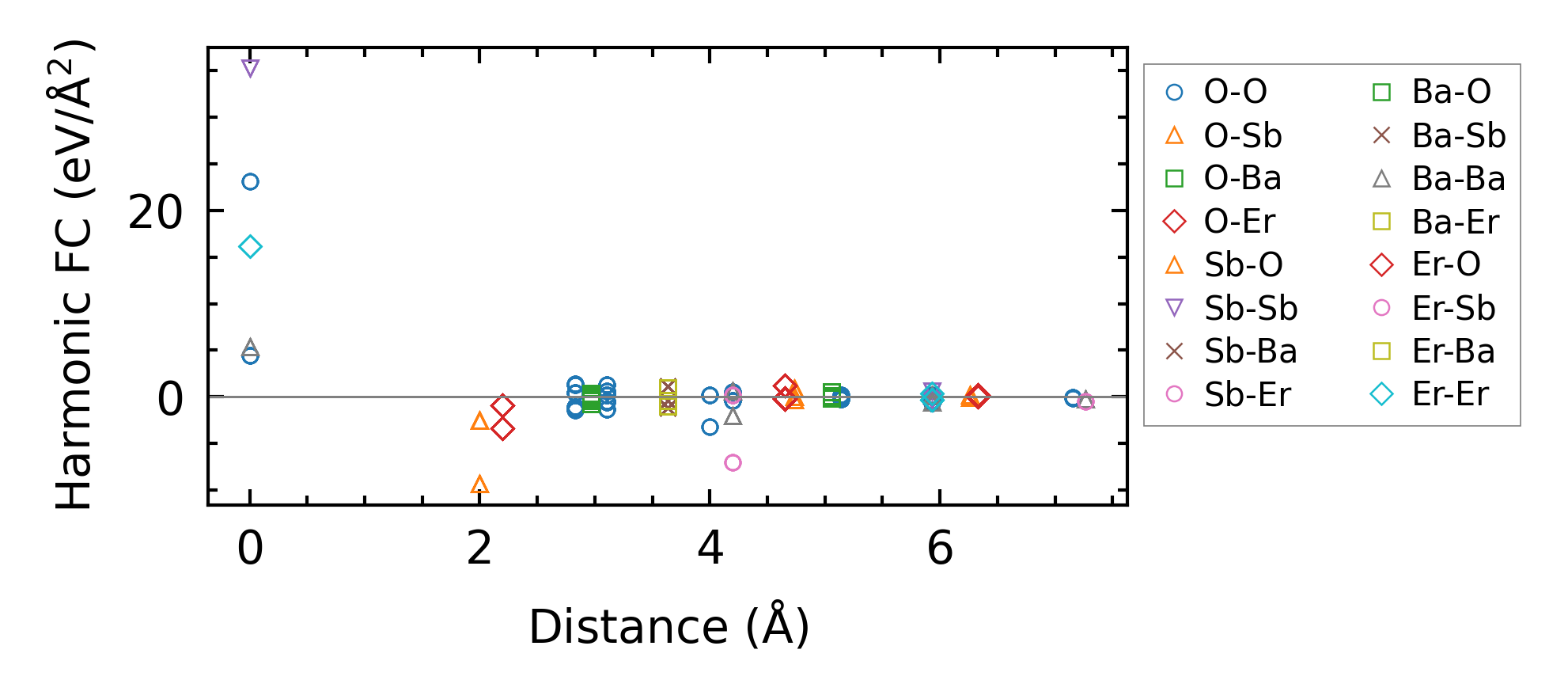

../../_images/fig_fc26111.png — (a) Force constants w.r.t atomic distance

Summary

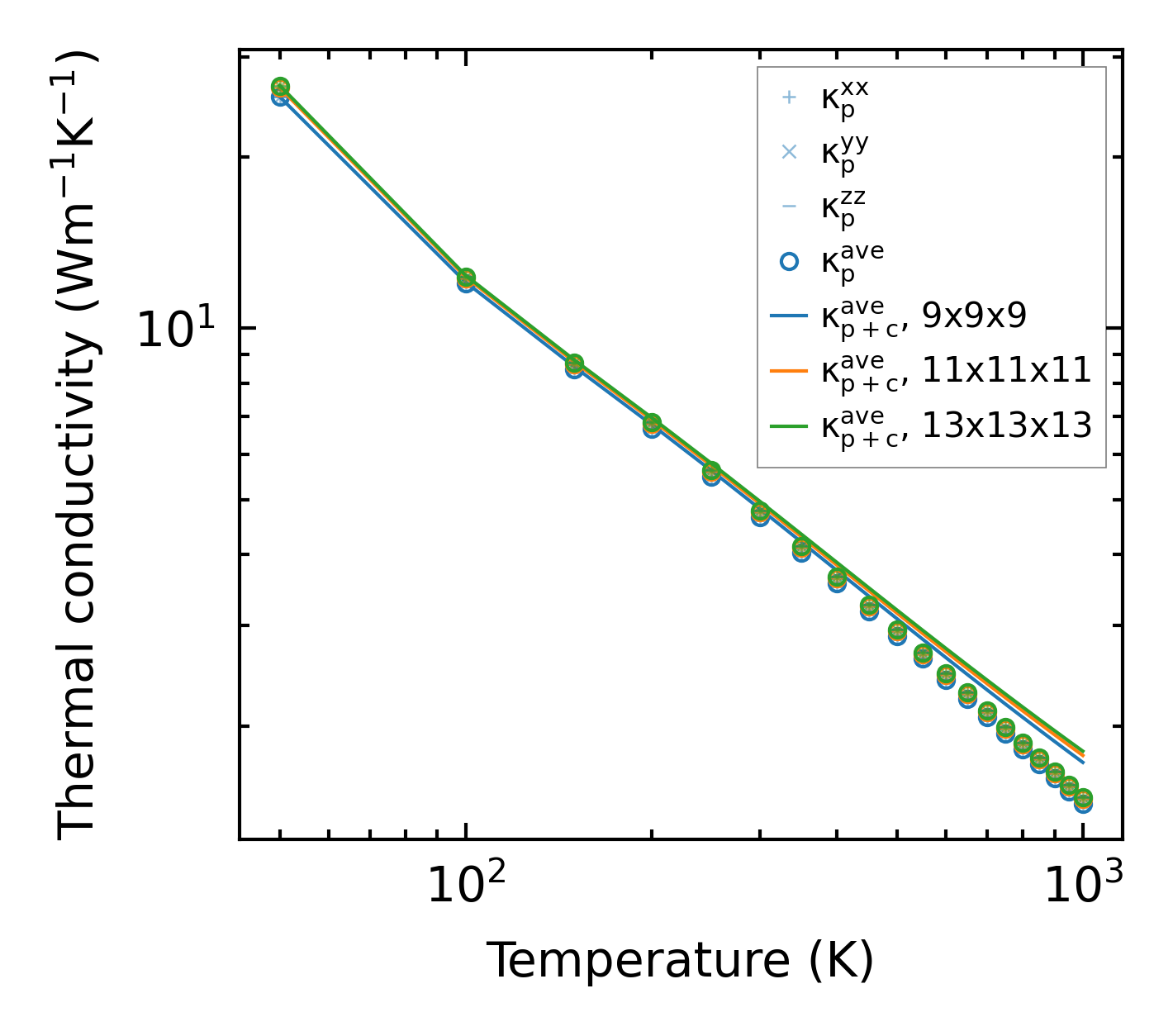

../../_images/fig_kappa4903.png — (a) Temperature-dependent lattice thermal conductivity

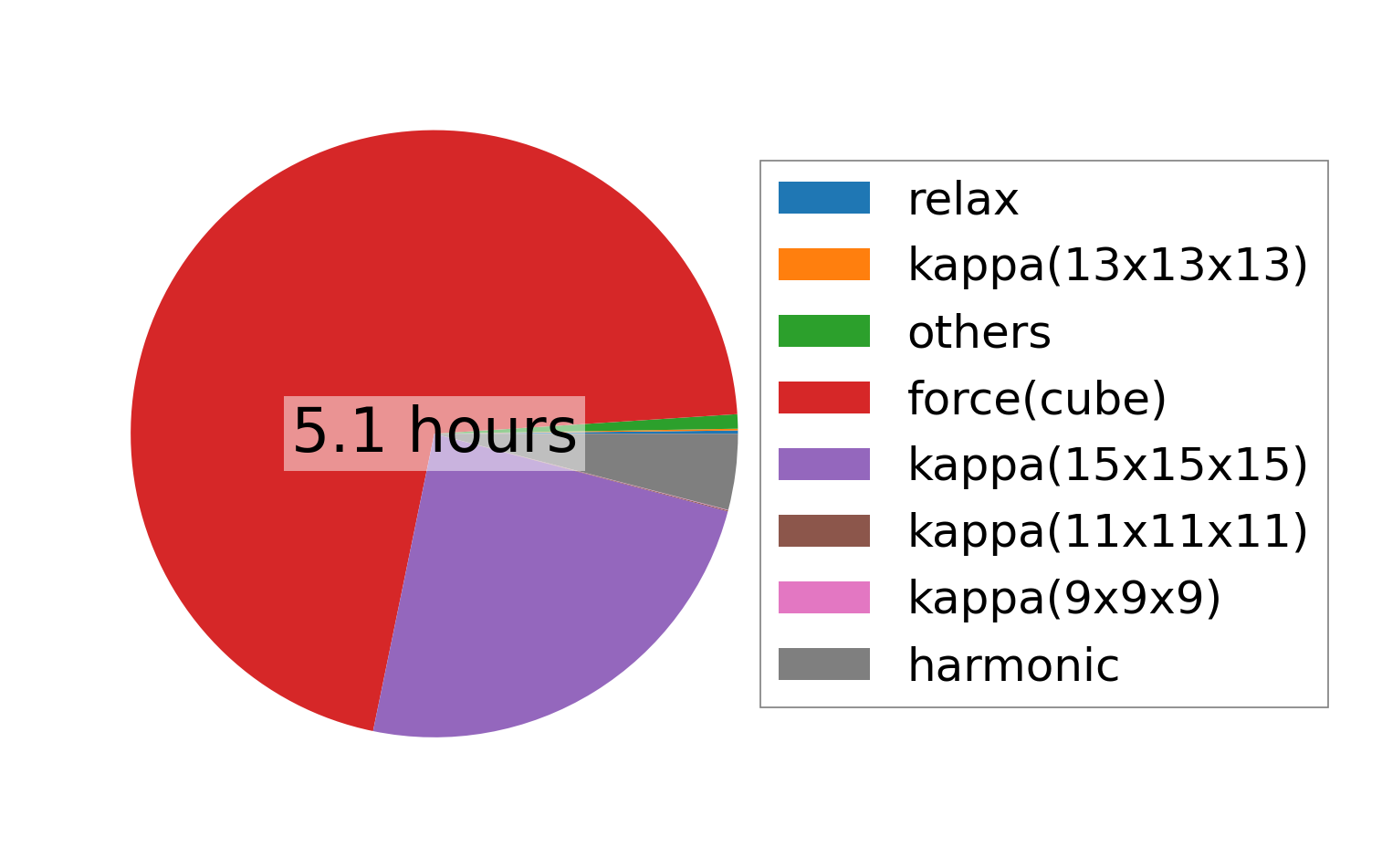

../../_images/fig_times11441.png — (b) Computation time
