mp-6305/K3TiO4F3/anharm

Space group: Cmcm (63)
Link: Materials Project
Download: mp-6305.tar.gz

Harmonic properties

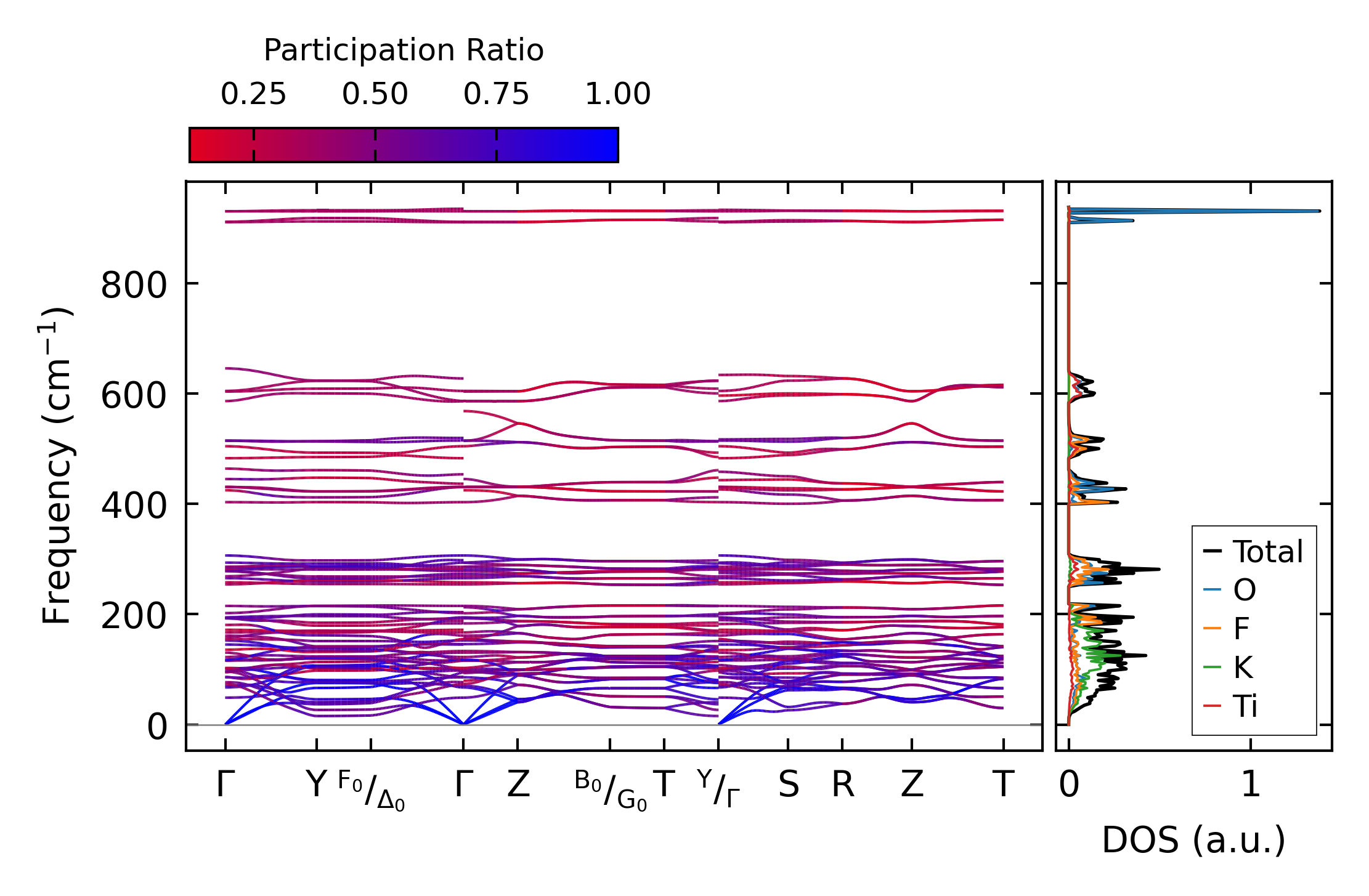

../../_images/fig_bandos_pr6371.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo6371.png — (b) Thermodynamic properties

Grüneisen parameters

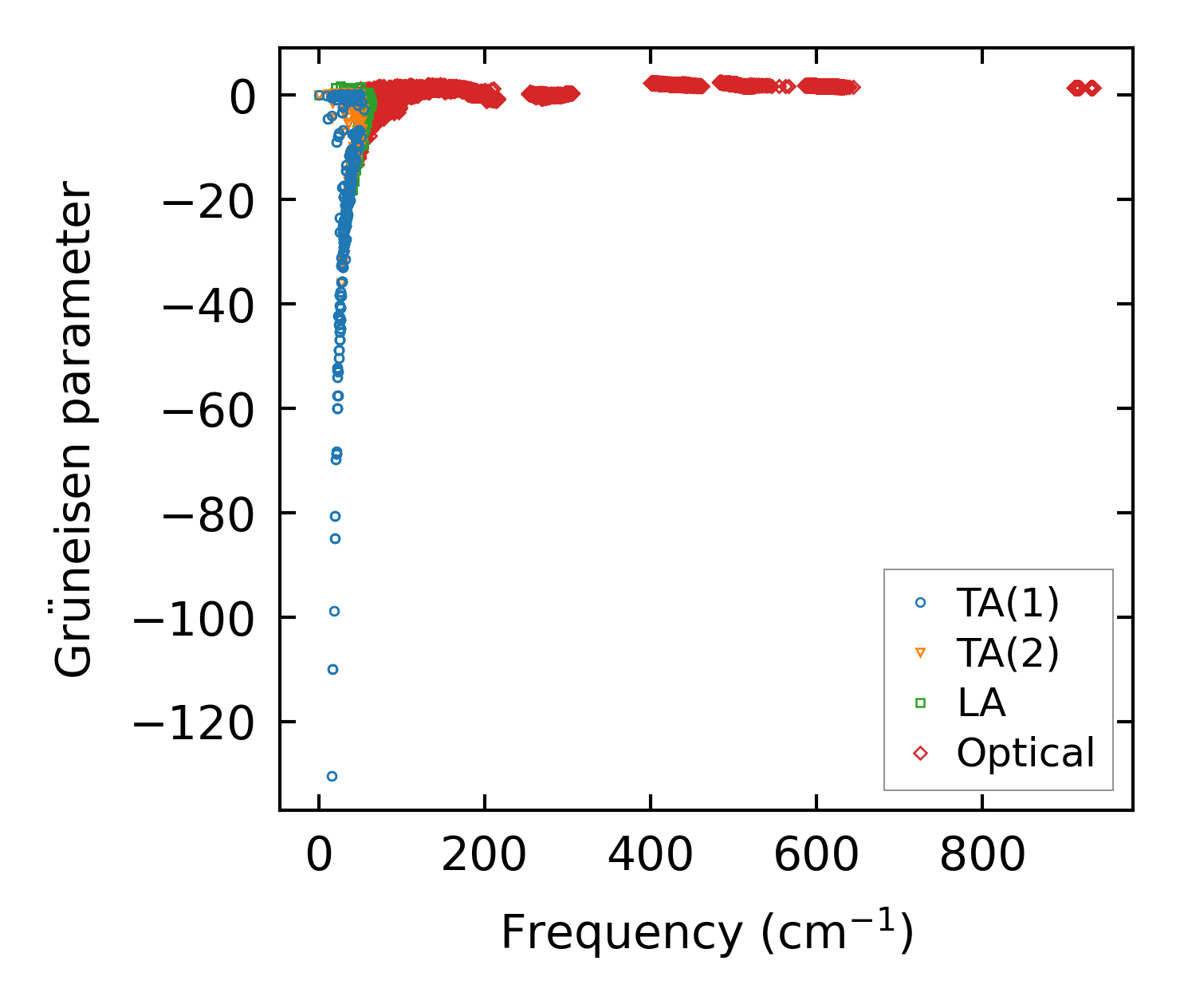

../../_images/fig_gru_all2596.png — (a) Grüneisen parameters

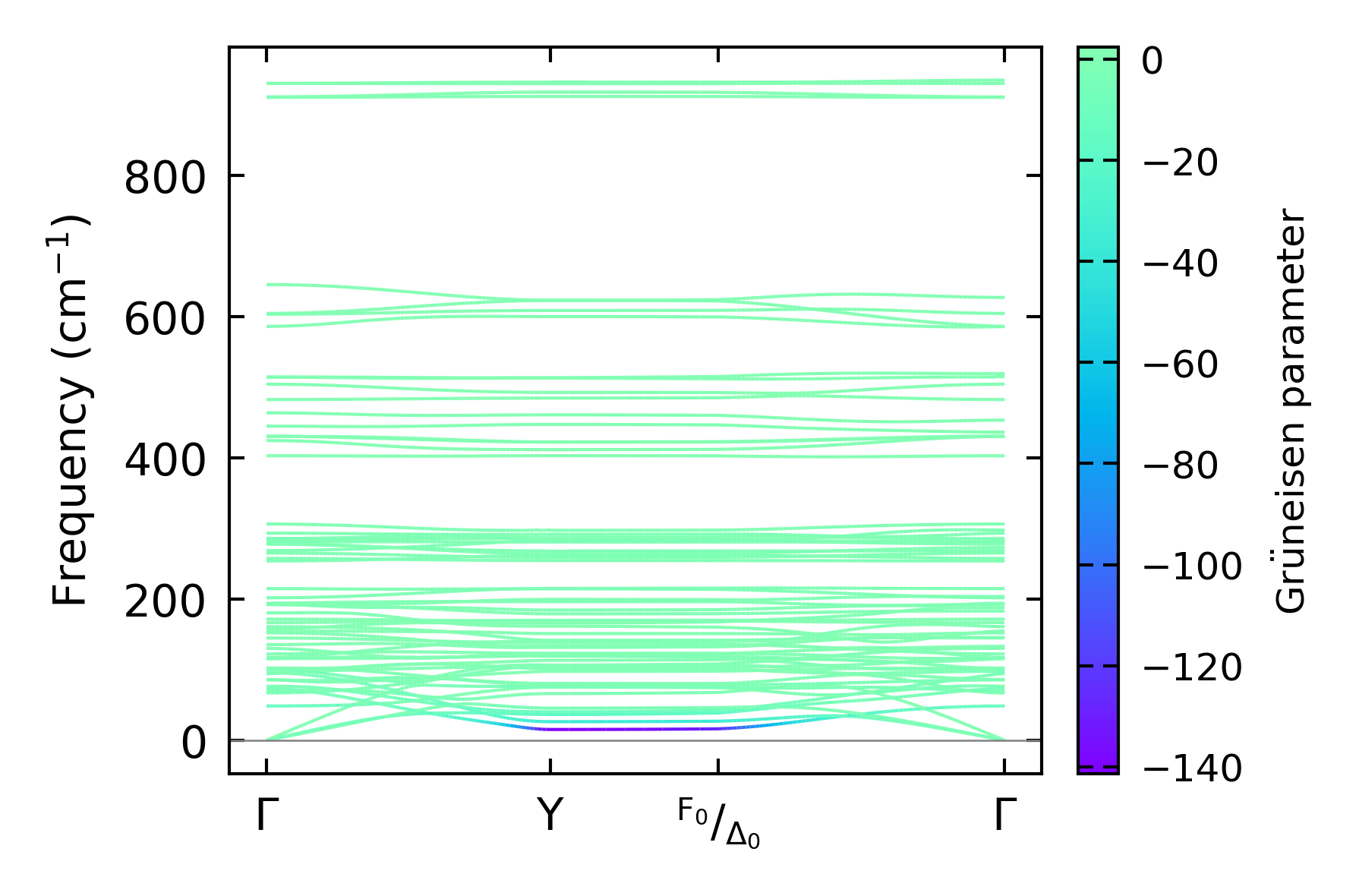

../../_images/fig_gruneisen2596.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x11x8, supercell: 1x2x1

../../_images/fig_kappa4937.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size2631.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

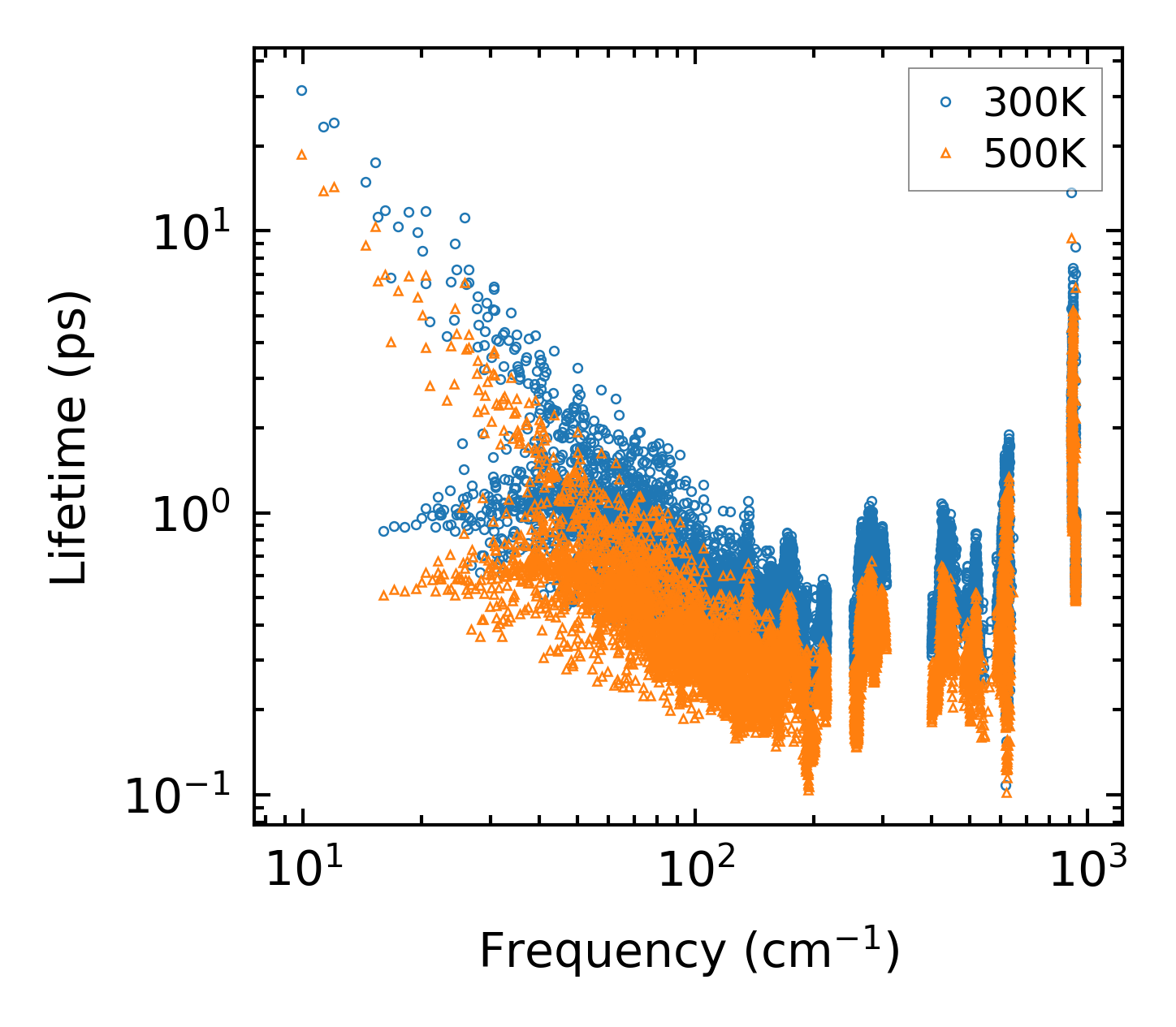

../../_images/fig_lifetime2574.png — (a) Phonon lifetime due to phonon-phonon scattering

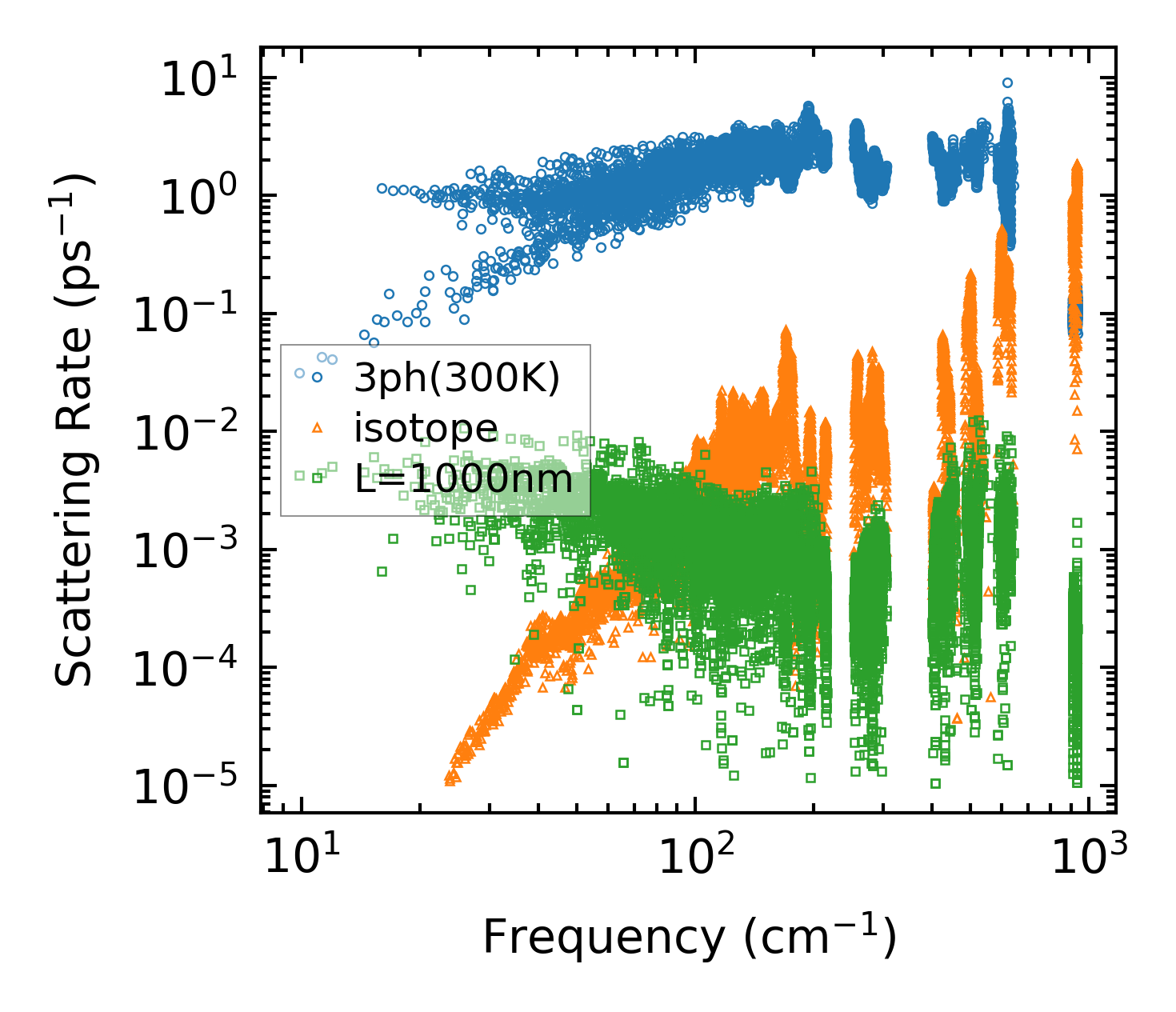

../../_images/fig_scat_rates2573.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

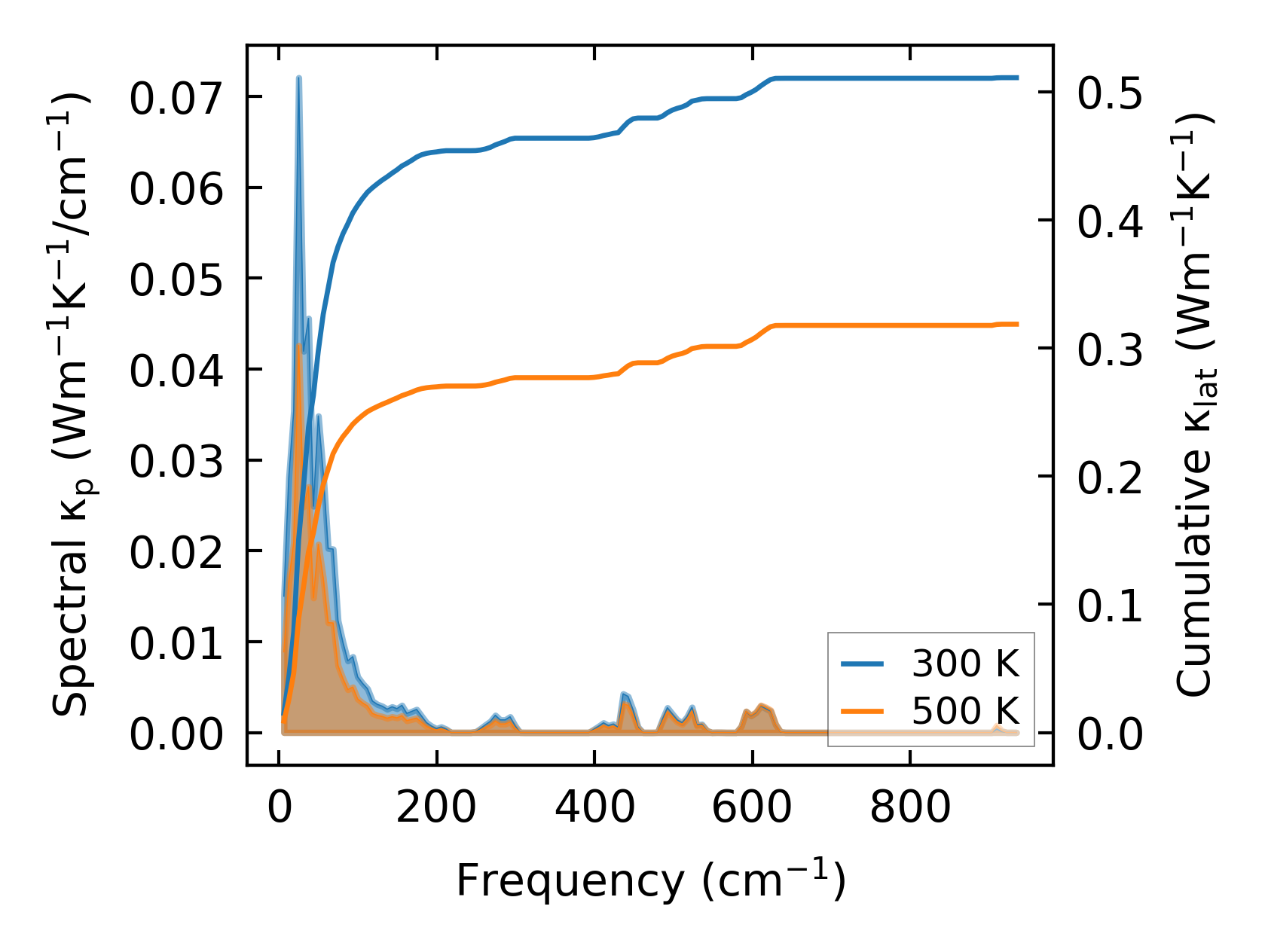

../../_images/fig_cumu_frequency2574.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

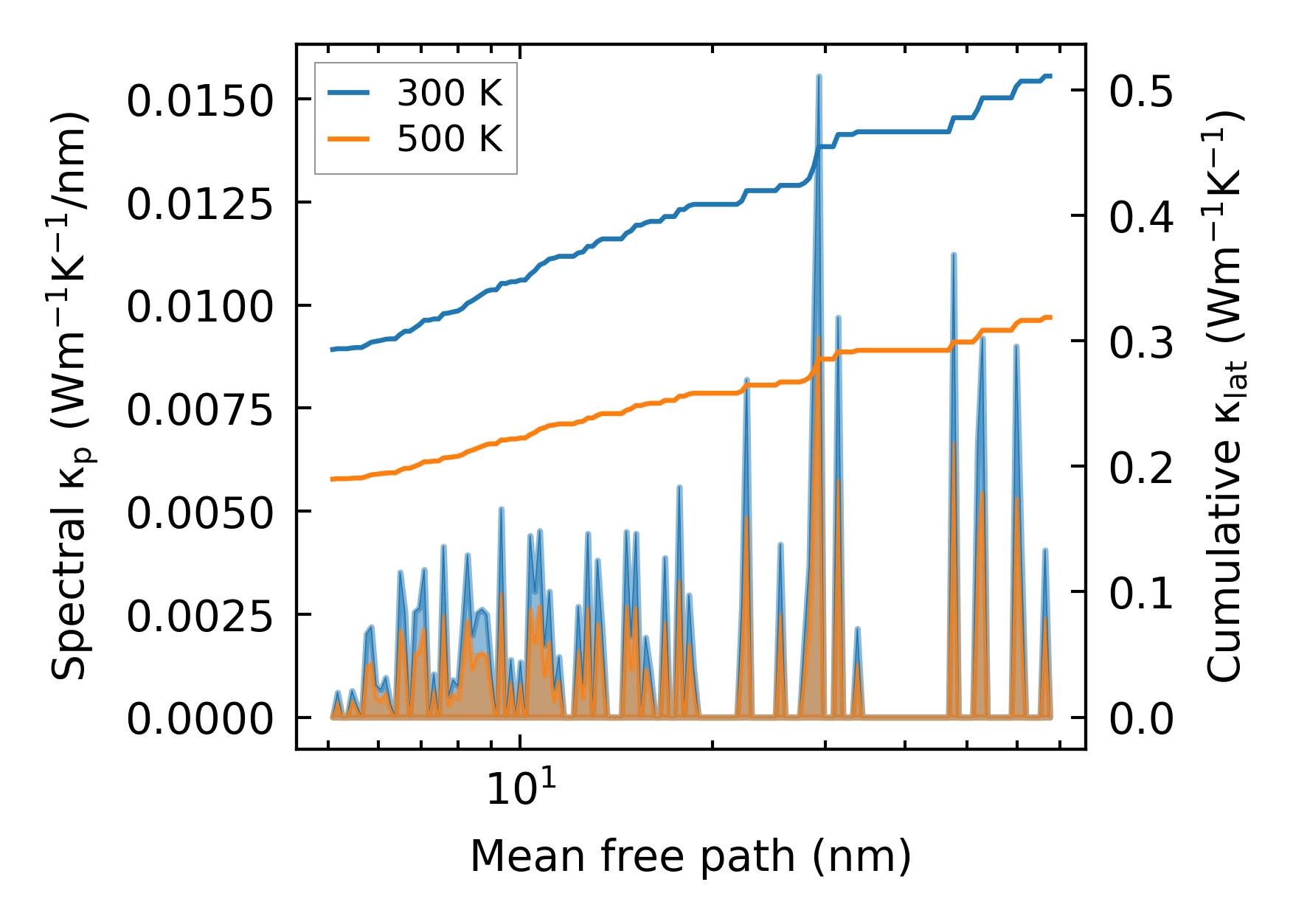

../../_images/fig_cumu_mfp2573.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

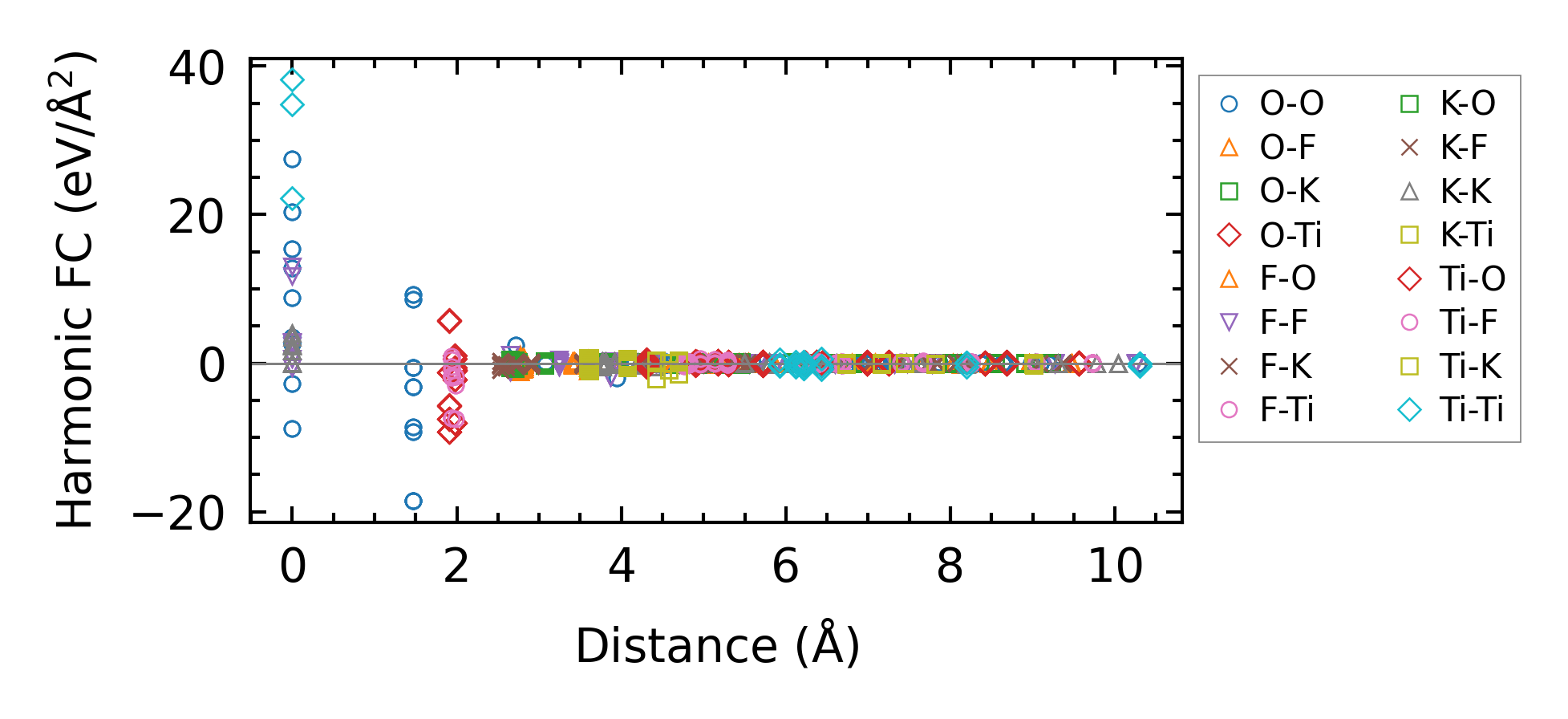

../../_images/fig_fc26161.png — (a) Force constants w.r.t atomic distance

Summary

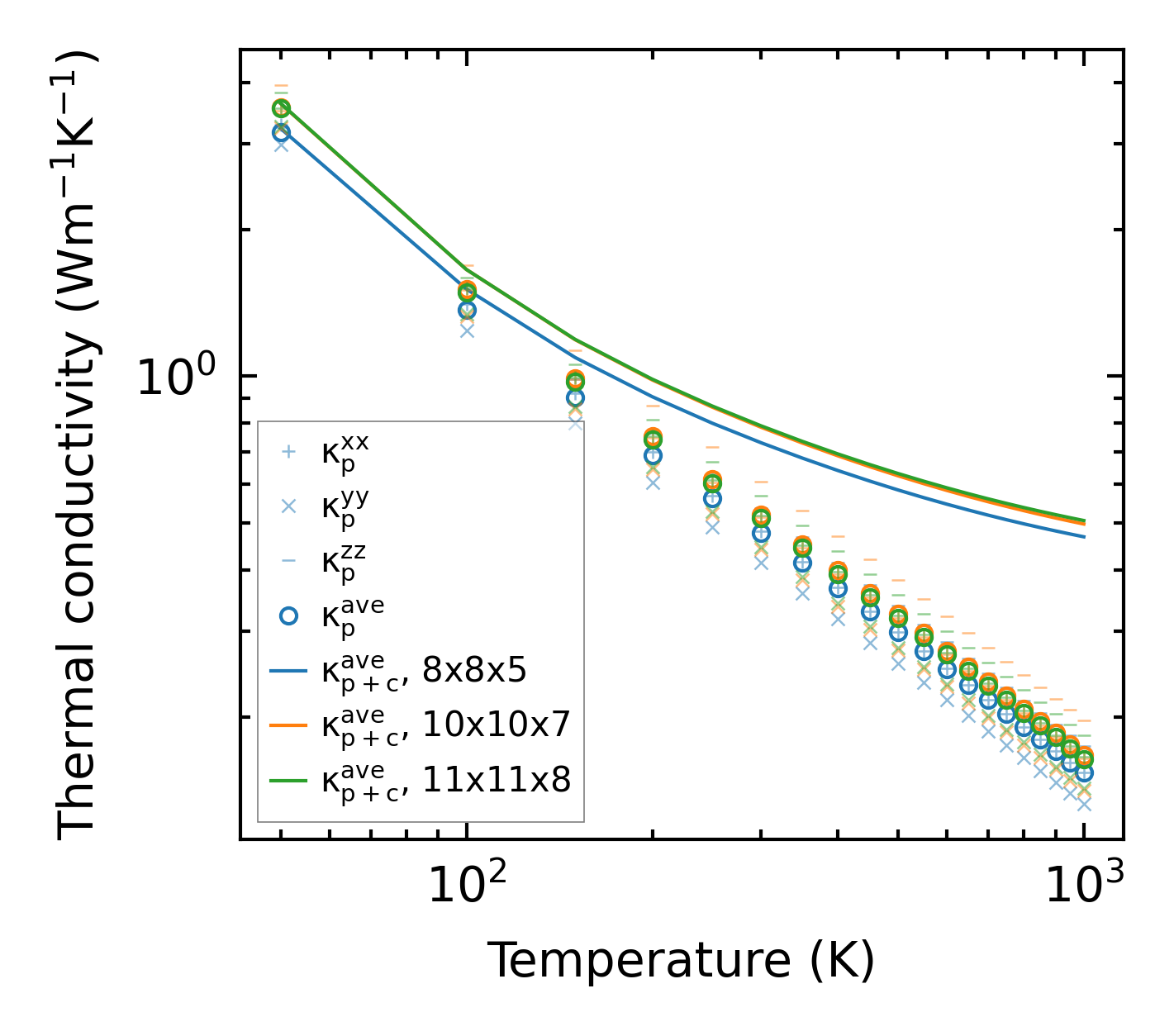

../../_images/fig_kappa4938.png — (a) Temperature-dependent lattice thermal conductivity

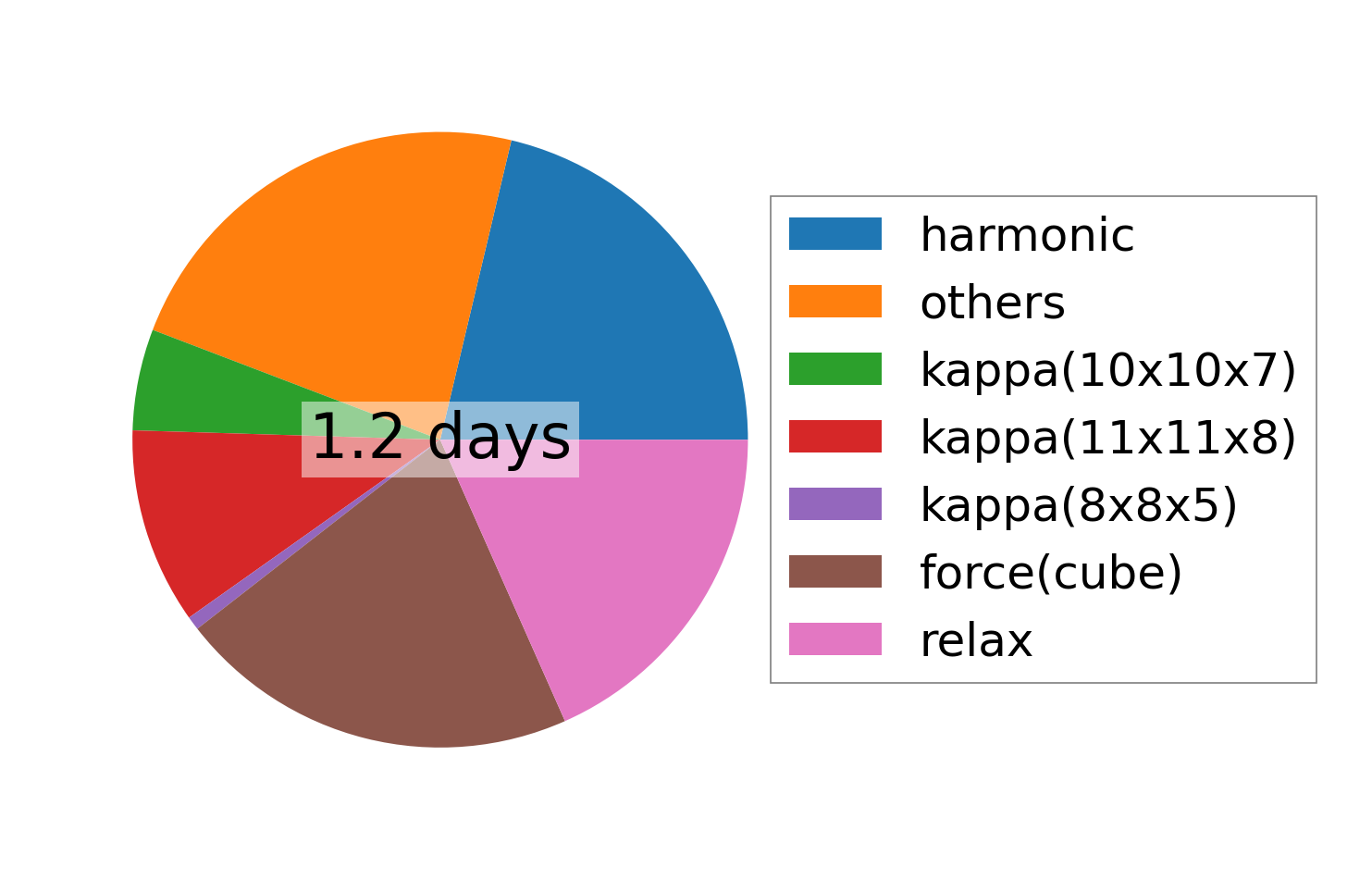

../../_images/fig_times11497.png — (b) Computation time
