mp-6166/PrCuSO/anharm

Space group: P4/nmm (129)
Link: Materials Project
Download: mp-6166.tar.gz

Harmonic properties

../../_images/fig_bandos_pr6288.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo6288.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all2566.png — (a) Grüneisen parameters

../../_images/fig_gruneisen2566.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 18x18x8, supercell: 3x3x2

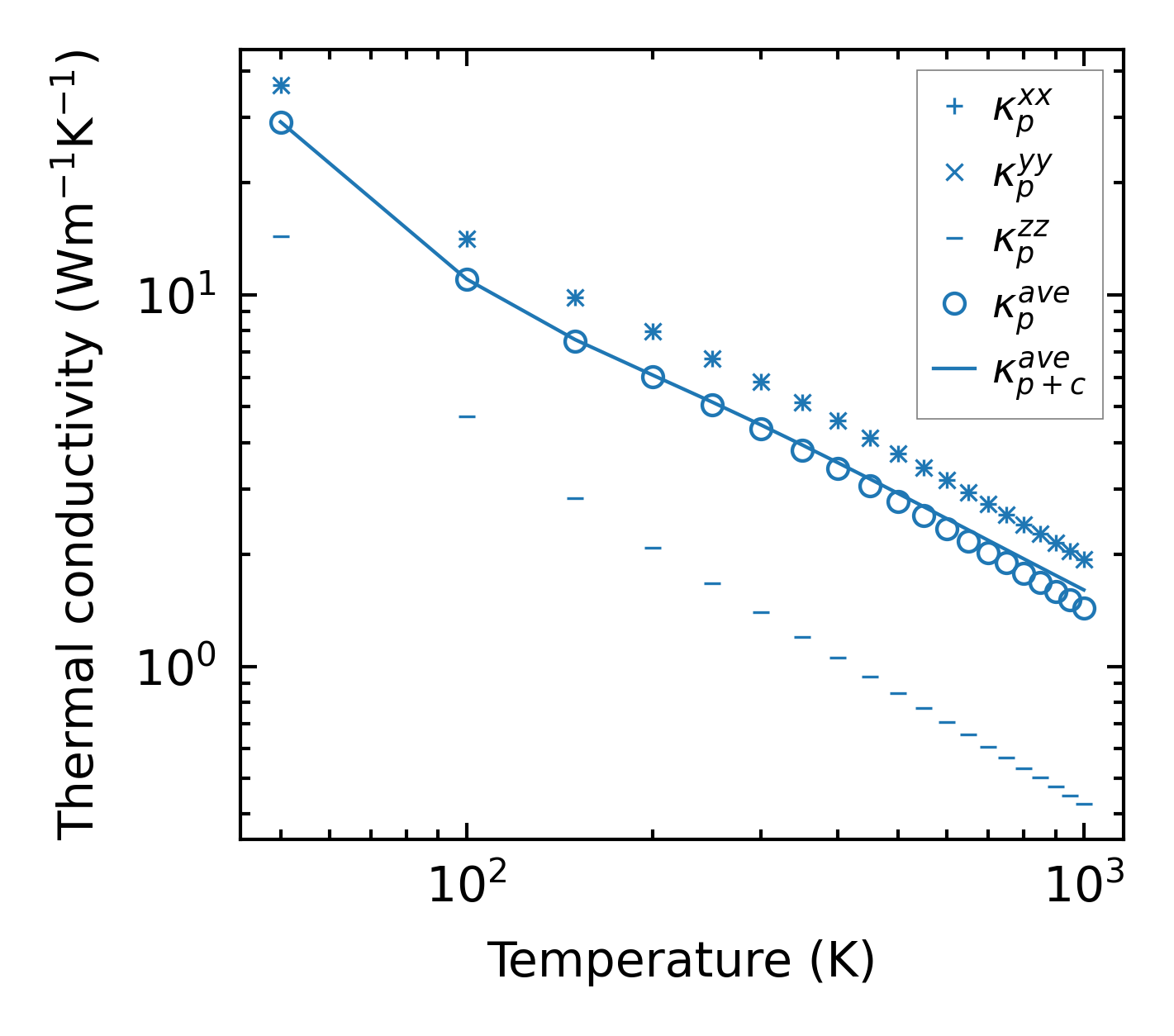

../../_images/fig_kappa4882.png — (a) Temperature-dependent lattice thermal conductivity

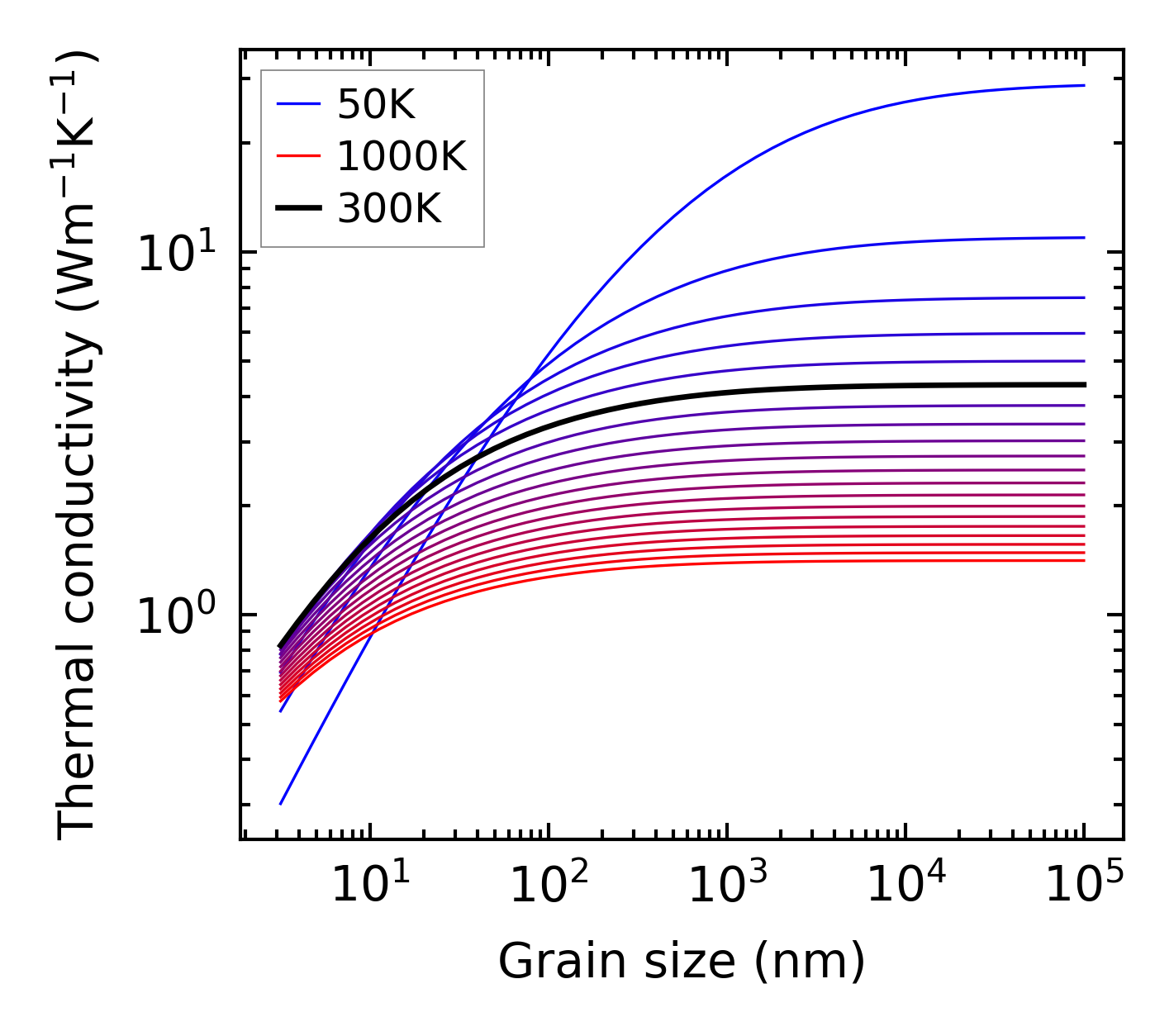

../../_images/fig_kappa_vs_grain_size2601.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime2547.png — (a) Phonon lifetime due to phonon-phonon scattering

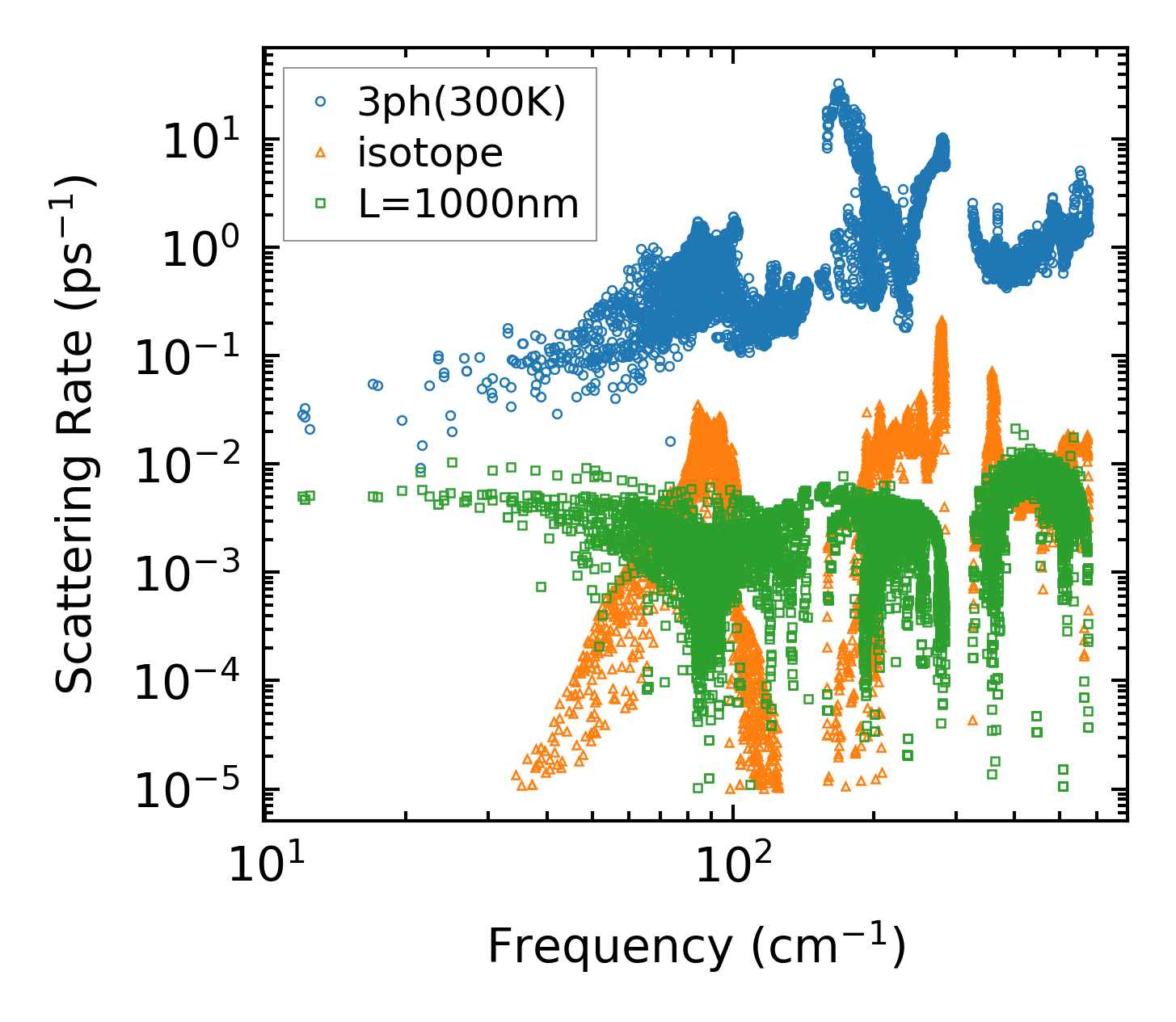

../../_images/fig_scat_rates2546.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

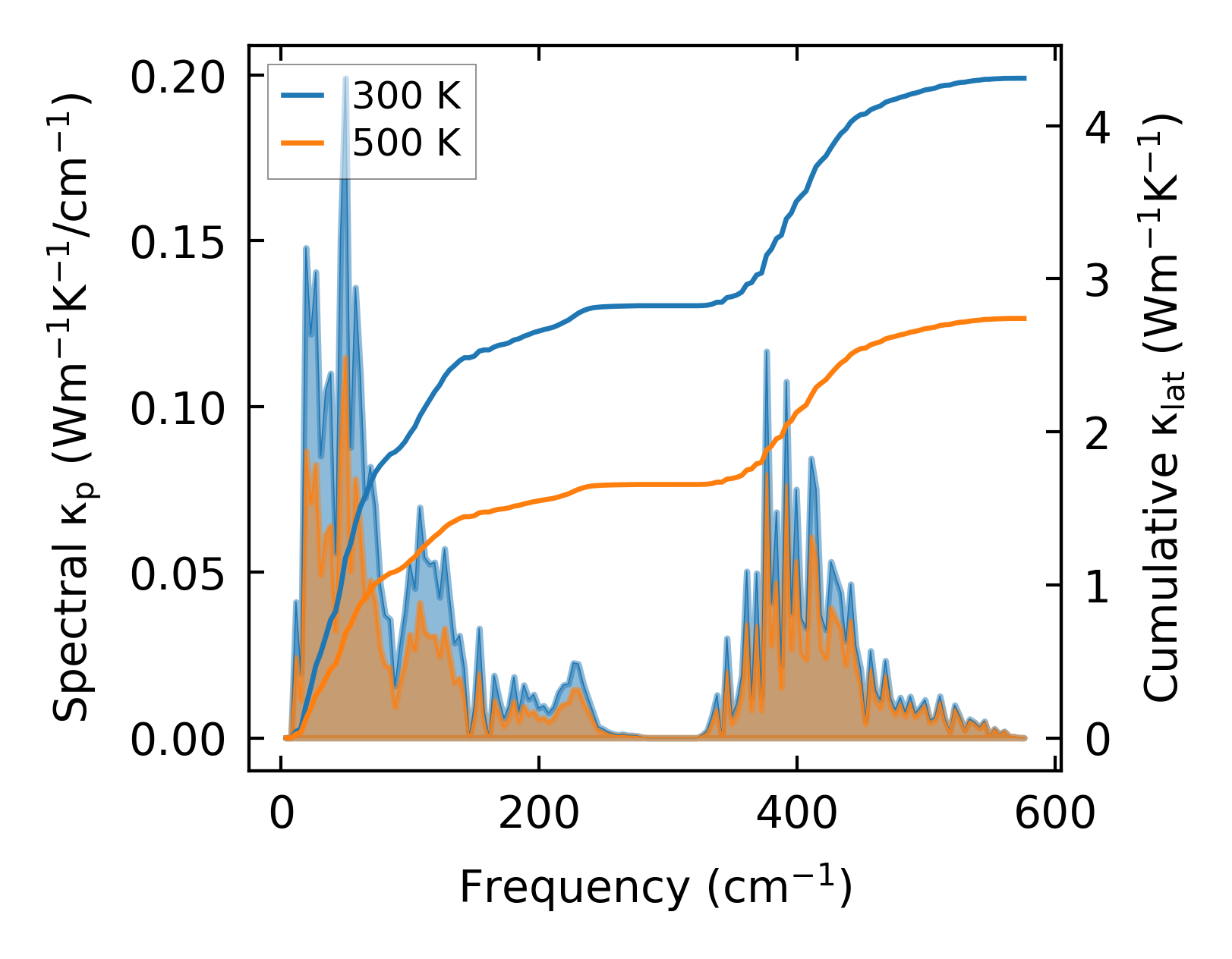

../../_images/fig_cumu_frequency2547.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

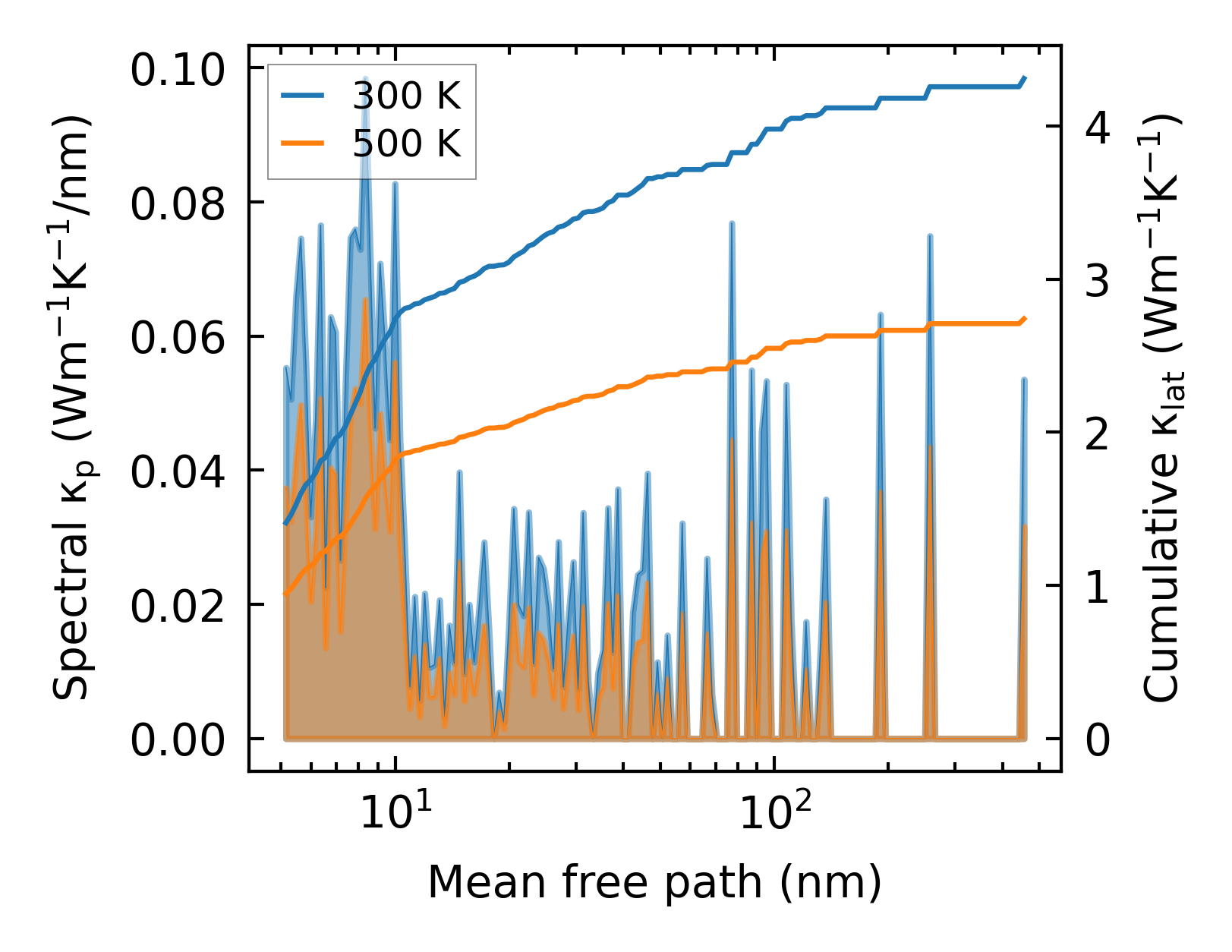

../../_images/fig_cumu_mfp2546.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

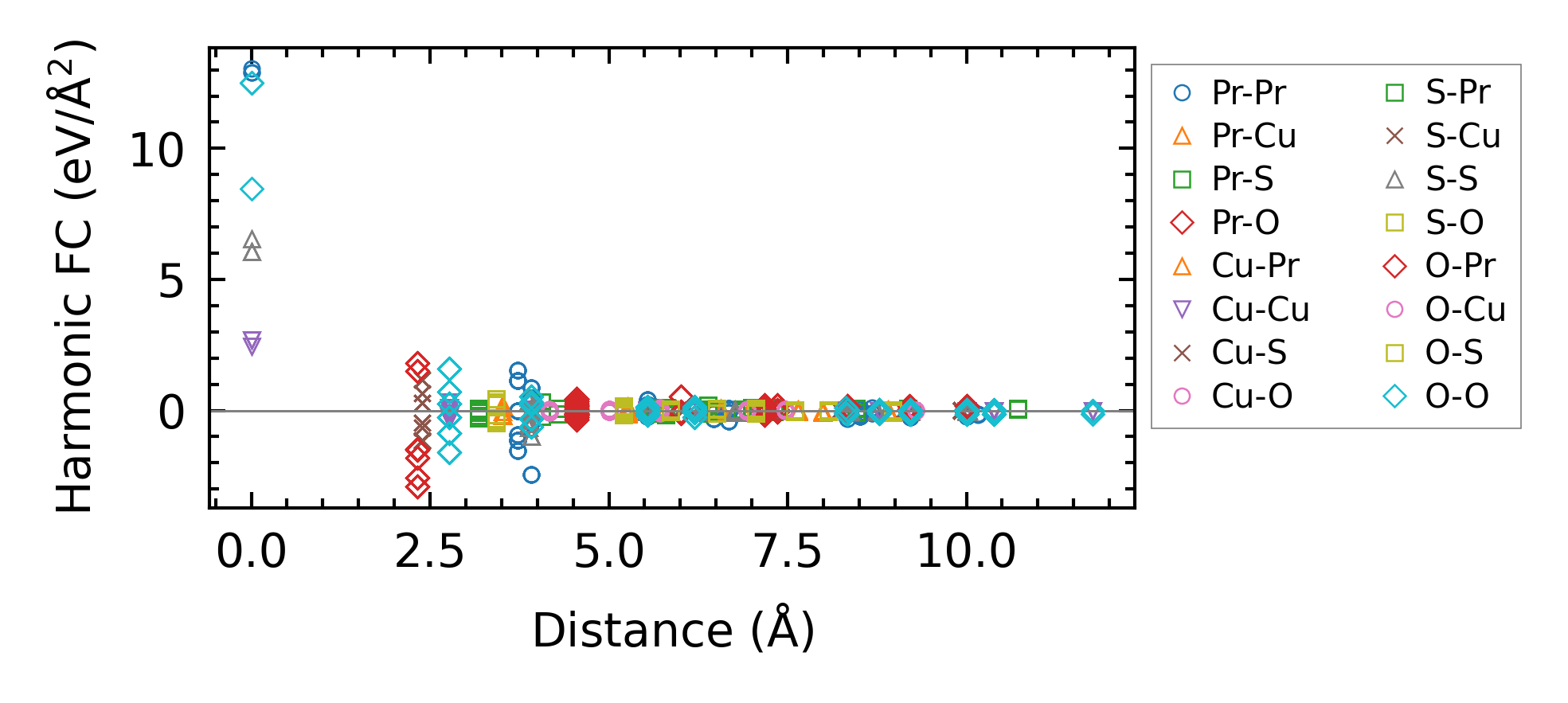

../../_images/fig_fc26078.png — (a) Force constants w.r.t atomic distance

Summary

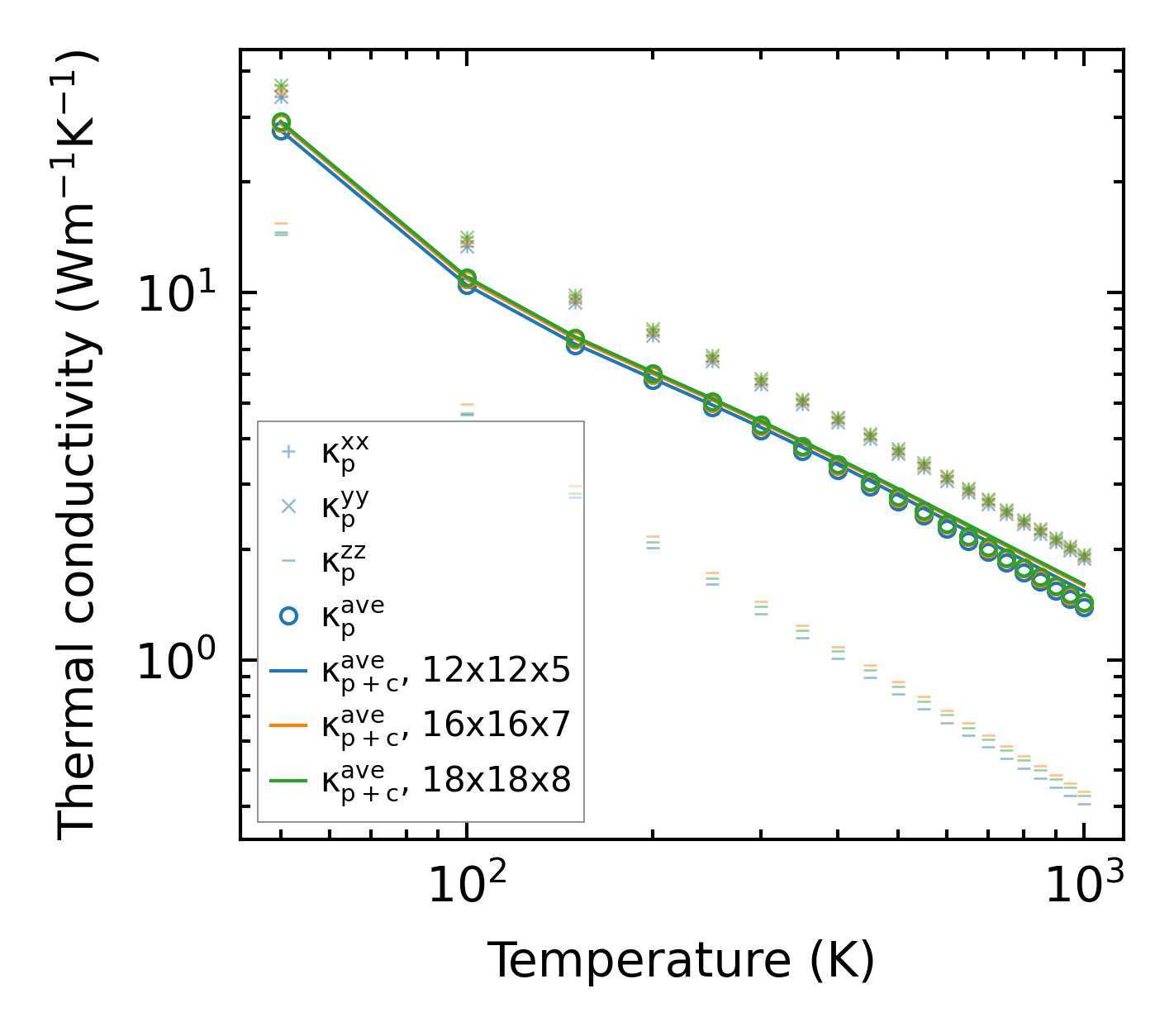

../../_images/fig_kappa4883.png — (a) Temperature-dependent lattice thermal conductivity

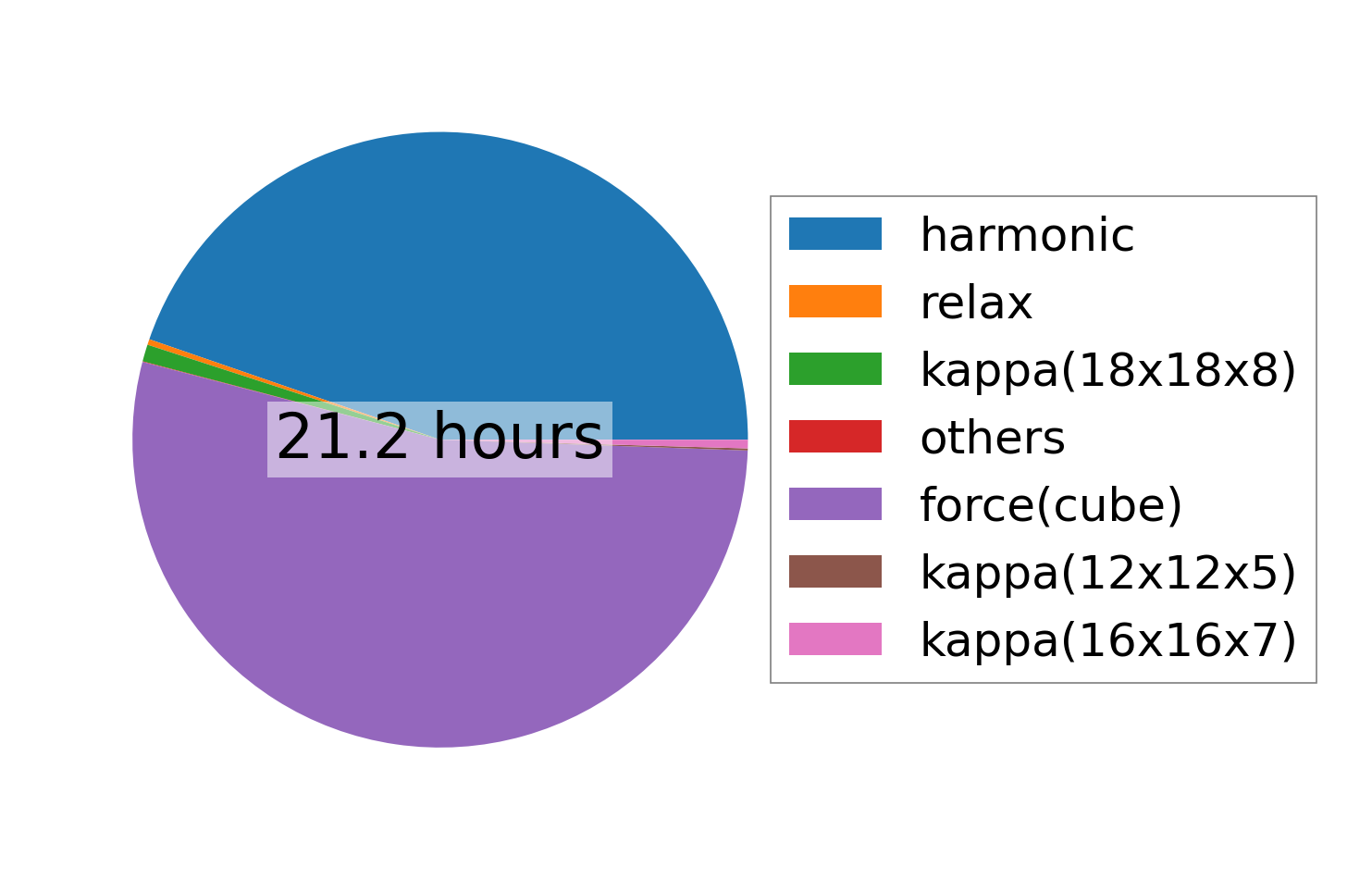

../../_images/fig_times11404.png — (b) Computation time
