mp-6300/RbHgSbSe3/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-6300.tar.gz

Harmonic properties

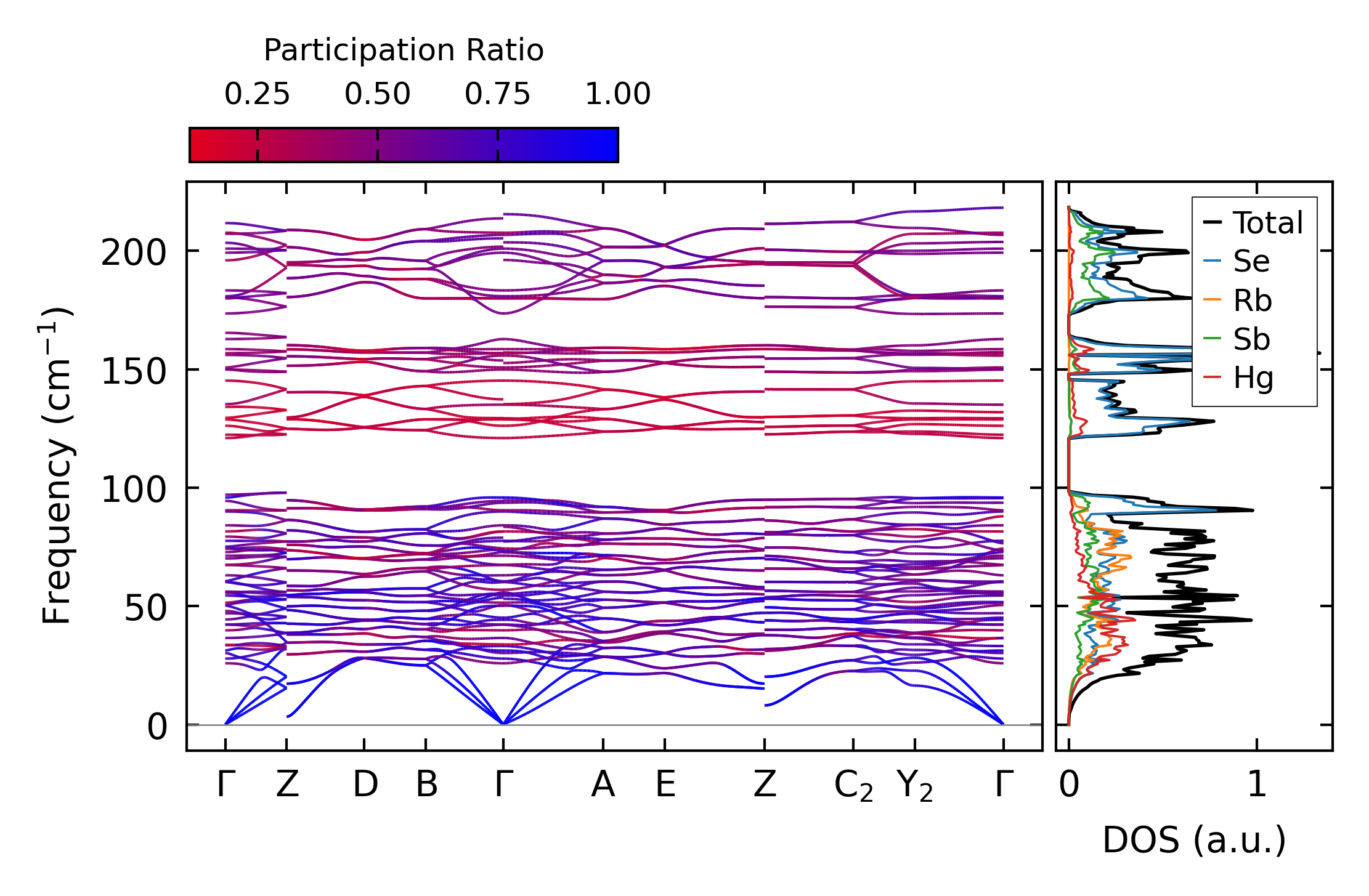

../../_images/fig_bandos_pr6367.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo6367.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all2594.png — (a) Grüneisen parameters

../../_images/fig_gruneisen2594.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 9x6x8, supercell: 2x1x2

../../_images/fig_kappa4933.png — (a) Temperature-dependent lattice thermal conductivity

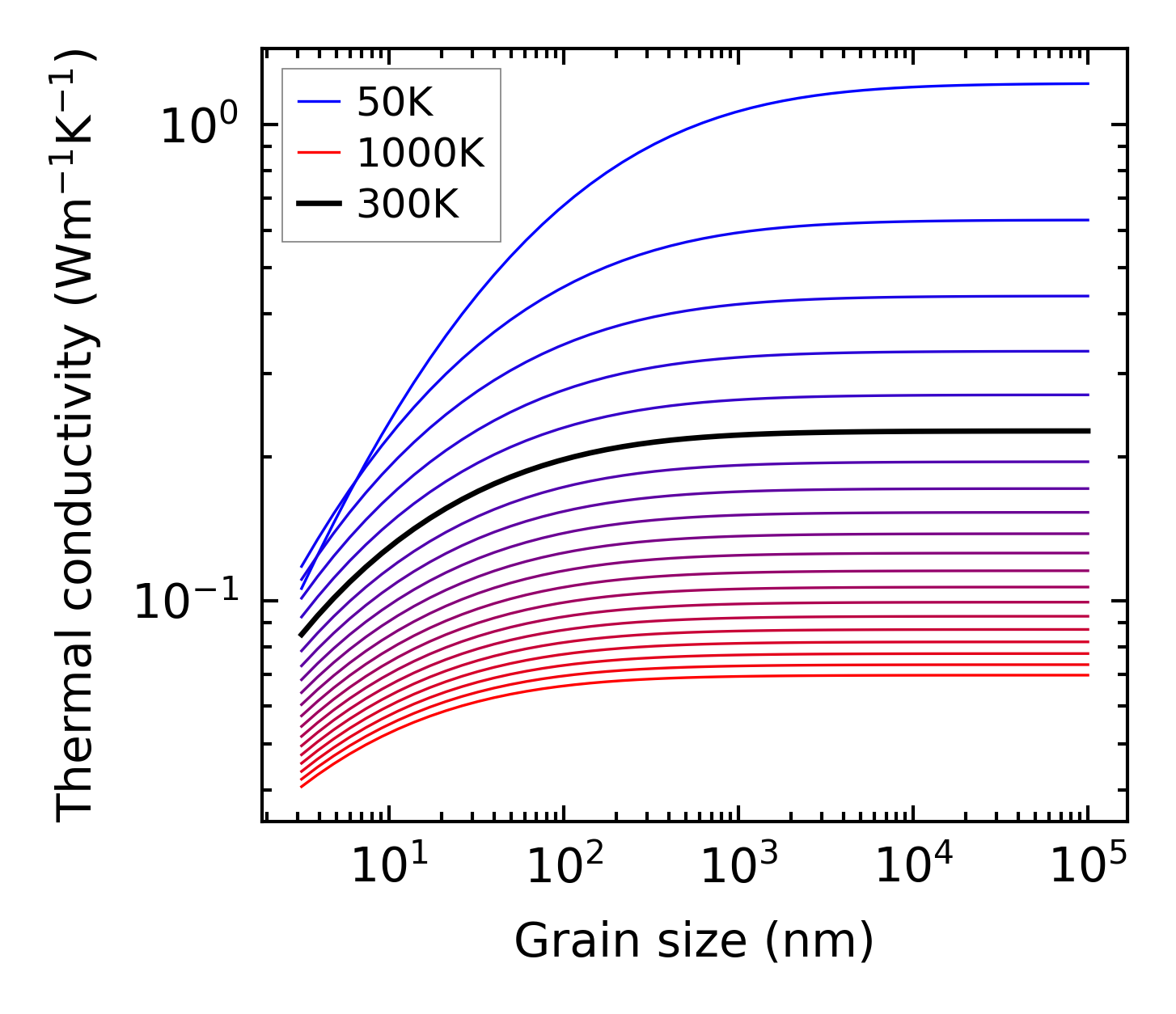

../../_images/fig_kappa_vs_grain_size2629.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

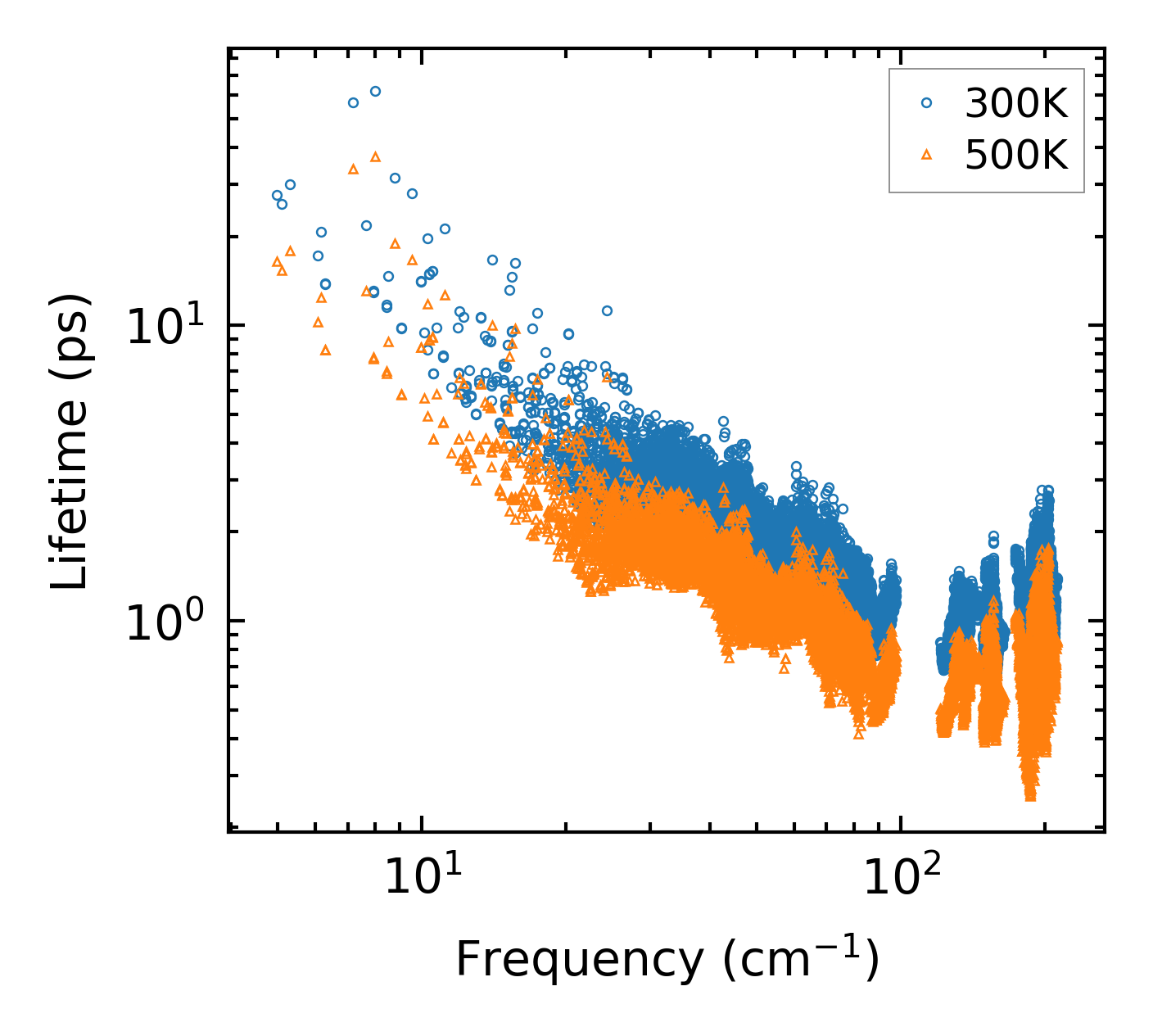

../../_images/fig_lifetime2572.png — (a) Phonon lifetime due to phonon-phonon scattering

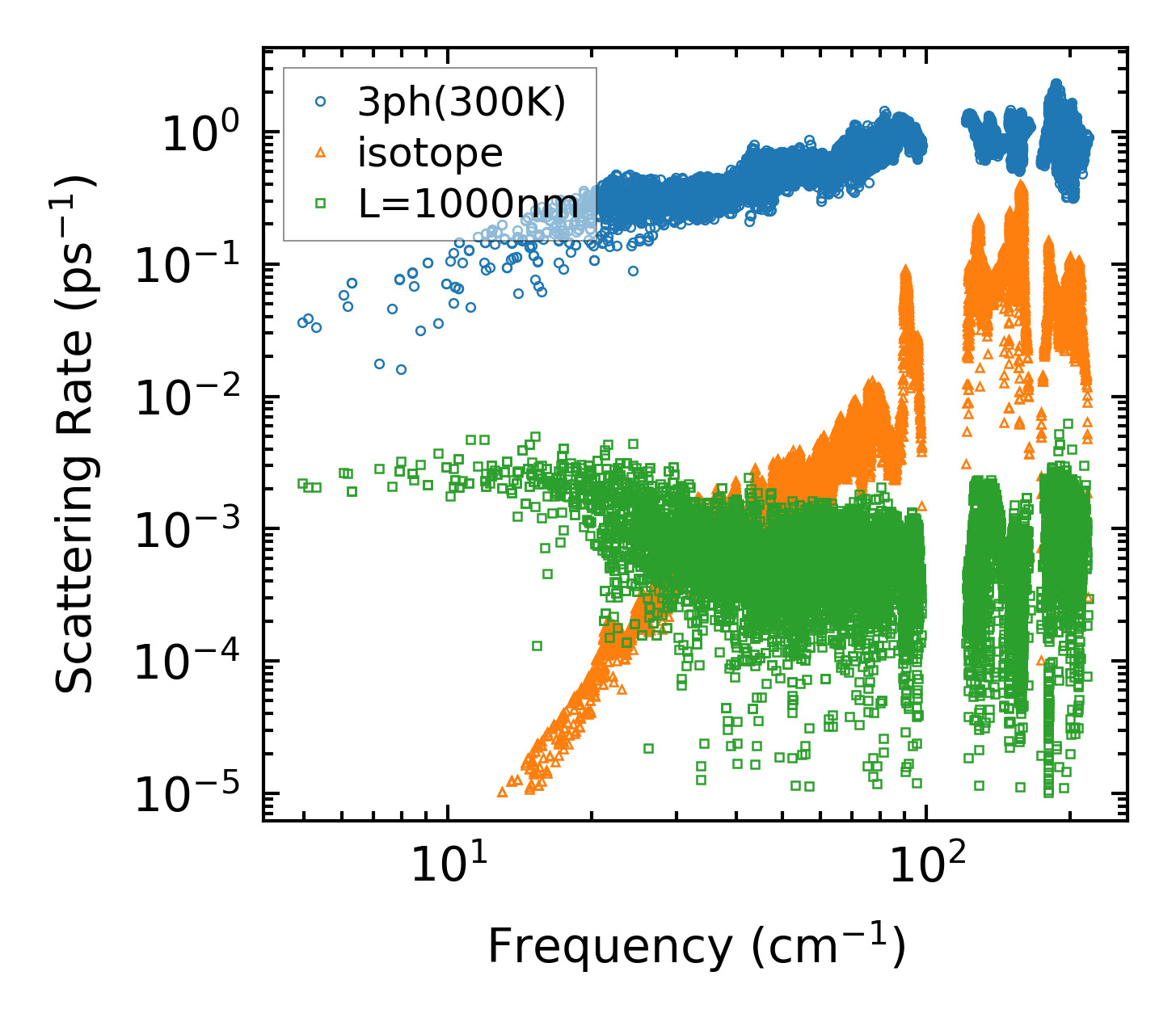

../../_images/fig_scat_rates2571.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

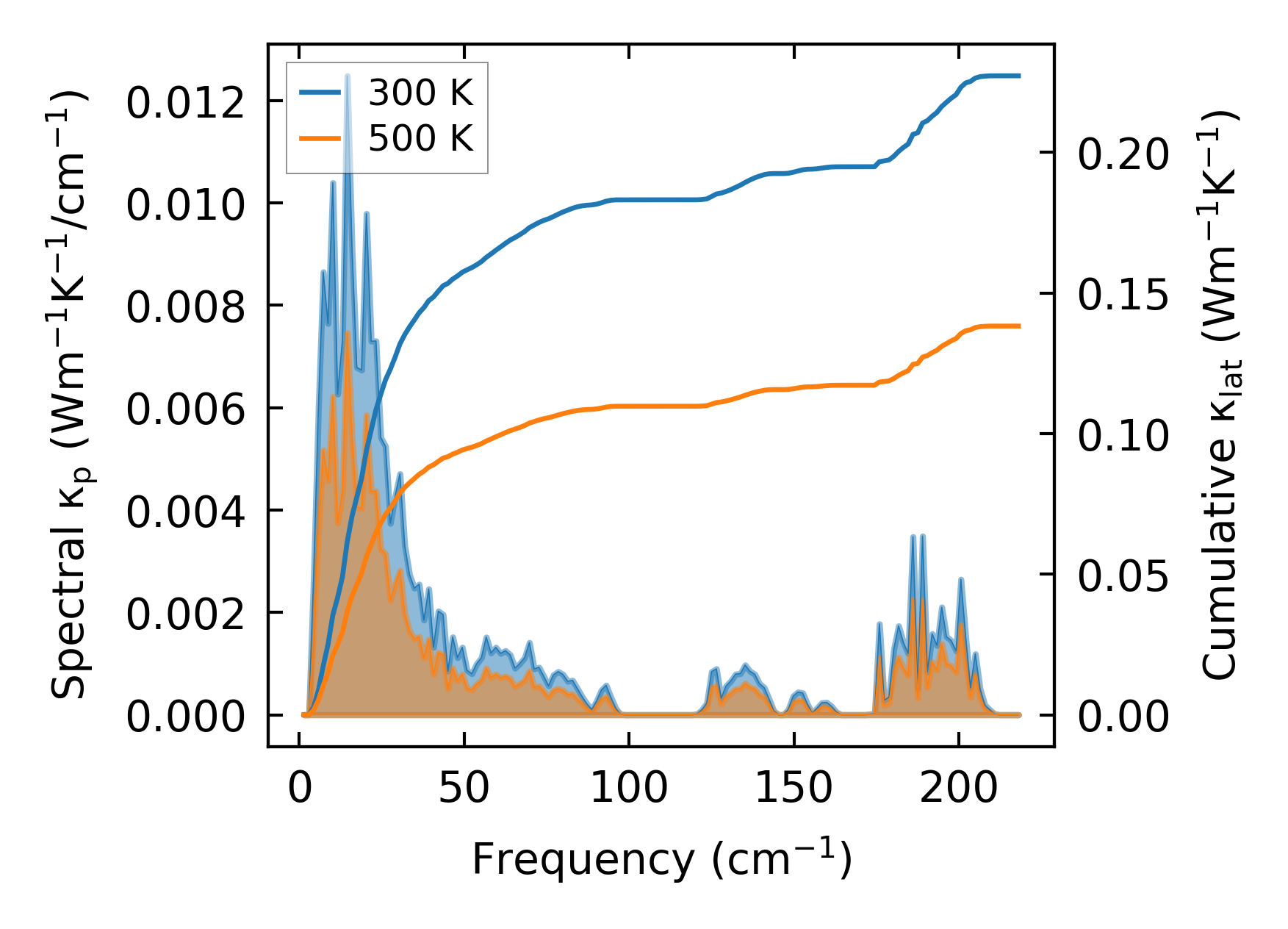

../../_images/fig_cumu_frequency2572.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

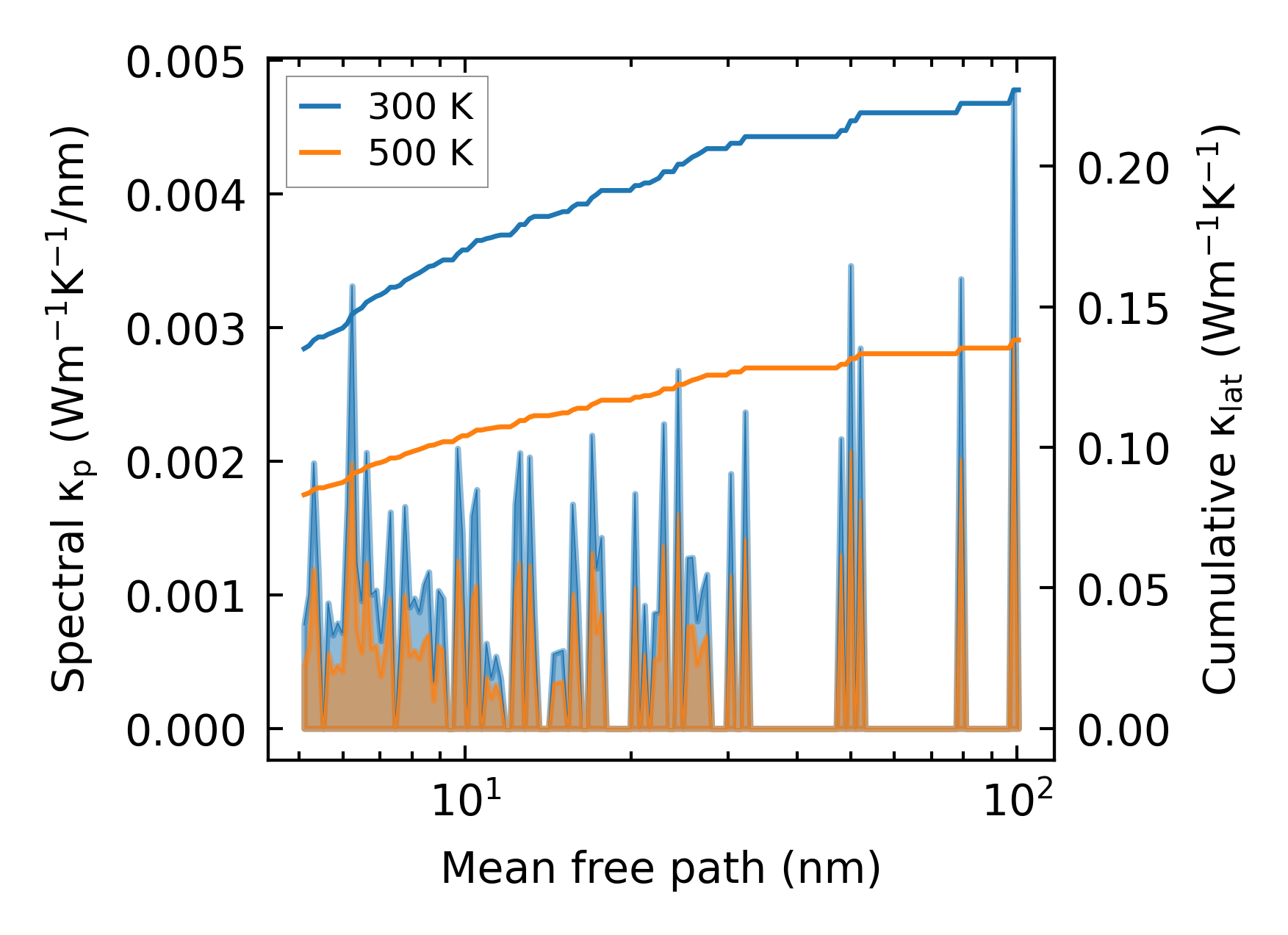

../../_images/fig_cumu_mfp2571.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

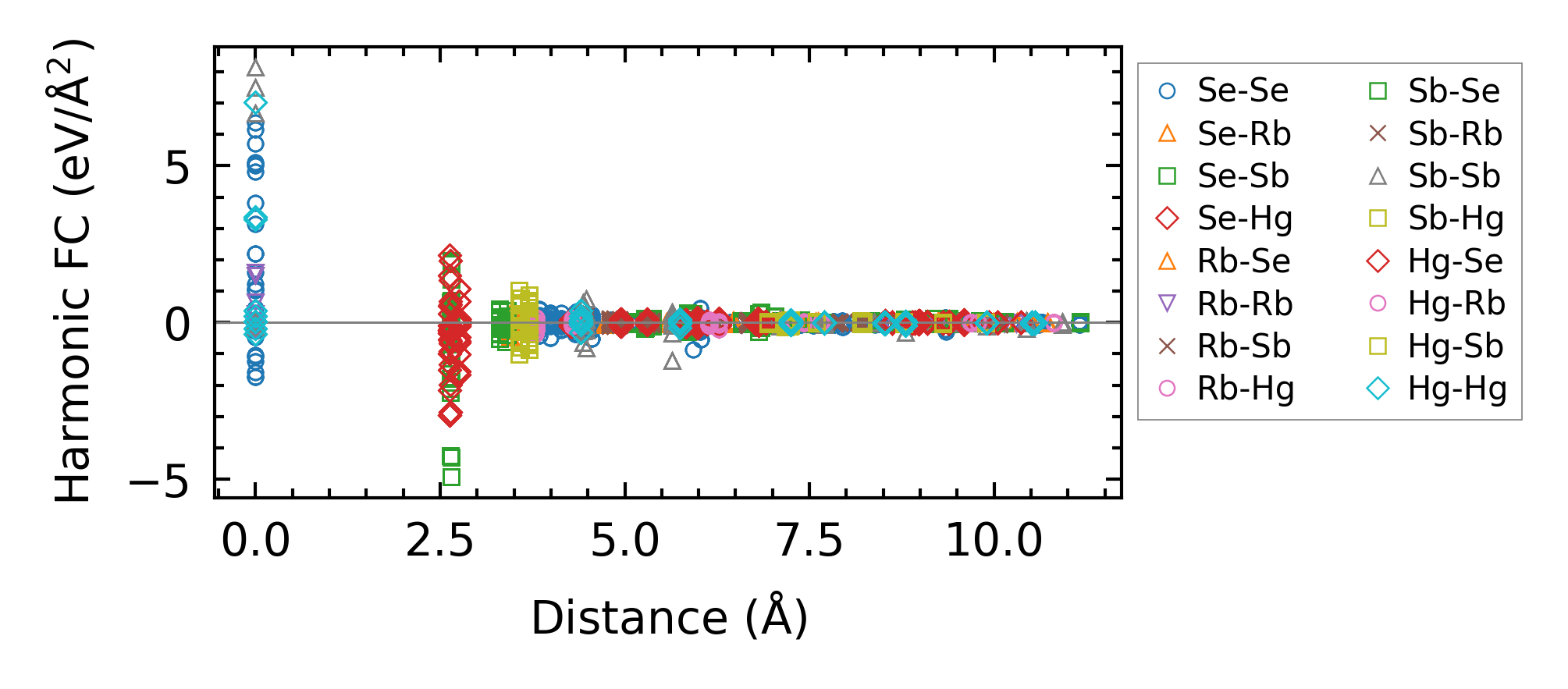

../../_images/fig_fc26157.png — (a) Force constants w.r.t atomic distance

Summary

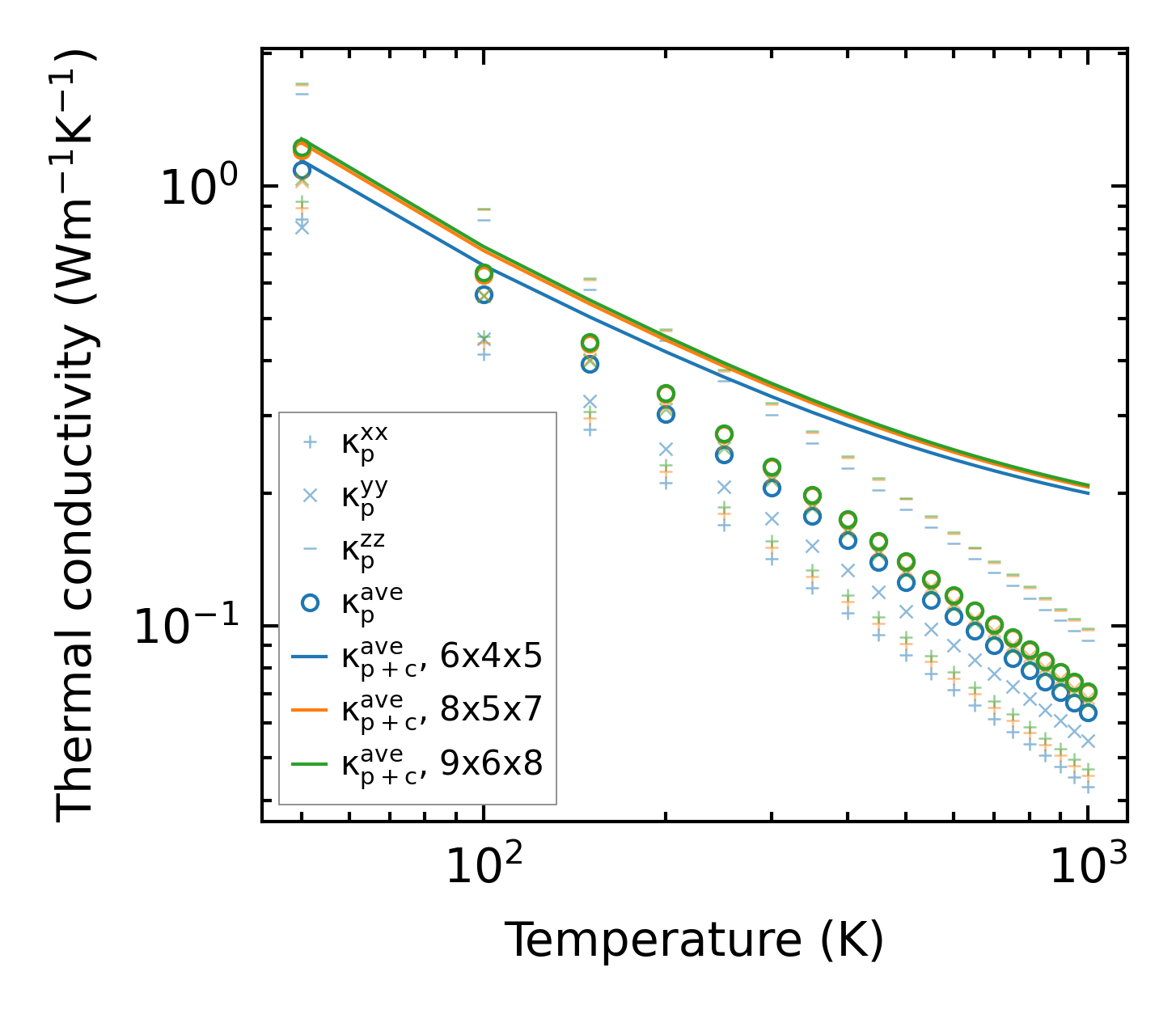

../../_images/fig_kappa4934.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times11493.png — (b) Computation time
