mp-6105-2/Pr2Ta3Se2O8/anharm

Space group: Pnnm (58)
Link: Materials Project
Download: mp-6105-2.tar.gz

Equation of state

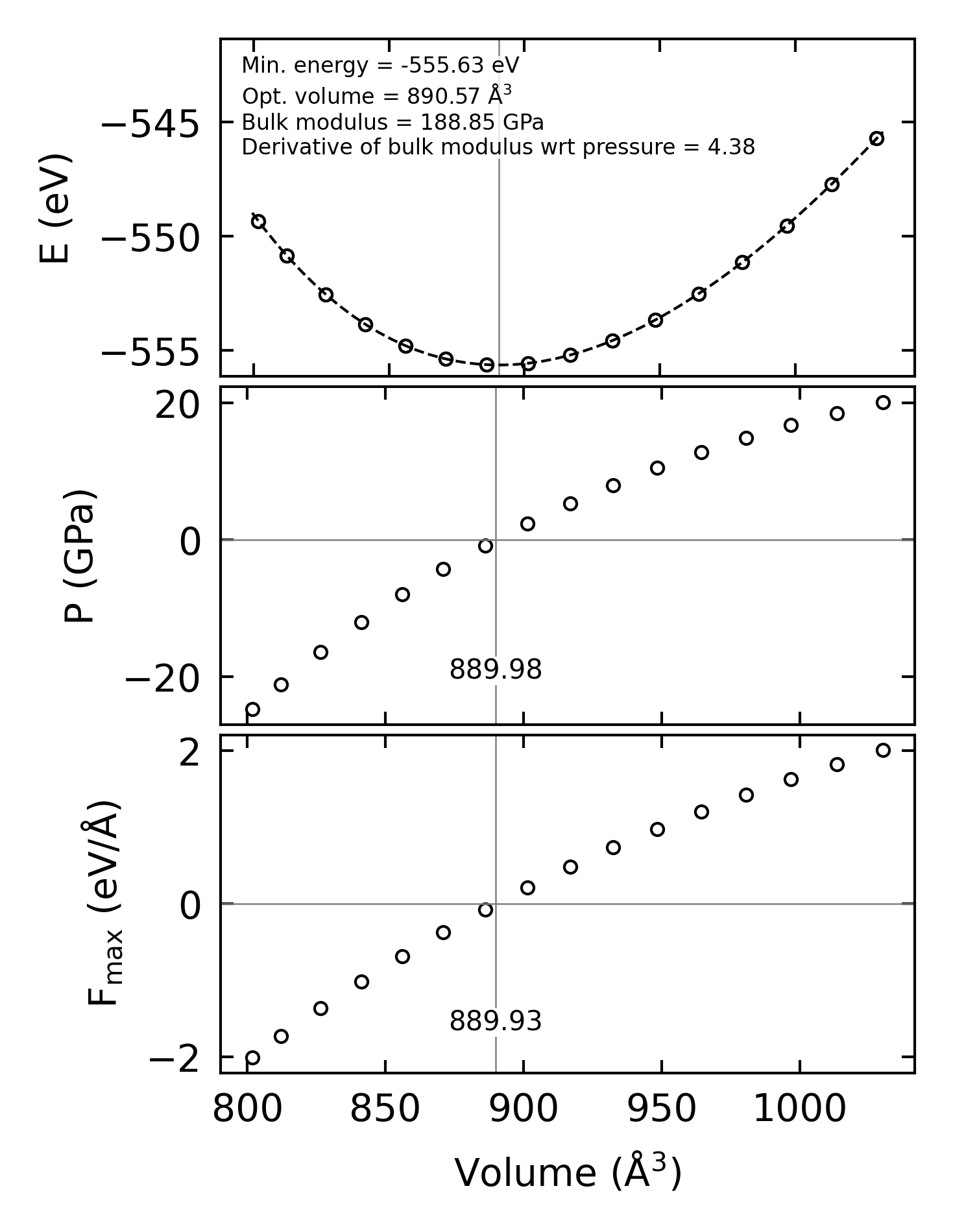

../../_images/fig_bm3543.png — (a) Equation of state

Harmonic properties

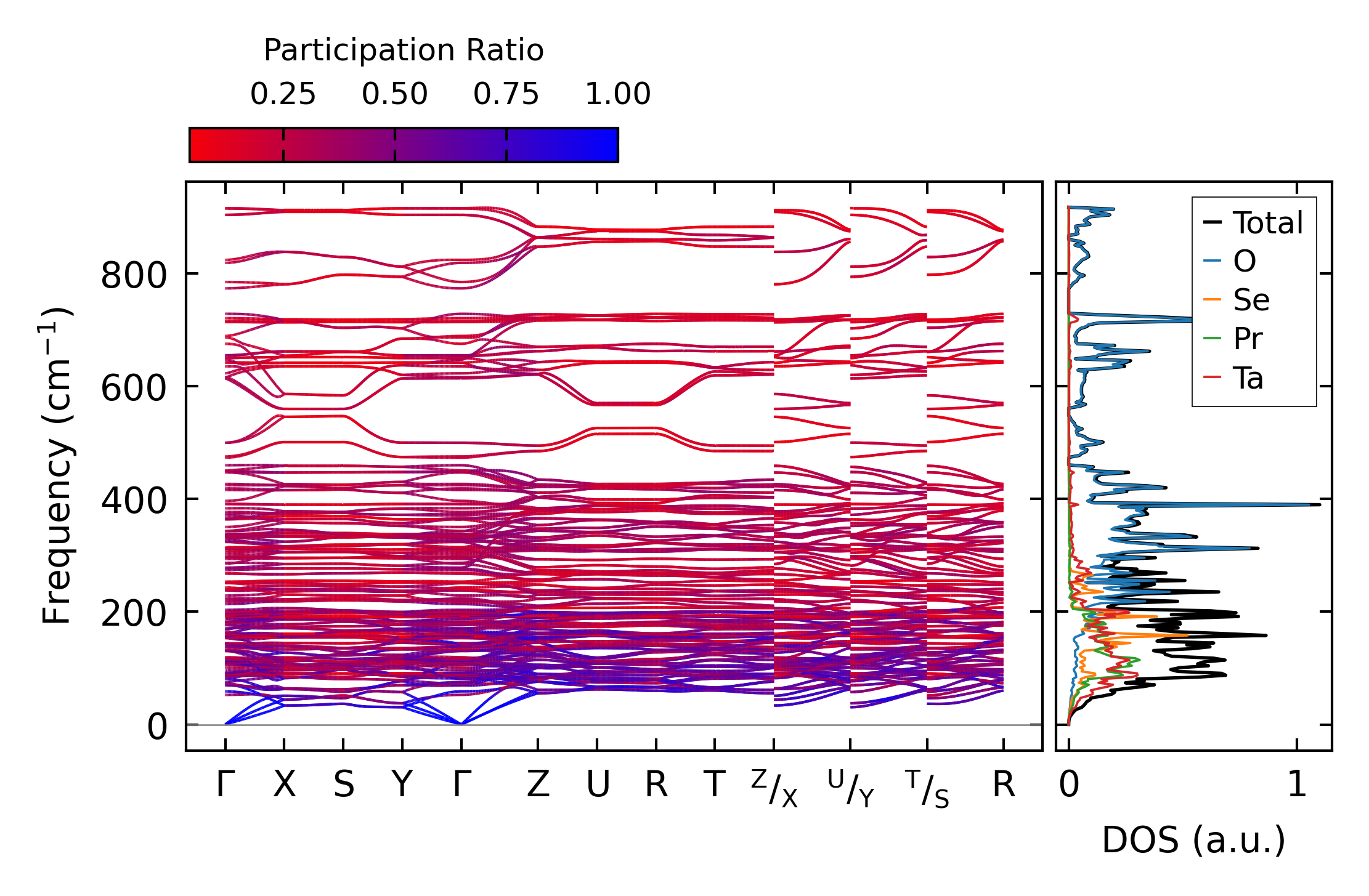

../../_images/fig_bandos_pr6636.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo6636.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all2704.png — (a) Grüneisen parameters

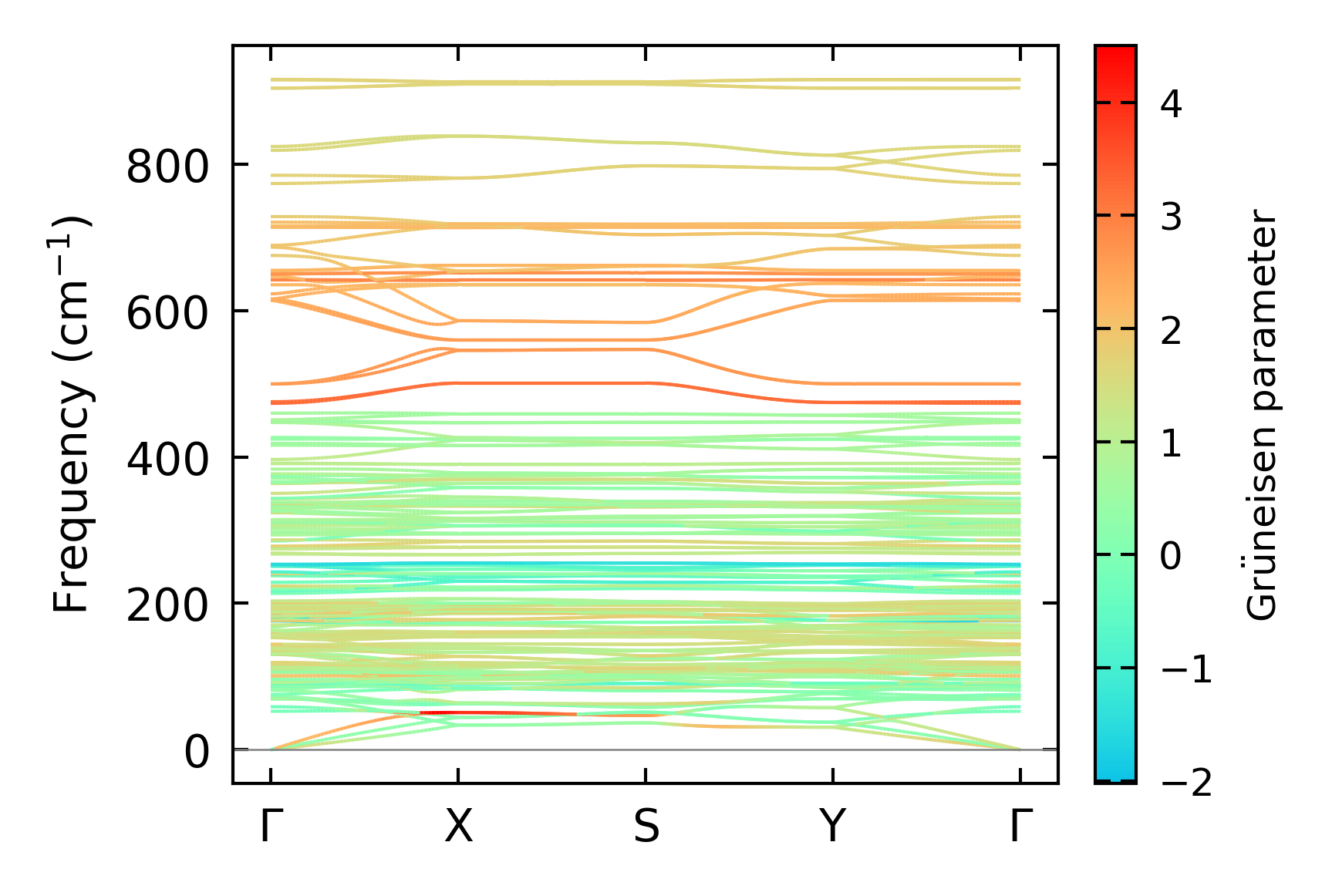

../../_images/fig_gruneisen2704.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 7x6x9, supercell: 1x1x2

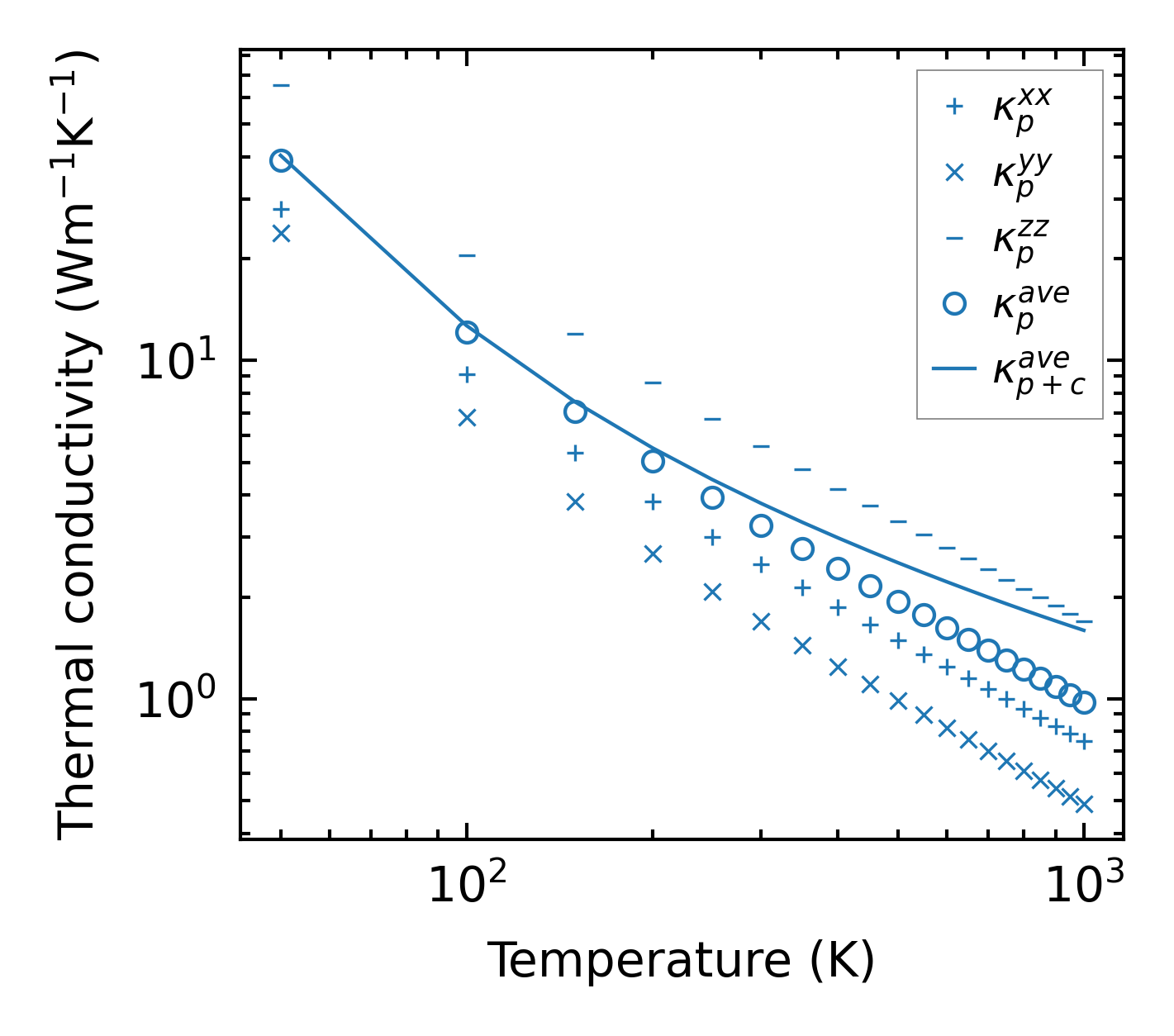

../../_images/fig_kappa5140.png — (a) Temperature-dependent lattice thermal conductivity

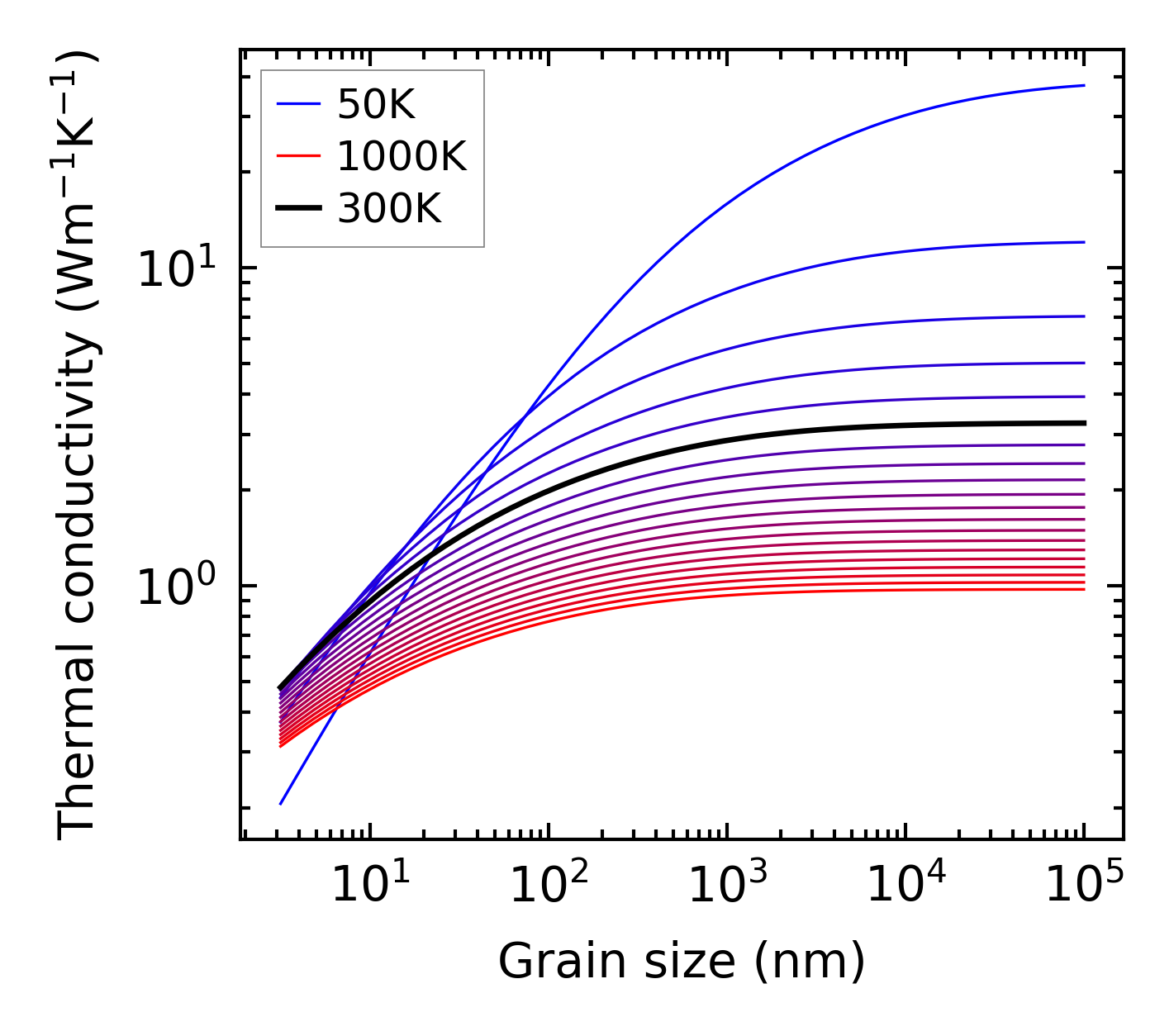

../../_images/fig_kappa_vs_grain_size2743.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

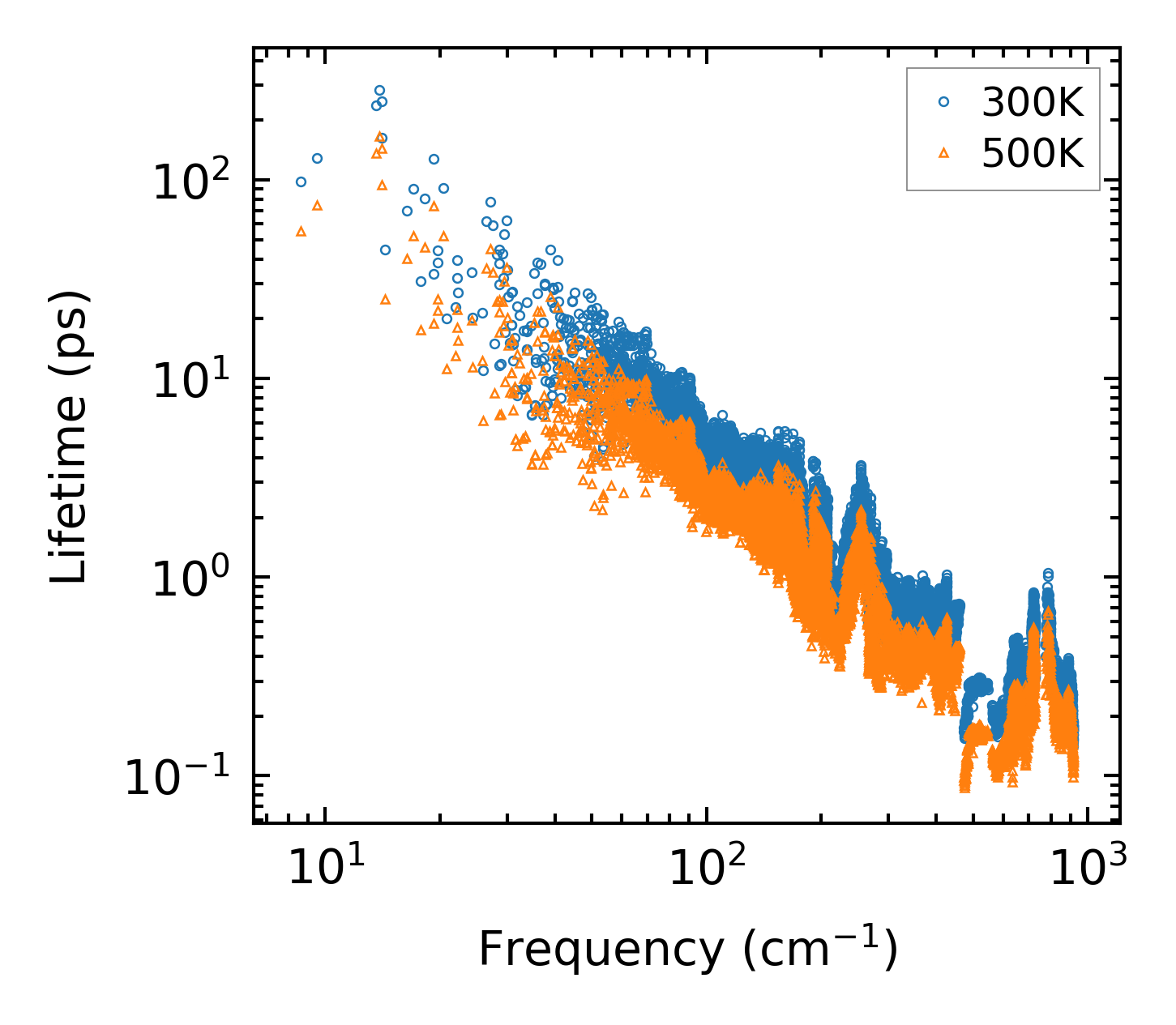

../../_images/fig_lifetime2680.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates2679.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

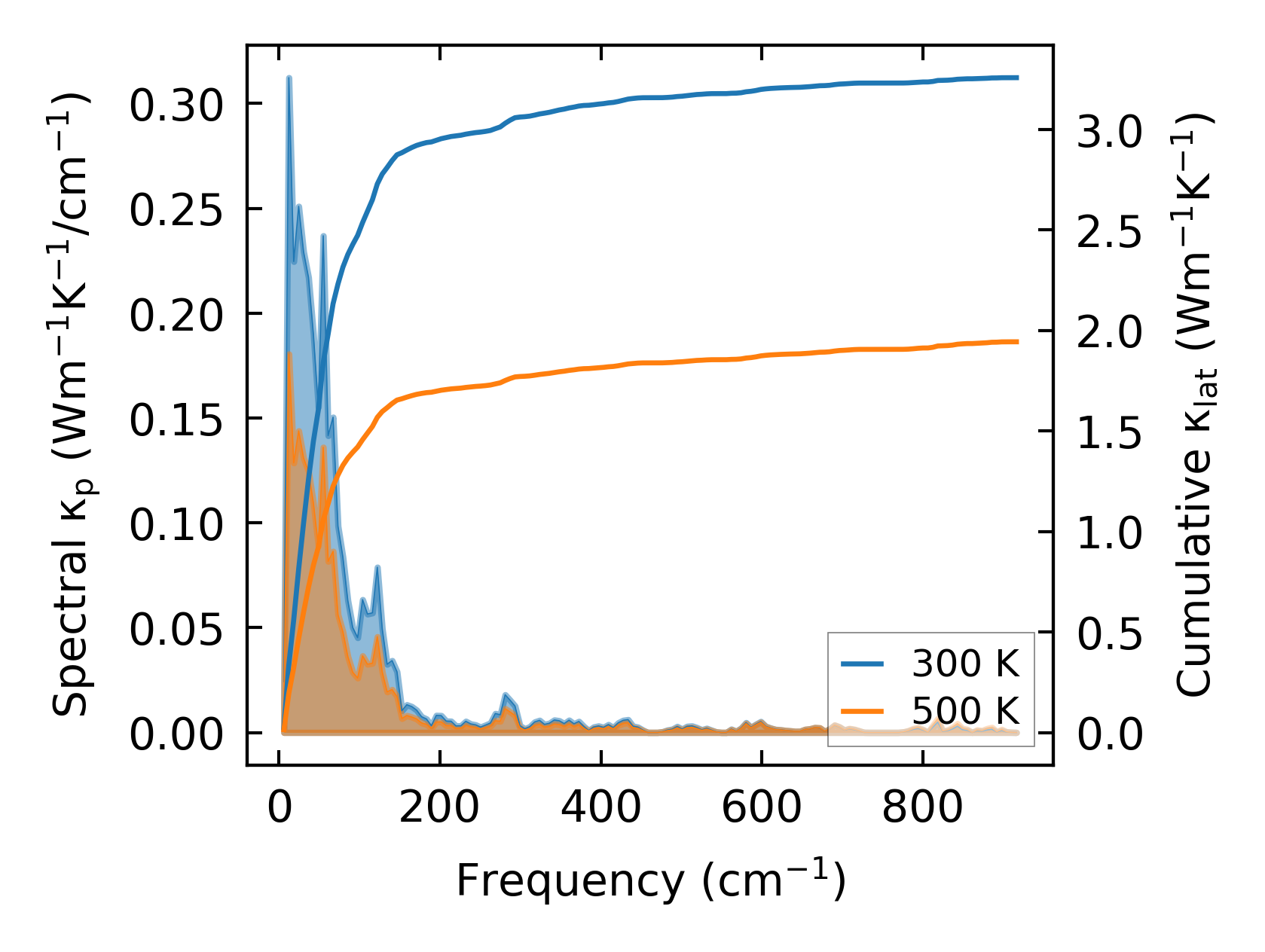

../../_images/fig_cumu_frequency2680.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp2679.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

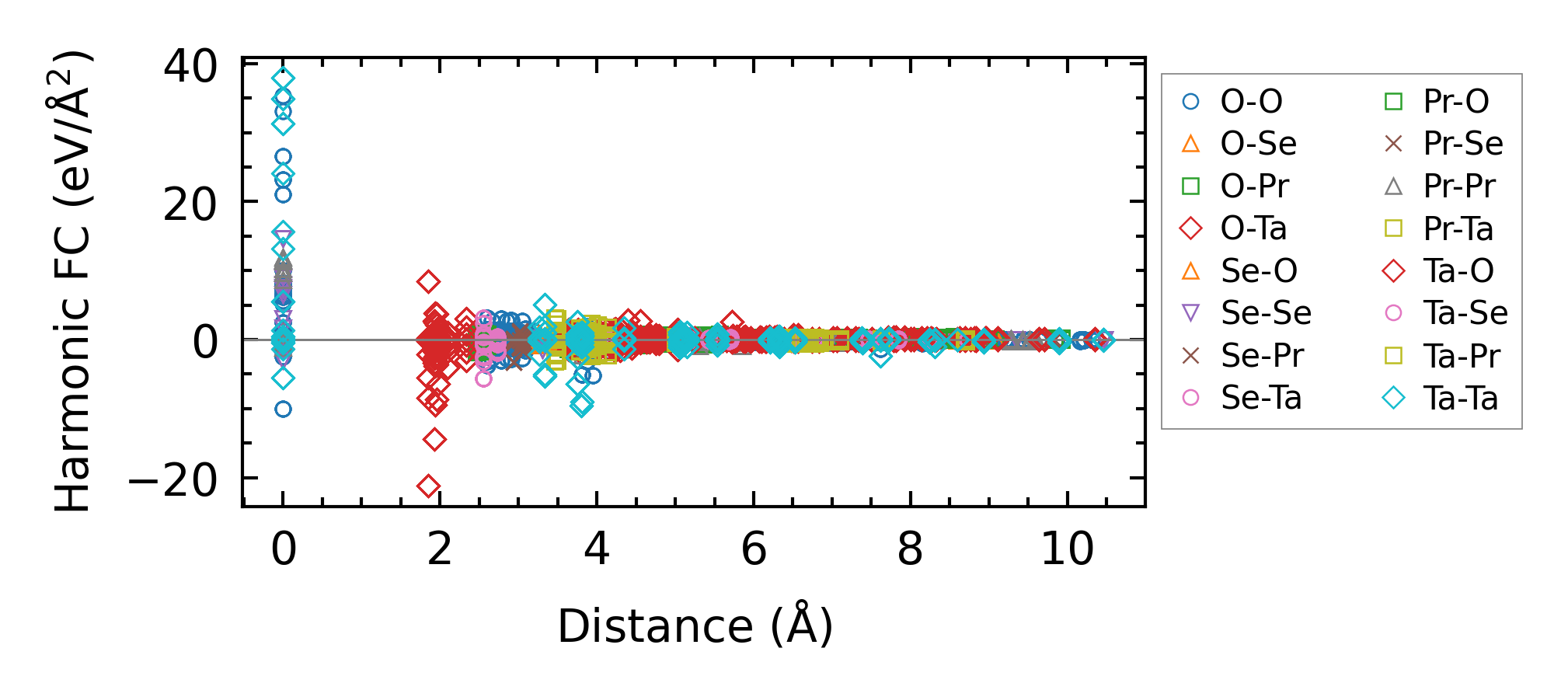

../../_images/fig_fc26426.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa5141.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times11899.png — (b) Computation time
