mp-6694/Cs2ZrSi3O9/anharm

Space group: P6_3/m (176)
Link: Materials Project
Download: mp-6694.tar.gz

Equation of state

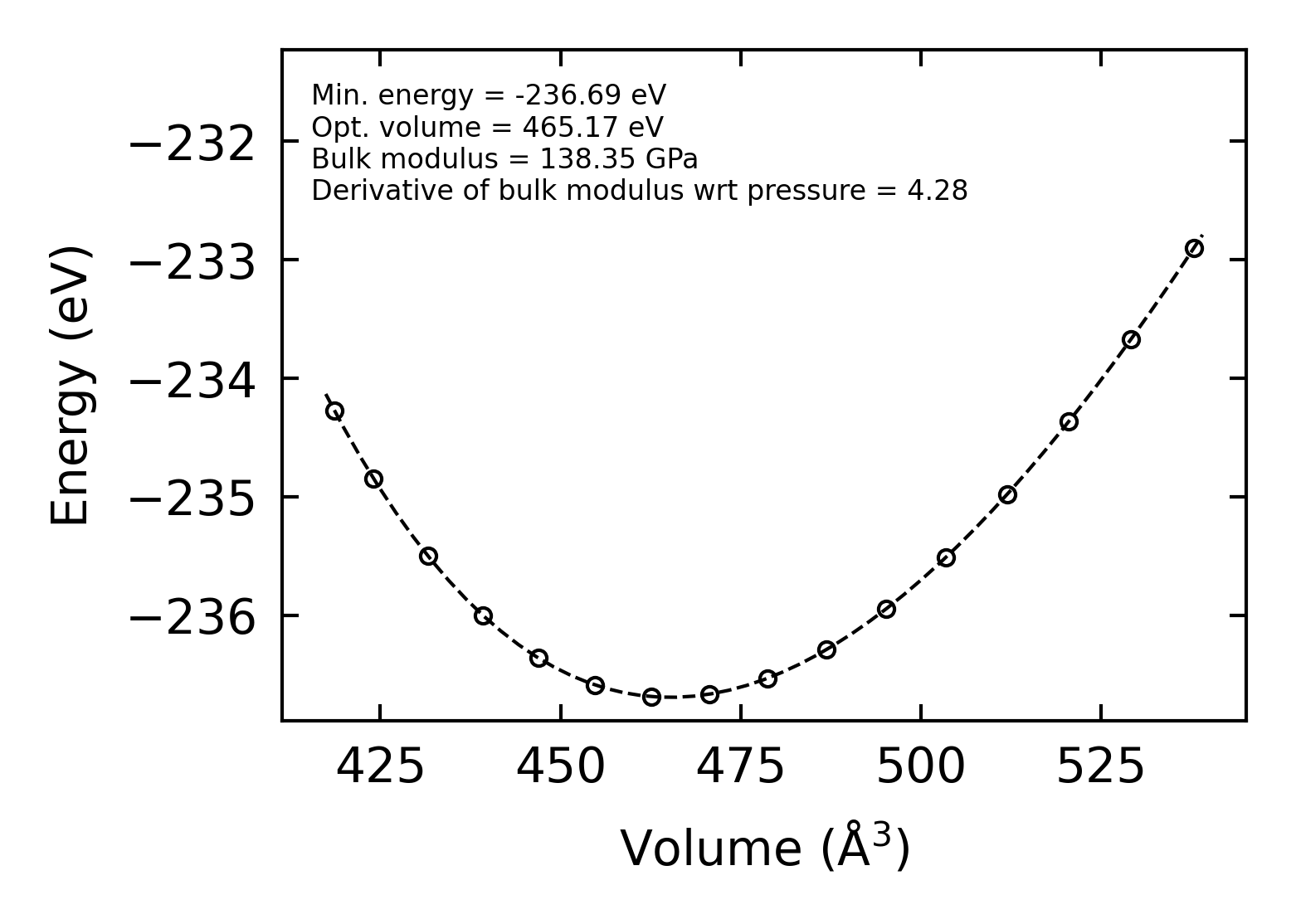

../../_images/fig_bm3231.png — (a) Equation of state

Harmonic properties

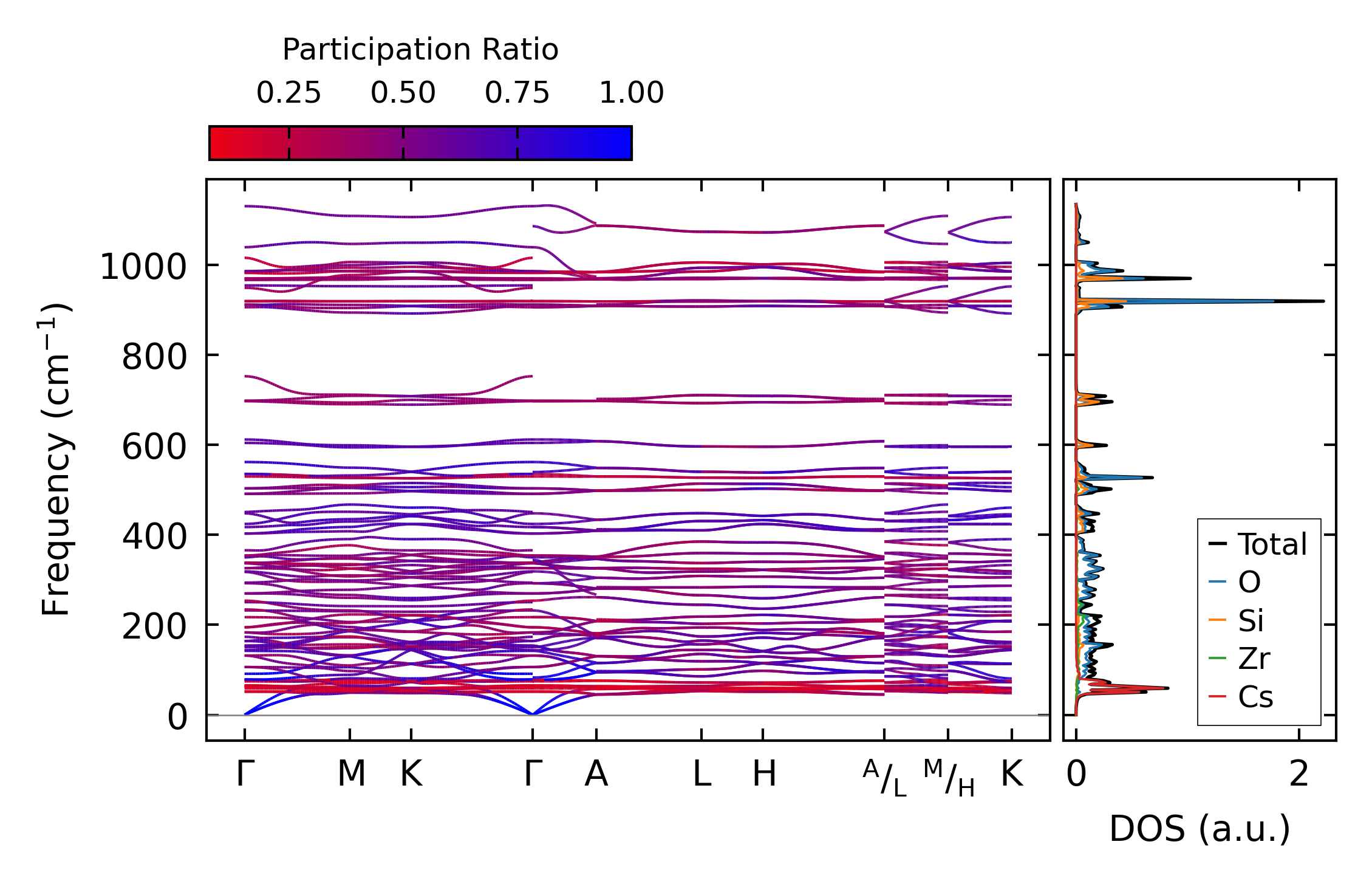

../../_images/fig_bandos_pr6126.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo6126.png — (b) Thermodynamic properties

Grüneisen parameters

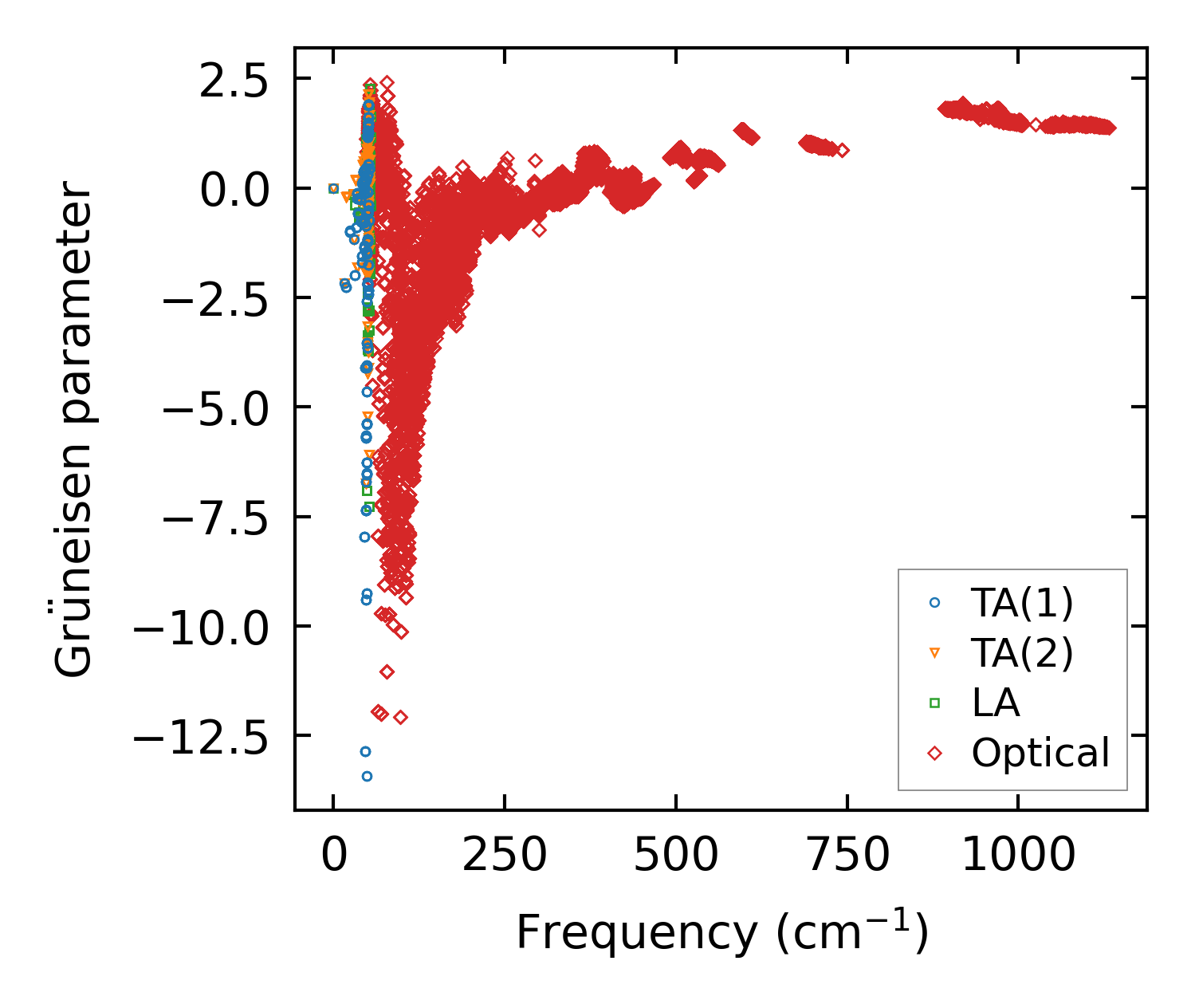

../../_images/fig_gru_all2487.png — (a) Grüneisen parameters

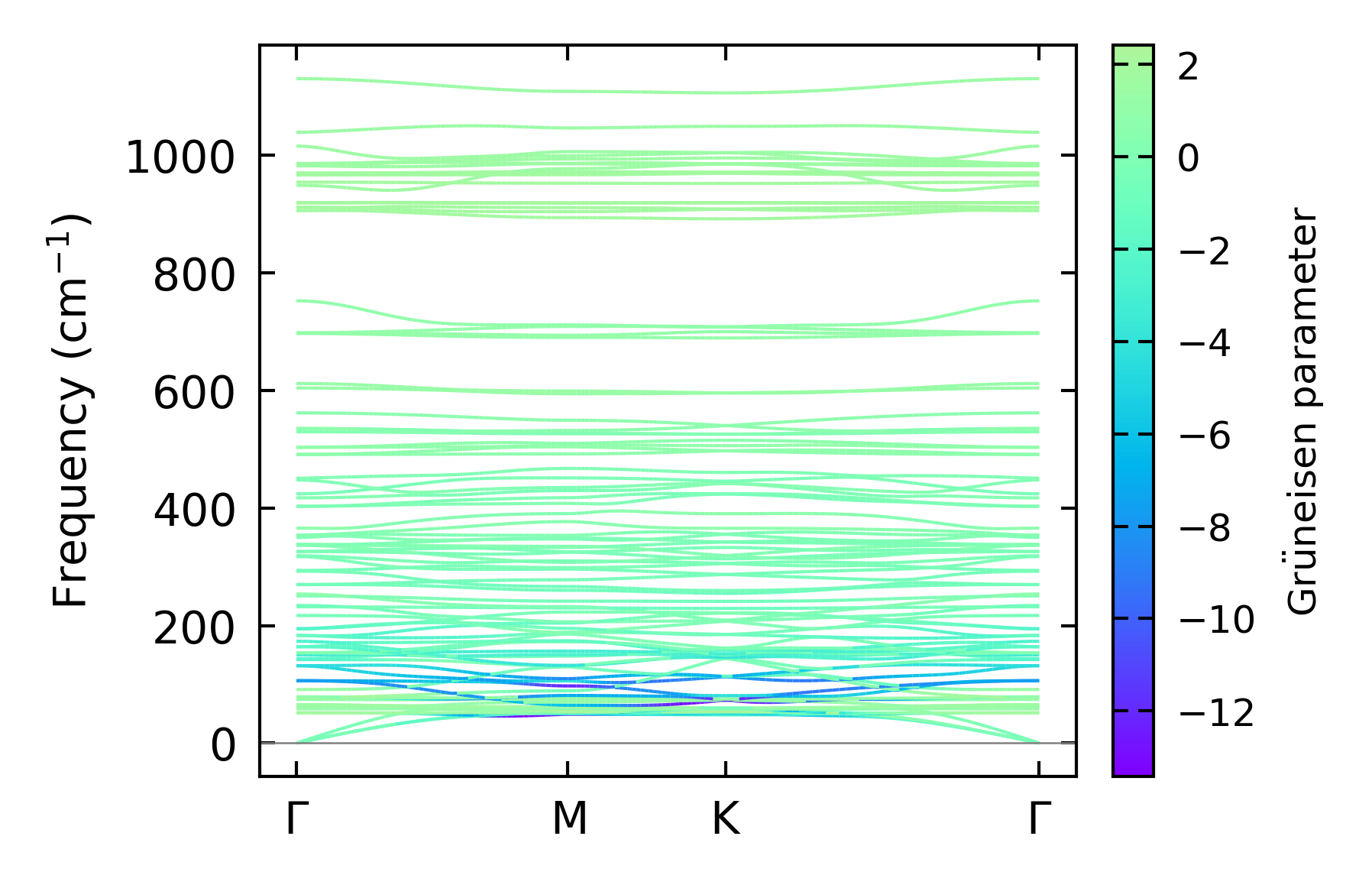

../../_images/fig_gruneisen2487.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x7, supercell: 2x2x1

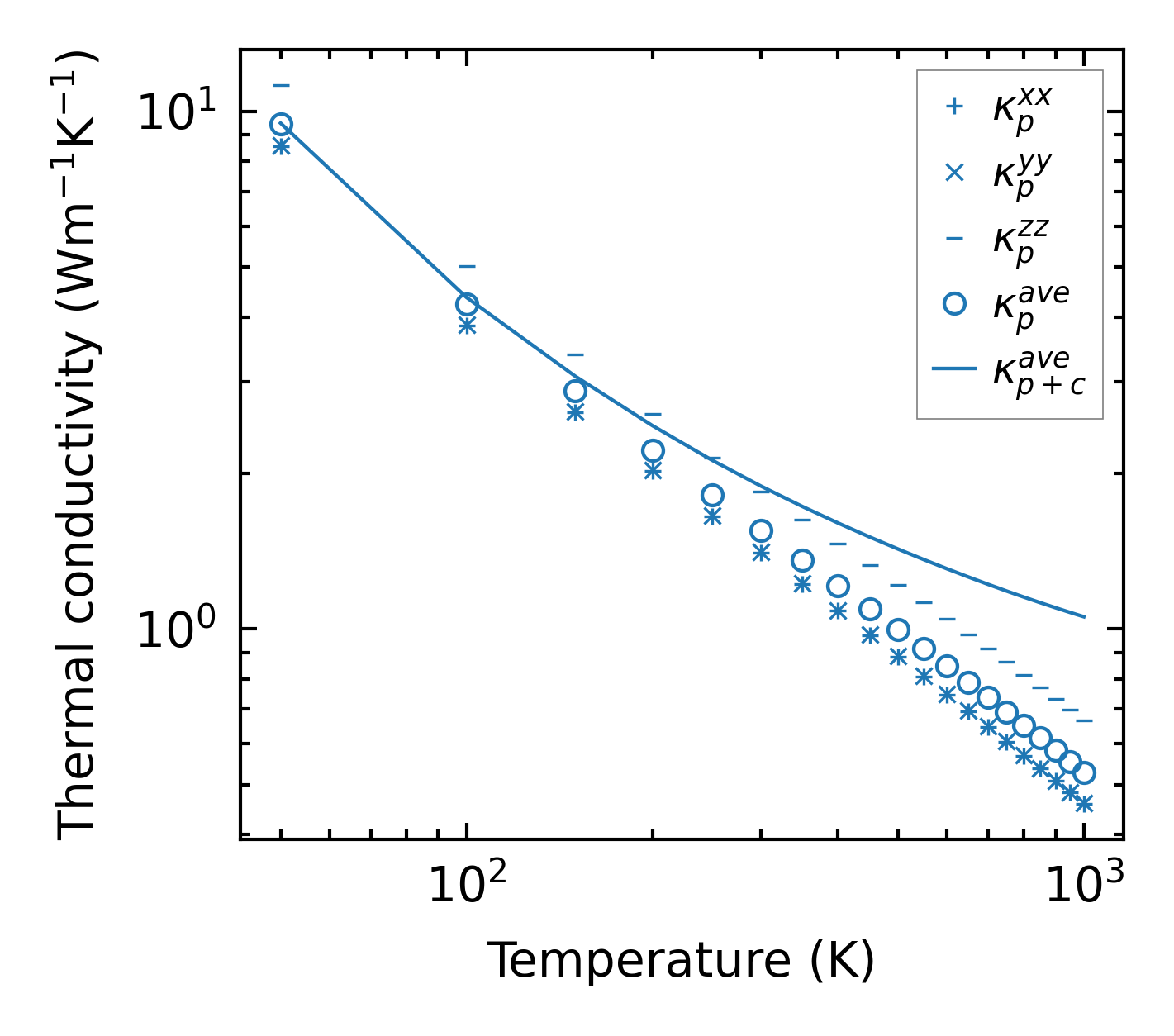

../../_images/fig_kappa4732.png — (a) Temperature-dependent lattice thermal conductivity

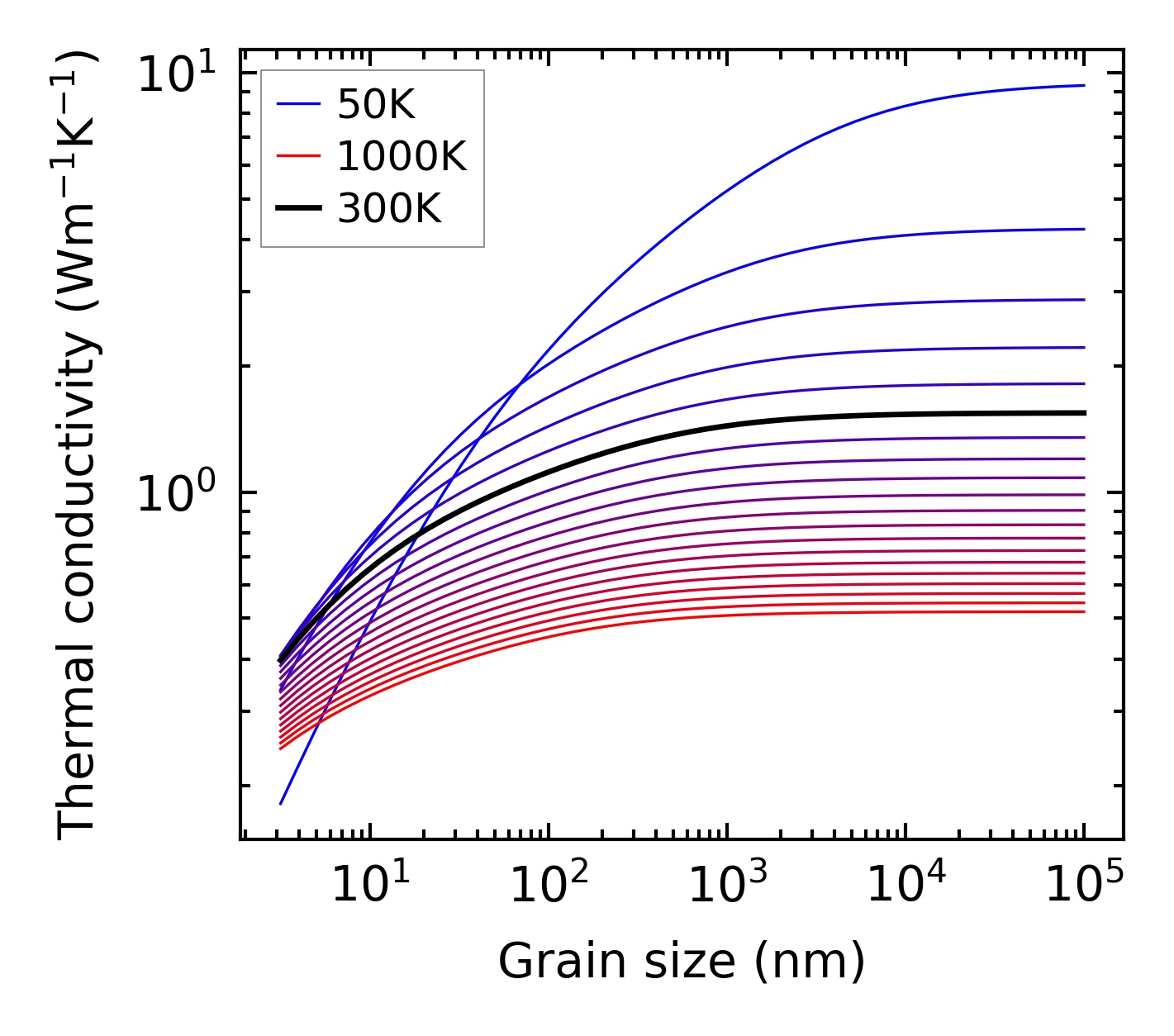

../../_images/fig_kappa_vs_grain_size2517.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

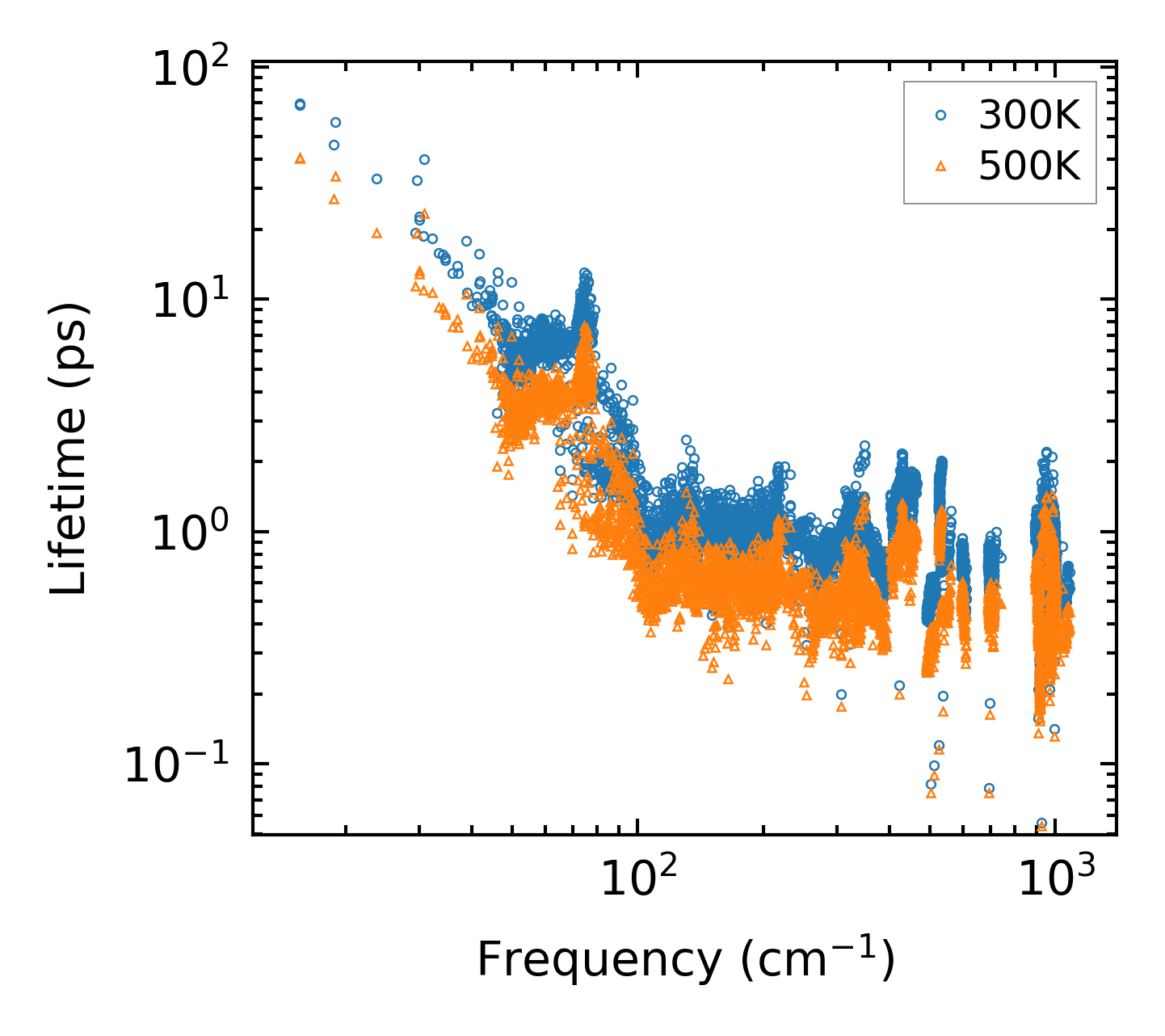

../../_images/fig_lifetime2469.png — (a) Phonon lifetime due to phonon-phonon scattering

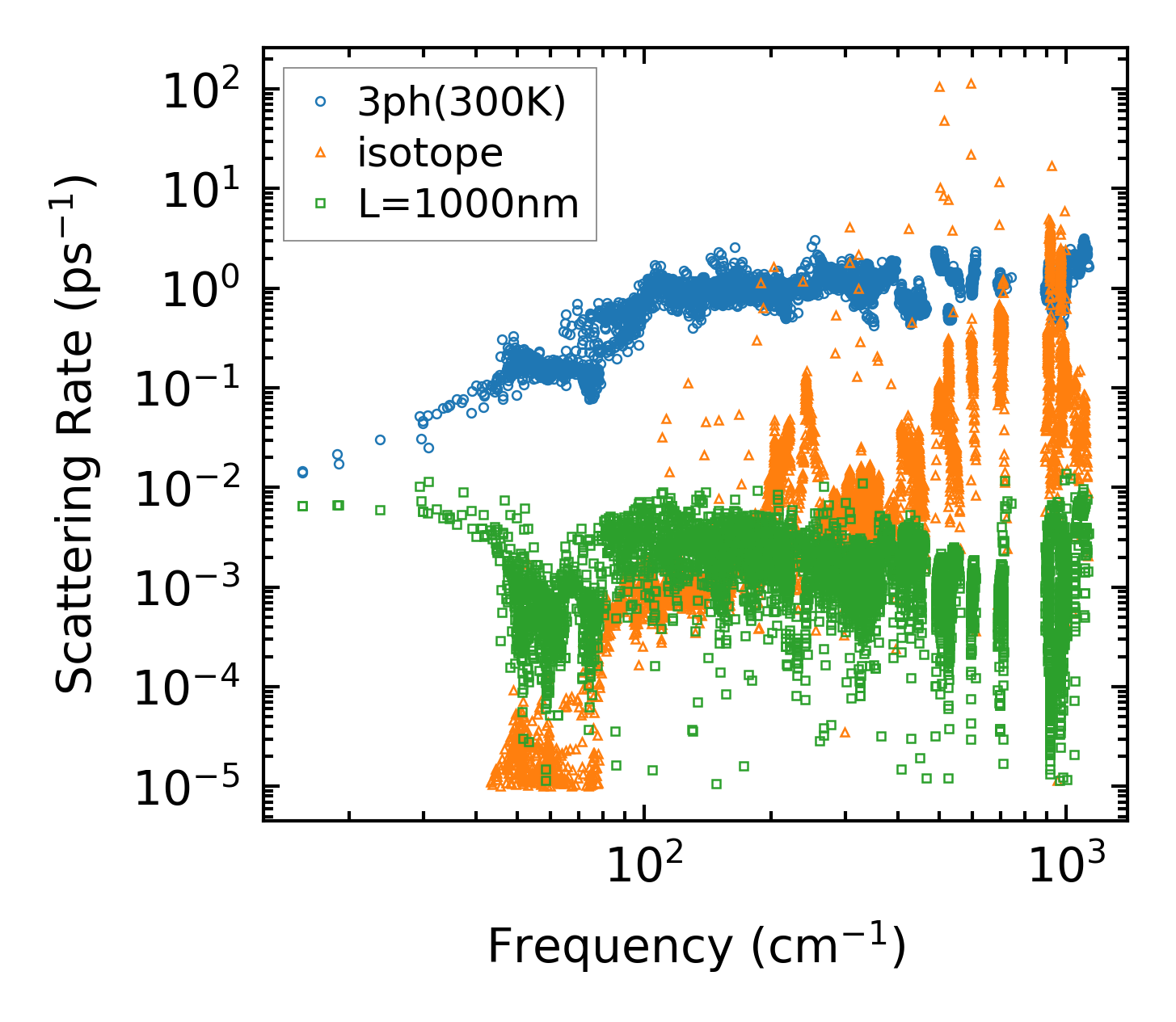

../../_images/fig_scat_rates2468.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

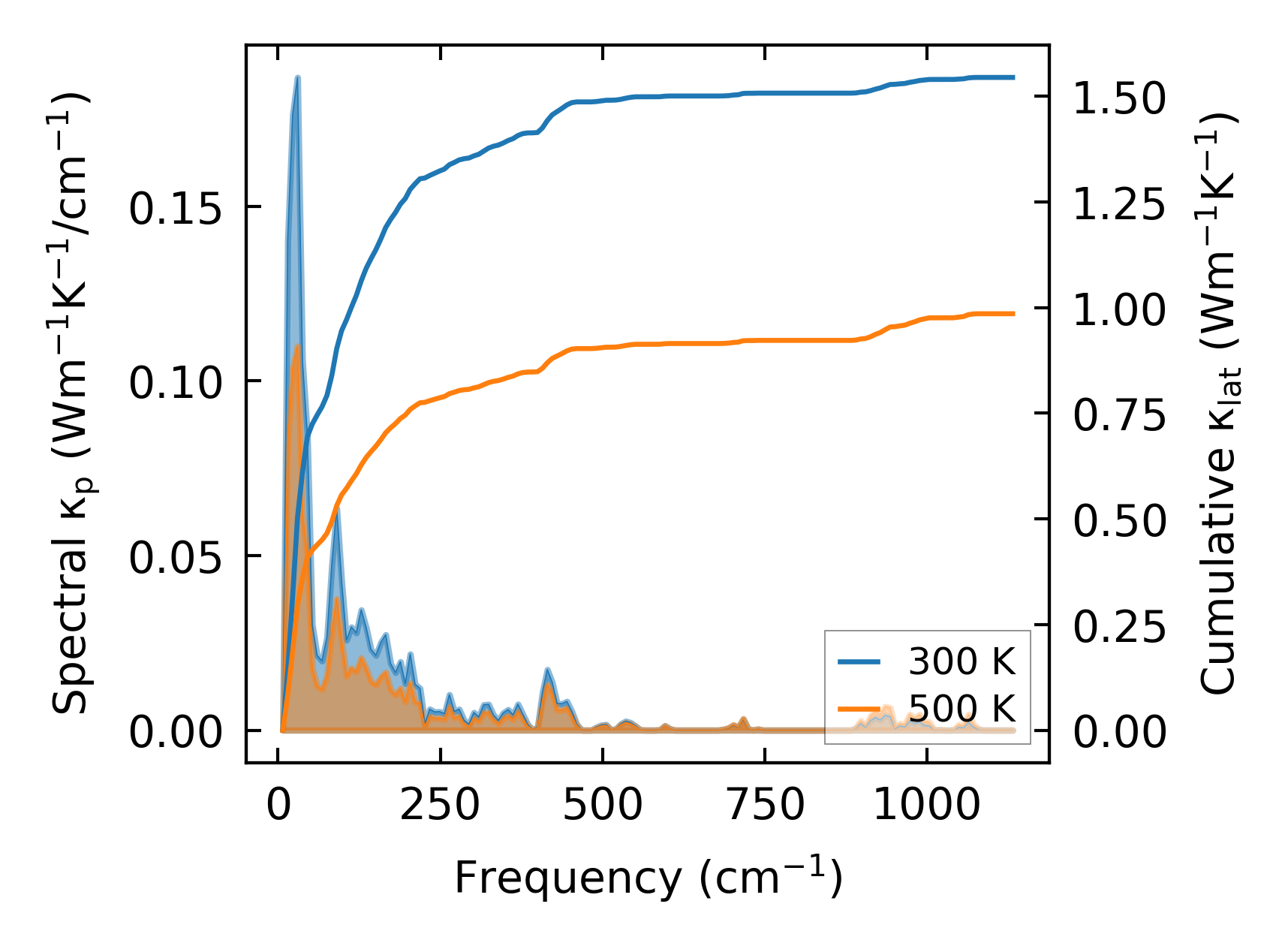

../../_images/fig_cumu_frequency2469.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

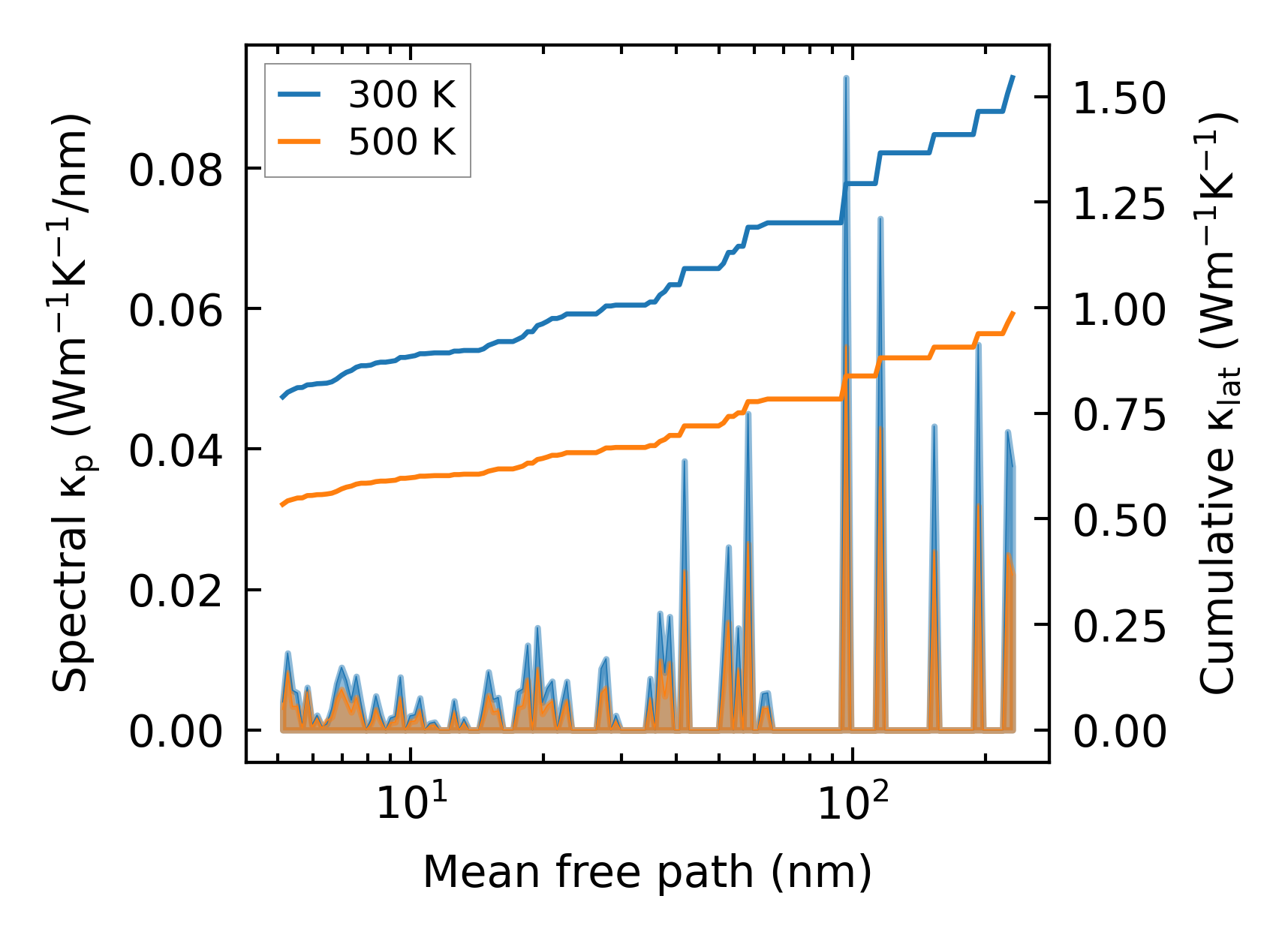

../../_images/fig_cumu_mfp2468.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

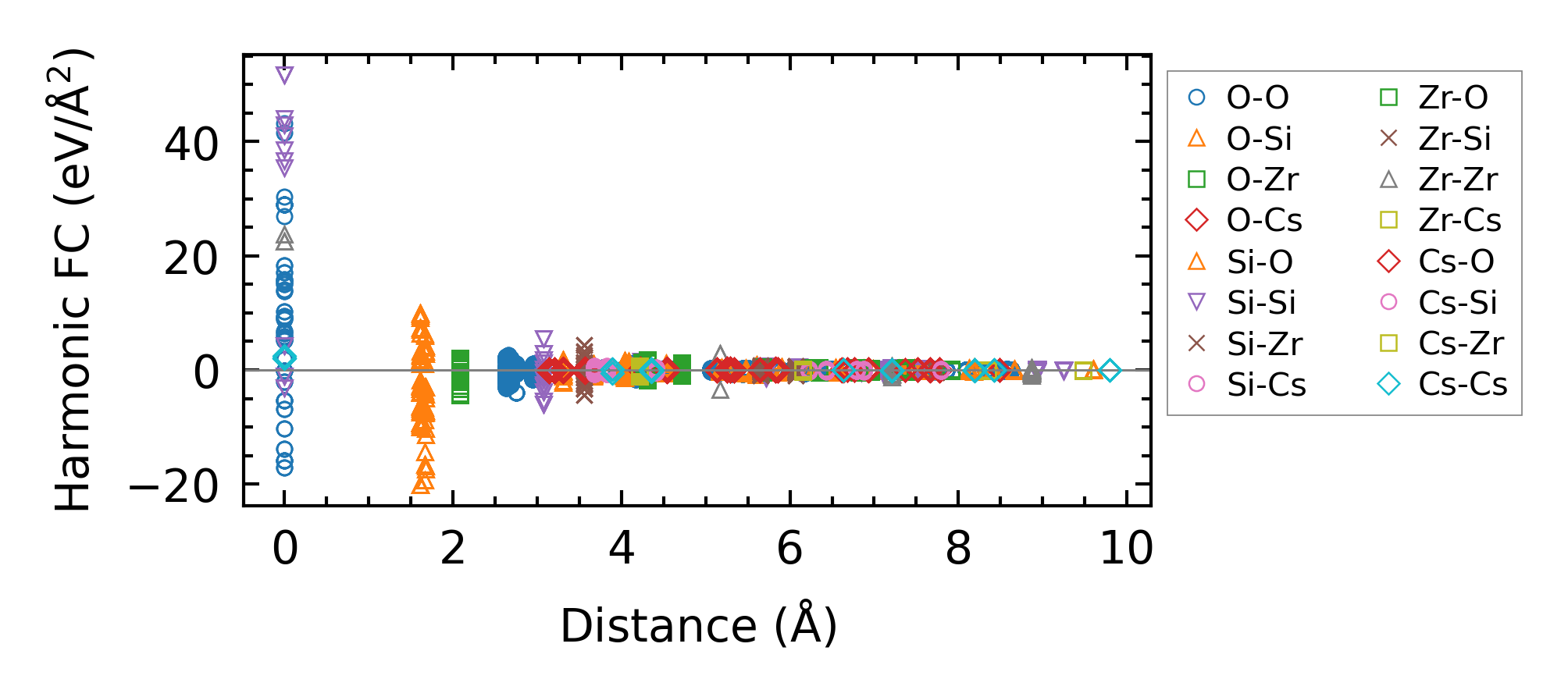

../../_images/fig_fc25917.png — (a) Force constants w.r.t atomic distance

Summary

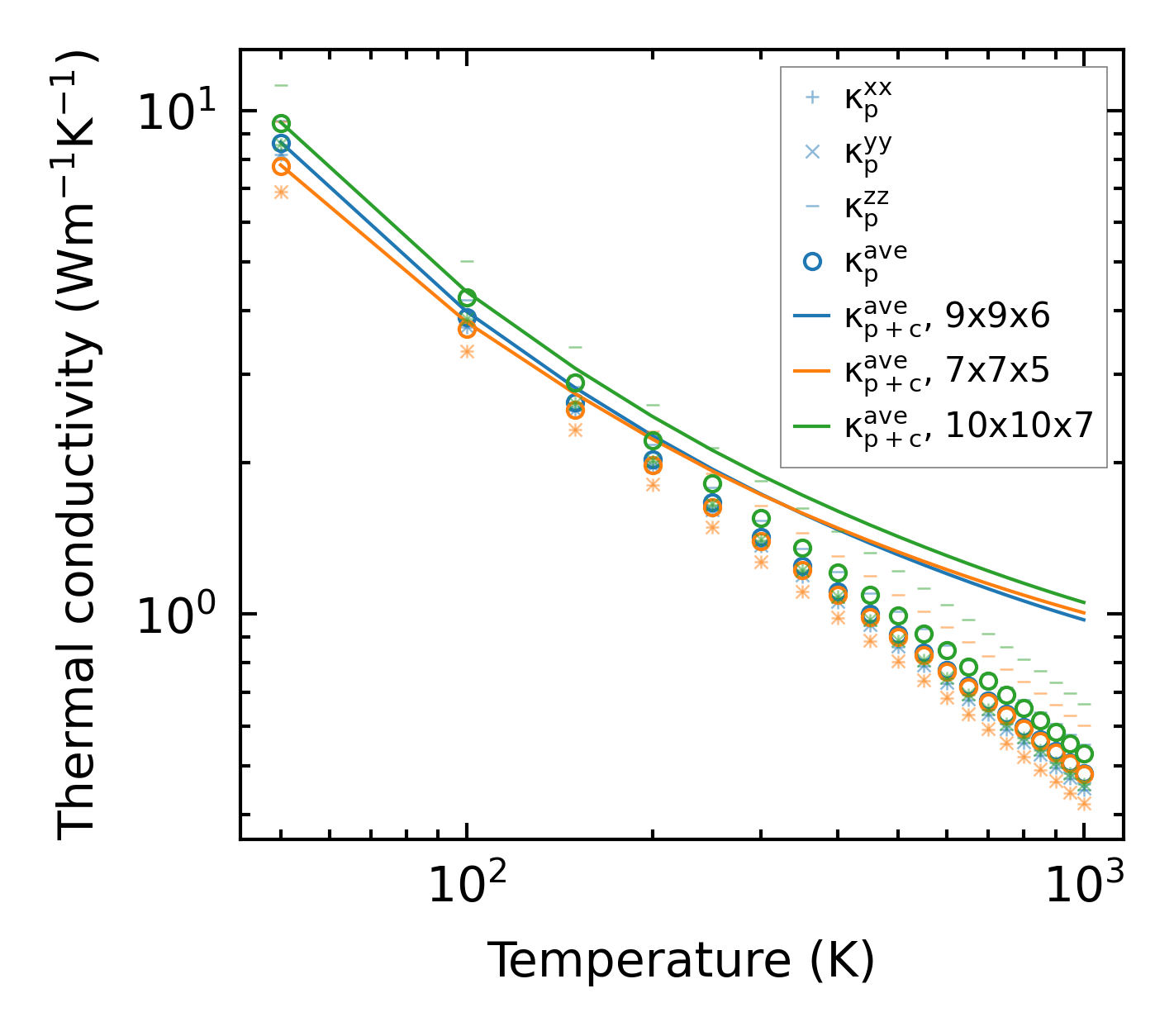

../../_images/fig_kappa4733.png — (a) Temperature-dependent lattice thermal conductivity

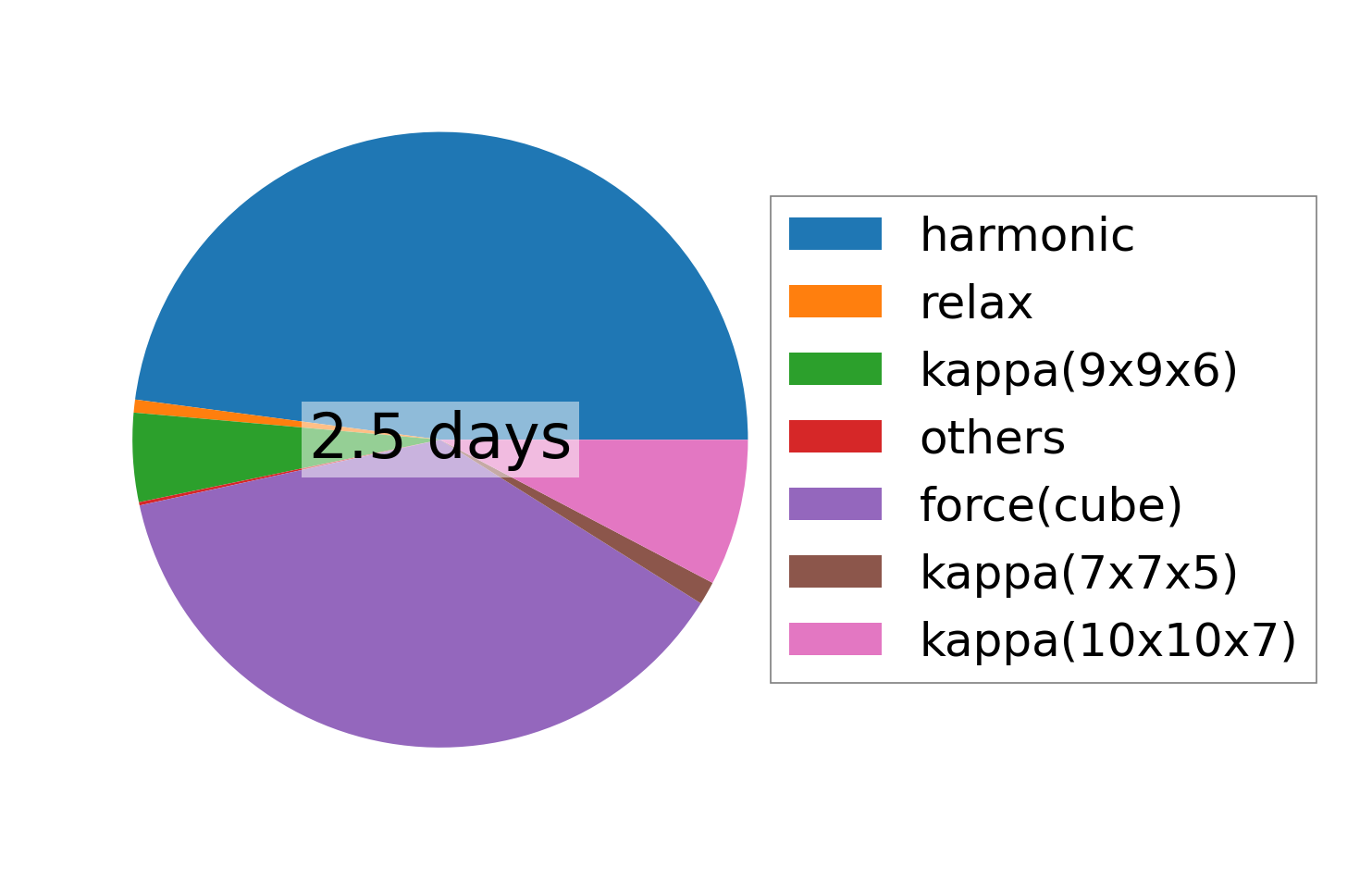

../../_images/fig_times11183.png — (b) Computation time
