mp-6825-2/Ho2Si4CN6/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-6825-2.tar.gz

Equation of state

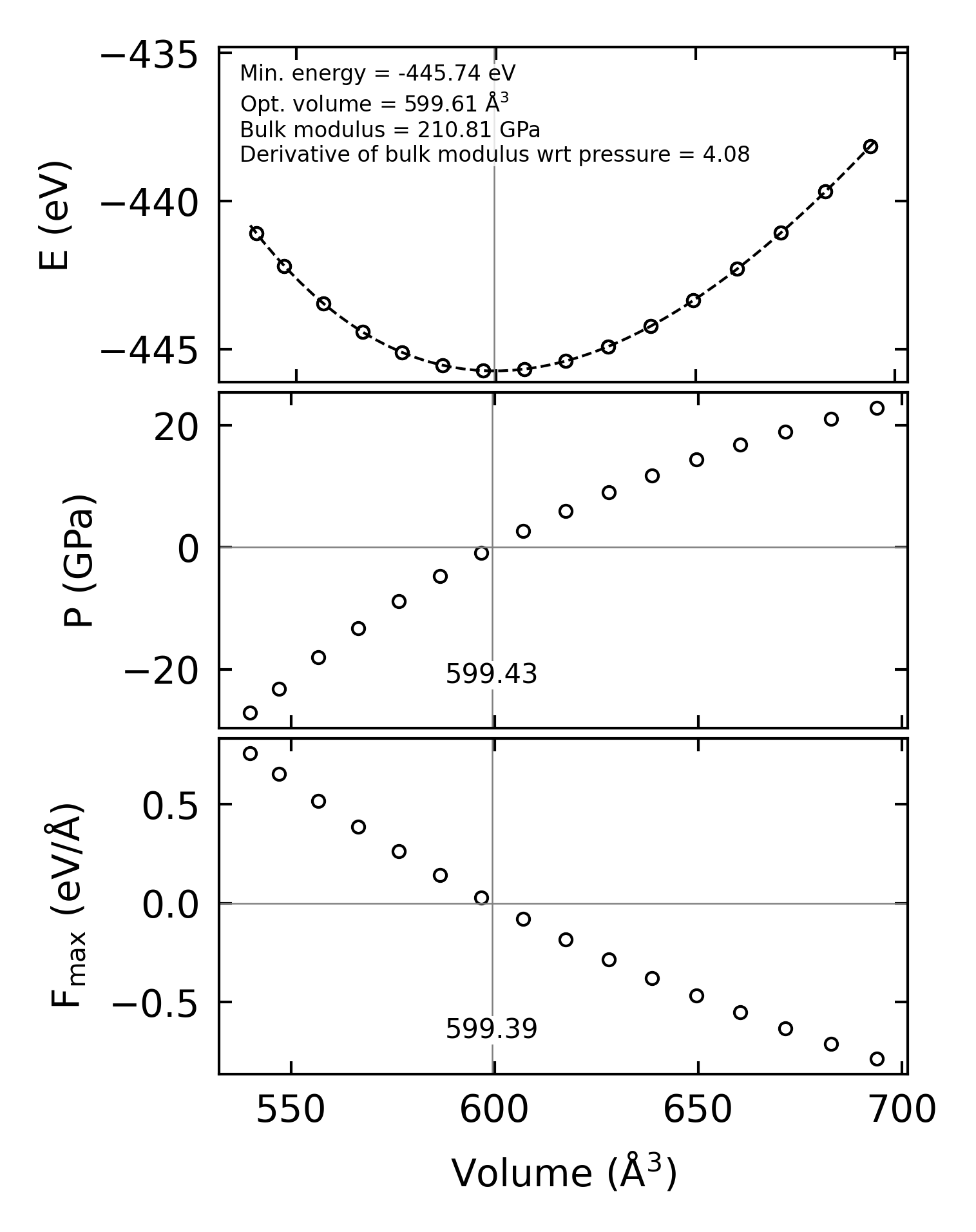

../../_images/fig_bm3262.png — (a) Equation of state

Harmonic properties

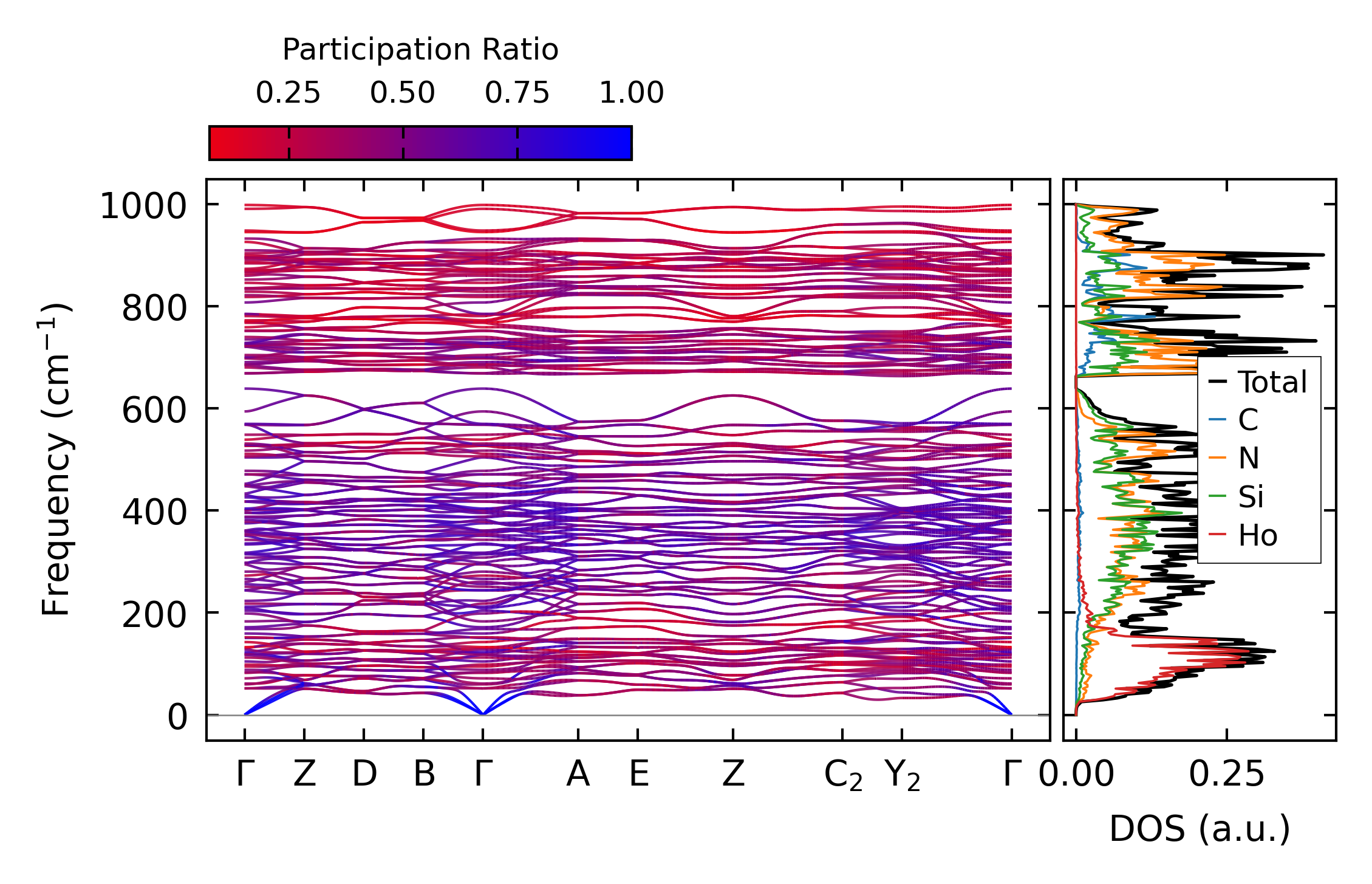

../../_images/fig_bandos_pr6184.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo6184.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all2509.png — (a) Grüneisen parameters

../../_images/fig_gruneisen2509.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x7x6, supercell: 2x1x1

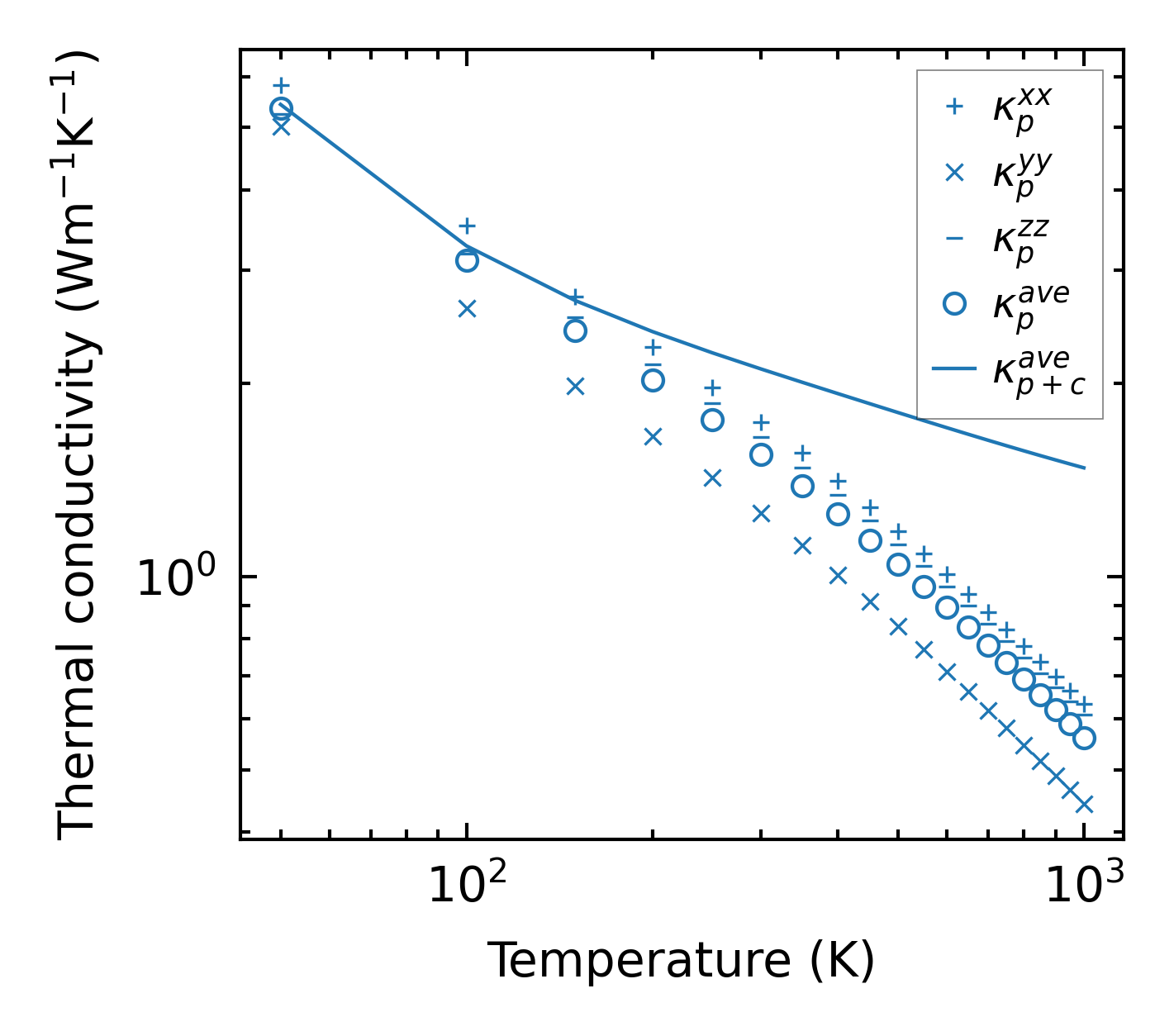

../../_images/fig_kappa4773.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size2541.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

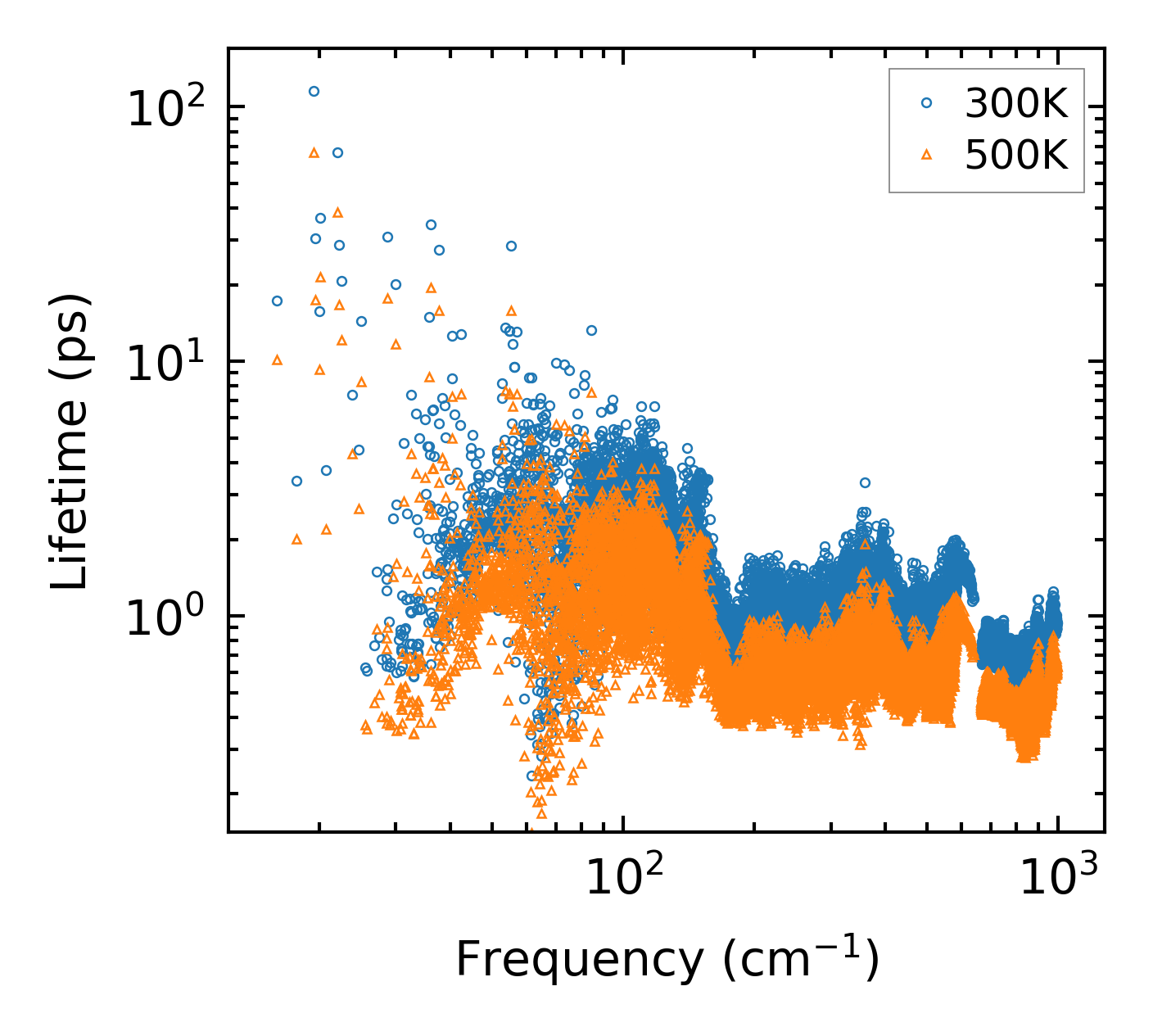

../../_images/fig_lifetime2491.png — (a) Phonon lifetime due to phonon-phonon scattering

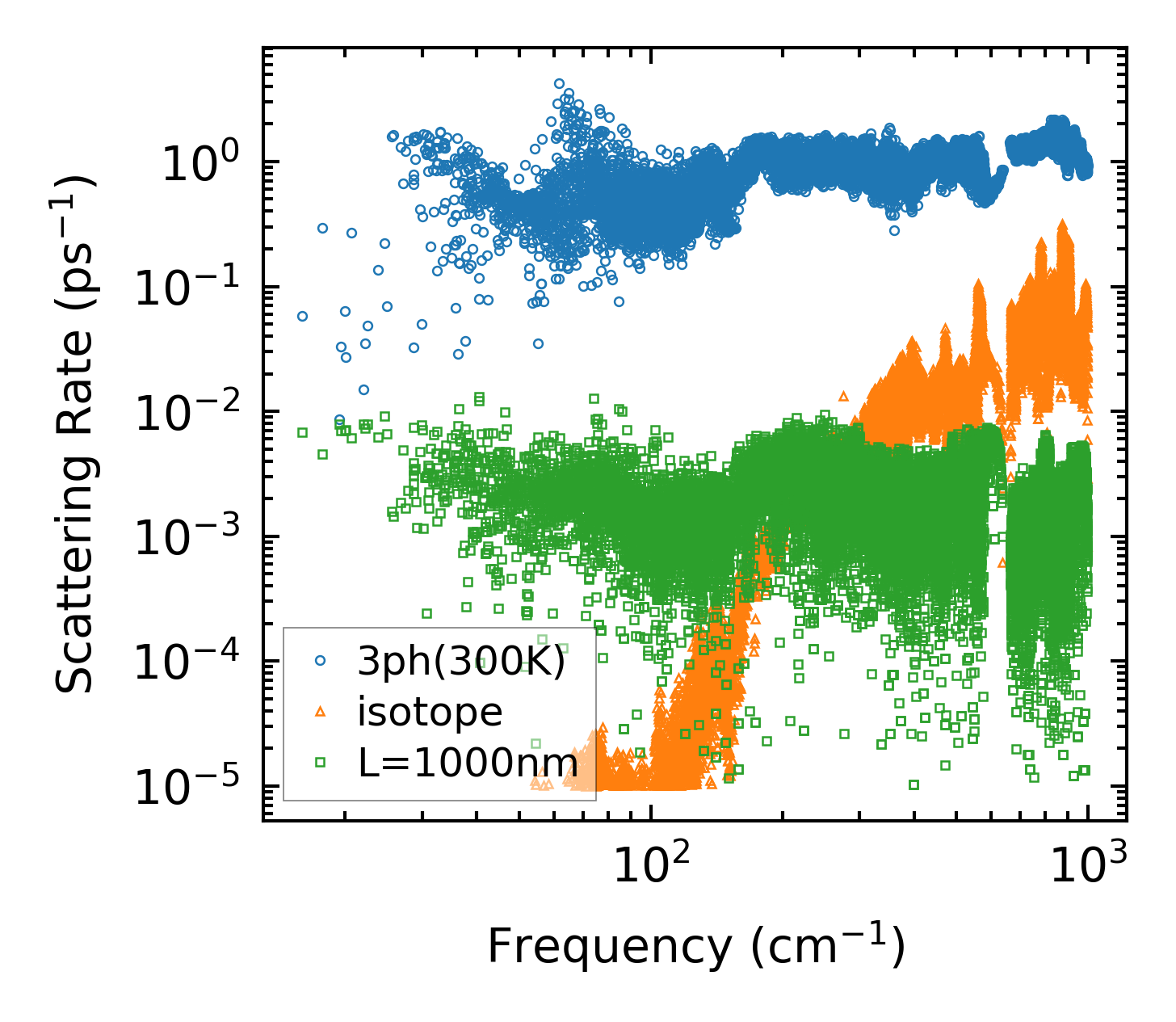

../../_images/fig_scat_rates2490.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

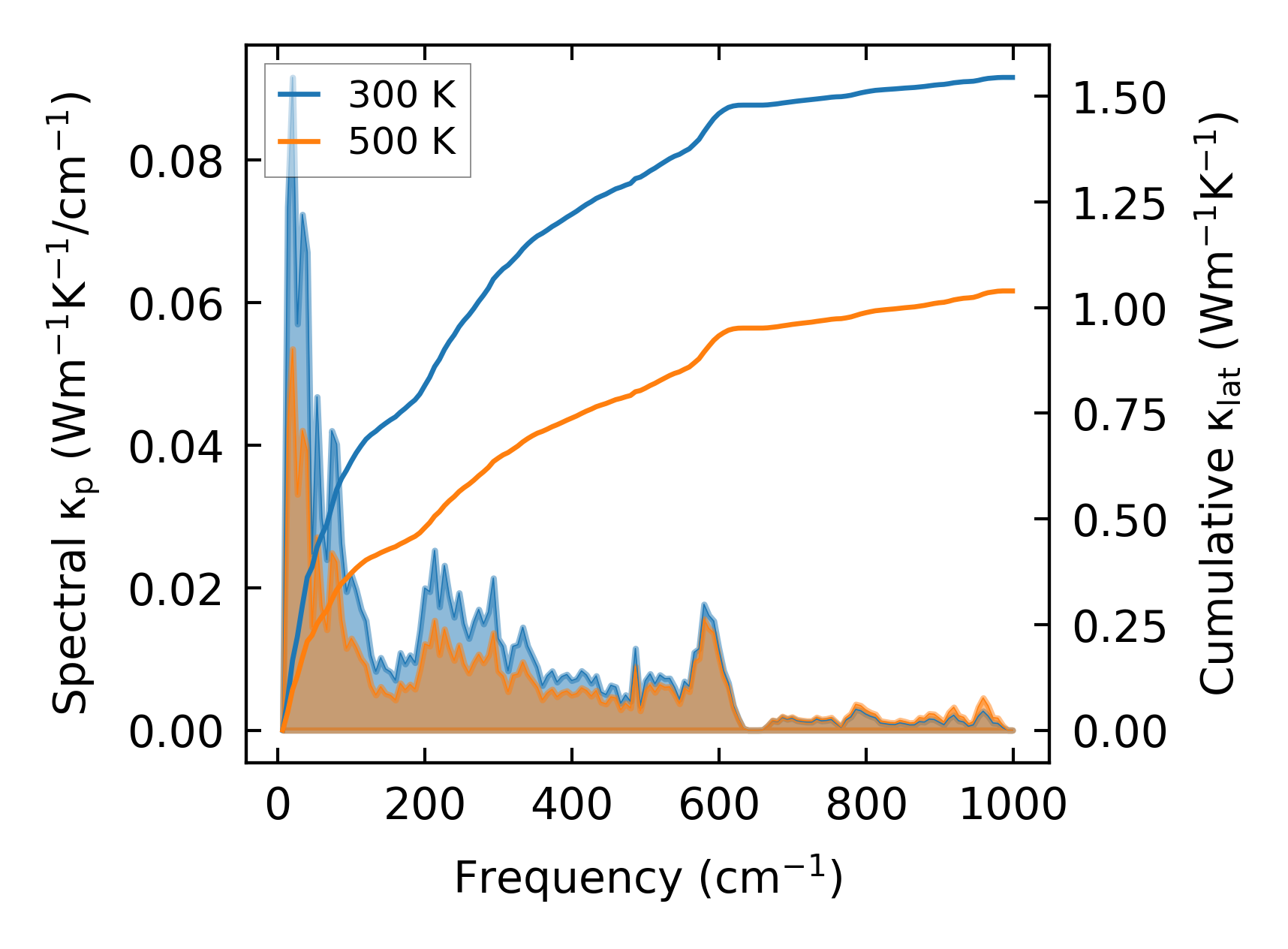

../../_images/fig_cumu_frequency2491.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp2490.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

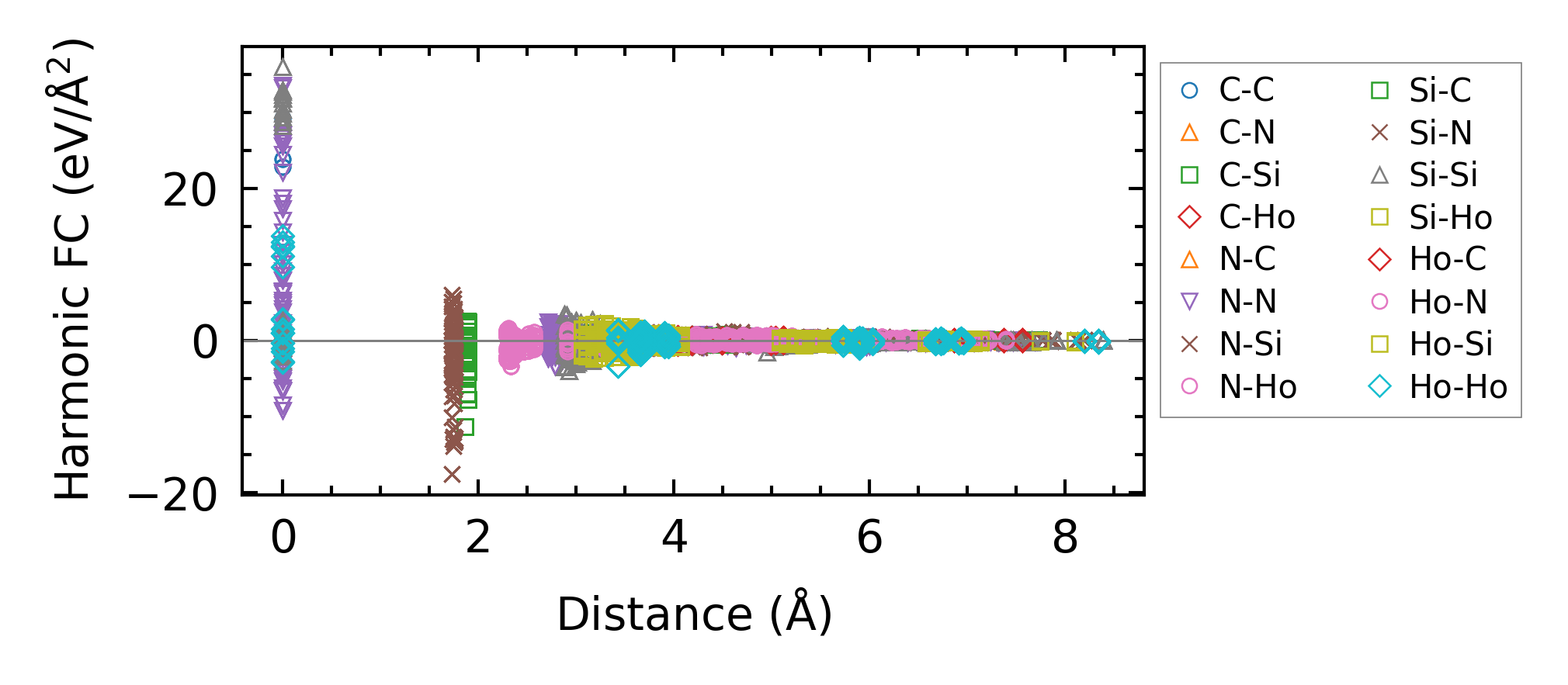

../../_images/fig_fc25975.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa4774.png — (a) Temperature-dependent lattice thermal conductivity

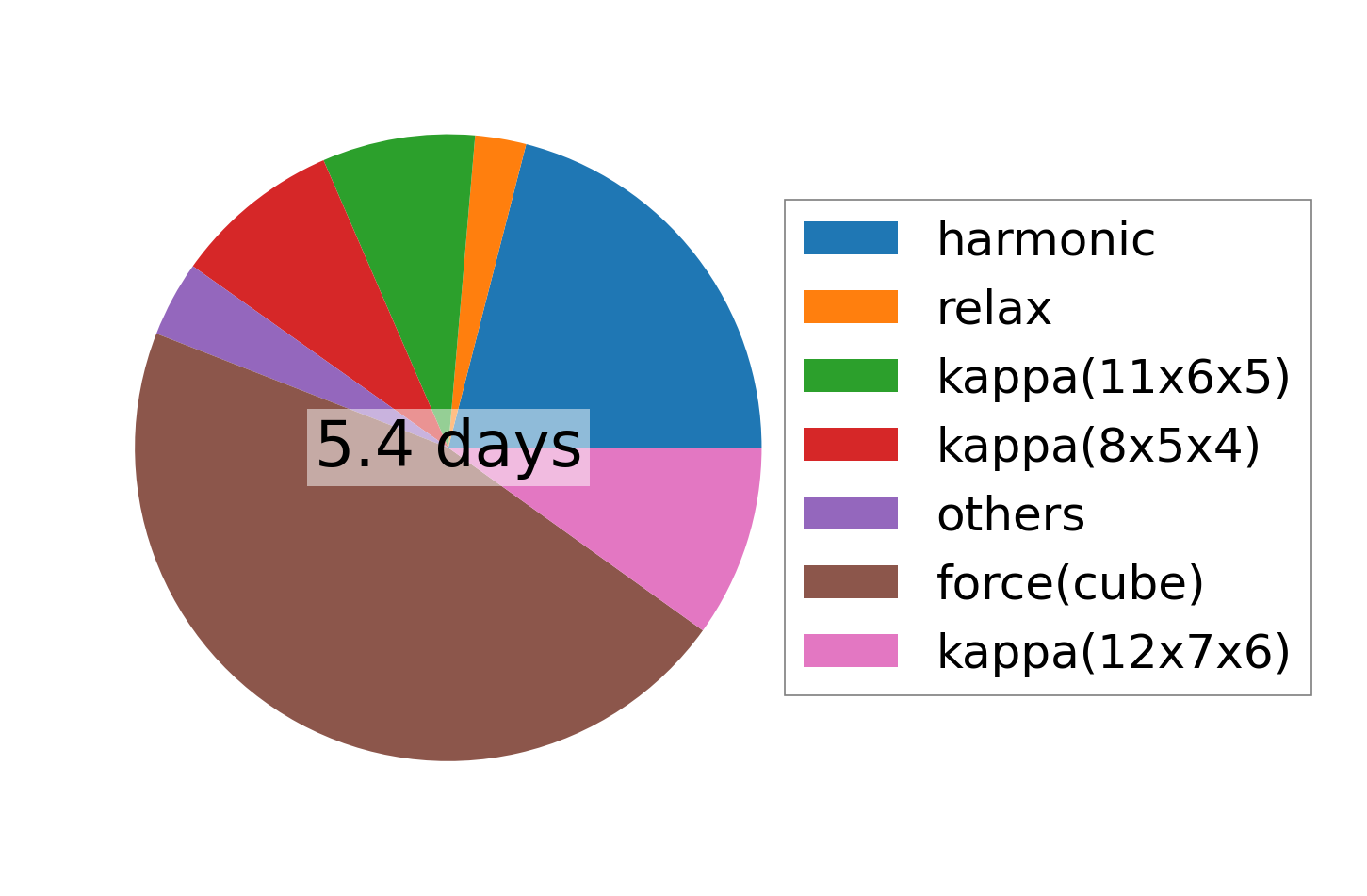

../../_images/fig_times11263.png — (b) Computation time
