mp-6687-2/Ba2HoSbO6/anharm

Space group: Fm-3m (225)
Link: Materials Project
Download: mp-6687-2.tar.gz

Equation of state

../../_images/fig_bm3228.png — (a) Equation of state

Harmonic properties

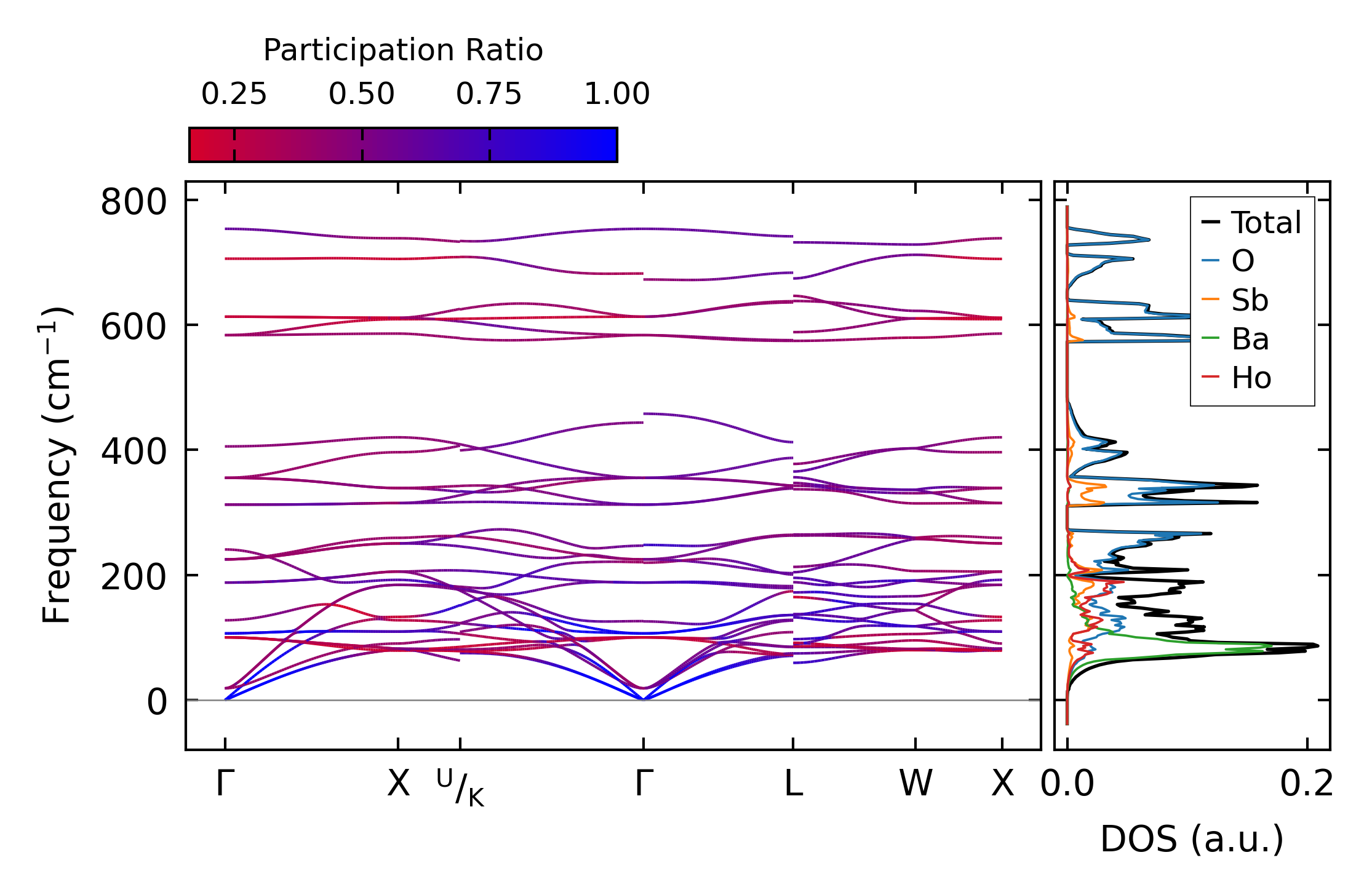

../../_images/fig_bandos_pr6124.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo6124.png — (b) Thermodynamic properties

Grüneisen parameters

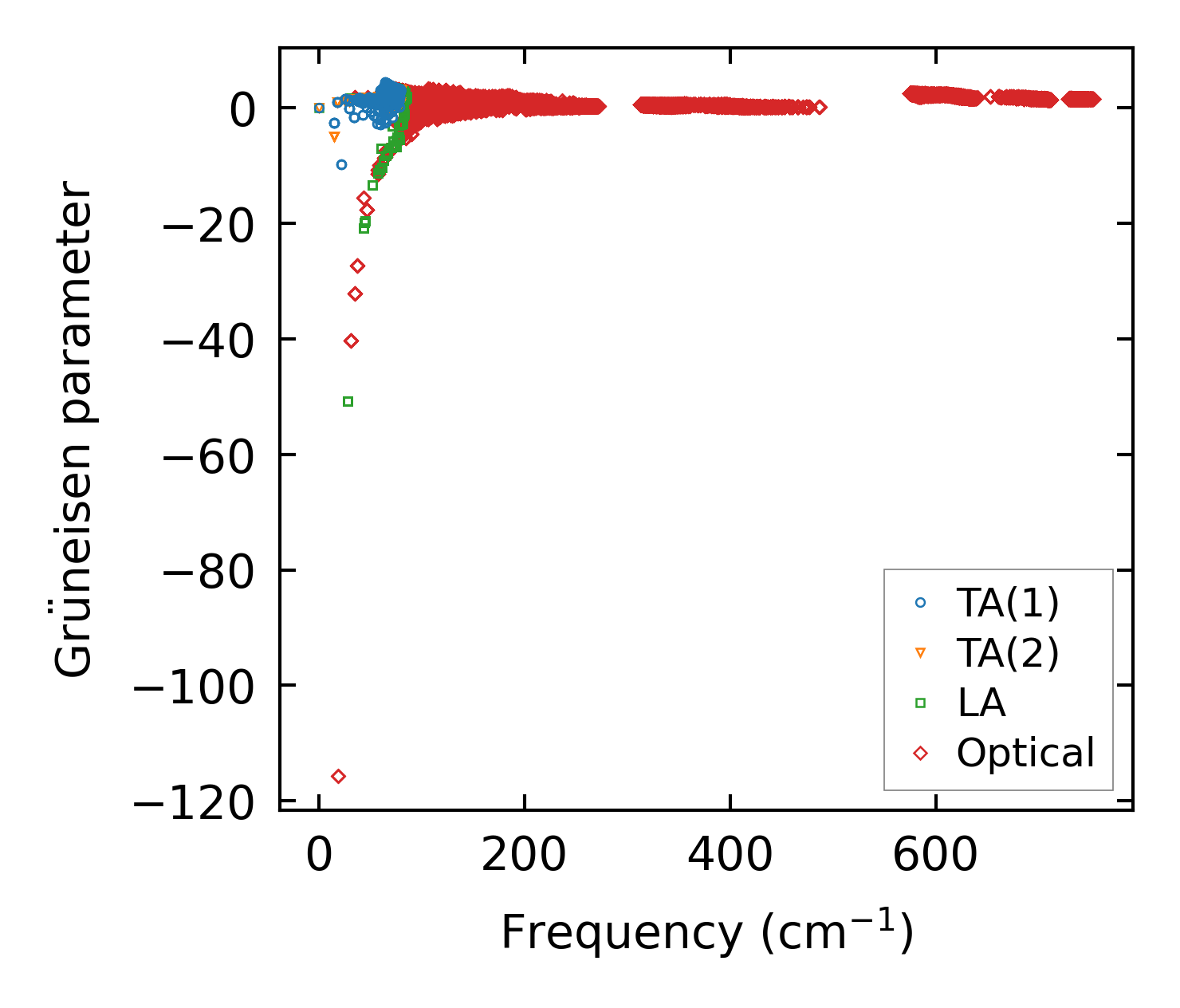

../../_images/fig_gru_all2486.png — (a) Grüneisen parameters

../../_images/fig_gruneisen2486.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x13x13, supercell: 1x1x1

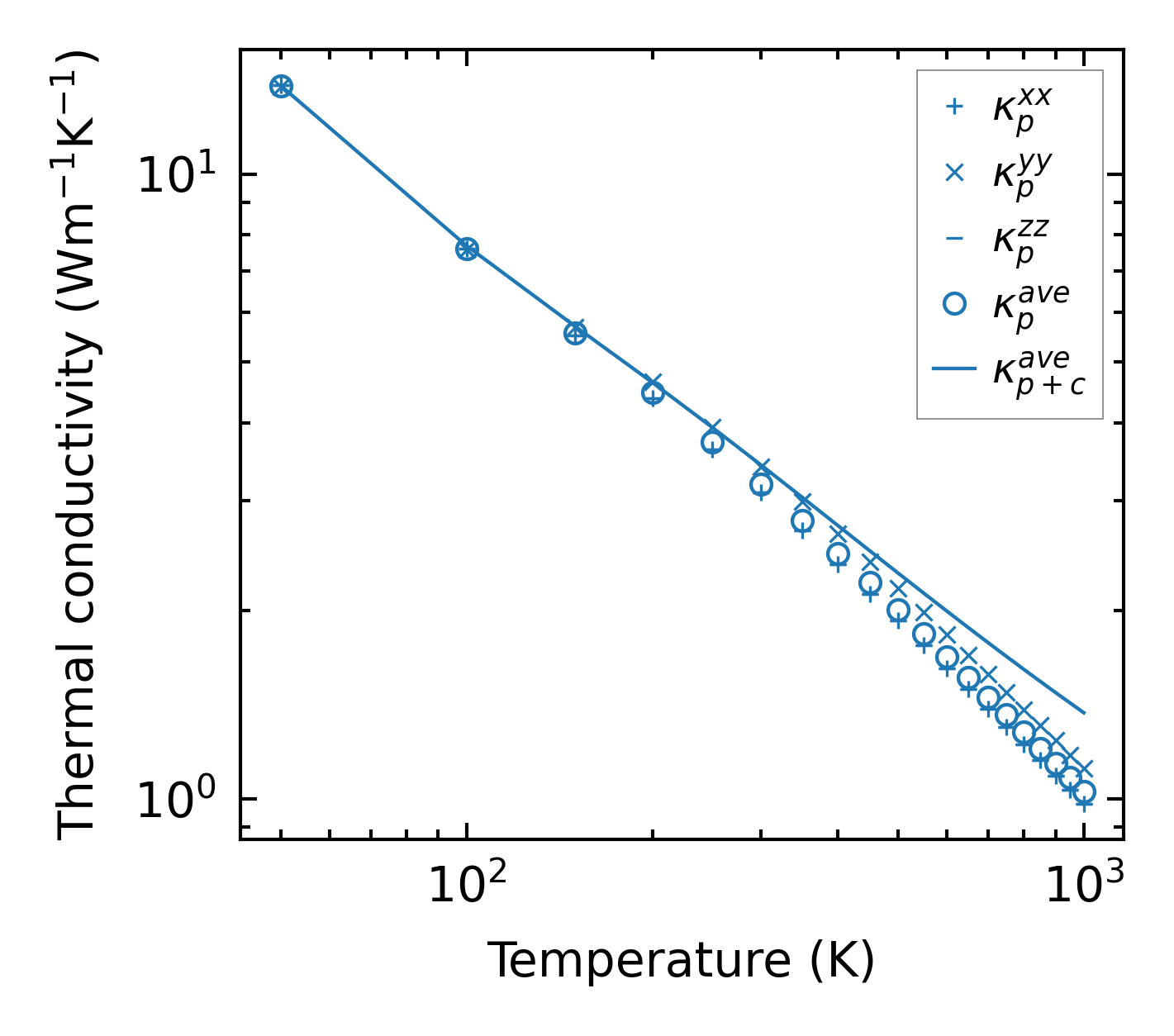

../../_images/fig_kappa4730.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size2516.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

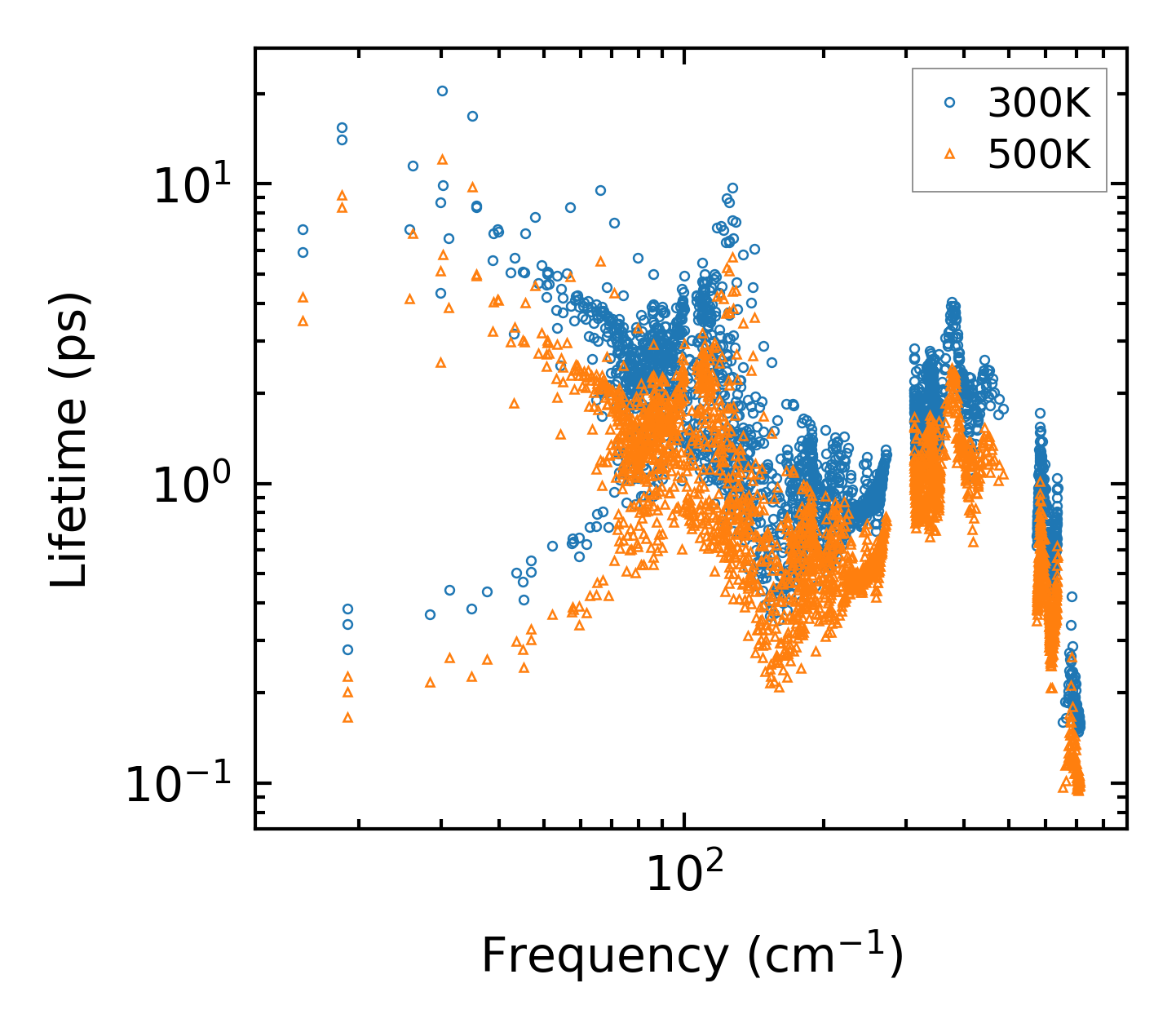

../../_images/fig_lifetime2468.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates2467.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

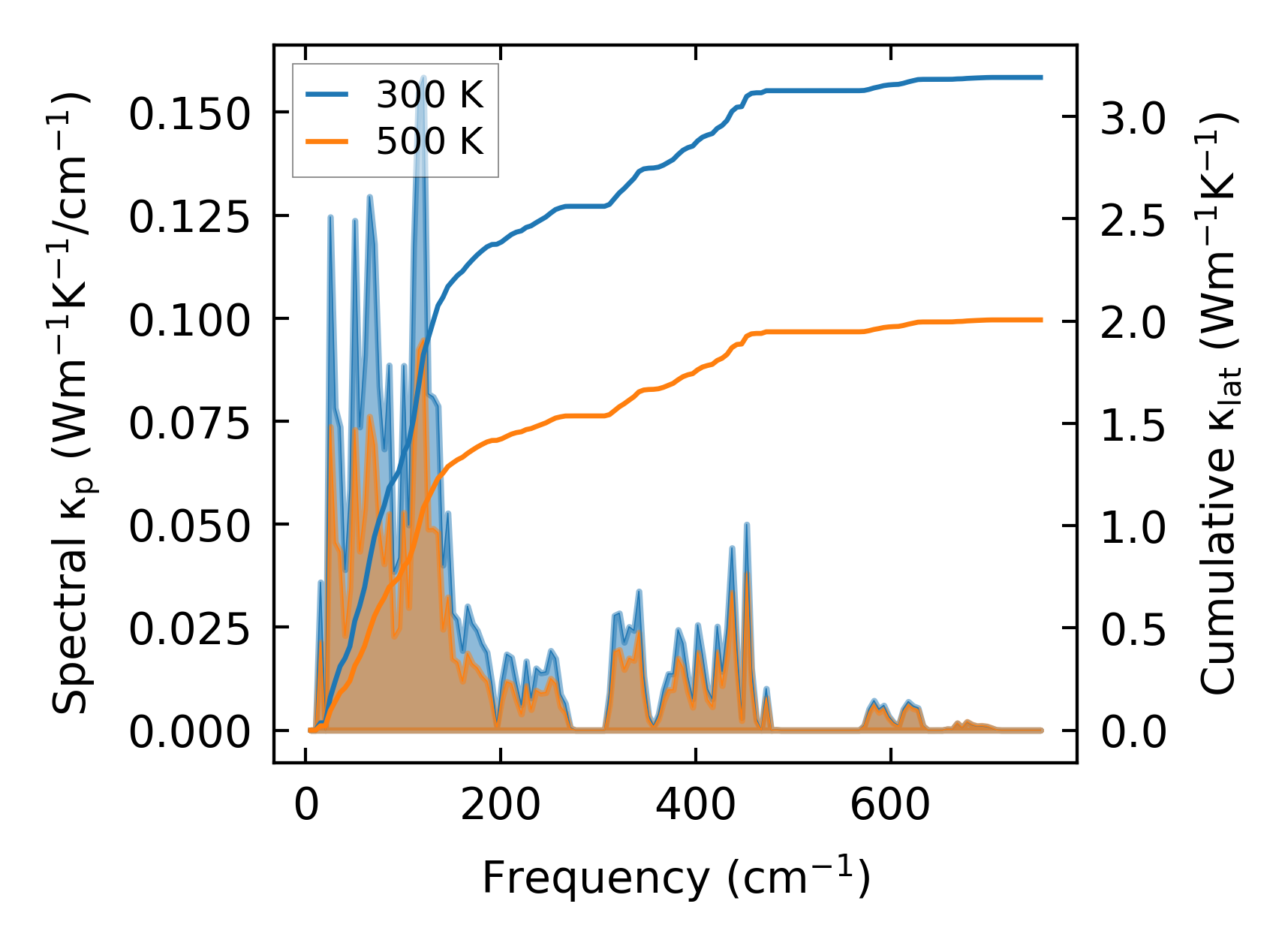

../../_images/fig_cumu_frequency2468.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

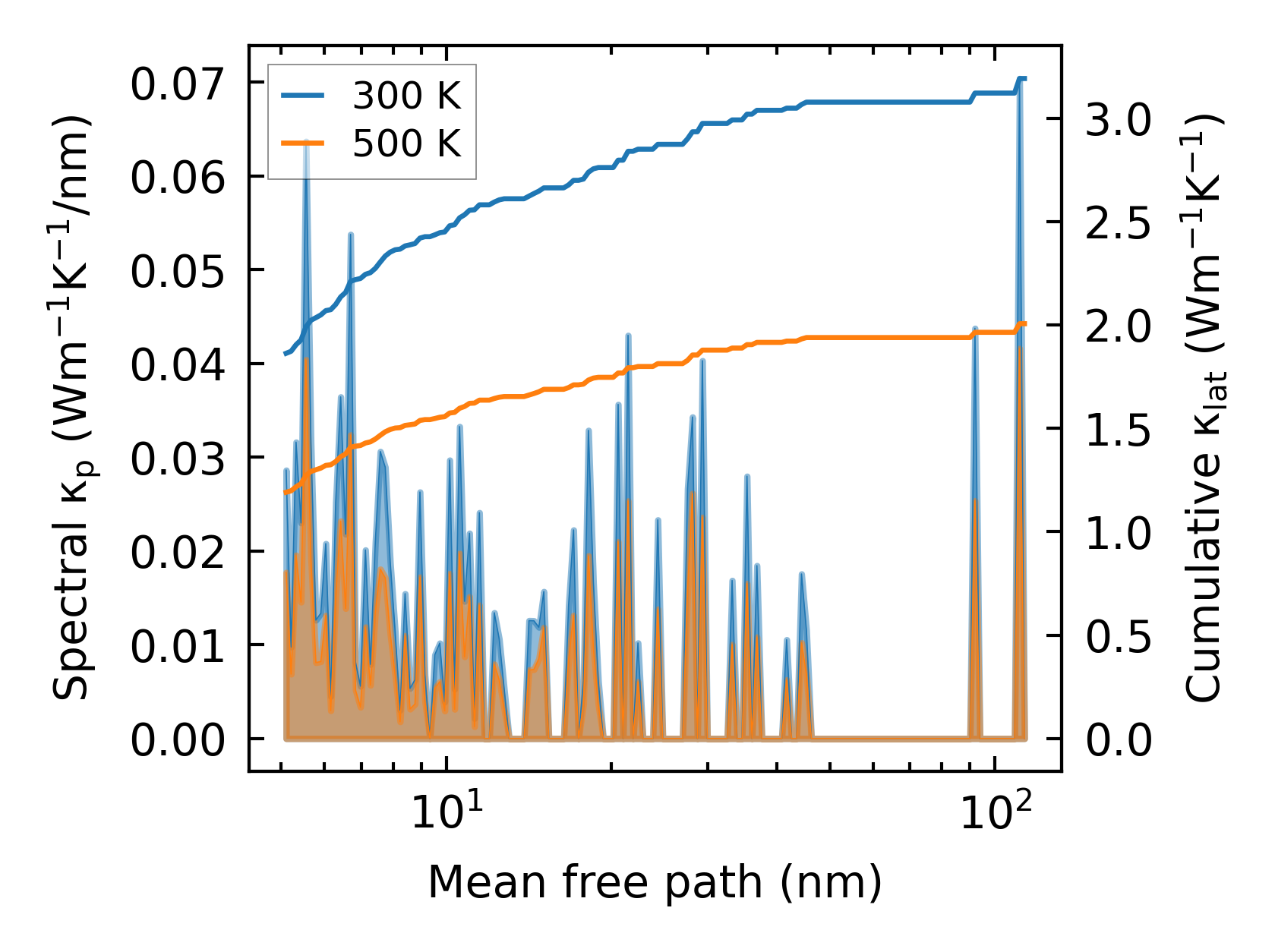

../../_images/fig_cumu_mfp2467.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc25915.png — (a) Force constants w.r.t atomic distance

Summary

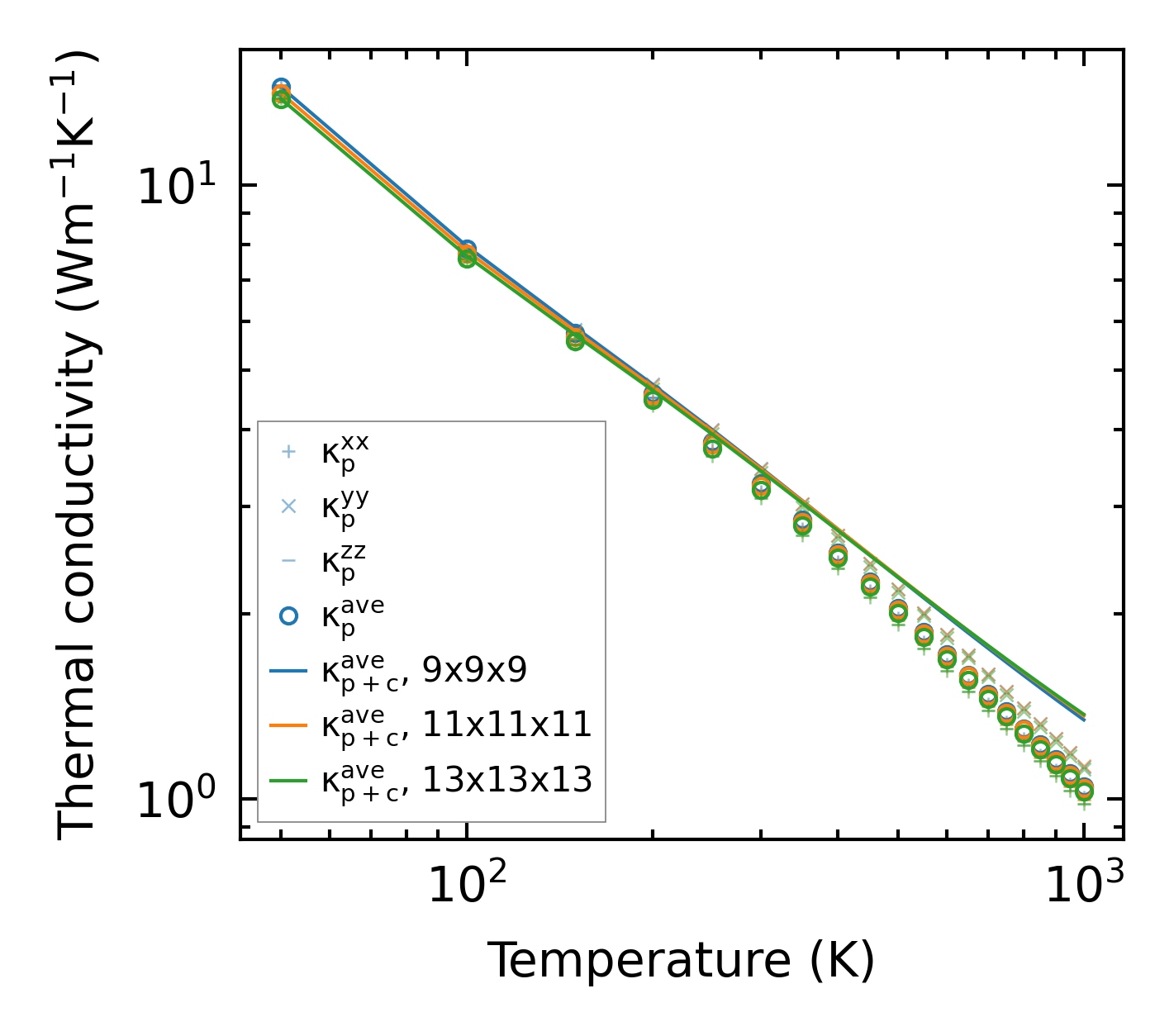

../../_images/fig_kappa4731.png — (a) Temperature-dependent lattice thermal conductivity

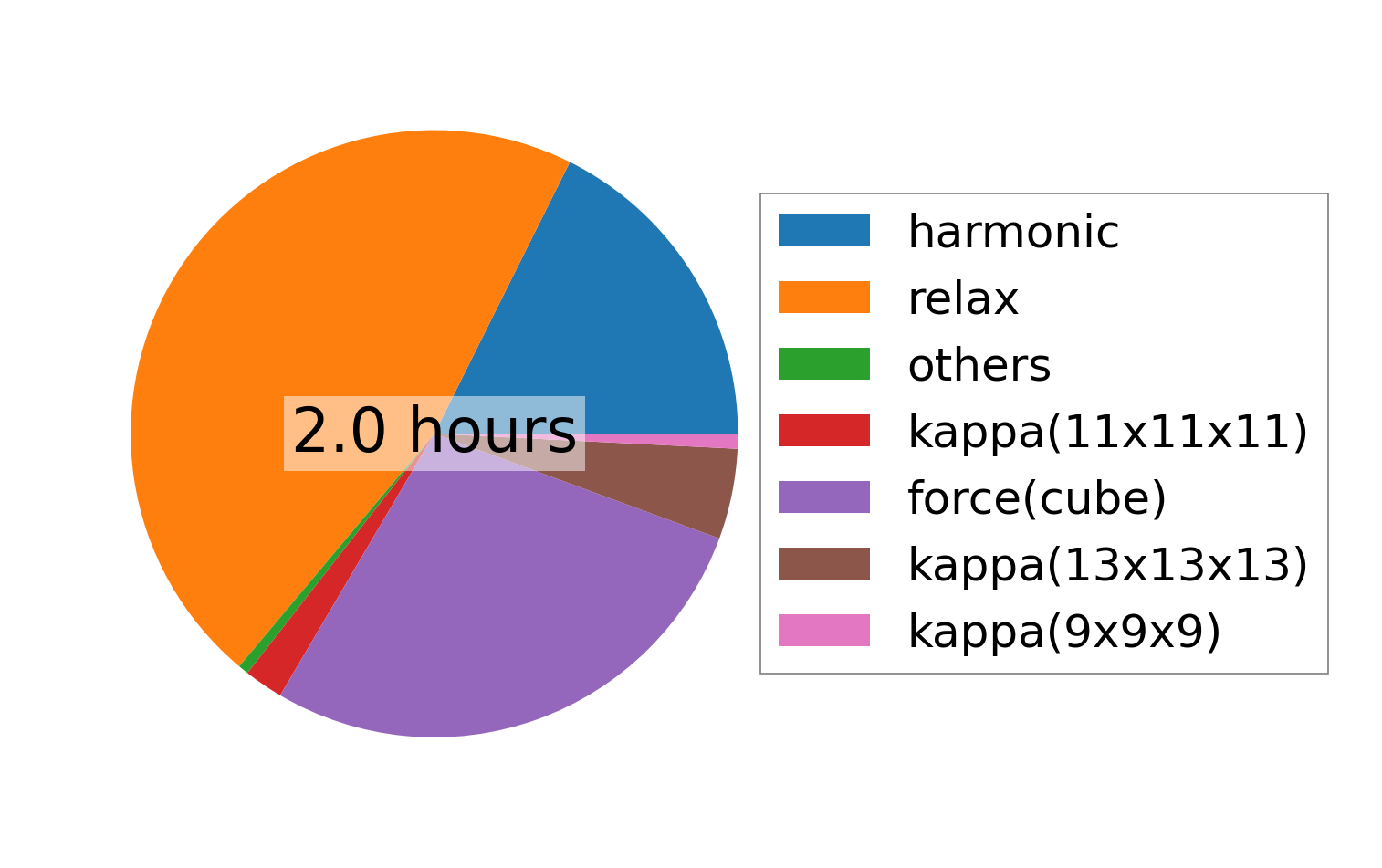

../../_images/fig_times11179.png — (b) Computation time
