mp-28996-2/Ag4Bi2O5/anharm

Space group: Pnna (52)
Link: Materials Project
Download: mp-28996-2.tar.gz

Equation of state

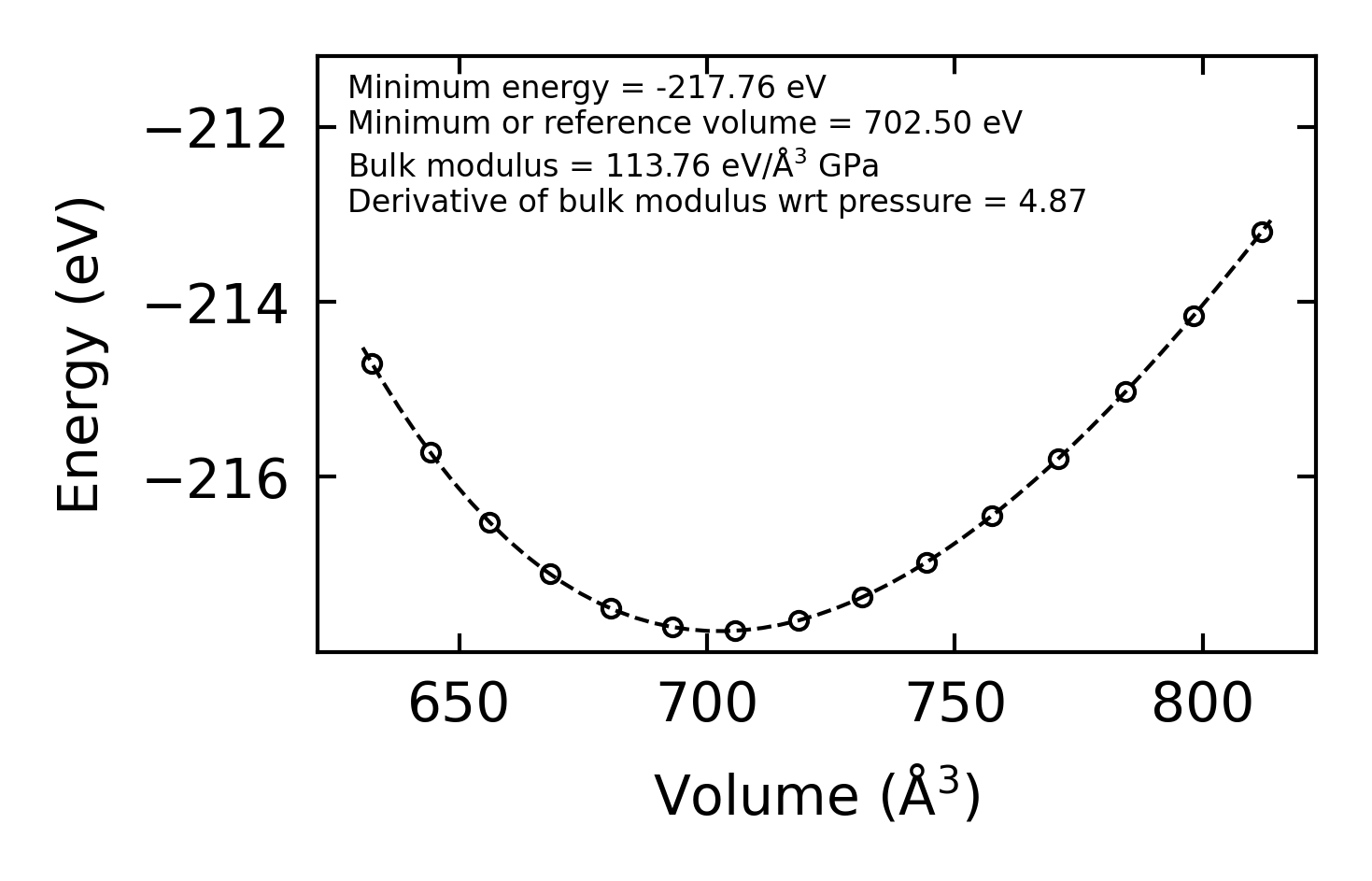

../../_images/fig_bm5550.png — (a) Equation of state

Harmonic properties

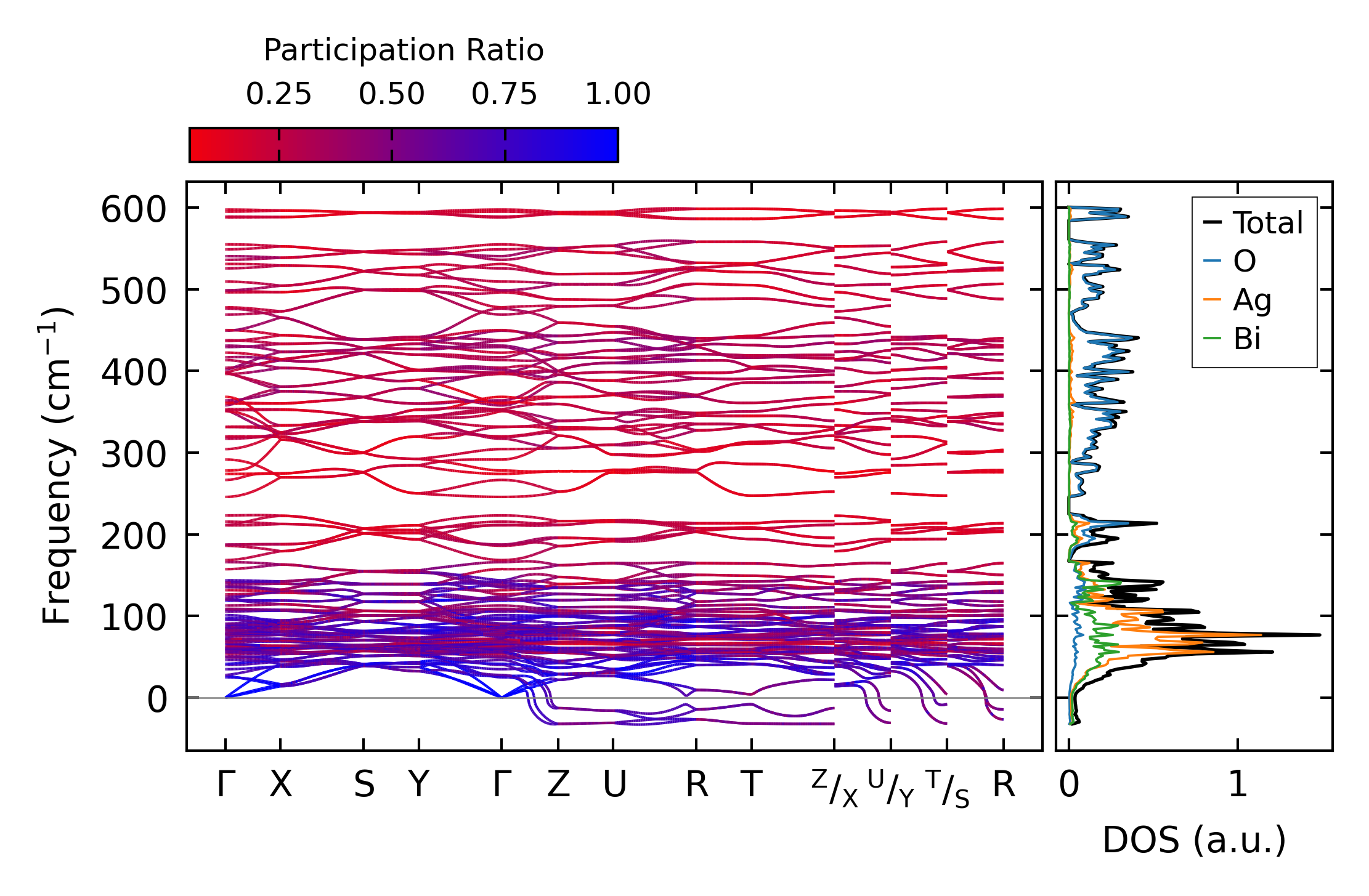

../../_images/fig_bandos_pr11351.png — (a) Phonon dispersion with participation ratio and DOS

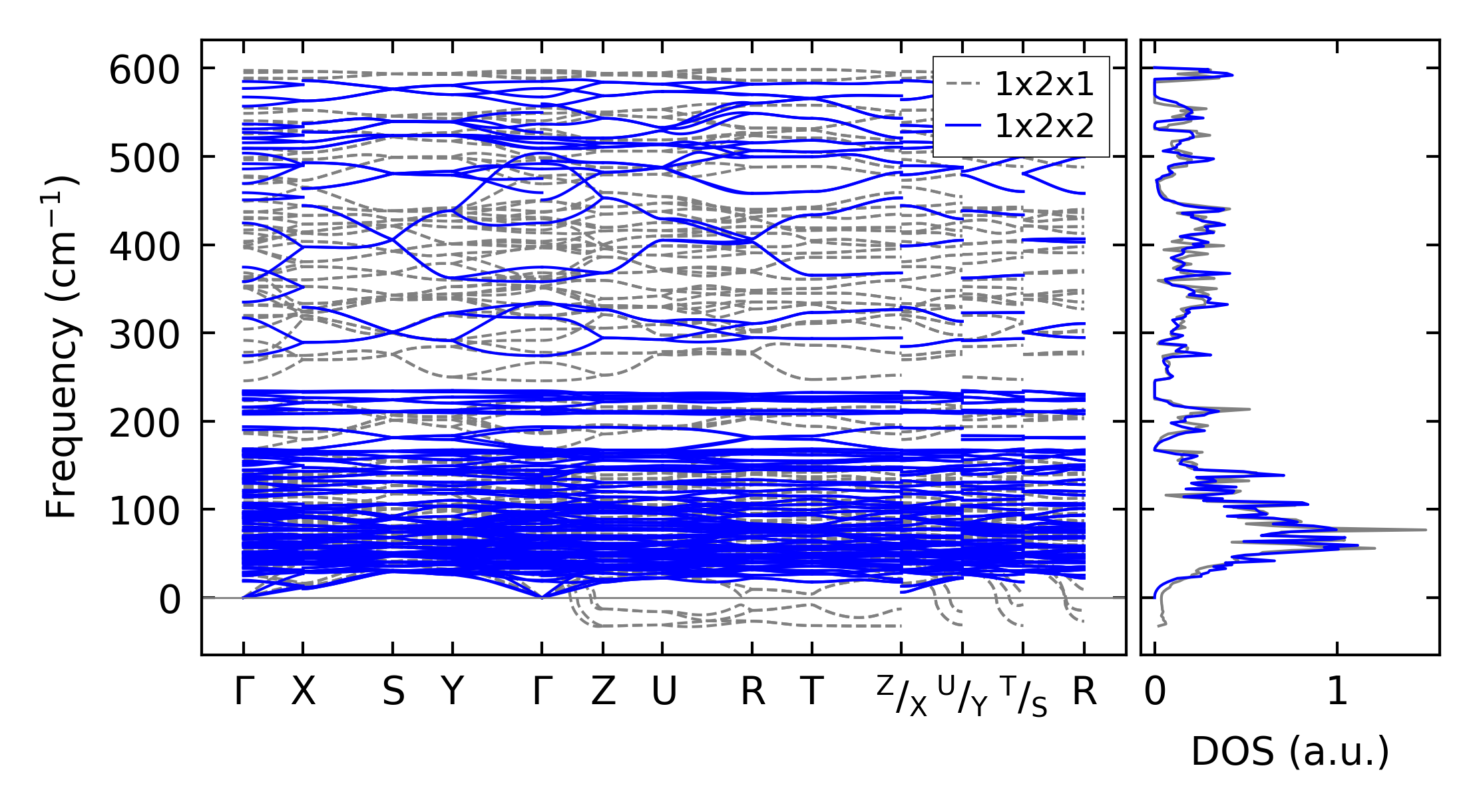

../../_images/fig_bandos15348.png — (b) Phonon dispersion and DOS

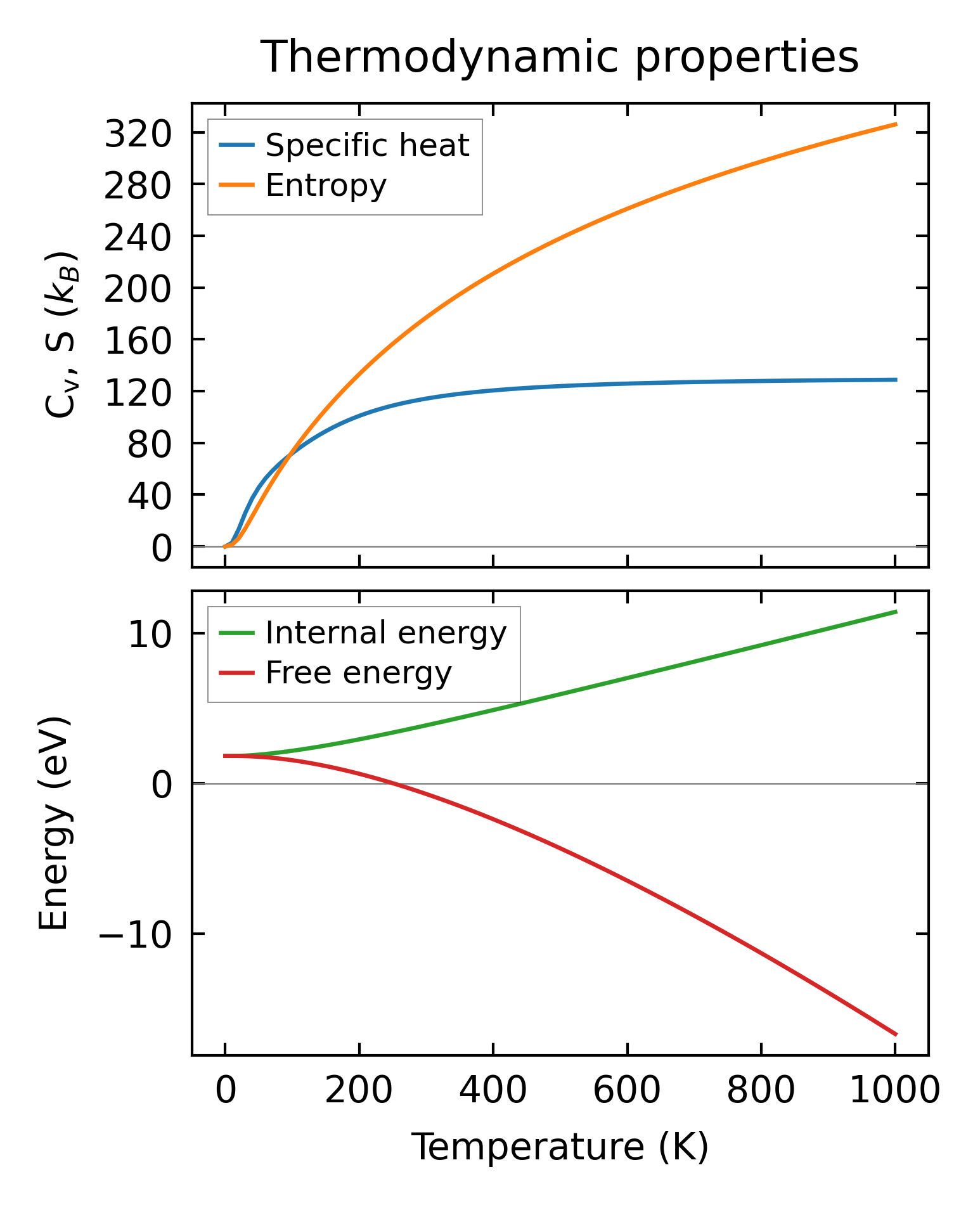

../../_images/fig_thermo11351.png — (c) Thermodynamic properties

Grüneisen parameters

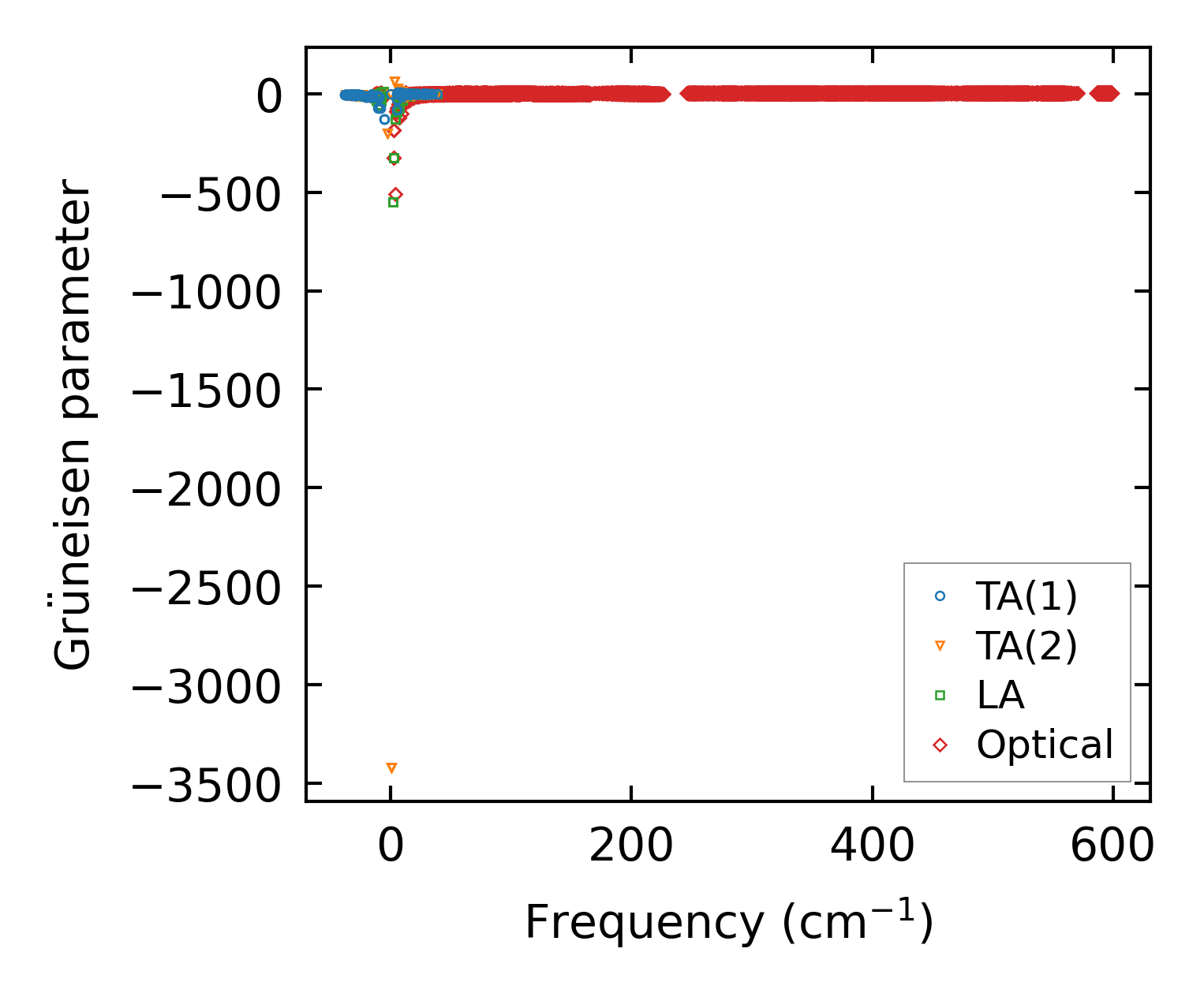

../../_images/fig_gru_all4695.png — (a) Grüneisen parameters

../../_images/fig_gruneisen4695.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 1x2x2 — q-mesh: 5x12x8, supercell: 1x2x2

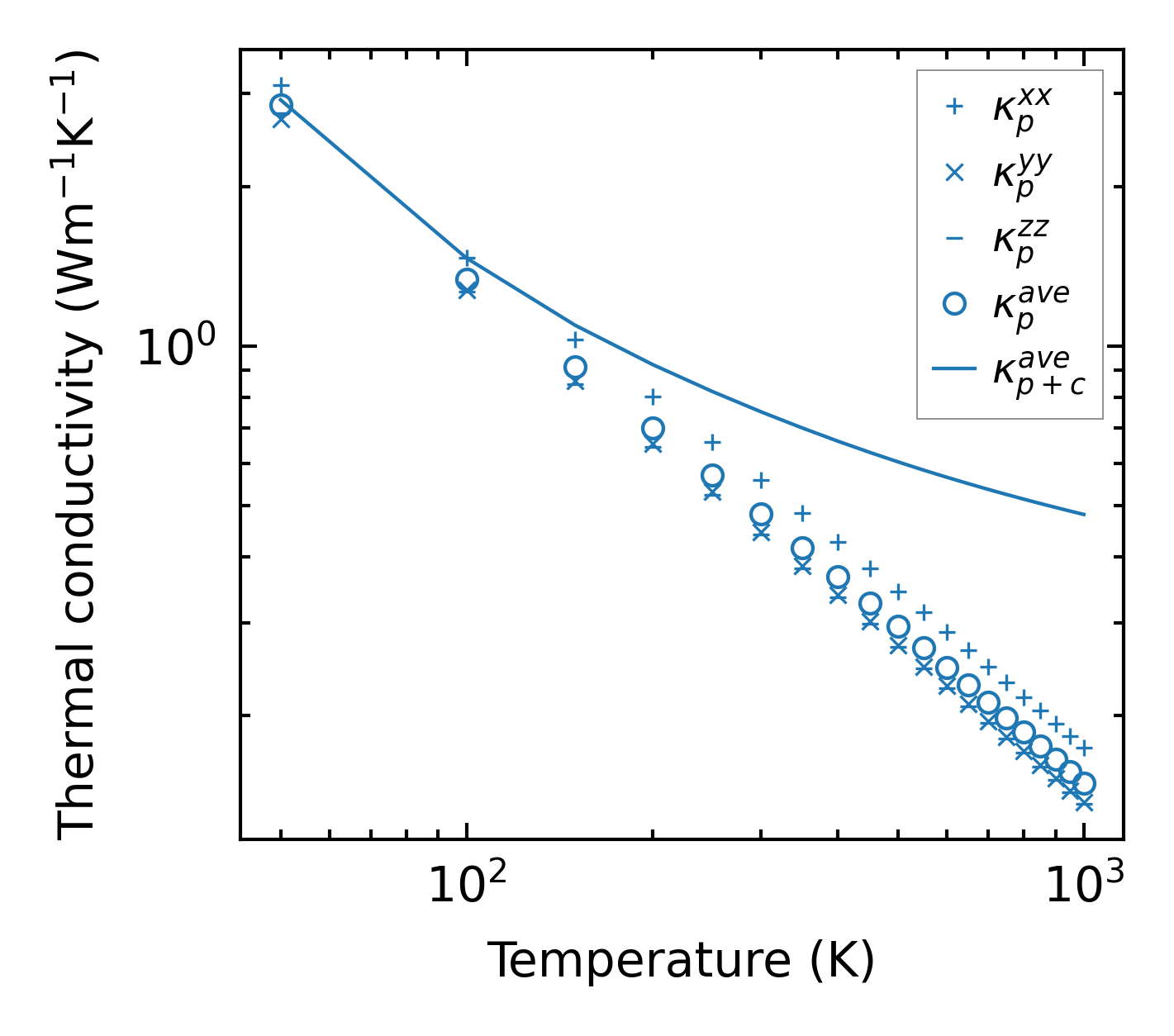

../../_images/fig_kappa8863.png — (a) Temperature-dependent lattice thermal conductivity

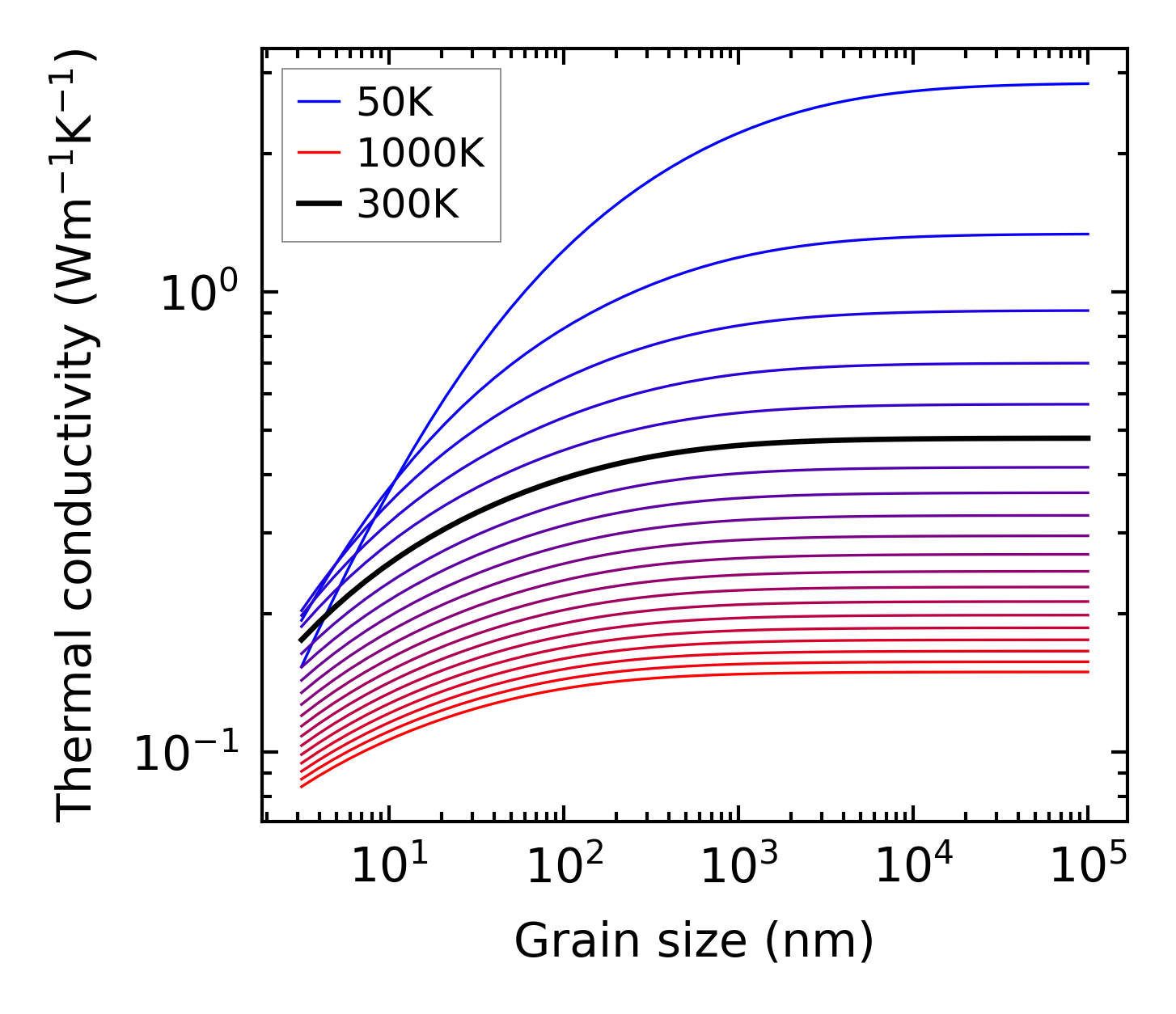

../../_images/fig_kappa_vs_grain_size4754.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

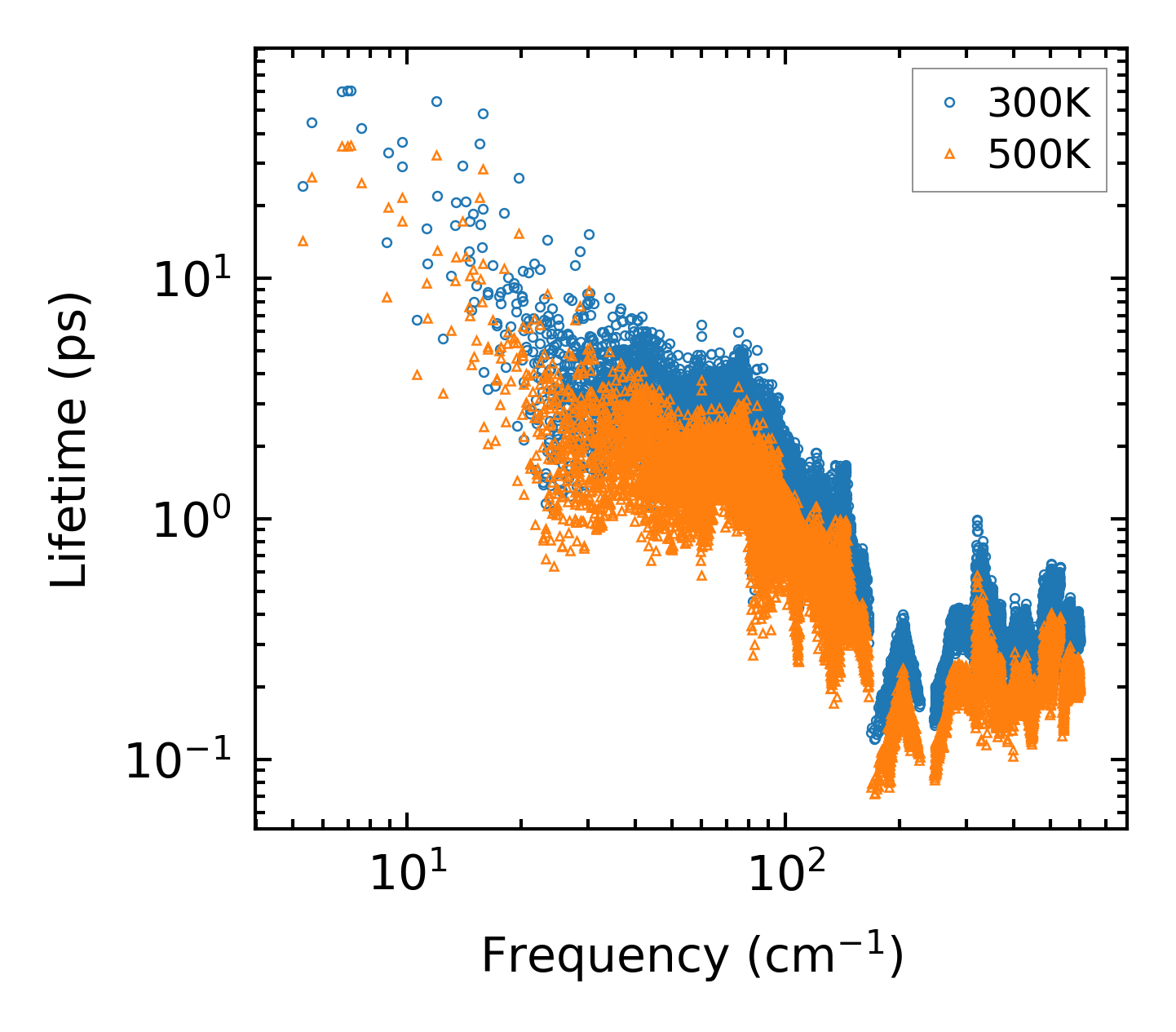

../../_images/fig_lifetime4651.png — (a) Phonon lifetime due to phonon-phonon scattering

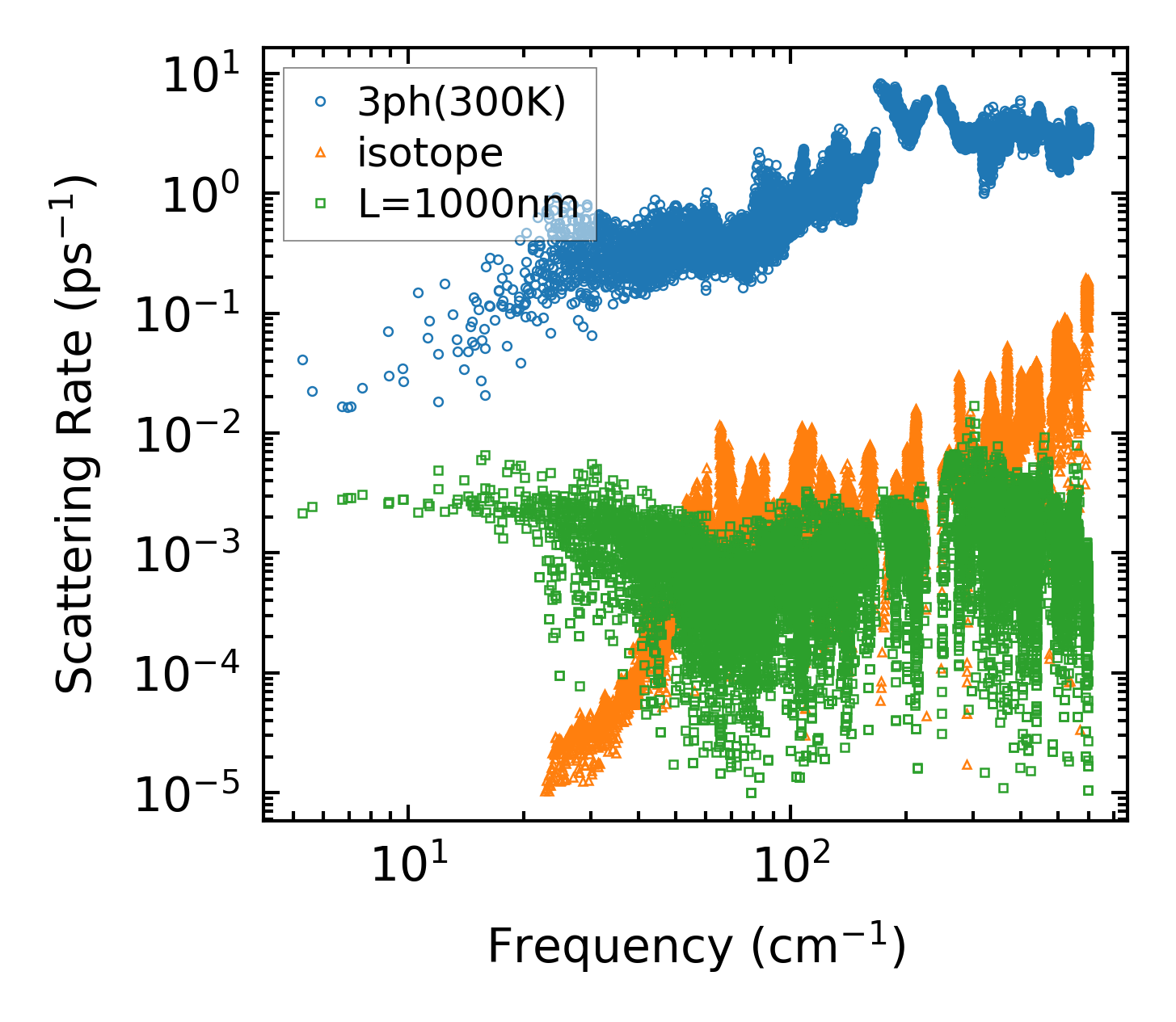

../../_images/fig_scat_rates4650.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

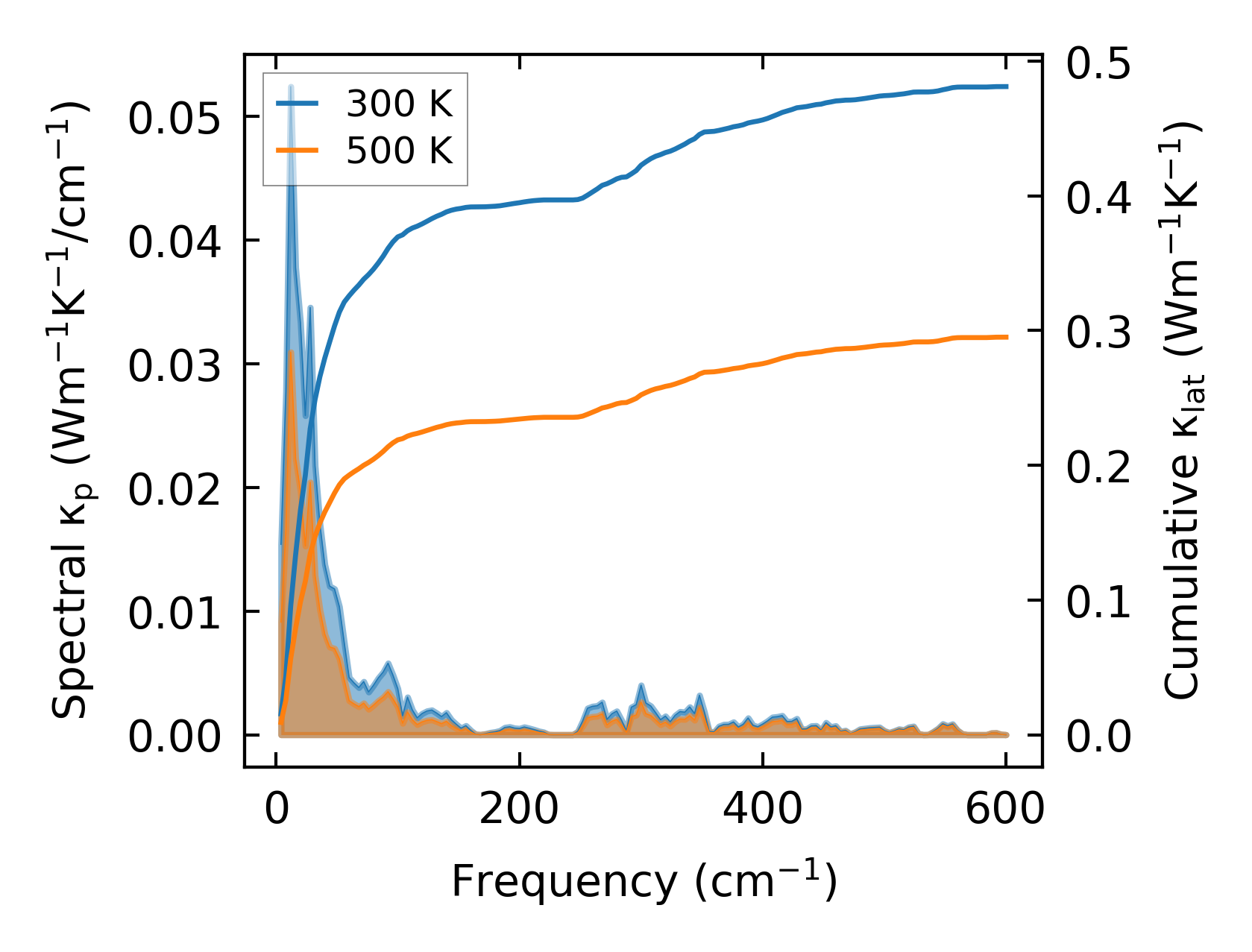

../../_images/fig_cumu_frequency4651.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

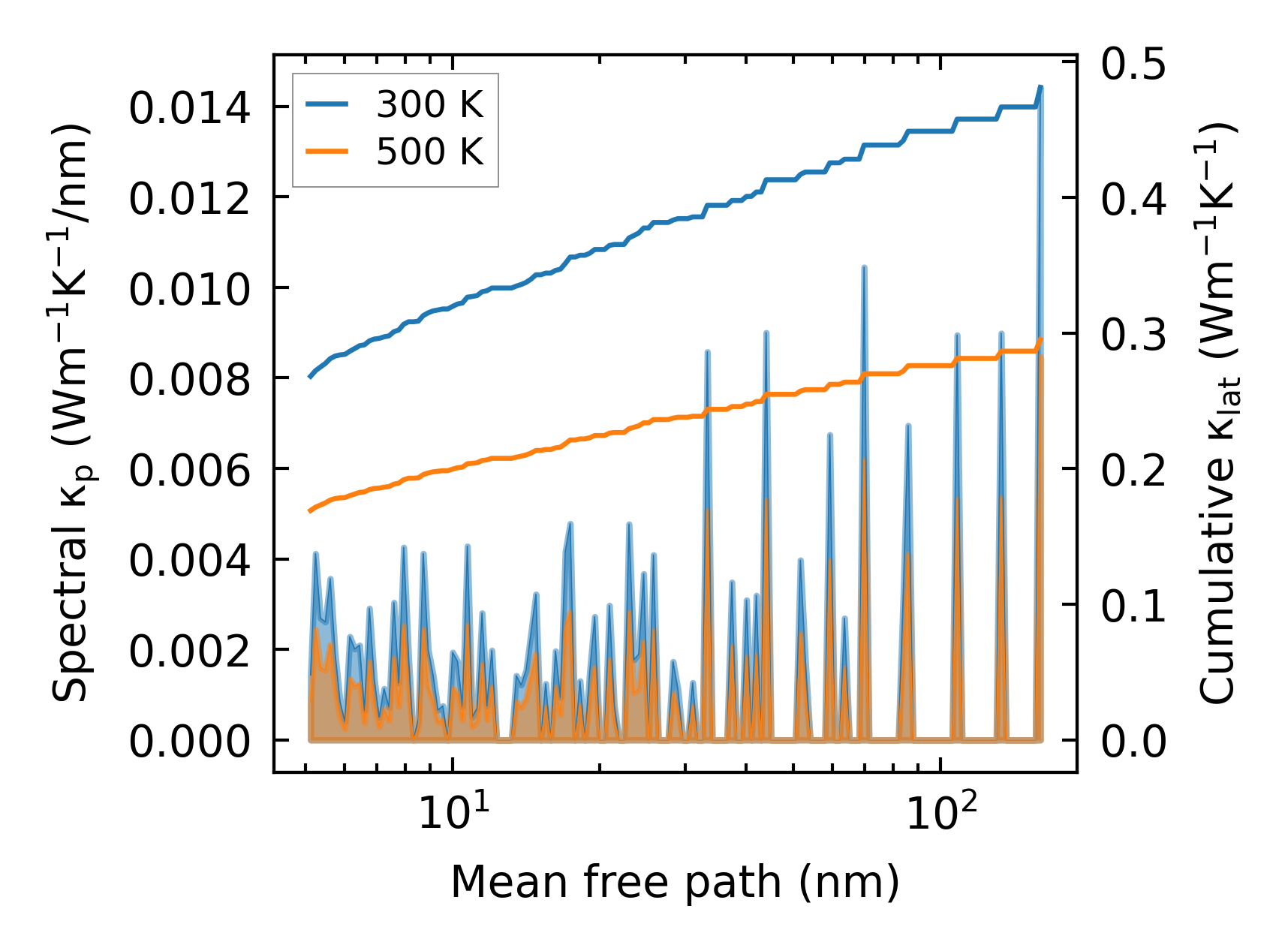

../../_images/fig_cumu_mfp4650.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

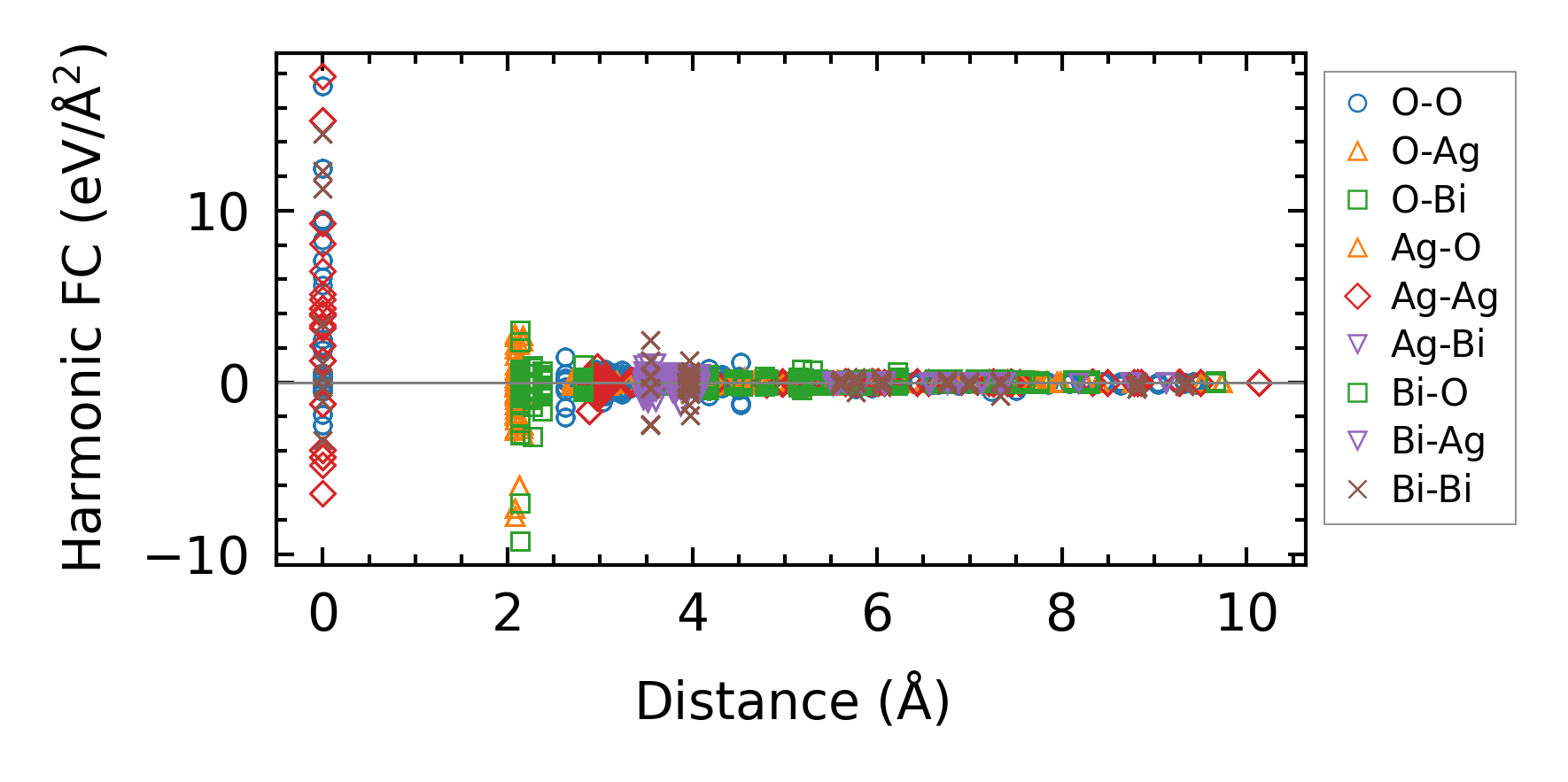

../../_images/fig_fc211067.png — (a) Force constants w.r.t atomic distance

Summary

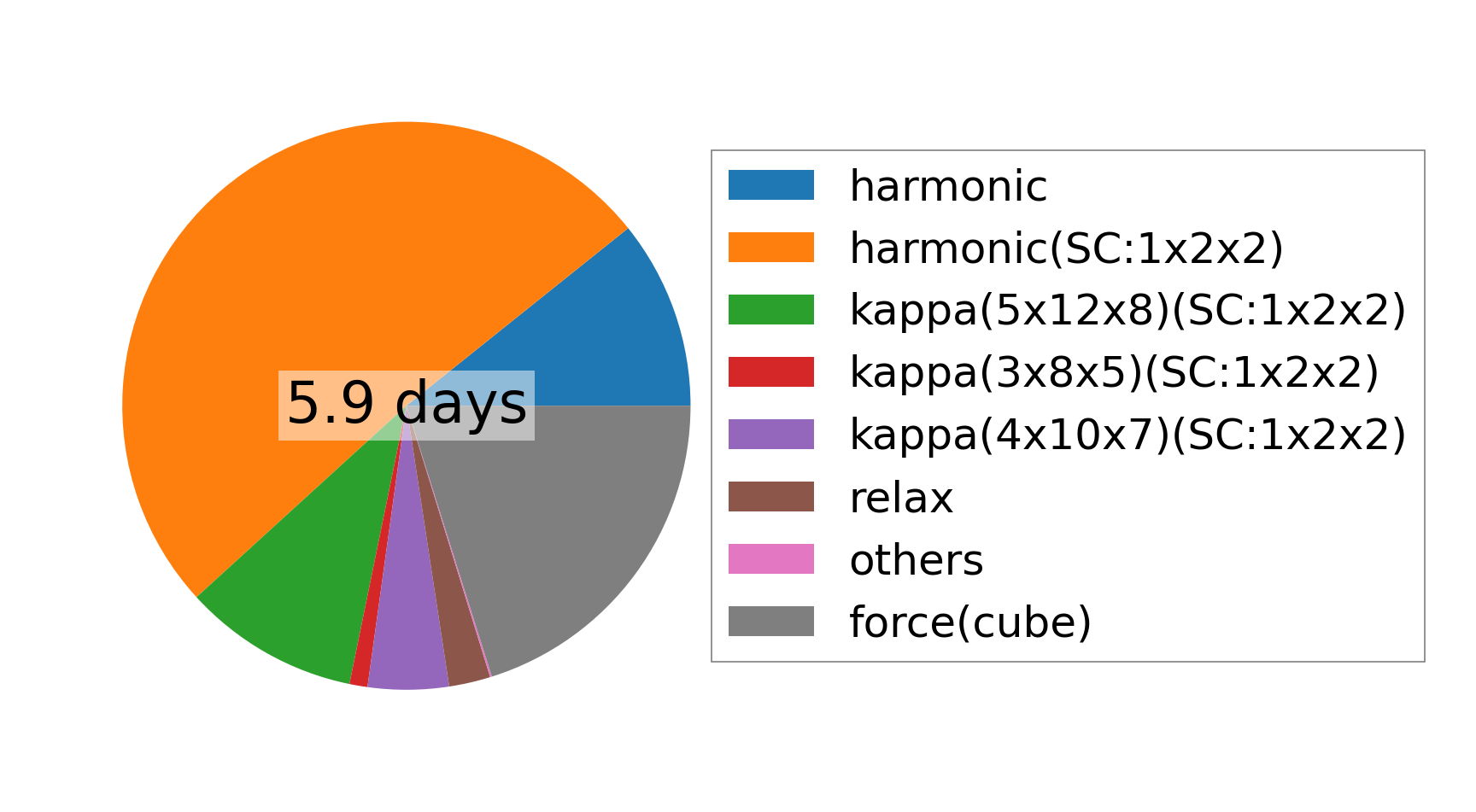

../../_images/fig_times19379.png — (a) Computation time
