mp-28812-2/Ag5BiO4/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-28812-2.tar.gz

Equation of state

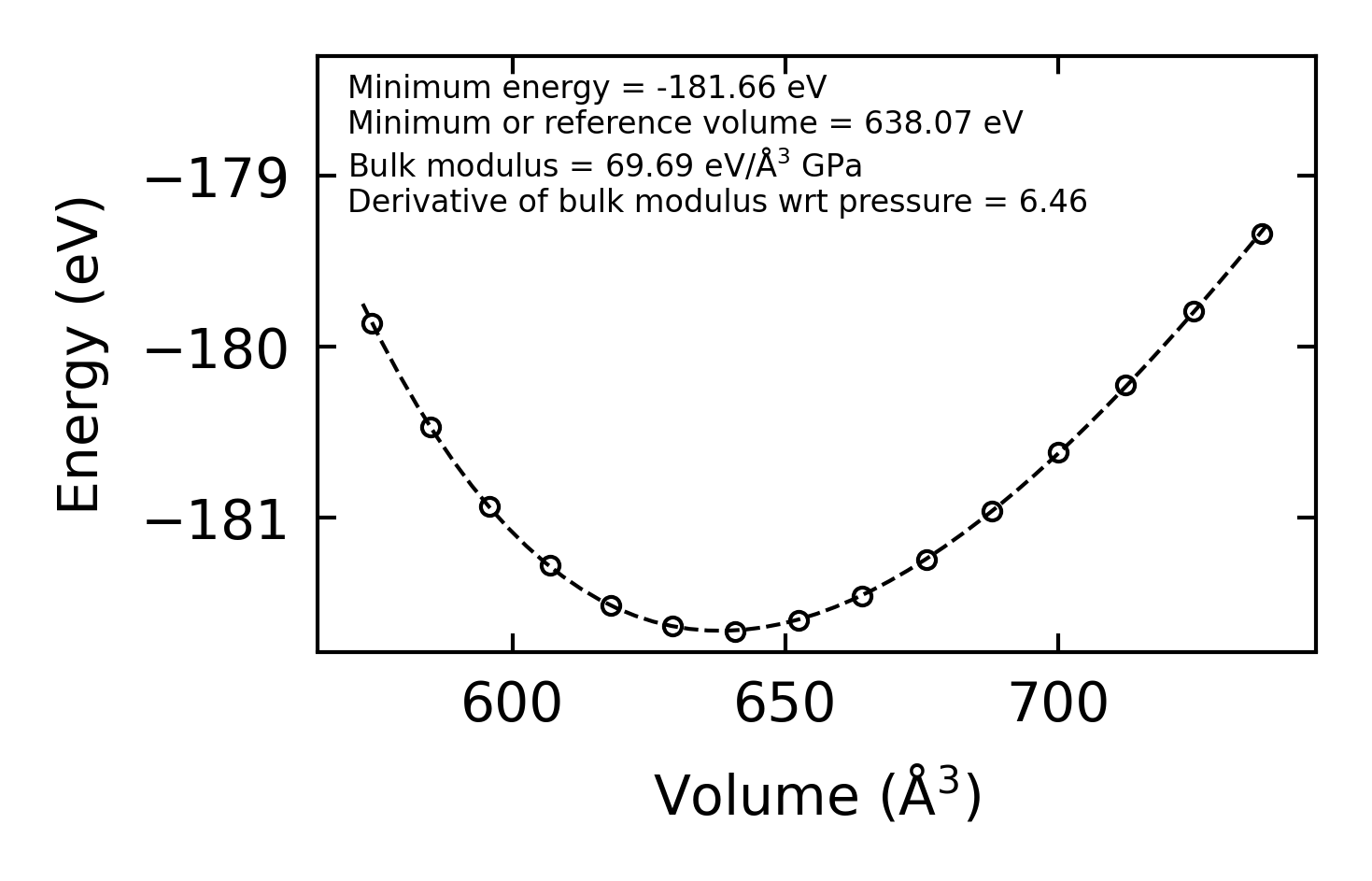

../../_images/fig_bm5686.png — (a) Equation of state

Harmonic properties

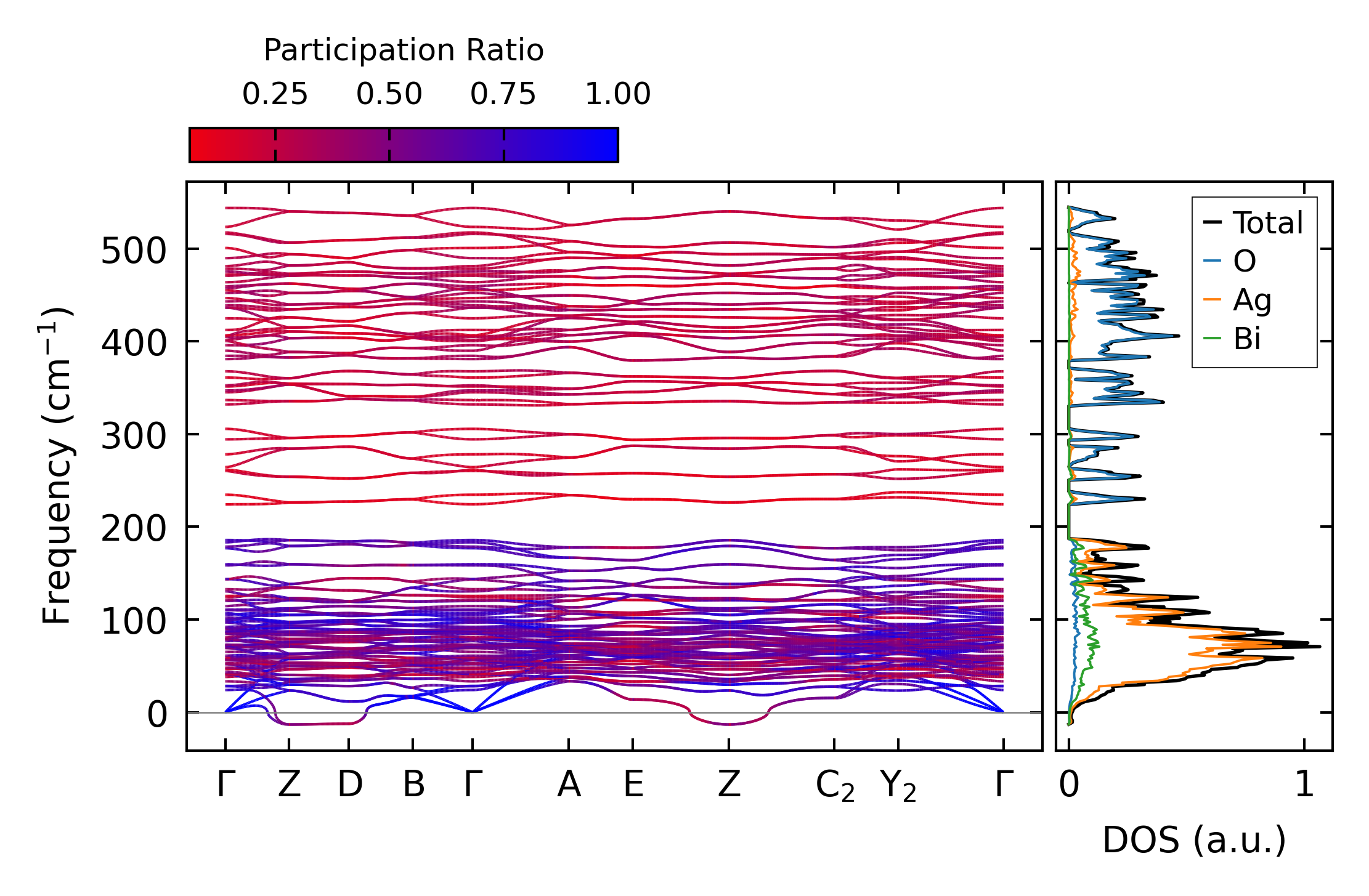

../../_images/fig_bandos_pr11645.png — (a) Phonon dispersion with participation ratio and DOS

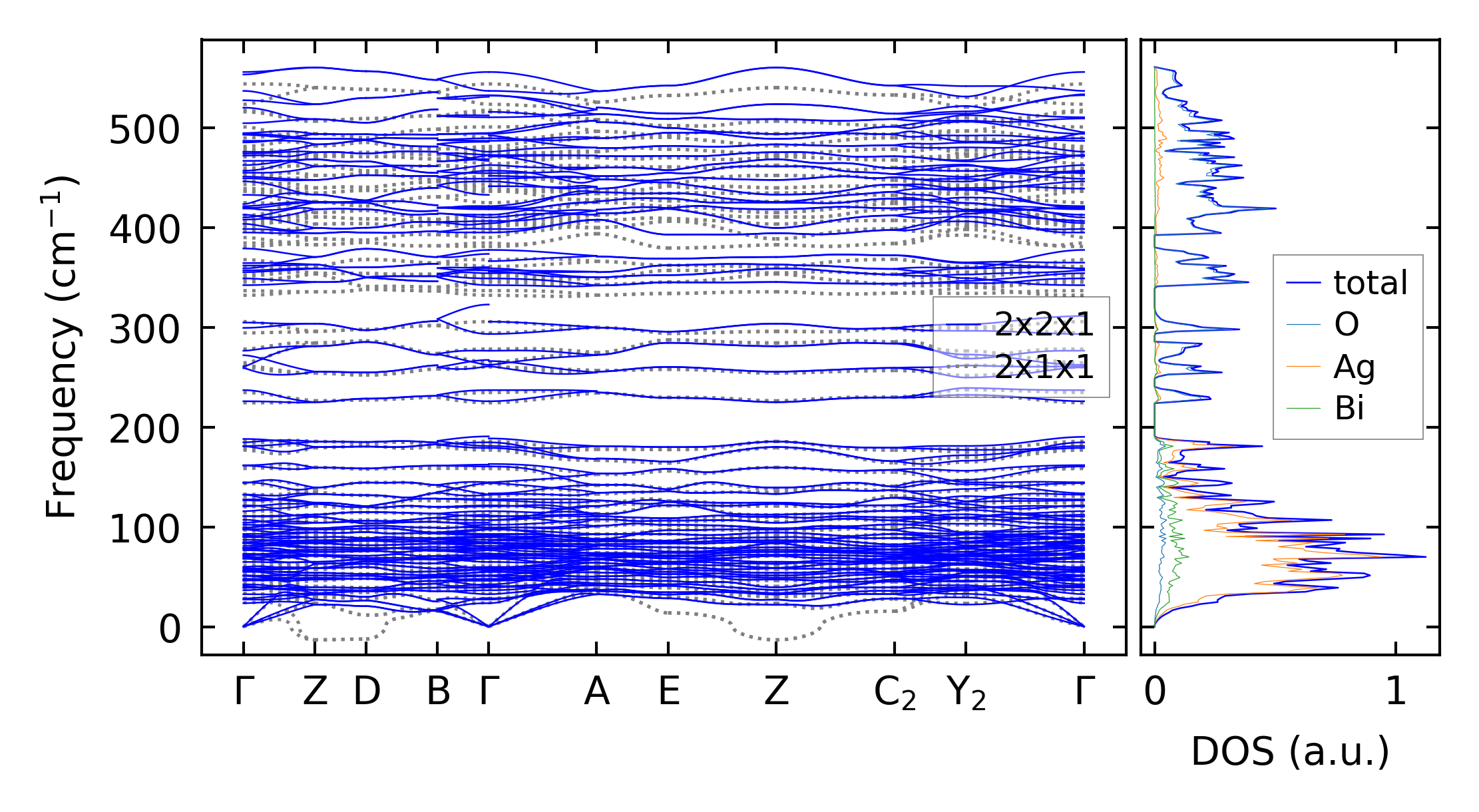

../../_images/fig_bandos15650.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo11645.png — (c) Thermodynamic properties

Thermal conductivity

Force constants

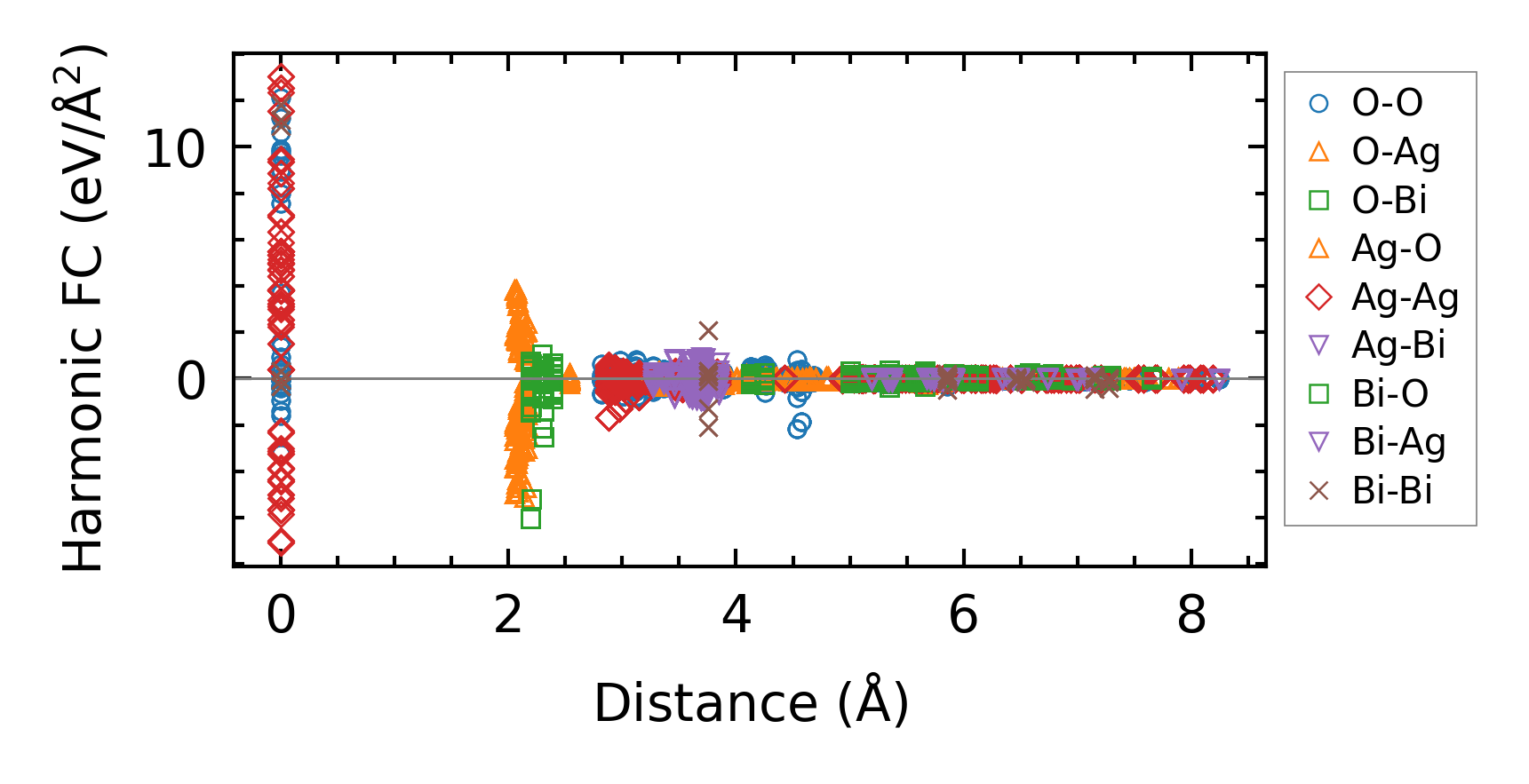

../../_images/fig_fc211357.png — (a) Force constants w.r.t atomic distance

Summary

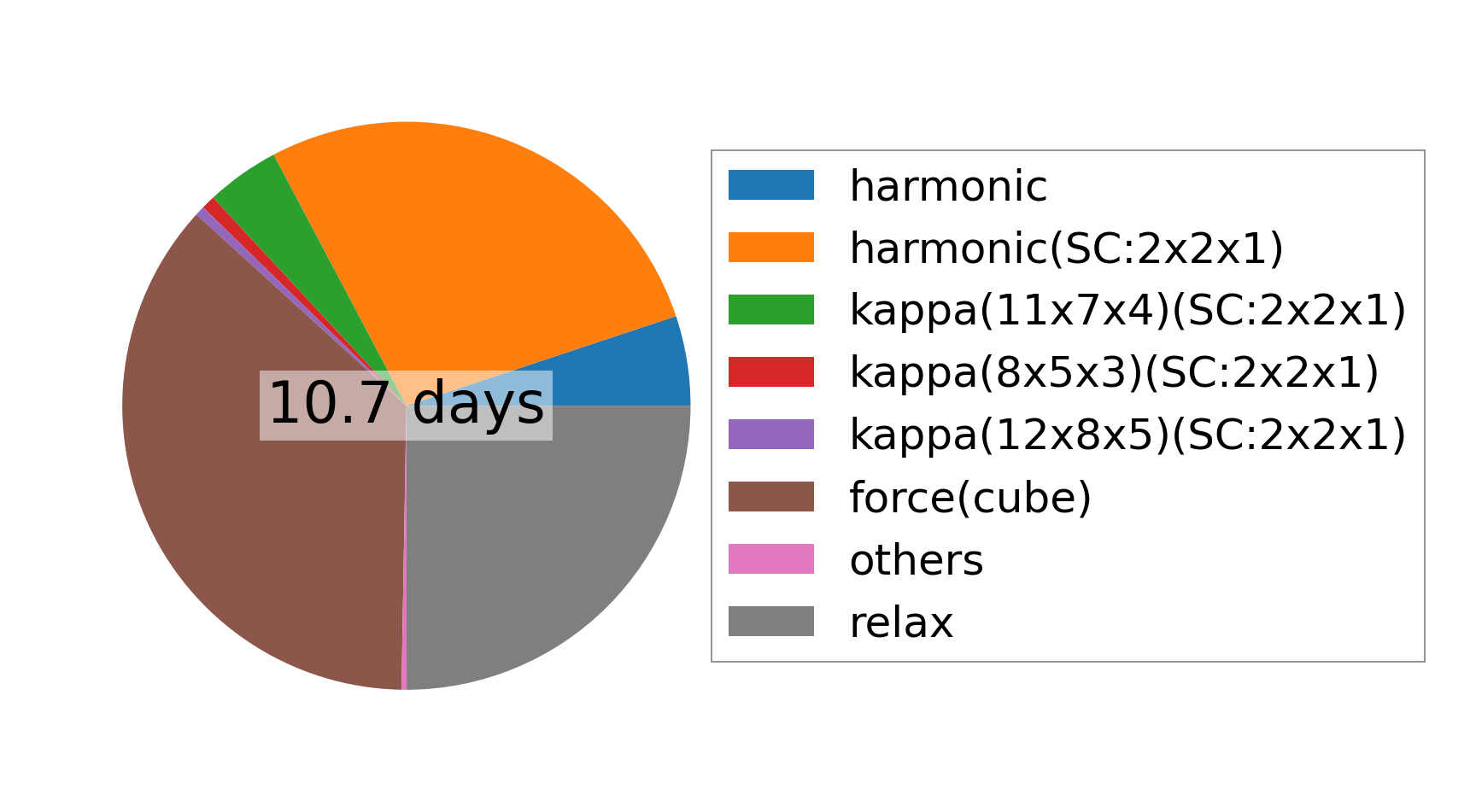

../../_images/fig_times19810.png — (a) Computation time
