mp-28591/Na4HgP2/anharm

Space group: R-3m (166)
Link: Materials Project
Download: mp-28591.tar.gz

Harmonic properties

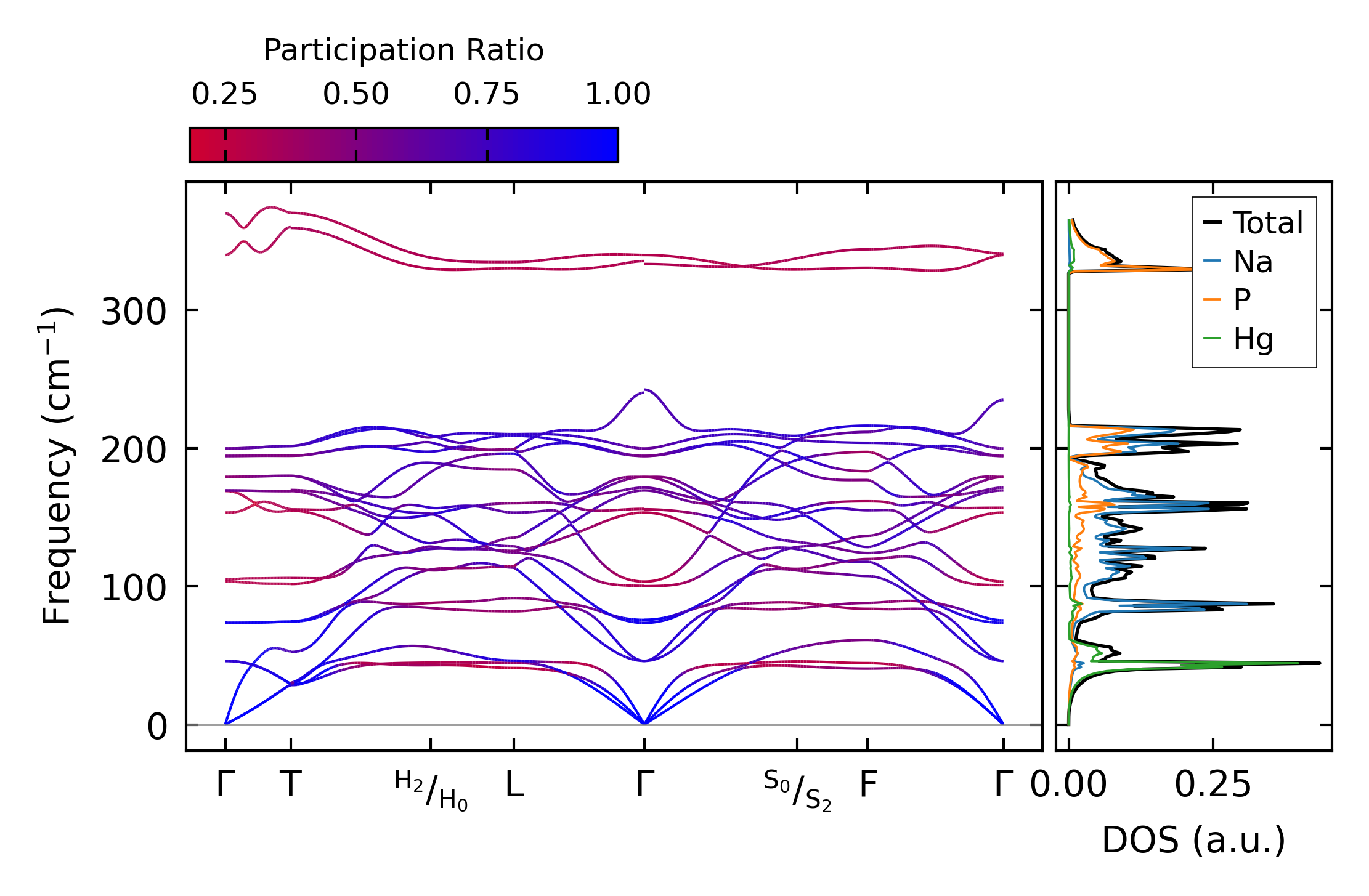

../../_images/fig_bandos_pr11554.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo11554.png — (b) Thermodynamic properties

Grüneisen parameters

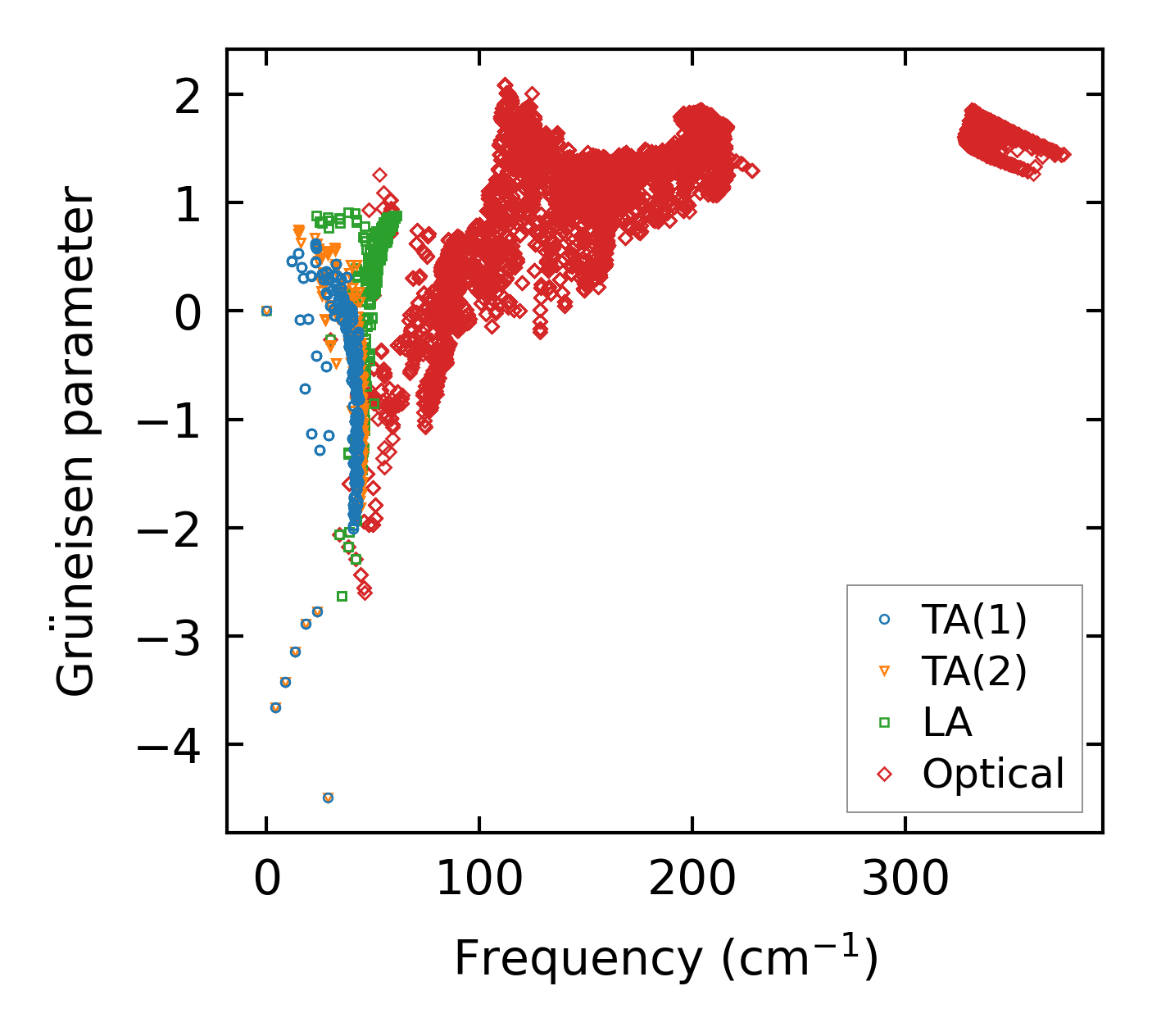

../../_images/fig_gru_all4799.png — (a) Grüneisen parameters

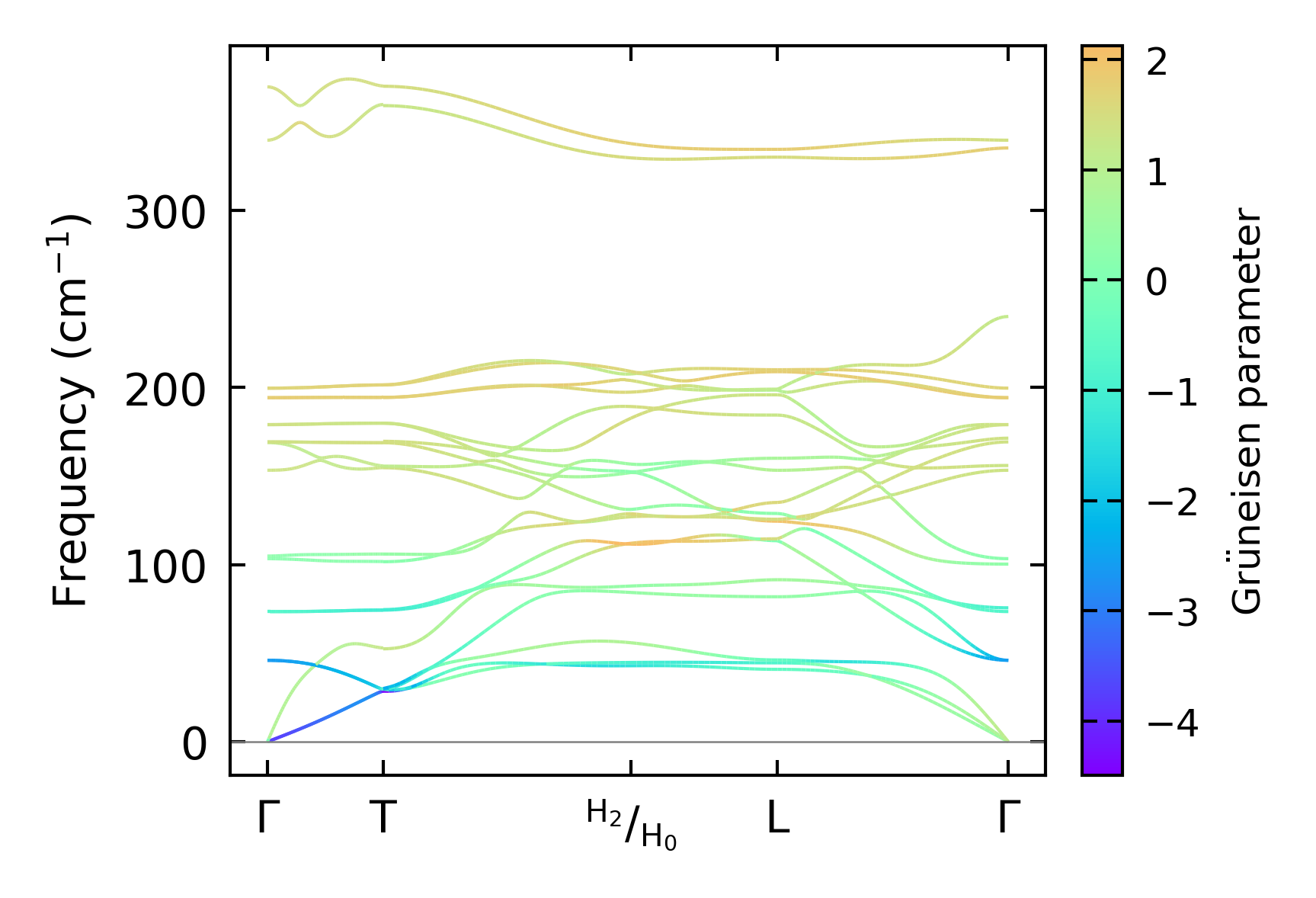

../../_images/fig_gruneisen4799.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x12x12, supercell: 2x2x1

../../_images/fig_kappa9053.png — (a) Temperature-dependent lattice thermal conductivity

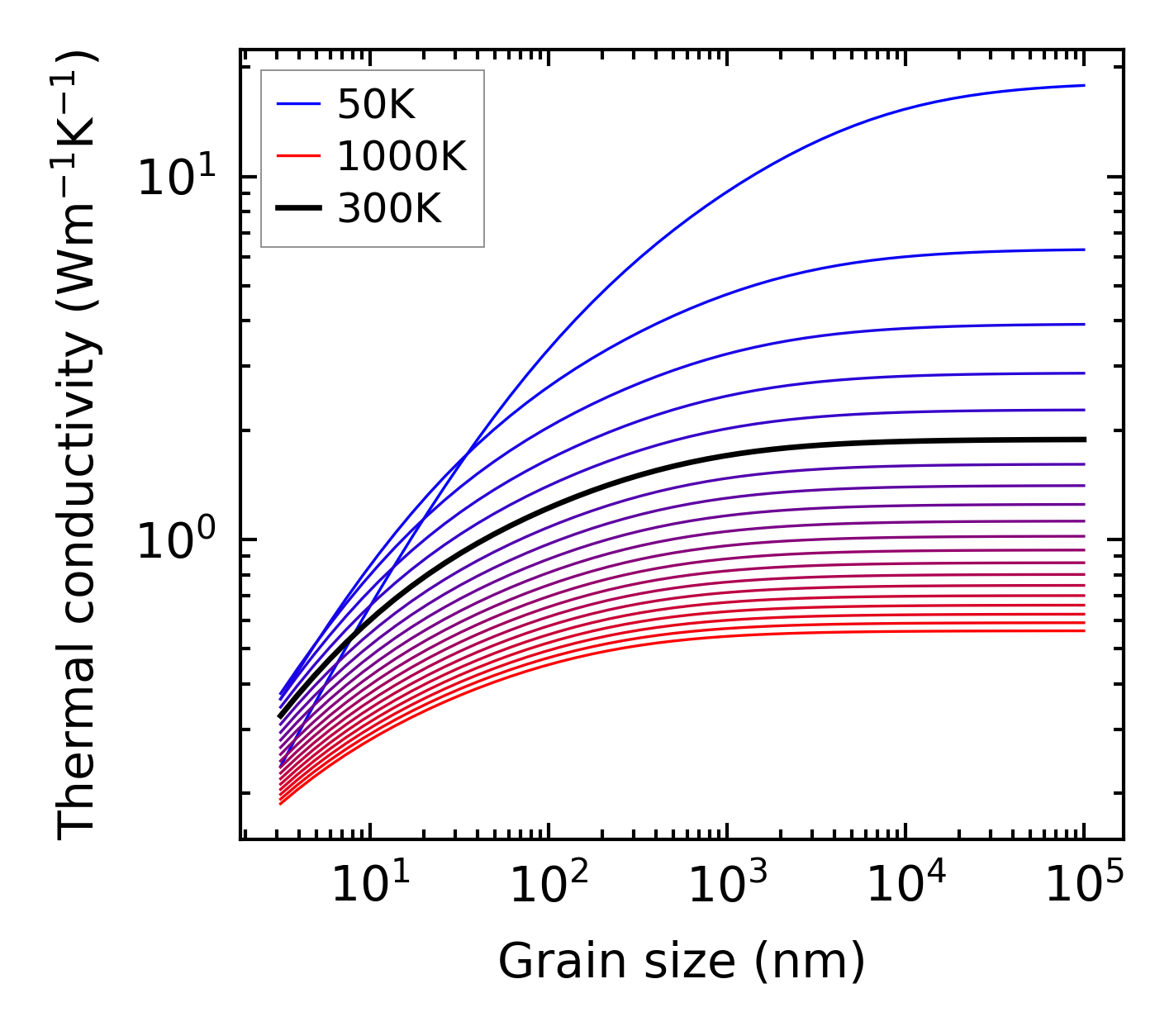

../../_images/fig_kappa_vs_grain_size4857.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime4753.png — (a) Phonon lifetime due to phonon-phonon scattering

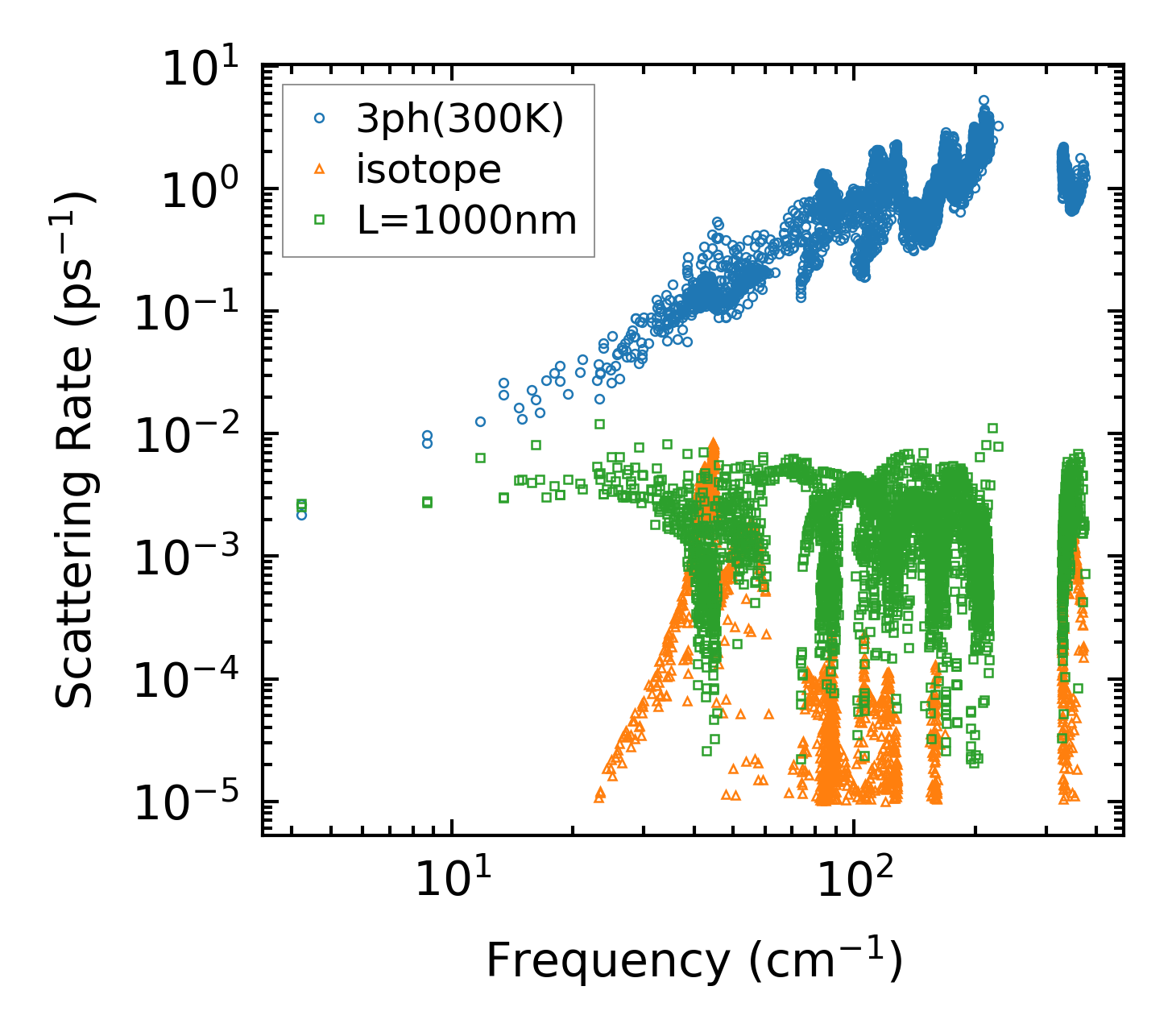

../../_images/fig_scat_rates4752.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency4753.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

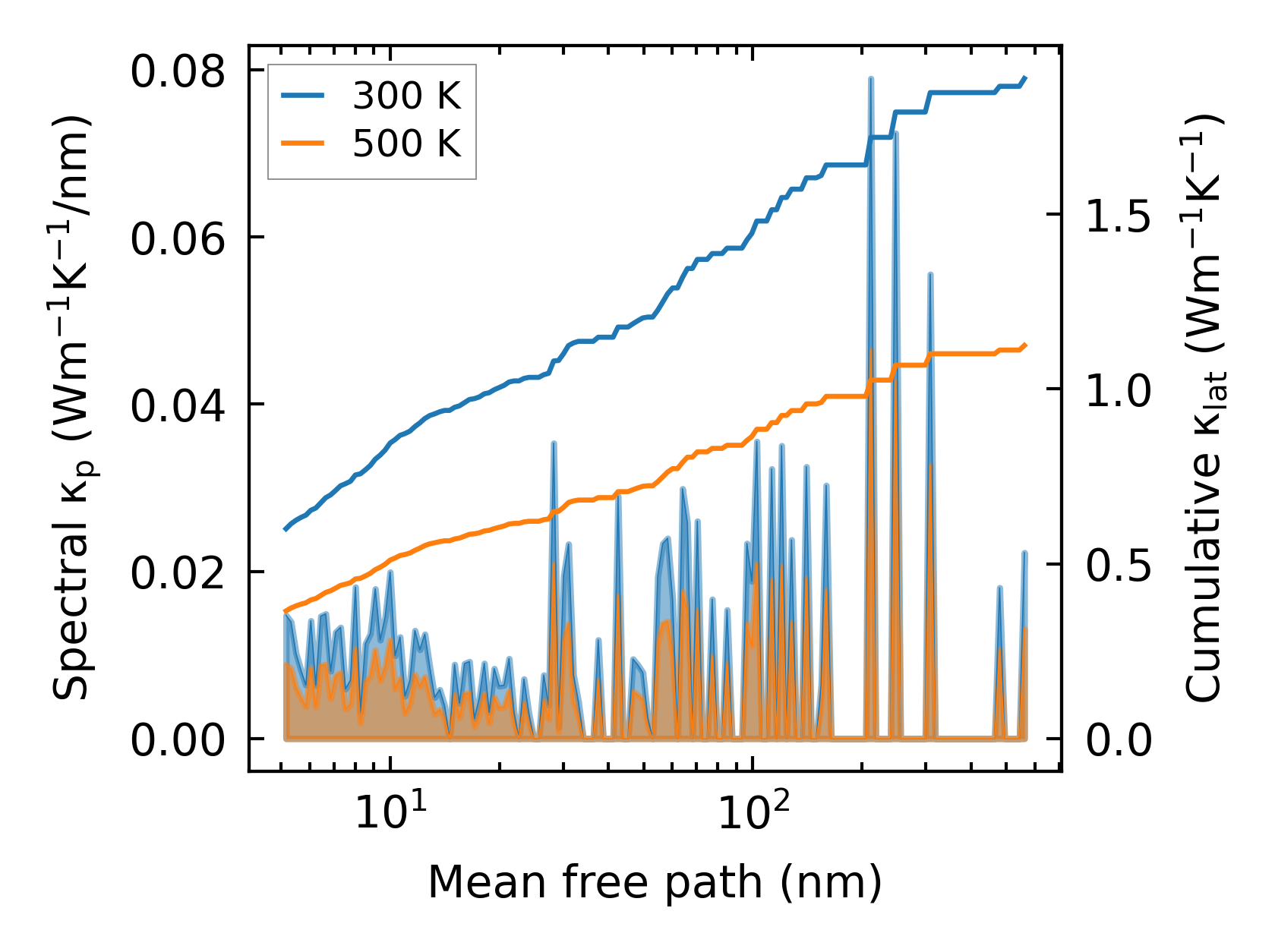

../../_images/fig_cumu_mfp4752.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc211268.png — (a) Force constants w.r.t atomic distance

Summary

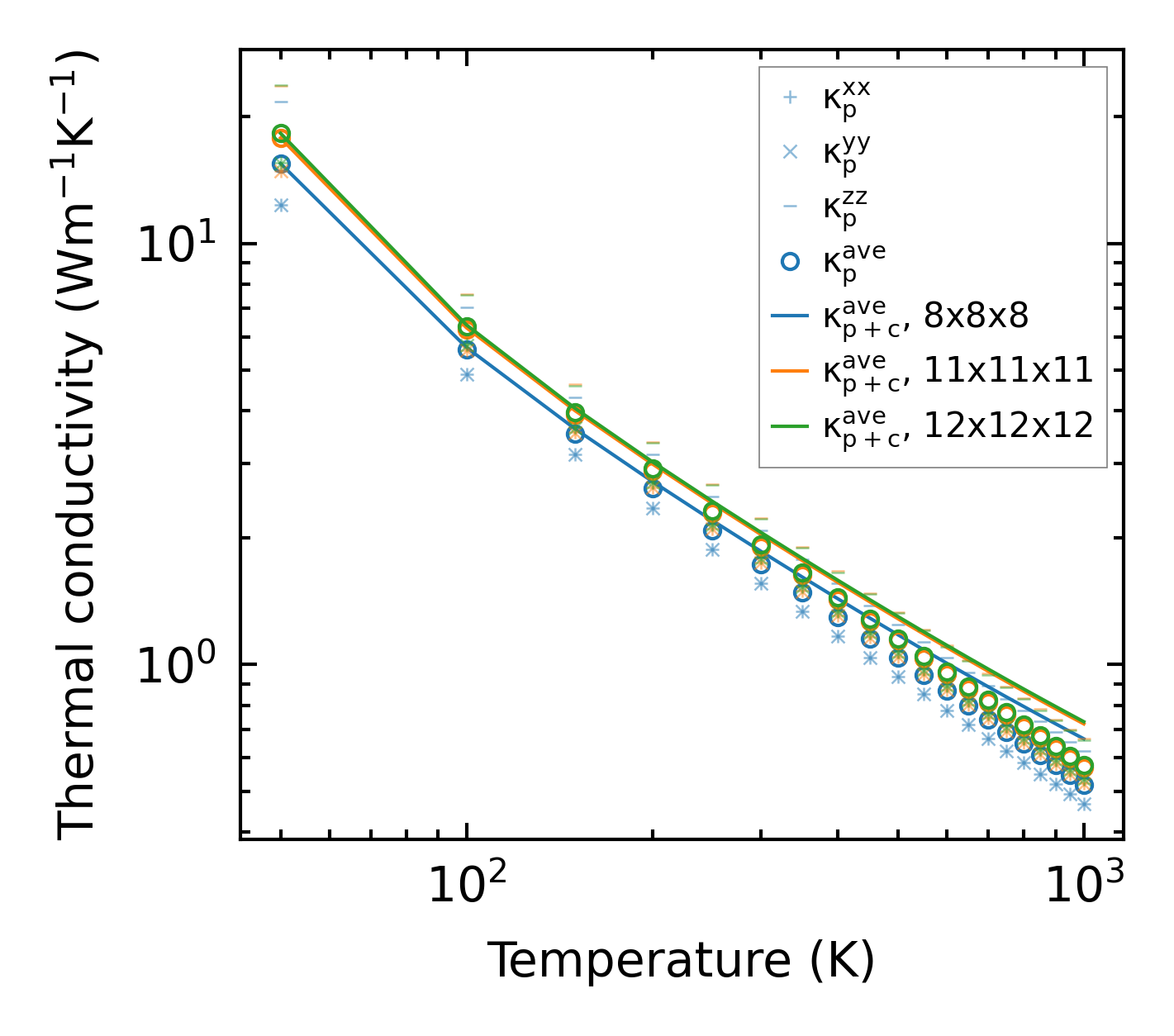

../../_images/fig_kappa9054.png — (a) Temperature-dependent lattice thermal conductivity

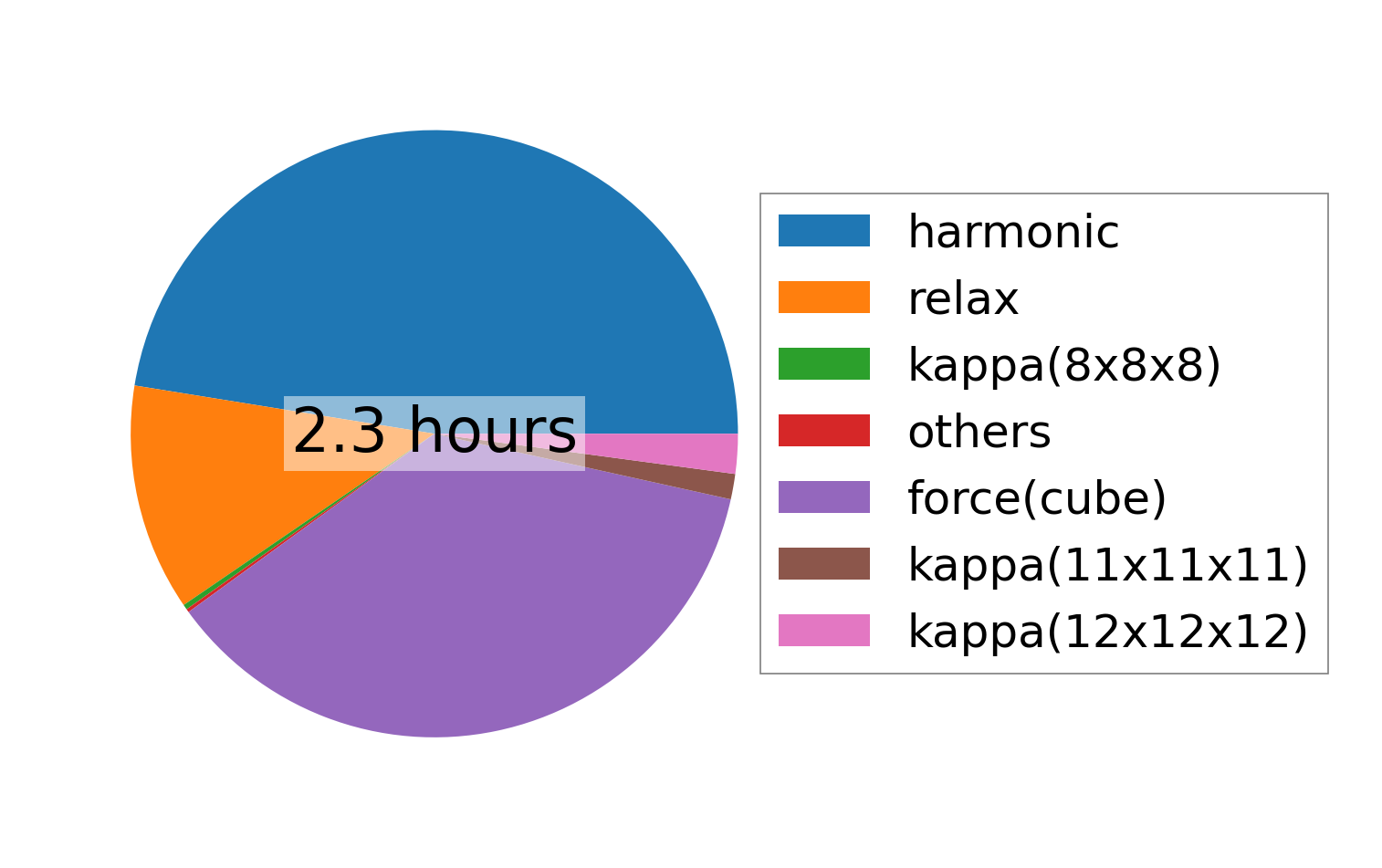

../../_images/fig_times19681.png — (b) Computation time
