mp-28392/Sr5Al2Sb6/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-28392.tar.gz

Harmonic properties

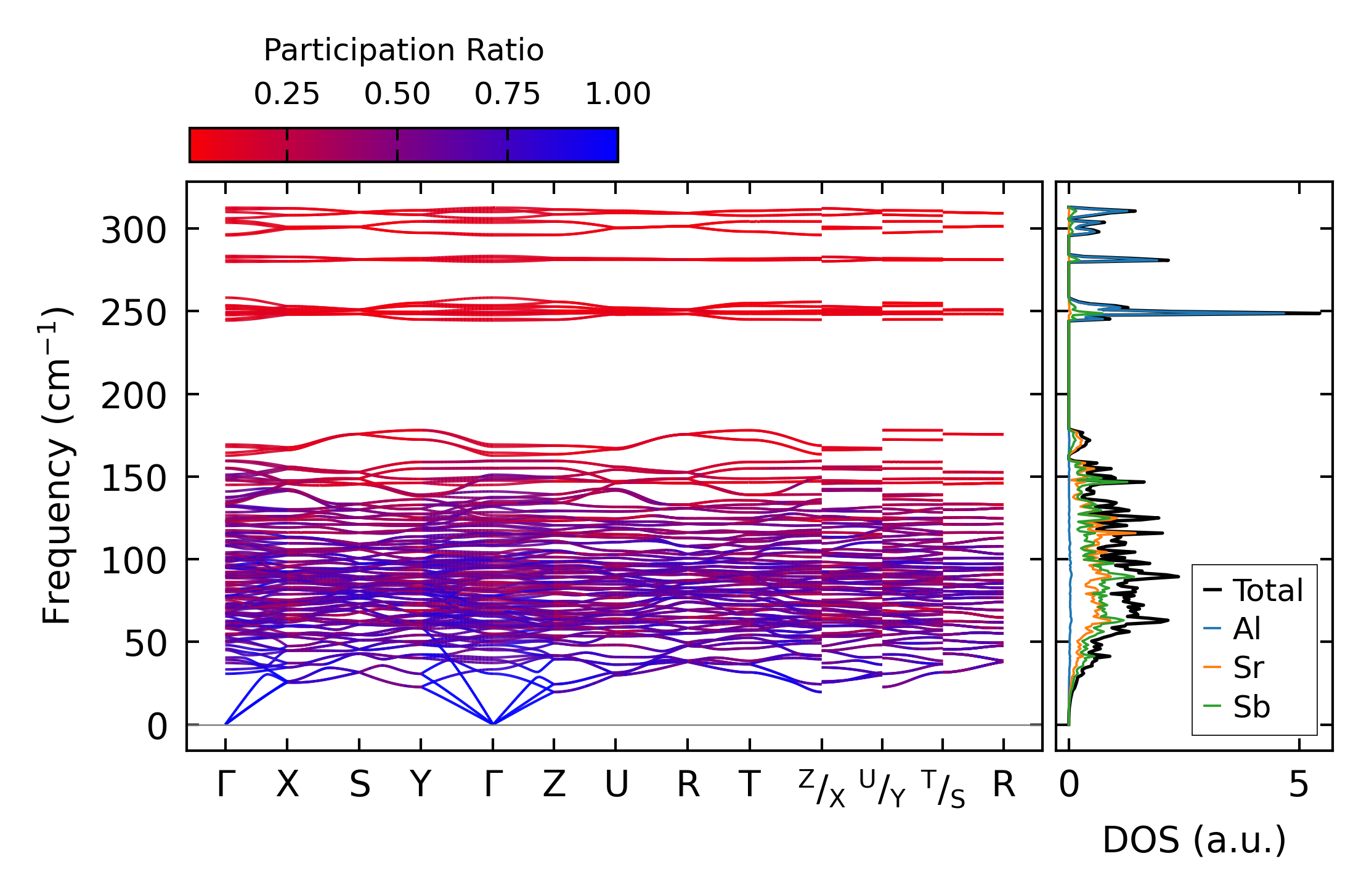

../../_images/fig_bandos_pr11837.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo11837.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all4931.png — (a) Grüneisen parameters

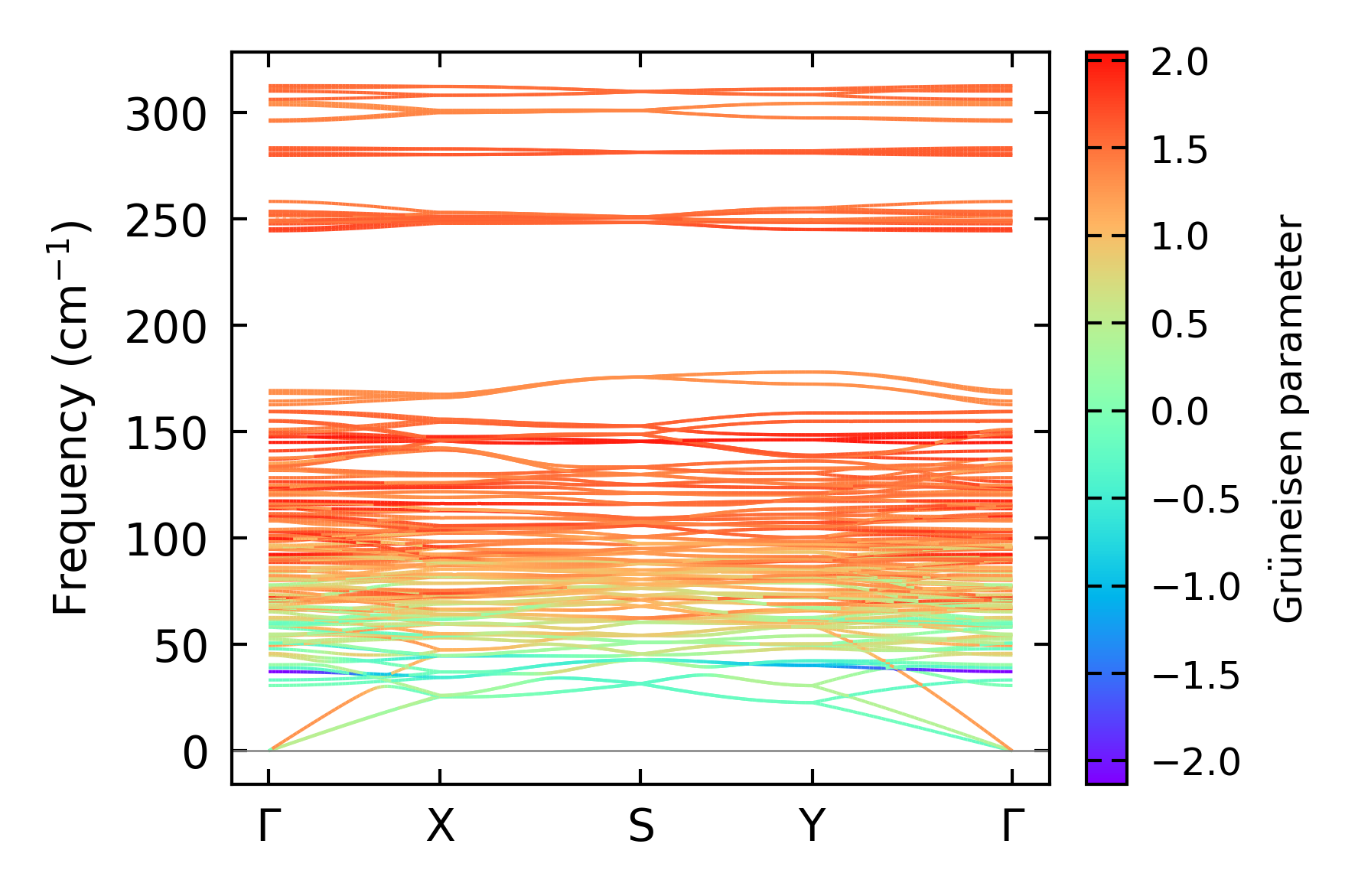

../../_images/fig_gruneisen4931.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 5x6x5, supercell: 1x2x1

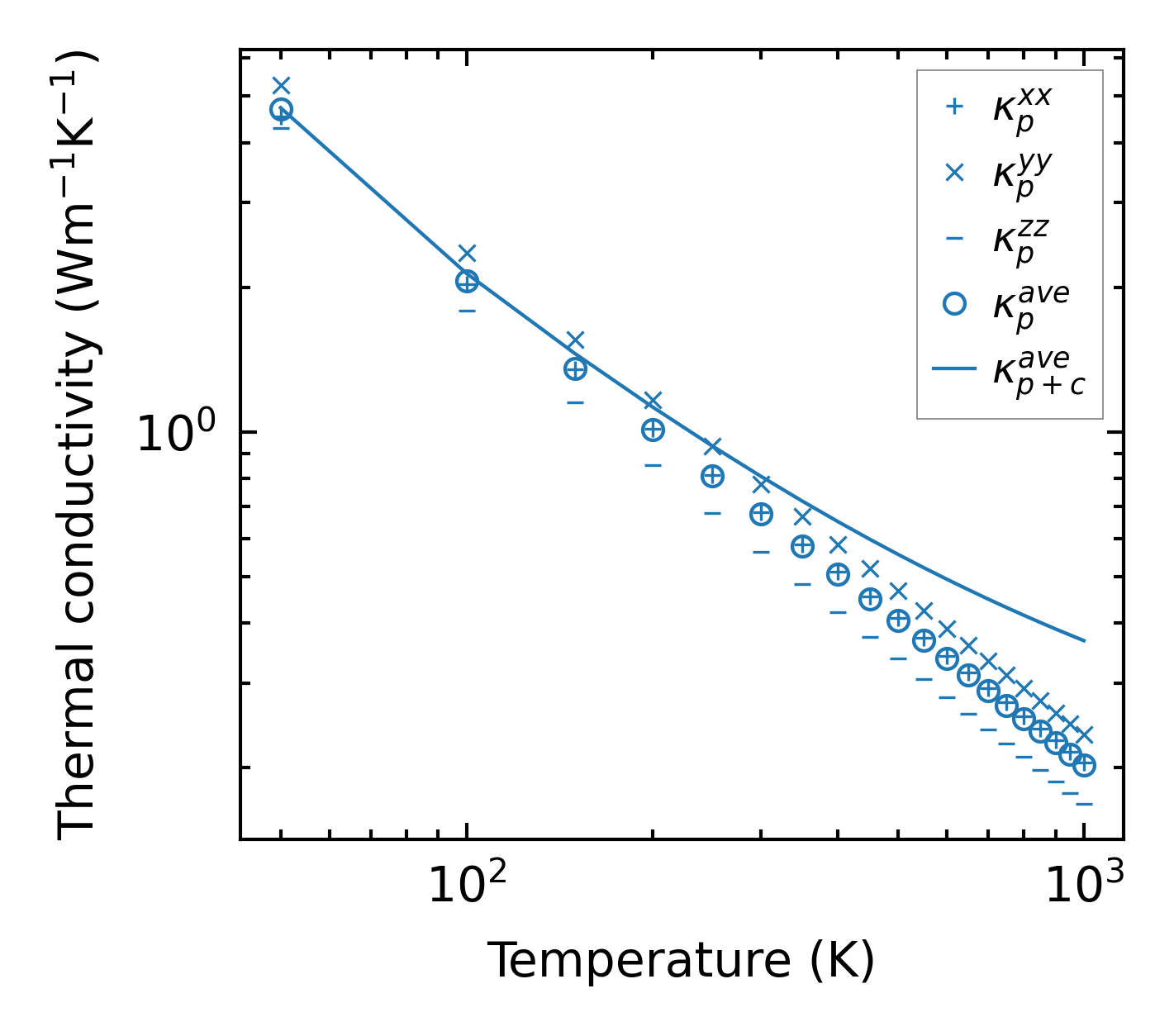

../../_images/fig_kappa9299.png — (a) Temperature-dependent lattice thermal conductivity

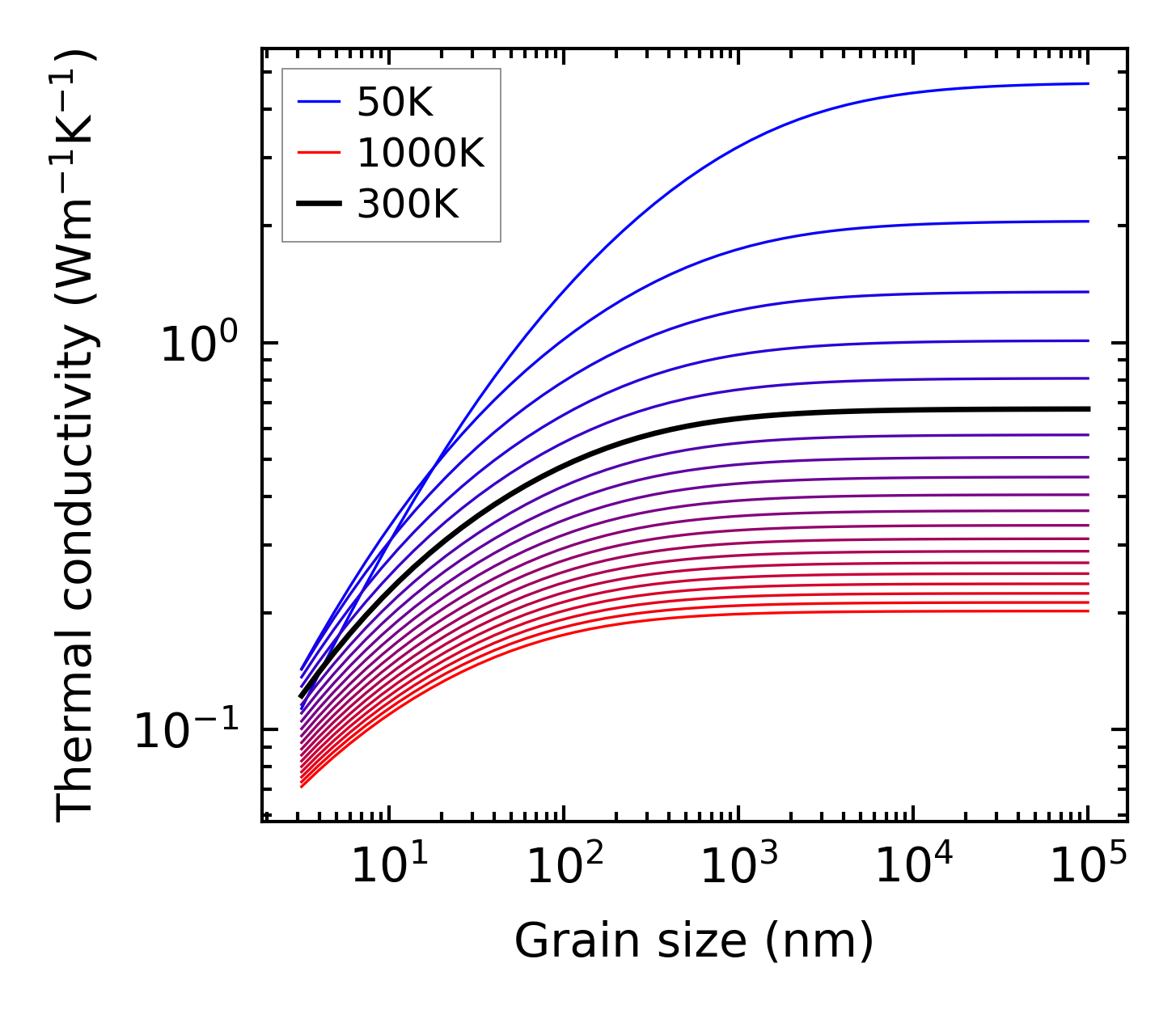

../../_images/fig_kappa_vs_grain_size4990.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

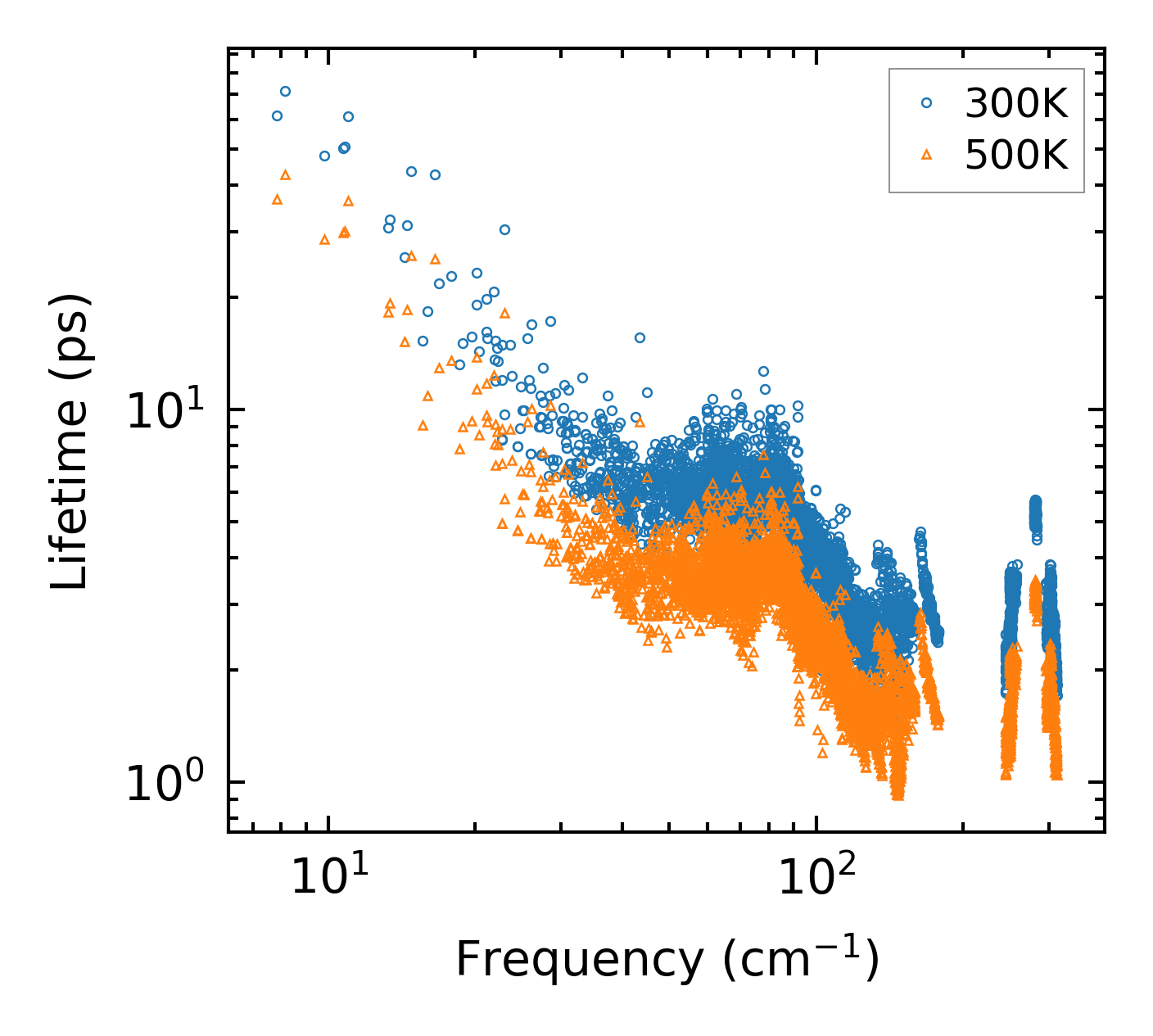

../../_images/fig_lifetime4882.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates4881.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency4882.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

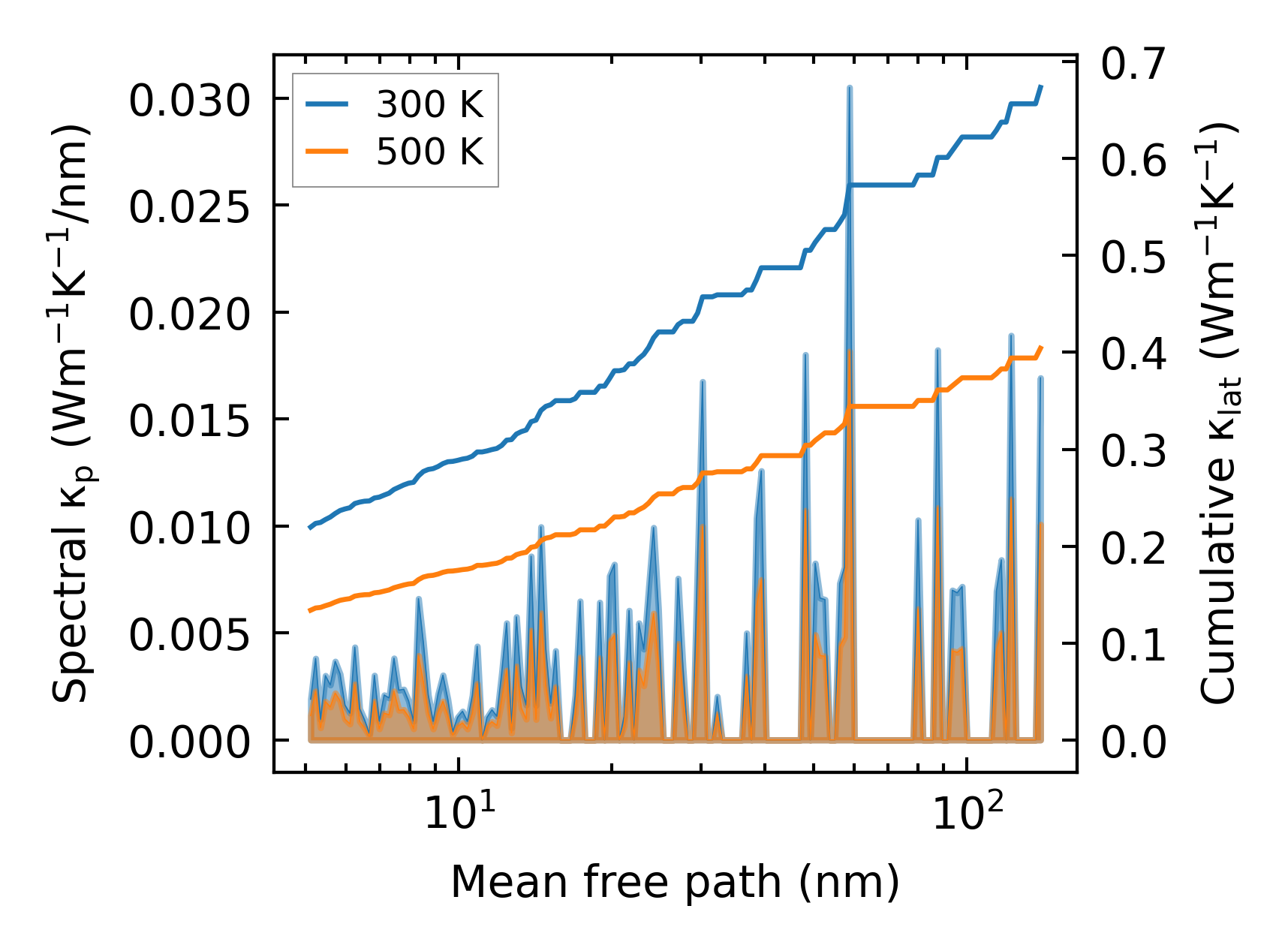

../../_images/fig_cumu_mfp4881.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

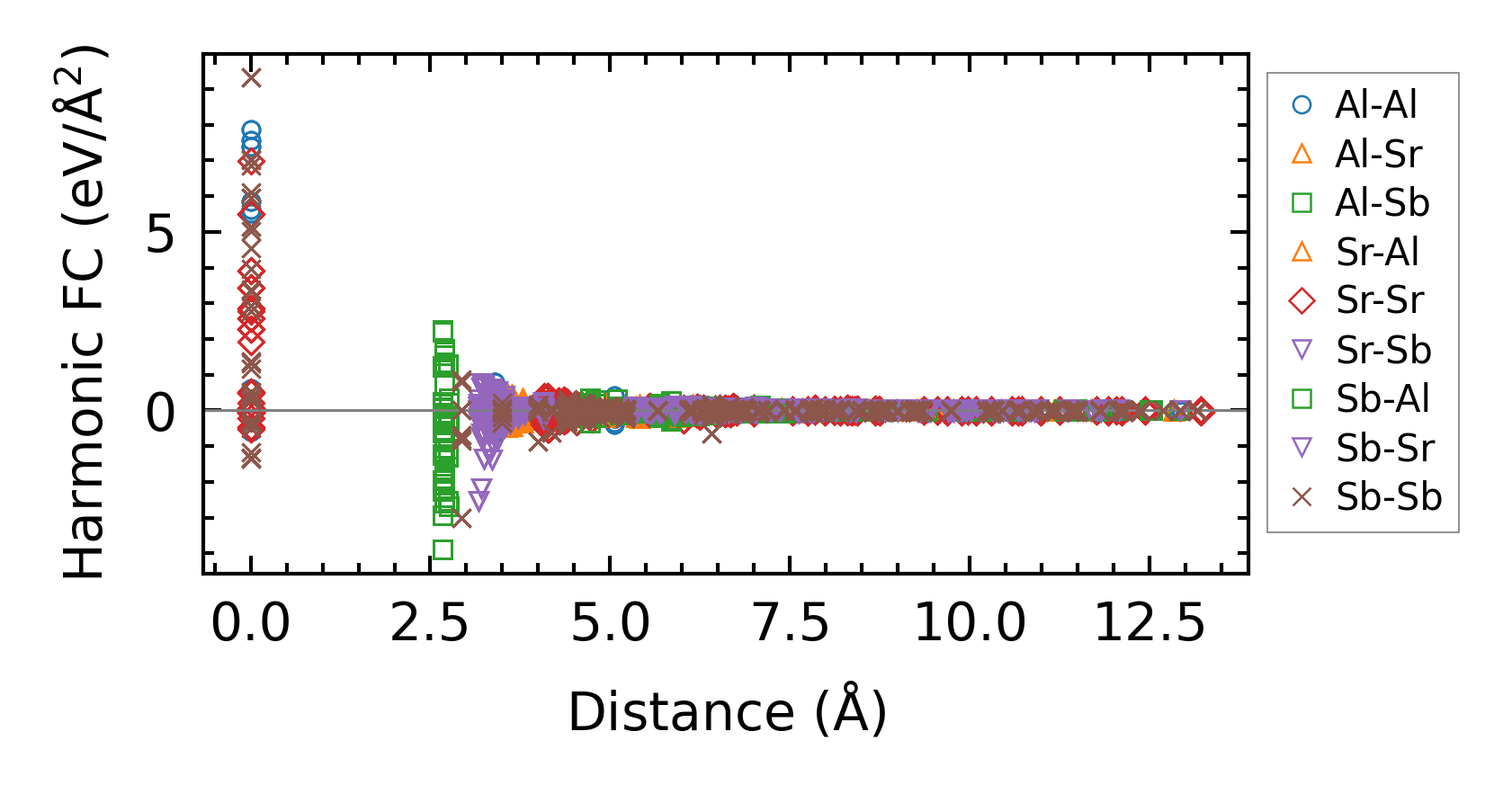

../../_images/fig_fc211548.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa9300.png — (a) Temperature-dependent lattice thermal conductivity

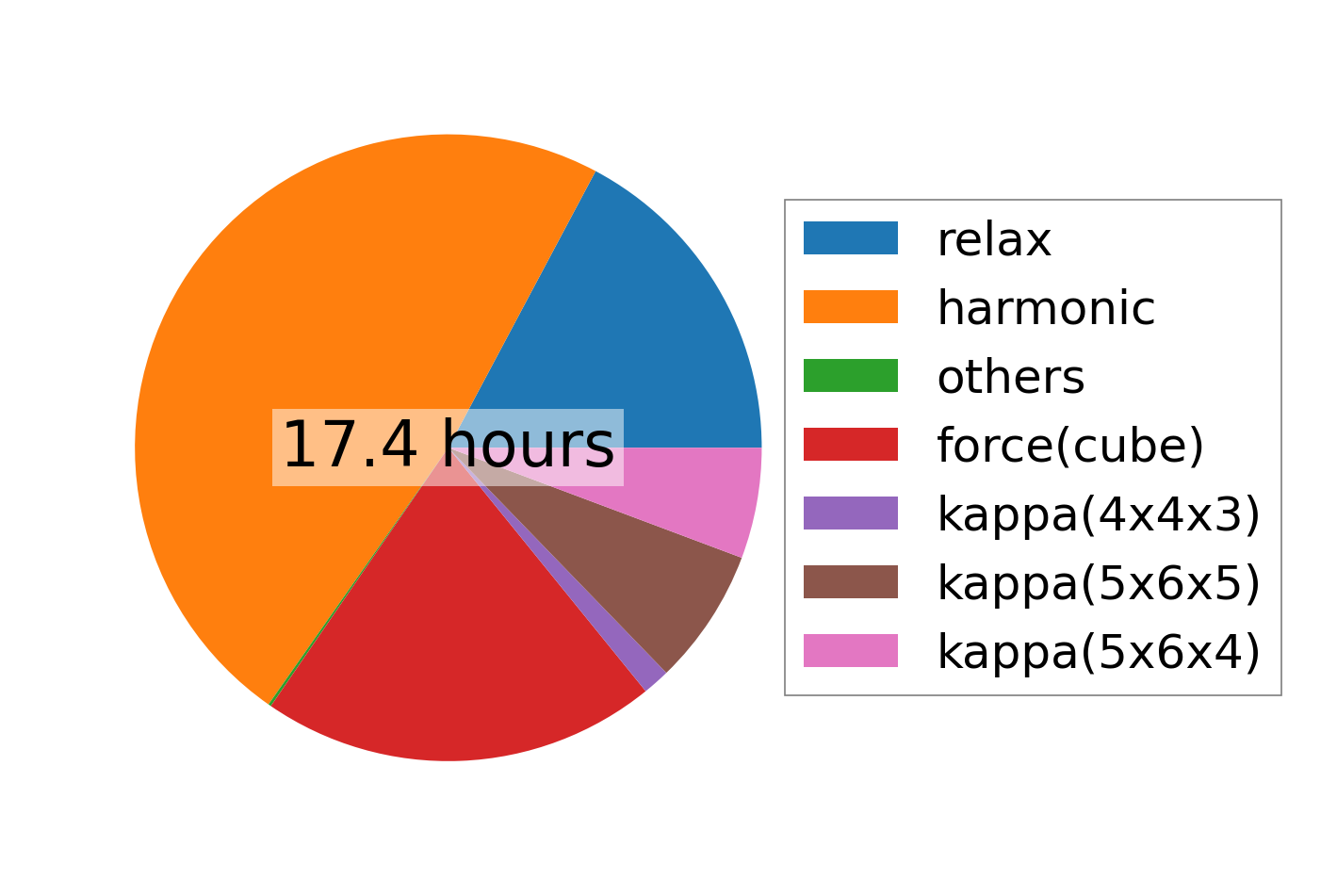

../../_images/fig_times20082.png — (b) Computation time
