mp-28807/Na7Cu12S10/anharm

Space group: P2/m (10)
Link: Materials Project
Download: mp-28807.tar.gz

Harmonic properties

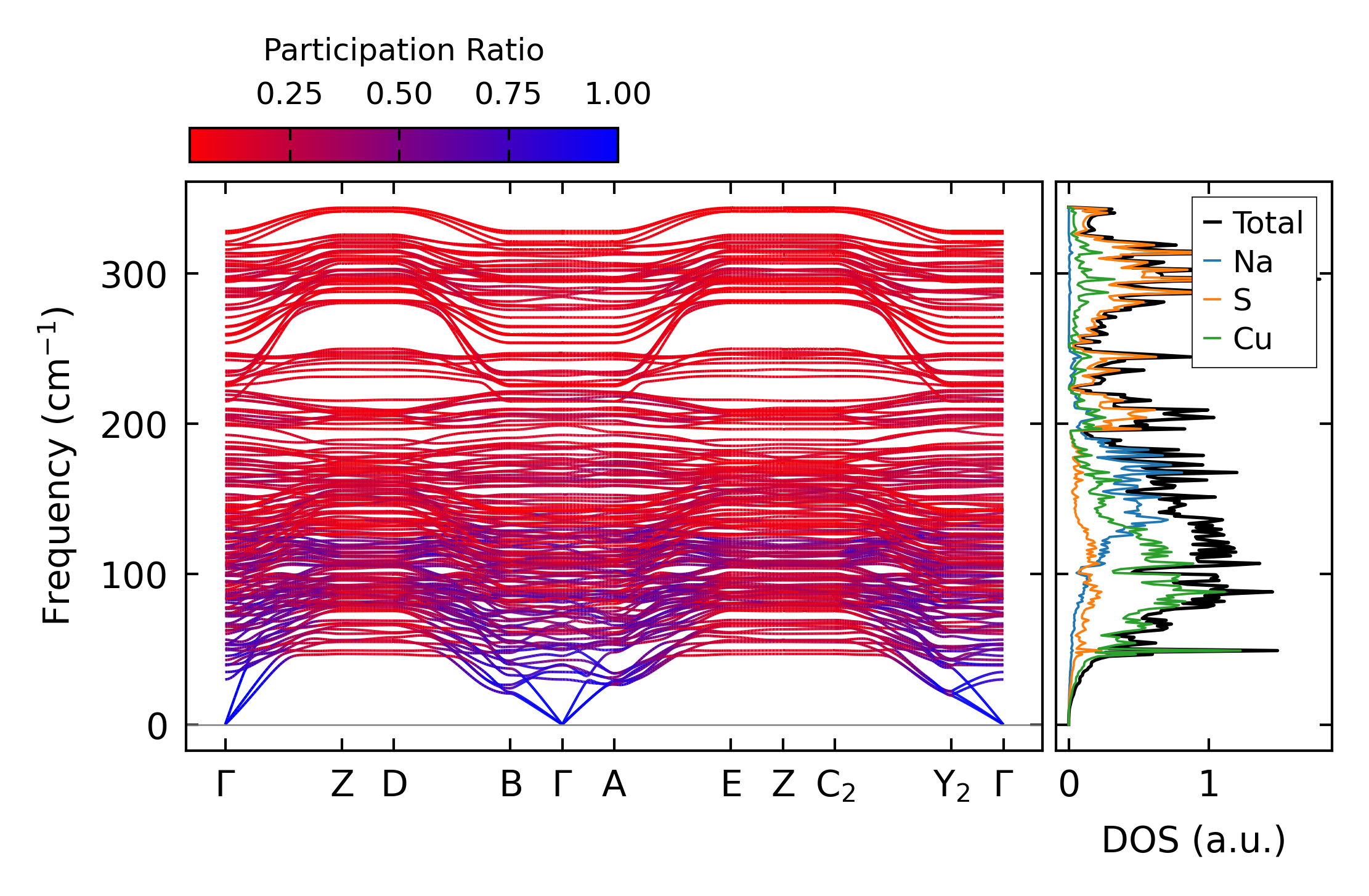

../../_images/fig_bandos_pr11641.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo11641.png — (b) Thermodynamic properties

Grüneisen parameters

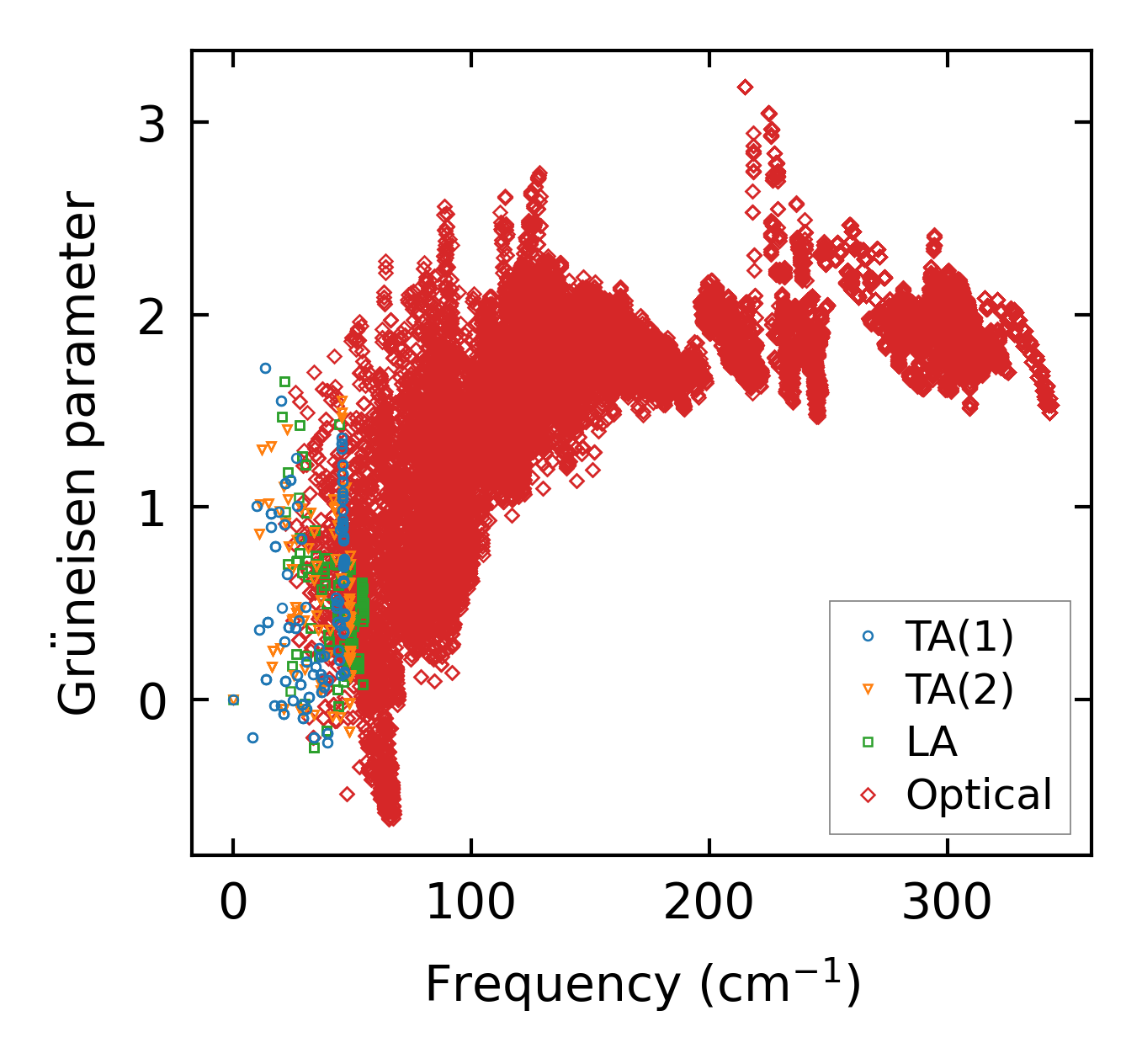

../../_images/fig_gru_all4847.png — (a) Grüneisen parameters

../../_images/fig_gruneisen4847.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 4x19x4, supercell: 1x2x1

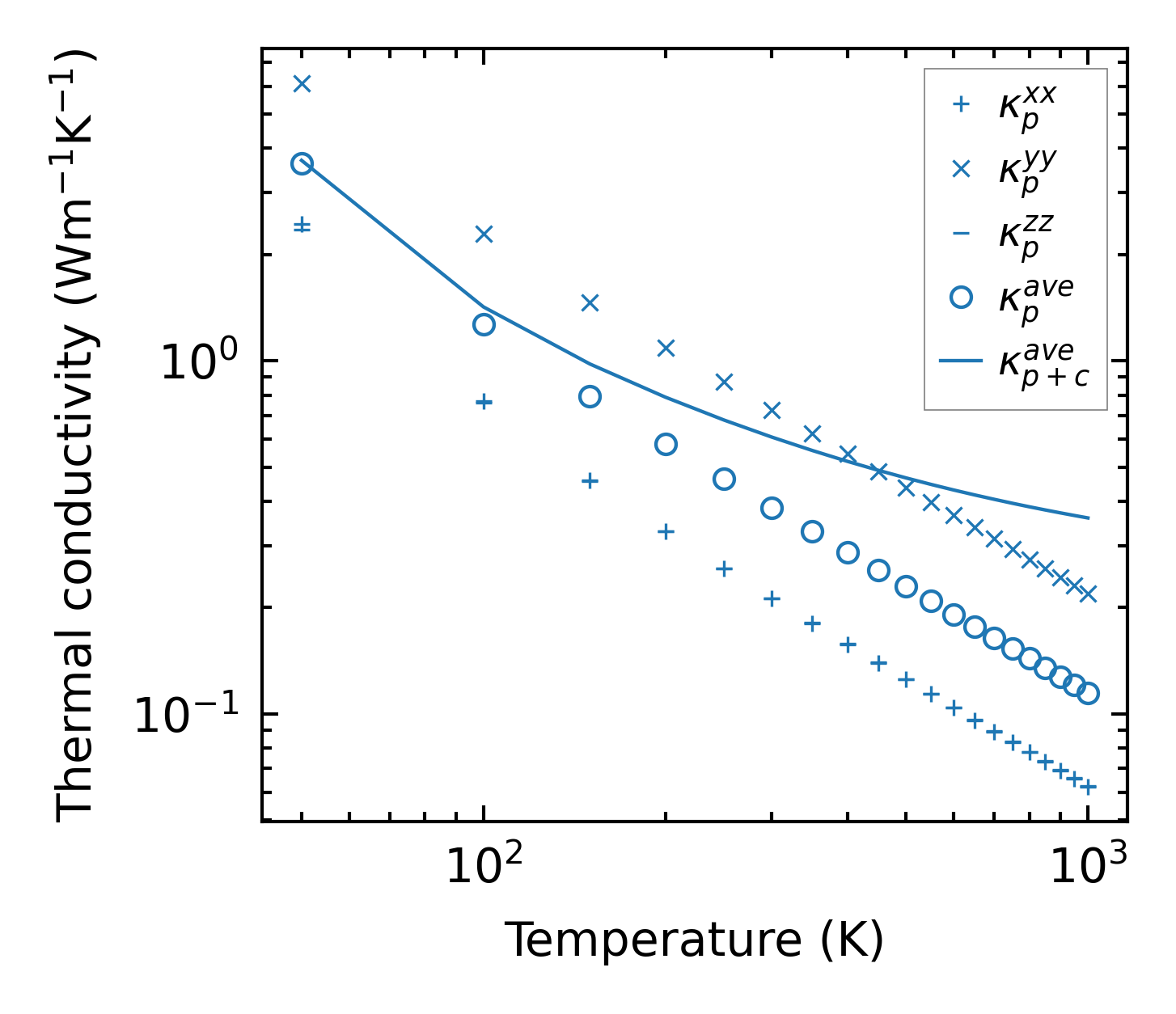

../../_images/fig_kappa9138.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size4903.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime4798.png — (a) Phonon lifetime due to phonon-phonon scattering

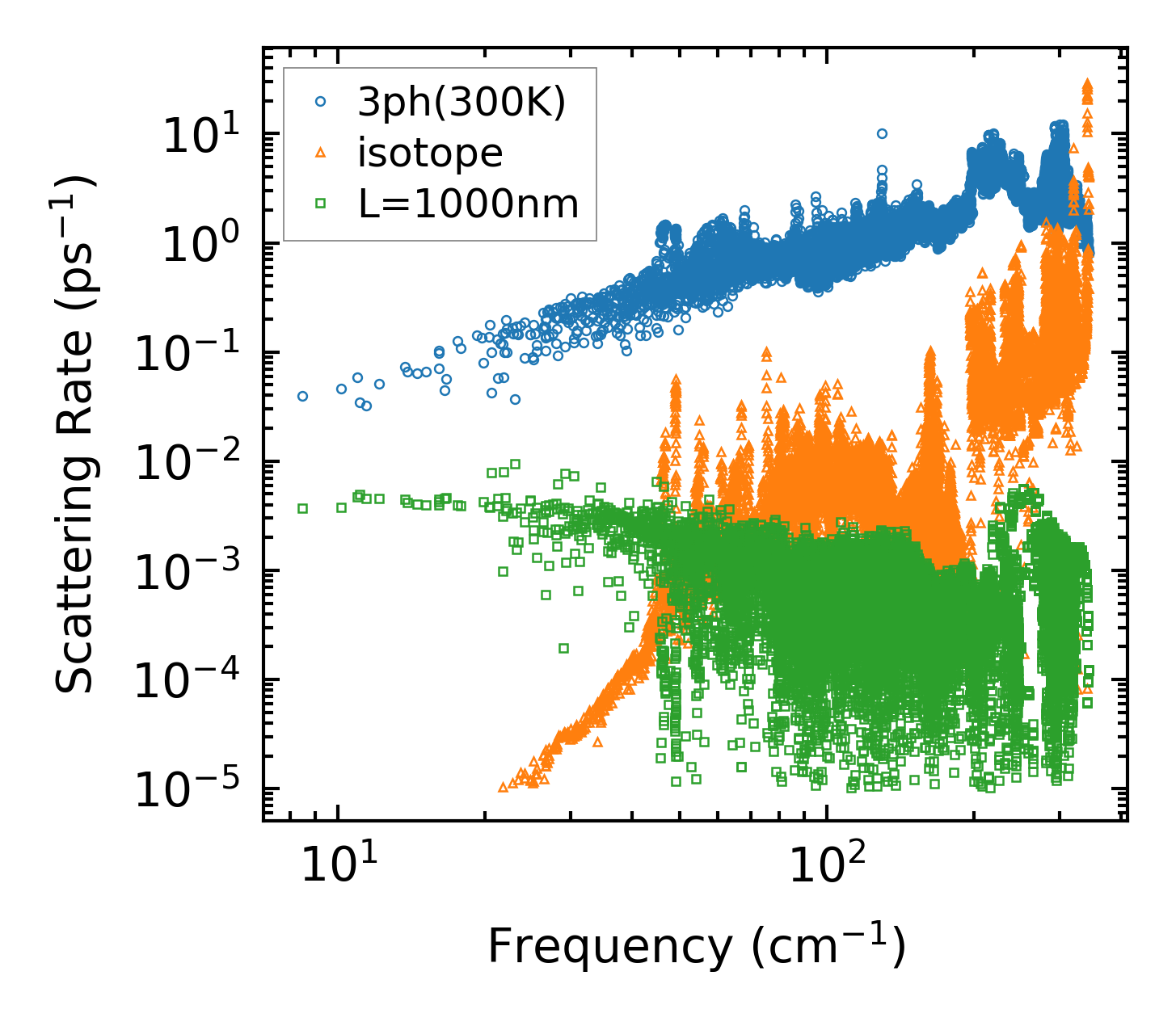

../../_images/fig_scat_rates4797.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

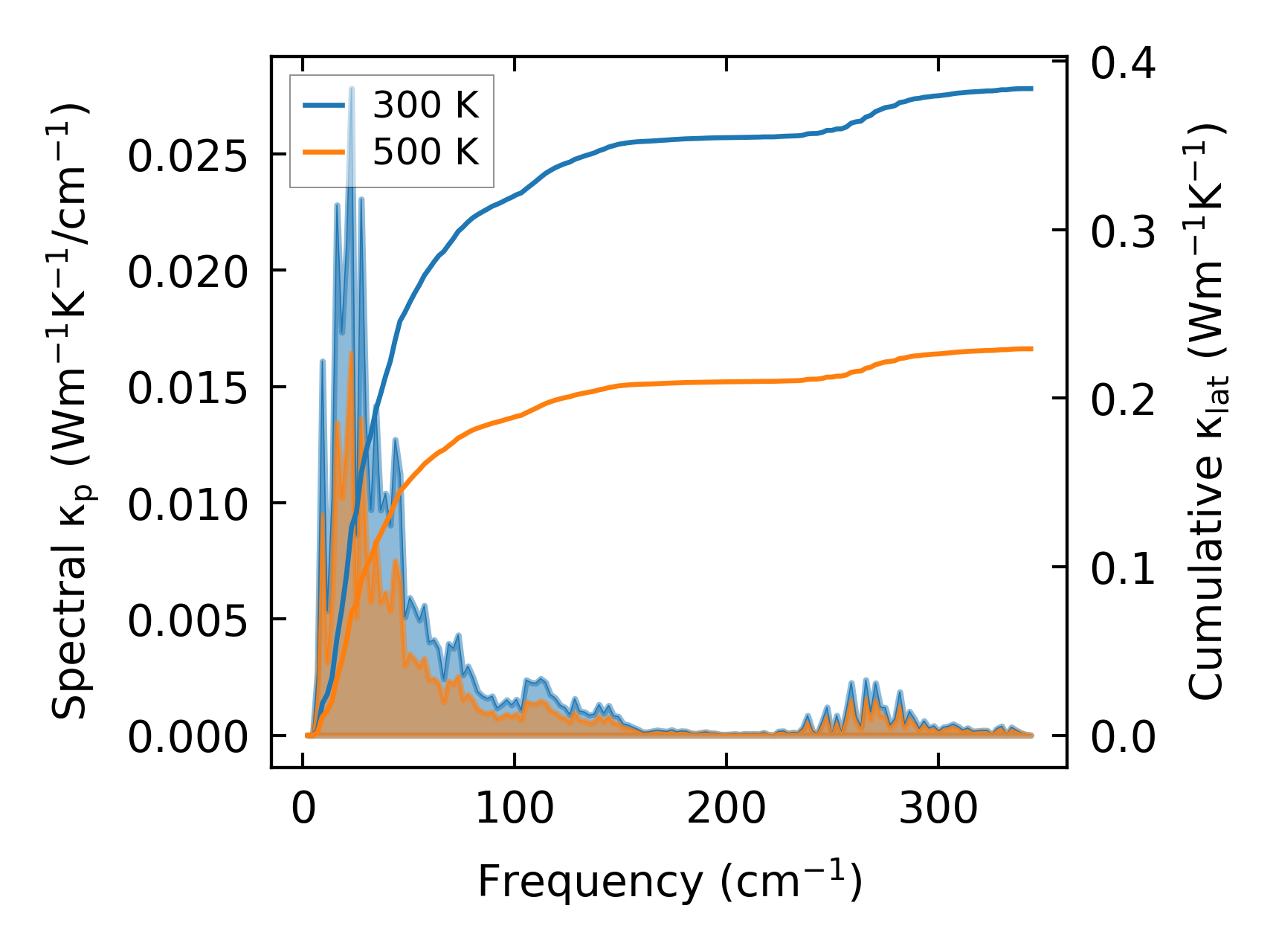

../../_images/fig_cumu_frequency4798.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

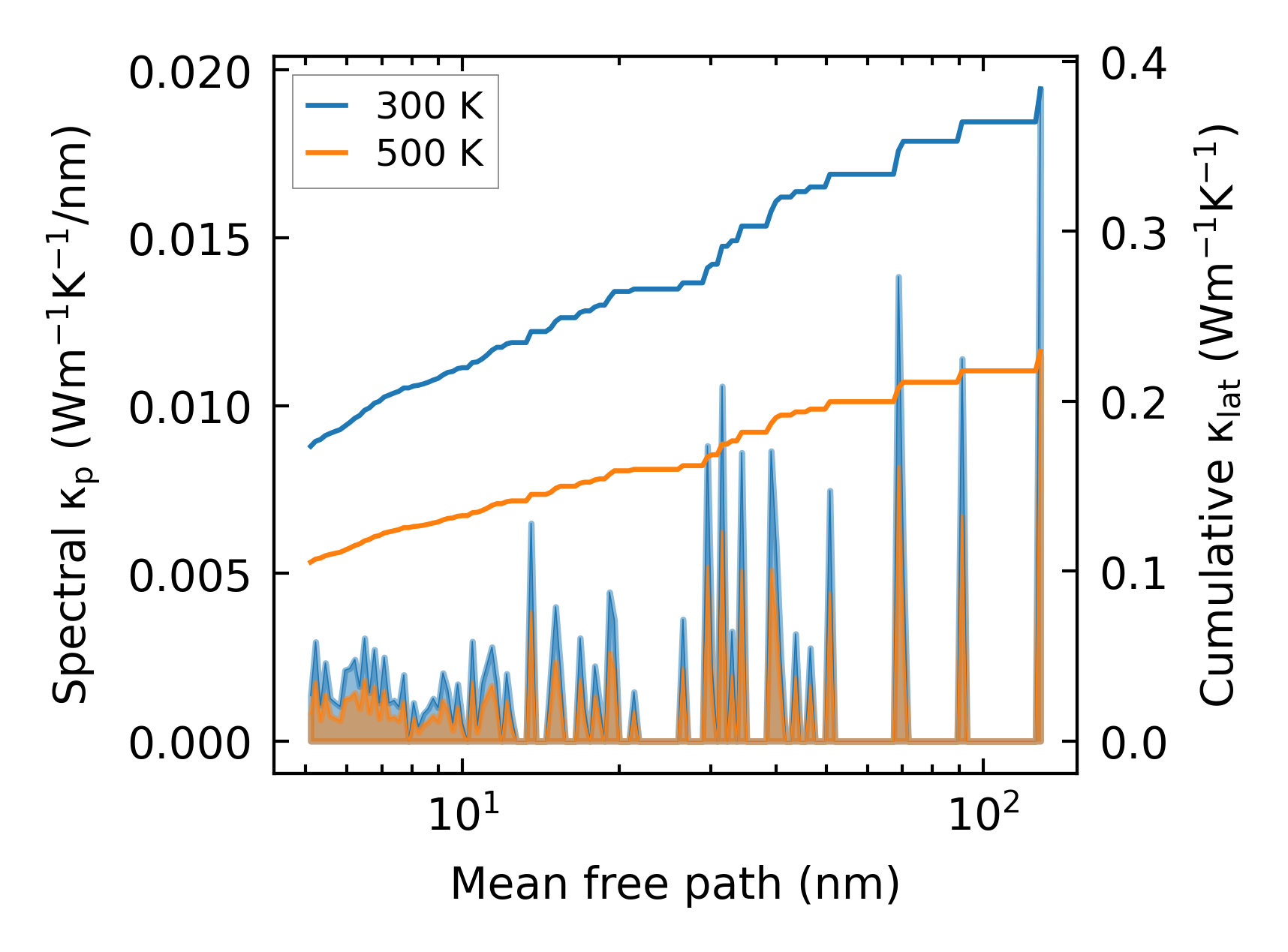

../../_images/fig_cumu_mfp4797.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

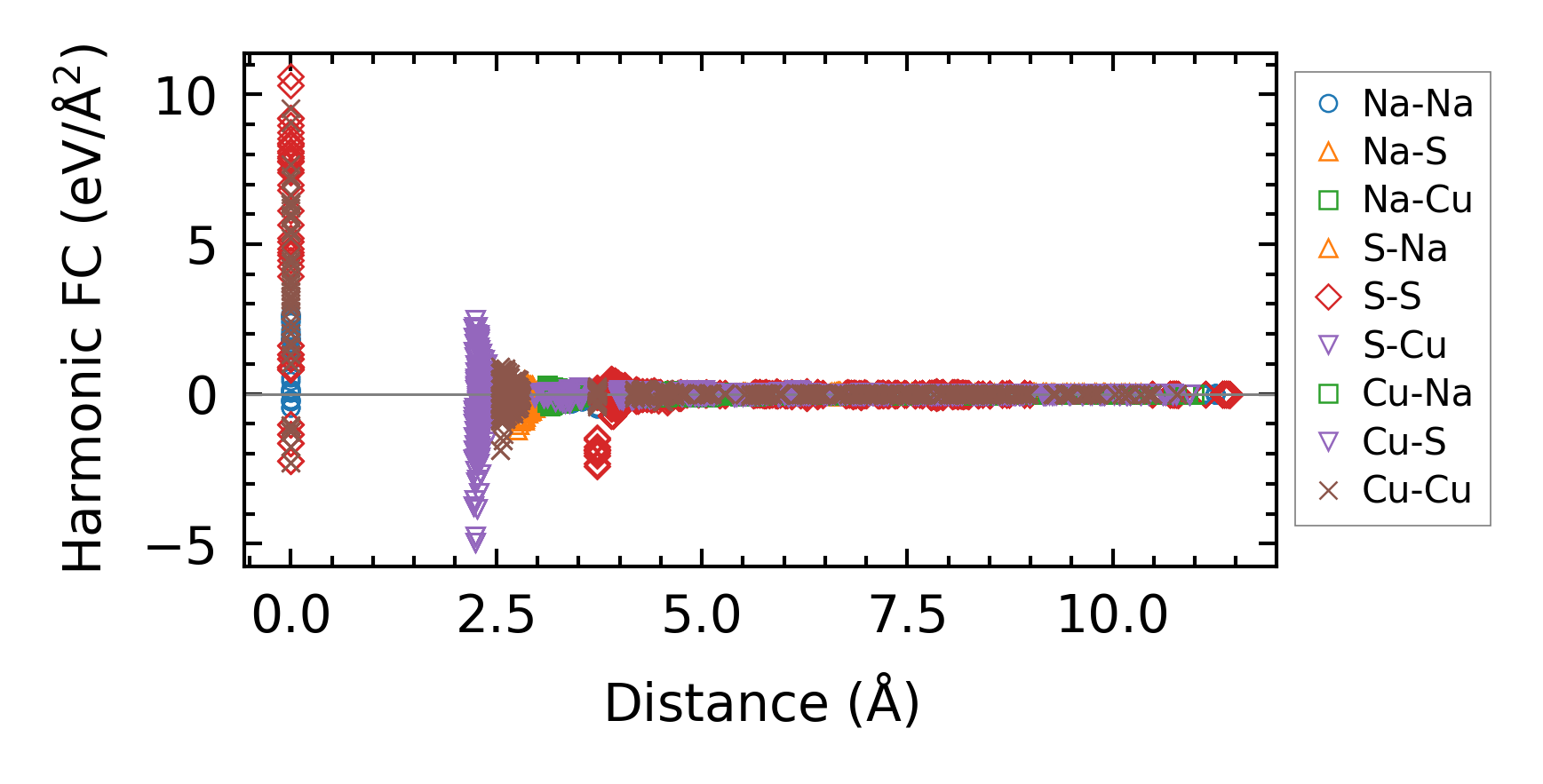

../../_images/fig_fc211353.png — (a) Force constants w.r.t atomic distance

Summary

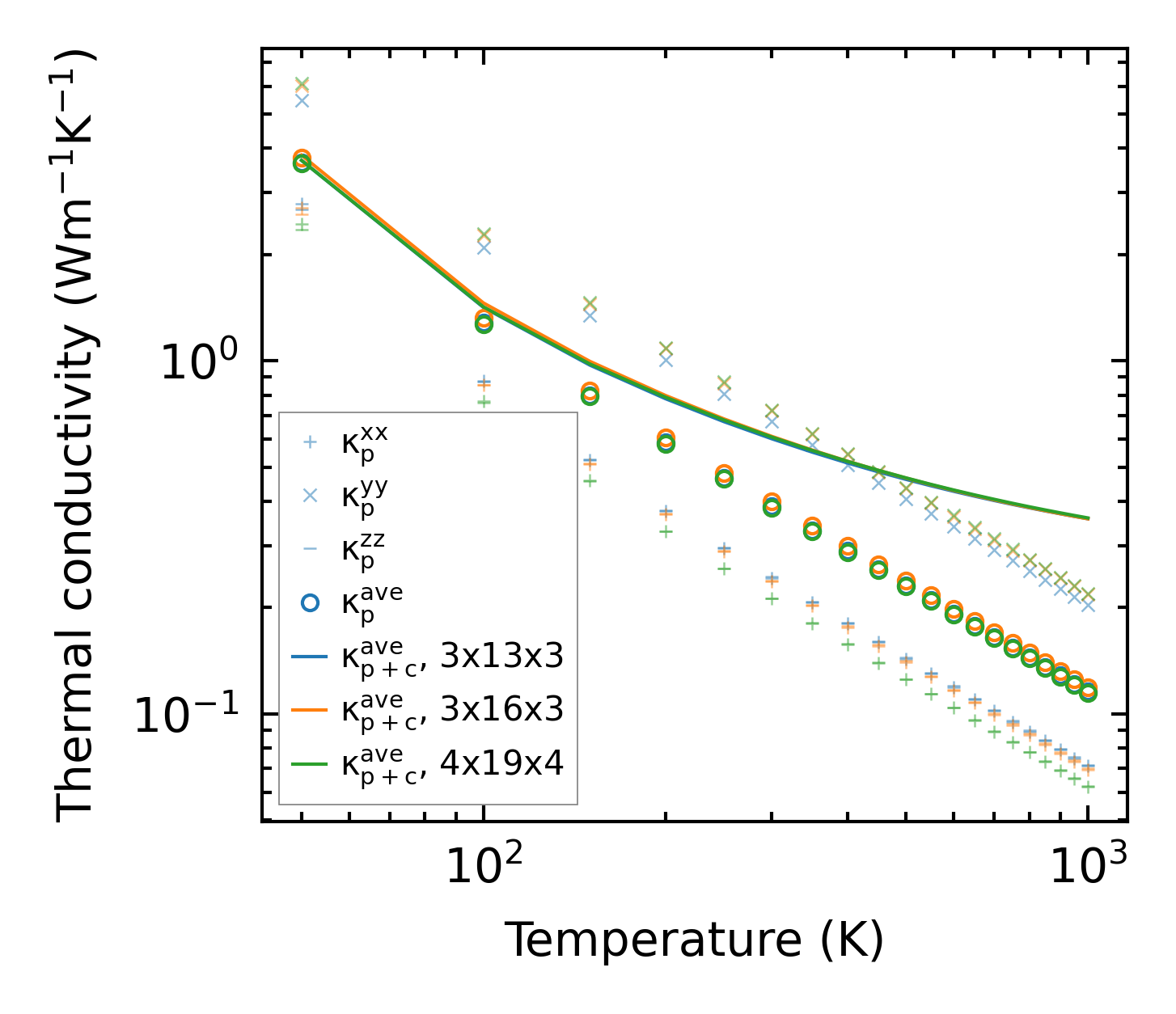

../../_images/fig_kappa9139.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times19805.png — (b) Computation time
