mp-28712/Si2Hg6O7/anharm

Space group: C2/m (12)
Link: Materials Project
Download: mp-28712.tar.gz

Harmonic properties

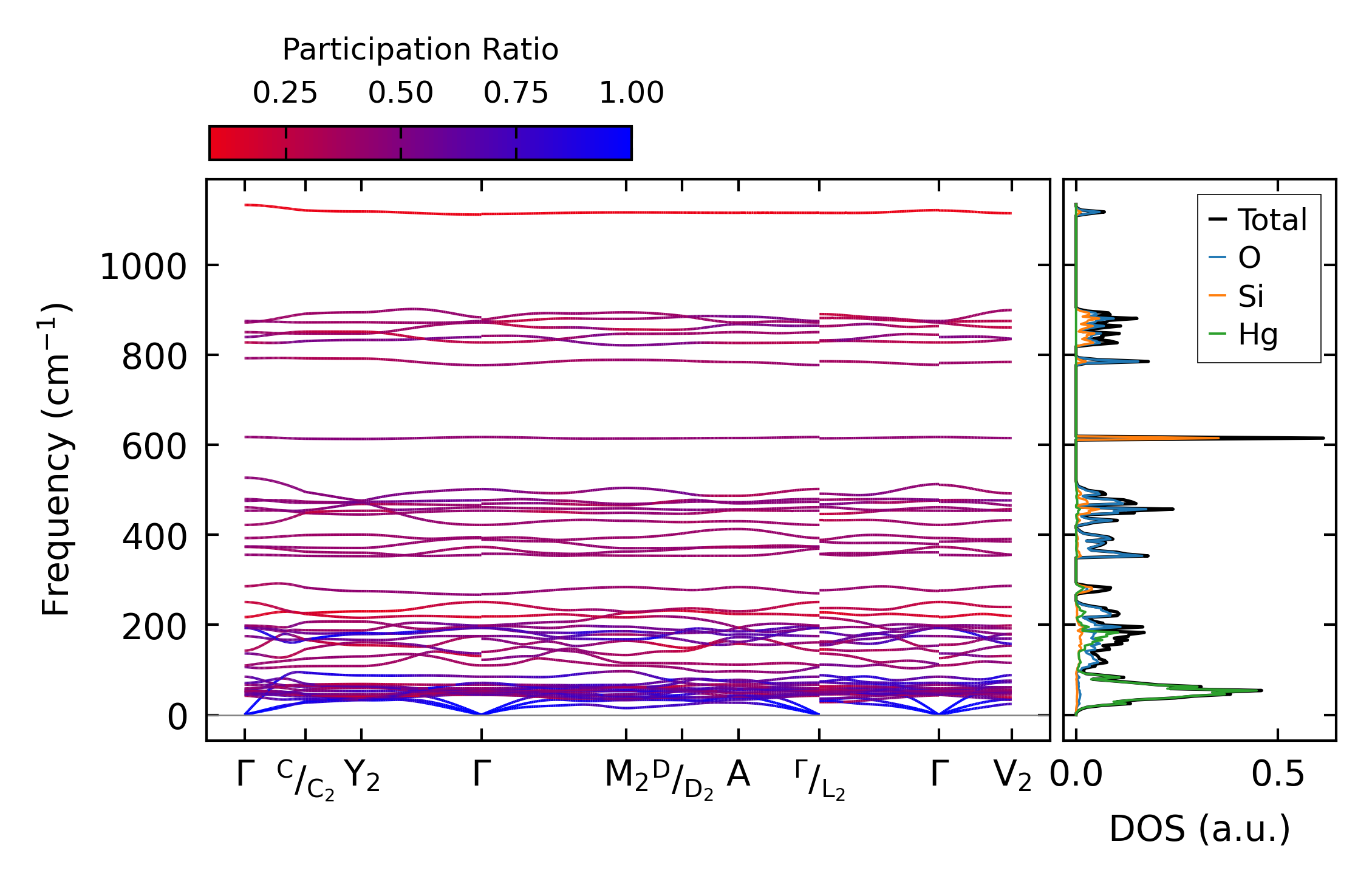

../../_images/fig_bandos_pr11600.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo11600.png — (b) Thermodynamic properties

Grüneisen parameters

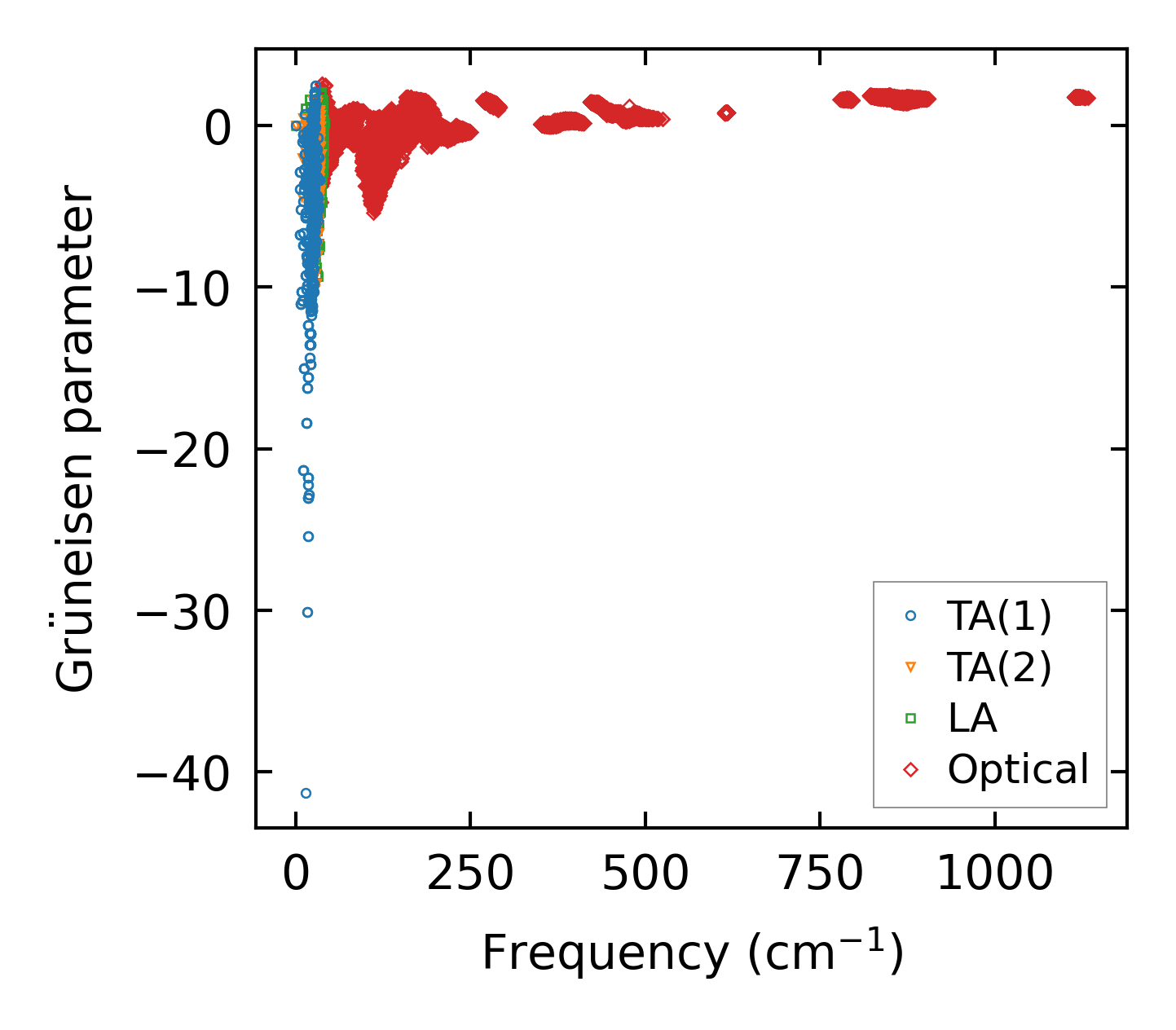

../../_images/fig_gru_all4825.png — (a) Grüneisen parameters

../../_images/fig_gruneisen4825.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x12, supercell: 1x2x2

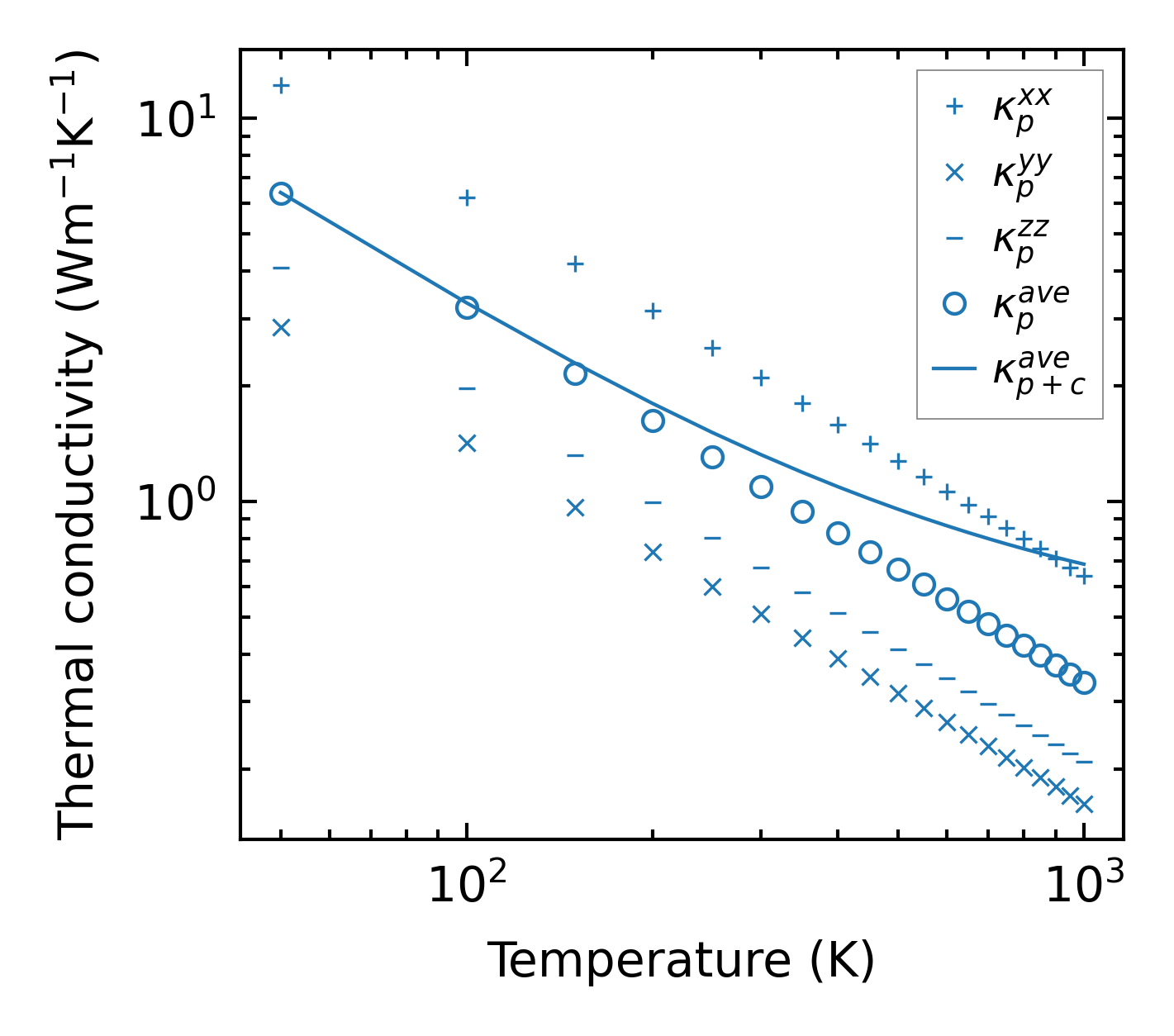

../../_images/fig_kappa9101.png — (a) Temperature-dependent lattice thermal conductivity

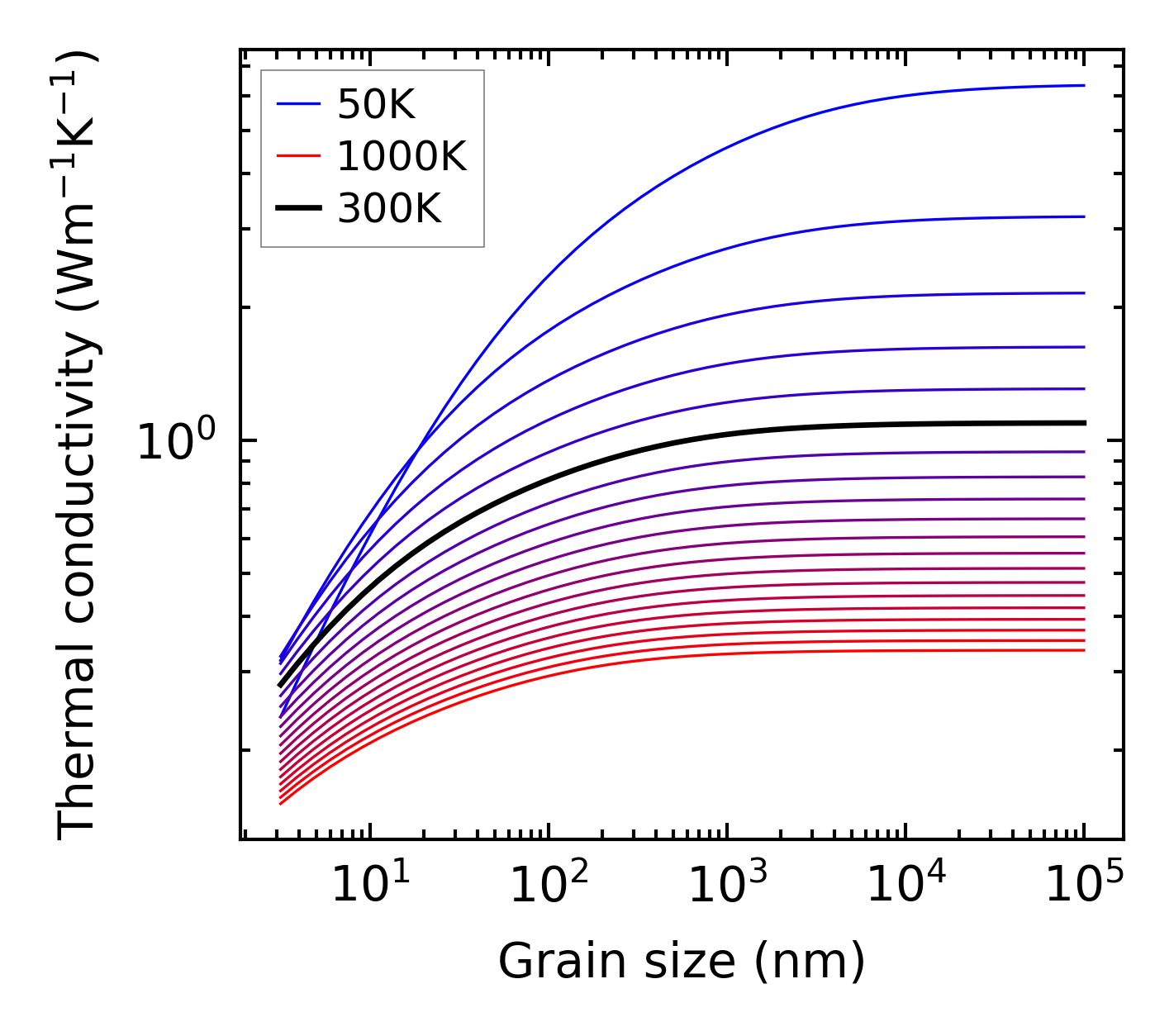

../../_images/fig_kappa_vs_grain_size4883.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

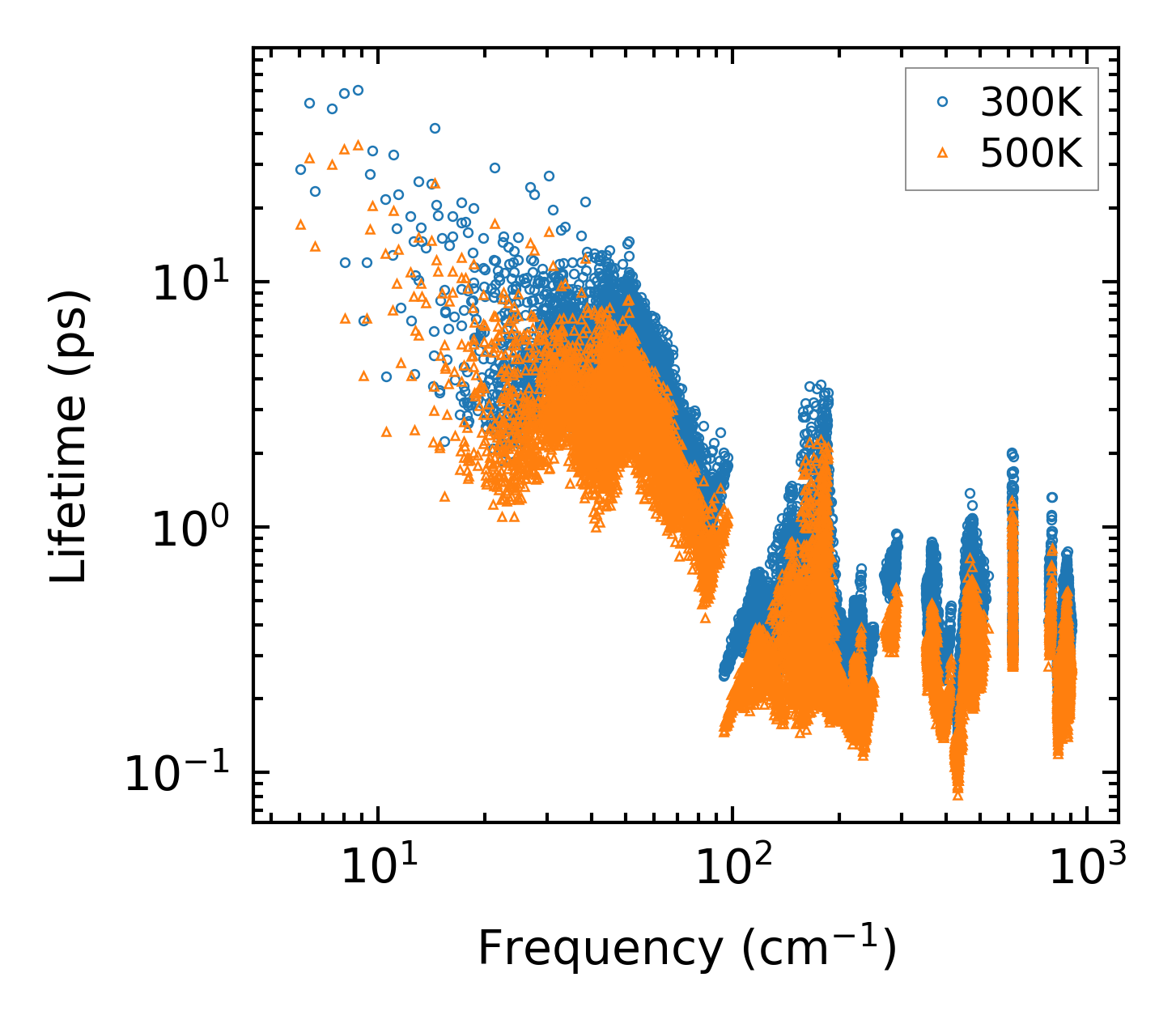

../../_images/fig_lifetime4778.png — (a) Phonon lifetime due to phonon-phonon scattering

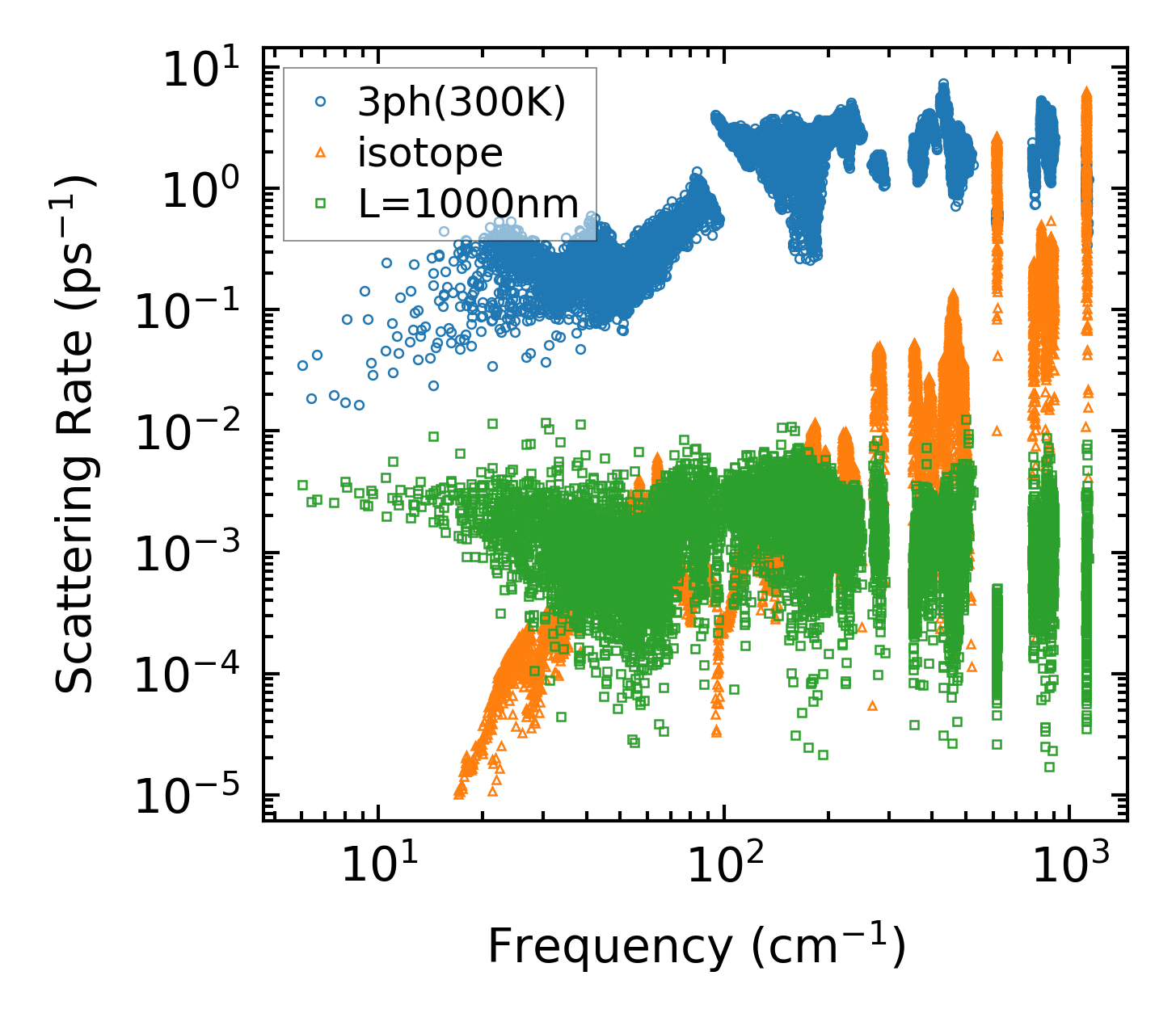

../../_images/fig_scat_rates4777.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

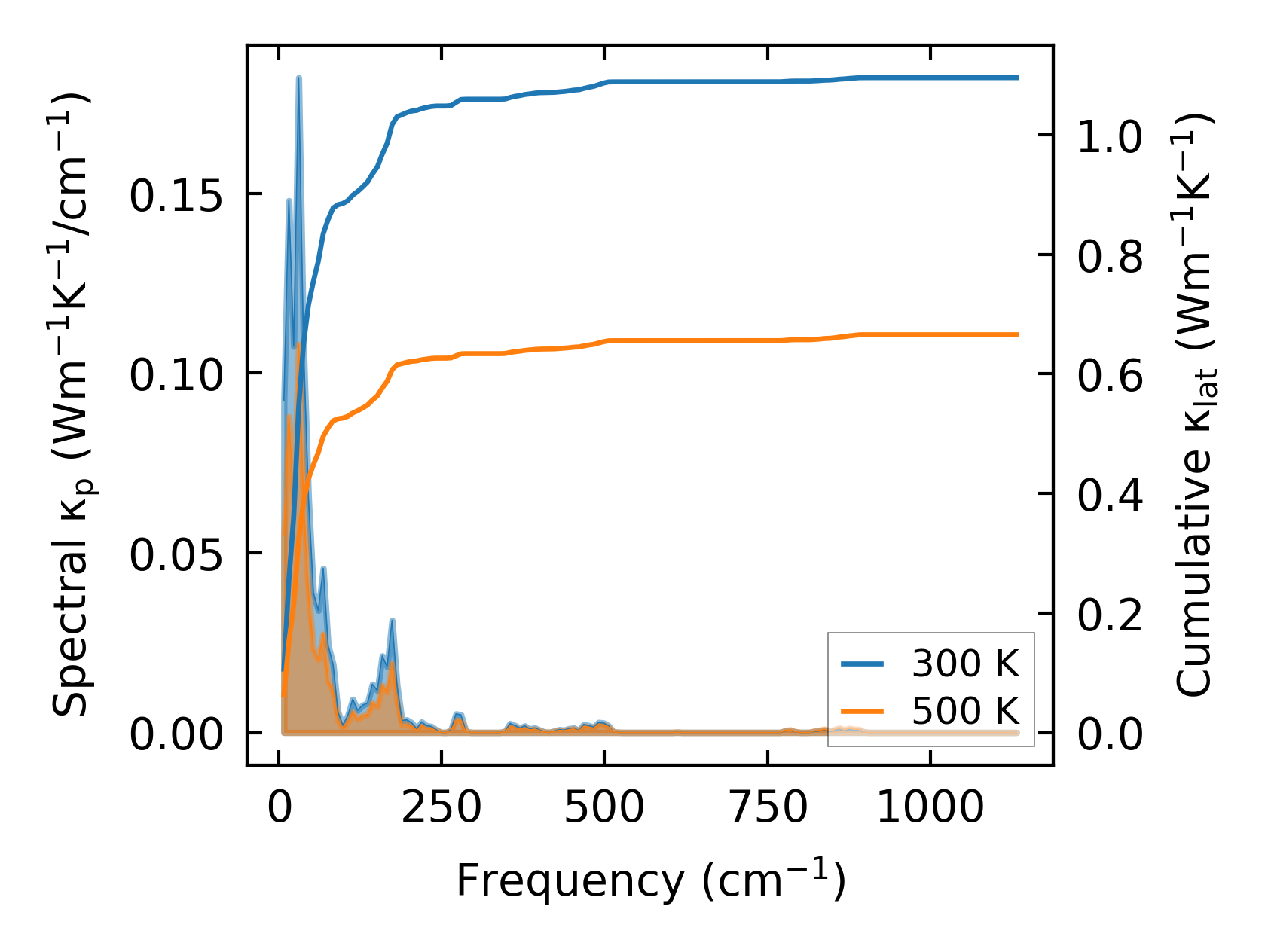

../../_images/fig_cumu_frequency4778.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

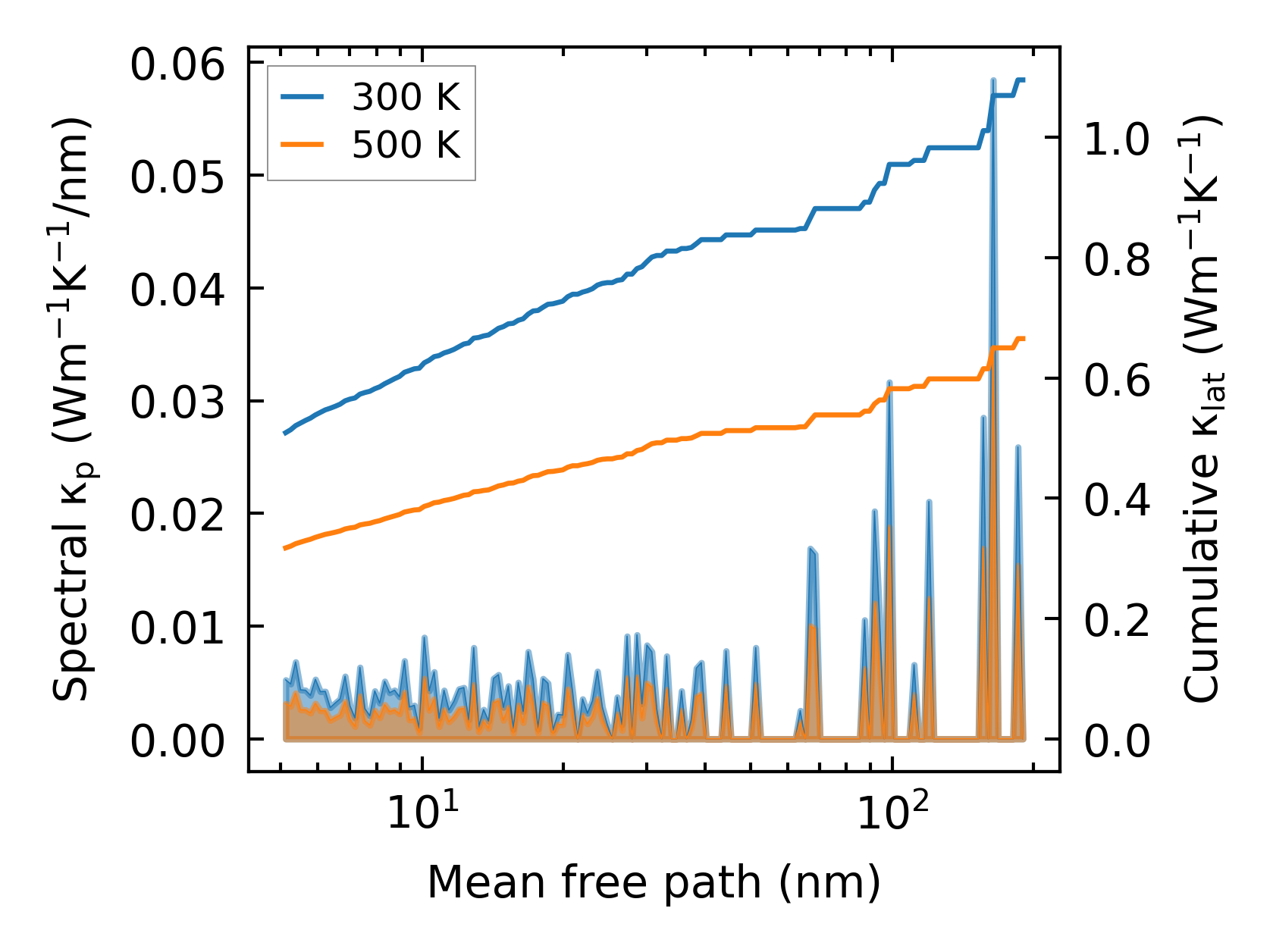

../../_images/fig_cumu_mfp4777.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

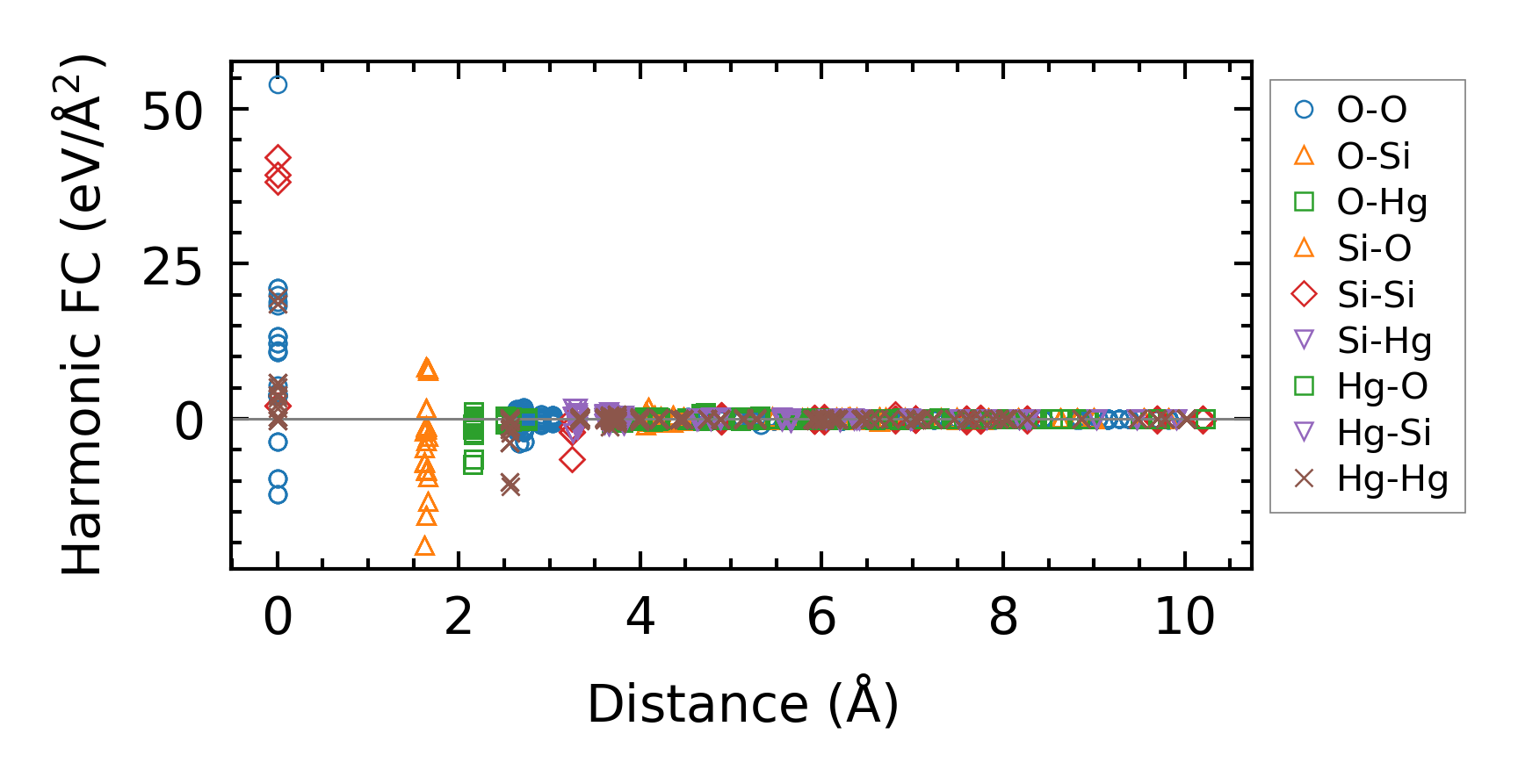

../../_images/fig_fc211312.png — (a) Force constants w.r.t atomic distance

Summary

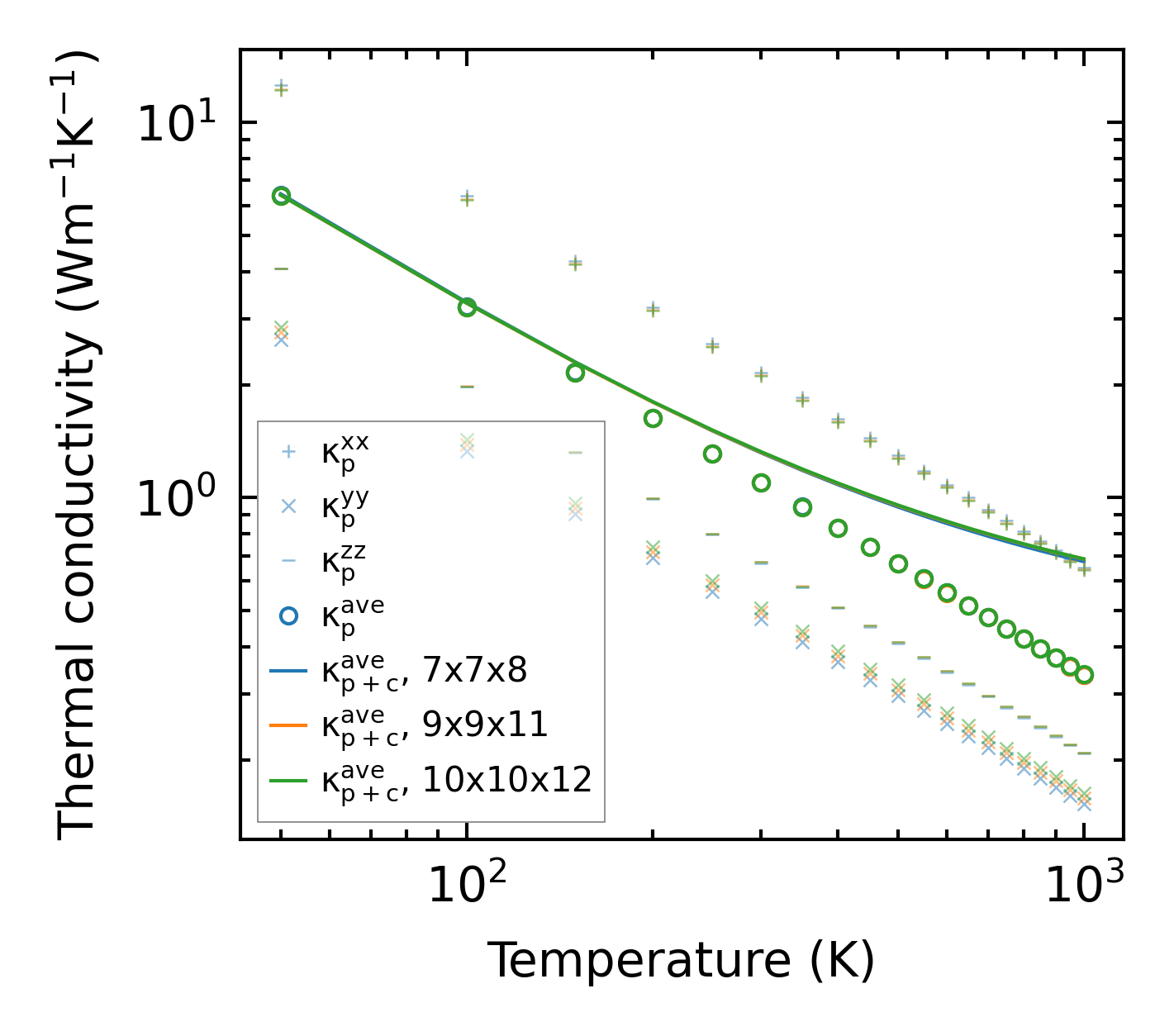

../../_images/fig_kappa9102.png — (a) Temperature-dependent lattice thermal conductivity

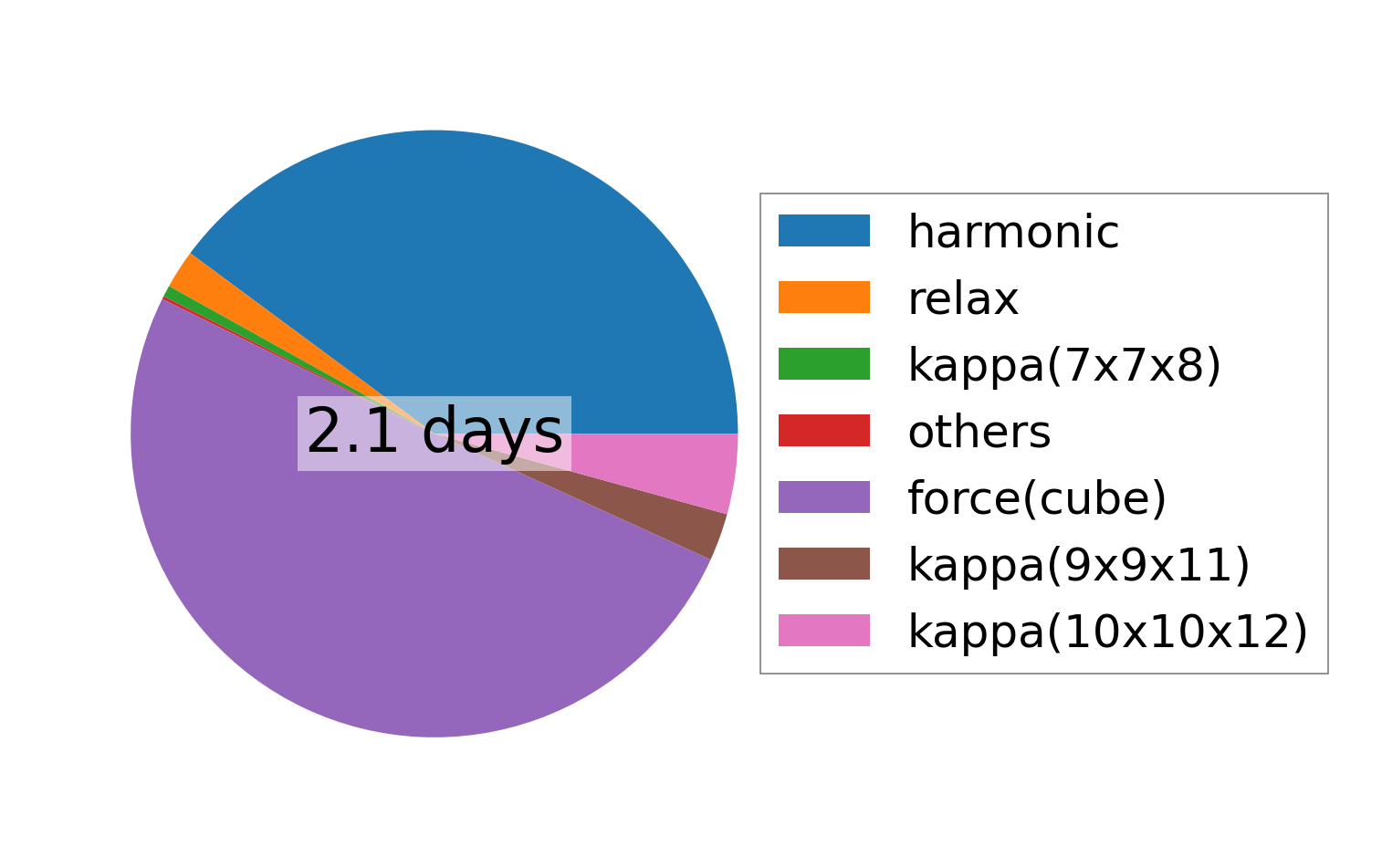

../../_images/fig_times19746.png — (b) Computation time
