mp-28978-2/Ba2S3/anharm

Space group: I4_1md (109)
Link: Materials Project
Download: mp-28978-2.tar.gz

Harmonic properties

../../_images/fig_bandos_pr11342.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_bandos15334.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo11342.png — (c) Thermodynamic properties

Grüneisen parameters

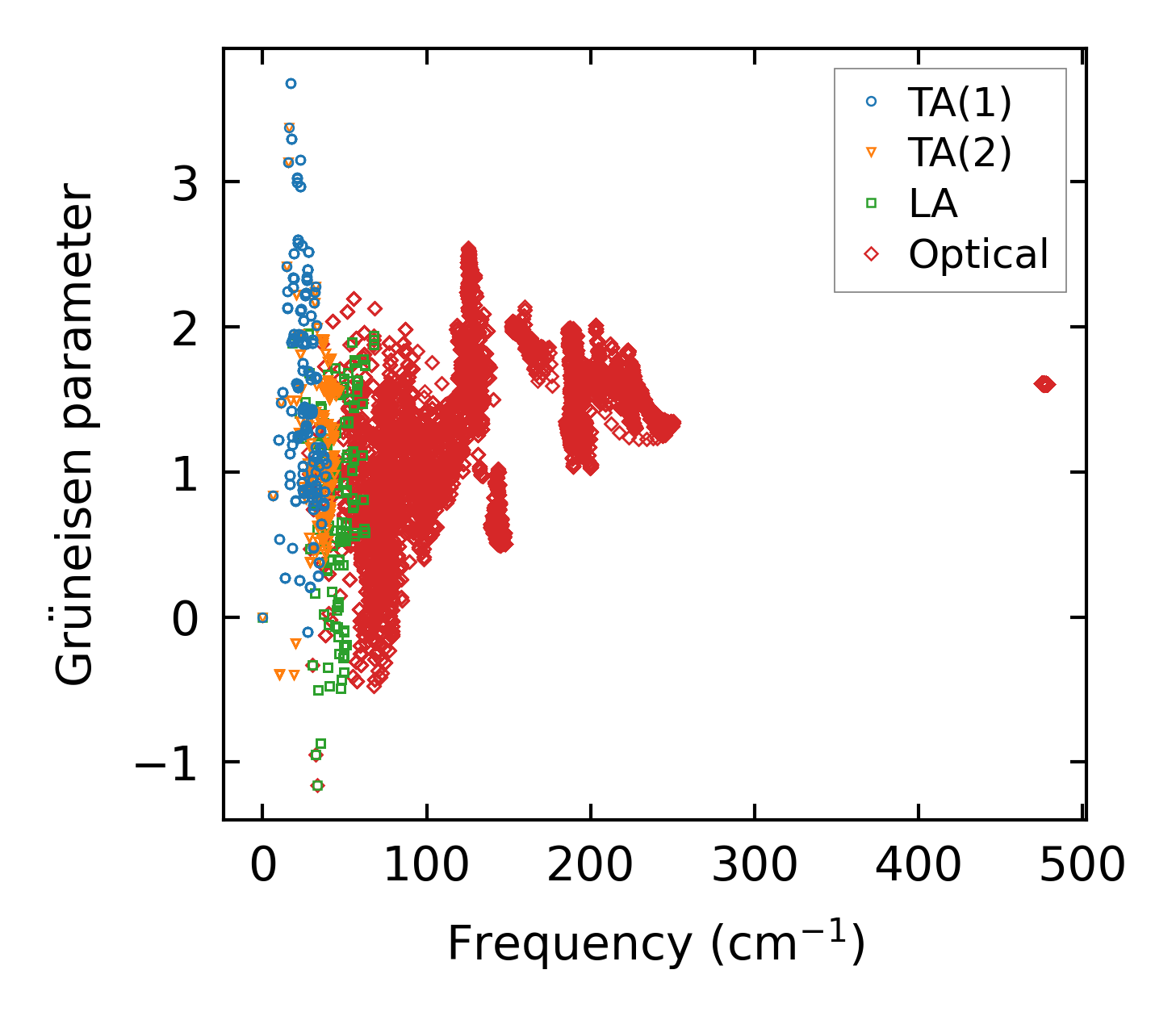

../../_images/fig_gru_all4690.png — (a) Grüneisen parameters

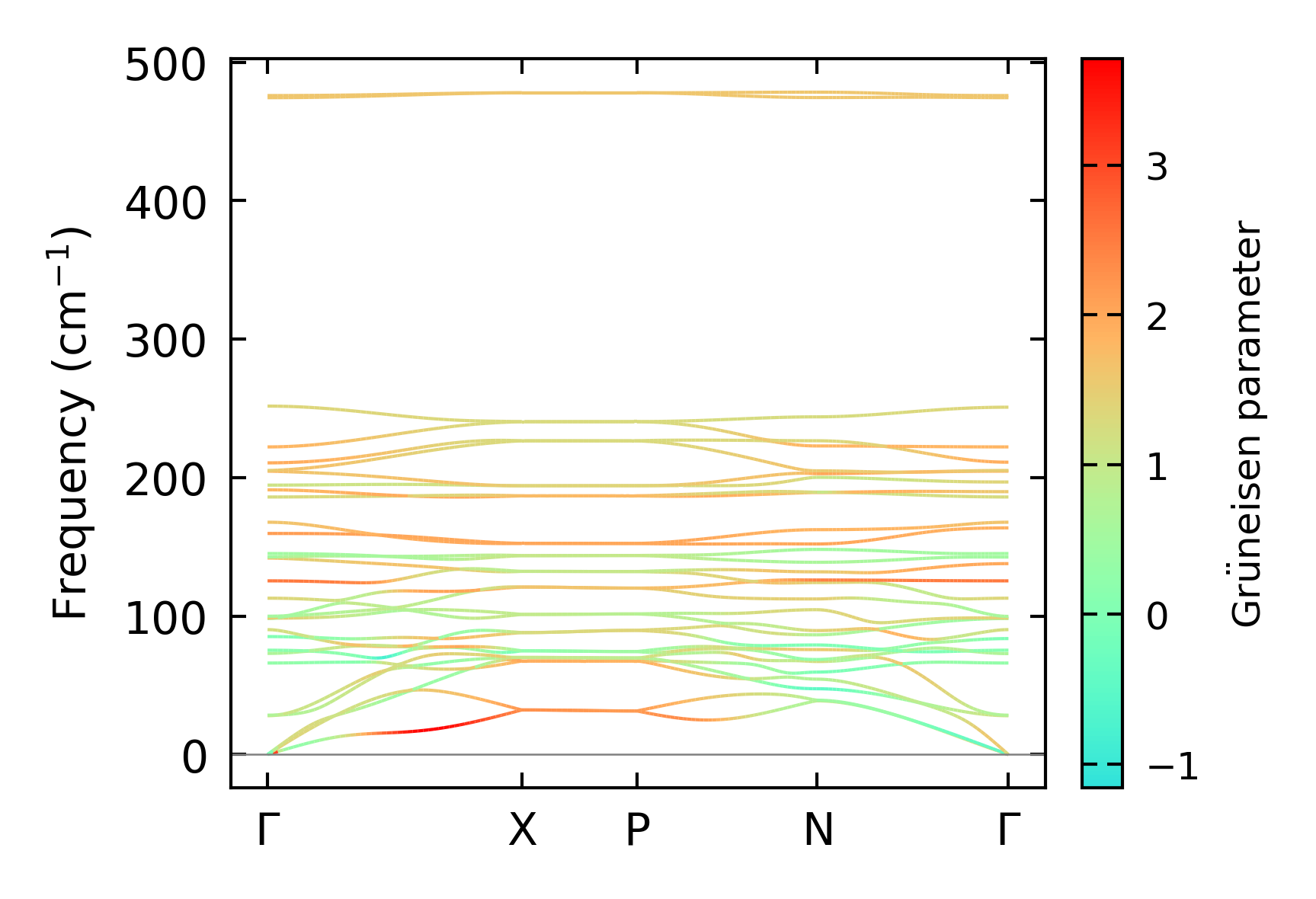

../../_images/fig_gruneisen4690.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x10, supercell: 2x2x1

../../_images/fig_kappa8853.png — (a) Temperature-dependent lattice thermal conductivity

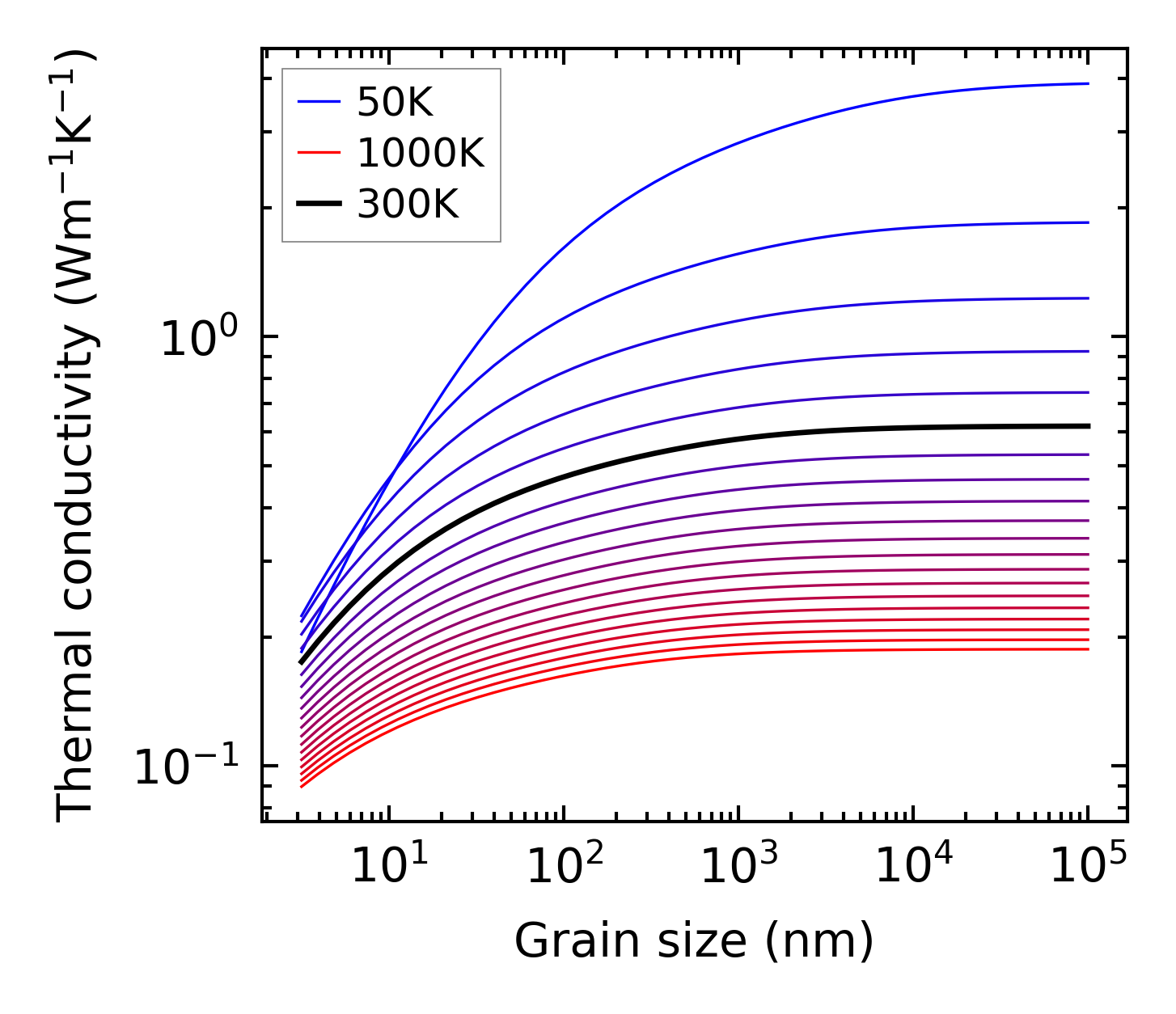

../../_images/fig_kappa_vs_grain_size4749.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime4646.png — (a) Phonon lifetime due to phonon-phonon scattering

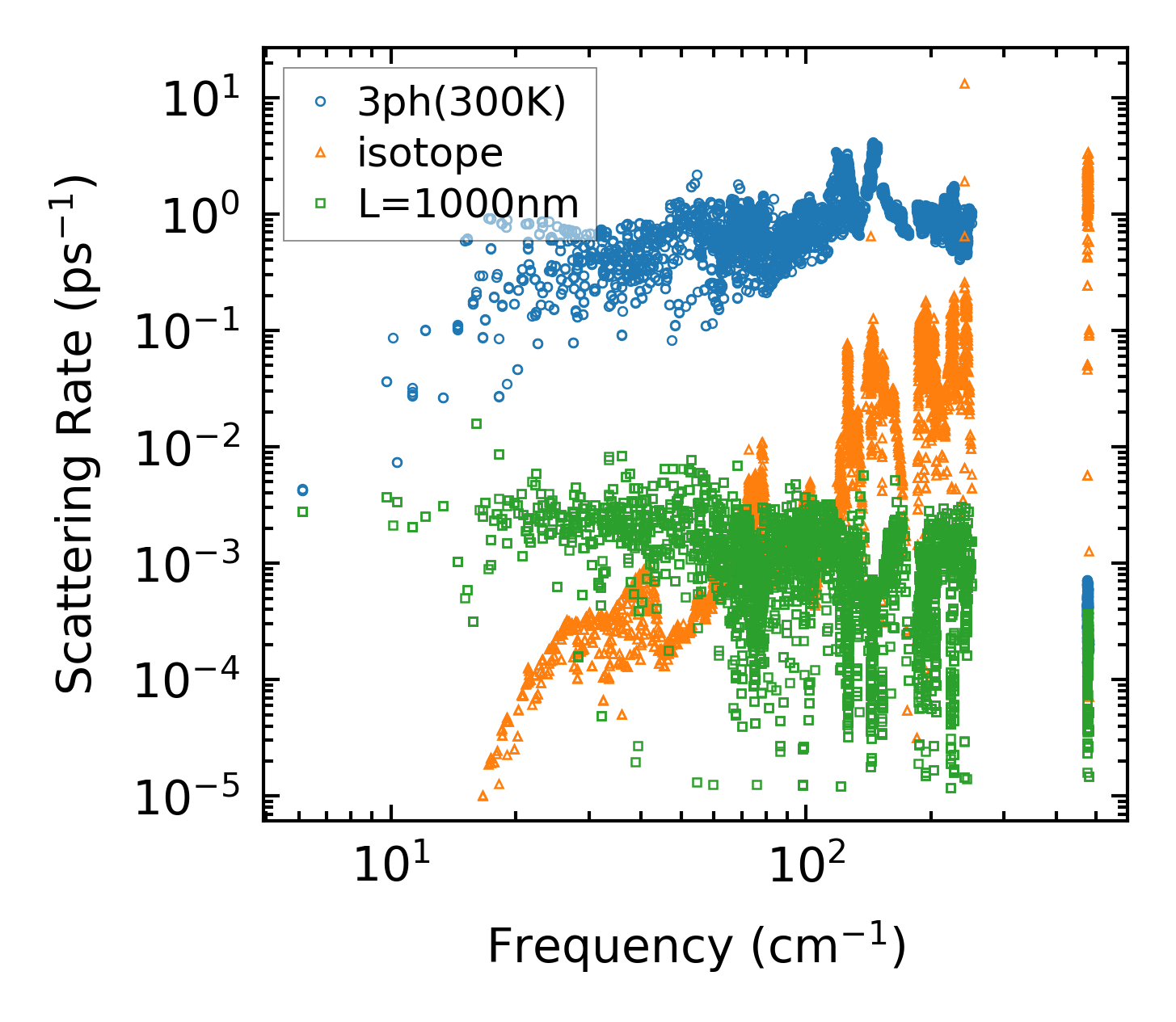

../../_images/fig_scat_rates4645.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

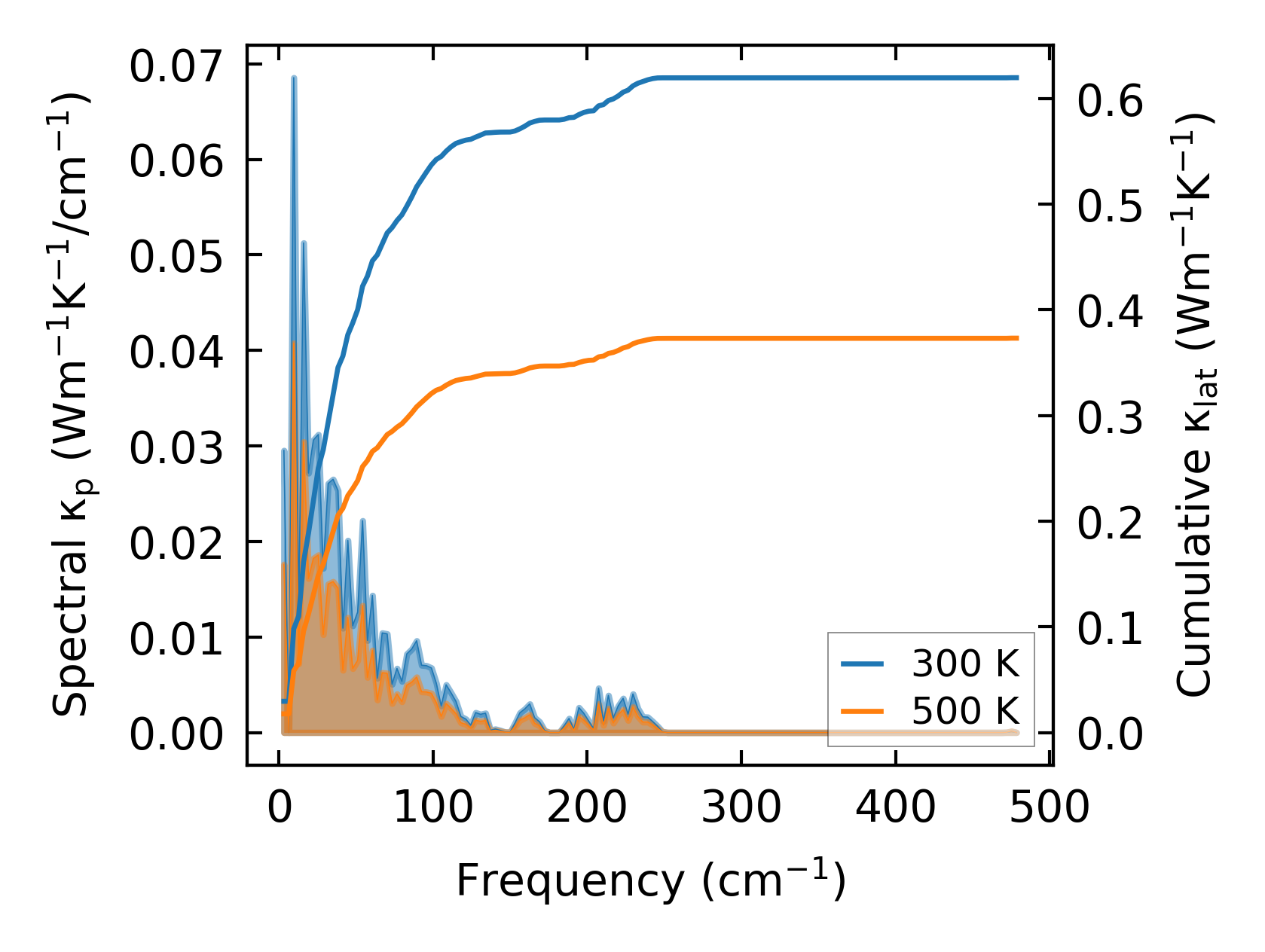

../../_images/fig_cumu_frequency4646.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

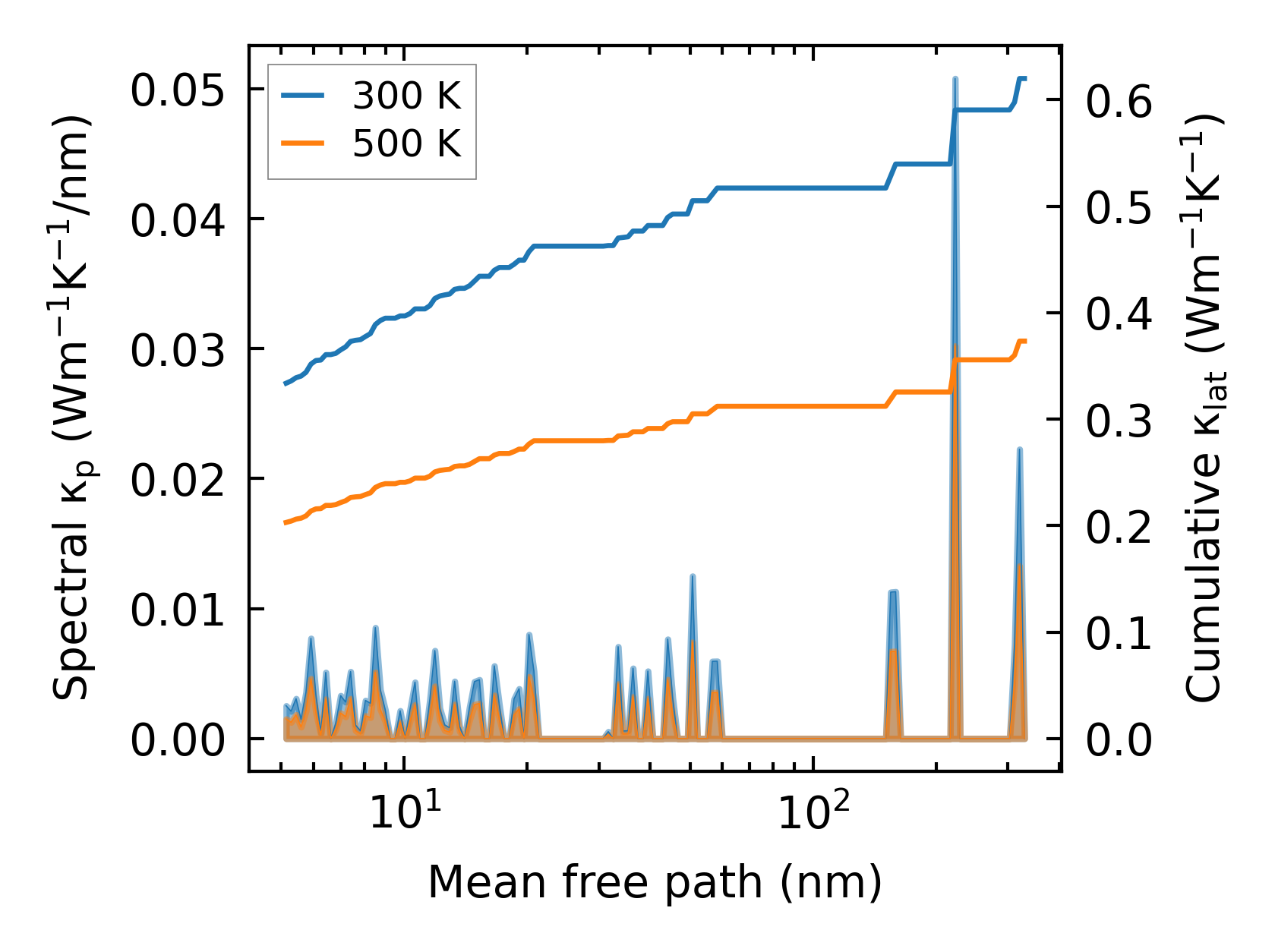

../../_images/fig_cumu_mfp4645.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

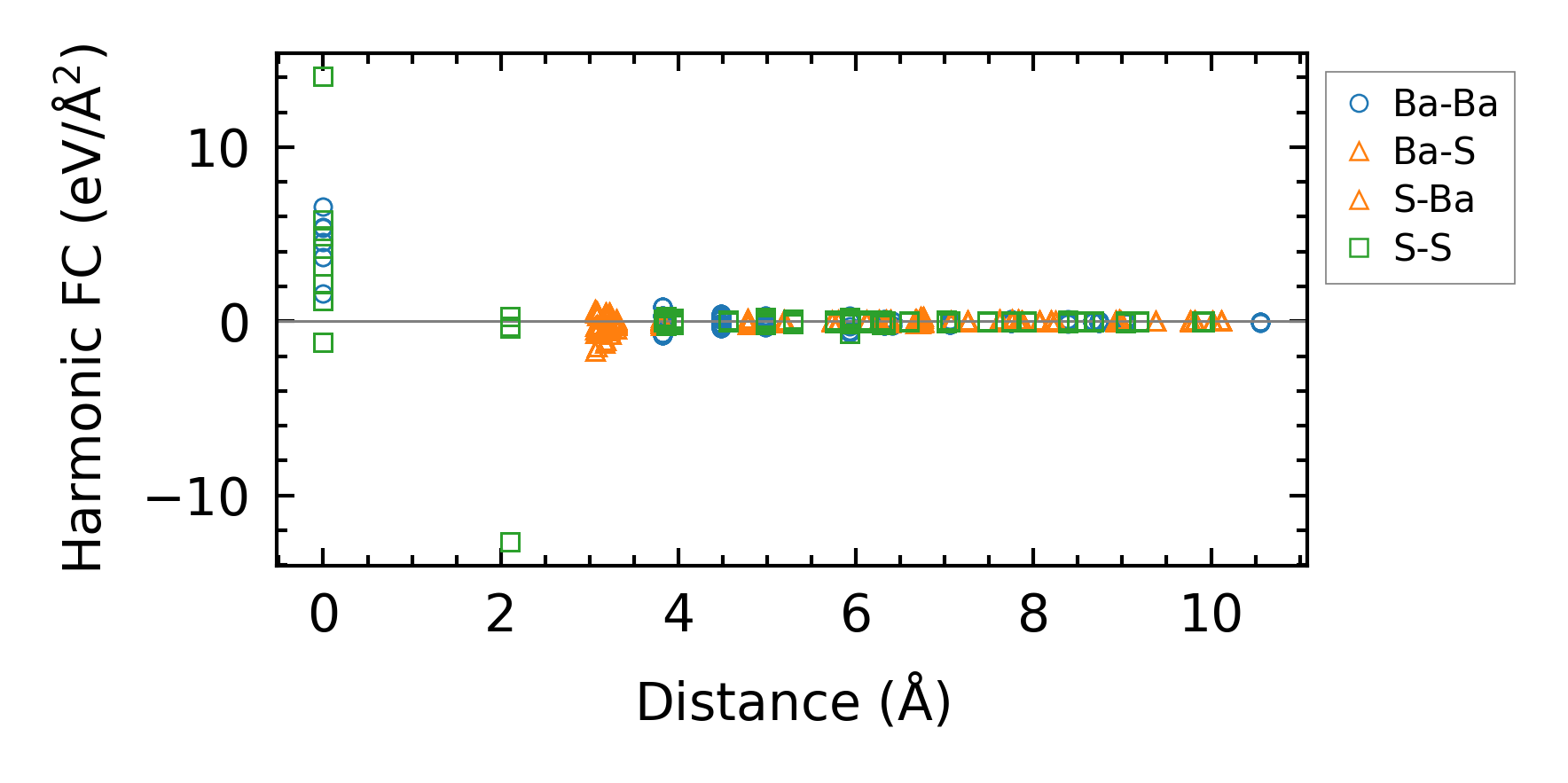

../../_images/fig_fc211058.png — (a) Force constants w.r.t atomic distance

Summary

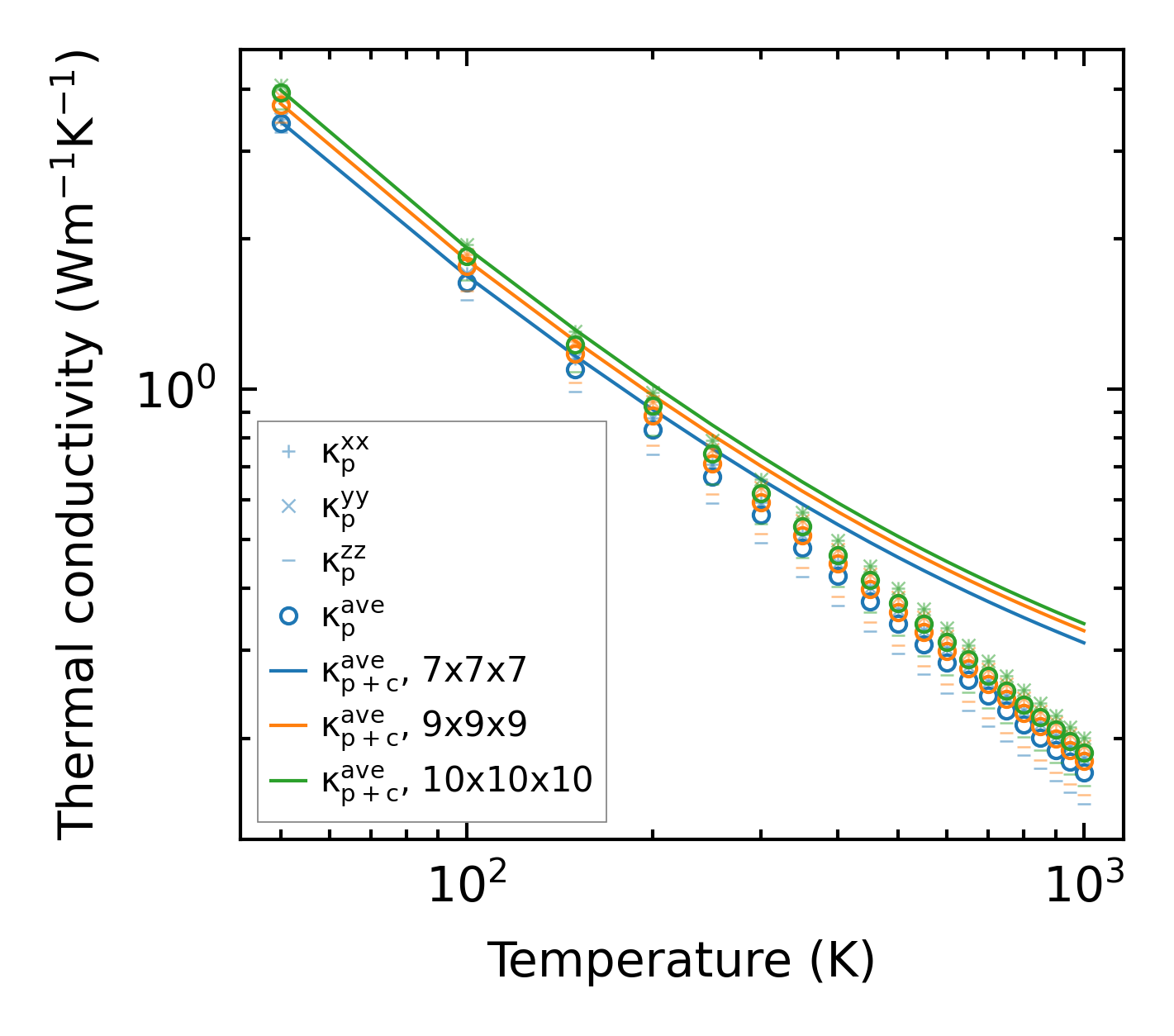

../../_images/fig_kappa8854.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times19361.png — (b) Computation time
