mp-28355/Na4Ge2Se5/anharm

Space group: P-1 (2)
Link: Materials Project
Download: mp-28355.tar.gz

Harmonic properties

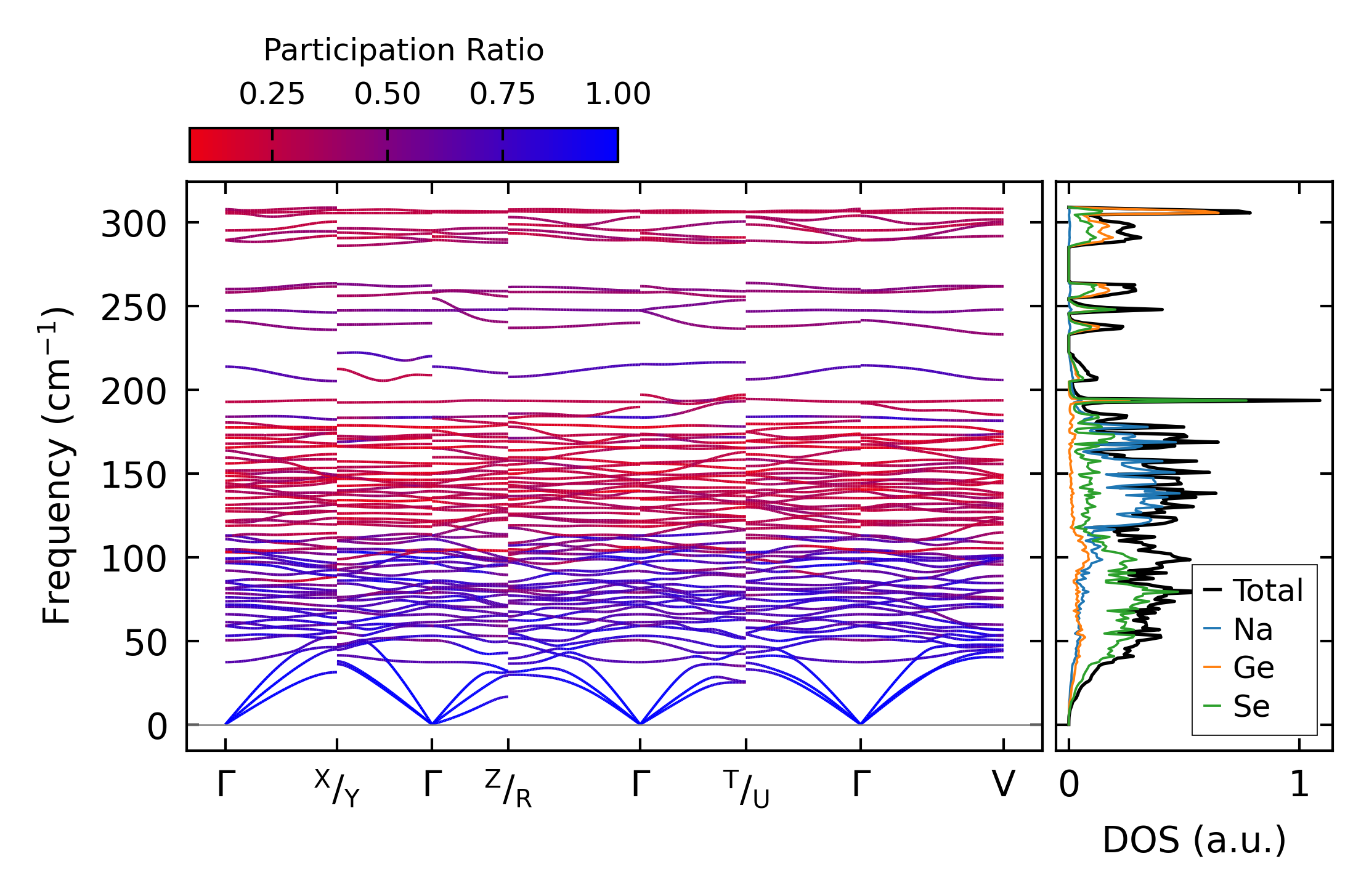

../../_images/fig_bandos_pr11817.png — (a) Phonon dispersion with participation ratio and DOS

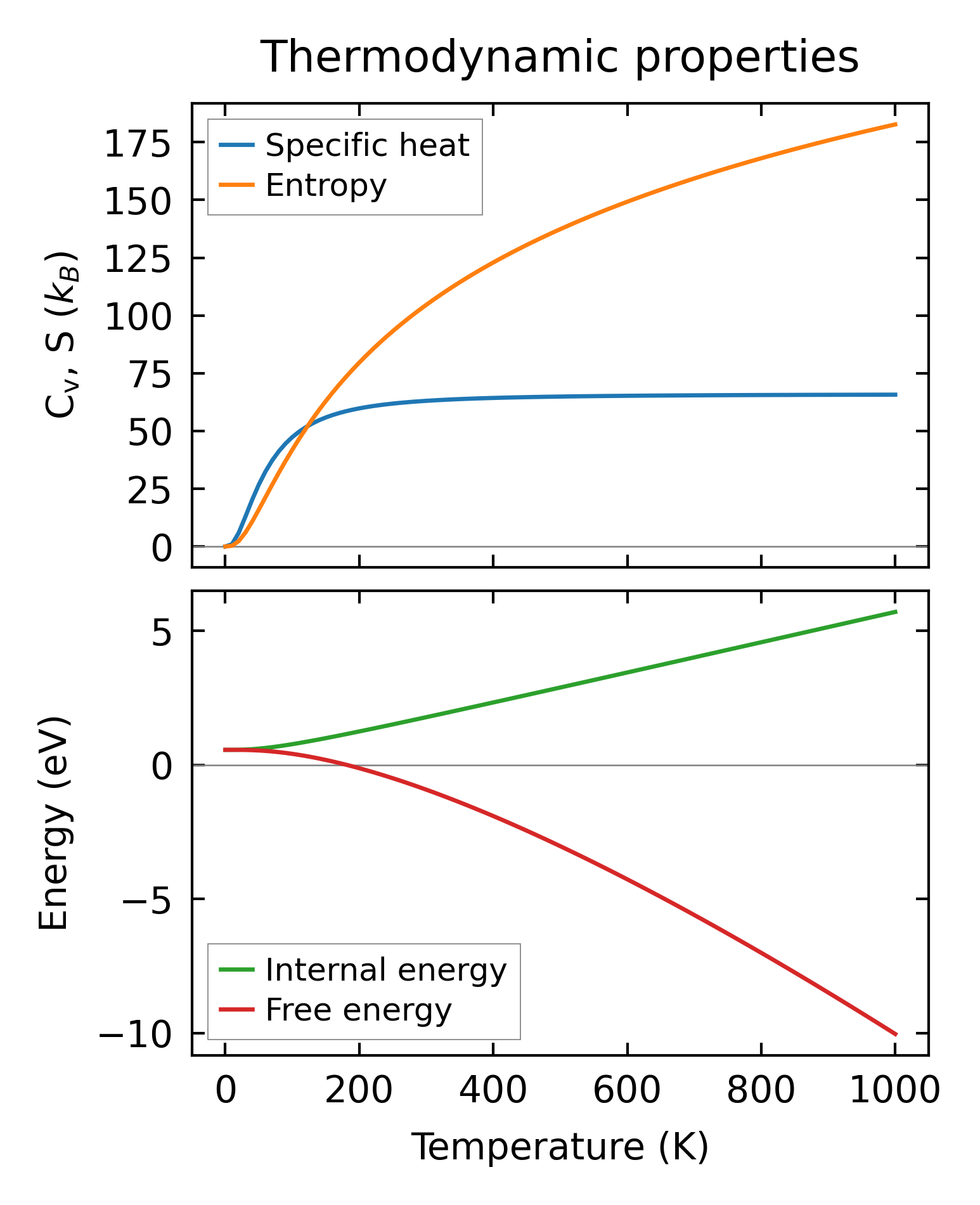

../../_images/fig_thermo11817.png — (b) Thermodynamic properties

Grüneisen parameters

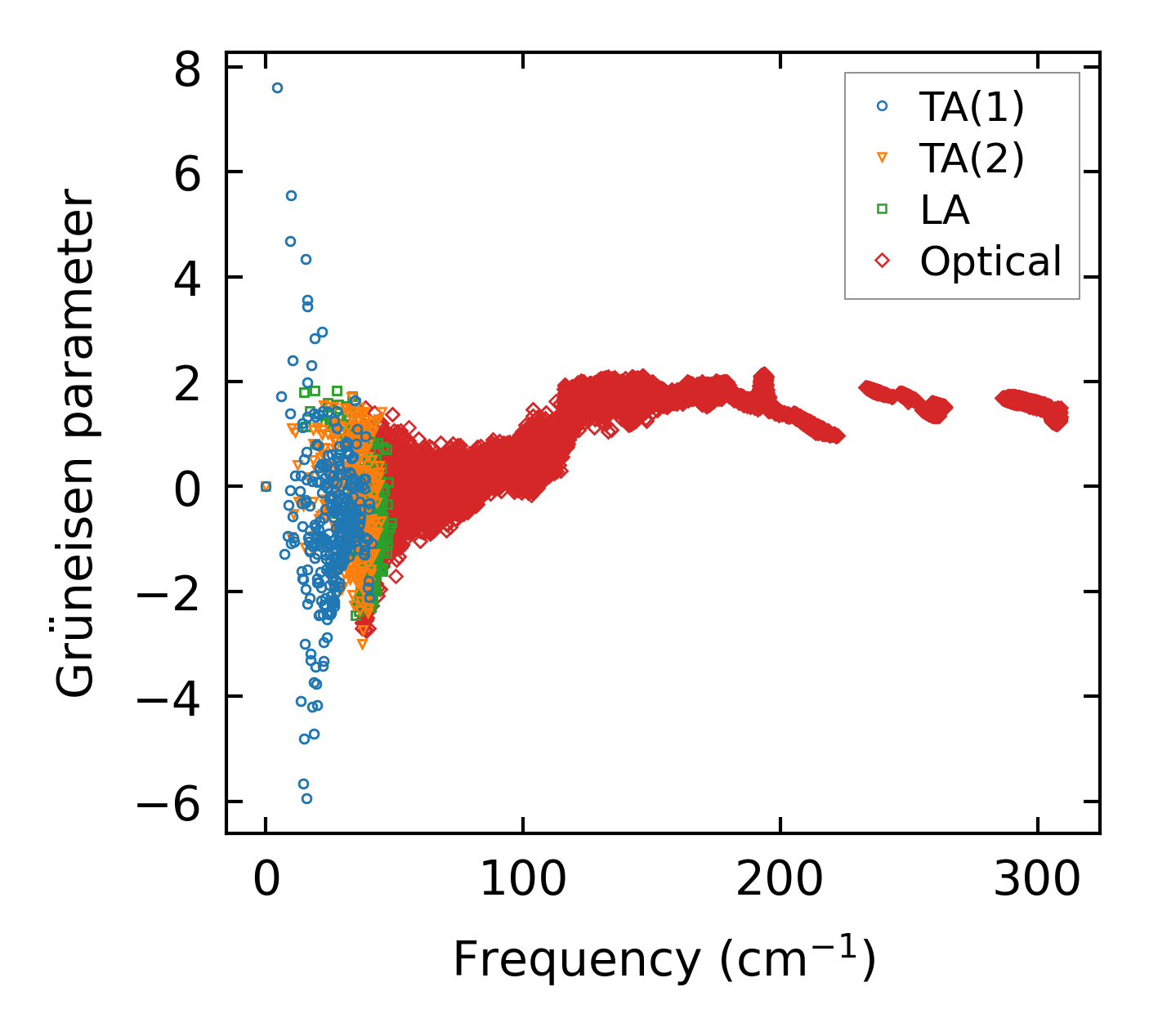

../../_images/fig_gru_all4924.png — (a) Grüneisen parameters

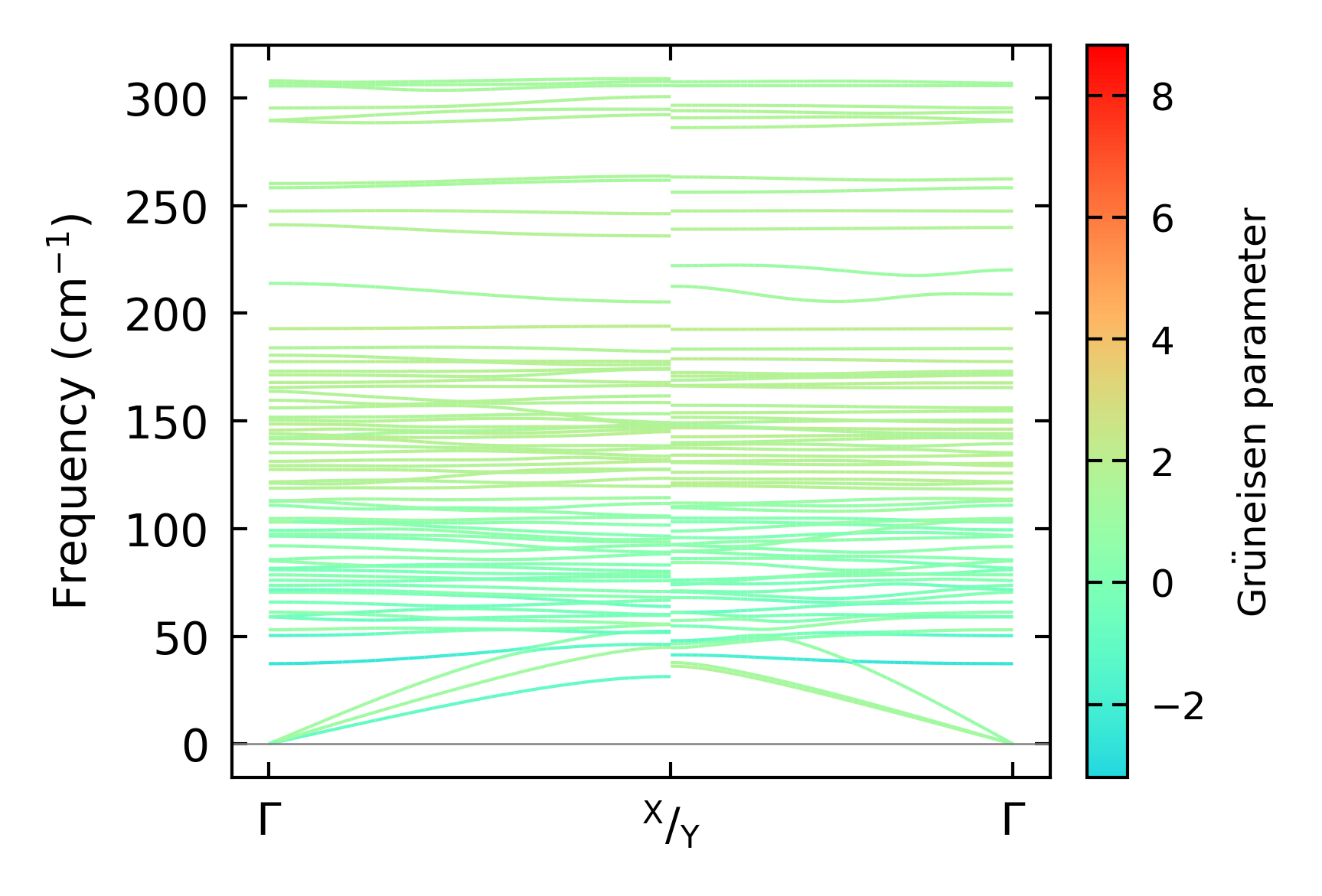

../../_images/fig_gruneisen4924.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x9x7, supercell: 2x2x1

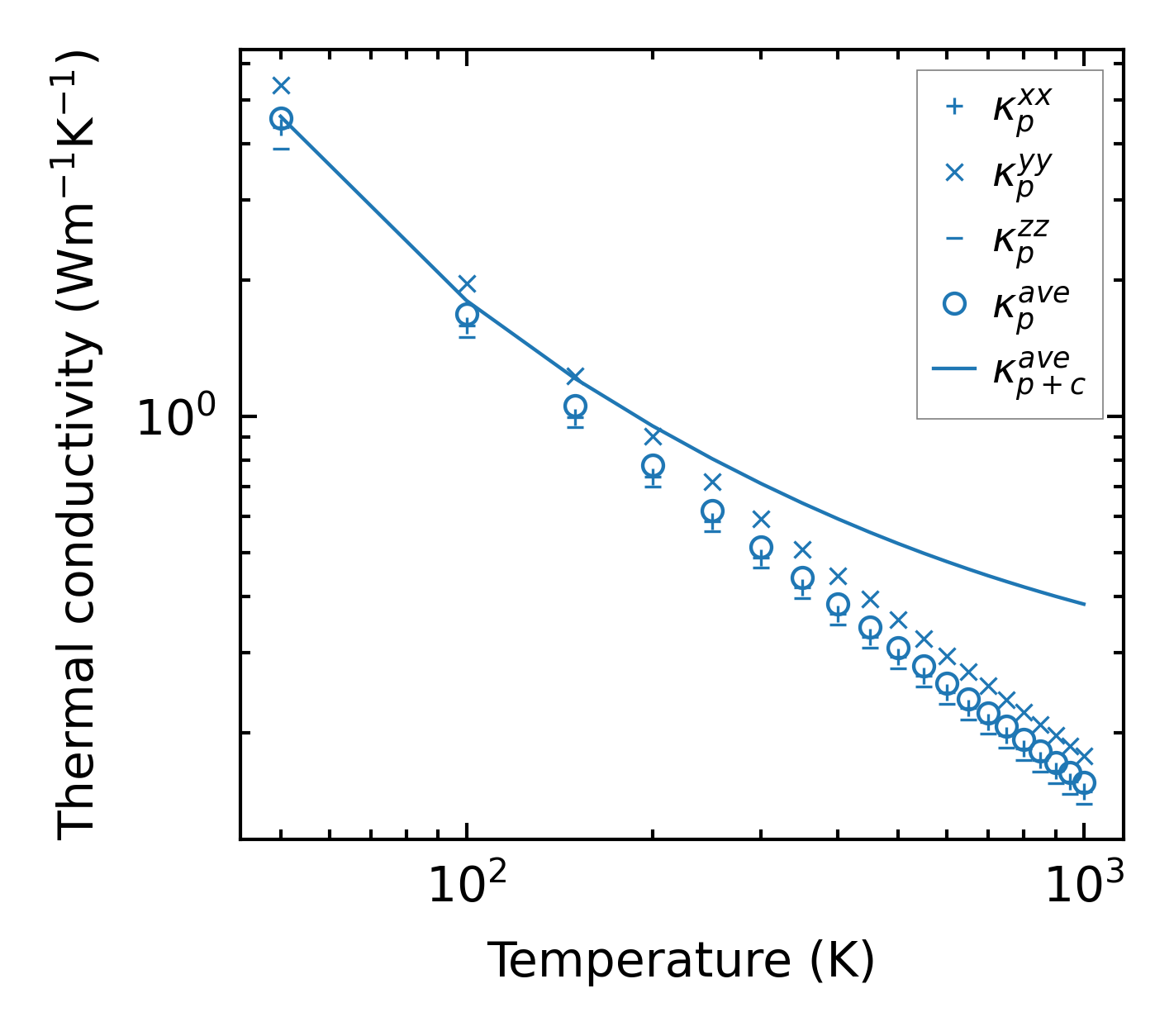

../../_images/fig_kappa9284.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size4982.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

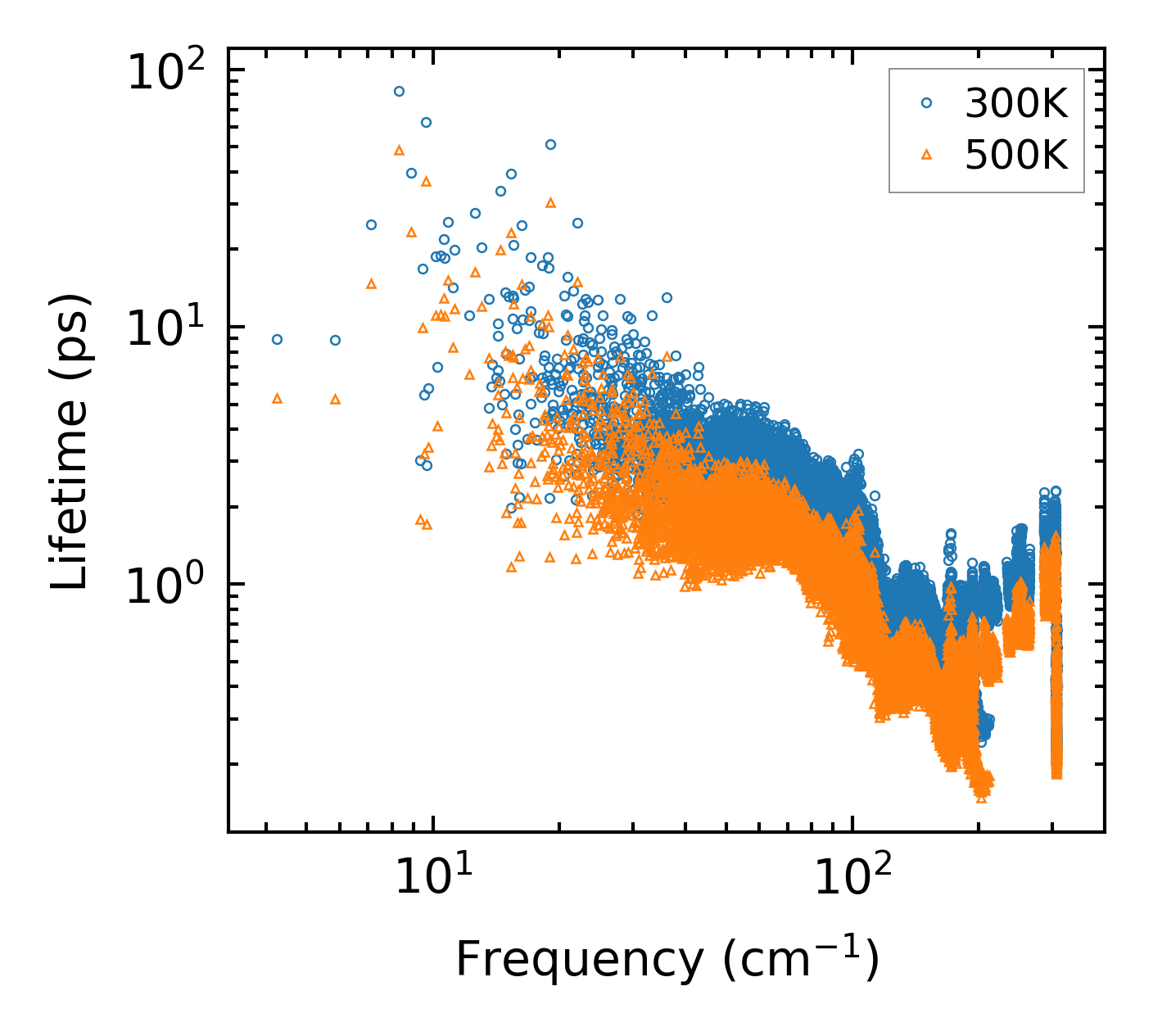

../../_images/fig_lifetime4875.png — (a) Phonon lifetime due to phonon-phonon scattering

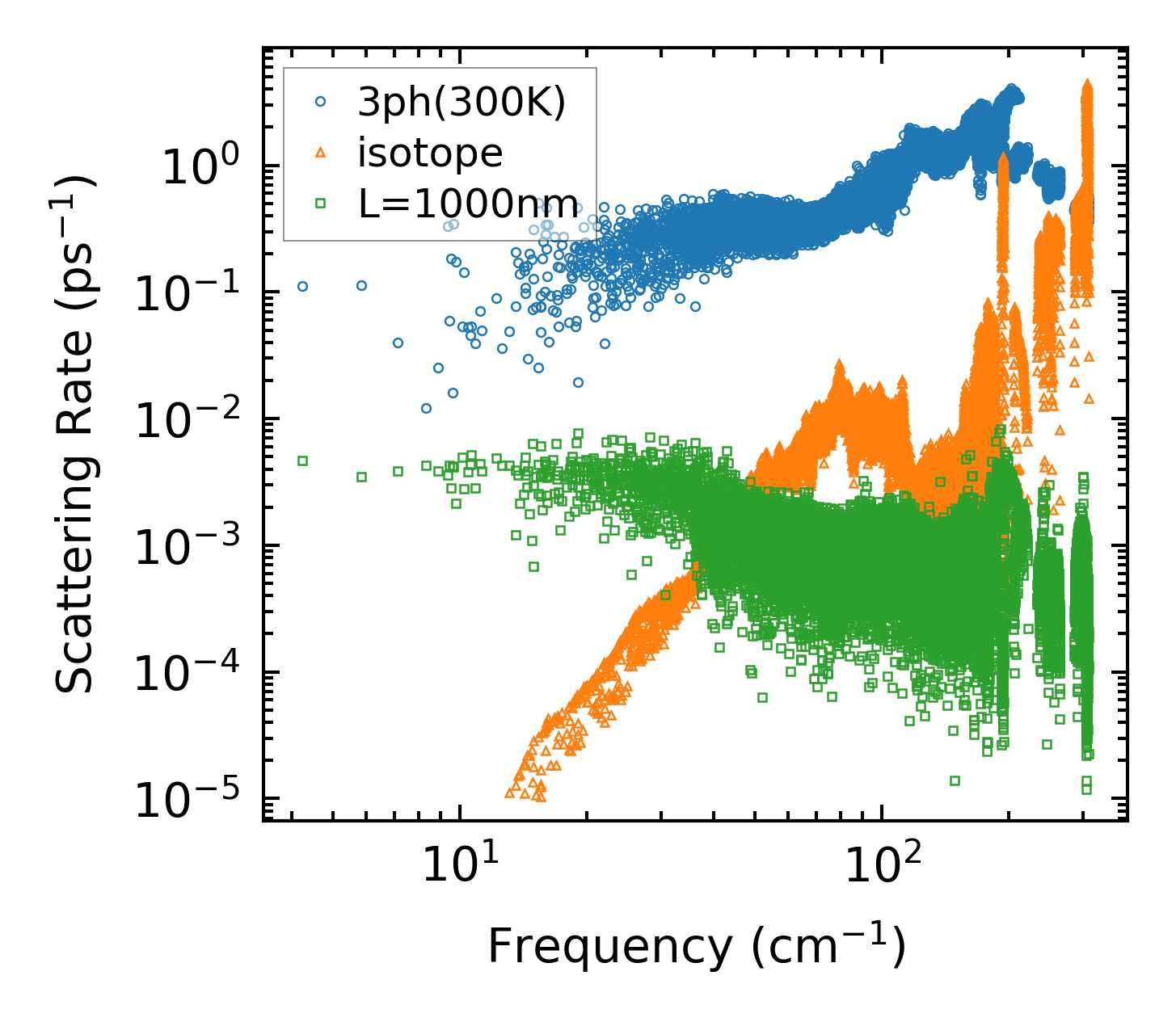

../../_images/fig_scat_rates4874.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

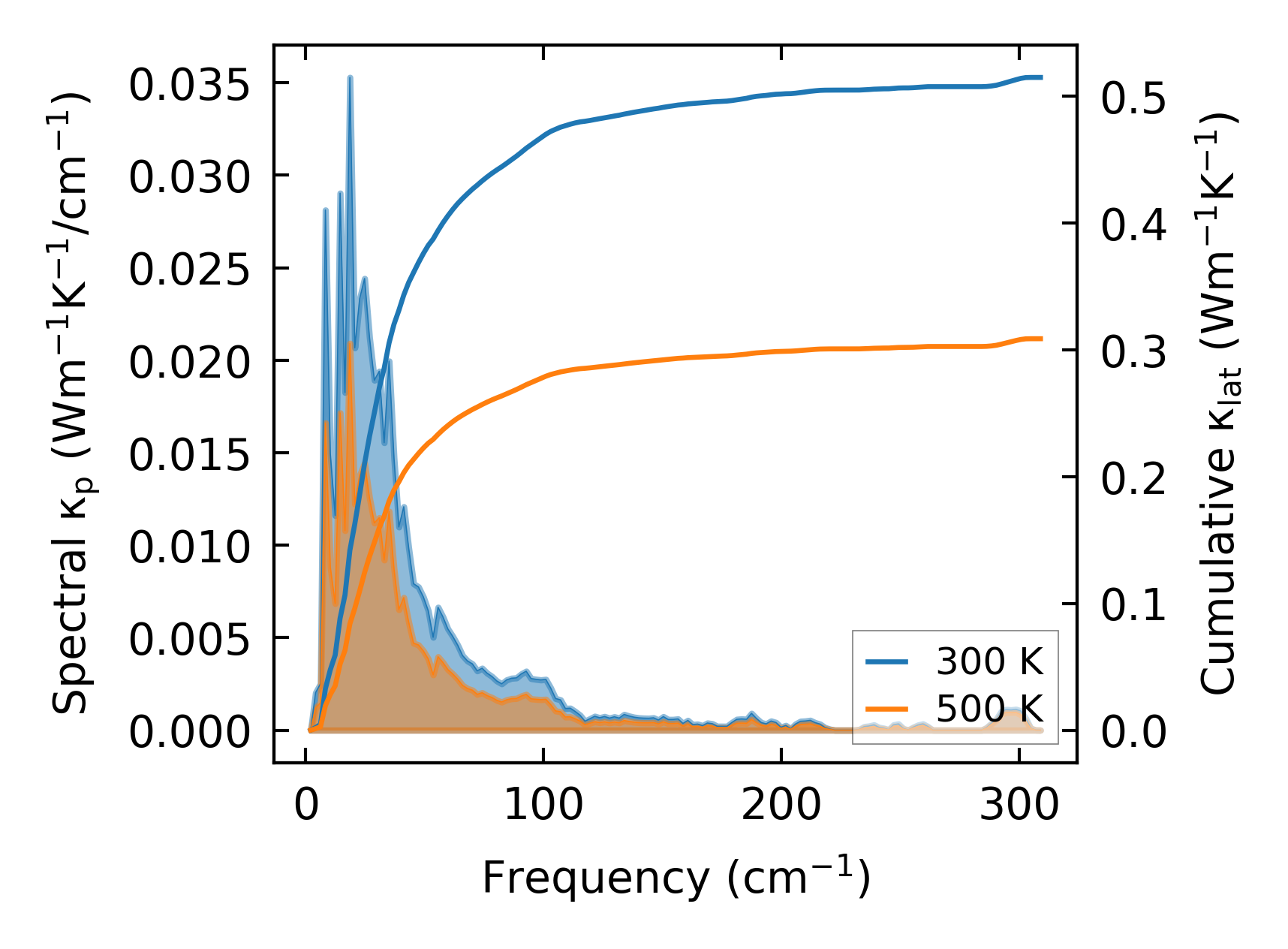

../../_images/fig_cumu_frequency4875.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

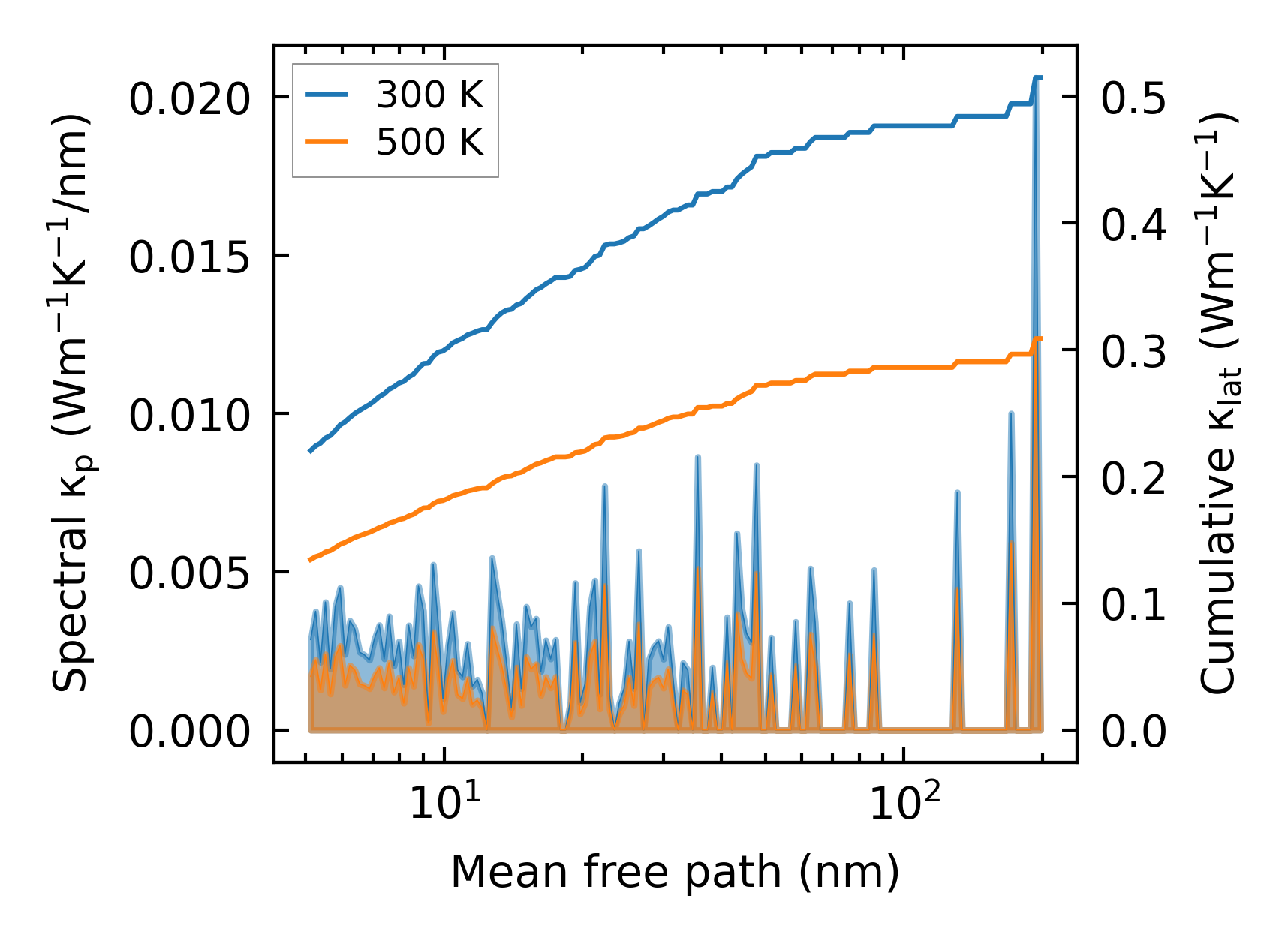

../../_images/fig_cumu_mfp4874.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

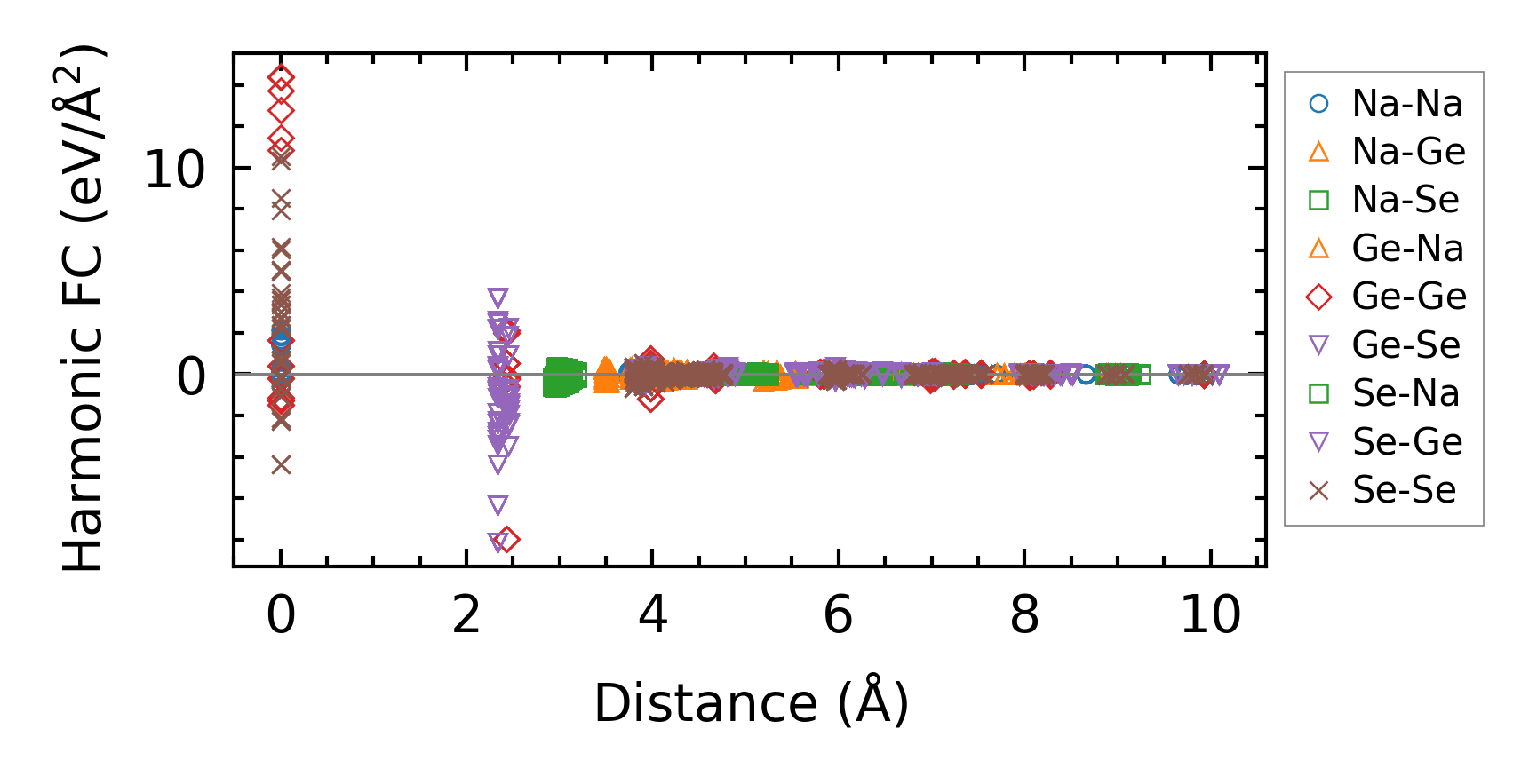

../../_images/fig_fc211528.png — (a) Force constants w.r.t atomic distance

Summary

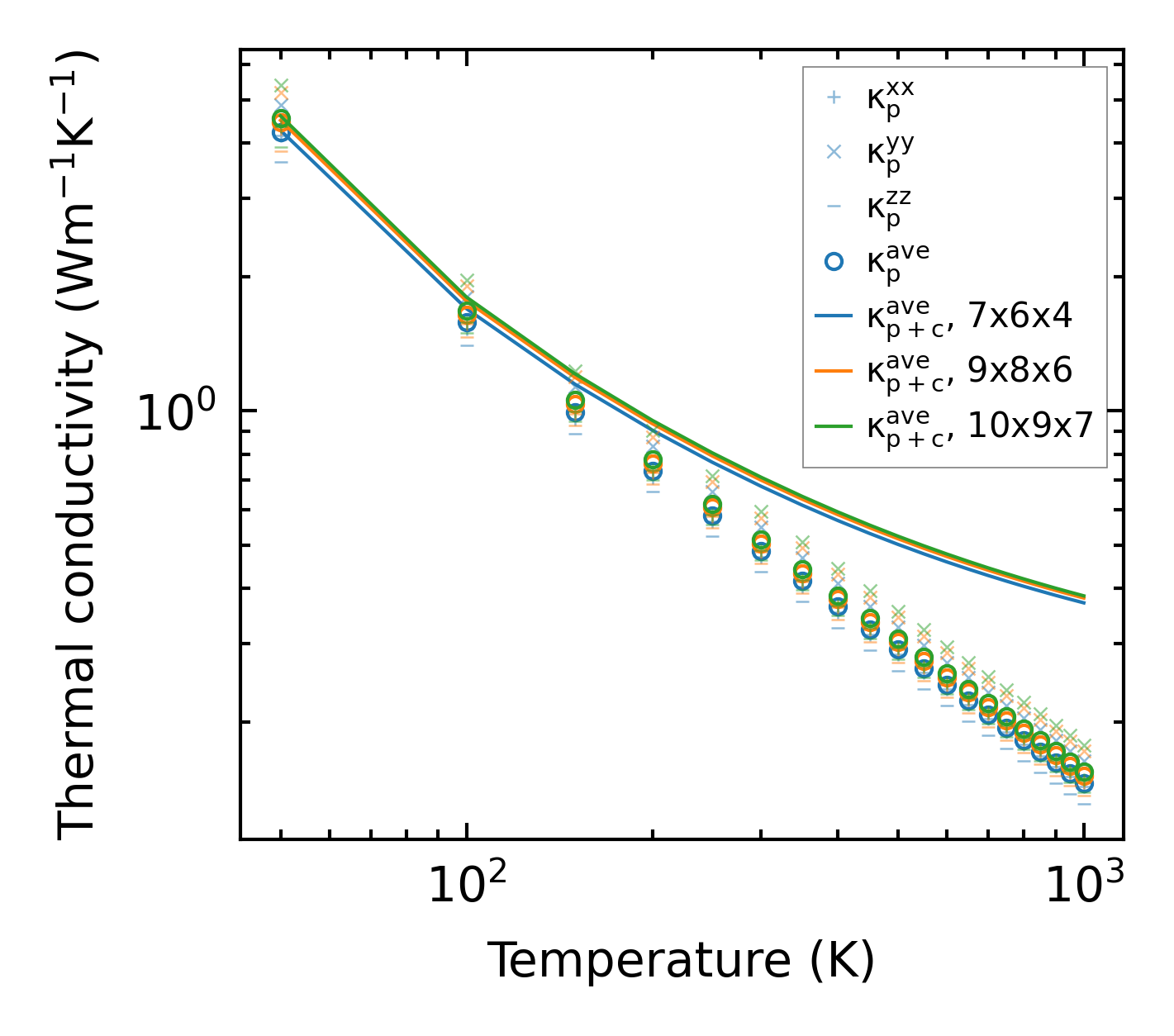

../../_images/fig_kappa9285.png — (a) Temperature-dependent lattice thermal conductivity

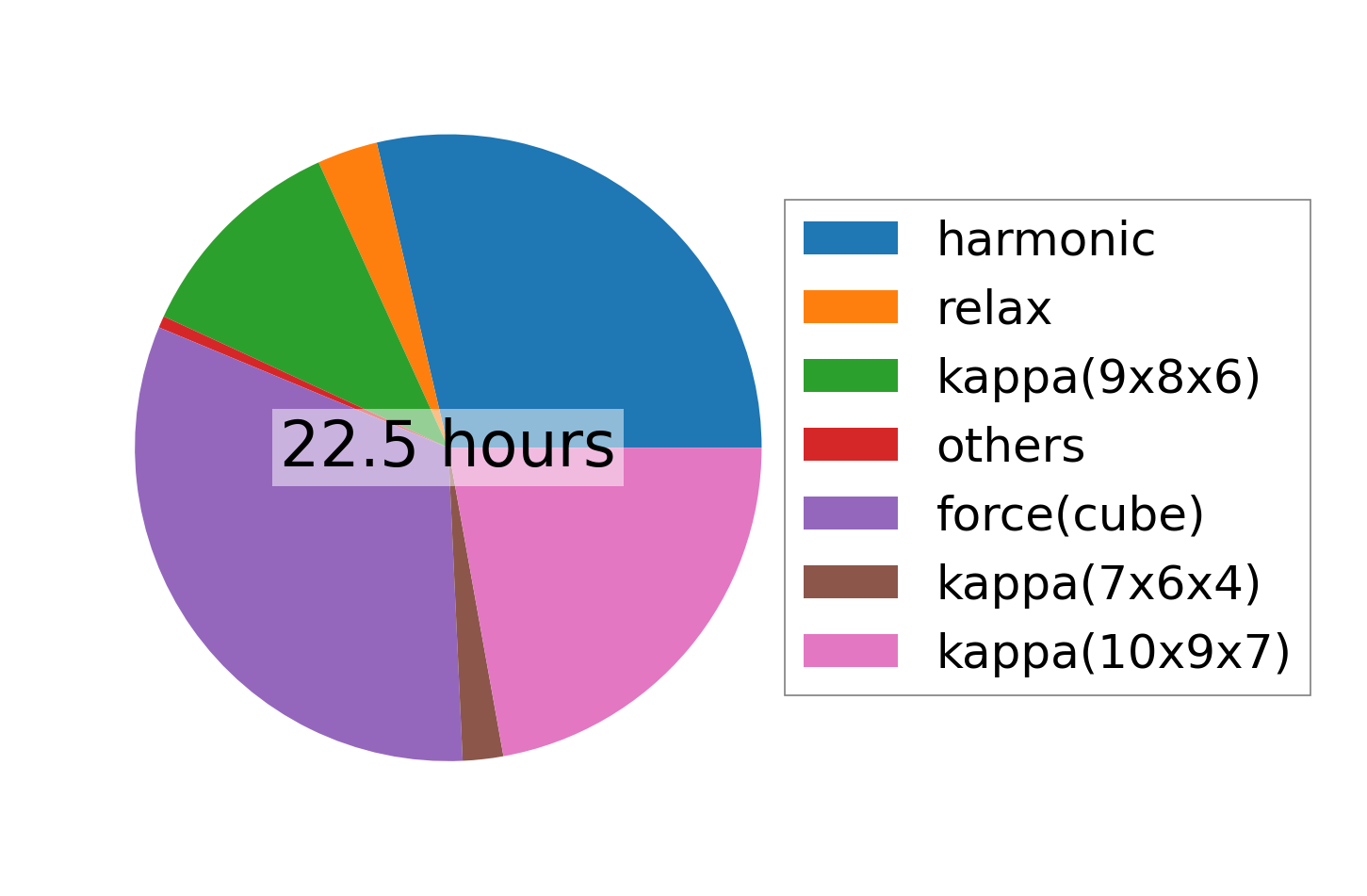

../../_images/fig_times20053.png — (b) Computation time
