mp-28517/Tl6SeI4/anharm

Space group: P4/mnc (128)
Link: Materials Project
Download: mp-28517.tar.gz

Harmonic properties

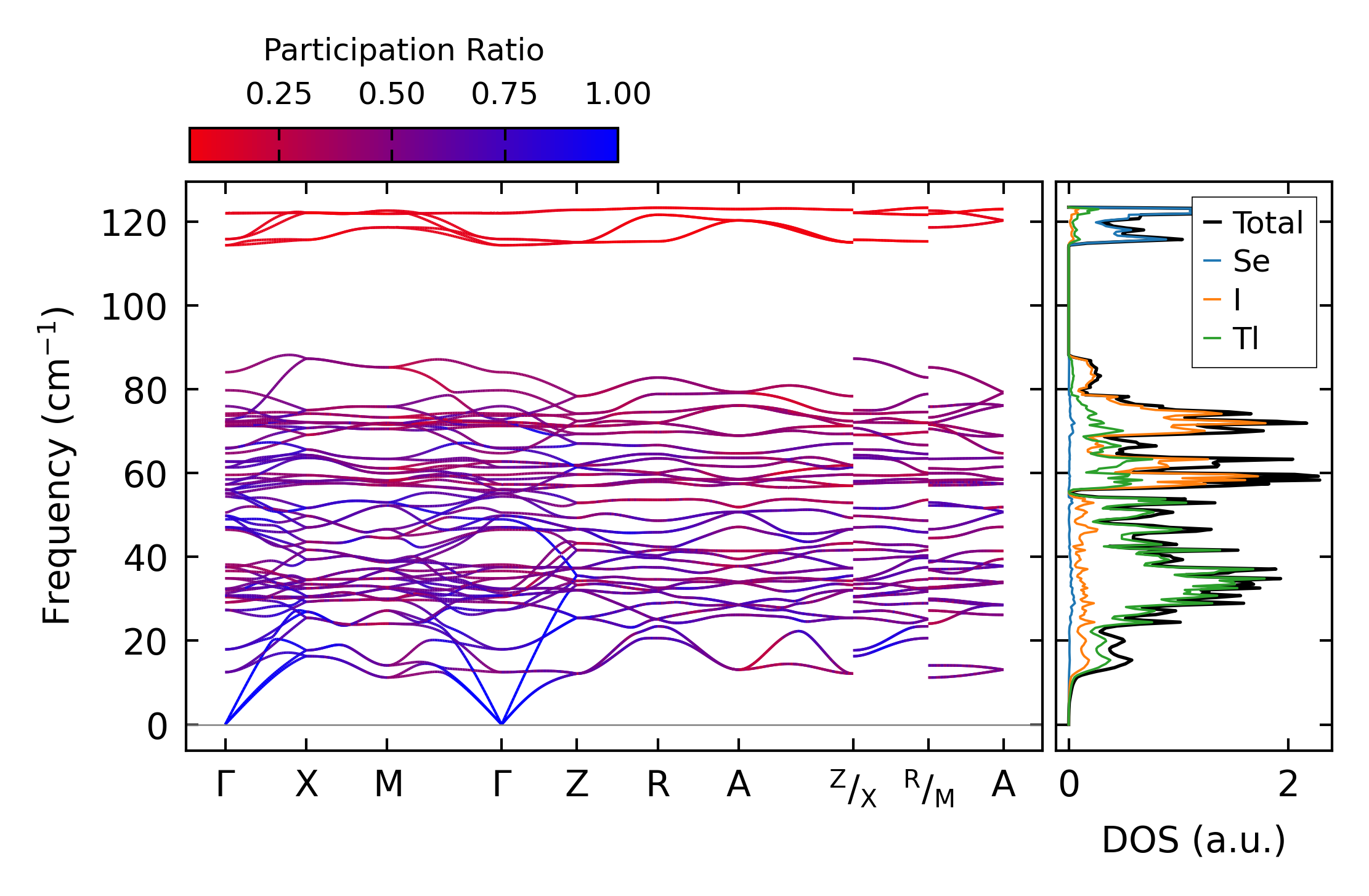

../../_images/fig_bandos_pr11515.png — (a) Phonon dispersion with participation ratio and DOS

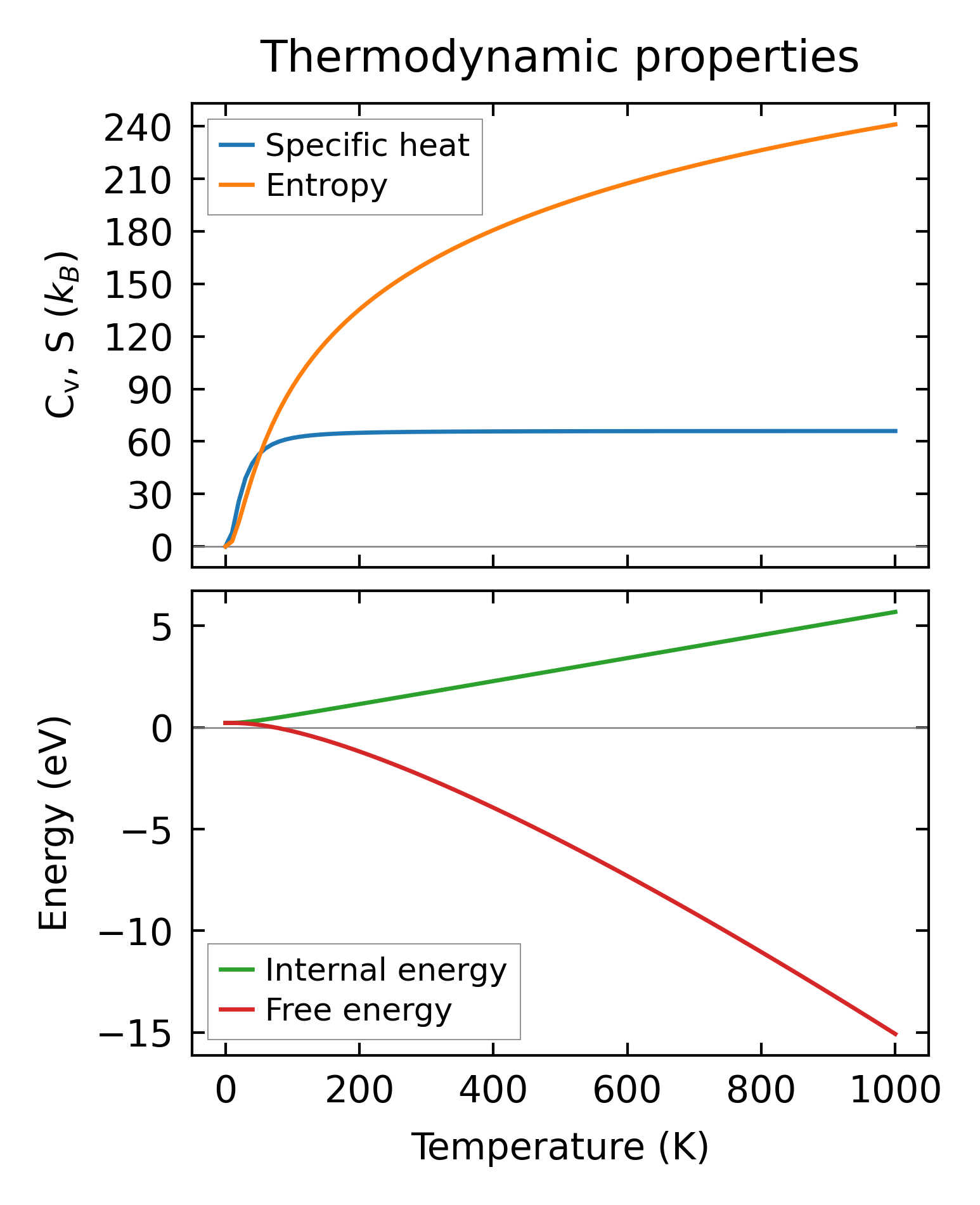

../../_images/fig_thermo11515.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all4771.png — (a) Grüneisen parameters

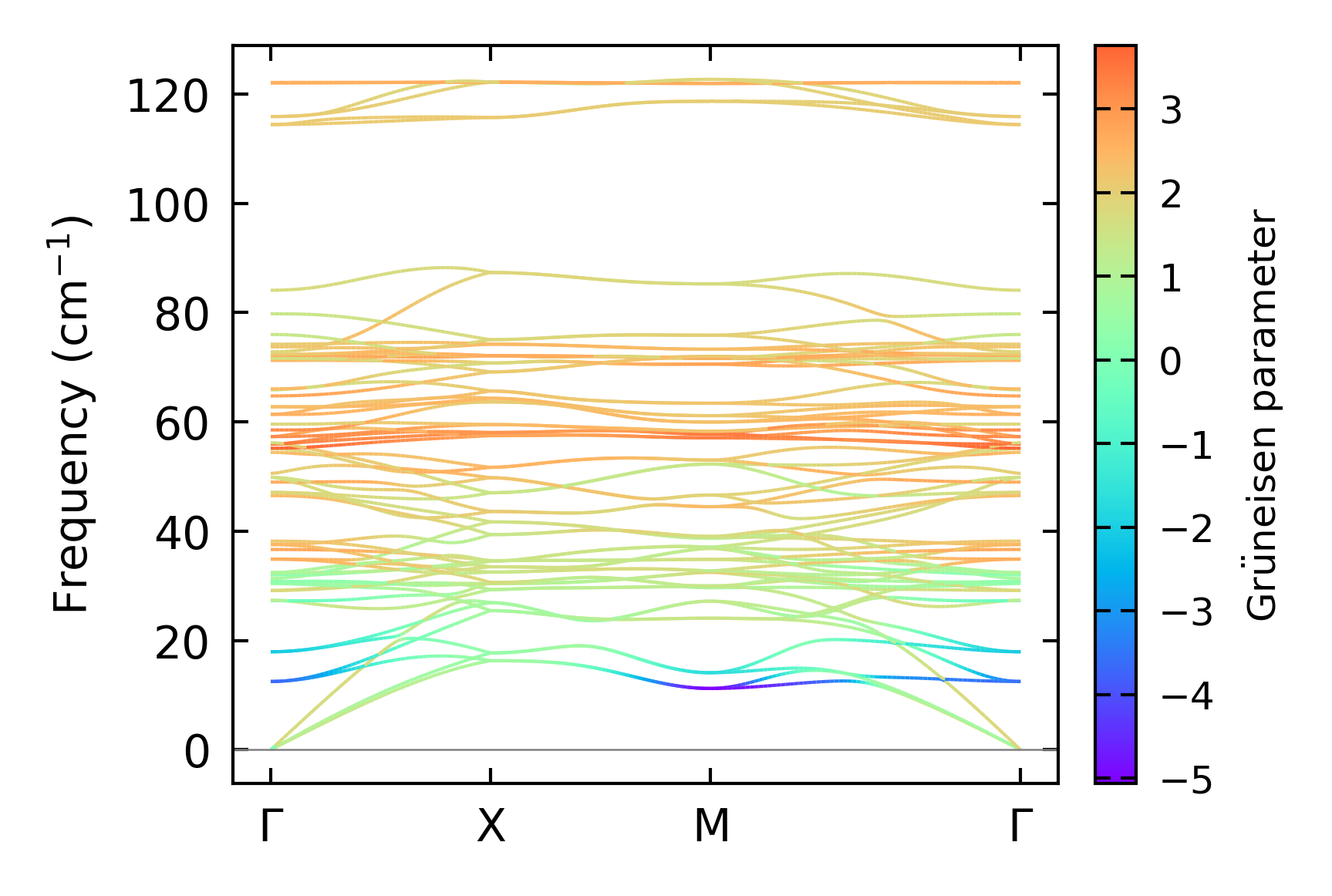

../../_images/fig_gruneisen4771.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 8x8x7, supercell: 2x2x1

../../_images/fig_kappa9004.png — (a) Temperature-dependent lattice thermal conductivity

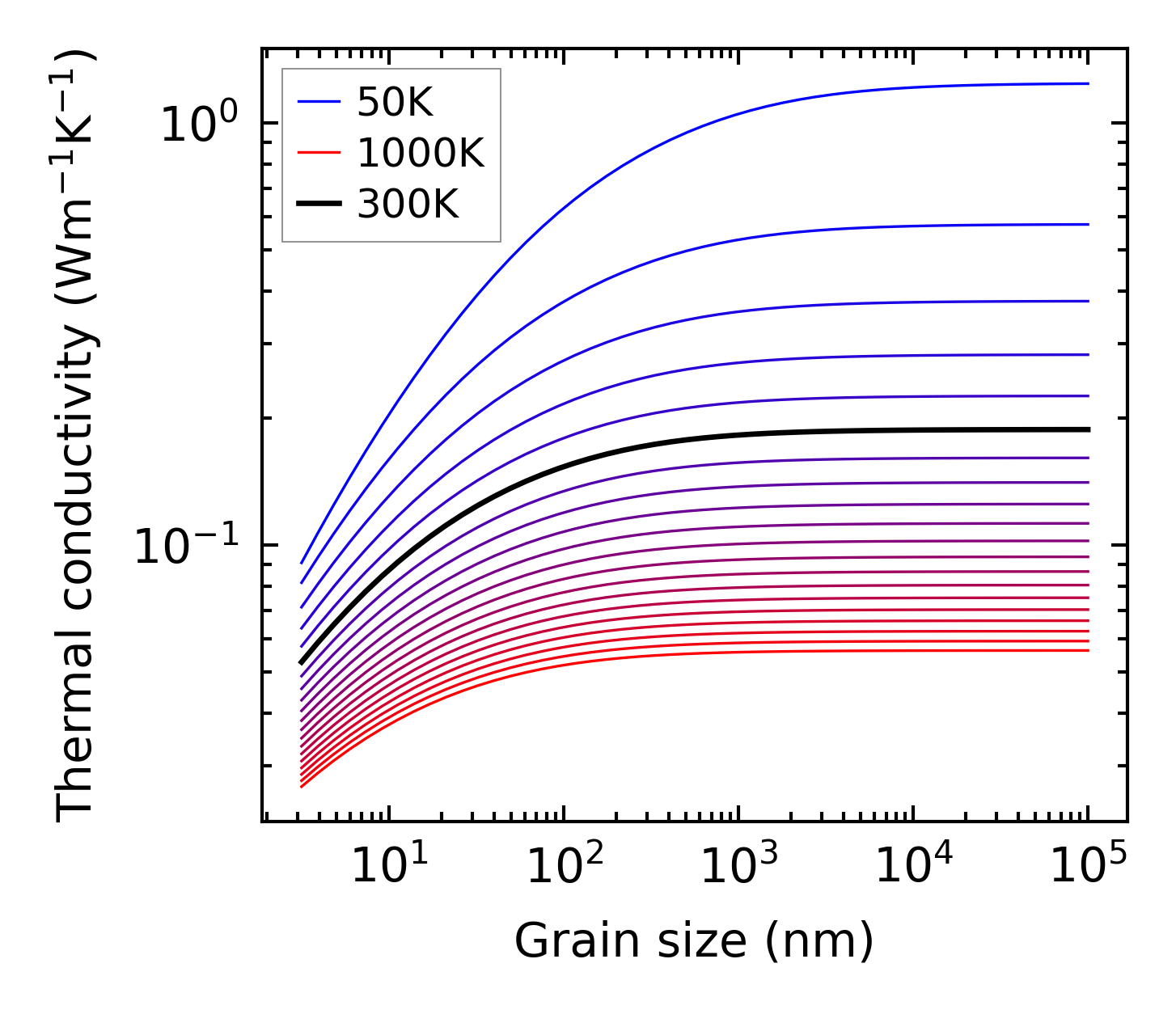

../../_images/fig_kappa_vs_grain_size4830.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime4726.png — (a) Phonon lifetime due to phonon-phonon scattering

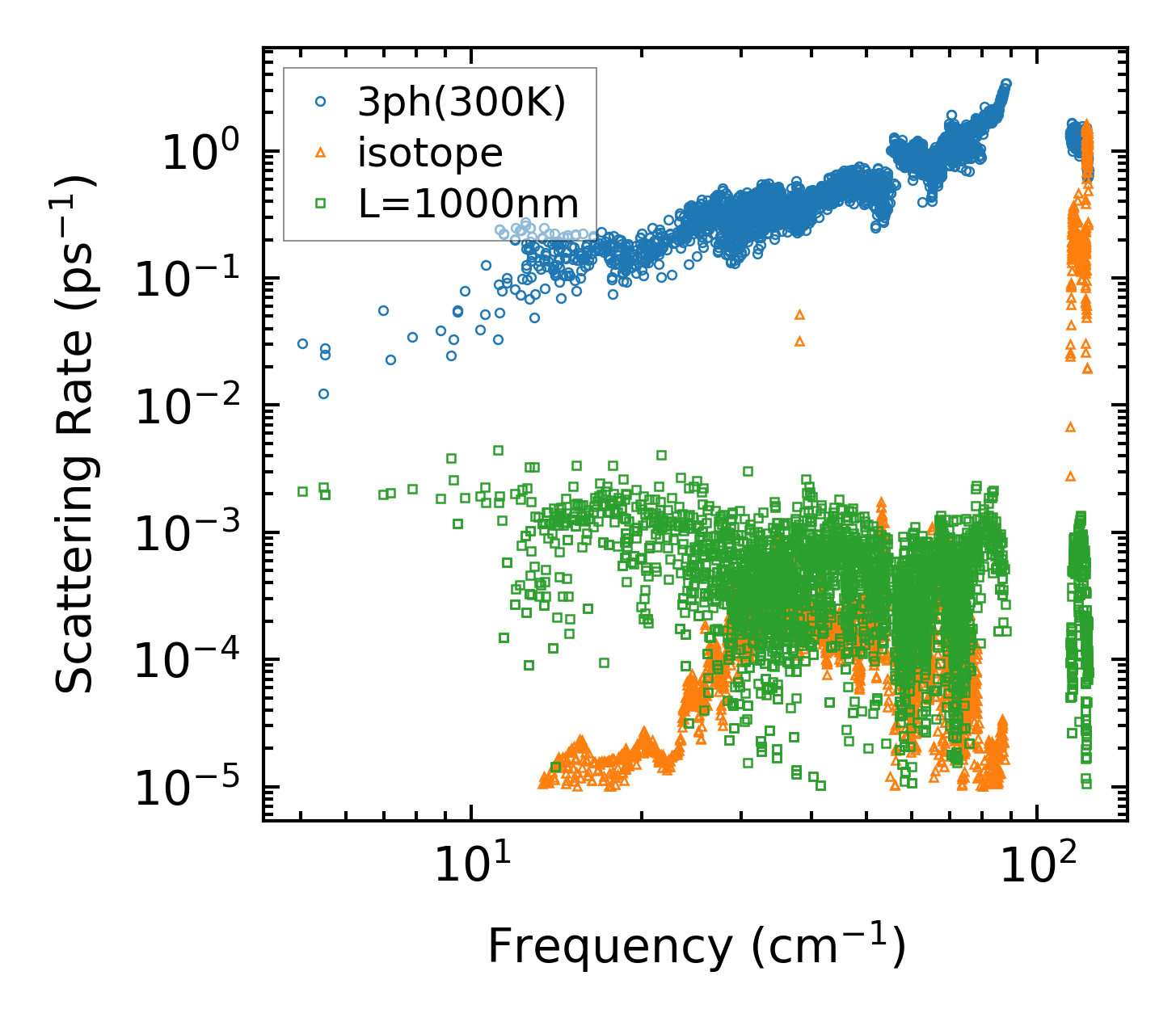

../../_images/fig_scat_rates4725.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

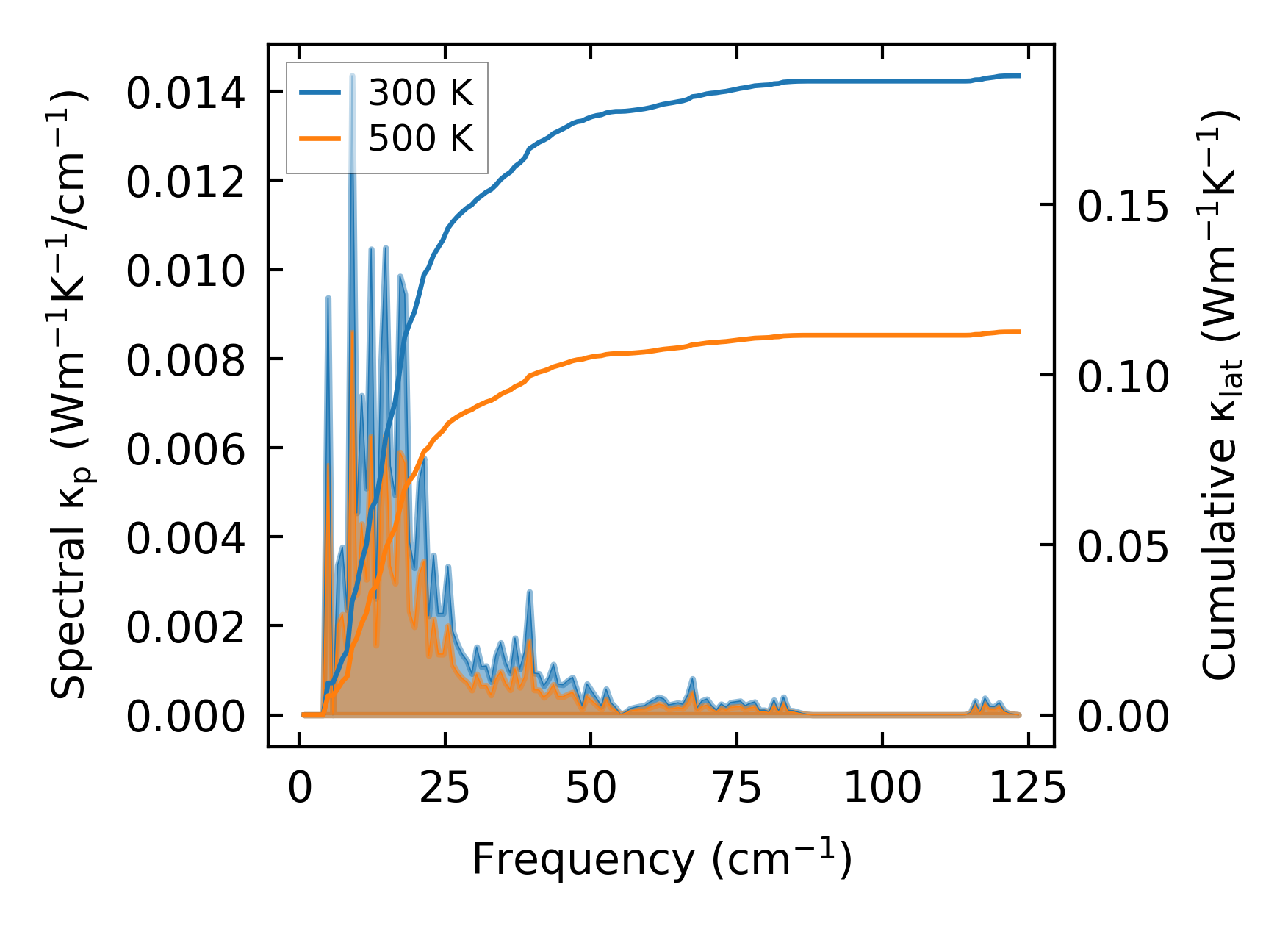

../../_images/fig_cumu_frequency4726.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp4725.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

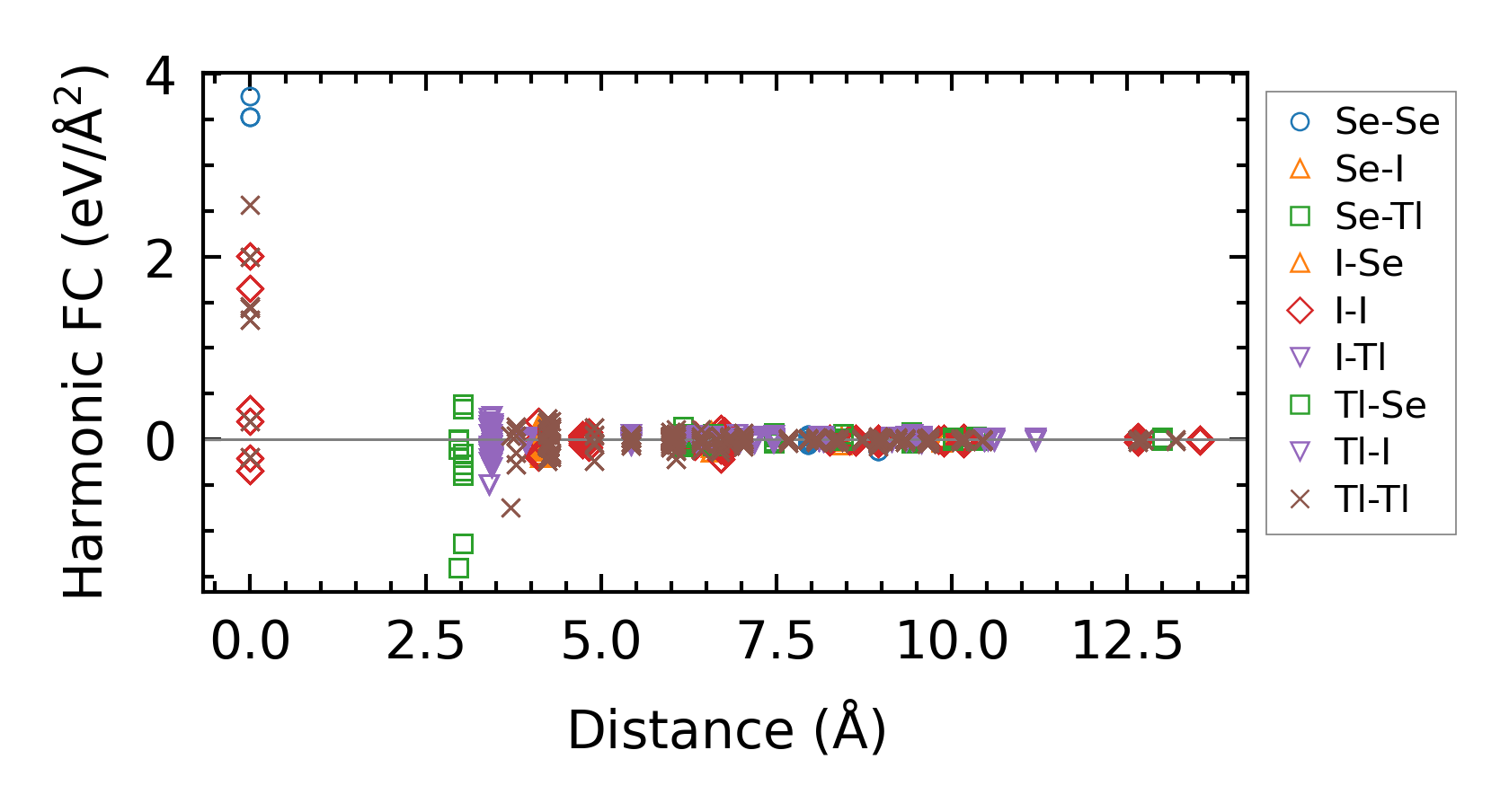

../../_images/fig_fc211230.png — (a) Force constants w.r.t atomic distance

Summary

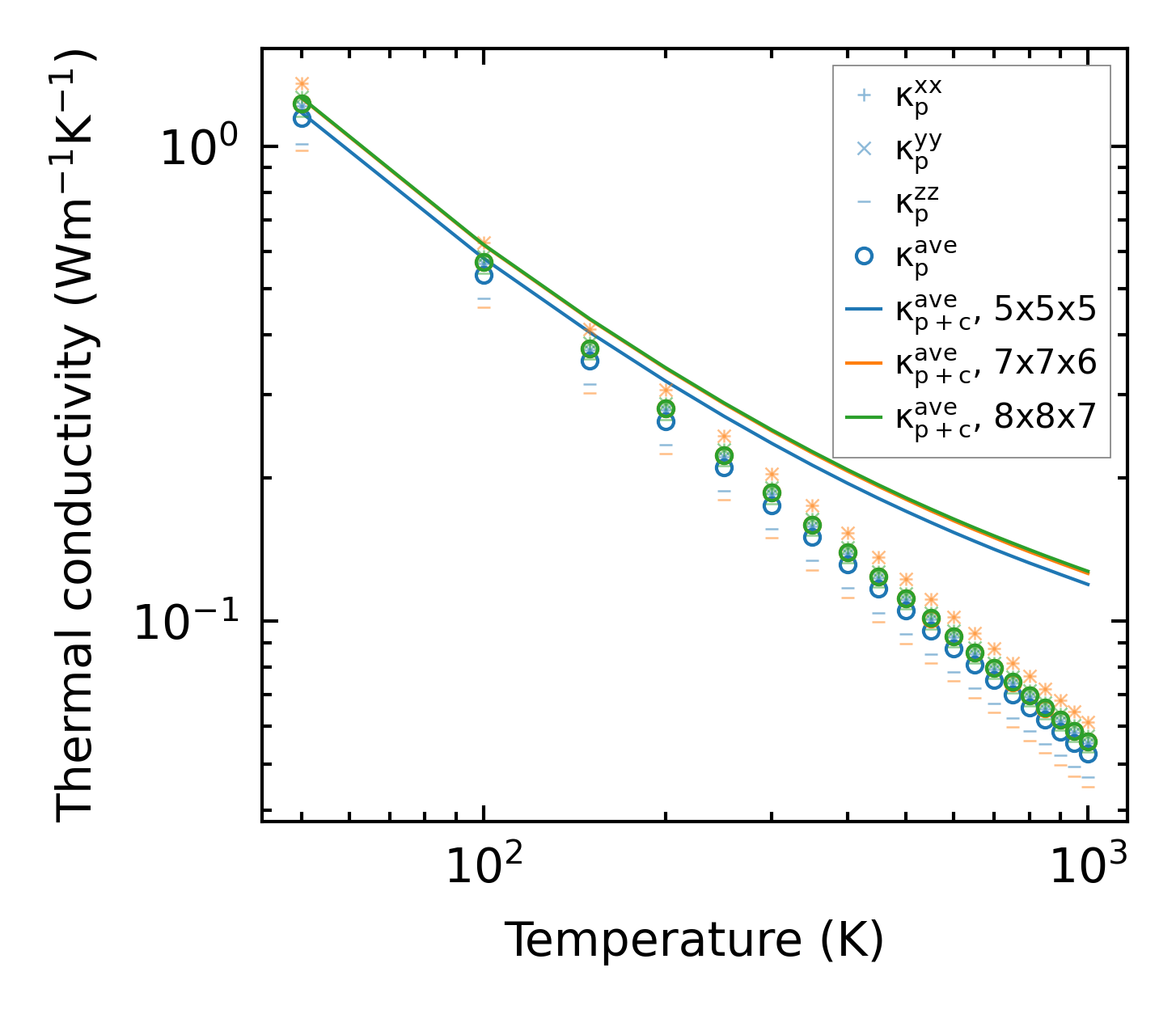

../../_images/fig_kappa9005.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times19622.png — (b) Computation time
