mp-28701/CsSbS6/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-28701.tar.gz

Harmonic properties

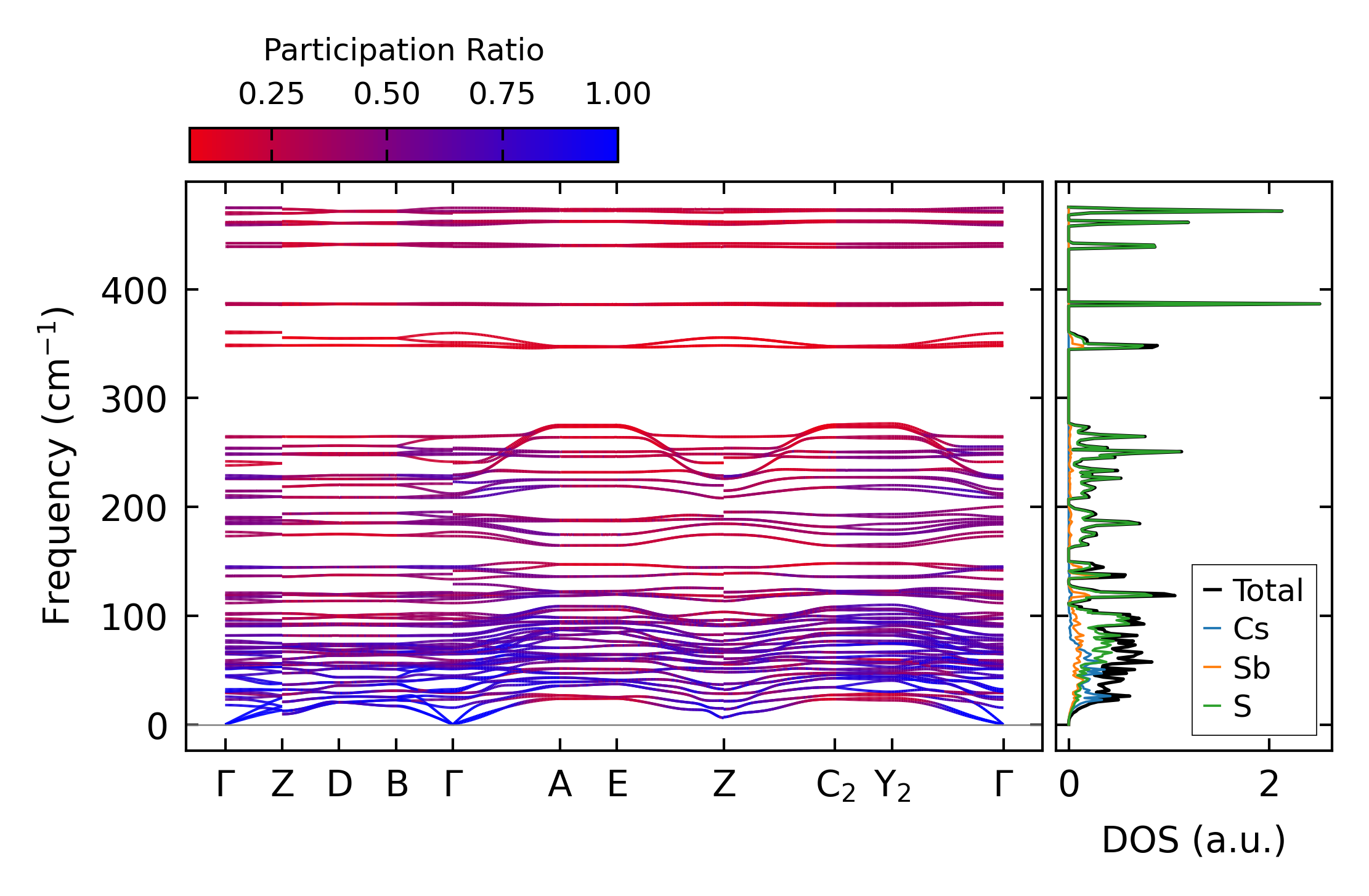

../../_images/fig_bandos_pr11594.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo11594.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all4823.png — (a) Grüneisen parameters

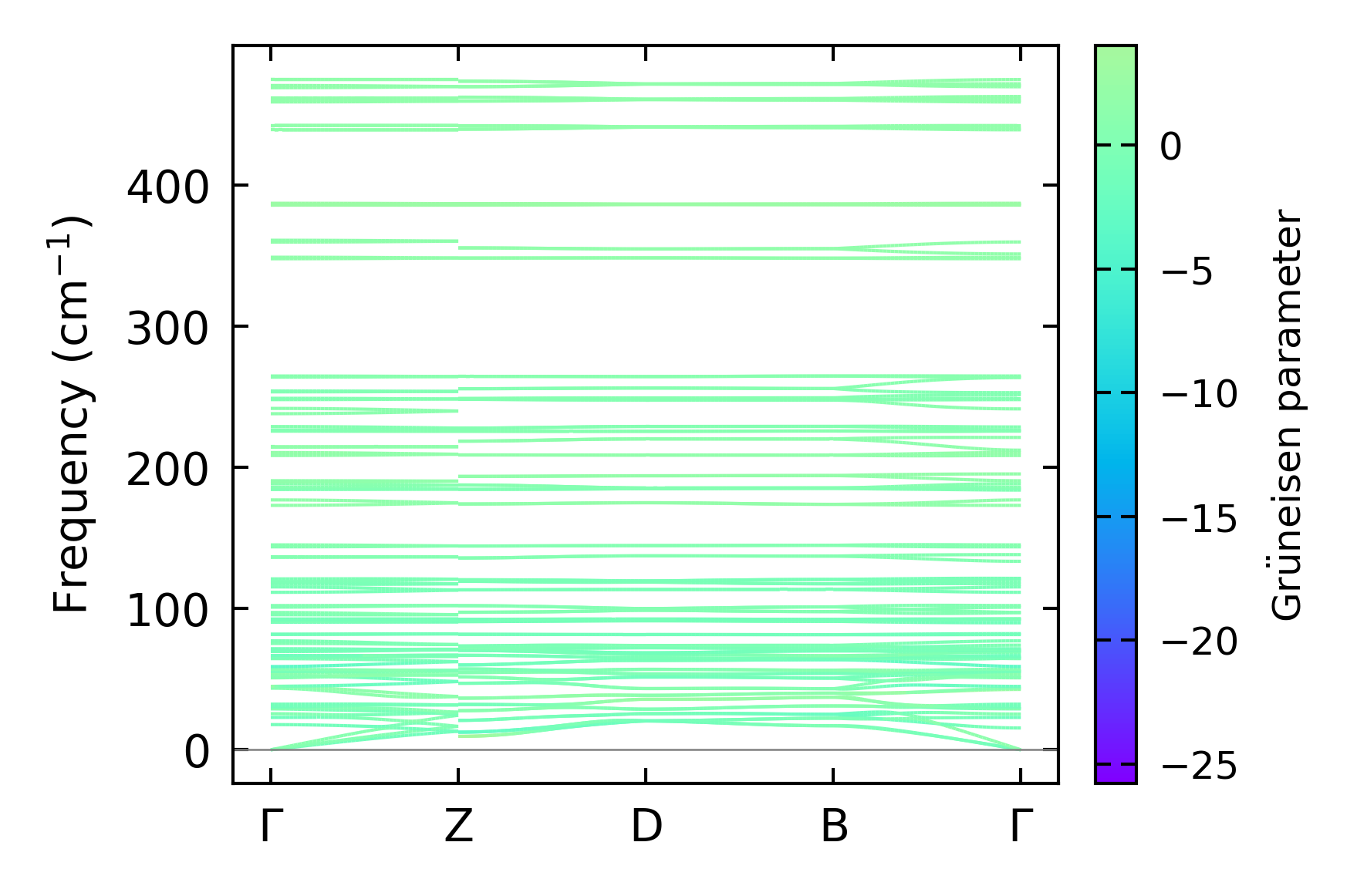

../../_images/fig_gruneisen4823.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x5x6, supercell: 2x1x2

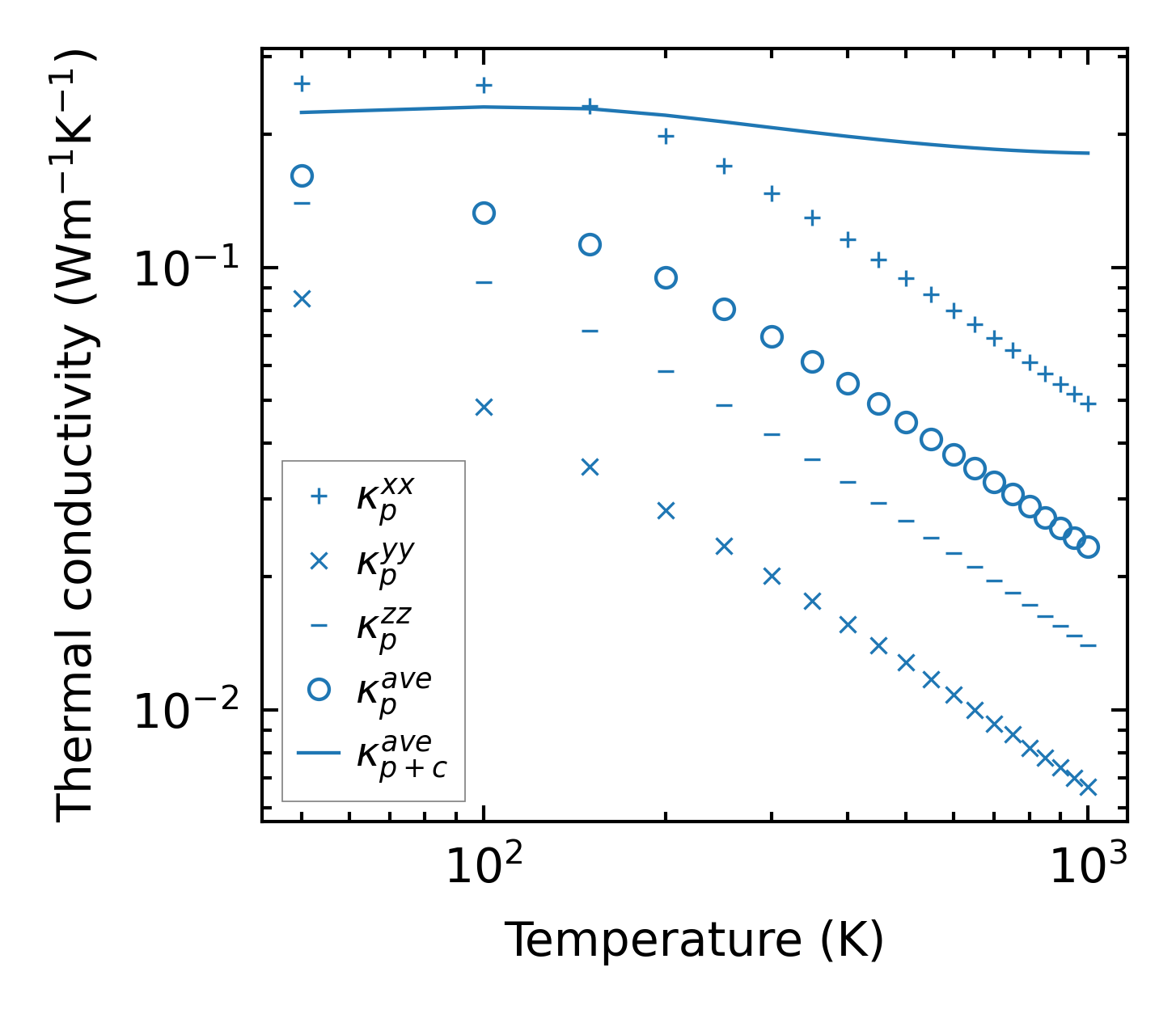

../../_images/fig_kappa9097.png — (a) Temperature-dependent lattice thermal conductivity

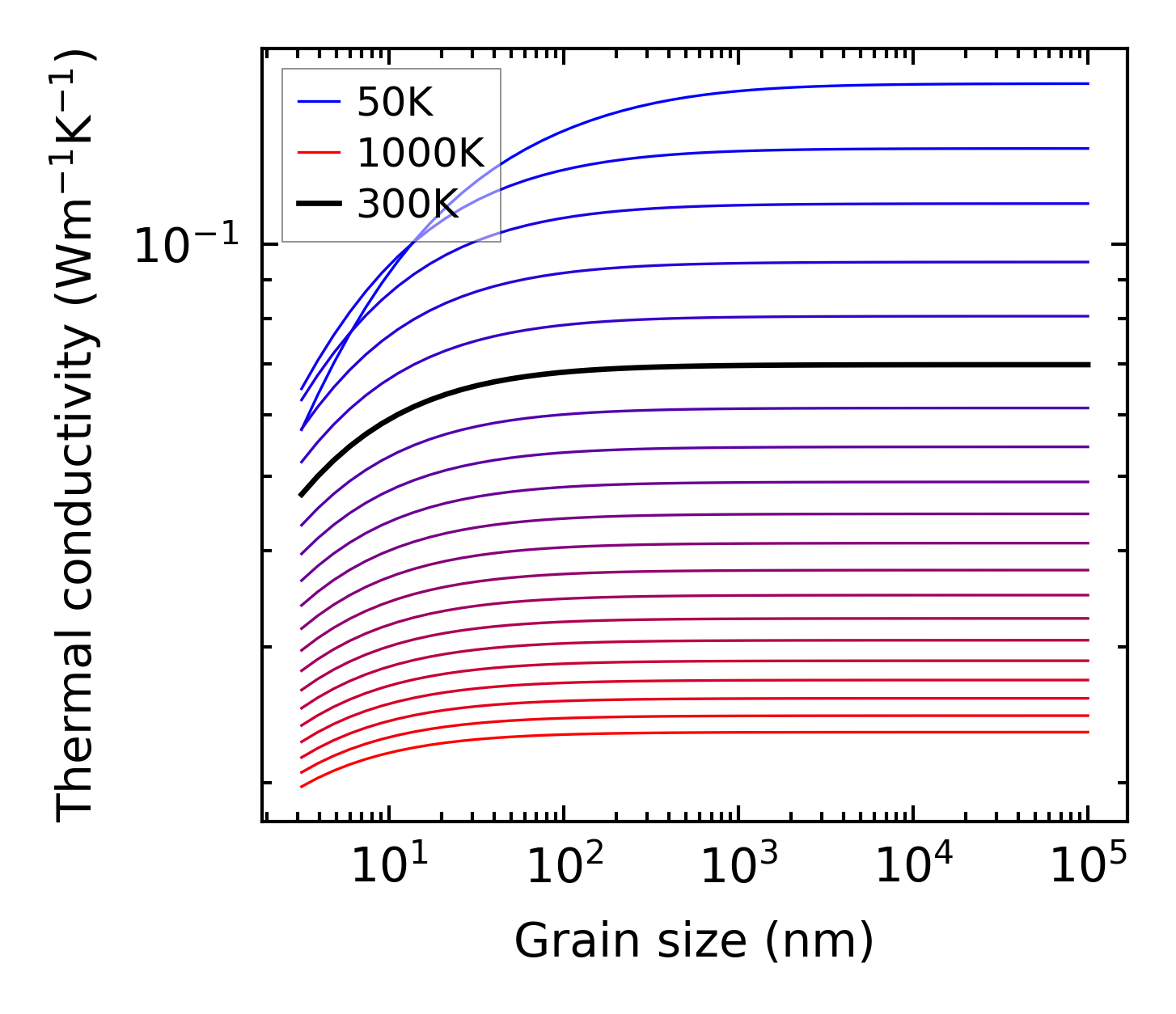

../../_images/fig_kappa_vs_grain_size4881.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime4776.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates4775.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

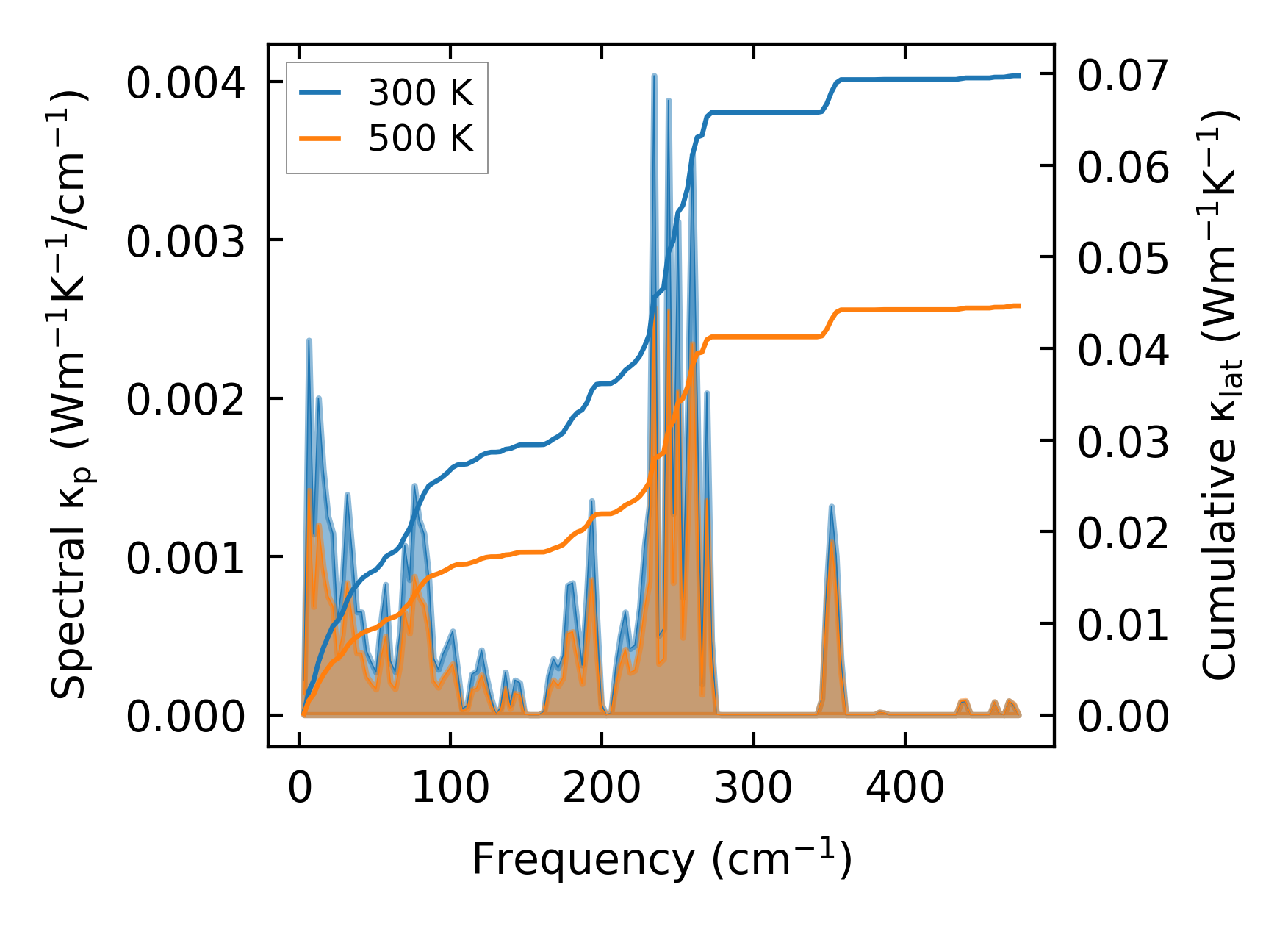

../../_images/fig_cumu_frequency4776.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

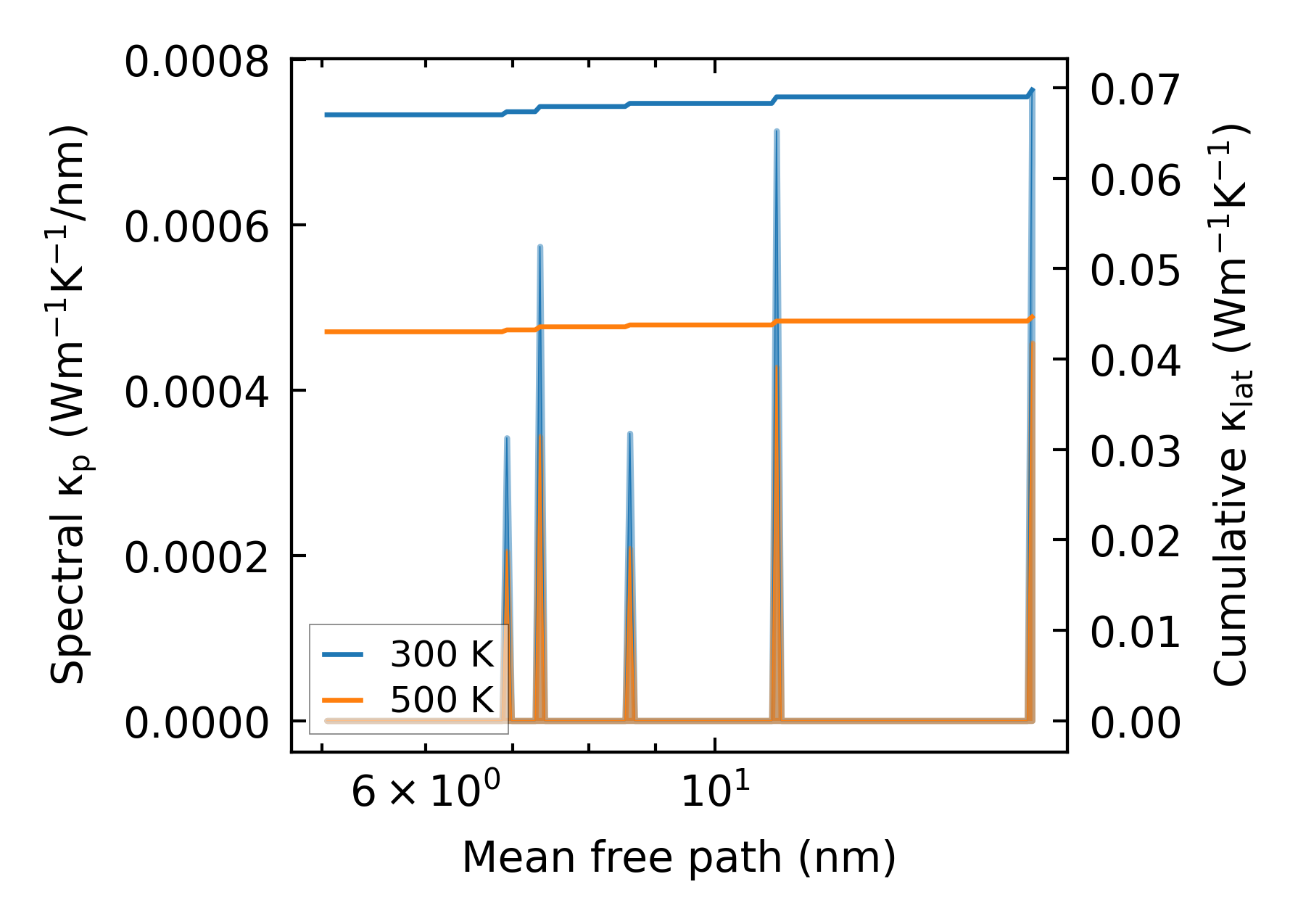

../../_images/fig_cumu_mfp4775.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

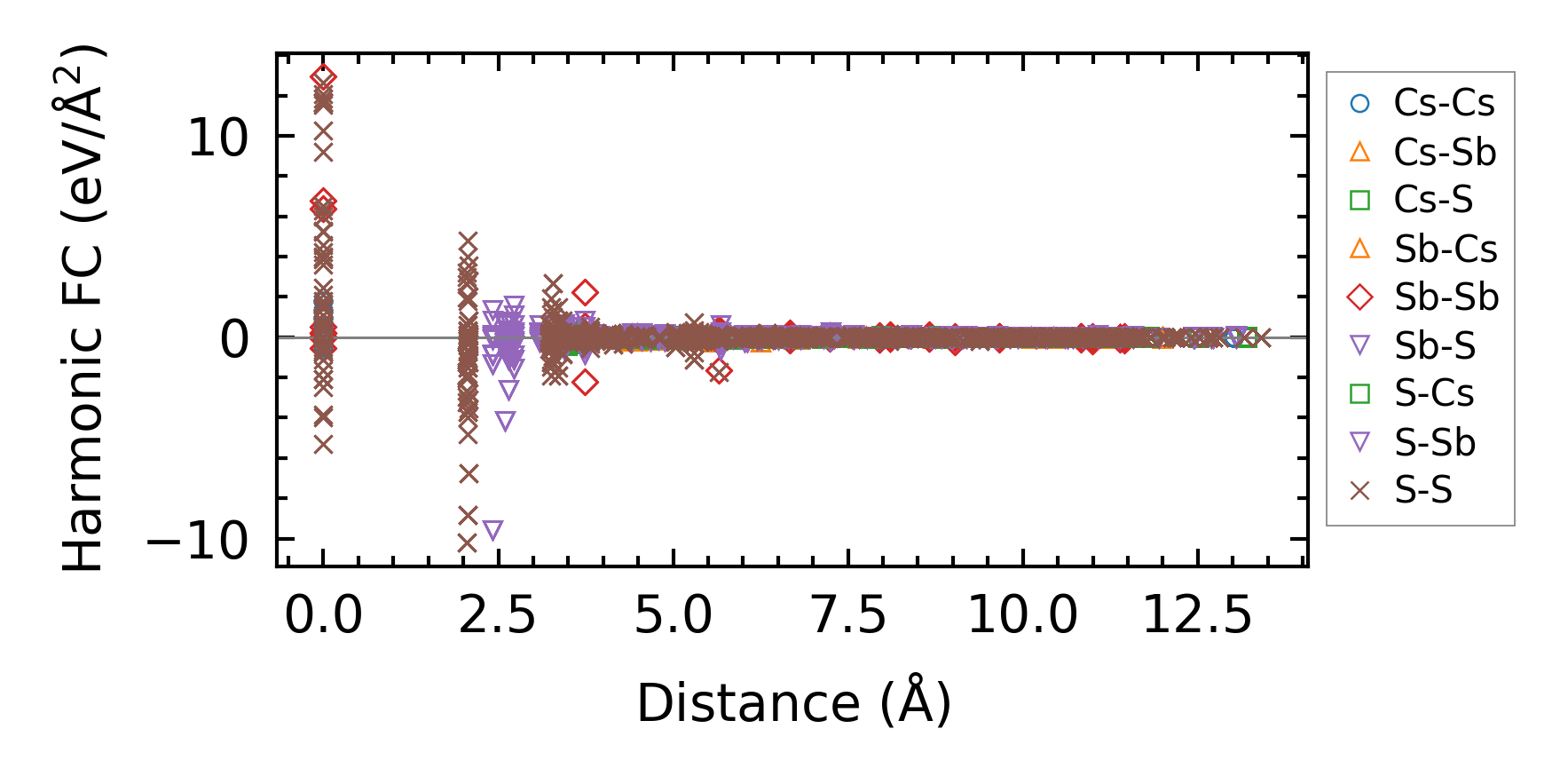

../../_images/fig_fc211306.png — (a) Force constants w.r.t atomic distance

Summary

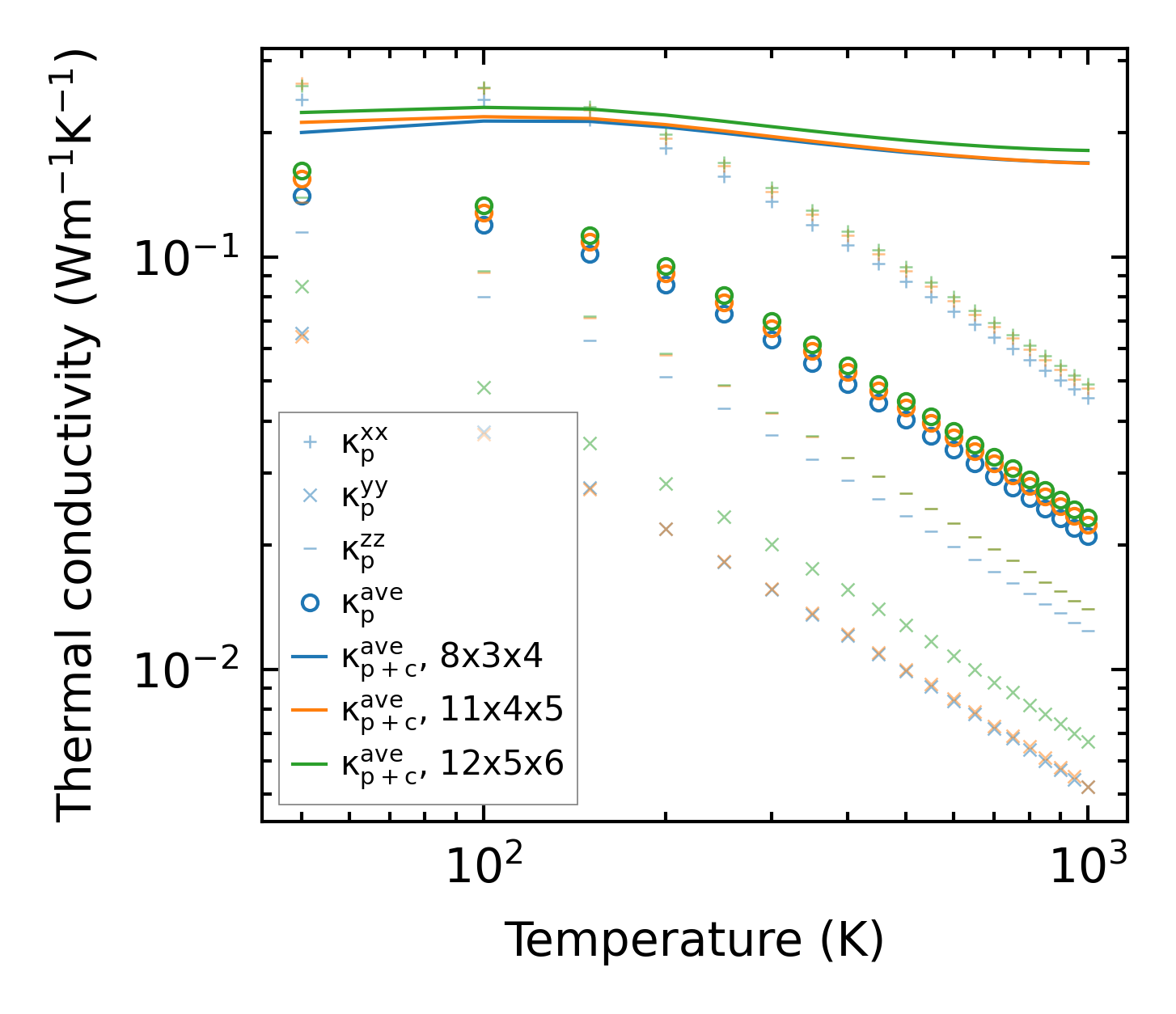

../../_images/fig_kappa9098.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times19738.png — (b) Computation time
