mp-28252/Ba5Ga2S8/anharm

Space group: Cmce (64)
Link: Materials Project
Download: mp-28252.tar.gz

Harmonic properties

../../_images/fig_bandos_pr11773.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo11773.png — (b) Thermodynamic properties

Grüneisen parameters

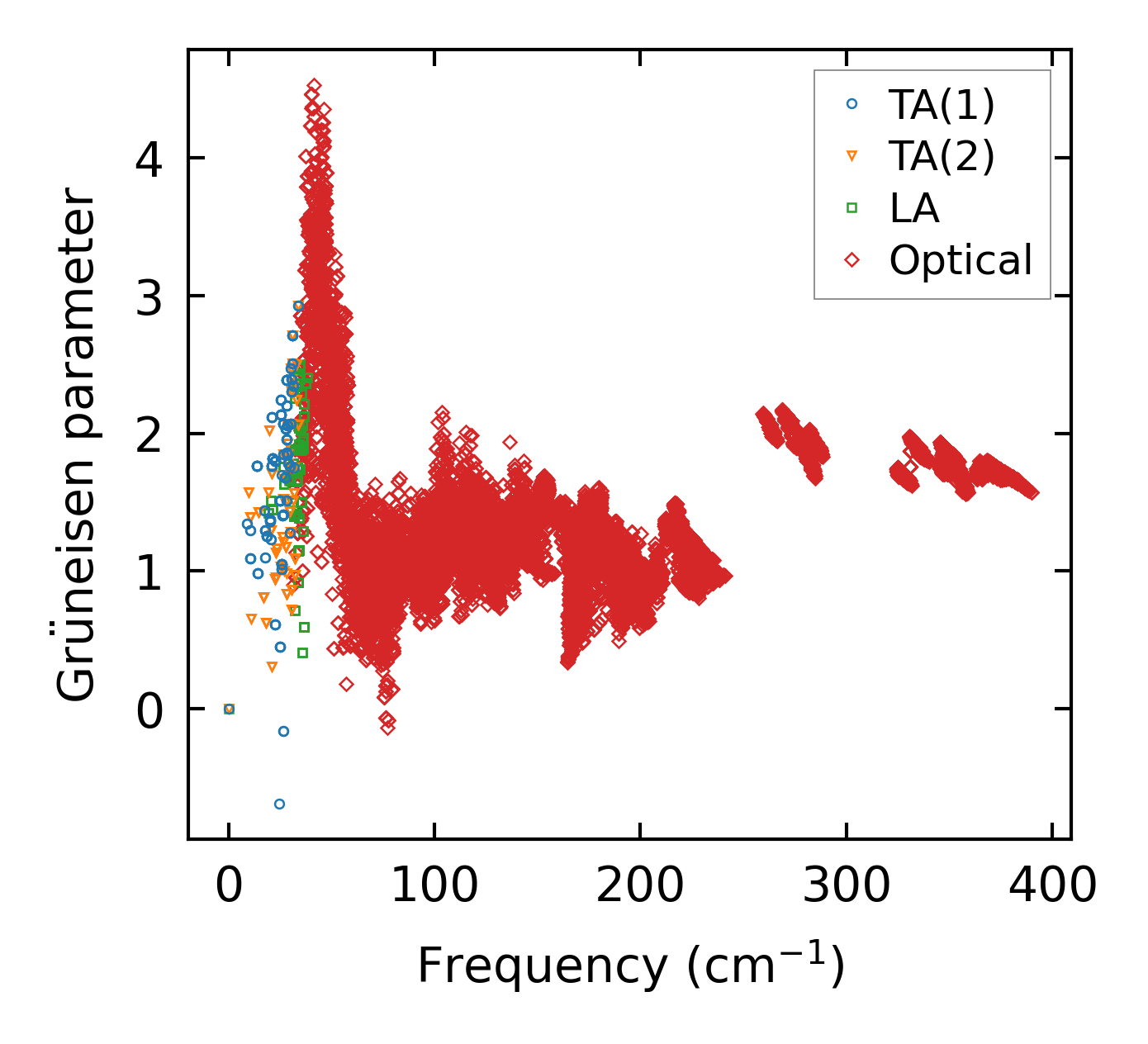

../../_images/fig_gru_all4903.png — (a) Grüneisen parameters

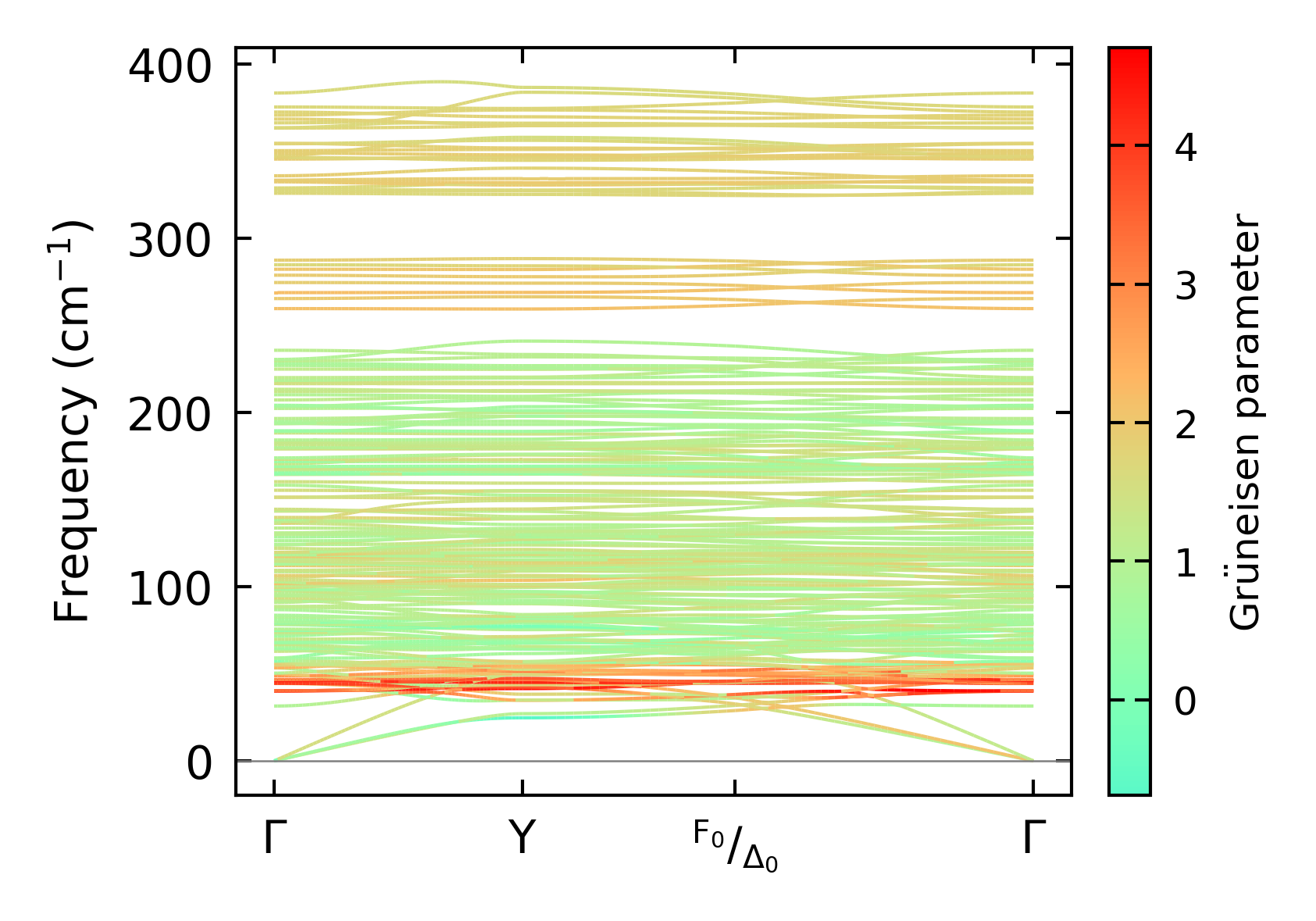

../../_images/fig_gruneisen4903.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 6x6x6, supercell: 1x1x1

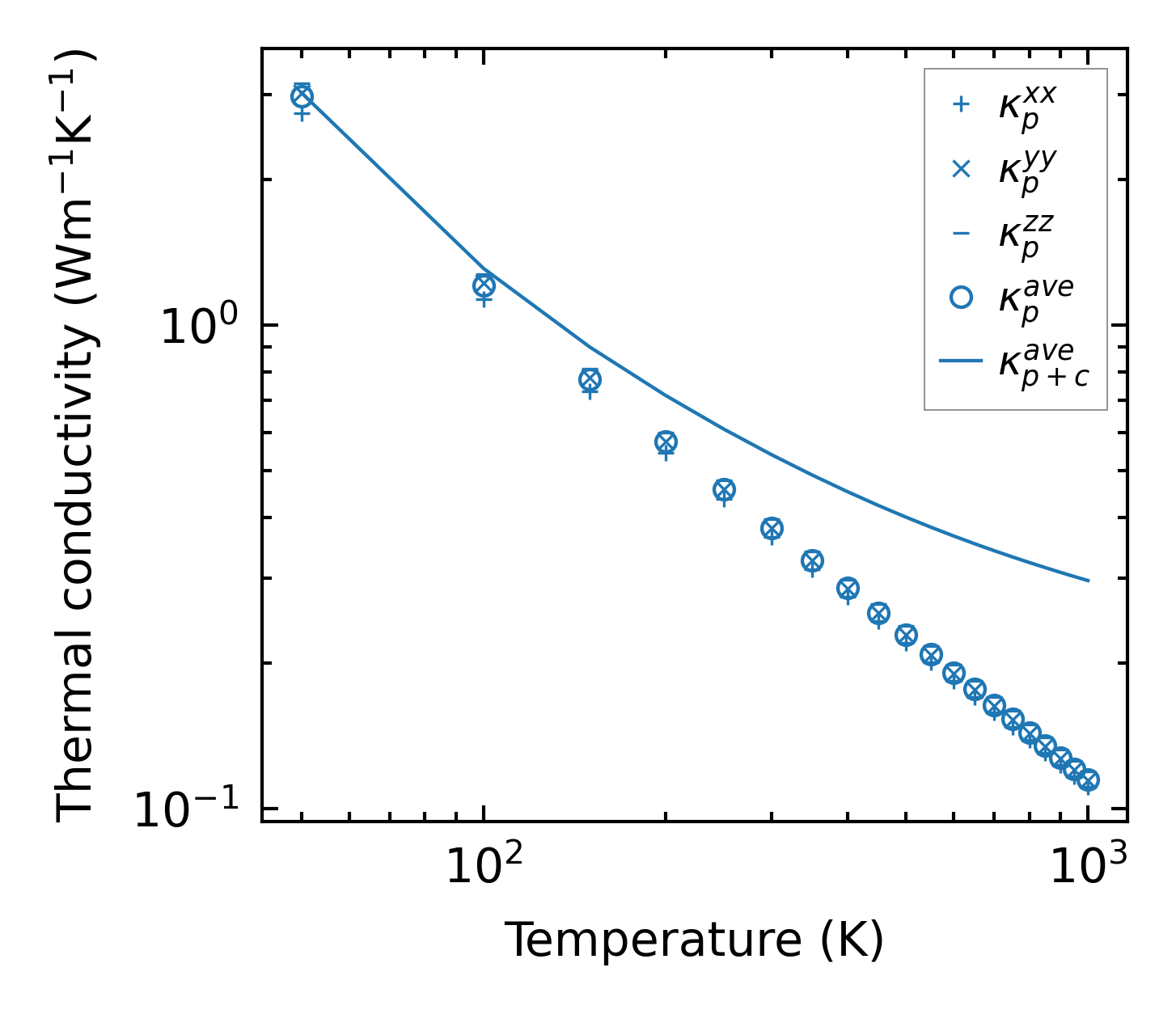

../../_images/fig_kappa9241.png — (a) Temperature-dependent lattice thermal conductivity

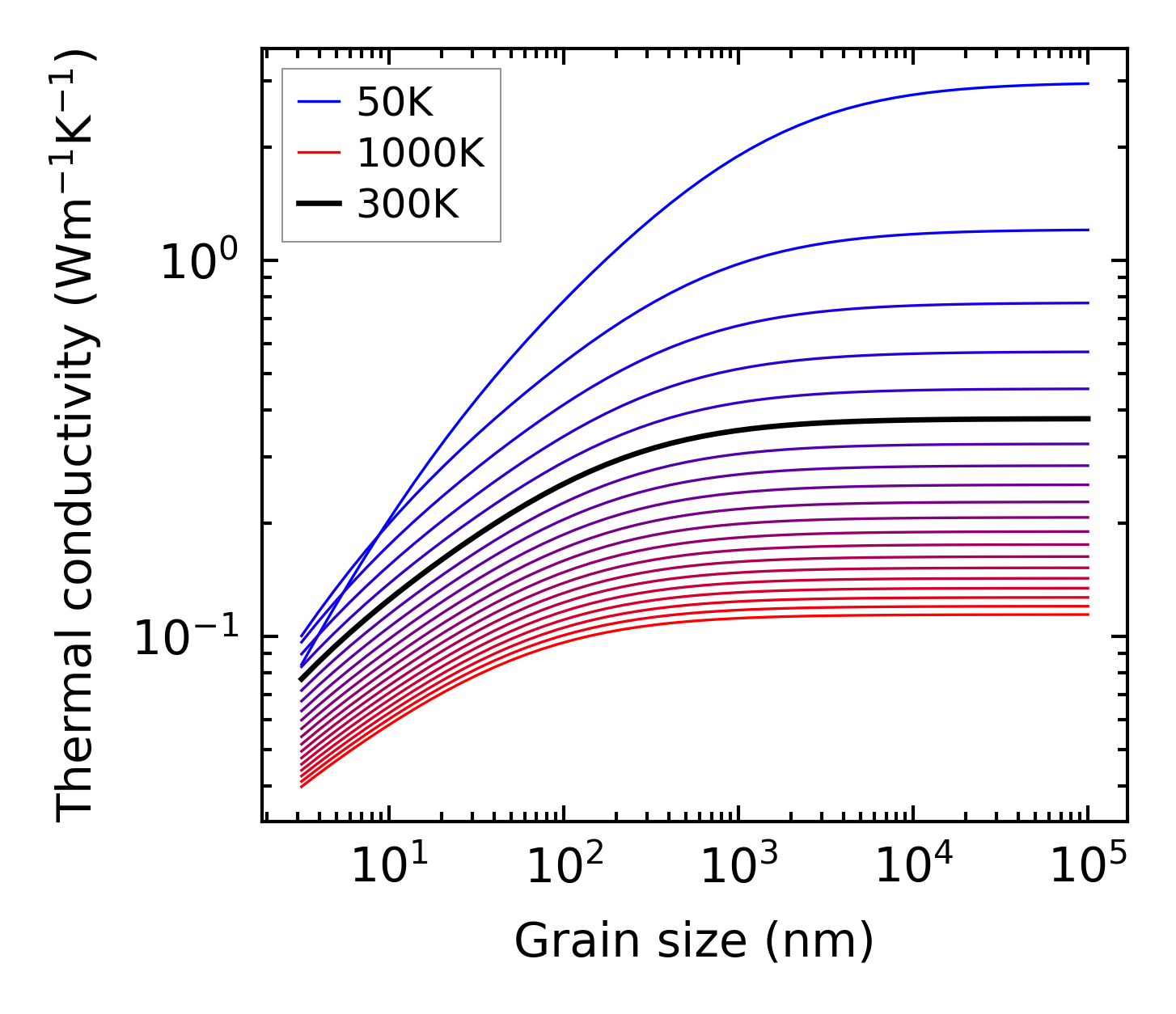

../../_images/fig_kappa_vs_grain_size4960.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

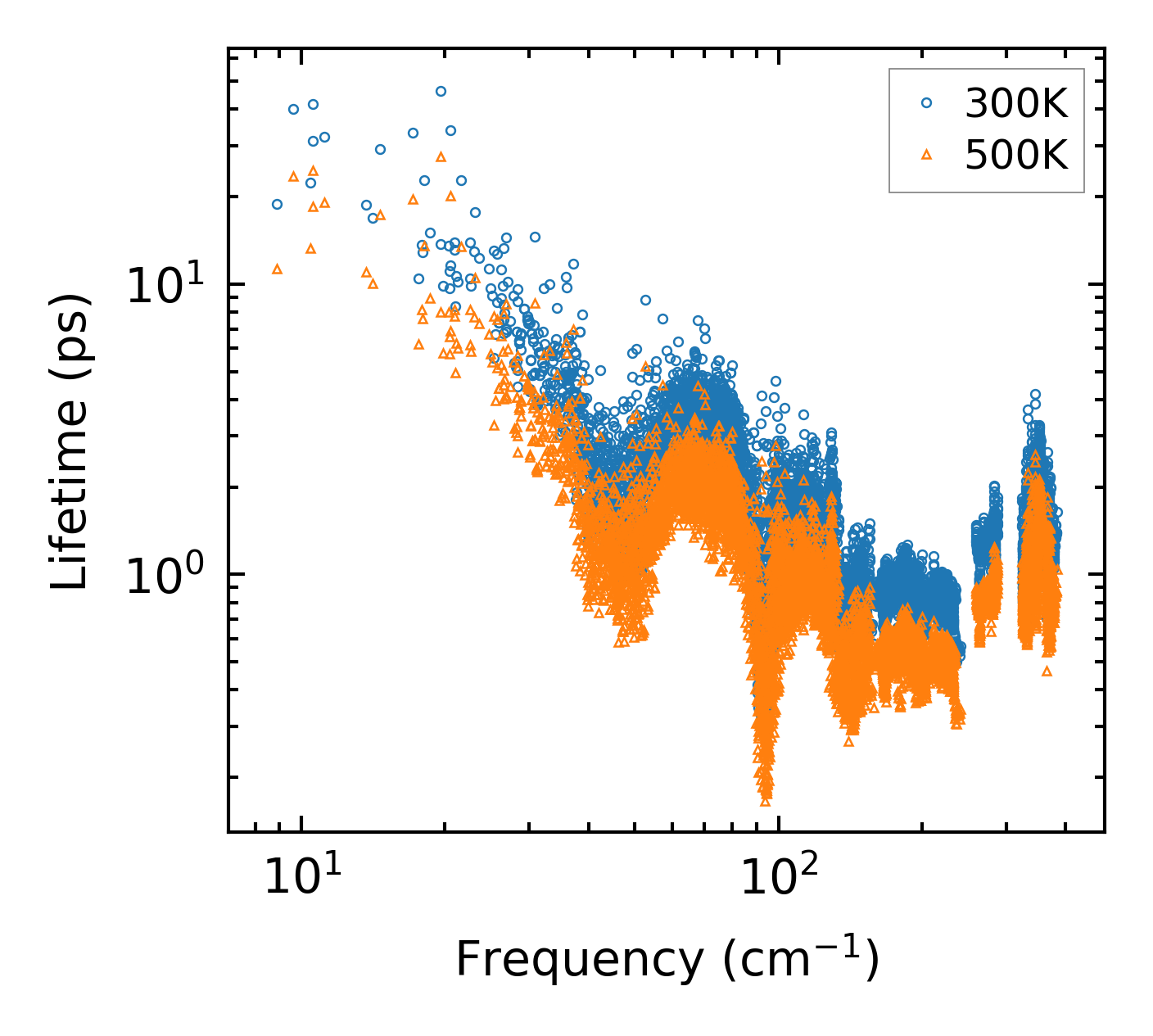

../../_images/fig_lifetime4854.png — (a) Phonon lifetime due to phonon-phonon scattering

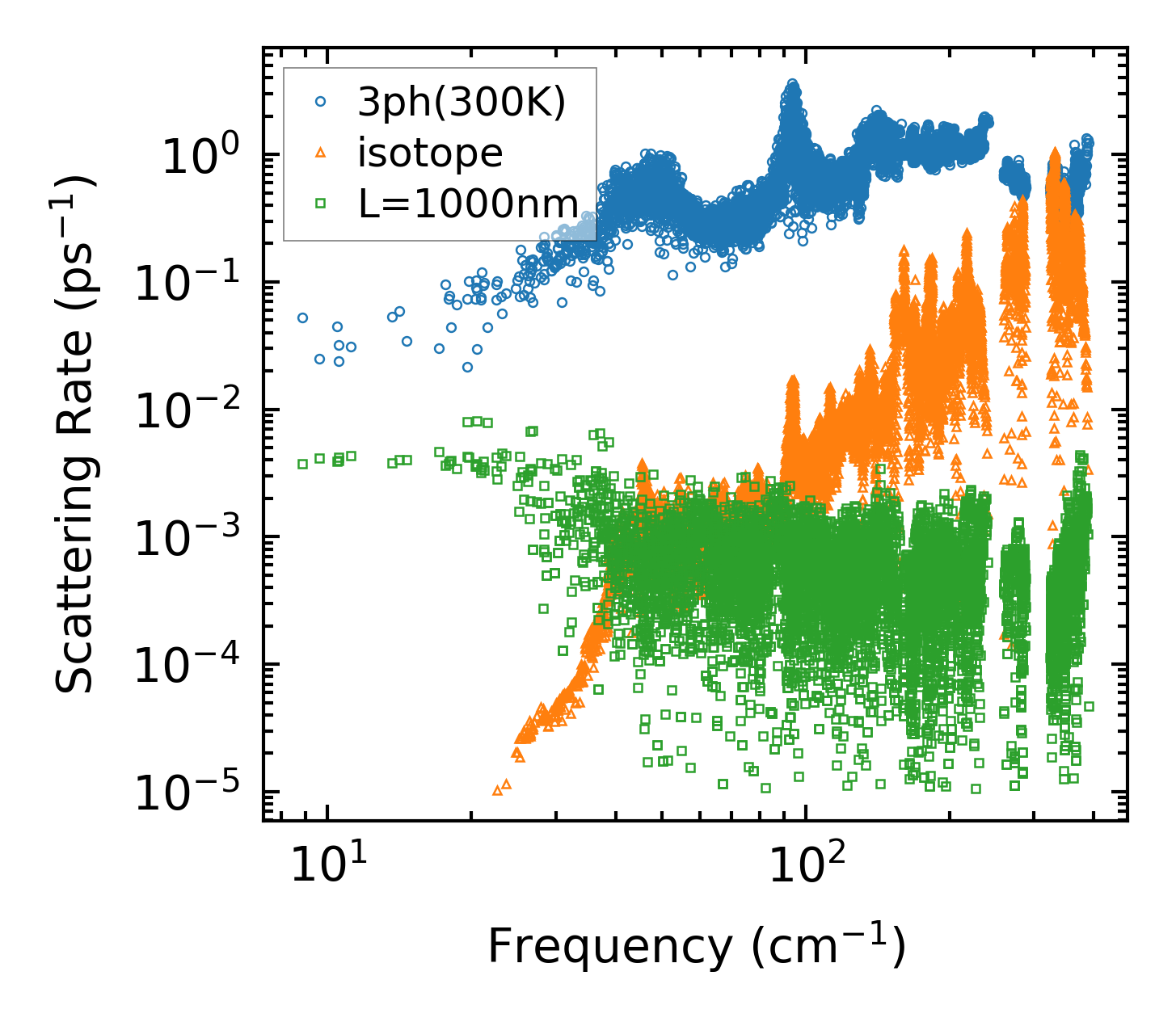

../../_images/fig_scat_rates4853.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

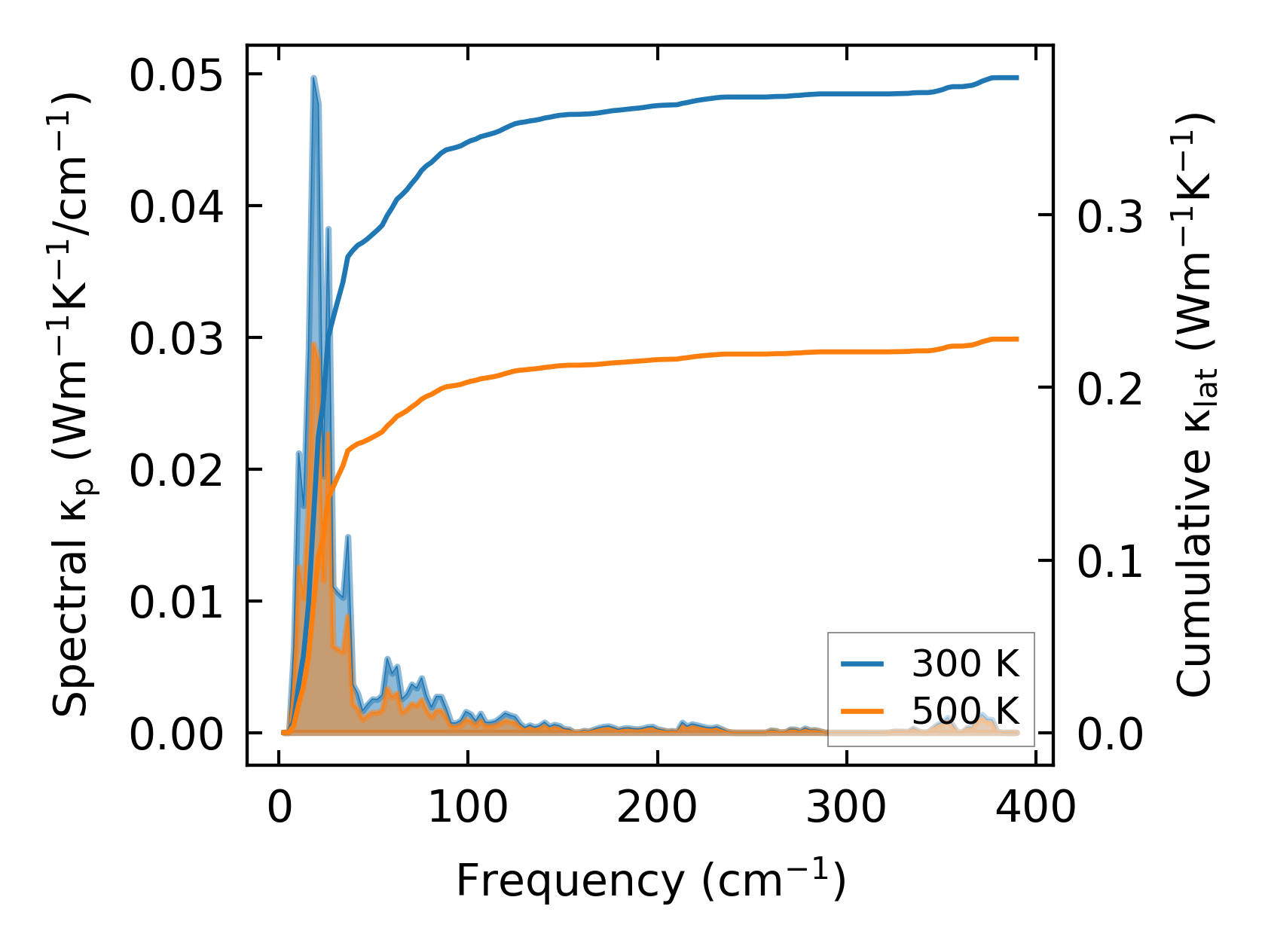

../../_images/fig_cumu_frequency4854.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp4853.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

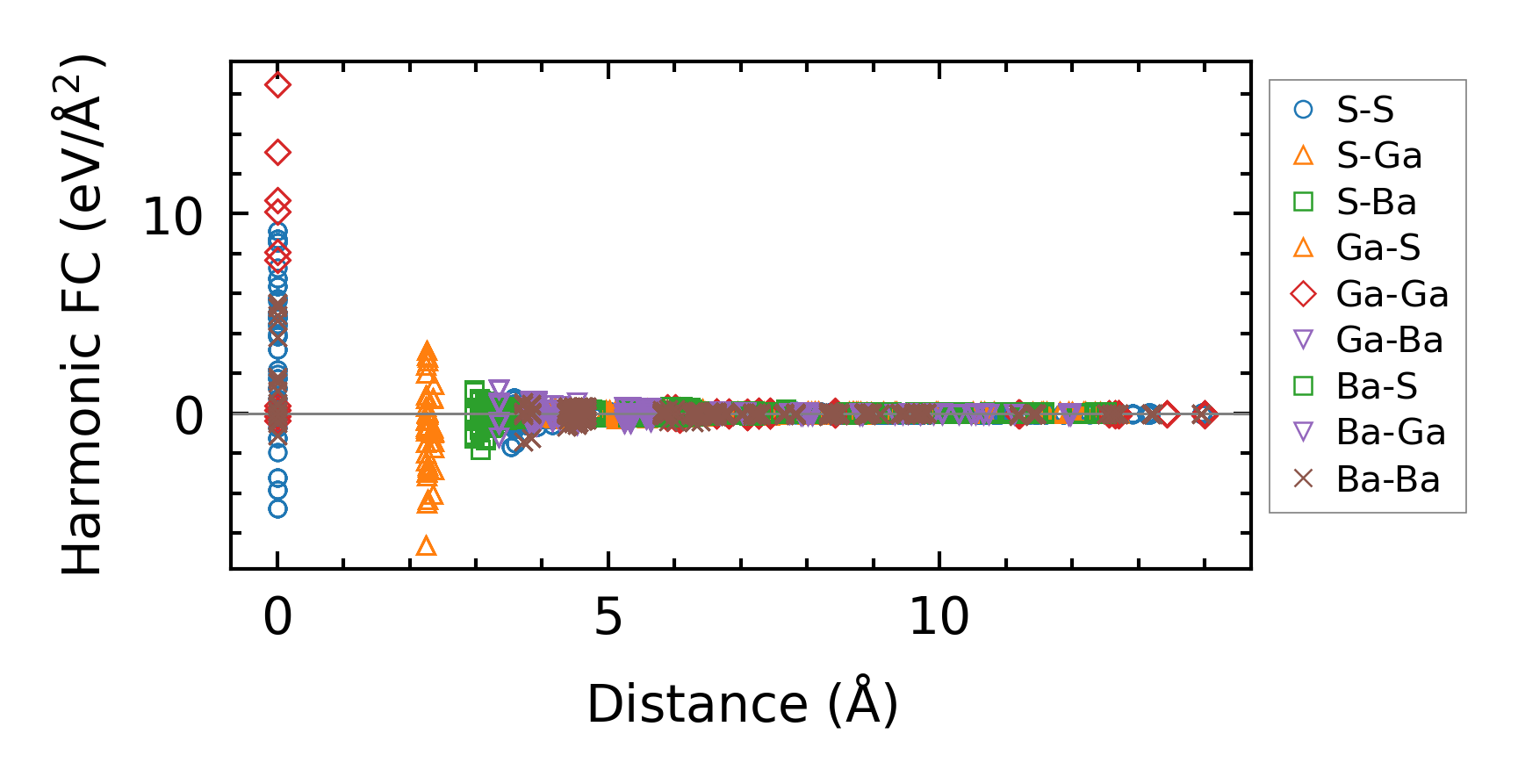

../../_images/fig_fc211484.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa9242.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times19986.png — (b) Computation time
