mp-28593/Li3BrO/anharm

Space group: Pm-3m (221)
Link: Materials Project
Download: mp-28593.tar.gz

Harmonic properties

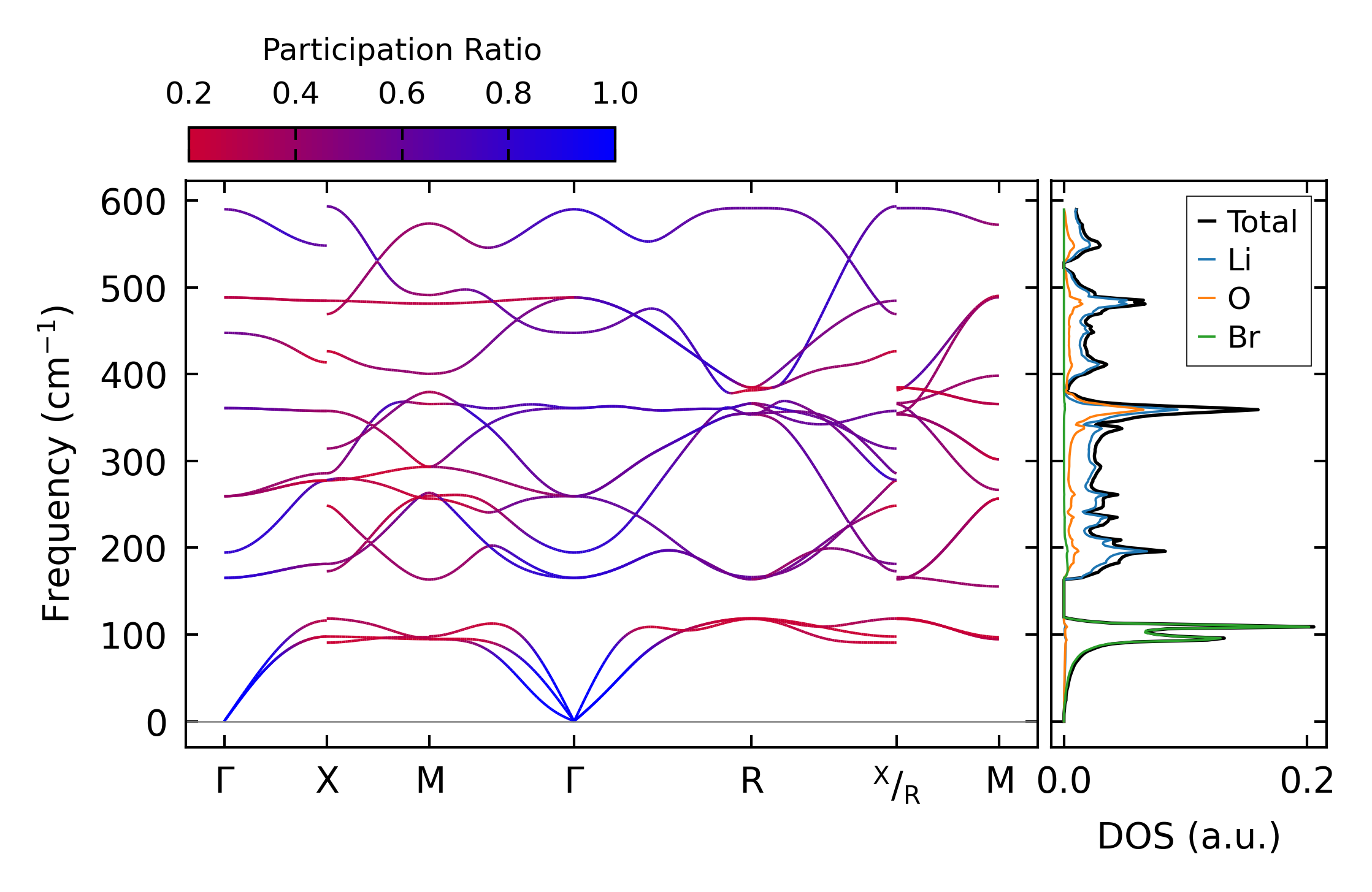

../../_images/fig_bandos_pr11556.png — (a) Phonon dispersion with participation ratio and DOS

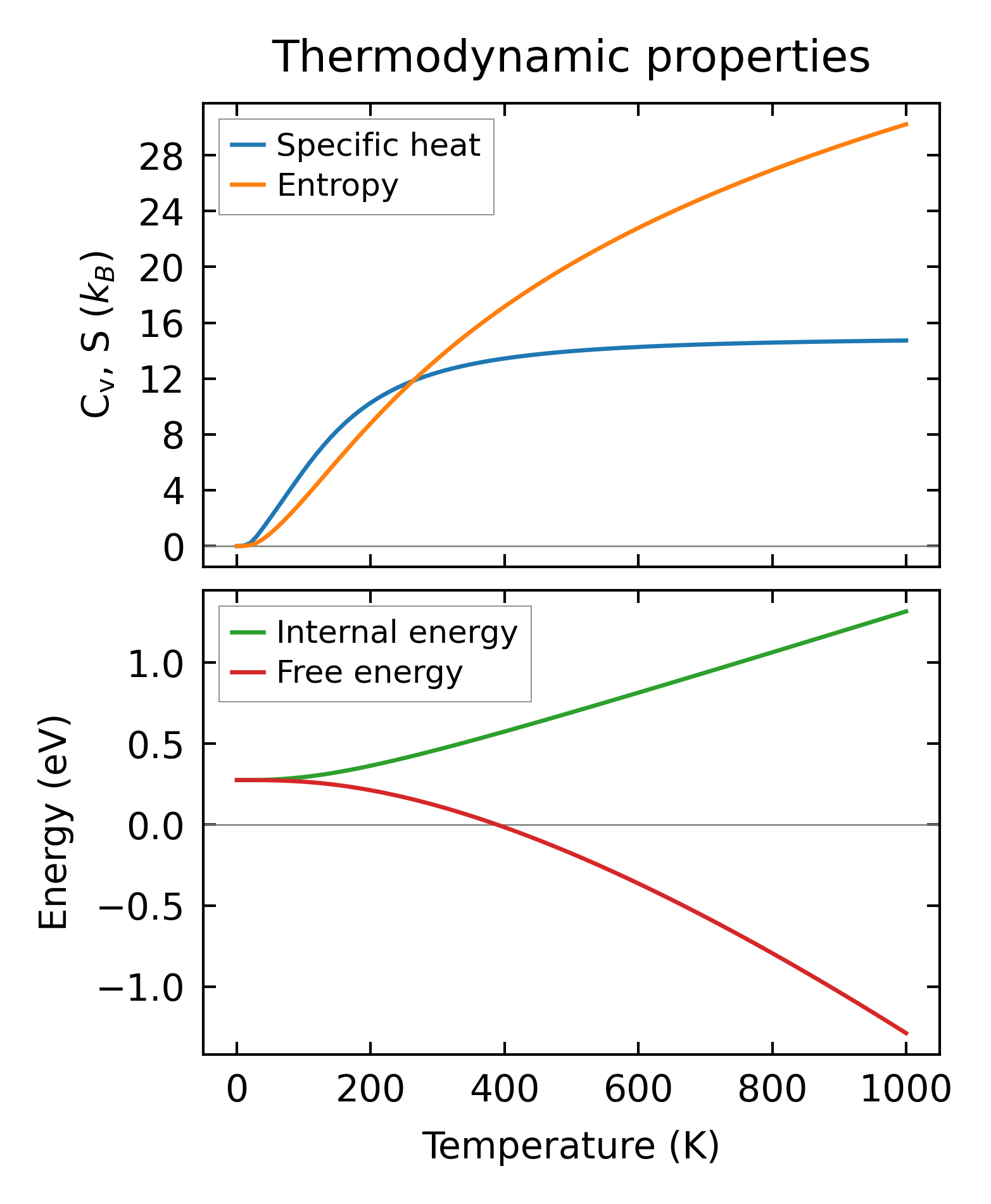

../../_images/fig_thermo11556.png — (b) Thermodynamic properties

Grüneisen parameters

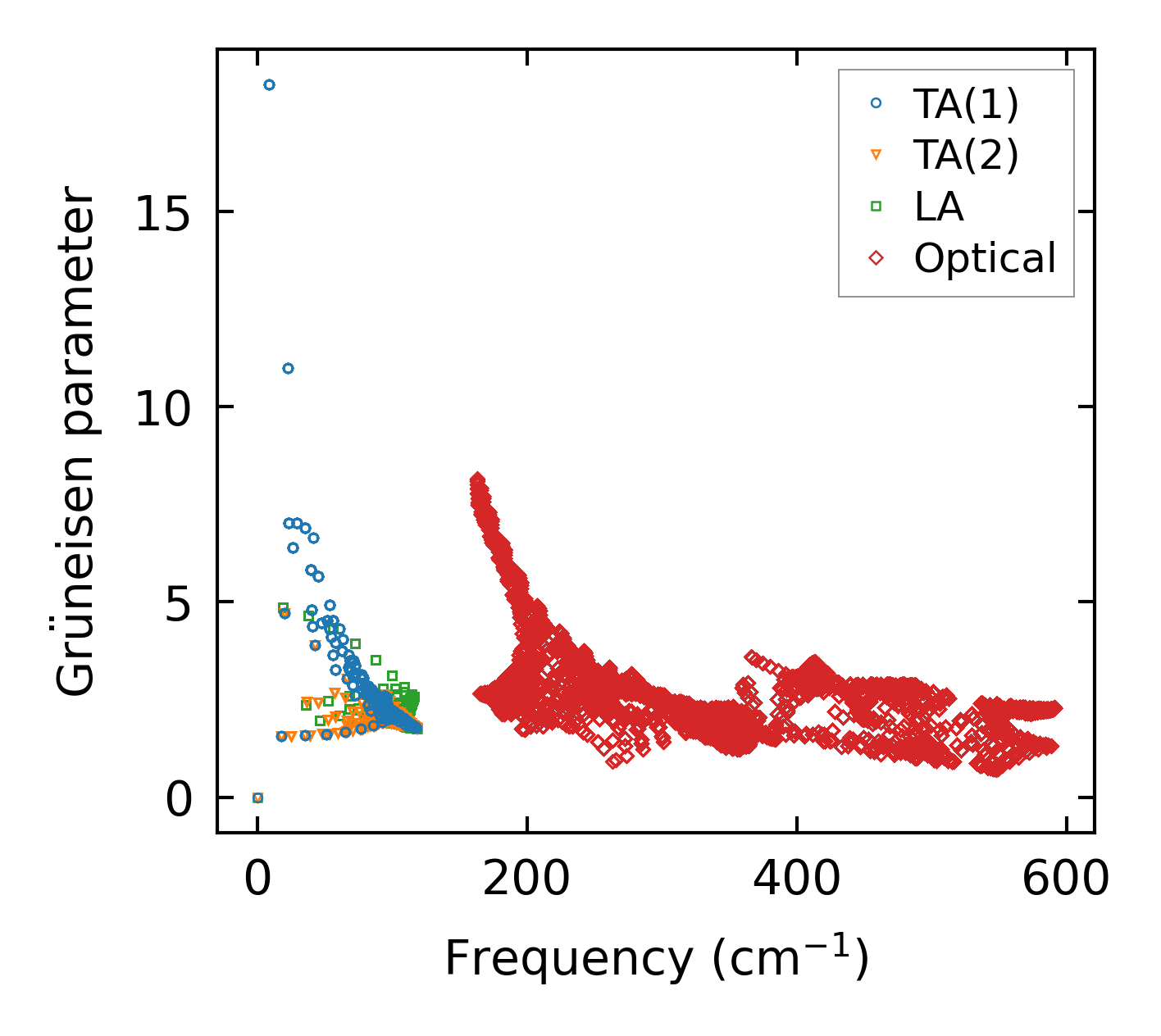

../../_images/fig_gru_all4801.png — (a) Grüneisen parameters

../../_images/fig_gruneisen4801.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon — q-mesh: 18x18x18, supercell: 3x3x3

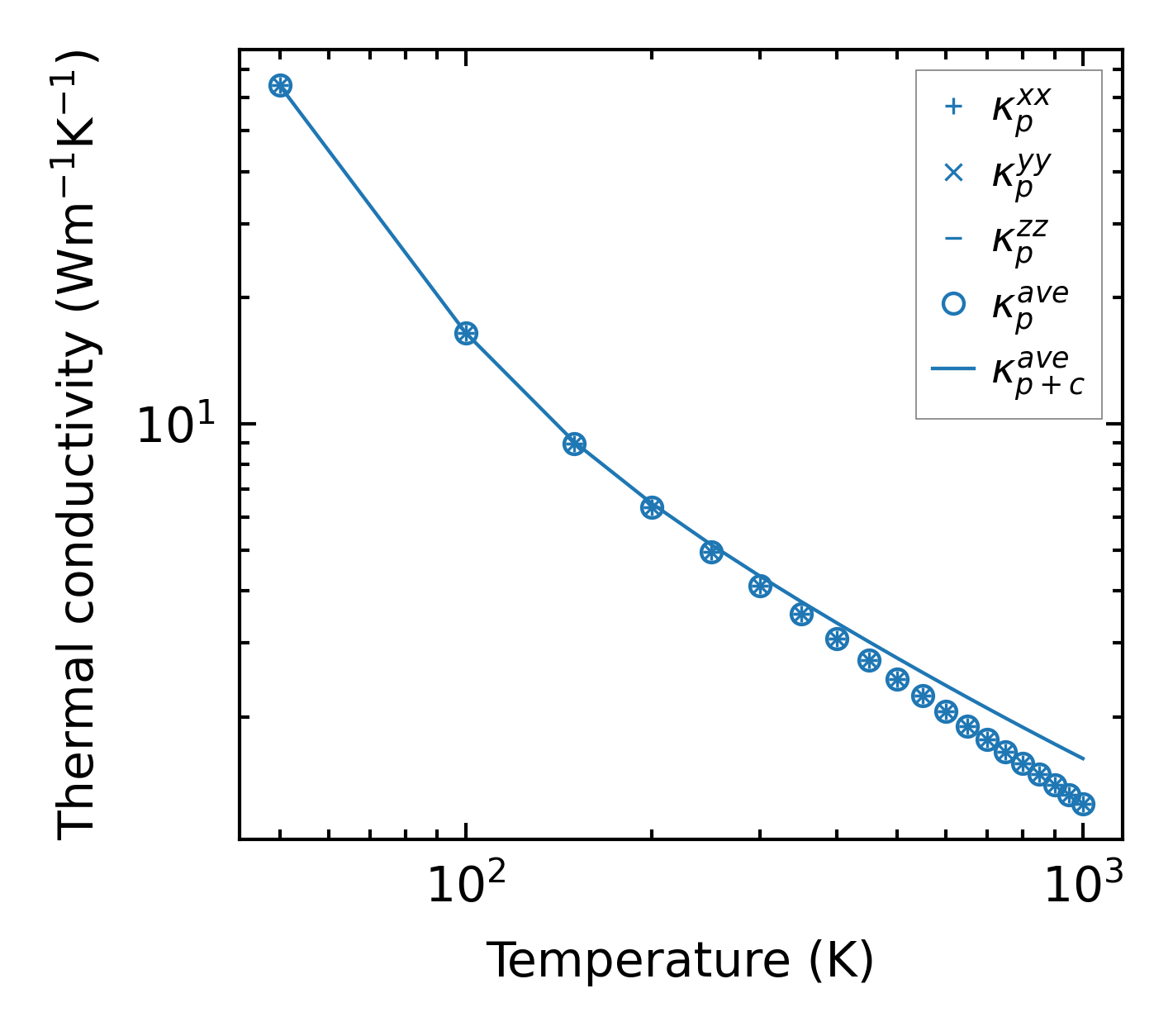

../../_images/fig_kappa9057.png — (a) Temperature-dependent lattice thermal conductivity

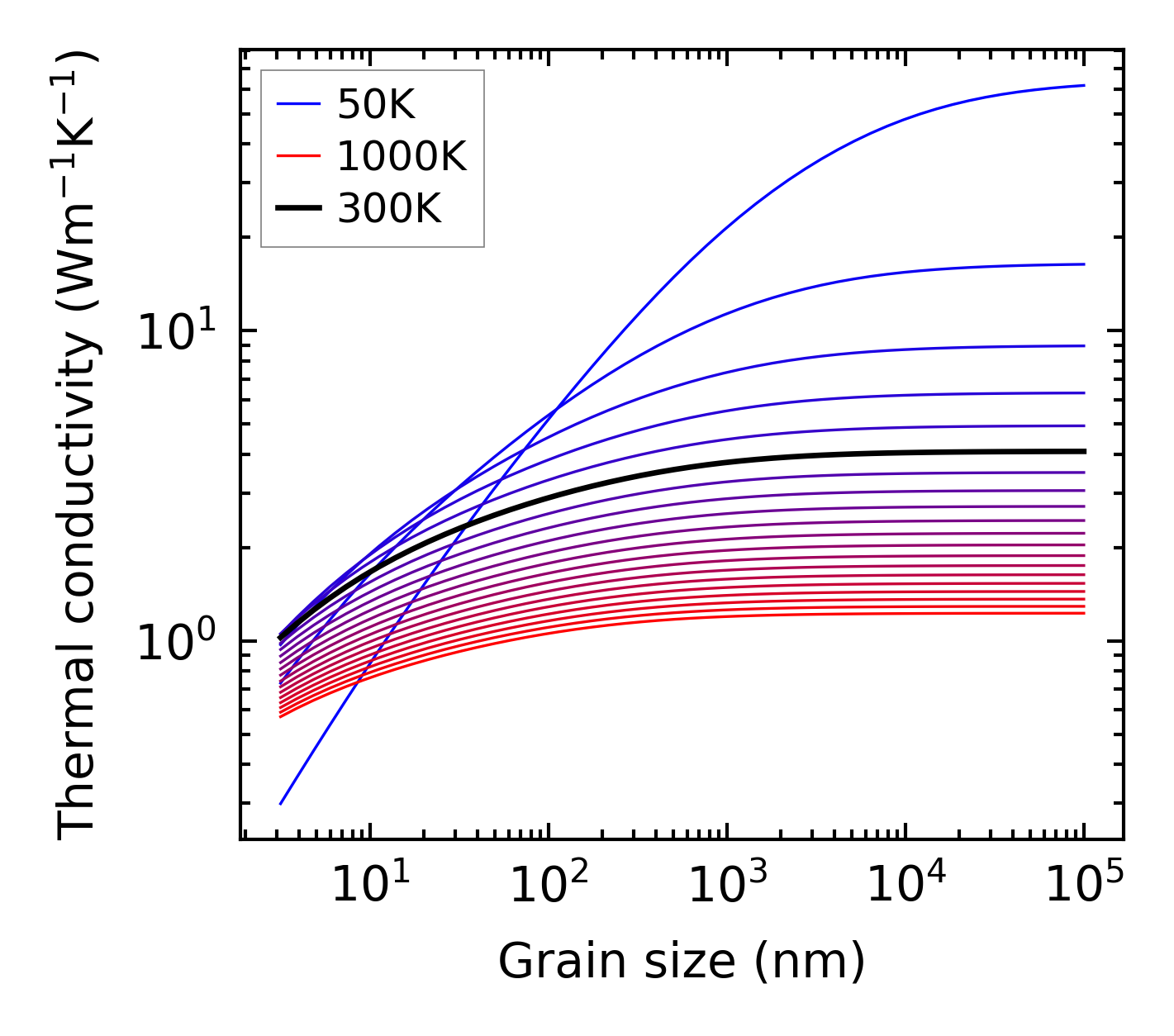

../../_images/fig_kappa_vs_grain_size4859.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

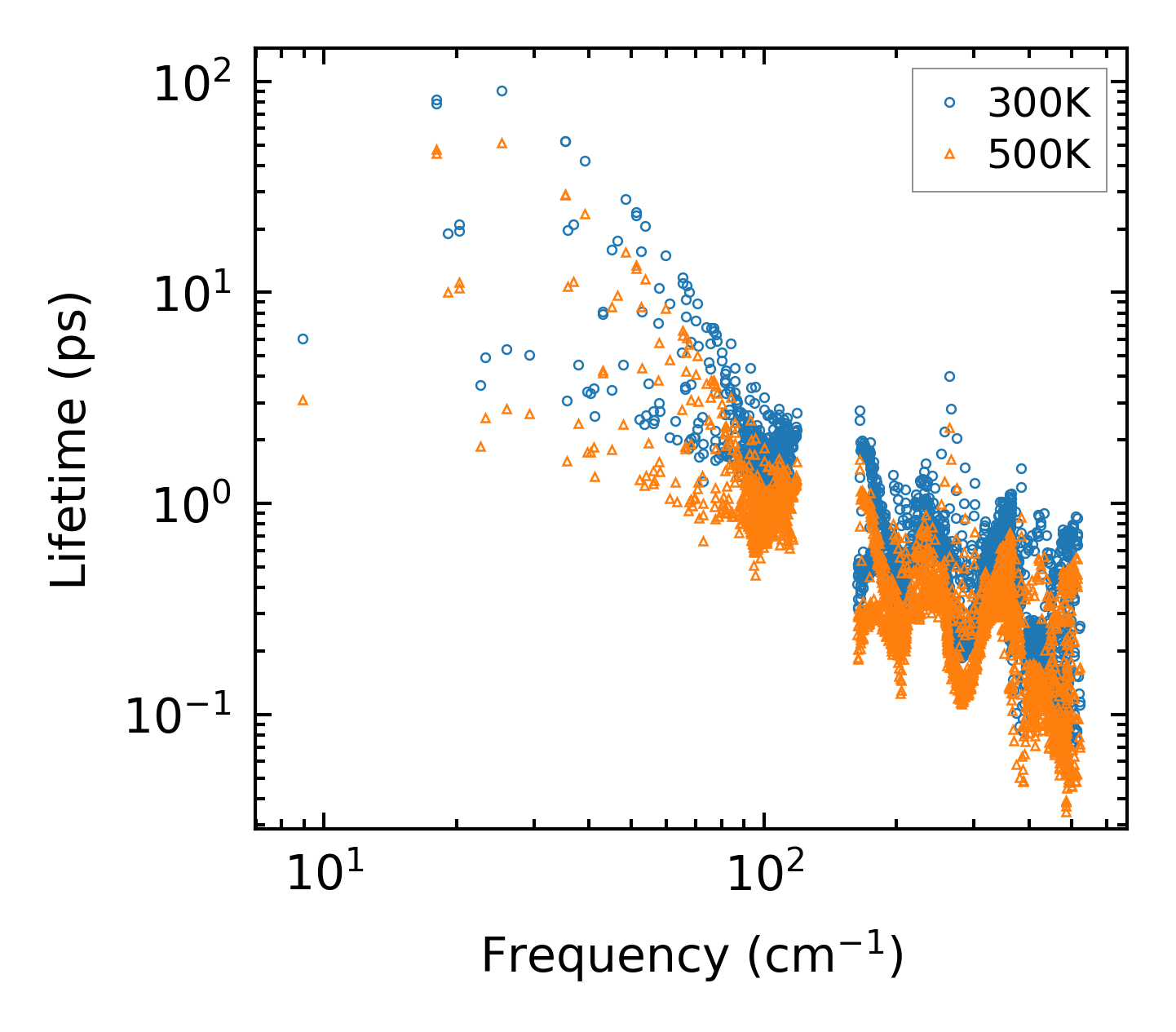

../../_images/fig_lifetime4755.png — (a) Phonon lifetime due to phonon-phonon scattering

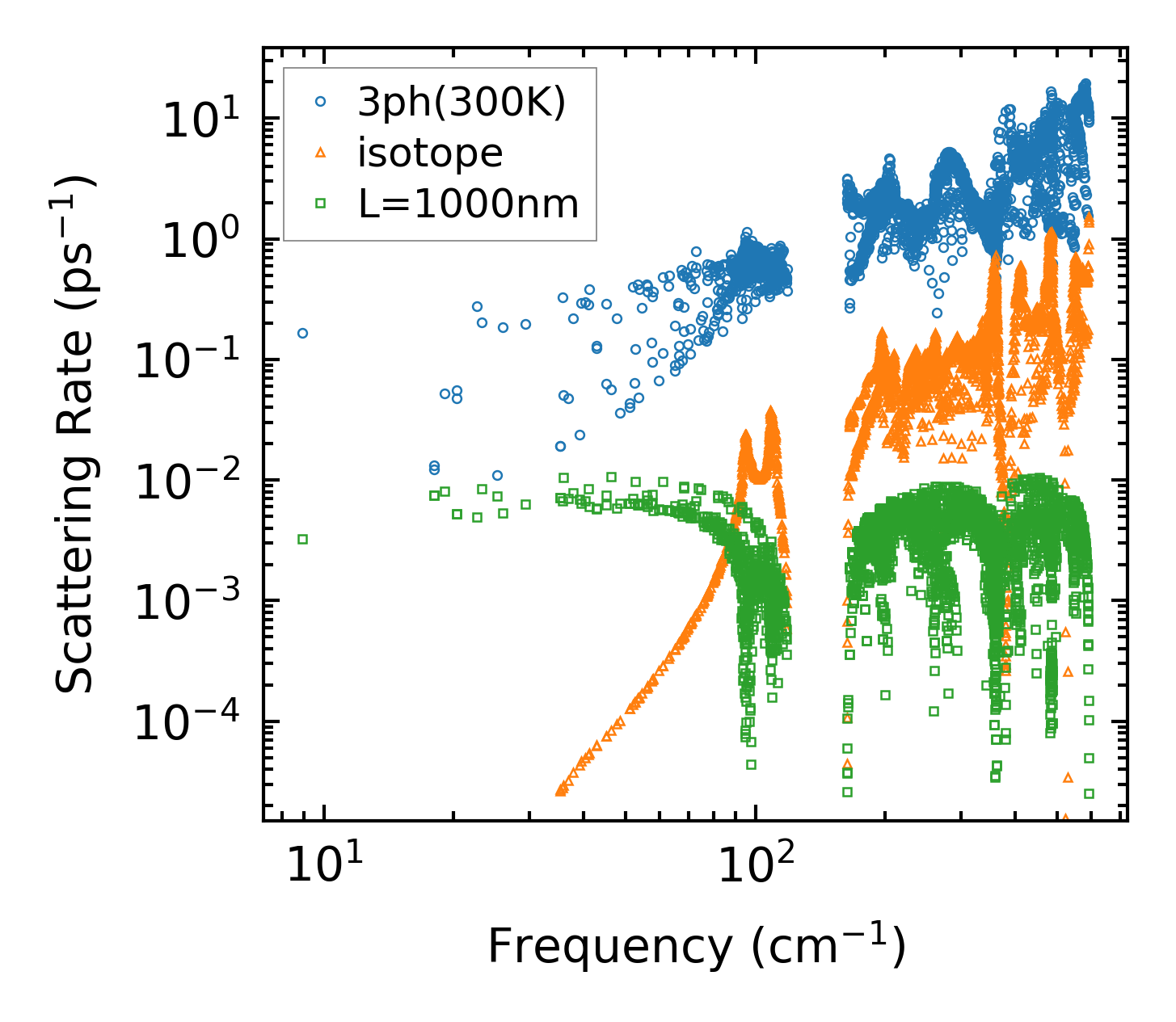

../../_images/fig_scat_rates4754.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency4755.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp4754.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc3287.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa9058.png — (a) Temperature-dependent lattice thermal conductivity

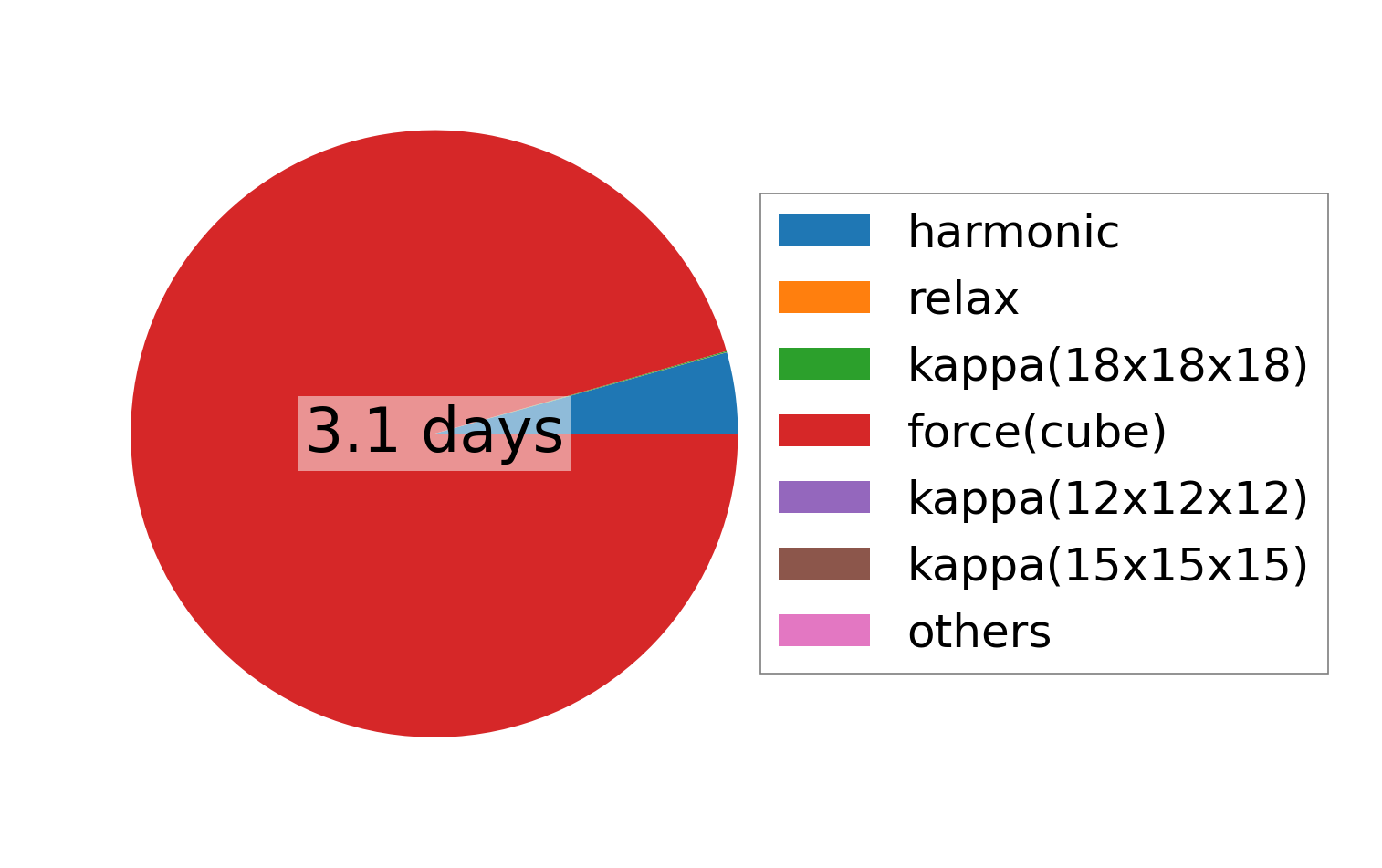

../../_images/fig_times19683.png — (b) Computation time
