mp-28458/ErSeI/anharm

Space group: Pmmn (59)
Link: Materials Project
Download: mp-28458.tar.gz

Harmonic properties

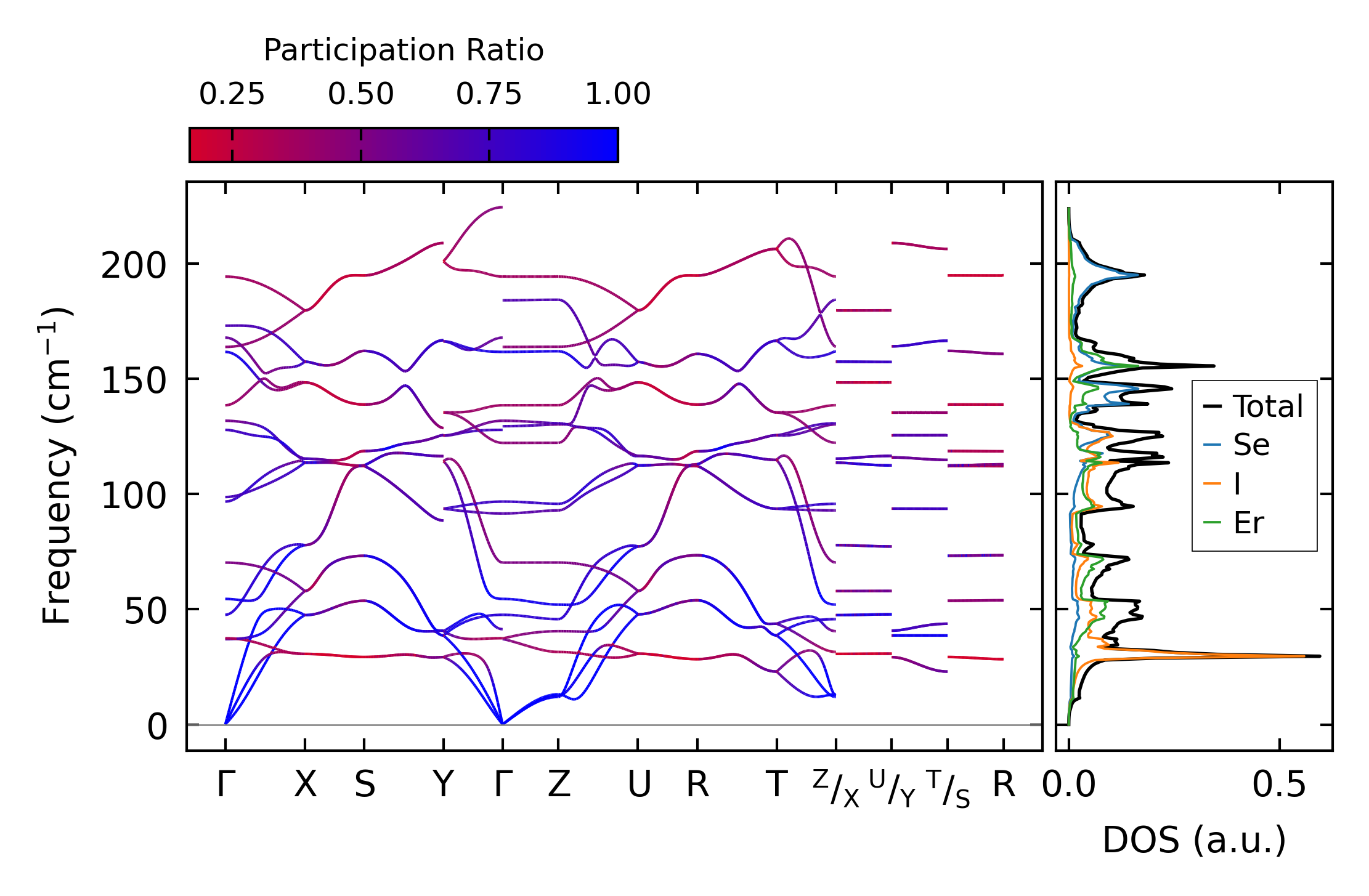

../../_images/fig_bandos_pr11852.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo11852.png — (b) Thermodynamic properties

Grüneisen parameters

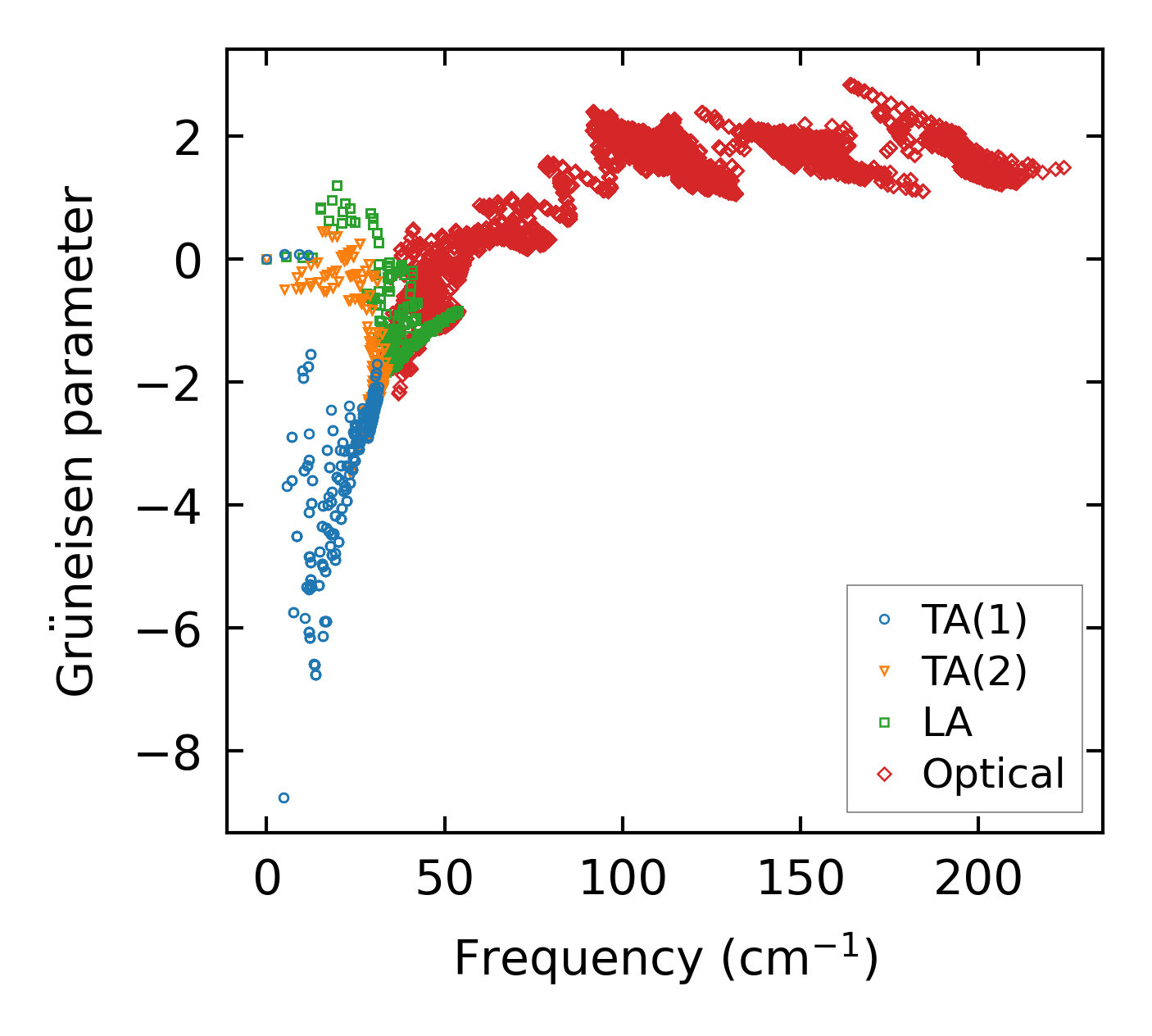

../../_images/fig_gru_all4940.png — (a) Grüneisen parameters

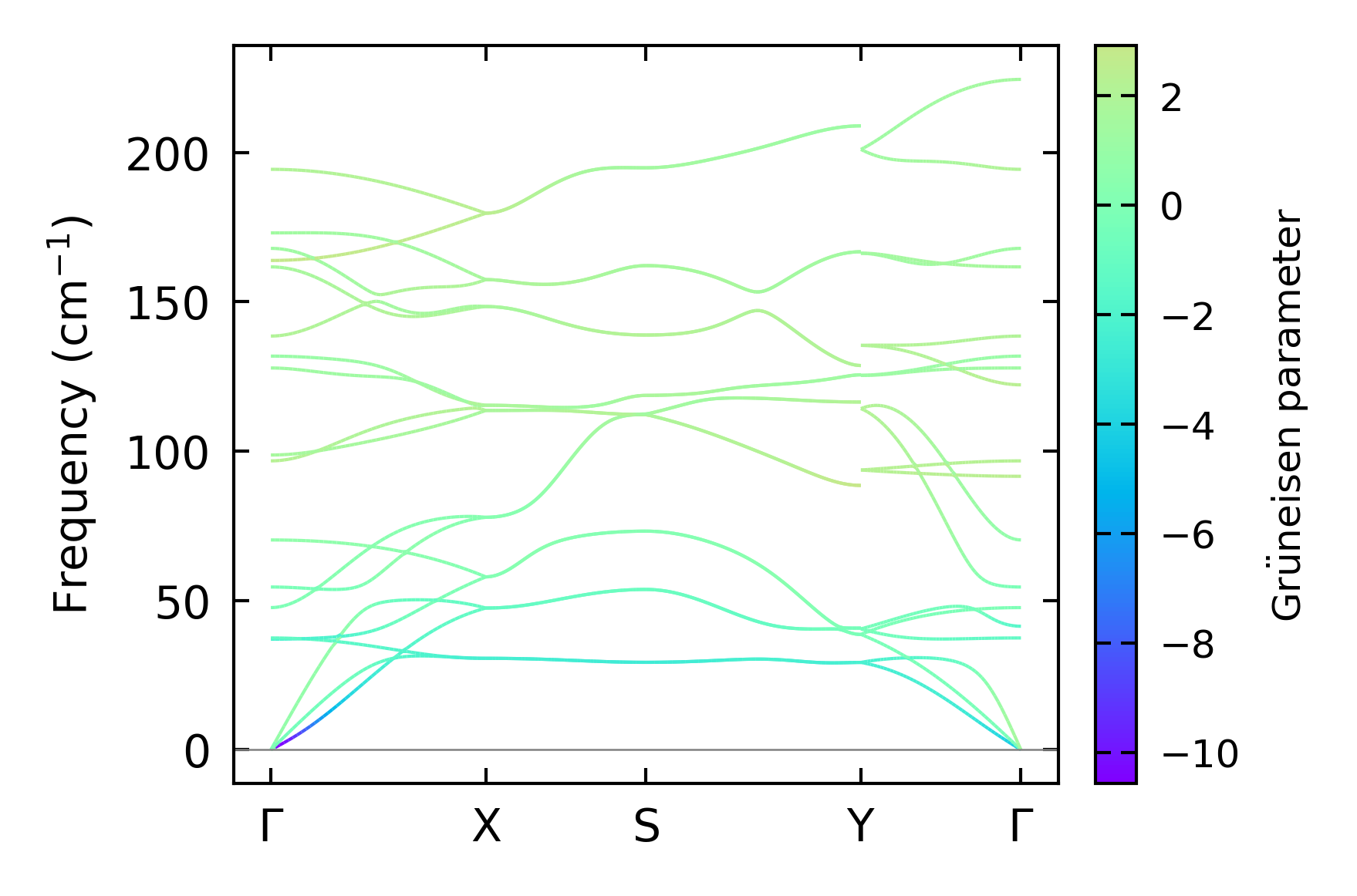

../../_images/fig_gruneisen4940.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 17x12x7, supercell: 4x3x2

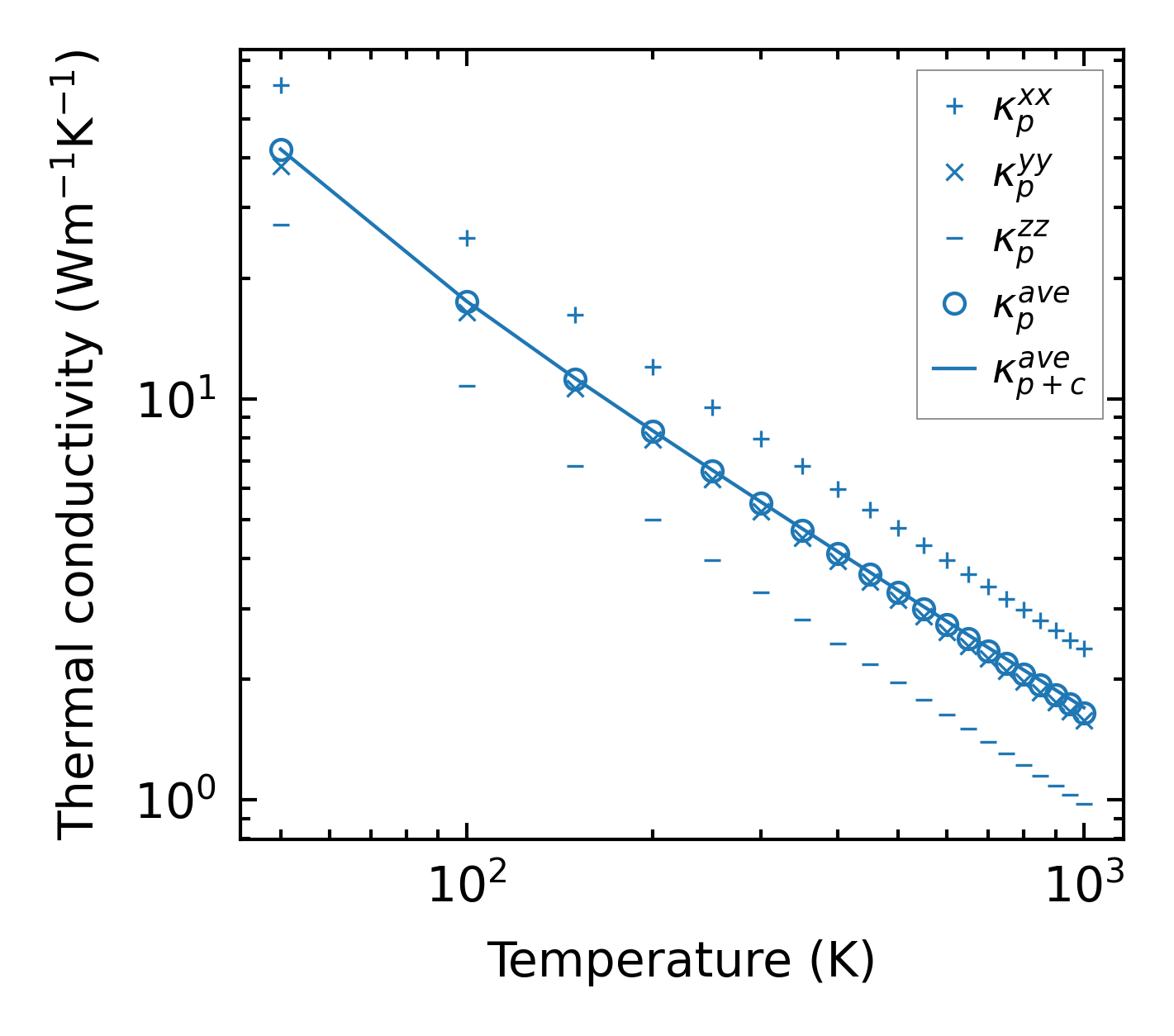

../../_images/fig_kappa9313.png — (a) Temperature-dependent lattice thermal conductivity

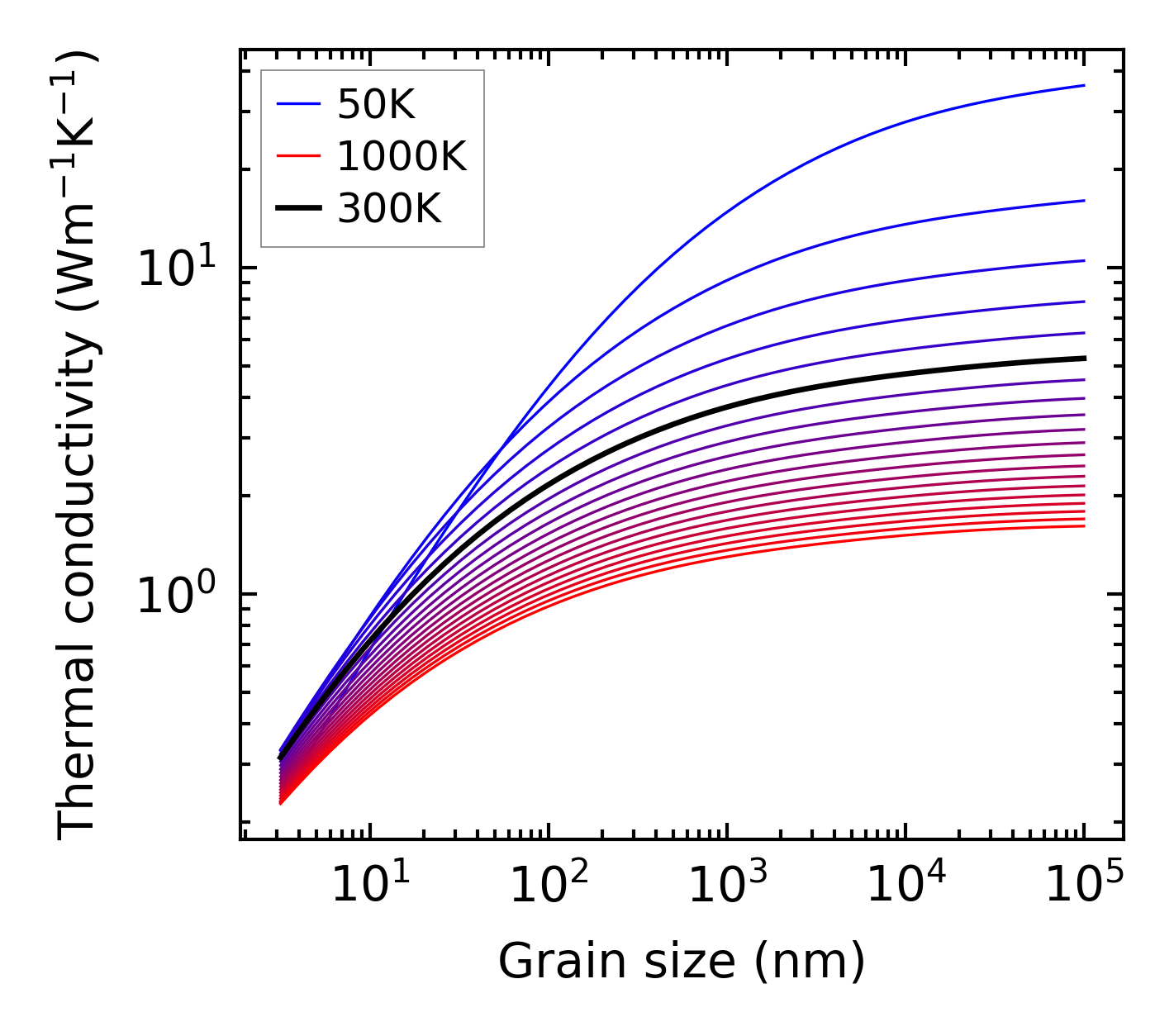

../../_images/fig_kappa_vs_grain_size4998.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

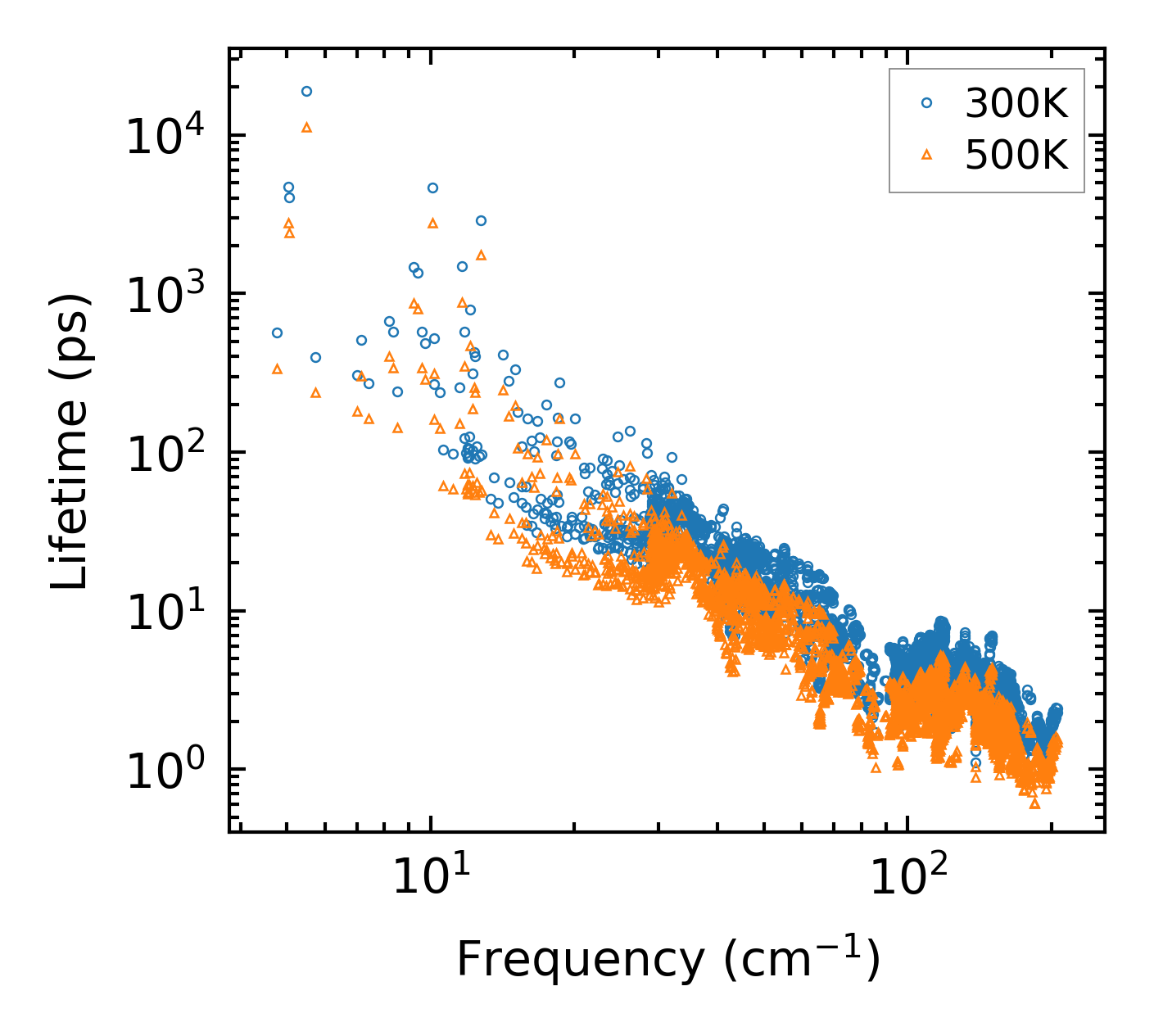

../../_images/fig_lifetime4890.png — (a) Phonon lifetime due to phonon-phonon scattering

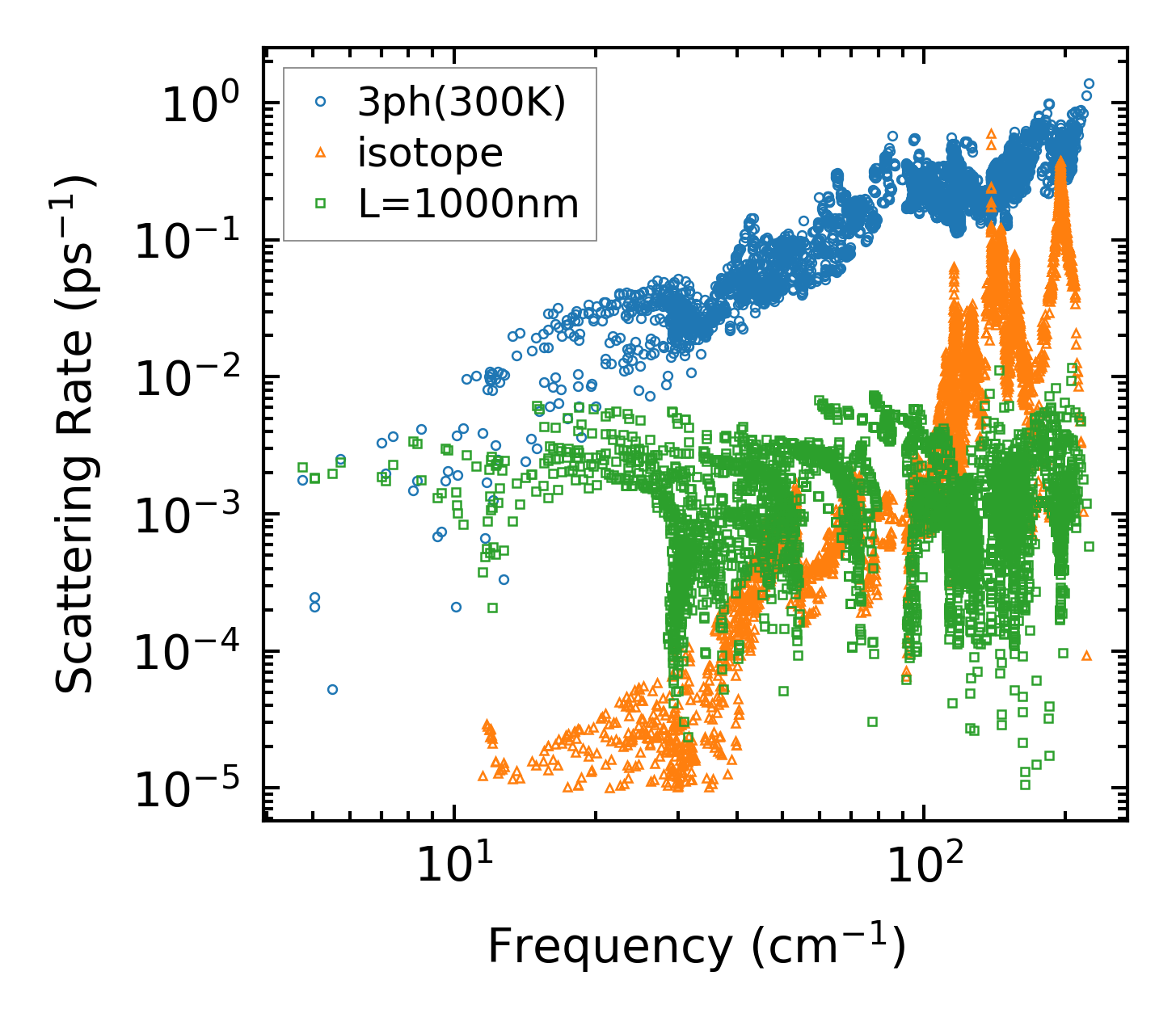

../../_images/fig_scat_rates4889.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

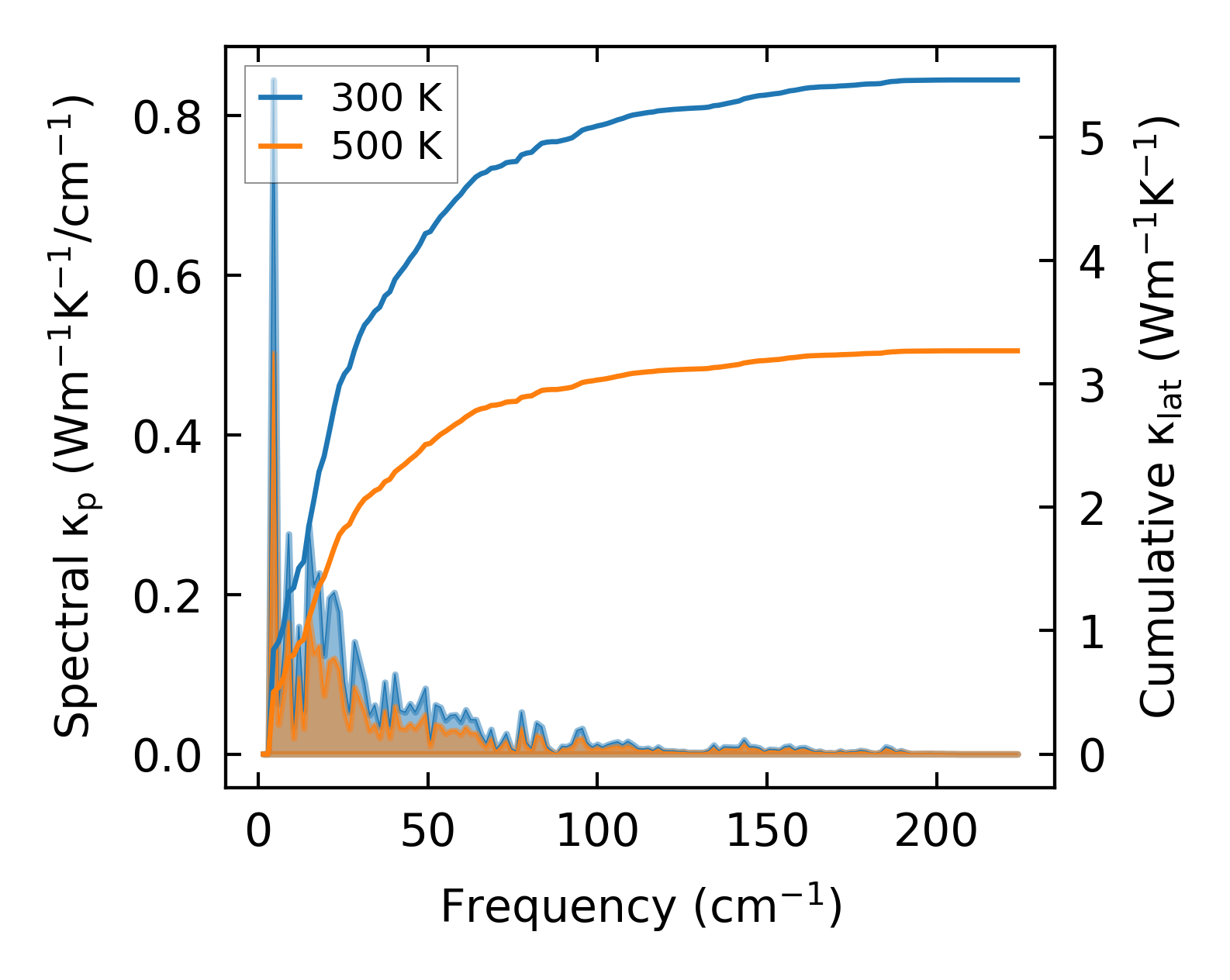

../../_images/fig_cumu_frequency4890.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

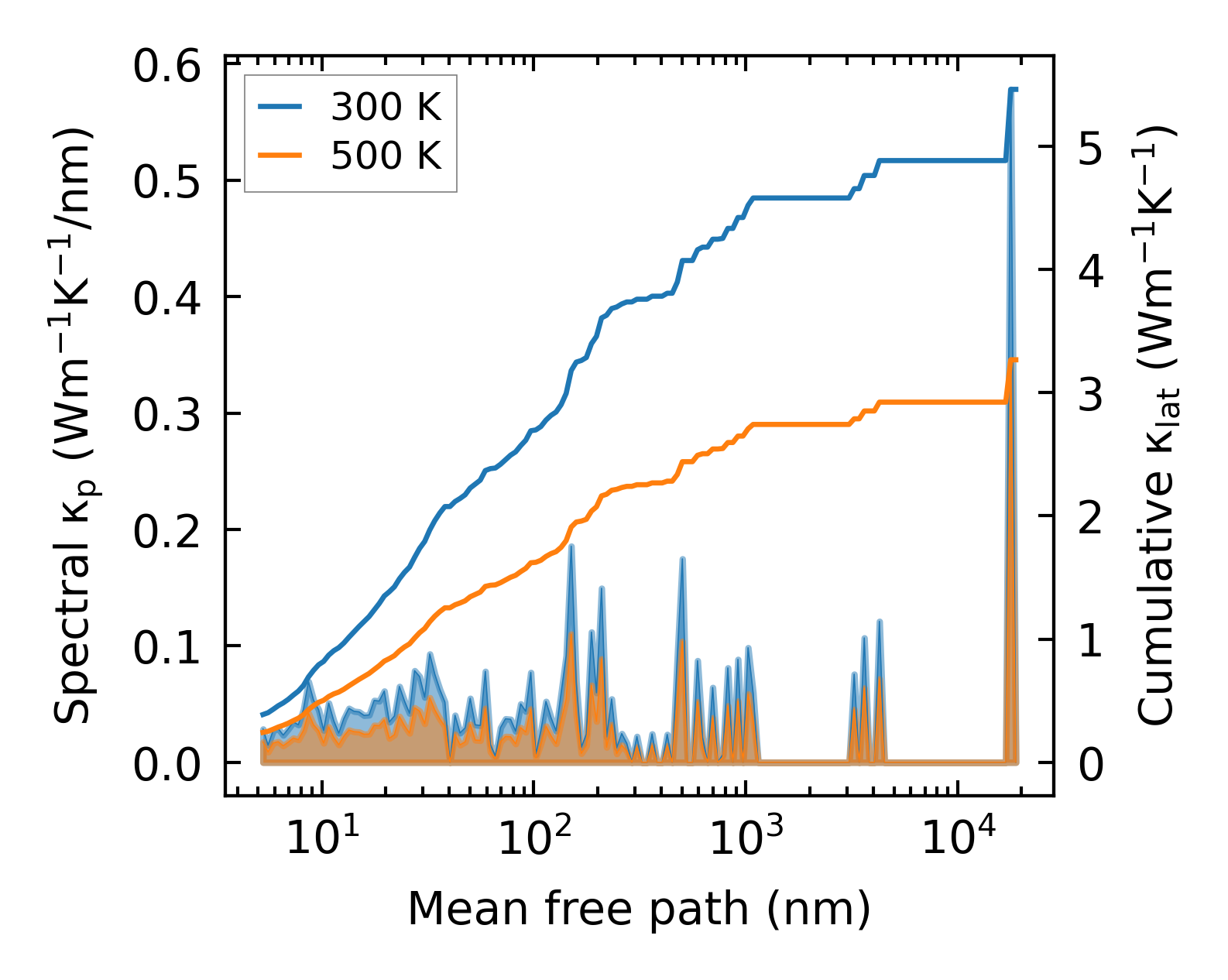

../../_images/fig_cumu_mfp4889.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

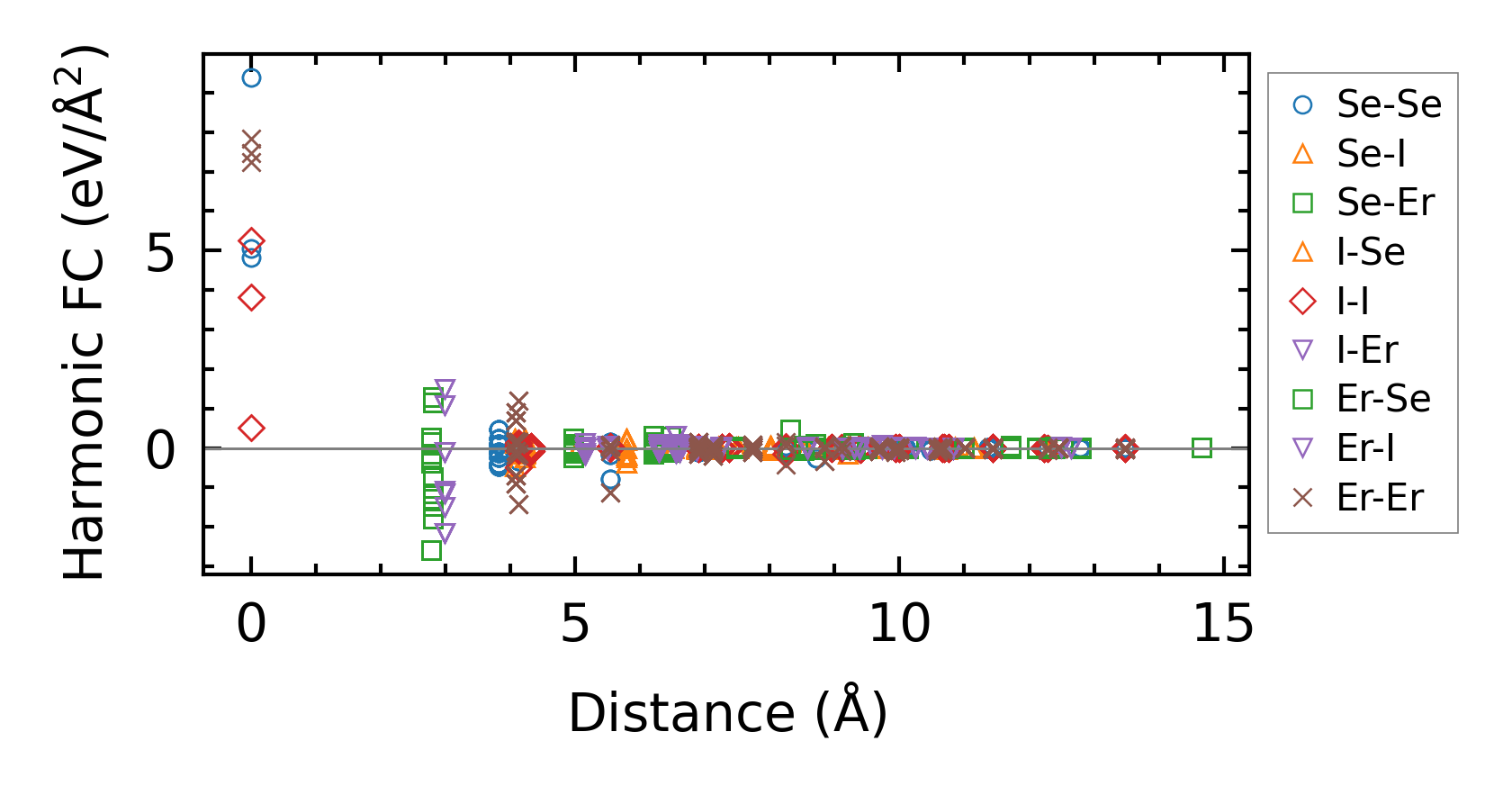

../../_images/fig_fc211563.png — (a) Force constants w.r.t atomic distance

Summary

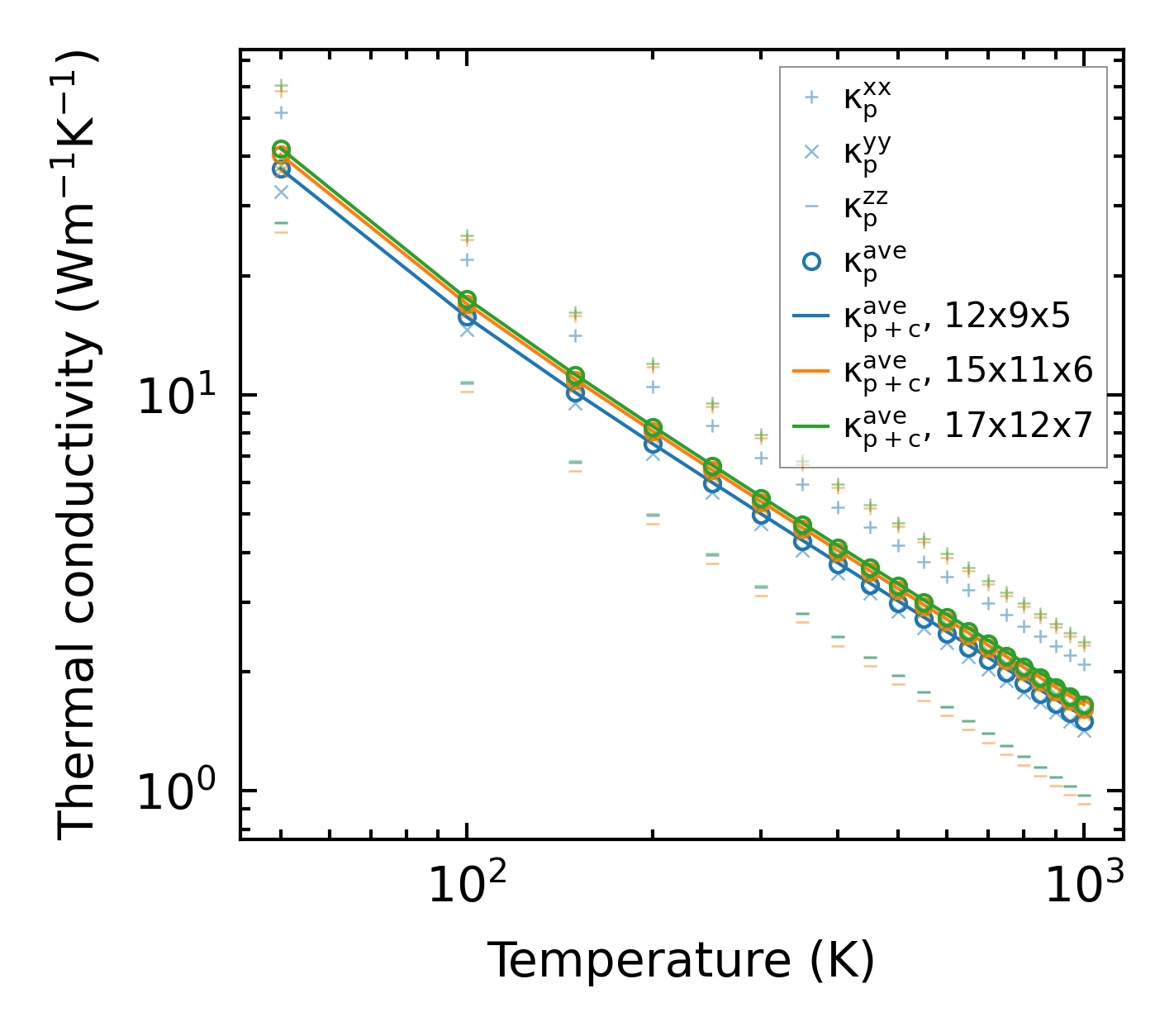

../../_images/fig_kappa9314.png — (a) Temperature-dependent lattice thermal conductivity

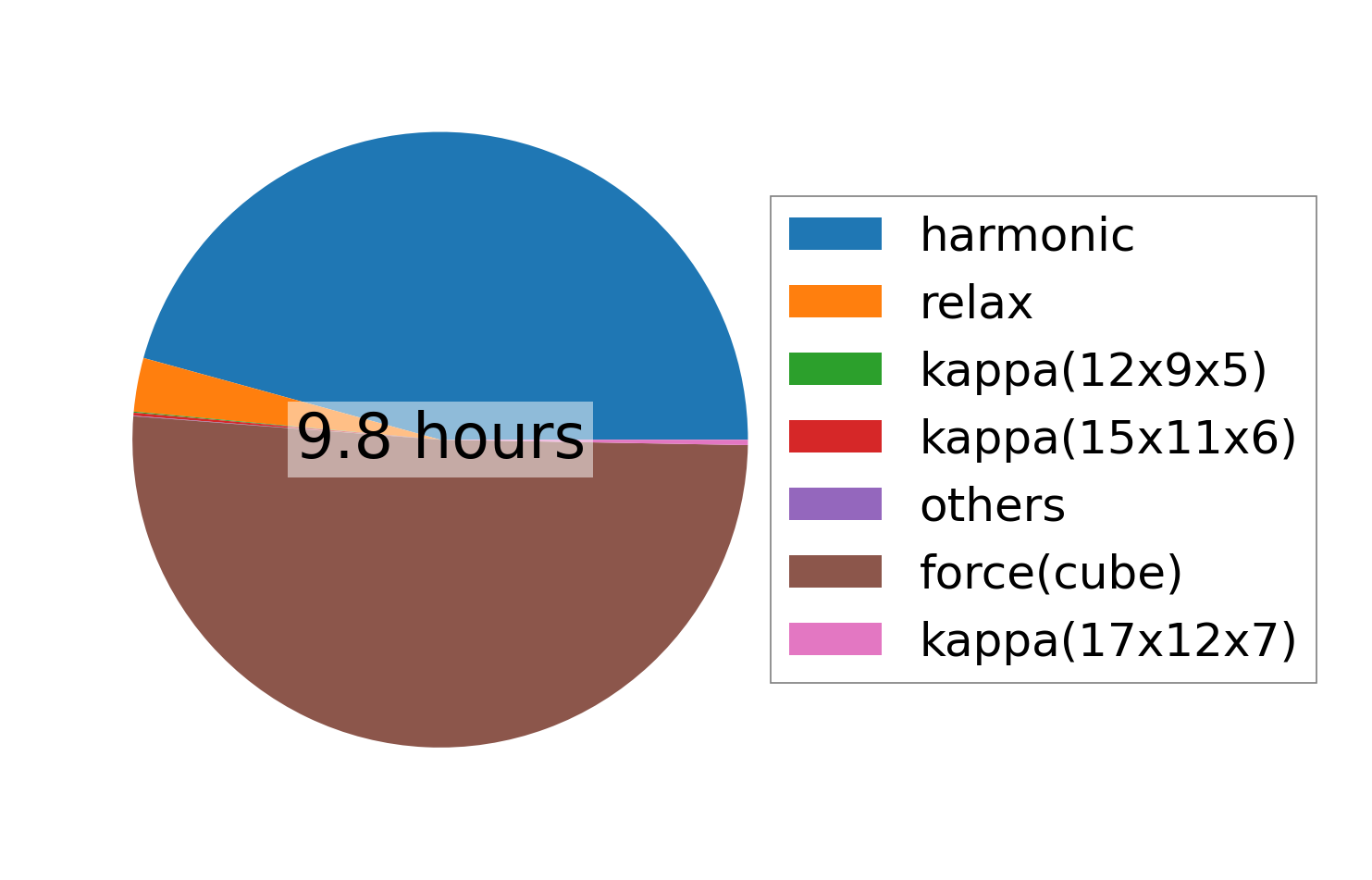

../../_images/fig_times20115.png — (b) Computation time
