mp-28278/Na2GeSe3/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-28278.tar.gz

Harmonic properties

../../_images/fig_bandos_pr11790.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo11790.png — (b) Thermodynamic properties

Grüneisen parameters

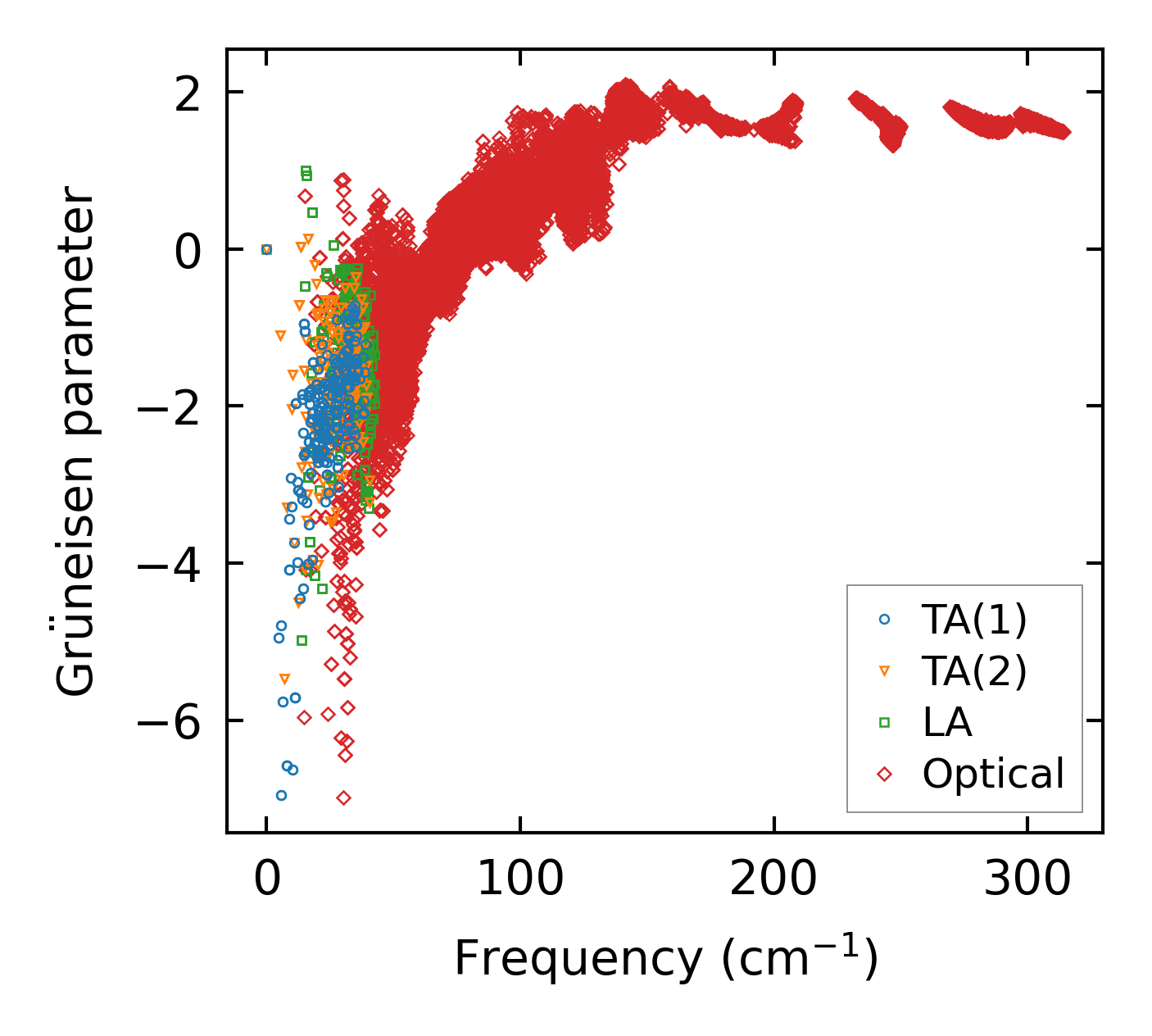

../../_images/fig_gru_all4912.png — (a) Grüneisen parameters

../../_images/fig_gruneisen4912.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x4x12, supercell: 2x1x3

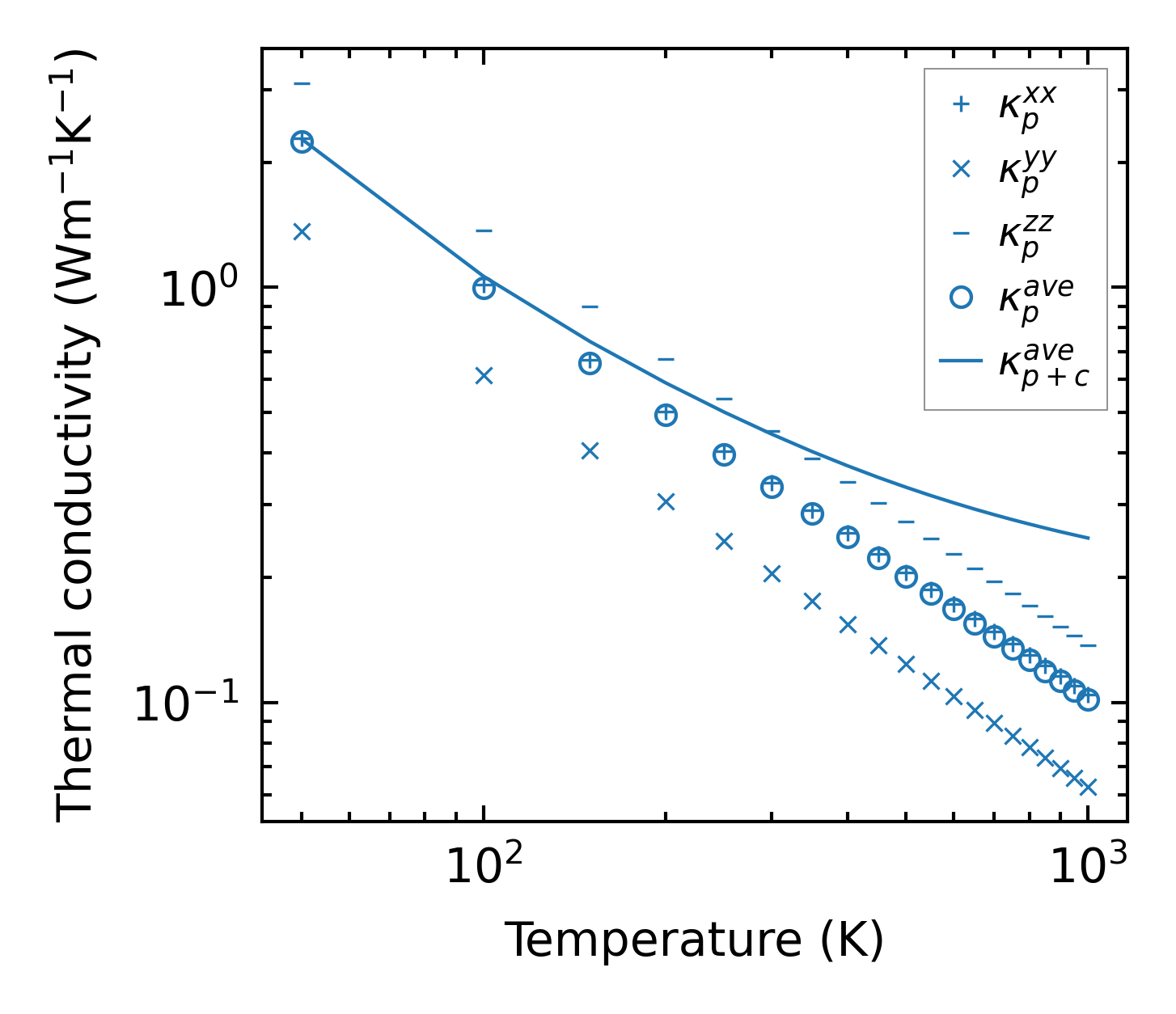

../../_images/fig_kappa9259.png — (a) Temperature-dependent lattice thermal conductivity

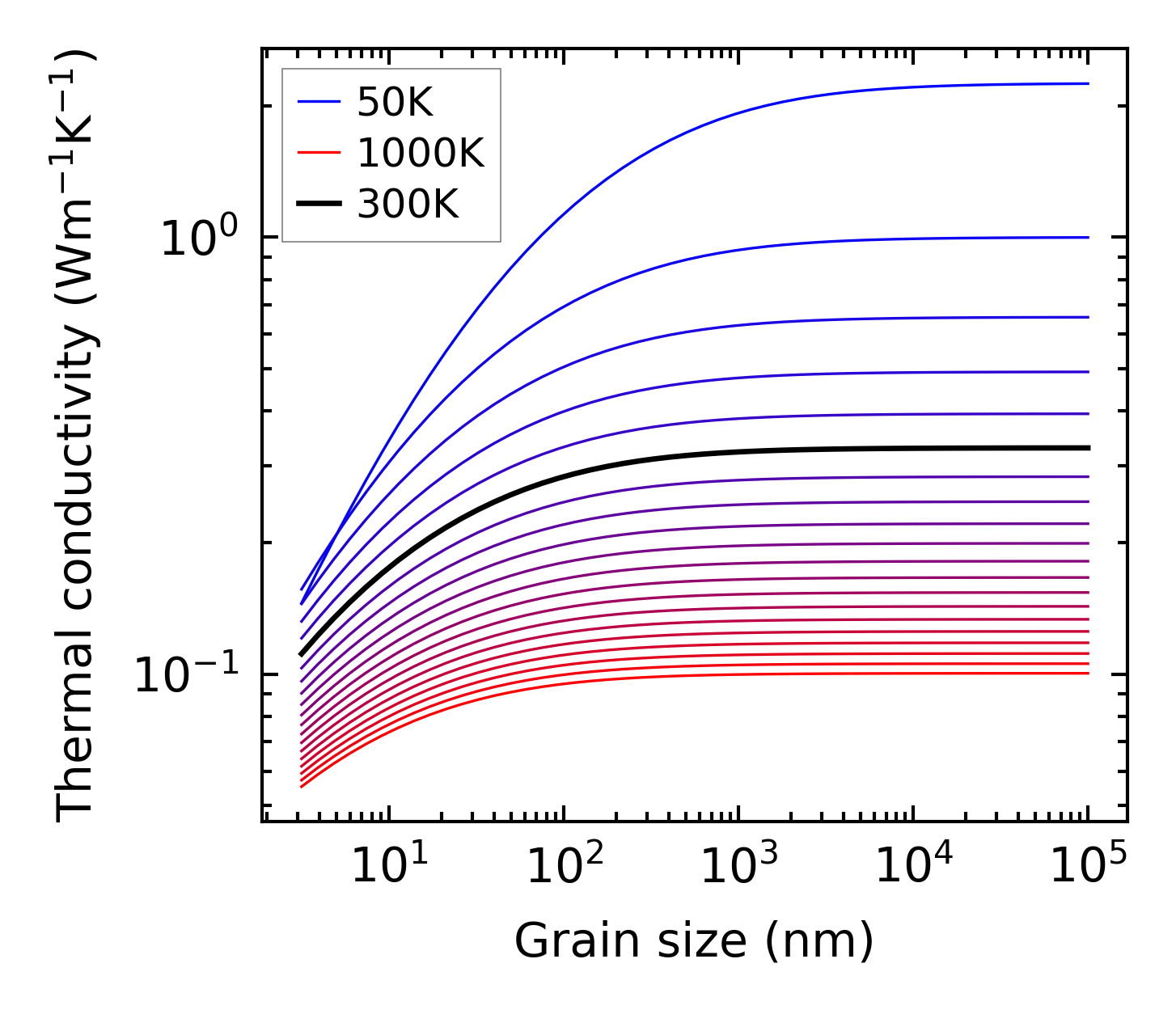

../../_images/fig_kappa_vs_grain_size4969.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime4863.png — (a) Phonon lifetime due to phonon-phonon scattering

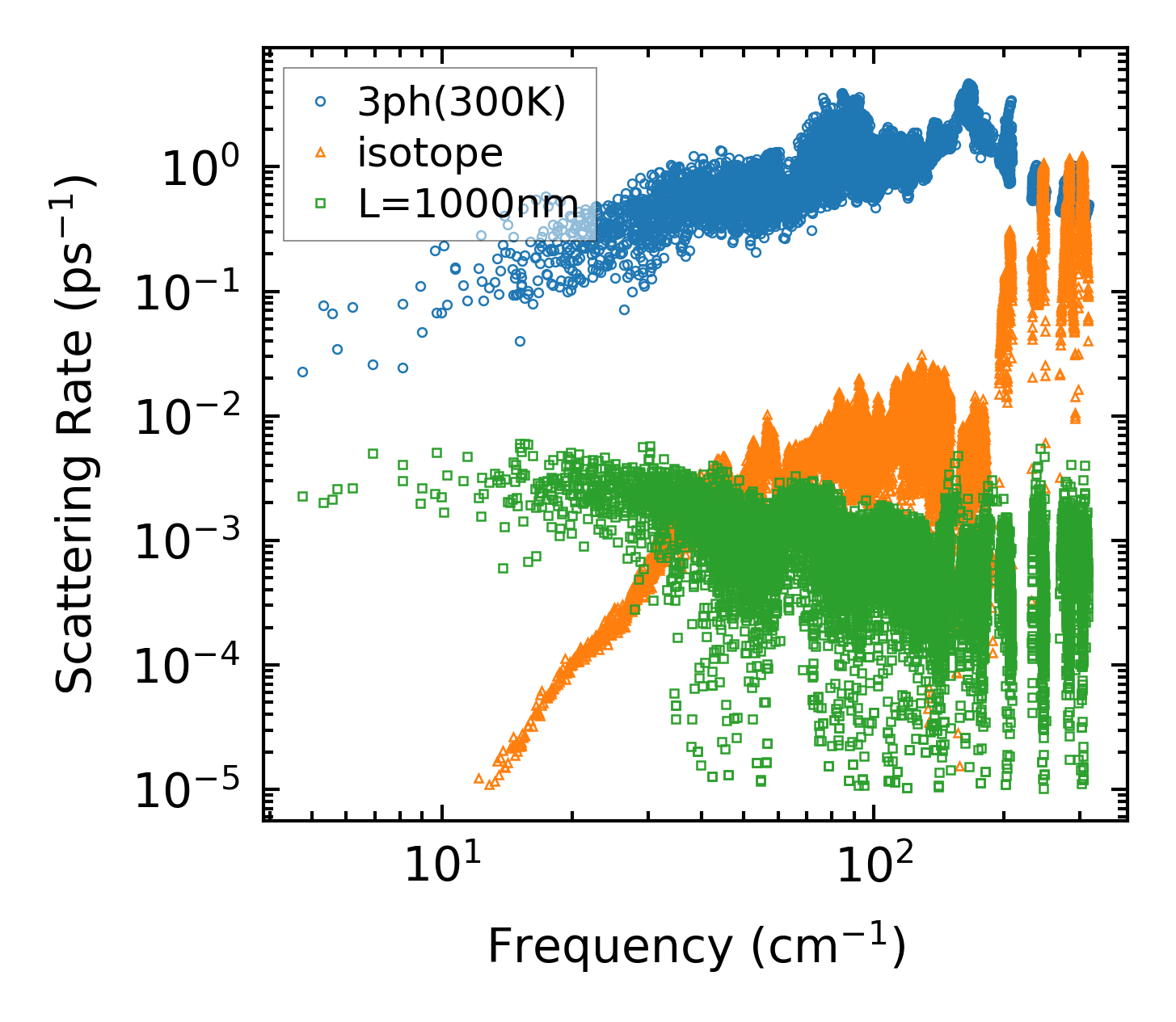

../../_images/fig_scat_rates4862.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency4863.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

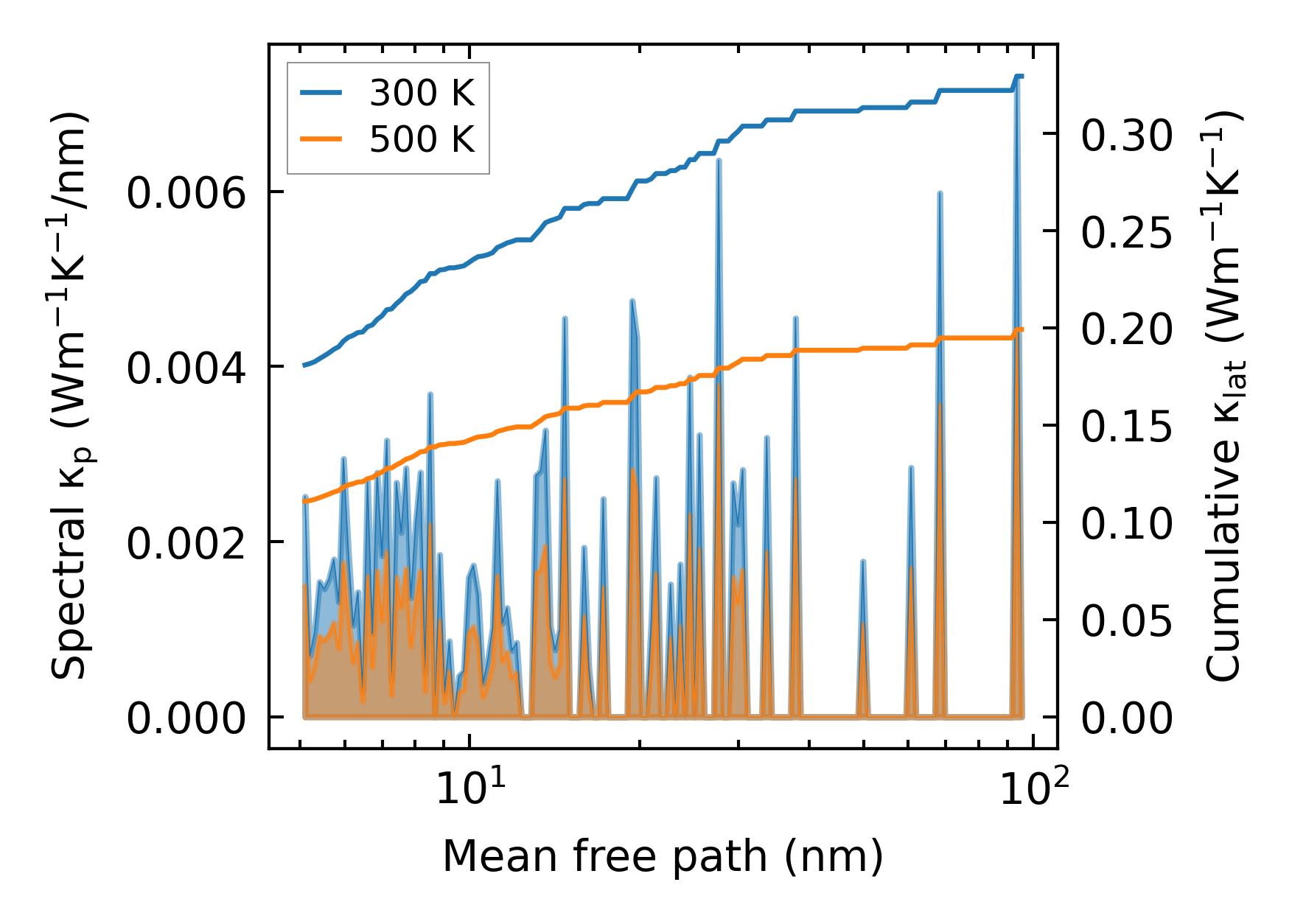

../../_images/fig_cumu_mfp4862.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

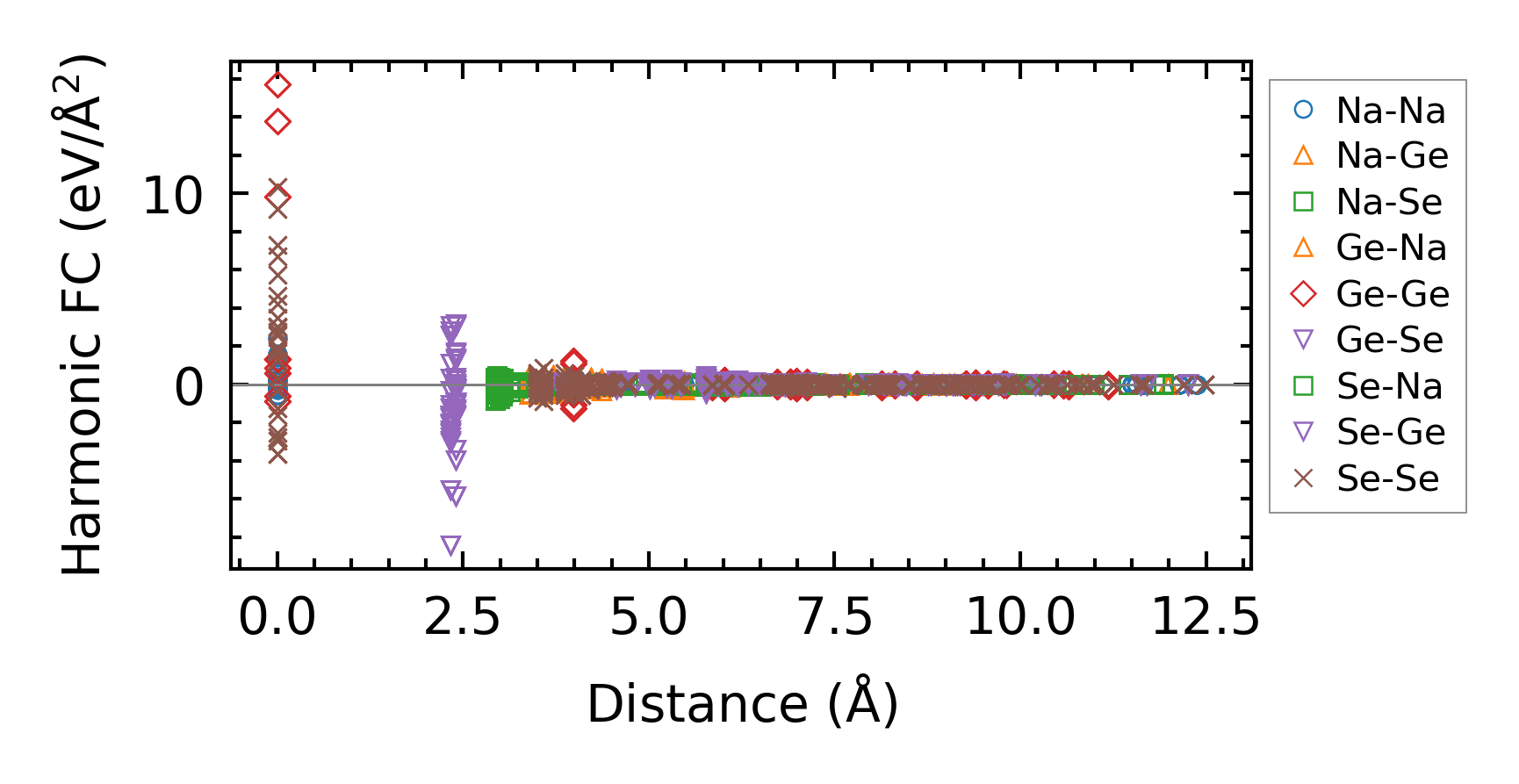

../../_images/fig_fc211501.png — (a) Force constants w.r.t atomic distance

Summary

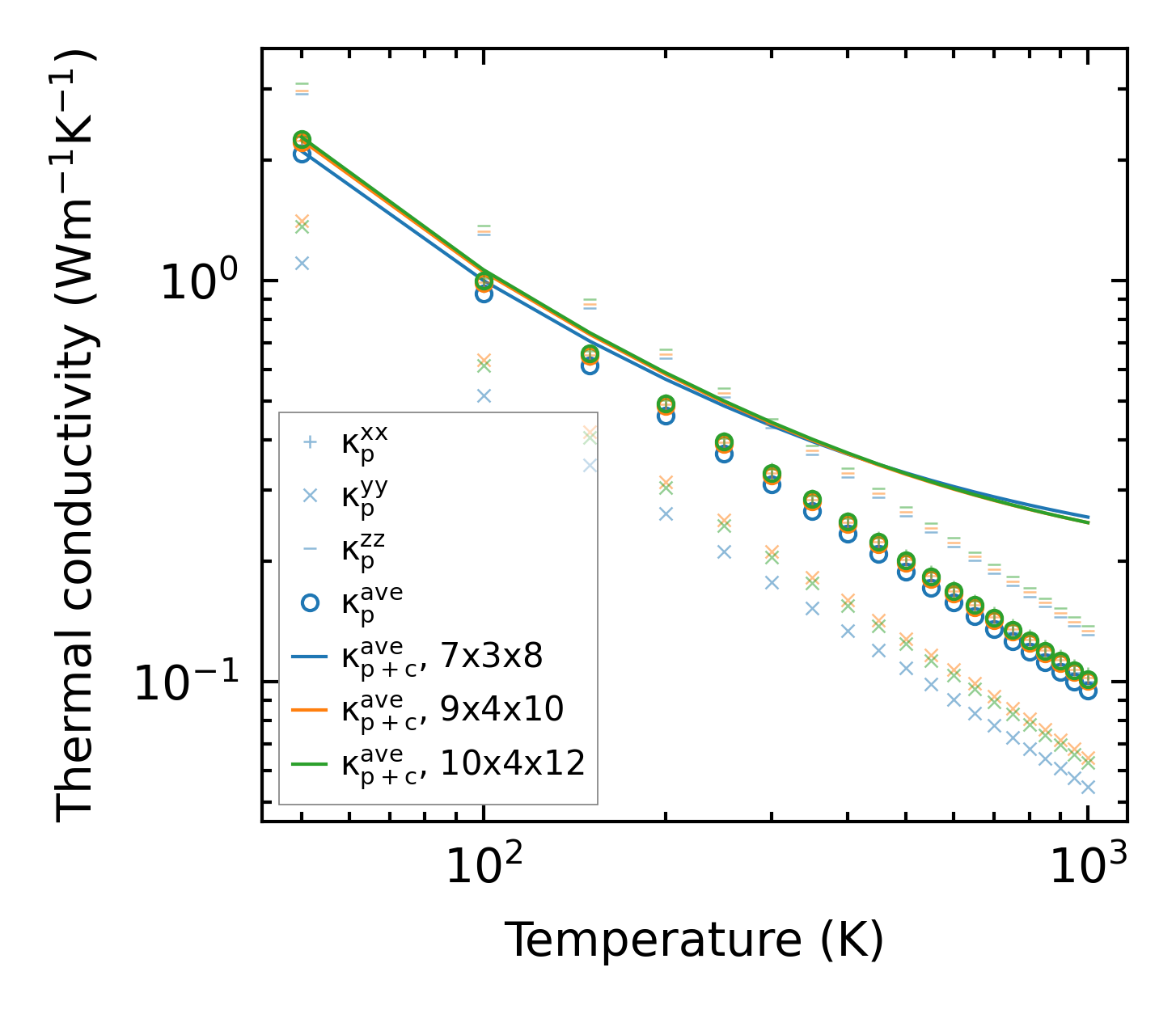

../../_images/fig_kappa9260.png — (a) Temperature-dependent lattice thermal conductivity

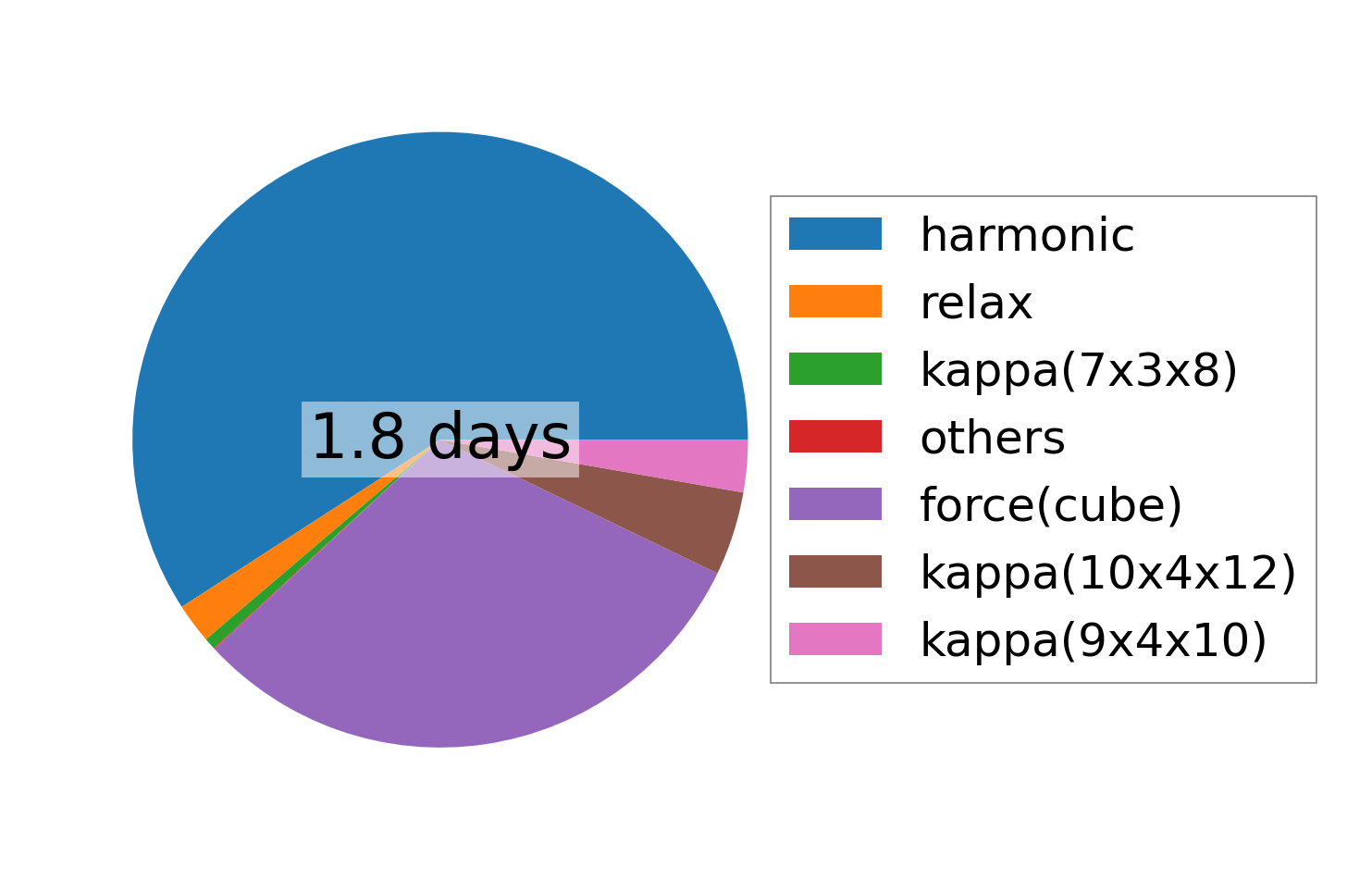

../../_images/fig_times20007.png — (b) Computation time
