mp-28248/CdI2/anharm

Space group: P6_3mc (186)
Link: Materials Project
Download: mp-28248.tar.gz

Harmonic properties

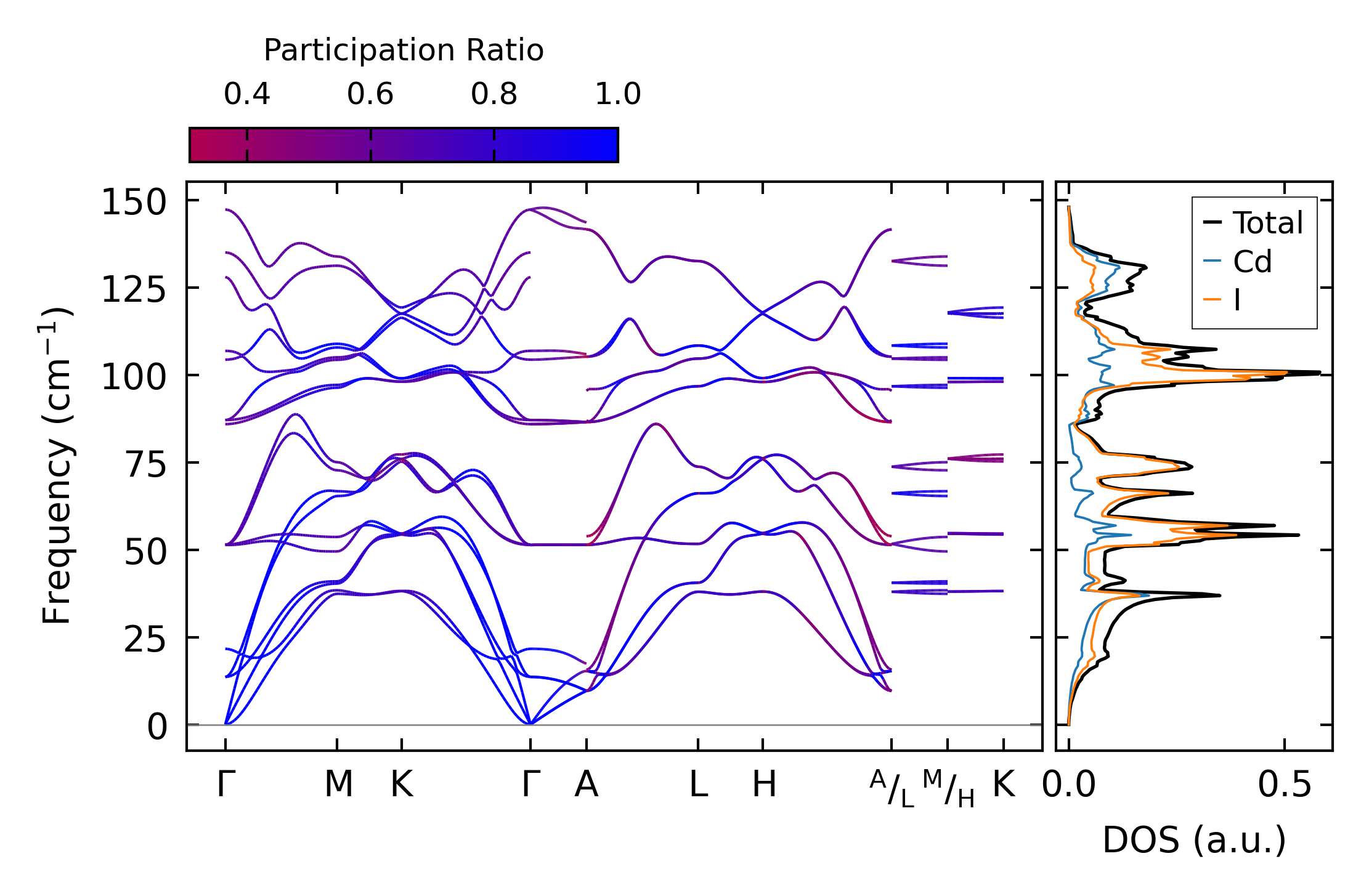

../../_images/fig_bandos_pr11770.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo11770.png — (b) Thermodynamic properties

Grüneisen parameters

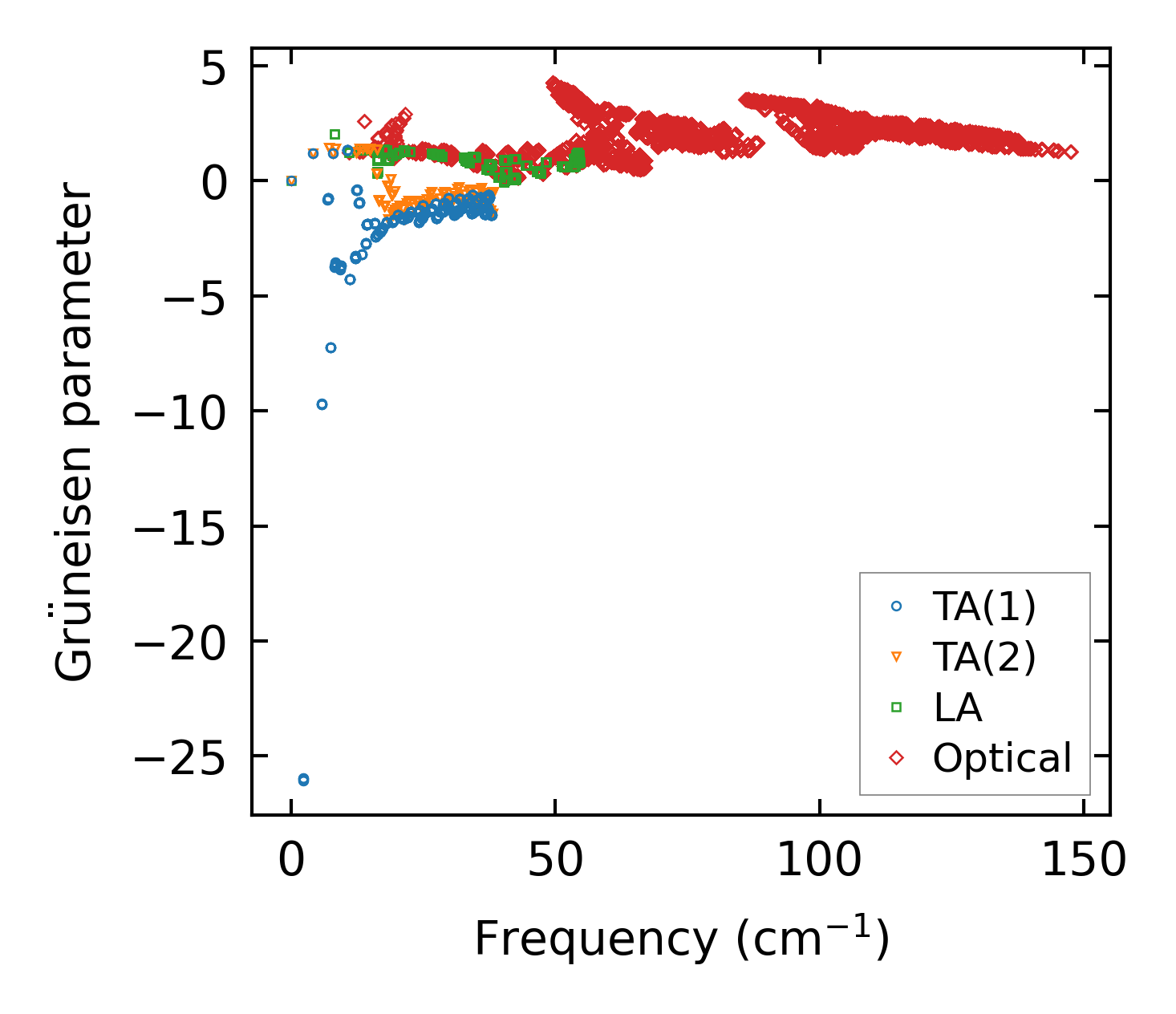

../../_images/fig_gru_all4902.png — (a) Grüneisen parameters

../../_images/fig_gruneisen4902.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 17x17x5, supercell: 4x4x1

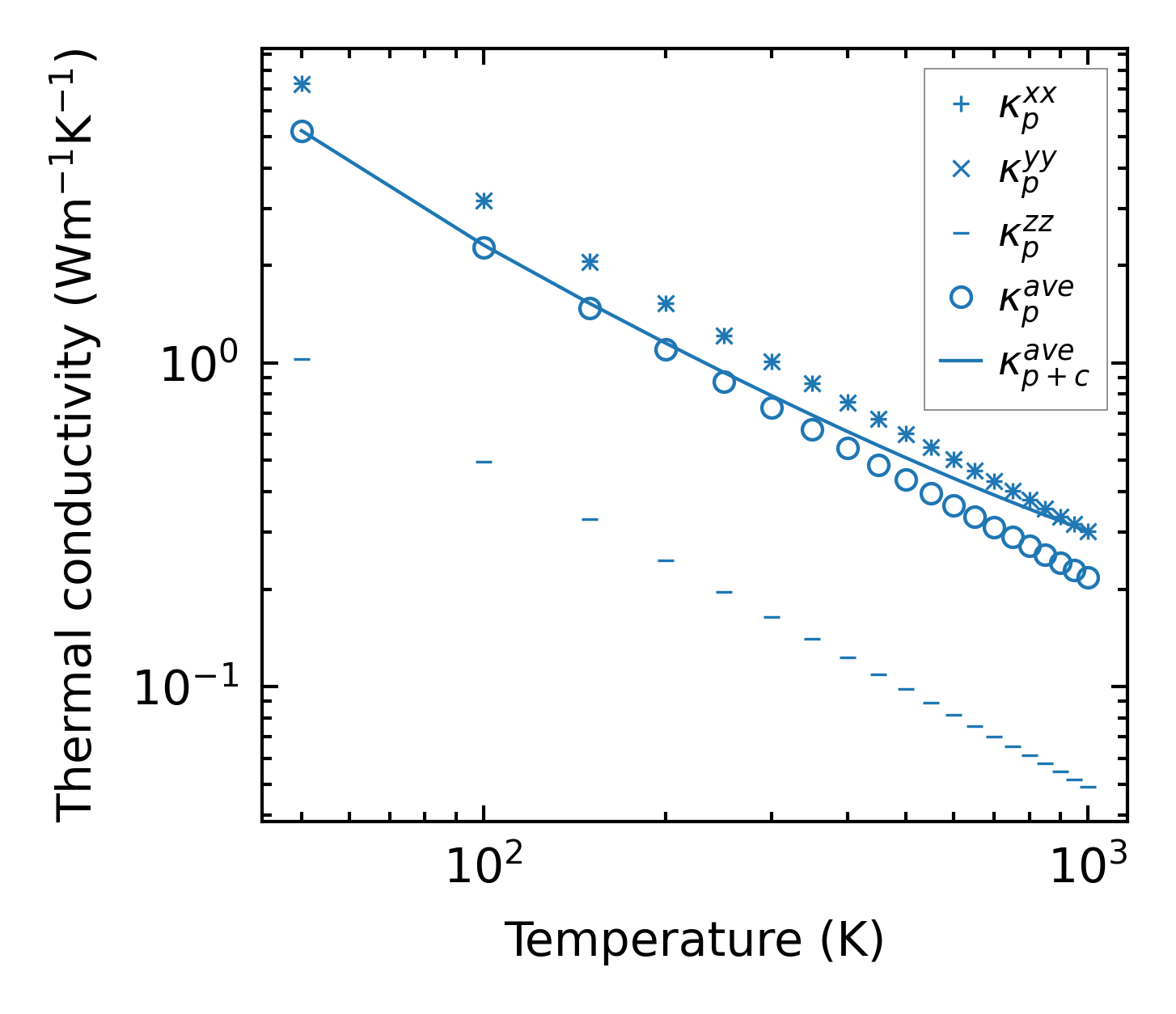

../../_images/fig_kappa9239.png — (a) Temperature-dependent lattice thermal conductivity

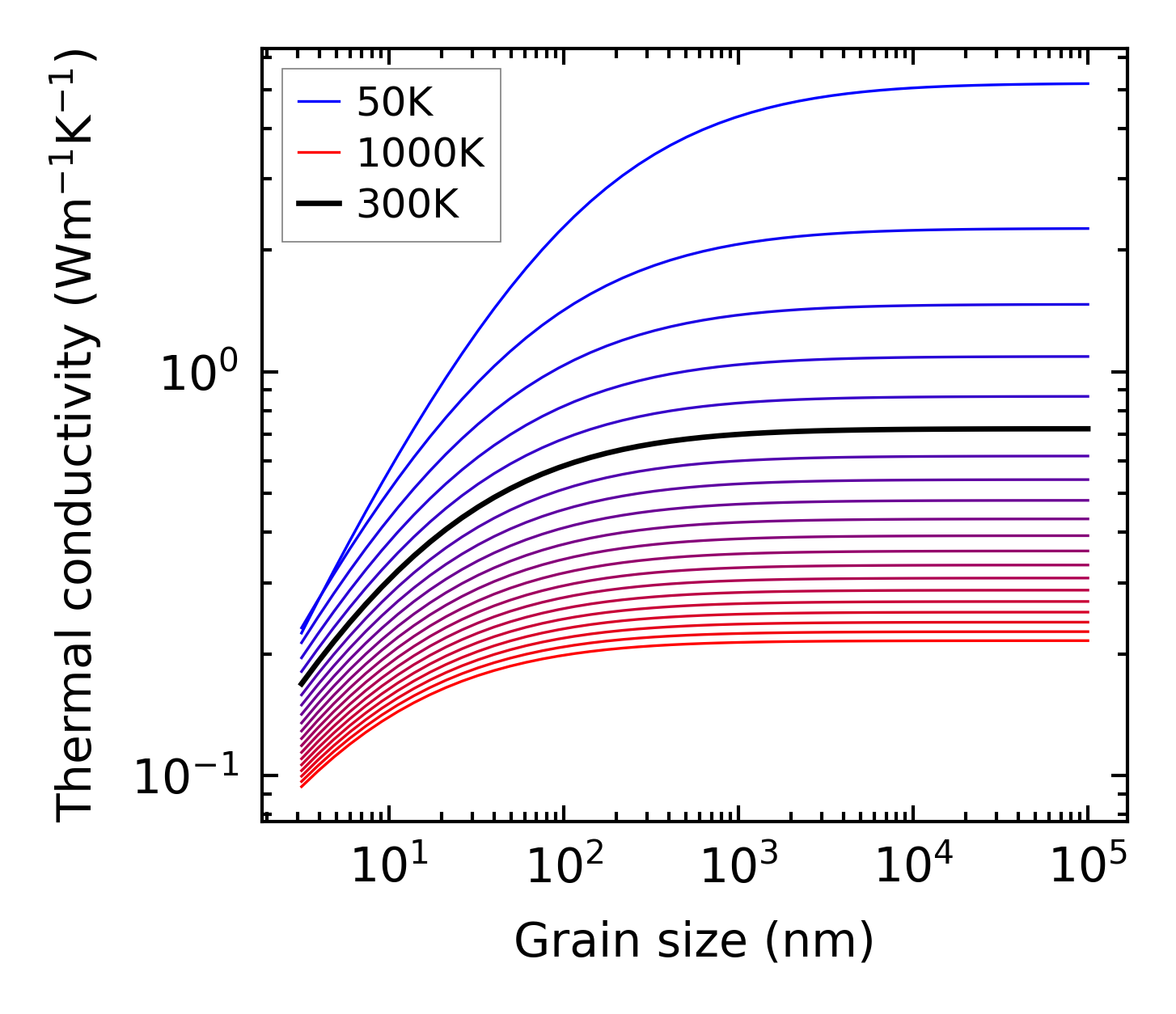

../../_images/fig_kappa_vs_grain_size4959.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

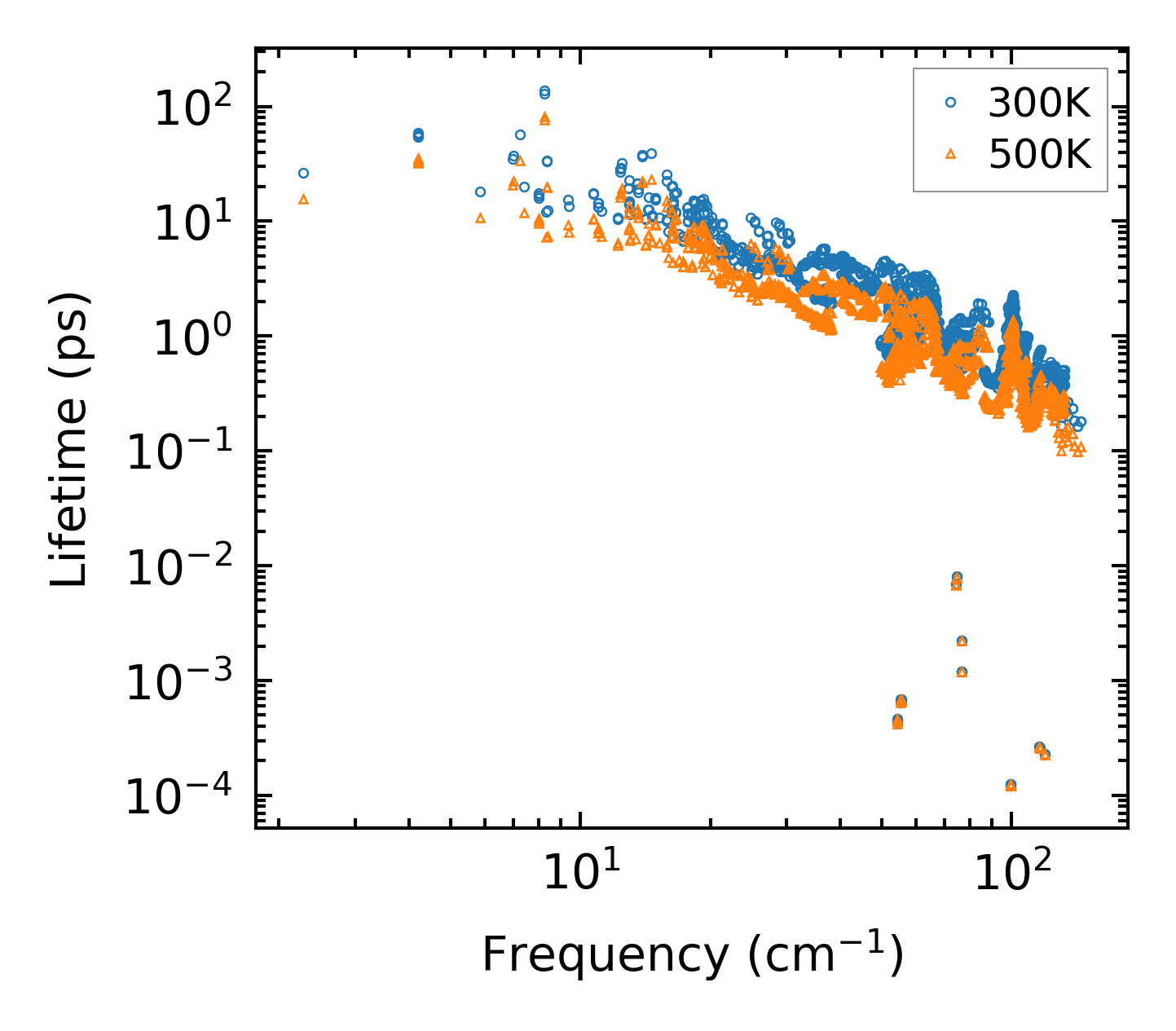

../../_images/fig_lifetime4853.png — (a) Phonon lifetime due to phonon-phonon scattering

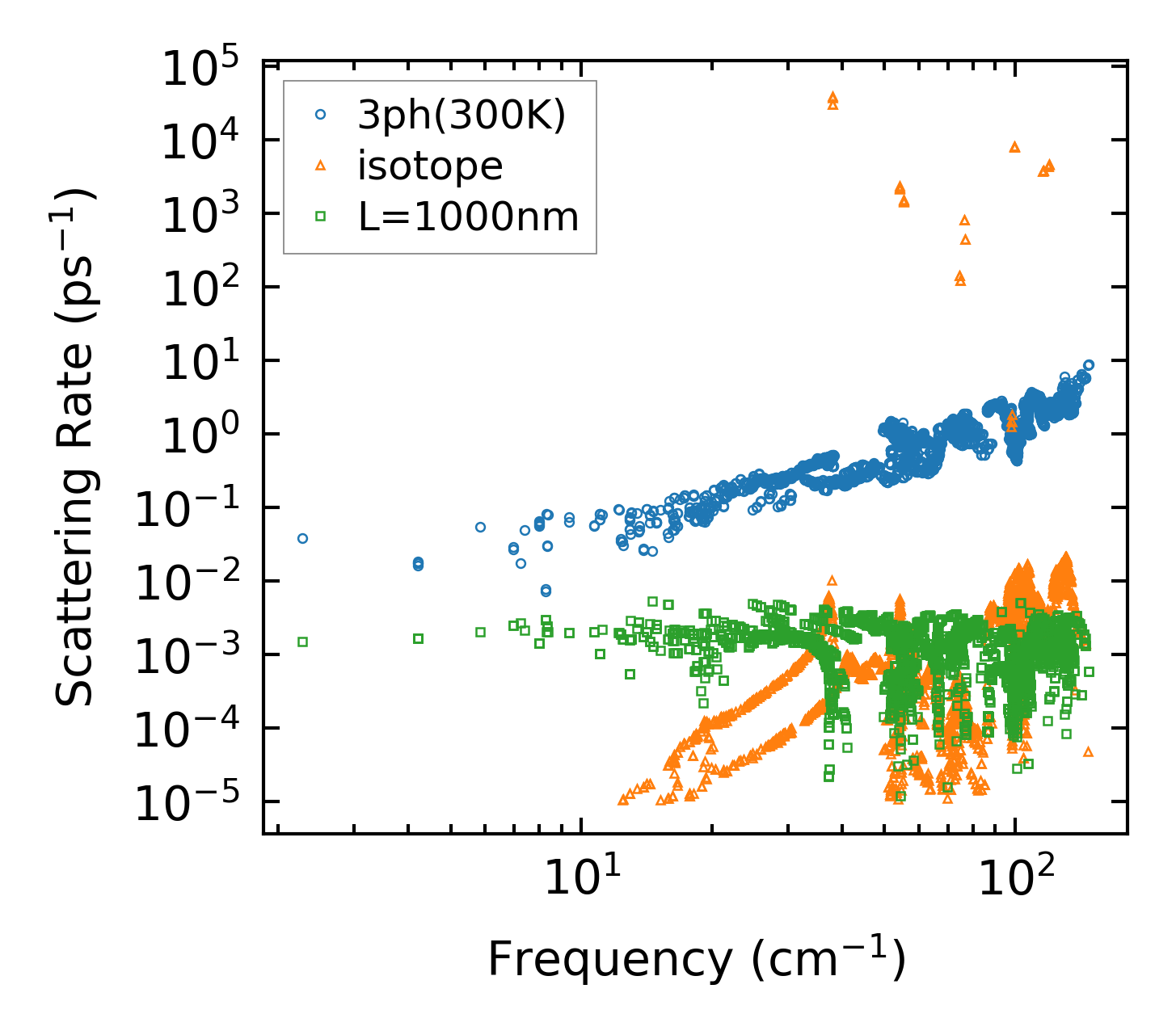

../../_images/fig_scat_rates4852.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

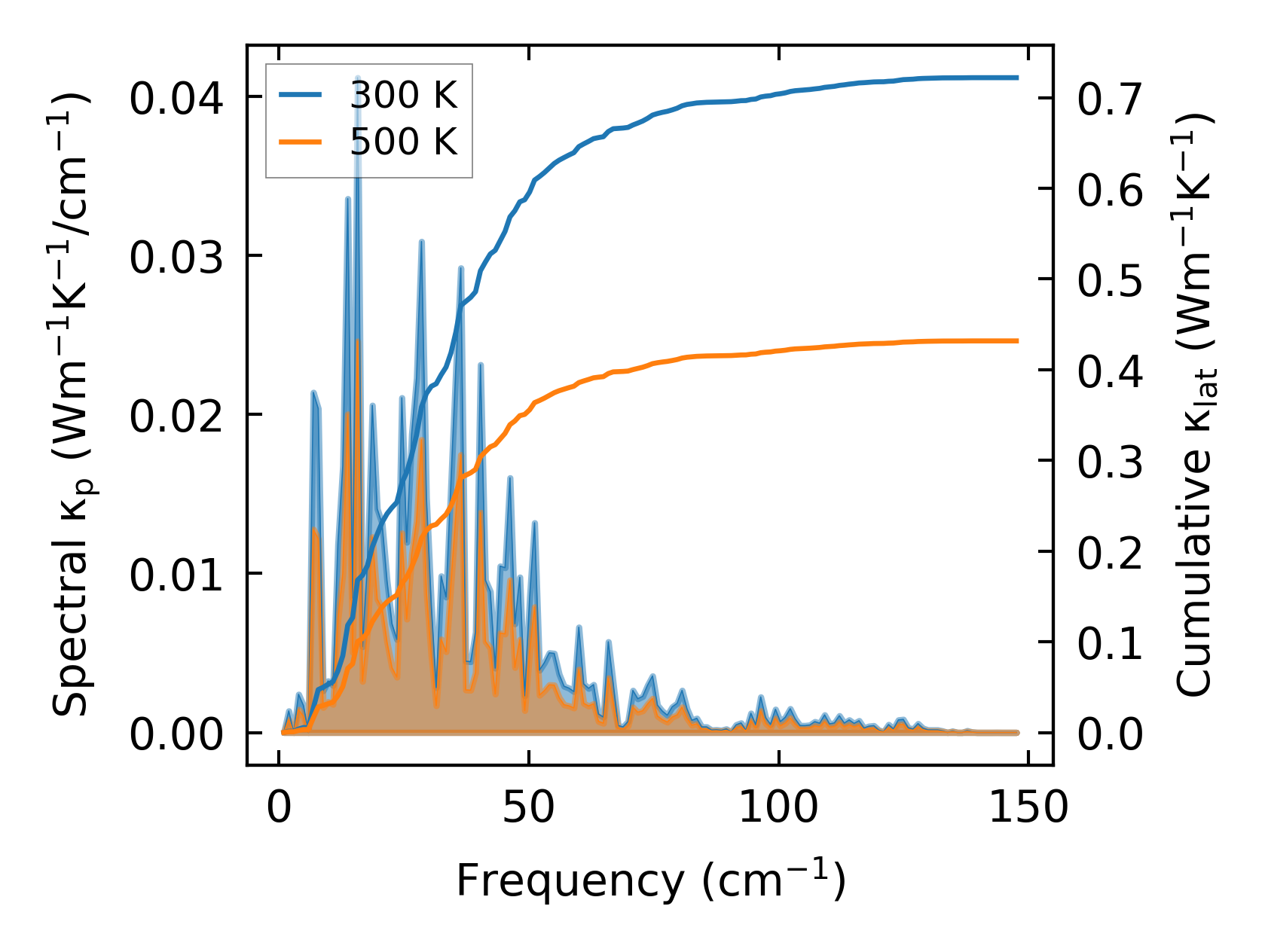

../../_images/fig_cumu_frequency4853.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp4852.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc211481.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa9240.png — (a) Temperature-dependent lattice thermal conductivity

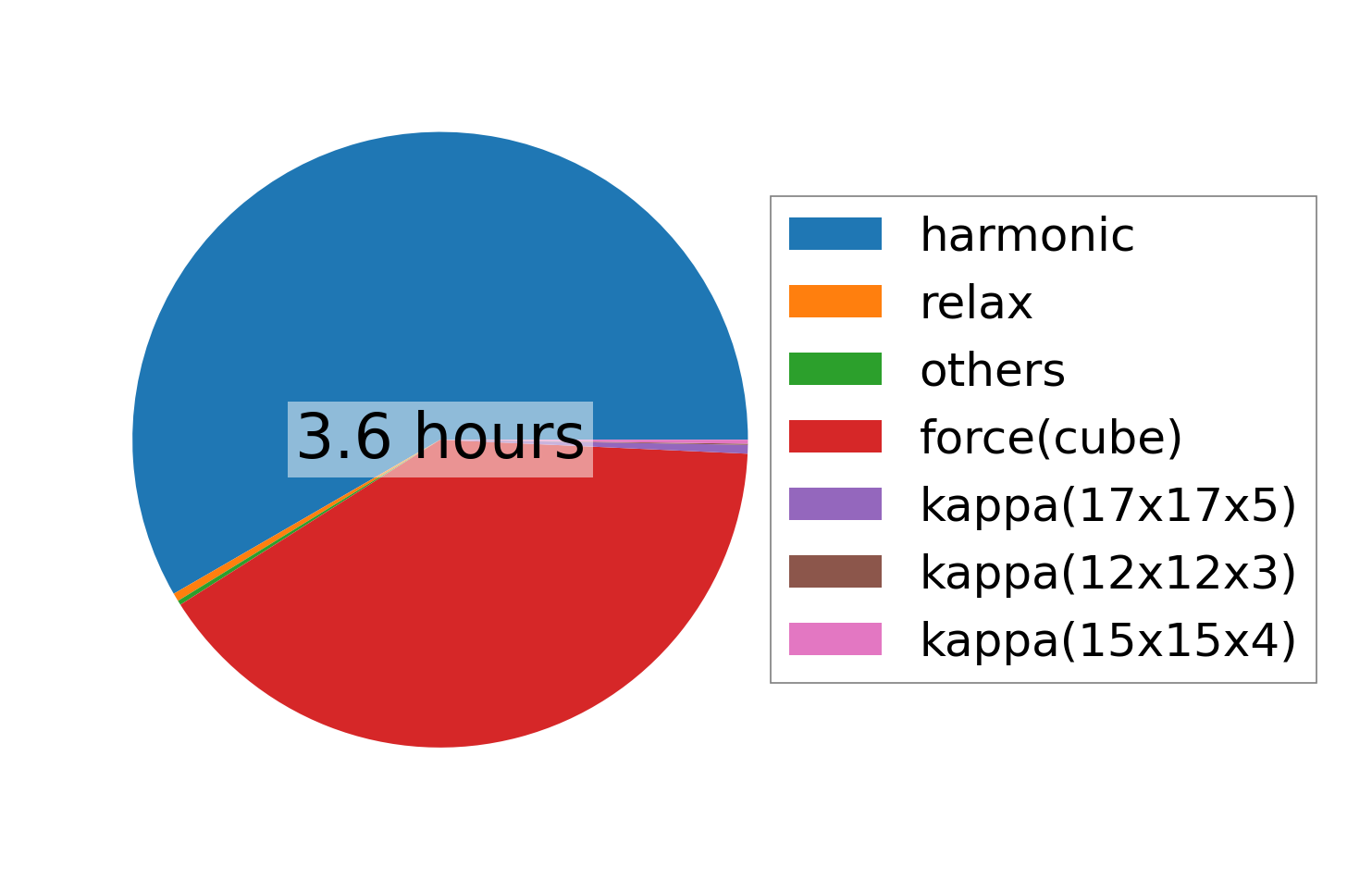

../../_images/fig_times19983.png — (b) Computation time
